Electrolux EWW12753 User manual

EWW12753
User ManualWasher - Dryer

Caution, risk of fire.
2 www.electrolux.com
CONTENTS
1.1 Conditions Of Use
1.2 Child Safety
1.3 Child Safety Device (Door Block Button)
1.4 General Safety
1.5 Installation
1.6 Use
1. SAFETY INFORMATION
........................................................................................................ 4
.................................................................................................................. 4
..................................................................... 5
............................................................................................................. 5
.................................................................................................................... 6
.............................................................................................................................. 6
2.1 Parts
2.2 Accessories
2.
PRODUCT DESCRIPTION
............................................................................................................................ 8
.................................................................................................................. 9
3.1 Control Panel Description
3.2 Display
3.3 Program Chart
3.4 Program Options Compatibility
3.5 Options
3.6 Settings
3.7 Start/Pause and Add Clothes Touchpad
3.
CONTROL PANEL
........................................................................................... 10
......................................................................................................................... 10
............................................................................................................. 11
..................................................................................... 12
........................................................................................................................ 12
........................................................................................................................ 15
.......................................................... 16
4.
BEFORE FIRST USE
...................................................................................................... 16
Visit our website to:
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
WE’RE THINKING OF YOU
CUSTOMER CARE AND SERVICE
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
We recommend the use of original spare parts. When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Get usage advice, brochures, troubleshooting, service information,
buy accessories & spare parts, online product registration : www.electrolux.com

3
CONTENTS
5.1 Loading The Laundry
5.2 Using Detergent And Additives
5.3 Options Setting
5.4 Starting A Cycle
5.5 Interruption Of A Program
5.6 Changing A Program
5.7 Changing The Options
5.8 Opening The Door
5.9 At The End Of The Program
5.10 When The Washing Program Is Completed, But There Is Water In The Drum
5.11 AUTO Standby Function
5.
DAILY USE - WASHING (Only)
.................................................................................................... 17
.................................................................................... 17
............................................................................................................ 19
............................................................................................................ 19
............................................................................................ 19
................................................................................................... 19
................................................................................................ 19
........................................................................................................ 19
........................................................................................ 20
......... 20
............................................................................................ 20
7.1 NON-STOP program: Washing Program + Dryness Option
7.2 NON-STOP program: Washing Program + Dry Time Option
7.
DAILY USE - WASHING & DRYING
.................................. 22
.................................. 22
6.
DAILY USE - DRYING (Only)
......................................................................................... 21
8.1 Washing
8.2 Drying
8.
WASHING & DRYING HINTS
....................................................................................................................... 23
........................................................................................................................... 25
10.1 External Cleaning
10.2 Descaling
10.3 After Each Wash
10.4 Maintenance Wash
10.5 Cleaning The Dispenser Drawer
10.6 Cleaning The Drawer Recess
10.7 Cleaning The Pump
10.8 Cleaning The Water Inlet Filter
10.9 Frost Precautions
10.
CARE AND CLEANING
....................................................................................................... 26
................................................................................................................... 26
........................................................................................................ 27
.................................................................................................... 27
................................................................................ 27
.................................................................................... 27
................................................................................................... 27
.................................................................................. 29
....................................................................................................... 30
11.1 Possible Failures
11.2 Emergency Door Opening
11.
TROUBLESHOOTING
....................................................................................................... 31
......................................................................................... 33
9.
INTERNATIONAL WASH CODE SYMBOLS
................................................................ 26
12.
TECHNICAL DATA
.......................................................................................................... 34
13.1 Unpacking
13.2 Positioning
13.3 Water Inlet
13.4 Water Drainage
13.5 Electrical Connection
.................................................................................................................. 35
................................................................................................................. 36
................................................................................................................. 37
......................................................................................................... 37
................................................................................................. 38
13.
INSTALLATION
14.1 Packaging Materials
14.2 Old Machine
14.3 Ecological Hints
................................................................................................... 38
............................................................................................................... 38
......................................................................................................... 38
............................................................................................................................. 39
14.
ENVIRONMENT CONCERNS
WARRANTY

4 www.electrolux.com
SAFETY INFORMATION
In the interest of your safety and to ensure the correct
use, before installation and first use of appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
Farm houses
By clients in serviced apartments, holiday apartments
and residential type environments.
1.1 Conditions Of Use
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
●
●
●
●
●
●
This washer-dryer is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation. Keep them out of children’s reach.
Keep all detergents in a safe place out of children’s
reach.
1.2 Child Safety

5
Make sure that children or pets do not climb into the
drum.
When you activate this device, you cannot close the
door. This prevents children or pets being locked in the
drum.

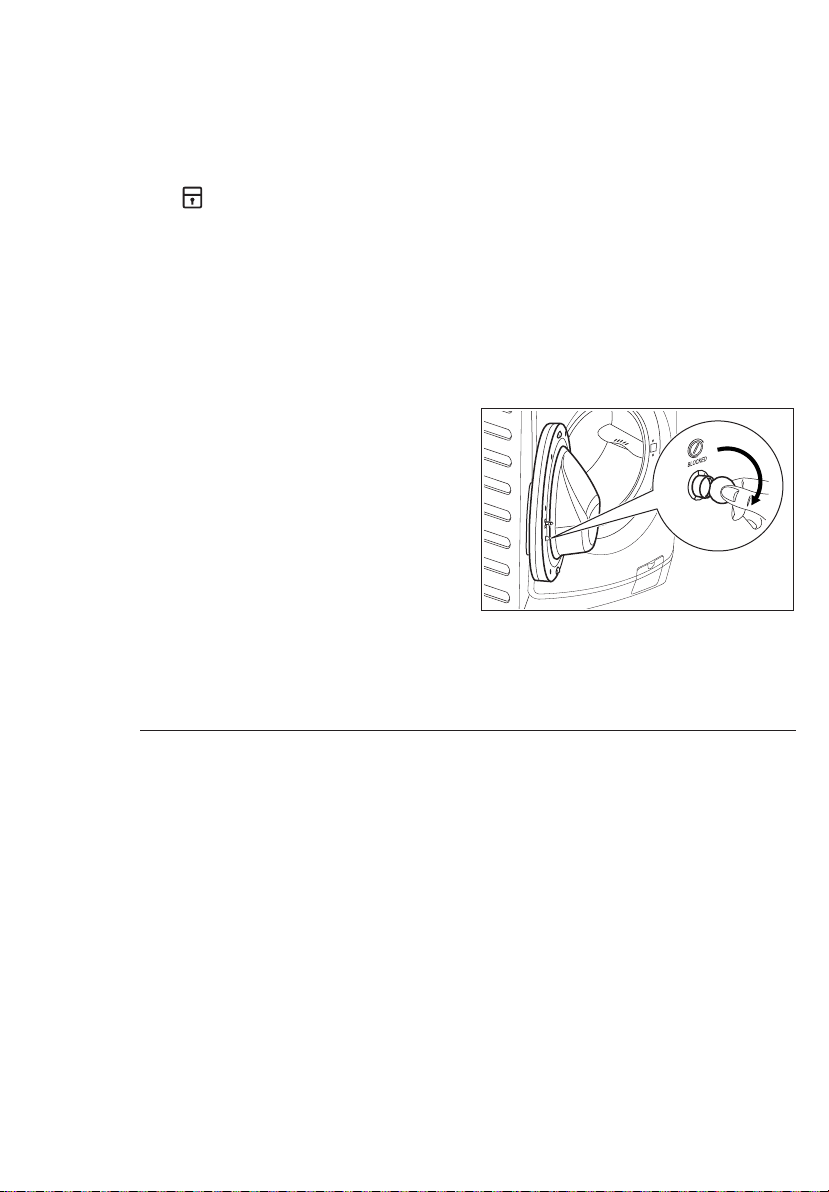

To disable this device and restore the possibility of
closing the door, rotate the button counter-clockwise
until the groove is vertical.
1.3 Child Safety Device (Door Block Button)
This machine is provided with child safety lock option
( ) to prevent children playing with the control
panel. (see page 15)
●
●
●
●
To activate this device,
rotate the button
(WITHOUT pressing it)
inside the door clockwise
until it stops. If necessary
use a coin.
1.4 General Safety
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program, the door glass may get hot.
Do not touch it.
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts, etc. in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your washer-dryer to
wash articles with whalebones,
material without hems or torn
material.
●
●
●
●
●
●
●
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●

6 www.electrolux.com
●
●
●
As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of their
bulk, please check with the manufac-
turer of the item before
washing/drying in a domestic
machine.
Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of
volatile nature and could cause an
explosion. Only tumble dry items
which have been washed in water or
require airring.
The users should always check that
they have not left their gas lighters
(disposable or otherwise) in their
clothing.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
This appliance is heavy. Please
handle with care when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
1.5 Installation
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be done by a
qualified plumber.
Any electrical work required to install
this appliance should be done by a
qualified electrician.
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal parts.
Never use the washer-dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washer-dryer is accessible.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which
it was designed.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
1.6 Use
●
●
●
●
●
●
●

7
●
●
●
●
●
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to withstand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
●
●
●
●
●
●
●
●
●
If it is unavoidable that fabrics contain
vegetable or cooking oil or have been
contaminated by hair care products
be placed in washer-dryer, it should
first be washed in hot water with extra
detergent - this will reduce, but not
eliminate the hazard. The “cool down”
cycle of washer-dryer is used to
reduce the temperature of the items.
It should not be removed from the
washer-dryer or piled or stacked while
hot.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to with stand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
Never use the washer-dryer if the
power supply cable, the control panel,
the working surface or the base are
damaged so that the inside of the
washer-dryer is accessible.
Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should not
placed in a washer-dryer. Oil-affected
items can ignite spontaneously,
especially when exposed to heat
sources such as in washer-dryer. The
items become warm, causing an
oxidation creates heat. If the heat
cannot escape, the items can become
hot enough to catch fire. Piling,
stacking or storing oil-affected items
can prevent heat from escaping and
so create a fire hazard.
Items containing foam rubber (also
known as latex foam) or similarly
textured rubber, like materials should
not be dried in a washer-dryer on a
heat setting.
Fabric softeners or similar products
should not be used in a washer-dryer
to eliminate the effects of static
electricity unless this practice is
specifically recommended by the
manufacturer of the fabric softener or
product.
Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer.
Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in washer-dryer.
Damage to the washer-dryer can
result if metal reinforcements come
loose during drying. When available a
drying rack could be used for such
itmes.
Foam rubber materials can, when
heated, produce fire by spontaneous
combustion.
Items that have been previously
cleaned in, washed in, soaked in or
spotted with petrol/gasoline, dry-
cleaning solvents or other flammable
or explosive substances should not be
placed in washer-dryer.
Highly flammable substances
commonly used in domestic environ-
ments include acetone, denatured
alcohol, petrol/gasoline, kerosine, spot
removers (some brands), turpentine,
waxes and wax removers.
Never stop a washer-dryer before
the end of the drying cycle unless all
items are quickly removed and
spread out so that the heat is
dissipated.
CAUTION!
-
Do not dry cloths in washer-dryer
with dry clean solvents. Also, do not
use laundry enhancement products
during the drying cycle.
To minimize the risk of fire in a
washer-dryer, the following should be
observed:
-

8 www.electrolux.com
PRODUCT DESCRIPTION2.
2.1 Parts
1Worktop
2Detergent/Softener Dispenser
3Control Panel
4Door
5Door Handle
7
9
6Drain Pump Filter
10
Rating Label
11
Child Safety Device
12
Transit Bolt
13
Mains Cable
14 Water Inlet Hose
Transit Bolts + Hose Support
15
16
Water Drain Hose
8Drum Lifter
All transit bolts (3 pcs) must be
removed before using the
appliance.
2 3
4
6
7
5
1
12
15
14
16
For more
information, see
page 28.
For more information, see page 17.
For more information, see
page 5.
9
8
10
13
11
Level Adjustment
Feet (Front)
Level Adjustment
Feet (Back)
CAUTION !

9
2.2 Accessories
To connect the drain
hose on the edge of a
sink.
Plastic Caps
To close the holes on
the rear side of the
cabinet after the removal
of the transit bolts.
Plastic Hose Guide
●
●
●
To remove the transit
bolts.
To adjust levelling legs.
Spanner

10 www.electrolux.com
CONTROL PANEL3.
1
2
3
4
5
7
8
6
Program Selection Knob
Temperature Selection Touchpad
Spin Selection Touchpad
Rinse Plus Option
Display
Dry Time Touchpad
Delay Start Touchpad
9
10
11
12
13
Dryness Touchpad
Start/Pause, Add Clothes Touchpad
Add Clothes Function Symbol
Time Manager Touchpad
14 Vapour Touchpad
Prewash Touchpad
Child Lock Option (see page 15)
A) Rinse Plus Icon
Child Lock Icon
Door Lock Icon
Dryness Level Icon
Vapour Icon
Drying Status Icon
Washing Status Icon
B)
C)
D)
E)
F)
G)
H)
3.2 Display
3.1 Control Panel Description
1 2 3 6 8
10 91314
5
1112
Digital
The level of Time Manager ( ).
-Wash/Dry Cycle Time
-
-
The alarm codes. Refer to the chapter
“Troubleshooting” for their description.
-Delay Start Time
A
FE
BH
GC
D
-If it is on, you cannot open the door.
-If it is off, you can open the door.
4 7

11
3.3 Program Chart
Program ;
Temperature
range
1) to 90°C
White and coloured cotton. (Adjust wash time
according to soil level. See Time Manager table
on page 14)
This position to reset program/switching off
the machine.
-
1.5 kg ; Clothes
tumble in vapour.
Type of load and soil level
Max. load
(Dry Clothes) ;
Max. Spin Speed
Synthetic or mixed fabric items. (Adjust wash
time according to soil level. See Time Manager
table on page 14)
30°C
Vapour
Refresh
Lightly soiled synthetics or mixed fabrics.
This cycle removes odours and helps to
dewrinkle the laundry.
to 60°C
to 40°C
to 40°C
30 °C, 40 °C
Specially tested program for woollen
garments bearing the “Pure new woollen,
non-shrink, machine washable” label.
Spin To spin the laundry and drain the water in the
drum.
Energy
Saver ;
40°C 2)
White and colourfast, cotton with normal soil.
Set this program to have a good washing
results and decrease the energy consumption.
The time of the washing program is extended.
Delicate fabrics such as acrylics, viscose,
polyester items. (Adjust wash time according to
soil level. See Time Manager table on page 14)
Non-Stop washing and drying program for
3 - 5 shirts with lightly soil.
Cottons ;
Off
Mixed ;
Delicates ;
WashDry 60 ;
Quick 18 ;
Wool ;
2) Energy Saver program with 40degC option selected is recommended to wash a normally
soiled cotton load at rated load capacity and is the water and energy rating label program.
1) Symbol “ ” represents Cold water.
7.5 kg (if drying option
combined, please
reduce to 4.5 kg) ;
1200 rpm
7.5 kg (if drying option
combined, please
reduce to 4.5 kg) ;
1200 rpm
7.5 kg (if drying option
combined, please
reduce to 4.5 kg) ;
1200 rpm
3.5 kg (if drying option
combined, please
reduce to 2.5 kg) ;
1200 rpm
3.5 kg ;
1200 rpm
1.5 kg ;
800 rpm
2 kg (if drying option
combined, please
reduce to 1 kg) ;
1200 rpm
1 kg ;
1200 rpm
Do not add detergent.
4.5 kg ;
Drying
Cottons Drying program for cotton items.
3 kg ;Drying Mixed Drying program for synthetic or mixed fabric
items

12 www.electrolux.com
1) Vapour option can be combined with temperature 40°C to 90°C only.
2) Do not select a spin speed LOWER than that proposed by the appliance to avoid a too long
drying time so saving energy. In any case the reduction of the spin speed is only possible after
selecting drying.
The door stays locked with the water in the drum. To continue the cycle,
you must press (Start/Pause).
Temperature Touchpad
Press this touchpad repeatedly to increase or decrease the wash temperature if you
want your laundry to be washed at a temperature different from the one proposed by
the washer-dryer.
Spin Selection Touchpad
●
●
Press this touchpad repeatedly to increase or decrease the spin speed or select Rinse
Hold, if you want your laundry to be spun at a speed different from the one proposed by
the washer-dryer.
No spin option eliminates all the spin phases and increase the number of rinses.
No Spin
By selecting this option, the water of the last rinse is not emptied out and the drum
turns regularly to prevent the laundry creases. The door is still locked to indicate that
the water must be emptied out.
Rinse Hold
3.5 Options
3.4 Program Options Compatibility
Program
Option
Cottons
Mixed
Delicates
WashDry 60
Vapour Refresh
Drying Cottons
Drying Mixed
Quick 18
Spin
Wool
Energy Saver
Spin
      
 
 
 

 
 












  
  

  






1)2) 2)
3)
3)
() Can select and disable option, (X) Cannot disable option.
No Spin Rinse Hold
3) This program can select only “Cupboard Dry” option.

13
●
●
●
Dry Time
NOTE
Dryness
If you wish to carry out a timed drying program, keep pressing this touchpad until the
desired time is reached.
Press this touchpad to set dryness level using auto sensing feature. The display will
show the selected option.
Extra dry
Maximum allowable timed drying changes based on wash program selected.
The final time value is the total duration of the washing + detachment + drying cycles.
Cupboard dry
Iron dry
-
-
At the end of the program the appliance performs the anti-crease phase for approx.
10 minutes. During this time, the display will show time remaining
“ ” and door is locked ( ).
-
Dryness level settings are based on wash program selected.
-
-The final time value is the total duration of the washing + detachment + drying cycles,
calculated on a default load size.
-At the end of the program the appliance performs the anti-crease phase for approx.
10 minutes. During this time, the display will show time remaining
“ ” and door is locked ( ).
Type of fabric Load
(kg)
Spin Speed
(rpm)
Suggested
Times (Hrs)
Cotton and linen
(bathrobes, bath towels, etc.).
Dry Time Option Guidelines:
4.5
2.5 - 4
2
1200
1200
1200
3 - 4
2 - 3
1 - 2
Synthetic or mixed fabric items
( jumpers, blouses, underwear, household
linen, etc.).
Wool and hand washable wool.
3
1
1200
1200
2 - 3
1
1 1200 2
Level of dryness Type of fabric Load
Extra Dry
Ideal for towels or similar
Suitable for items to put
away without ironing
Cotton and linen
(bathrobes, bath towels, etc) up to 4.5 kg
up to 4.5 kg
up to 4.5 kg
Cupboard Dry
Suitable for ironing
Iron Dry
Cotton and linen
(bathrobes, bath towels, etc)
Synthetics and mixed fabrics (jumpers,
blouses, underwear, household linen)
Cotton and linen
(sheets, tablecloths, shirts, etc.)
up to 3 kg
Dryness Option Guidelines:
NOTE

14 www.electrolux.com
●
●
●
●
●
●
●
●
If you wish to add laundry in the machine
during the delay time, press Start/Pause
touchpad to put the machine in pause
mode. Add laundry, close the door and
press Start/Pause touchpad again.
You can cancel the delay time at any
moment, by pressing “Delay Start”
touchpad repeatedly till the display shows
delay time “ ”, then press the
Start/Pause touchpad.
Delay Start
This option makes it possible to delay the
start of the program by 30 min, 60 min or
90 min and then by every hour from 2 to
19 hours.
The delay you have selected is indicated
on the display. The end time will increase
in order to show you the selected delay.
You must select this option after you have
set the program and before you press the
Start/Pause button.
The drying time can vary according to :
the final spin speed;
dryness level (Extra Dry or Cupboard
Dry or Iron Dry);
the type of laundry;
the size of load.
Duration of the drying cycle
To prevent the formation of
creases or shrinking of fabrics,
avoid excessive drying.
WARNING!
Should the laundry still be too wet
at the end of the program, set
another short drying cycle.
The final part of a washer- dryer
cycle occurs without heat (cool
down cycle). This ensures the
laundry will be left at a low
temperature.
Additional drying
Prewash Touchpad
Select this option if you wish your laundry
to be pre-washed before the main wash.
Use this option for heavy soil. The
indicator of this option will be on.
When you set this function, put the
detergent into the “ ” compartment.
This function increases the program
duration.
Rinse Plus Option
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft. Use
this option to add two rinse phases to a
program.
To activate this option, press “Dry Time
” and “Delay Start ” touchpads at
the same time until the display shows
the symbol “ ”.
To deactivate this option, press “Dry
Time ” and “Delay Start ”
touchpads at the same time until the
symbol “ ” goes off.
After drying fluffy fabrics, such as new
towels, it is advisable to perform a
“Maintenance Wash” (see page 27) to
ensure that any residue that may remain
in the tub is completely removed and
does not stick to garments dried
afterwards. After each drying cycle, clean
the drain pump filter. Please refer to care
and cleaning in section 10 “CARE AND
CLEANING”.
Fibre residue
Time Manager
This option allows you to adjust the wash
time. Press this touchpad repeatedly to
decrease or increase the wash time
according to the soil level of your wash.
Use the table below as a guide.
This option remains enabled even after
the appliance is switched off.
Soil Level Light Medium Normal Heavy
Wash Level

15
Select this option to add approximately
30 minutes of tumbling in vapour during
the wash cycle. Vapour helps open fabric
fibers up to allow laundry additives to
release tough stains. The indicator of this
option will be on.
Vapour Touchpad
Vapour may not necessarily be visible
inside the drum during a vapour wash
cycle. Vapour is created below the
drum and allowed to naturally rise into
the clothes.
At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may
notice vapour exiting from the drain
hose of the washer-dryer, this is
normal and there is no cause for
alarm.
Vapour may not be present during the
entire vapour wash cycle.
Vapour function is more effective with
half load.
NOTE:
●
●
●
●
3.6 Settings
Child Safety Lock Option
Your appliance is provided with CHILD
SAFETY LOCK which permits you to
leave the appliance unsupervised with
the door closed without having to worry
that children might be injured by or cause
damage to the appliance.
To activate the function, press
“Dry Time and Dryness ”
touchpads at the same time until the
display shows the symbol “ ”.
To set “Child Lock” option:
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when the
wash finished approximately 1 hour later,
it will not disturb you through the night.
Error warning beeps such as critical
faults are not disabled.
Enabling/Disabling End-Of-Wash
Buzzer
To deactivate the function, press
“Dry Time and Dryness ”
touchpads at the same time until the
symbol “ ” goes off.
This function remains enabled
even after the appliance is
switched off.
The touchpads are locked.
●
●
To disable the buzzer sound, press
“Dryness and Prewash ” touch-
pads at the same time for 3 seconds,
and listen for “BEEP, BEEP”.
To return to default configuration press
these 2 touchpads at the same time for 3
seconds, and listen for “BEEP”.
Set this option after pressing the
Start/Pause touchpad.

16 www.electrolux.com
Start/Pause and
Add Clothes Touchpad
This touchpad has 2 functions:
●Start/Pause
To interrupt a program which is
running, press this touchpad to pause
the machine, the Start/Pause pilot light
flashes.
After you have selected the desired
program and options, press this
touchpad to start the machine. The
Start/Pause pilot light will stop flashing
and remain lit until the water level is
above the bottom edge of the door
then pilot light goes OFF. If you have
selected a “Delay Start” option, the
countdown will begin and will be
shown in the display.
To restart the program from the point
at which it was interrupted, press this
touchpad again, the Start/Pause pilot
light will stop flashing.
●Add Clothes
While running a program, you may add
clothes by:
Pressing the “Start/Pause” touchpad
to pause the program.
You can only add clothes if
“Start/Pause” pilot light is lit.
-
Wait for the machine to come to a
complete stop before opening the
door.
-
Resume the program by pressing
“Start/Pause” touchpad again.
-
Add clothing and close the door.
-
BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.
Put 2 litres of water in the detergent
compartment for washing phase. This
activates the drain system.
1.
2.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine, to
remove any manufacturing residue
from the drum and tub then start the
machine.
3.7
During installation or before first use you
may observe some water in the machine.
This is a residual water left in the
machine after a full functional test in the
factory to ensure the machine is
delivered to customers in perfect working
order and is no cause for concern.
You cannot open the door if
the water inside the machine
drum are hot, the door remains
locked for your safety.
Although the LED light still
remain lit.

17
DAILY USE - WASHING (Only)5.
5.2
Detergent Dispenser Drawer
1.

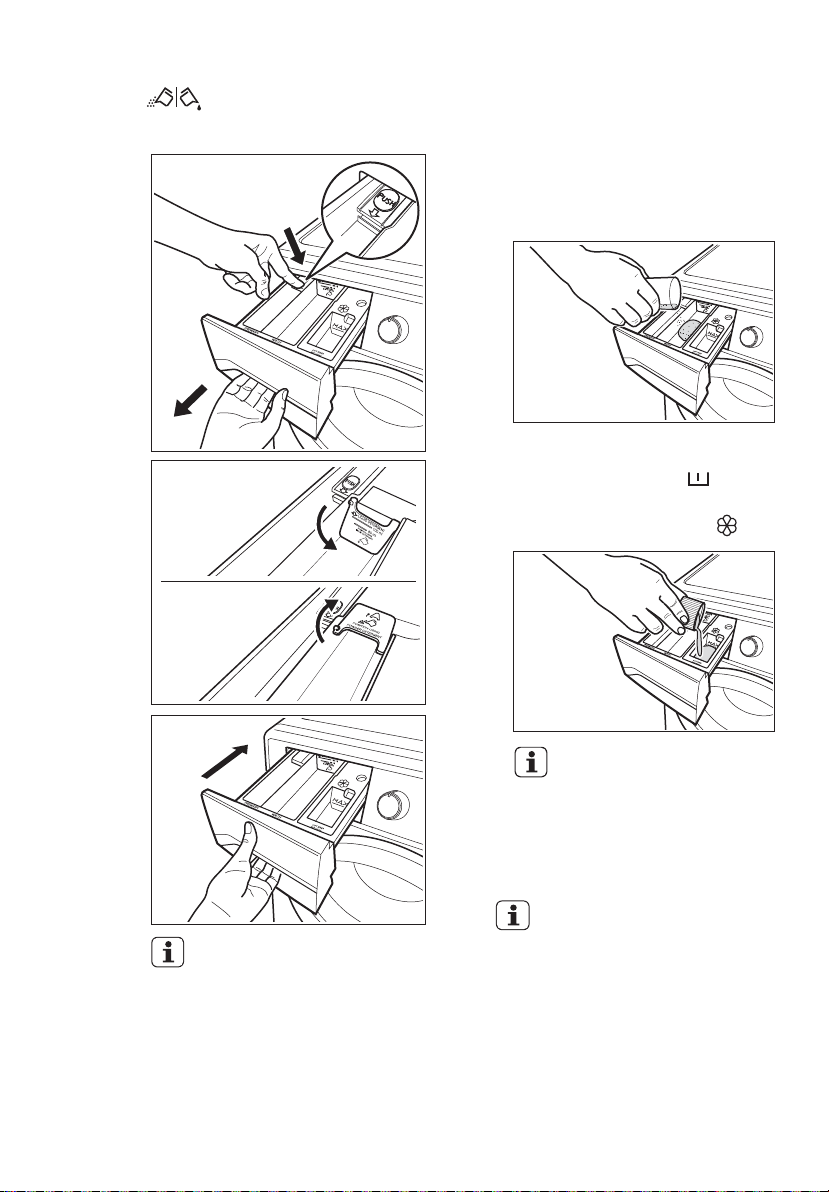

The detergent dispenser is divided
into three compartments.
Using Detergent And
Additives
IMPORTANT: Please read
“Detergents Type and
Quantity of Detergent”on
page 24 before use.
Turn the knob to set a program. The
washer-dryer will propose a tempera-
ture and automatically select the spin
value provided for the program you
have chosen.
1.
2.
5.1 Loading The Laundry
Connect the main plug to the main
socket.
Turn the water tap on.
3.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to page 23
“WASHING & DRYING HINTS”)
5.
Close the door.
6.
Check and remove objects (if there
are any) that could be trapped in the
fold.
4.
Make sure that no laundry
remains between the seal and
the door.
The selector knob can be turned either
clockwise or anticlockwise.
Position “Off” to reset program/
switching OFF the machine.
At the end of the program the selector
dial must be turned to position “Off”, to
switch the machine off.
CAUTION
Compartment “SOFTENER”
Compartment “PREWASH”
This compartment is used for fabric
conditioner and starching agent.
This compartment is only used for
detergent when a Prewash is
selected.
Compartment “MAIN WASH”
This compartment is used for
detergent on all programs.

18 www.electrolux.com
Measure out the amount of
detergent required, pour it into the
main wash compartment.
Do not use gelatinous or thick
liquid detergents.
-
Do not put more liquid than the
maximum level.
-
Do not set the “Delay Start”.
-
Do not set the “Prewash” phase.
-
When you use the liquid
detergent:
Pull out the dispenser drawer until
it stops.
-
-
Measure out the detergent and the
fabric softener;
2.
If you wish to carry out the
“Prewash” phase, pour it into the
compartment marked “ ”.
If required, pour fabric softener into
the compartment marked “ ”.
-
Close the drawer gently.
-
-
Residues of detergent, softener
and water may remain in the
dispenser. It is recommended
to clean the dispenser regularly
to remove any residue.
The amount used must not
exceed the “MAX” mark in
the drawer.
If you use thick softeners it is
recommended to dilute with
water.
1
2
3
Position down :
for liquid
detergent.
Position up :
for powder
detergent.
4
remove dispenser
drawer
Detergent flap
Flap for powder or liquid detergent.

19
If you want your laundry to be spun or
use temperature different from the one
proposed by the washer-dryer, pess the
Spin “ ” and the temperature “ ”
touchpads repeatedly to change the spin
speed and temperature. Press the
option touchpads, if you want your
laundry to be washed with special
functions.
Different functions can be combined
which is dependent on the program
selected.
If you want to adjust washing time, press
the “Time Manager ” touchpad
repeatedly to increase or decrease
washing time. See Time Manager guide
on page 14.
If you want to delay the start of the
washing program, press the “Delay
Start ” touchpad repeatedly to
choose your washer-dryer delay time.
5.3 Options Setting
To pause, press Start/ Pause . The
indicator will start flashing.
-
Press the Start/Pause again. The
program will continue.
-
-
-
5.5 Interruption Of A Program
It may be possible to change some of the
options after a wash program has started.
5.7 Changing The Options
Press the touchpad Start/Pause .
The indicator will start flashing.
1.
If available, change the options that
you wish.
2.
Press Start/Pause again. The
program will continue.
3.
1.
2.
While a program or the Delay Start is
operating, the appliance door is locked
and the display shows the indicator “ ”.
First, set the machine to PAUSE by
pressing the “Start/Pause ” touchpad.
Wait until the door lock indicator “ ”
goes off, then the door can be opened.
If the door lock indicator “ ” does not
disappear, this means that the machine
is already heating and the water level is
above the bottom edge of the door or the
drum is turning. In this case the door
CAN NOT be opened. If you need to
open it, you must drain the water to open
the door.
In case of emergency, please
refer to “Emergency door
opening” on page 33.
5.8 Opening The Door
NOTE
If an option is not compatible with the
wash program selected, symbol “ ”
will flash on display along with buzzer
sound.
If you turn the program selector knob to
another program when the machine is
working (except “Off” to switch off the
machine), symbol “ ” will flash on
display along with buzzer sound to
indicate a wrong selection. The machine
will not perform the new selected
program.
The appliance will automatically adjust
the selected program duration according
to the type and size of the load.
-
The display will show adjusted program
duration.
-
To start a program, press the Start/Pause
touchpad. The corresponding pilot light will
stop flashing and a default program duration
will be displayed on the screen.
5.4 Starting A Cycle ( )
After approx. 15 minutes from the
start of a program:
If you press any touchpad while a
program is operating, symbol “ ” will
flash on display along with buzzer sound.
(except “Start/Pause” touchpad)
-
-
Changing a running program is possible
only by resetting it.
Turn the program selector knob to the
position “Off” to cancel the program
and to turn off the appliance.
-
5.6 Changing A Program
Turn the program selector knob to the
new program position and change any
available options. Press Start/Pause
to start the new program.
The appliance will not drain the
water.
-

20 www.electrolux.com
When the program is completed and
the door lock indicator “ ” goes off,
you can open the door.
5.10 When The Washing
Program Is Completed, But
There Is Water In The Drum
(Option “Rinse Hold” is used)
The drum turns regularly to prevent
the creases in the laundry.
You must drain the water to open the
door.
The indicator “Start/Pause” flashes to
remind you to drain the water.
-
-
-
The appliance stops automatically.
The acoustic signal will operate.
The display will show “ ”.
The indicator of the touchpad
Start/Pause goes off.
-
-
-
-
-
-
-
-
The door lock indicator “ ” goes off.
Remove the laundry from the
appliance. Make sure that the drum is
empty.
Keep the door partly open, to prevent
the mildew and odours.
Turn off the water tap.
5.9 At The End Of The Program
At the end of the program, the time
remaining can suddenly decrease
from 7 minutes or less to 0 due to the
overestimated total program time
during the load sensing phase. In
some cases (with perfectly balanced
load) the program time can be shorter
than the time estimated after the load
sensing phase is completed. This is a
normal behavior of the machine and
not a cause for concern as it does not
compromise its performance.
NOTE:
The door lock indicator “ ” is on.
The door stays locked.
1.
To drain the water:
Press the “Start/Pause ” touchpad.
The appliance drains the water and
spins with the maximum spin speed
for selected program.
Alternatively, before pressing the
“Start/Pause ” touchpad, you can
press the “Spin ” touchpad to
change the spin speed. You can
select “No Spin ( )”, if you want the
machine to only drain the water.
2.
turn the program selector knob to the
position “Off” to deactivate the
appliance.
3.
After approximately 18 hours, if you do
not press Start/Pause touchpad, the
appliance will drain and spin automati-
cally (except for “Wool” program) .
All indicators and the display will
switch off.
The indicator of the touchpad
Start/Pause will flash slowly.
Press any touchpad to reactivate
the appliance.
AUTO Standby Function
5.11
The AUTO Standby mode automatically
deactivates the appliance to decrease
the energy consumption when:
You do not press any buttons for 5
minutes before you press
“Start/Pause”.
5 minutes after the washing program
ends, if you do not deactivate the
appliance, the energy saving function
activates.
Press any touchpad to
reactivate the appliance.
-
-
All indicators and the display will
switch off.
The indicator of the touchpad
Start/Pause will flash slowly.
-
-
Press any touchpad again to show
the last wash program.
Turn the selector knob to set a new
wash program.
-
-
-
Display will show the end of the last
wash.
Press “Start/Pause ” to start the
program.
