Electrolux EWW14023 User manual

EWW14023
User ManualWasher - Dryer
EN
VN Máy Giặt - Máy Sấy Khô Tài Liệu Hướng Dẫn Sử Dụng 40
2

Caution, risk of fire.
2 www.electrolux.com
CONTENTS
1.1 Conditions Of Use
1.2 Child Safety
1.3 Child Safety Device (Door Block Button)
1.4 General Safety
1.5 Installation
1.6 Use
1. SAFETY INFORMATION
........................................................................................................ 4
.................................................................................................................. 4
..................................................................... 5
............................................................................................................. 5
.................................................................................................................... 6
.............................................................................................................................. 6

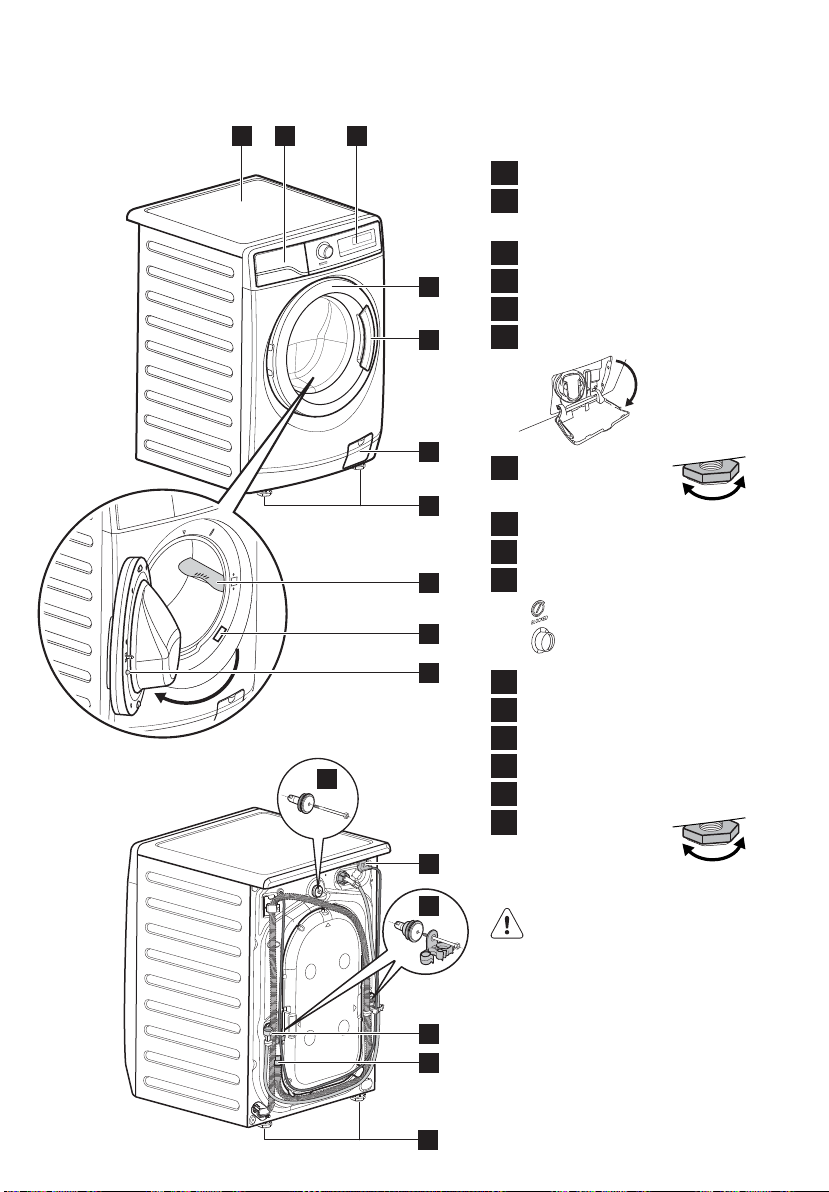

2.1 Parts
2.2 Accessories
2.
PRODUCT DESCRIPTION
............................................................................................................................ 8
................................................................................................................. 9

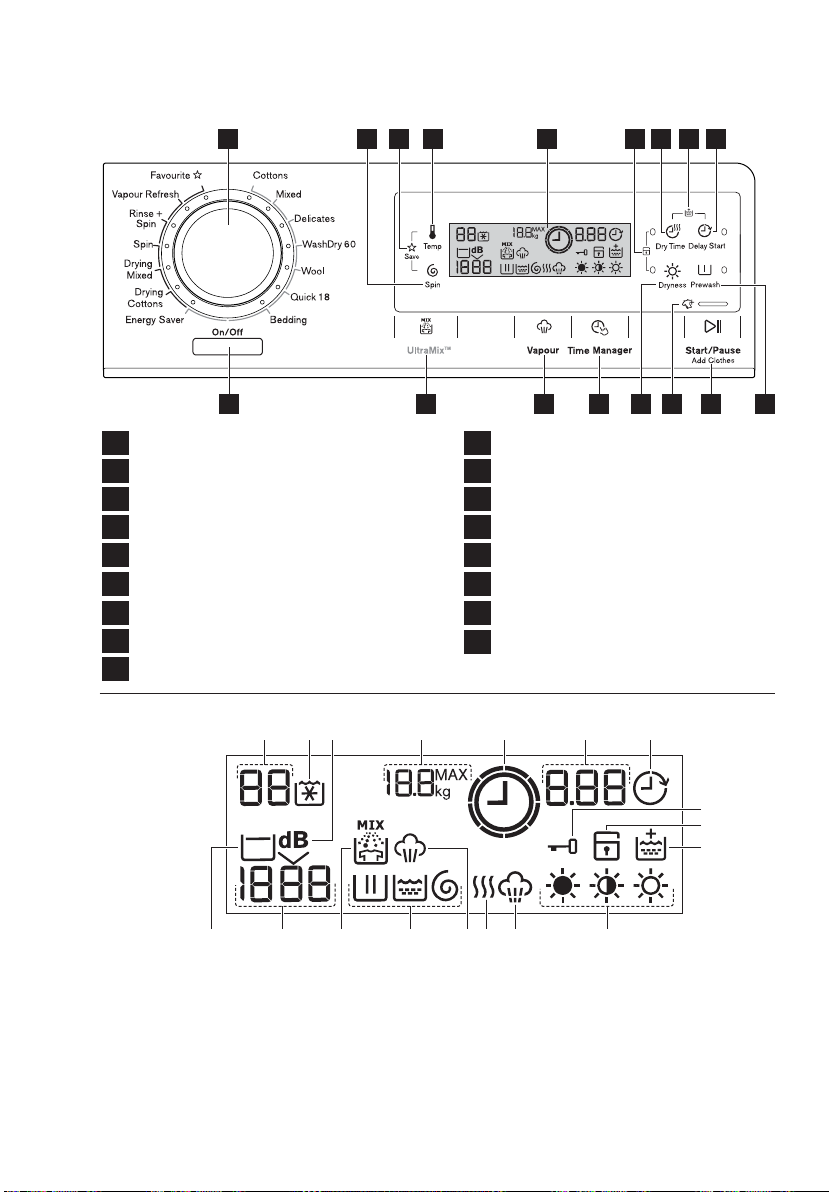

3.1 Control Panel Description
3.2 Display
3.3 Program Chart
3.4 Program Options Compatibility
3.5 Options
3.6 Settings
3.7 Start/Pause and Add Clothes Touchpad
3.
CONTROL PANEL
........................................................................................... 10
......................................................................................................................... 10
............................................................................................................. 11
..................................................................................... 12
........................................................................................................................ 13
........................................................................................................................ 15
.......................................................... 16
4.
BEFORE FIRST USE
...................................................................................................... 17
Visit our website to:
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
WE’RE THINKING OF YOU
CUSTOMER CARE AND SERVICE
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Get usage advice, brochures, troubleshooting, service information, buy
accessories & spare parts, online product registration : www.electrolux.com
Being ensured permissible content limitaon of some toxic chemicals
(RoHS compliant)
RoHS
Compliant

3
ENGLISH
CONTENTS
5.1 Loading The Laundry
5.2 Using Detergent And Additives
5.3 Options Setting
5.4 Starting A Cycle
5.5 Interruption Of A Program
5.6 Changing A Program
5.7 Changing The Options
5.8 Opening The Door
5.9 At The End Of The Program
5.10 When The Washing Program Is Completed, But There Is Water In The Drum
5.11 AUTO Off Mode
5.
DAILY USE - WASHING (Only)
.................................................................................................... 17
.................................................................................... 18
............................................................................................................ 19
............................................................................................................ 19
............................................................................................ 19
................................................................................................... 19
................................................................................................ 19
........................................................................................................ 19
........................................................................................ 20
......... 20
......................................................................................................... 20
7.1 NON-STOP program: Washing Program + Dryness Option
7.2 NON-STOP program: Washing Program + Dry Time Option
7.
DAILY USE - WASHING & DRYING
.............................. 22
............................. 22
6.
DAILY USE - DRYING (Only)
......................................................................................... 21
8.1 Washing
8.2 Drying
8.
WASHING & DRYING HINTS
....................................................................................................................... 23
........................................................................................................................... 25
10.1 External Cleaning
10.2 Descaling
10.3 After Each Wash
10.4 Maintenance Wash
10.5 Cleaning The Dispenser Drawer
10.6 Cleaning The Drawer Recess
10.7 Cleaning The Pump
10.8 Cleaning The Water Inlet Filter
10.9 Frost Precautions
10.
CARE AND CLEANING
....................................................................................................... 26
................................................................................................................... 26
........................................................................................................ 27
.................................................................................................... 27
................................................................................ 27
.................................................................................... 27
................................................................................................... 27
.................................................................................. 29
....................................................................................................... 30
11.1 Possible Failures
11.2 Emergency Door Opening
11.
TROUBLESHOOTING
....................................................................................................... 31
......................................................................................... 33
9.
INTERNATIONAL WASH CODE SYMBOLS
................................................................ 26
12.
TECHNICAL DATA
.......................................................................................................... 34
13.1 Unpacking
13.2 Positioning
13.3 Water Inlet
13.4 Water Drainage
13.5 Electrical Connection
.................................................................................................................. 35
................................................................................................................. 36
................................................................................................................. 37
......................................................................................................... 37
................................................................................................. 38
13.
INSTALLATION
14.1 Packaging Materials
14.2 Old Machine
14.3 Ecological Hints
................................................................................................... 39
............................................................................................................... 39
......................................................................................................... 39
14.
ENVIRONMENT CONCERNS

4 www.electrolux.com
SAFETY INFORMATION
In the interest of your safety and to ensure the correct
use, before installation and first use of appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
Farm houses
By clients in serviced apartments, holiday apartments
and residential type environments.
1.1 Conditions Of Use
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
●
●
●
●
●
●
This washer-dryer is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation. Keep them out of children’s reach.
Keep all detergents in a safe place out of children’s
reach.
1.2 Child Safety

5
ENGLISH
Make sure that children or pets do not climb into the
drum.
When you activate this device, you cannot close the
door. This prevents children or pets being locked in the
drum.
To disable this device and restore the possibility of
closing the door, rotate the button counter-clockwise
until the groove is vertical.
1.3 Child Safety Device (Door Block Button)
This machine is provided with child safety lock option
( ) to prevent children playing with the control
panel. (see page 16)
●
●
●
●

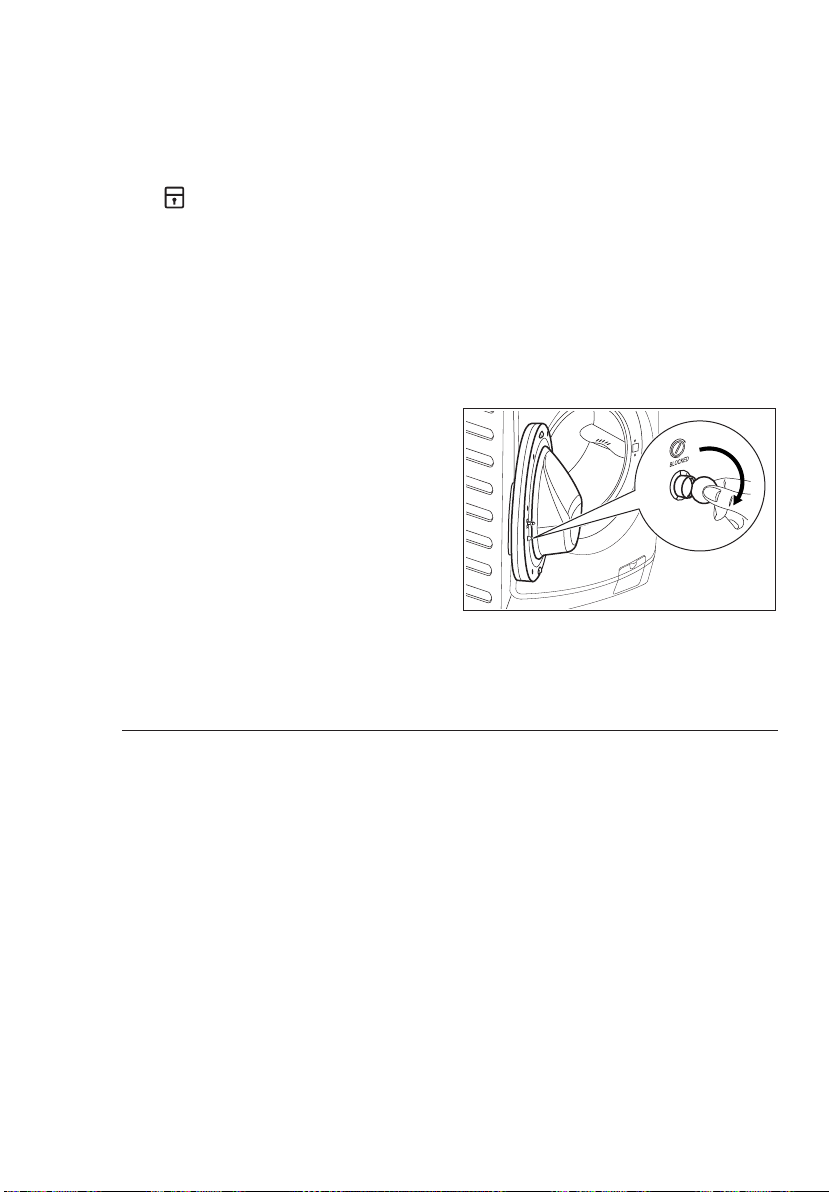

To activate this device,
rotate the button
(WITHOUT pressing it)
inside the door clockwise
until it stops. If necessary
use a coin.
1.4 General Safety
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program, the door glass may get hot.
Do not touch it.
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts, etc. in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your washer-dryer to
wash articles with whalebones,
material without hems or torn
material.
●
●
●
●
●
●
●
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●

6 www.electrolux.com
●
●
●
As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of their
bulk, please check with the manufac-
turer of the item before
washing/drying in a domestic
machine.
Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of
volatile nature and could cause an
explosion. Only tumble dry items
which have been washed in water or
require airring.
The users should always check that
they have not left their gas lighters
(disposable or otherwise) in their
clothing.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
This appliance is heavy. Please
handle with care when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
1.5 Installation
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be done by a
qualified plumber.
Any electrical work required to install
this appliance should be done by a
qualified electrician.
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal parts.
Never use the washer-dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washer-dryer is accessible.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which
it was designed.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
1.6 Use
●
●
●
●
●
●
●

7
ENGLISH
●
●
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to withstand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
●
●
●
●
●
●
●
●
If it is unavoidable that fabrics contain
vegetable or cooking oil or have been
contaminated by hair care products
be placed in washer-dryer, it should
first be washed in hot water with extra
detergent - this will reduce, but not
eliminate the hazard. The “cool down”
cycle of washer-dryer is used to
reduce the temperature of the items.
It should not be removed from the
washer-dryer or piled or stacked while
hot.
Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should not
placed in a washer-dryer. Oil-affected
items can ignite spontaneously,
especially when exposed to heat
sources such as in washer-dryer. The
items become warm, causing an
oxidation creates heat. If the heat
cannot escape, the items can become
hot enough to catch fire. Piling,
stacking or storing oil-affected items
can prevent heat from escaping and
so create a fire hazard.
Items containing foam rubber (also
known as latex foam) or similarly
textured rubber, like materials should
not be dried in a washer-dryer on a
heat setting.
Fabric softeners or similar products
should not be used in a washer-dryer
to eliminate the effects of static
electricity unless this practice is
specifically recommended by the
manufacturer of the fabric softener or
product.
Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer. Damage to the
washer-dryer can result if metal
reinforcements come loose during
drying. When available a drying rack
could be used for such itmes.
Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in washer-dryer.
Foam rubber materials can produce
fire by spontaneous combustion when
heated.
Items that have been previously
cleaned in, washed in, soaked in or
spotted with petrol/gasoline, dry-
cleaning solvents or other flammable
or explosive substances should not be
placed in washer-dryer.
Highly flammable substances
commonly used in domestic environ-
ments include acetone, denatured
alcohol, petrol/gasoline, kerosine, spot
removers (some brands), turpentine,
waxes and wax removers.
Never stop a washer-dryer before
the end of the drying cycle unless all
items are quickly removed and
spread out so that the heat is
dissipated.
CAUTION!
-
Do not dry cloths in washer-dryer
with dry clean solvents. Also, do not
use laundry enhancement products
during the drying cycle.
To minimize the risk of fire in a
washer-dryer, the following should be
observed:
-

8 www.electrolux.com
PRODUCT DESCRIPTION2.
2.1 Parts
PRODUCT DESCRIPTION2.
1Worktop
2Detergent/Softener Dispenser
3Control Panel
4Door
5Door Handle
7
9
6Drain Pump Filter
10
Rating Label
11
Child Safety Device
12
Transit Bolt
13
Mains Cable
14 Water Inlet Hose
Transit Bolts + Hose Support
15
16
Water Drain Hose
8Drum Lifter
All transit bolts (3 pcs) must be
removed before using the
appliance.
CAUTION !
2 3
4
6
7
5
1
12
15
14
16
For more
information, see
page 28.
For more information, see page 18.
For more information, see
page 5.
9
8
10
13
12
Level Adjustment
Feet (Front)
Level Adjustment
Feet (Back)

9
ENGLISH
2.2 Accessories
To connect the drain hose on the
edge of a sink.
Plastic Caps
To close the holes on the rear side
of the cabinet after the removal of
the transit bolts.
Plastic Hose Guide
●
●
We recommend to use ONLY Electrolux
approved parts and accessories.
Pedestal With The Drawer
(*Optional Extra*)
This part available from
Electrolux Store, please contact
your local Service Centre.
●
To place the appliance at a higher level
for easy loading and removing laundry.
The drawer can be used for laundry
storage e.g. towels, cleaning products
and more.
Read carefully the instructions supplied
with the accessory.

10 www.electrolux.com
1
2
3
4
5
7
8
6
9
10
11
12
CONTROL PANEL3.
Program Selection Knob
Temperature Selection Touchpad
Save Favourite Program
Spin Selection Touchpad
Dryness Touchpad
Rinse Plus Option
Display
Dry Time Touchpad
Delay Start Touchpad
Prewash Touchpad
Add Clothes Function Symbol
13
14
16
15
On/Off Button
17
Time Manager Touchpad
Vapour Touchpad
UltraMix Touchpad
Start/Pause, Add Clothes Touchpad
Child Lock Option (see page 16)
Wash Temperature
Cold Water Icon
Extra Silent Icon
Maximum Load Capacity Of Selected
Program
Time Manager Icon
Program Cycle Time/Delay Start Time
Delay Start Icon
Door Lock Icon
Child Lock Icon
A)
B)
C)
D)
E)
F)
G)
H)
I)
Rinse Plus Icon
Dryness Icon
Vapour Phase Icon
Drying Phase Icon
Vapour Icon
Washing Progress Icon
(Wash/Rinse/Spin)
Ultramix System Icon
Spin Speed
Rinse Hold Icon
J)
K)
L)
M)
N)
O)
P)
Q)
R)
3.2 Display
3.1 Control Panel Description
1 2 3 4 5 7 98
10121314 111516
6
17
A B C D E F G
LM
H
I
J
KQ OP NR

11
ENGLISH
3.3 Program Chart
Program ;
Temperature
range
1) to 90 °C
White and coloured cotton. (Adjust wash time
according to soil level. See Time Manager table
on page 15)
10 kg (if drying option
combined, please reduce
to 7 kg)
; 1400 rpm
4 kg
(if drying option
combined, please reduce
to 3 kg)
; 1200 rpm
4 kg ;
1200 rpm
1.5 kg ; Clothes
tumble in vapour.
-
Type of load and soil level
Max. load
(dry clothes) ;
Max. Spin Speed
Synthetic or mixed fabric items. (Adjust wash
time according to soil level. See Time Manager
table on page 15)
Vapour Refresh
This cycle removes odours and helps to
dewrinkle the laundry.
to 60 °C
to 40 °C
Delicate fabrics such as acrylics, viscose,
polyester items. (Adjust wash time according to
soil level. See Time Manager table on page 15)
Cottons ;
Mixed ;
Delicates ;
Non-Stop washing and drying program for
3 - 5 shirts with lightly soil.
1 kg ;
1200 rpm
WashDry 60 ;
7 kg ;
30 °C, 40 °C
Favourite Recall you favourite program.
Drying Cottons Drying program for cotton items.
3 kg ;
Drying Mixed Drying program for synthetic or mixed fabric
items
Do not add detergent.
1) Symbol “ ” represents Cold water.
2 kg (if drying option
combined, please reduce
to 1 kg)
; 1200 rpm
to 40 °C
Specially tested program for woollen
garments bearing the “Pure new woollen,
non-shrink, machine washable” label.
Wool ;
1.5 kg ;
800 rpm
30 °C Lightly soiled synthetics or mixed fabrics.
Quick 18 ;
3 kg ;
800 rpm
to 60 °C
Bedding ;
Special program for one synthetic blanket,
duvet, bedspread and so on. (Adjust wash
time according to soil level. See Time
Manager table on page 15)
10 kg (
if drying option
combined, please reduce
to
7 kg) ; 1400 rpm
Energy Saver ;
40 °C , 60 °C
White and colourfast cotton. Set this
program to have a good washing results
and decrease the energy consumption. The
time of the washing program is extended.
10 kg
(if drying option
combined, please reduce
to 7 kg)
; 1400 rpm
Spin To spin the laundry and drain the water in
the drum.
10 kg
(if drying option
combined, please reduce
to 7 kg)
; 1400 rpm
Rinse + Spin To rinse and spin the laundry.

12 www.electrolux.com
3.4 Program Options Compatibility
Program
Option
Cottons
Mixed
Delicates
WashDry 60
Vapour Refresh
Drying Cottons
Drying Mixed
Quick 18
Spin
Rinse + Spin
Bedding
Wool
Energy Saver
Spin
         
  
 
 




 
 
















    
   


   
X
  
X
X
X







1) Vapour option can be combined with temperature 40°C to 90°C only.
2) Do not select a spin speed LOWER than that proposed by the appliance to avoid a too long
drying time so saving energy. In any case the reduction of the spin speed is only possible after
selecting drying.
3) This program can select only “Cupboard Dry” option.
1)2) 2)
() Can select and disable option, (X) Cannot disable option.
3)
3)

13
ENGLISH
Dry Time
If you wish to carry out a timed drying program, keep pressing this touchpad until the
desired time is reached.
Maximum allowable timed drying changes based on wash program selected.
The final time value is the total duration of the washing + detachment + drying cycles.
-
-
At the end of the program the appliance performs the anti-crease phase for approx.
10 minutes. During this time, the display will show time remaining
“ ” and door is locked ( ).
-
Type of fabric Load
(kg)
Spin Speed
(rpm)
Suggested
Times (Hrs)
Cotton and linen
(bathrobes, bath towels, etc.).
Dry Time Option Guidelines:
6 - 7
4 - 5
2
1400
1400
1400
3 - 4
2 - 3
1 - 2
Synthetic or mixed fabric items
(jumpers, blouses, underwear, household
linen, etc.).
Wool and hand washable wool.
3
1
1200
1200
2 - 3
1
1 1200 2
The door stays locked with the water in the drum. To continue the cycle,
you must press (Start/Pause).
Temperature Touchpad
Press this touchpad repeatedly to increase or decrease the wash temperature if you
want your laundry to be washed at a temperature different from the one proposed by
the washer-dryer.
Spin Selection Touchpad
●
●
●
Press this touchpad repeatedly to increase or decrease the spin speed or select Rinse
Hold, if you want your laundry to be spun at a speed different from the one proposed by
the washer-dryer.
No spin option eliminates all the spin phases and increase the number of rinses.
No Spin
By selecting this option, the machine will not drain the water of the last rinse to avoid
wrinkling the laundry. All spinning phases are suppressed. This washing cycle is
very quiet, and can be selected at night or other appropriate times.
Extra Silent
By selecting this option, the water of the last rinse is not emptied out and the drum
turns regularly to prevent the laundry creases. The door is still locked to indicate that
the water must be emptied out.
The door stays locked with the water in the drum. To continue the cycle,
you must press (Start/Pause).
Rinse Hold
3.5 Options

14 www.electrolux.com
●
●
●
●
●
●
If you wish to add laundry in the machine
during the delay time, press Start/Pause
touchpad to put the machine in pause
mode. Add laundry, close the door and
press Start/Pause touchpad again.
Delay Start
This option makes it possible to delay the
start of the program by 30 min, 60 min or
90 min and then by every hour from 2 to
19 hours.
The delay you have selected is indicated
on the display. The end time will increase
in order to show you the selected delay.
You must select this option after you have
set the program and before you press the
Start/Pause button.
Dryness
Press this touchpad to set dryness level using auto sensing feature. The display will
show the selected option.
Dryness level settings are based on wash program selected.
-
-The final time value is the total duration of the washing + detachment + drying cycles,
calculated on a default load size.
-At the end of the program the appliance performs the anti-crease phase for approx.
10 minutes. During this time, the display will show time remaining
“ ” and door is locked ( ).
The drying time can vary according to :
the final spin speed;
dryness level (Extra Dry or Cupboard
Dry or Iron Dry);
the type of laundry;
the size of load.
Duration of the drying cycle
To prevent the formation of
creases or shrinking of fabrics,
avoid excessive drying.
WARNING!
Should the laundry still be too wet
at the end of the program, set
another short drying cycle.
The final part of a washer- dryer
cycle occurs without heat (cool
down cycle). This ensures the
laundry will be left at a low
temperature.
Additional drying
Level of dryness Type of fabric Load
Extra Dry
Ideal for towels or similar
Suitable for items to put
away without ironing
Cotton and linen
(bathrobes, bath towels, etc) up to 7 kg
Cupboard Dry
Suitable for ironing
Iron Dry
Cotton and linen
(bathrobes, bath towels, etc)
Synthetics and mixed fabrics (jumpers,
blouses, underwear, household linen)
Cotton and linen
(sheets, tablecloths, shirts, etc.)
up to 7 kg
up to 7 kg
up to 3 kg
Dryness Option Guidelines:
After drying fluffy fabrics, such as new
towels, it is advisable to perform a “Rinse”
program to ensure that any residue that
may remain in the tub is completely
removed and does not stick to garments
dried afterwards. After each drying cycle,
clean the drain pump filter. Please refer to
care and cleaning in section 10 “CARE
AND CLEANING”.
Fibre residue
●
●
●
Extra dry
Cupboard dry
Iron dry

15
ENGLISH
●
●
You can cancel the delay time at any
moment, by pressing “Delay Start”
touchpad repeatedly till the display shows
delay time “ ”, then press the
Start/Pause touchpad.
Prewash Touchpad
Select this option if you wish your laundry
to be pre-washed before the main wash.
Use this option for heavy soil. The
indicator of this option will be on.
When you set this function, put the
detergent into the “ ” compartment.
This function increases the program
duration.
Rinse Plus Option
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft. Use
this option to add two rinse phases to a
program.
To activate this option, press “Dry Time
” and “Delay Start ” touchpads at
the same time until the display shows
the symbol “ ”.
To deactivate this option, press “Dry
Time ” and “Delay Start ”
touchpads at the same time until the
symbol “ ” goes off.
Time Manager Touchpad
This option allows you to adjust the wash
time. Press this touchpad repeatedly to
decrease or increase the wash time
according to the soil level of your wash.
Use the table below as a guide.
Soil Level Light Medium Normal Heavy
Wash Level
Select this option to add approximately
30 minutes of tumbling in vapour during
the wash cycle. Vapour helps open fabric
fibers up to allow laundry additives to
release tough stains. The indicator of this
option will be on.
Vapour Touchpad
Vapour may not necessarily be visible
inside the drum during a vapour wash
cycle. Vapour is created below the
drum and allowed to naturally rise into
the clothes.
At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may
notice vapour exiting from the drain
hose of the washer-dryer, this is
normal and there is no cause for
alarm.
Vapour may not be present during the
entire vapour wash cycle.
Vapour function is more effective with
half load.
NOTE:
●
●
●
●
When you select this option, the detergent
is blended and dissolved in water within a
“pre-mixing technology” chamber. This will
activate the active ingredients of the
detergent before circulating the water onto
the clothes.
UltraMix
This option is strongly recommended
for Cold wash.
As “UltraMix ” feature enhances
the detergent activation. Please
reduce the detergent dosage if you
see foam covering the glass door
completely.
NOTE:
Save Favourite Program
Program settings that are frequently used
can be saved (e.g. Cotton, 60°C, 1200
rpm, with Prewash and Rinse Plus).
To program/re-program Favourite with
your own selections and save them,
proceed as follows:
1. Put machine in Stand-By mode.
2. Select your desired wash settings.
3.6 Settings
This option remains enabled even after
the appliance is switched off.

16 www.electrolux.com
To recall the favourite wash program,
press “Favourite ” program.
You will get acknowledgement on the
screen when the Favourite program is
loaded.
You can recall a favourite wash program
ONLY when the washer-dryer is in the
program selection mode. Otherwise
touching Favourite will have no effect.
3. To save favourite program, press
“Temp” and “Spin” touchpads at the
same time until the display shows the
wording “Program Saved”.
Child Safety Lock Option
Your appliance is provided with CHILD
SAFETY LOCK which permits you to
leave the appliance unsupervised with
the door closed without having to worry
that children might be injured by or cause
damage to the appliance.
Set this option after pressing the
Start/Pause touchpad.
Start/Pause and
Add Clothes Touchpad
To activate the function, press
“Dry Time and Dryness ”
touchpads at the same time until the
display shows the symbol “ ”.
To set “Child Lock” option:
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish
to disable this buzzer when you start a
wash when going to bed, so that when the
wash finished approximately 1 hour later,
it will not disturb you through the night.
Error warning beeps such as critical
faults are not disabled.
Enabling/Disabling End-Of-Wash
Buzzer
To deactivate the function, press
“Dry Time and Dryness ”
touchpads at the same time until the
symbol “ ” goes off.
This function remains enabled
even after the appliance is
switched off.
The touchpads are locked
(except for the On/Off button).
●
●
This touchpad has 2 functions:
To disable the buzzer sound, press
“Dryness and Prewash ” touchpads
at the same time for 3 seconds, and listen
for “BEEP, BEEP”.
To return to default configuration press
these 2 touchpads at the same time for 3
seconds, and listen for “BEEP”.
●Start/Pause
To interrupt a program which is
running, press this touchpad to pause
the machine, the Start/Pause pilot
light flashes.
After you have selected the desired
program and options, press this
touchpad to start the machine. The
Start/Pause pilot light will stop flashing
and remain lit until the water level is
above the bottom edge of the door
then pilot light goes OFF. If you have
selected a “Delay Start” option, the
countdown will begin and will be
shown in the display.
To restart the program from the point
at which it was interrupted, press this
touchpad again, the Start/Pause
pilot light will stop flashing.
●Add Clothes
While running a program, you may add
clothes by:
Pressing the “Start/Pause ”
touchpad to pause the program.
You can only add clothes if
“Start/Pause” pilot light is lit.
-
Wait for the machine to come to a
complete stop before opening the
door.
-
Resume the program by pressing
“Start/Pause ” touchpad again.
-
Add clothing and close the door.
-
3.7
You cannot open the door if
the water inside the machine
drum are hot, the door remains
locked for your safety.
Although the LED light still
remain lit.

17
ENGLISH

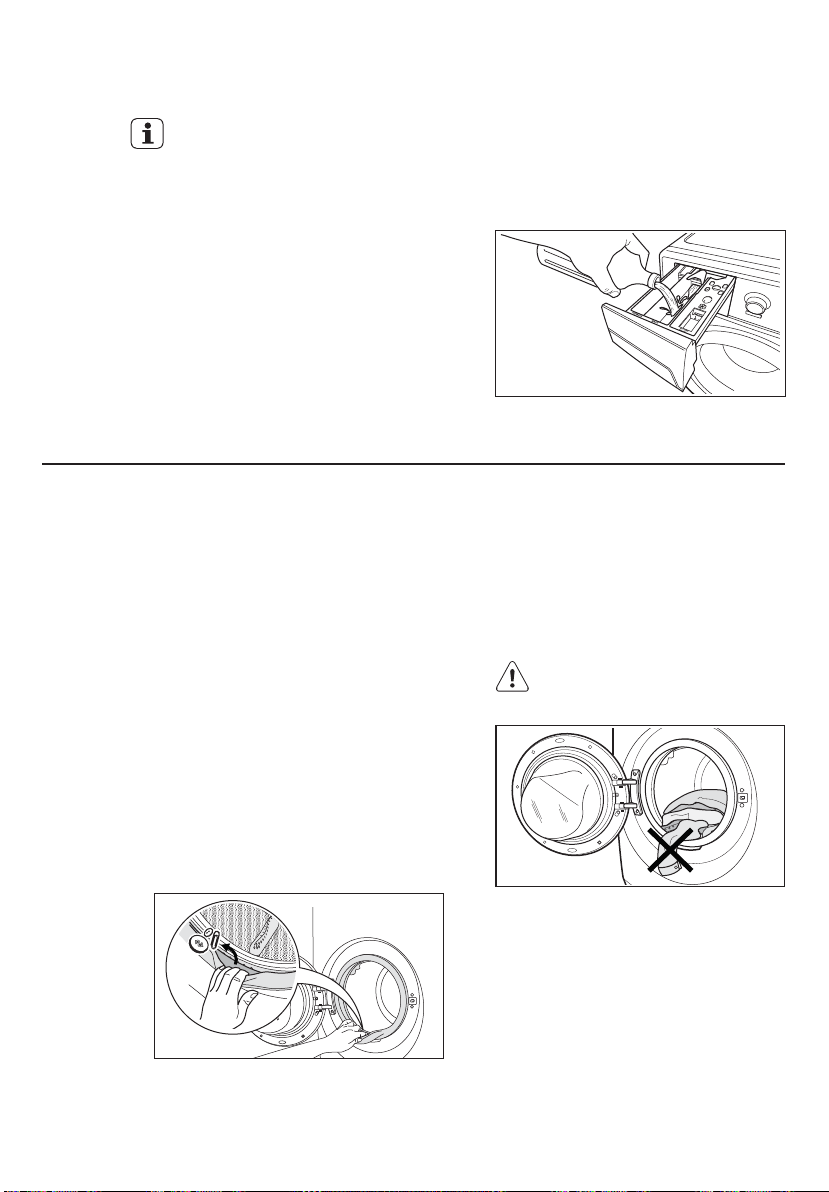

Close the door.
6.
Make sure that no laundry
remains between the seal and
the door.
BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.
Put 2 litres of water in the detergent
compartment for washing phase. This
activates the drain system.
1.
2.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine, to
remove any manufacturing residue
from the drum and tub then start the
machine.
DAILY USE - WASHING (Only)5.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to page 23
“WASHING & DRYING HINTS”)
5.
During installation or before first use you
may observe some water in the machine.
This is a residual water left in the machine
after a full functional test in the factory to
ensure the machine is delivered to
customers in perfect working order and is
no cause for concern.
NOTE
Check and remove objects (if there
are any) that could be trapped in the
fold.
1.
2.
5.1 Loading The Laundry
Connect the main plug to the main
socket.
Turn the water tap on.
4.
Press the On/Off button to turn on the
washer-dryer. Turn the knob to set a
program. The machine will propose a
temperature and automatically select
the spin value provided for the
program you have chosen.
3.
The selector knob can be turned either
clockwise or counter-clockwise.

18 www.electrolux.com
Measure out the amount of
detergent required, pour it into the
main wash compartment.
5.2
Detergent Dispenser Drawer
1.
The detergent dispenser is divided
into three compartments.
Using Detergent And
Additives
IMPORTANT: Please read
“Detergents Type and
Quantity of Detergent”on page
24 before use.
Do not use gelatinous or thick
liquid detergents.
-
Do not put more liquid than the
maximum level.
-
Do not set the “Delay Start”.
-
Do not set the “Prewash” phase.
-
When you use the liquid
detergent:
Pull out the dispenser drawer until
it stops.
-
-
Measure out the detergent and the
fabric softener;
2.
Compartment “SOFTENER”
Compartment “PREWASH”
This compartment is used for fabric
conditioner and starching agent.
This compartment is only used for
detergent when a Prewash is
selected.
Compartment “MAIN WASH”
This compartment is used for
detergent on all programs.
If you wish to carry out the
“Prewash” phase, pour it into the
compartment marked “ ”.
If required, pour fabric softener into
the compartment marked “ ”.
-
Close the drawer gently.
-
-
Residues of detergent, softener
and water may remain in the
dispenser. It is recommended to
clean the dispenser regularly to
remove any residue.
The amount used must not
exceed the “MAX” mark in
the drawer.
If you use thick softeners it is
recommended to dilute with
water.
Detergent flap
Flap for powder or liquid detergent.
Position down : for liquid
detergent.
Position up : for powder detergent
(factory setting).
-
-
POSITION USING
POWDER DETERGENT

19
ENGLISH
If you want your laundry to be spun
or use temperature different from
the one proposed by the
washer-dryer, pess the Spin “ ”
and the temperature “ ” touchpads
repeatedly to change the spin speed
and temperature.
Press the option touchpads, if you
want your laundry to be washed with
special functions.
If you want to adjust washing time,
press the “Time Manager ”
touchpad repeatedly to increase or
decrease washing time. See Time
Manager guide on page 15.
If you want to delay the start of the
washing program, press the “Delay
Start ” touchpad repeatedly to
choose your washer-dryer delay
time.
5.3 Options Setting
To pause, press Start/ Pause . The
indicator will start flashing.
-
Press the Start/Pause again. The
program will continue.
-
Changing a running program is possible
only by switching off the appliance.
Press the “On/Off” button to cancel
the program and to turn off the
appliance.
-
5.5 Interruption Of A Program
5.6 Changing A Program
It may be possible to change some of the
options after a wash program has started.
Press the “On/Off” button again to
start the appliance.
-
5.7 Changing The Options
Press the touchpad Start/Pause .
The indicator will start flashing.
1.
If available, change the options that
you wish.
2.
Press Start/Pause again. The
program will continue.
3.
1.
2.
While a program or the Delay Start is
operating, the appliance door is locked
and the display shows the indicator “ ”.
First, set the machine to PAUSE by
pressing the “Start/Pause ” touchpad.
Wait until the door lock indicator “ ”
goes off, then the door can be opened.
5.8 Opening The Door
NOTE
Now you can set a new wash program
and change any available options. Press
Start/Pause to start the new program.
The appliance will not drain the
water (except programs; Vapour
Refresh, Spin, Rinse + Spin).
Different functions can be
combined which is dependent on
the program selected.
If an option is not compatible with
the wash program selected, symbol
“ ” will flash on display along
with buzzer sound.
-
-
If you turn the program selector knob
to another program when the
machine is working, symbol “ ”
will flash on display along with buzzer
sound to indicate a wrong selection.
The machine will not perform the
new selected program.
If you press any touchpad while a
program is operating, symbol “ ”
will flash on display along with buzzer
sound. (except “Start/Pause”
touchpad and “On/Off” button)
-
-
The appliance will automatically adjust
the selected program duration
according to the type and size of the
load.
-
The display will show adjusted
program duration.
-
After approx. 15 minutes from the
start of a program:
To start a program, press the
Start/Pause touchpad.
The corresponding pilot light will stop
flashing and a default program duration
will be displayed on the screen.
5.4 Starting A Cycle “ ”

20 www.electrolux.com
If the door lock indicator “ ” does not
disappear, this means that the machine
is already heating and the water level is
above the bottom edge of the door or the
drum is turning. In this case the door
CAN NOT be opened. If you need to
open it, you must drain the water to open
the door.
In case of emergency, please
refer to “Emergency door
opening” on page 33.
When the program is completed and
the door lock indicator “ ” goes off,
you can open the door.
When The Washing Program Is
Completed, But There Is Water
In The Drum
(Option “Extra Silent” or “Rinse Hold”
is used)
The drum turns regularly to prevent
the creases in the laundry.
You must drain the water to open the
door.
The indicator “Start/Pause ”
flashes to remind you to drain the water.
-
-
-
5.10
The appliance stops automatically.
The acoustic signal will operate.
The display will show “ ”.
The indicator of the touchpad
Start/Pause goes off.
-
-
-
-
-
-
-
-
The door lock indicator “ ” goes off.
Remove the laundry from the
appliance. Make sure that the drum is
empty.
Keep the door partly open, to prevent
the mildew and odours.
Turn off the water tap.
5.9 At The End Of The Program
At the end of the program, the time
remaining can suddenly decrease
from 7 minutes or less to 0 due to the
overestimated total program time
during the load sensing phase. In
some cases (with perfectly balanced
load) the program time can be shorter
than the time estimated after the load
sensing phase is completed. This is a
normal behavior of the machine and
not a cause for concern as it does not
compromise its performance.
AUTO Off Mode
5.11
The AUTO Off mode automatically
deactivates the appliance to decrease
the energy consumption when:
You do not press any buttons for
5 minutes before you press
“Start/Pause ”.
Press the “On/Off” button to
activate the appliance again.
After 5 minutes from the end of the
washing program.
Press the “On/Off” button to
reactivate the appliance. Display will
show the end of the last wash.
-
Press any touchpad again to show
the last wash program.
-
Turn the selector knob to set a new
wash program.
-
NOTE:
The door lock indicator “ ” is on.
The door stays locked.
1.
To drain the water:
Press the “Start/Pause ” touchpad.
The appliance drains the water and
spins with the maximum spin speed
for selected program.
Alternatively, before pressing the
“Start/Pause” touchpad, you can press
the “Spin ” touchpad to change the
spin speed. You can select “No Spin
”, if you want the machine to only
drain the water.
2.
Press the “On/Off” button to deactivate
the appliance.
3.
After approximately 18 hours, if you do
not press Start/Pause touchpad, the
appliance will drain and spin automati-
cally (except for “Wool” program) .
Press “Start/Pause ” to start the
program.
