Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with
it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge that
you’ll get great results every time. Welcome to Electrolux.
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Subject to change without notice.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Caution, risk of fire.

ENGLISH 3
SAFETY INFORMATION
In the interest of your safety and to
ensure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings.
This appliance is intended to be used in
household and similar applications
such as:
Farm houses
By clients in serviced apartments,
holiday apartments and residential
type environments.
Conditions of use
To avoid unnecessary mistakes and
accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation and
safety features.
Save these instructions and make sure
that they remain with the appliance if it
is moved or sold, so that everyone
using it through its life will be properly
informed on appliance use and safety.
1.1 GENERAL SAFETY
It is dangerous to alter the
specifications or attempt to modify this
product in anyway.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use the advised quantities of
fabric softener and detergent. Damage
to the fabric or appliance can occur if
you overfill. Refer to the manufacturer’s
recommendations of quantities.
Wash small items such as socks,
laces, washable belts etc. in a washing
bag or pillow case as it is possible for
such items to slip down between the
tub and the inner drum.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Do not use your washer-dryer to wash
articles with whalebones, material
without hems or torn material.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre. Always insist on
genuine spare parts.
1.2 INSTALLATION
1.
-
-

4 www.electrolux.com
Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of volatile
nature and could cause an explosion.
Only tumble dry items which have
been washed in water or require
airring.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to with stand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to with stand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
Never use the washer-dryer if the
power supply cable, the control panel,
the working surface or the base are
damaged so that the inside of the
washer-dryer is accessible.
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the machine is situated on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which it
was designed.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing. Underwired bras
must NOT be machine washed.
Garments which have been in contact
with volatile petroleum products
should not be machine washed. If
volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the machine.
1.3 USE
As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of their
bulk, please check with the
manufacturer of the item before
washing/drying in a domestic
machine.
The users should always check that
they have not left their gas lighters
(disposable or otherwise) in their
clothing.

ENGLISH 5
Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should not
placed in a washer-dryer. Oil-affected
items can ignite spontaneously,
especially when exposed to heat
sources such as in washer-dryer. The
items become warm, causing an
oxidation creates heat. If the heat
cannot escape, the items can become
hot enough to catch fire. Piling,
stacking or storing oil-affected items
can prevent heat from escaping and
so create a fire hazard.
Items containing foam rubber (also
known as latex foam) or similarly
textured rubber, like materials should
not be dried in a washer-dryer on a
heat setting.
Fabric softeners or similar products
should not be used in a washer-dryer to
eliminate the effects of static electricity
unless this practice is specifically
recommended by the manufacturer of
the fabric softener or product.
Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer.
Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in washer-dryer.
Damage to the washer-dryer can
result if metal reinforcements come
loose during drying. When available a
drying rack could be used for such
itmes.
Foam rubber materials can, when
heated, produce fire by spontaneous
combustion.
If it is unavoidable that fabrics that
contain vegetable or cooking oil or
have been contaminated by hair care
products be placed in washer-dryer
they should first be washed in hot
water with extra detergent - this will
reduce, but not eliminate the hazard.
The ‘cool down’ cycle of washer-dryer
is used to reduce the temperature of
the items. They should not be
removed from the washer-dryer or
piled or stacked while hot.
Items that have been previously cleaned
in, washed in, soaked in or spotted with
petrol/gasoline, dry- cleaning solvents
or other flammable or explosive
substances should not be placed in
washer-dryer.
Highly flammable substances commonly
used in domestic environments include
acetone, denatured alcohol,
petrol/gasoline, kerosine, spot removers
(some brands), turpentine, waxes and
wax removers.
Never stop a washer-dryer
before the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is
dissipated.
CAUTION!
-
Do not dry cloths in washer-
dryer with dry clean solvents.
Also do not use laundry
enhancement products during
the drying cycle.
To minimize the risk of fire in a
washer-dryer, following should be
observed:
-

6 www.electrolux.com
This washer-dryer is not intended for
use by young children or infirm
persons without supervision.
Young children should be supervised
to ensure that they do not play with
the appliance.
The packaging components (e.g.
plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach.
Make sure that children or pets do not
climb into the drum.
Keep all detergents in a safe place out
of children’s reach.
1.4 CHILD SAFETY
To activate this device, rotate the
button (WITHOUT pressing it) inside
the door clockwise until the groove is
horizontal. If necessary use a coin.
When you activate this device, you
cannot close the door. This prevents
children or pets to be locked in the
drum.
To disable this device and restore the
possibility of closing the door, rotate
the button anti-clockwise until the
groove is vertical.
1.5 CHILD SAFETY DEVICE

ENGLISH 7
PRODUCT DESCRIPTION2.
13
Door Blocking Button
14
Rating Plate
15
Drain Pump Filter
To connect the drain
hose on the edge of a
sink.
Plastic caps
To close the holes on the
rear side of the cabinet
after the removal of the
transit bolts.
ACCESSORIES
Plastic hose guide
14
13
15
1
Worktop
2
Detergent/Softener Dispenser
3
Control Panel
4
Door Handle
5
Door
7
6
Level Adjustment Feet (Front)
8
Mains Cable
9
Water Inlet Hose
10
Water Drain Hose
11
Hose Support
12
Level Adjustment Feet (Back)
Transit Bolts
1
4
5
6
2
3
8
9
12
7
11
10

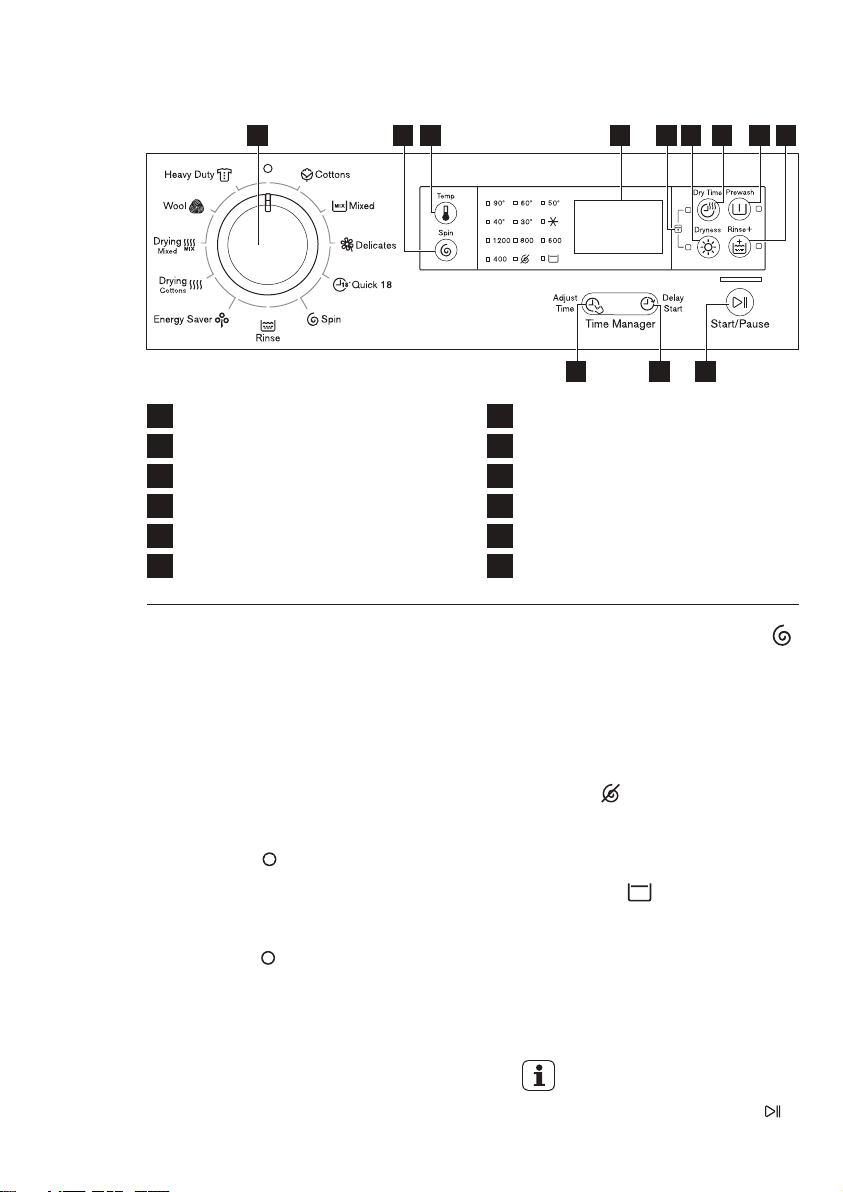

CONTROL PANEL3.
8 www.electrolux.com
Child Lock Option
1
2
Program Selector Knob
3
4
Spin Selection Touchpad
5
Temperature Touchpad
6
Adjust Time Touchpad
Delay Start Touchpad
7
Digital Display
8
Dryness Touchpad
9
Dry Time Touchpad
10
Prewash Touchpad
11
Rinse + Touchpad
12
Start/Pause Touchpad
11
4 5
1 2 86 712 9 103
3.1 Program Selector Knob
Turn this knob to set a program.
The machine will propose a
temperature and automatically
select the spin value provided for
the program you have chosen.
(See pages 12, 13)
The selector knob can be turned
either clockwise or anticlockwise.
Position “ ” to reset program/
switching off the machine.
At the end of the program the
selector dial must be turned to
position “ ”, to switch the
machine off.
3.2 Spin Selection Touchpad
Press this touchpad repeatedly to
increase or decrease the spin
speed, if you want your laundry to
be spun at a speed different from
the one proposed by the machine.
No spin option eliminates all the spin
phases and increase the number of
rinses.
No Spin
By selecting this option the water of
the last rinse is not emptied out and
the drum turns regularly to prevent
the laundry creases.
Rinse Hold
The door is still locked to indicate
that the water must be emptied out.
The door stays locked with the
water in the drum. To continue
the cycle you must press
(Start/Pause).

A
Digital Number;
will tell you:
The level of the Time Manager
B
–
Washing Status Icon
C
D
Drying Status Icon
E
Drying Level Icons
F
Door Lock Icon
G
Child Lock Icon
H
Delay Start Icon
ENGLISH 9
Working cycle time.
– The alarm codes. Refer to
the chapter “Troubleshoot-
ing” for their description.
– Delay start time.
– It is on, you cannot open the
door.
– It is off, you can open the
door.
3.3 Temperature Touchpad
Press this touchpad repeatedly to
increase or decrease the wash
temperature if you want your
laundry to be washed at a
temperature different from the one
proposed by the machine (symbol
“ ” corresponds to cold wash).
3.5 Delay Start Touchpad
This option makes it possible to
delay the start of the program by 30
min, 60 min or 90 min and then by
every hour from 2 to 20 hours.
The delay you have selected is
indicated on the display. The end
time will increase in order to show
you the selected delay. You must
select this option after you have set
the program and before you press
the Start/Pause button.
If you wish to add laundry in the
machine during the delay time
press Start/Pause touchpad to put
the machine in pause mode. Add
laundry, close the door and press
Start/Pause touchpad again.
You can cancel the delay time at
any moment, by pressing ‘Delay
Start’ touchpad repeatedly till the
display shows delay time ‘ ’, then
press the Start/Pause touchpad.
3.4 Adjust Time Touchpad
This option allows you to reduce
washing time.
Press this touchpad repeatedly to
decrease or return to default
washing time.
This option will adjust the number
of rinse according to selected
washing time.
3.6 Display
B
C
A
DG
H
E F

10 www.electrolux.com
3.8 Dry Time
3.7 Dryness
If you wish to carry out a timed
drying program, press this touchpad
untill the drying time you want
appears on the display according to
the fabrics you have to dry.
Press this touchpad to set the level
of dryness of your laundry. The
display shows the icon of the set
level.
(Dryness option guides, see page
14)
The final time value is the total
duration of the washing +
detachment + drying cycles.
-
Dryness levels settings are based
on wash program selected.
-
-
The final time value is the total
duration of the washing +
detachment + drying cycles,
calculated on a default load size.
-
At the end of the program the
appliance performs the anti-crease
phase for approx. 10 minutes.
During this time the display will
show time remaining “ ” and
door is locked ( ).
-
At the end of the program the
appliance performs the anti-crease
phase for approx. 10 minutes.
During this time the display will
show time remaining “ ” and
door is locked ( ).
: Extra dry
: Cupboard dry
: Iron dry
Maximum allowable timed drying
changes based on wash program
selected.
-
3.10 Rinse Plus Touchpad
3.9 Prewash Touchpad
This option is recommended for
people who are allergic to
detergents, and in areas where
the water is very soft.
Press it to add rinsing phases to a
program.
The indicator of this option comes
on.
Select this option if you wish your
laundry to be pre-washed before
the main wash. Use this option for
heavy soil.
The indicator of this option comes
on.
When you set this function, put
the detergent into the “ ”
compartment. (Refer pages 18,19)
This function increases the
program duration.
3.11 Start/Pause Touchpad
To start the selected program,
press the ‘Start/Pause’.
To interrupt a program which is
running, press the ‘Start/Pause’
to pause the machine.
To restart the program from the
point at which it was interrupted,
press the ‘Start/Pause’ again.
NOTE
NOTE

ENGLISH 11
If you have chosen a delayed
start, after pressing ‘Start/Pause’
the machine will begin the
countdown.
3.12 Buzzer Sounds
The program is completed.
The appliance has a malfunc-
tion.
The buzzer sounds operate when:
If you want to disable the buzzer
sound (except for event of
appliance malfunction), press
“Dryness” and “Rinse+”
touchpads at the same time for 3
seconds, and listen for ‘BEEP,
BEEP’.
To return to default configuration
press these 2 touchpads at the
same time for 3 seconds, and
listen for ‘BEEP’.

12 www.electrolux.com
3.13 Programs + Options
Program;
Temperature
Cottons;
90 °C to
White and coloured cotton
with heavy level of soil;
Wash
Rinses
Long spin
Dry (If drying
option
combined)
Type of load;
Max. weight of load
Cycle
description
Options can be
combined
Mixed;
60 °C to
Synthetic or mixed fabric items
with normal level of soil;
max. load 4 kg (if drying option
combined, please reduce to 3 kg).
maximum load;
Model EWW12842: 8 kg
Model EWW12742: 7 kg
(if drying option combined, please
reduce 8 to 6 kg, 7 to 5 kg).
maximum load;
Model EWW12842: 8 kg
Model EWW12742: 7 kg
(if drying option combined, please
reduce 8 to 6 kg, 7 to 5 kg).
maximum load;
Model EWW12842: 8 kg
Model EWW12742: 7 kg
(if drying option combined, please
reduce 8 to 6 kg, 7 to 5 kg).
maximum load;
Model EWW12842: 8 kg
Model EWW12742: 7 kg
(if drying option combined, please
reduce 8 to 6 kg, 7 to 5 kg).
Wash
Rinses
Short spin
Dry (If drying
option
combined)
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) /
Delicates;
40 °C to
Quick 18;
30 °C
Delicate fabrics as acrylics,
viscose, polyester items with
normal soil; max. load 4 kg
Wash
Rinses
Short spin
Synthetic and mixed fabric
items. Light soil and items to
freshen up;
max. load 1.5 kg
Wash
Rinses
Short spin
Spin
To spin the laundry and drain
the water in the drum;
Rinse
To rinse and spin the laundry;
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(Extra dry, Cupboard dry,
Iron dry)
/ / / / /
1)
1)
(Extra dry, Cupboard dry,
Iron dry)
/ /
1)
1)
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) /
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) /
(Cupboard dry)
/ / / / /
1)
1)
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) / / / /
Spin Reduction
(400 to 800 rpm, No Spin,
Rinse Hold) /
Spin Reduction
(400 to 1200 rpm, No Spin) /
(Extra dry, Cupboard dry,
Iron dry)
/ /
1)
1)
- Drain
- Spin phase
Dry (If drying
option
combined)
-
Three rinses
with softener
Spin phase
Dry (If drying
option
combined)
-
-
-
Energy
Saver
60 °C 2),
40 °C
White and colourfast, cotton with
normal soil. Set this program to
have a good washing results and
decrease the energy consumption.
The time of the washing program
is extended;
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) /
(Extra dry, Cupboard dry,
Iron dry)
/ / / / /
1)
1)
Wash
Rinses
Short spin
Dry (If drying
option
combined)
-
-
-
-

ENGLISH 13
Program;
Temperature
Heavy Duty;
90 °C to
40 °C
Clothes that are heavily
soiled;
Type of load;
Max. weight of load
Cycle
description
Options can be
combined
Drying program for
cotton items;
max. load:
Model EWW12842: 6 kg
Model EWW12742: 5 kg
Dry
Drying program for
synthetic or mixed fabric
items;
max. load 3 kg.
Wool;
40 °C to
Specially tested program
for wool garments bearing
the ‘Pure new wool,
non-shrink, machine
washable’ label;
Do not select a spin speed lower than that proposed by the appliance to avoid a too long drying time so
saving energy. In any case the reduction of the spin speed is only possible after selecting drying.
1)
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) /
/
1)
(Extra dry, Cupboard dry,
Iron dry)
/ /
1)
1)
(Cupboard dry)
/ /
1)
1)
Spin Reduction
(400 to 1200 rpm, No Spin,
Rinse Hold) /
(Extra dry, Cupboard dry,
Iron dry)
/ / /
1)
1)
Wash
Rinses
Short spin
Dry (If drying
option
combined)
-
-
-
-
Wash
Rinses
Short spin
Dry (If drying
option
combined)
-
-
-
-
-
Dry
-
maximum load;
Model EWW12842: 8 kg
Model EWW12742: 7 kg
(if drying option combined,
please reduce 8 to 6 kg,
7 to 5 kg).
max. load 2 kg (if drying
option combined, please
reduce to 1 kg).
Drying
Cottons
Drying
Mixed
Energy Saver program with 60 °C option selected is recommended for a full load of normally soiled cottons,
and is the water and energy rating label program.
2)
The wool wash cycle of this machine has been approved by The
Woolmark Company for the washing of machine washable wool
products provided that the products are washed according to the
instructions on the garment label and those issued by the
manufacturer of this machine. M1354
WOOLMARK CERTIFICATE

14 www.electrolux.com
Level of dryness Type of fabric Load
Extra Dry
Ideal for towelling
materials
Suitable for items
to put away
without ironing
Cotton and linen
(bathrobes, bath towels, etc)
Model EWW12842:
up to 6 kg.
Model EWW12742:
up to 5 kg.
Cupboard Dry
Suitable for ironing
Iron Dry
Cotton and linen
(bathrobes, bath towels, etc)
Synthetics and mixed fabrics
(jumpers, blouses, underwear,
household linen)
Cotton and linen
(sheets, tablecloths, shirts, etc.)
Up to 3 kg.
3.14 Dryness Option Guides
Type of fabric Load
(kg)
Spin Speed
(rpm)
Suggested
Times (mins)
Cotton and linen
(bathrobes, bath towels, etc.).
3.15 Dry Time Option Guides
2
1200
1200
1200
240 - 250
Synthetic or mixed fabric items
( jumpers, blouses, underwear,
household linen, etc.).
Wool and hand washable wool.
3
1
1200
1200
1 1200
-
-
Model EWW12842:
up to 6 kg.
Model EWW12742:
up to 5 kg.
-
-
Model EWW12842:
up to 6 kg.
Model EWW12842: 6 kg
Model EWW12742: 5 kg
Model EWW12842: 5 kg
Model EWW12742: 4 kg
Model EWW12742:
up to 5 kg.
-
-
-
120 - 180
60 - 120
120 - 180
60
120

ENGLISH 15
The drying time can vary accord-
ing to:
the final spin speed;
the required degree of drying
(Extra Dry or Cupboard Dry or
Iron Dry);
the type of laundry;
the size of load.
3.16 Duration of the drying cycle
3.17 Fibre residue
To prevent the formation
of creases or shrinking of
fabrics, avoid excessive
drying.
WARNING!
Should the laundry still be too
wet at the end of the program,
set another short drying cycle.
The final part of a washer-
dryer cycle occurs without
heat (cool down cycle).
This ensures the laundry
will be left at a low
temperature.
3.18 Additional drying

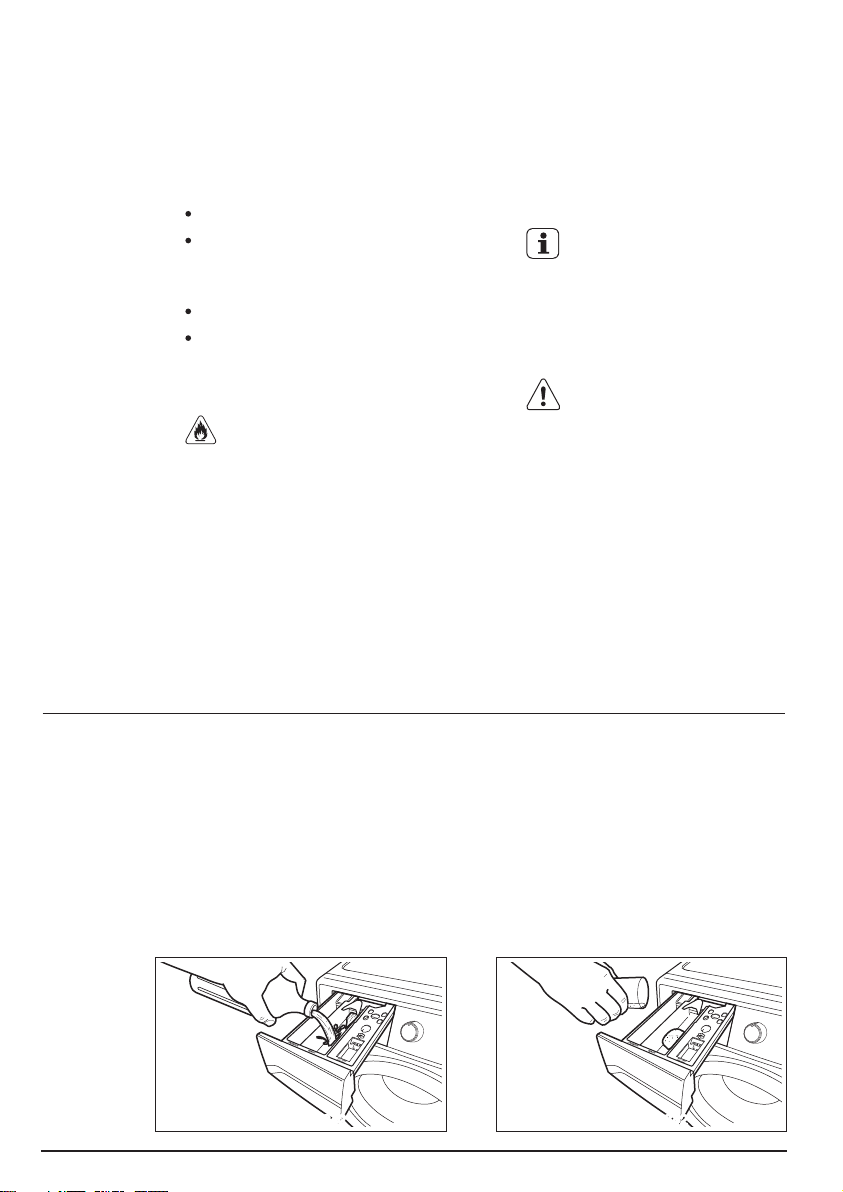

BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.
Put 2 litres of water in the detergent
compartment for washing phase.
This activates the drain system.
1.
2.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine,
to remove any manufacturing residue
from the drum and tub. Pour 1/2 a
measure of detergent into the
dispenser drawer and start the
machine.
After drying fluffy fabrics, such as
new towels, it is advisable to
perform a Rinse program to be
sure that any residue that may
remain in the tub is completely
removed and does not stick to
garments dried afterwards. After
each drying cycle, clean the
drain pump filter. Please refer
to care and cleaning in
section 10.
CAUTION
*Picture of model: EWW12842*Picture of model: EWW12842 *Picture of model: EWW12842*Picture of model: EWW12842

16 www.electrolux.com
DAILY USE - WASHING5.
Connect the mains plug to the mains socket.
Turn the water tap on.
4.
If you want to reduce washing time,
press the “Adjust Time ” touchpad
repeatedly to reduce washing time.
If you want to delay the start of the
program
, press the “Delay Start ”
touchpad repeatedly to choose your
machine delay time.
Step 2 - Loading The Laundry
3.
Press the option touchpads, if you
want your laundry to be washed or
dryed with special functions.
Different functions can be
combined which is dependent
on the program selected.
When these touchpads are pressed,
the corresponding pilot lights come
on. When they are pressed again,
the pilot lights go out.
1.
Turn the program selector dial to the
required program.
Once you selected a wash program,
the program selected will stay at that
position for the whole of the wash.
-
The selector dial can be turned either
clockwise or anticlockwise.
-
The display shows the level of the
Time Manager, the program duration
and the indicators of the phases of the
program.
-

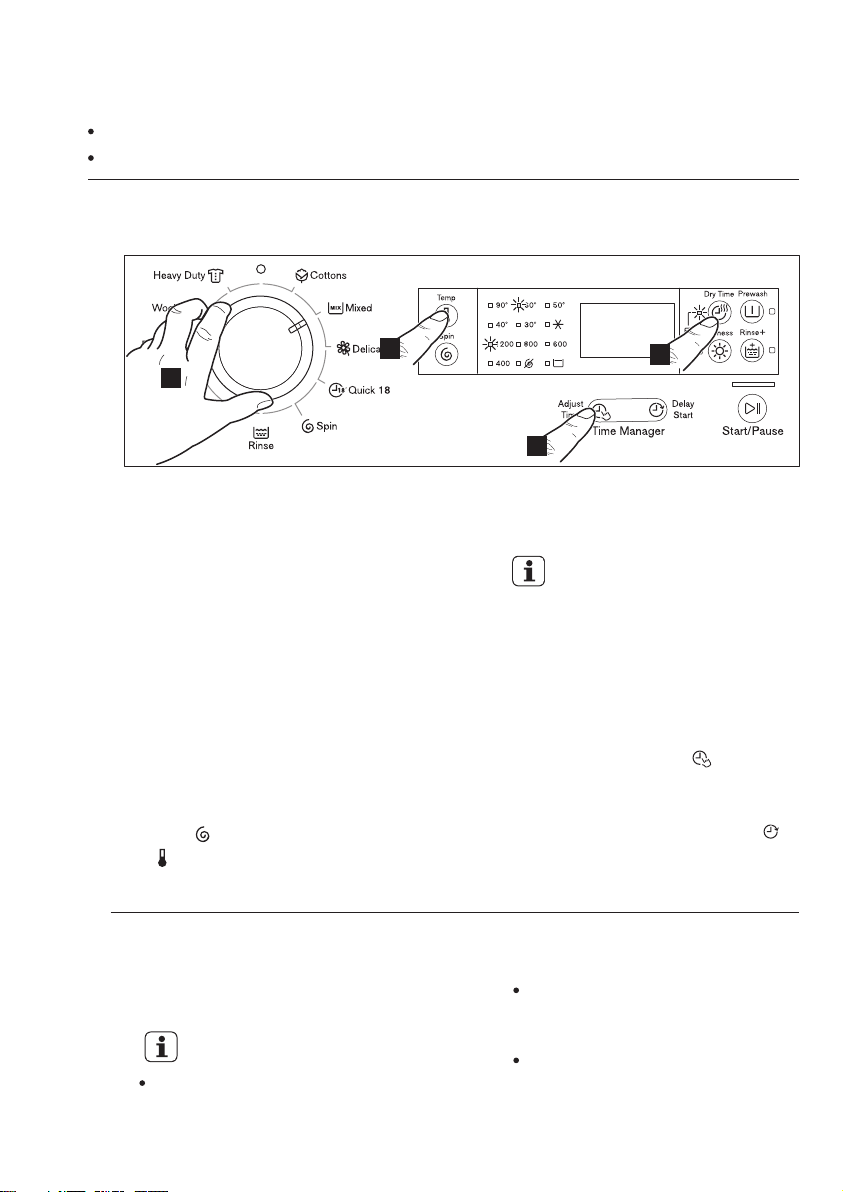

Step 1 - Setting A Program For Washing
5.1 Four Steps Start Up Guide
2. If you want your laundry to be spun or
use temperature different from the one
proposed by the machine, pess the
Spin “ ” and the temperature
“ ” touchpads repeatedly to change
the spin speed and temperature.
4
3
2
1
1.
Make sure that you wash lint
collectors separately from lint
producers.
IMPORTANT!
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie
any belts or long tapes.
Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).

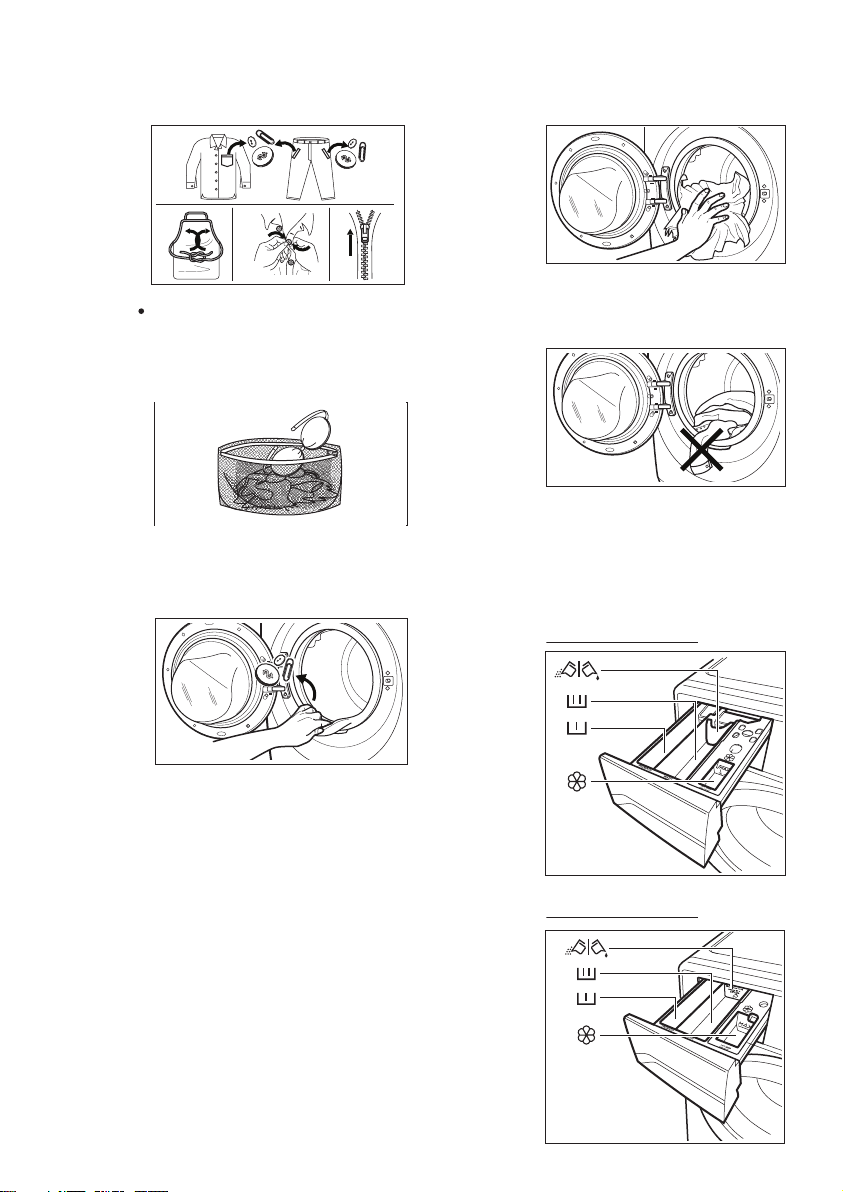

Before loading the laundry, please
make sure:

ENGLISH 17
Place the laundry in the drum,
one item at a time, shaking them
out as much as possible.
3.
Open the door by carefully
pulling the door handle
outwards.
Check and remove objects
(if there are any) that could be
trapped in the fold.
2.
Make sure that no laundry
remains between the seal and
the door.
4.
Close the door.
5.
Step 3 - Using Detergent And Additives
Detergent Dispenser Drawer
Model: EWW12842
Model: EWW12742
1.
Wash bras, pantyhose and other
delicates in a mesh laundry bag,
which you can purchase from
your supermarket.

18 www.electrolux.com
Model: EWW12842
Model: EWW12742
The detergent dispenser is divided
into three compartments.
Compartment ‘SOFTENER’
Compartment ‘PREWASH’
This compartment is used for
fabric conditioner and starching
agent.
This compartment is only used
for detergent when a Prewash
is selected.
-
-
Compartment ‘MAIN WASH’
This compartment is used for
detergent on all programs.
Detergent flap
Flap for powder or liquid
detergent.
-
Powder or liquid detergent;
3
1
POSITION USING
POWDER DETERGENT
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
2
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
Do not use gelatinous or thick
liquid detergents.
-
When you use the liquid
detergent:
Do not put more liquid than the
maximum level.
-
Do not set the DELAY START.
-
Do not set the PREWASH phase.
-
Measure out the detergent and the
fabric softener;
2.
1
2
3
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
Position down :
for liquid
detergent.
Position up :
for powder
detergent
(factory setting).
4

ENGLISH 19
Measure out the amount of
detergent required, pour it into the
main wash compartment ( ).
Pull out the dispenser drawer until
it stops.
-
-
If you wish to carry out the
“Prewash” phase, pour it into the
compartment marked .
If required, pour fabric softener
into the compartment marked
(the amount used must not
exceed the “MAX” mark in the
drawer).
-
-
Close the drawer gently.
-
ATTENTION!
If you turn the program selector
dial to another program when
the machine is working, the red
Start/Pause pilot light will flash 3
times and the message “ ”
will appear on the display to
indicate a wrong selection. The
machine will not perform the
new selected program.
The appliance will automatically
adjust the selected program
duration according to the type
and size of the load.
-
The display will show adjusted
program duration.
-
Step 4 - Starting A Program
To start a program, press the
Start/Pause ( ) touchpad, the
corresponding pilot light will stop
flashing and a default program
duration will be displayed on the
screen.
After approx. 15 minutes
from the start of a program:
After washing cycle finish,
residues of detergent, softener
and water may remain in the
dispenser. It is recommended
to clean the dispenser regularly
to remove any residue.
If you use thick softeners it is
recommended to dilute with
water.
*Picture of model: EWW12842*Picture of model: EWW12842
*Picture of model: EWW12842
*Picture of model: EWW12842

20 www.electrolux.com
To pause press Start/ Pause. The
indicator will start flashing.
-
Press the Start/Pause again. The
program will continue.
-
5.2 Interruption Of A Program
It is possible to change only some option
after the program has started.
Press the touchpad Start/Pause. The
indicator will start flashing.
1.
Change the options.2.
Press Start/Pause again. The program
will continue.
3.
5.4 Changing The Options
5.3 Changing A Program
Changing a running program is possible
only by resetting it.
Turn the program selector knob to the
position “ ” to cancel the program
and to turn off the appliance.
1.
Turn the program selector knob to the
new program position and set the new
option, then press “Start/Pause”
touchpad again.
The appliance will not drain
the water.
2.
While a program or the ‘Delay Start’ is
operating, the appliance door is locked and
the display shows the indicator ‘ ’.
5.5 Opening The Door
First set the machine to PAUSE by pressing
the “Start/Pause” touchpad. Wait until the
door lock indicator ‘ ’ goes off, then the
door can be opened.
If the door lock indicator ‘ ’ does not
disappear, this means that the machine is
already heating and the water level is above
the bottom edge of the door or the drum is
turning. In this case the door CAN NOT be
opened.
If you can not open the door but
you need to open it you have to
switch the machine off by turn the
program selector knob to the
position “ ” to deactivate the
appliance. After about 5 minutes the
door can be opened.
Pay attention to the water
level and water temperature.
CAUTION!
The appliance stops automatically.
The acoustic signal will operate.
The display will show ‘ ’.
The indicator of the touchpad
Start/Pause goes off.
-
-
-
-
-
-
-
-
The door lock indicator ‘ ’
goes off.
Remove the laundry from the
appliance. Make sure that the
drum is empty.
Keep the door ajar, to prevent the
mildew and odours.
Turn off the water tap.
5.6 At The End Of The Program
At the end of the program the
time remaining can suddenly
decrease from 7 minutes or less
to 0 due to the overestimated
total program time during the
load sensing phase. In some
cases (with perfectly balanced
load) the program time can be
shorter than the time estimated
after the load sensing phase is
completed. This is a normal
behavior of the machine and not
a cause for concern as it does
not compromise its performance.
