Electrolux ENC74800 User manual

User manual
Manual de instrucciones
ERF37800WX
Wine cooler-Freezer
Frigorifico bodeguero-Congelador
Side-by-side
ENC74800

We were thinking of you
when we made this product8183967-00/2

3
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully will
provide you with lots of pleasure in the future. The Electrolux ambition is to offer
a wide variety of quality products that make your life more comfortable. You find
some examples on the cover in this manual. Please take a few minutes to study
this manual so that you can take advantage of the benefits of your new machine.
We promise that it will provide a superior User Experience delivering
Ease-of-Mind. Good luck!

4
The following symbols are used in this manual:
Important information concerning your personal safety and
information on how to avoid damaging the appliance
General information and tips
Environmental information
Scrapping old appliances
T
he symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local council, your household waste disposal service or the
shop where you purchased the product.

5
Safety instructions
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Your new fridge/freezer may have other
functions compared to your previous
one.
Carefully read these instructions to
learn how the appliance works and
how to care for it. Keep the instruction
booklet. It will come in handy if you
later sell the cabinet or give it to
somebody else.
These warnings are provided in the
interests of your safety.
Ensure that
you understand them all before
installing or using the appliance. Your
safety is of paramount importance. If
you are unsure about any of the
meanings or warnings contact the
Customer Care Department.
For the User
· The refrigerator is intended for the
storage of foodstuffs and for the
production of ice for normal household
consumption in accordance with these
instructions.
· Do not keep explosive gases or
liquids in the refrigerator or freezer
compartment. They may explode and
cause injury and material damage.
· Do not let sharp objects come into
contact with the refrigerating system
on the back of and inside the cabinet.
If the refrigerating system is punctured,
the cabinet will be damaged and
foodstuff inside may spoil.
· Do not keep carbonised drinks or
bottles in the freezer compartment.
The glass bottles may break.
· The cabinet is heavy. The edges
and projecting parts of the cabinet
may be sharp. Be careful when moving
the cabinet and always use gloves.
Child Safety
· Pay attention so that small children
do not gain access to the operating
controls or the inside of the cabinet.
WARNING
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING
Do not use mechanical devices or
other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
WARNING
Do not damage the refrigerant circuit.
WARNING
Do not use electrical appliance inside
the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.

6
Contents
Scrapping old cabinets 4...........
Safety instructions 5. . . . . . . . . . . . . . .
Contents 6.......................
USE 7...........................
Control Panel 7...................
Use of the fridge compartment 8.....
Temperature inside the wine cooler 8.
Wine Placement
Storage tip 8..................
Measuring the temperature 8........
Switching off 9....................
Alarms and other features 9.........
Lighting 10.......................
Use of the freezer compartment 10...
To the start the freezer and set the
correct temperature 10.........
Temperature inside the freezer 11....
Switching off 11...................
Freezing 12.......................
Suitable storage periods 12.........
Thawing 13.......................
Cabinet interior 13.................
HINTandTIPS 14.................
Saving energy 14..................
Food Storage 14..................
Protect the environment 14.........
MAINTENANCE and CLEANING 15. .
Cleaning 15......................
Defrosting the fridge 15.............
Defrosting the freezer 15............
When the appliance is not in use 16..
SOMETHING NOT WORKING
16....
TECHNINICAL SPECIFICATION
18..
INSTALLATION
19.................
Mains Cable 19...................
Unpacking 19.....................
Remove the transport supports 19...
Cleaning 20......................
Installing the cabinet 20............
Door Reversal 21..................
Electrical connection 21............
Guarantee/Customer Service 22. . . . .
European Guarantee 23. . . . . . . . . . . .
www.electrolux.com 24. . . . . . . . . . . .

7
USE
This cabinet is a combined freezer/freezer whereby both freezer/freezer
compartments are operated by the same compressor. This means that if the
fridge compartment becomes overloads it will result in even colder temperatures
in the freezer.
Position and clean the cabinet as explained in the section "Installation".
Check that the drain hose at the rear
of the cabinet discharges into the drip
tray.
Before inserting the power plug into
the outlet and switching on the cabinet
for the first time, leave it standing
upright for about 2 hours. Otherwise
the compressor may sustain damage.
This time will allow the oil sufficient
time to return to the compressor.
Control Panel

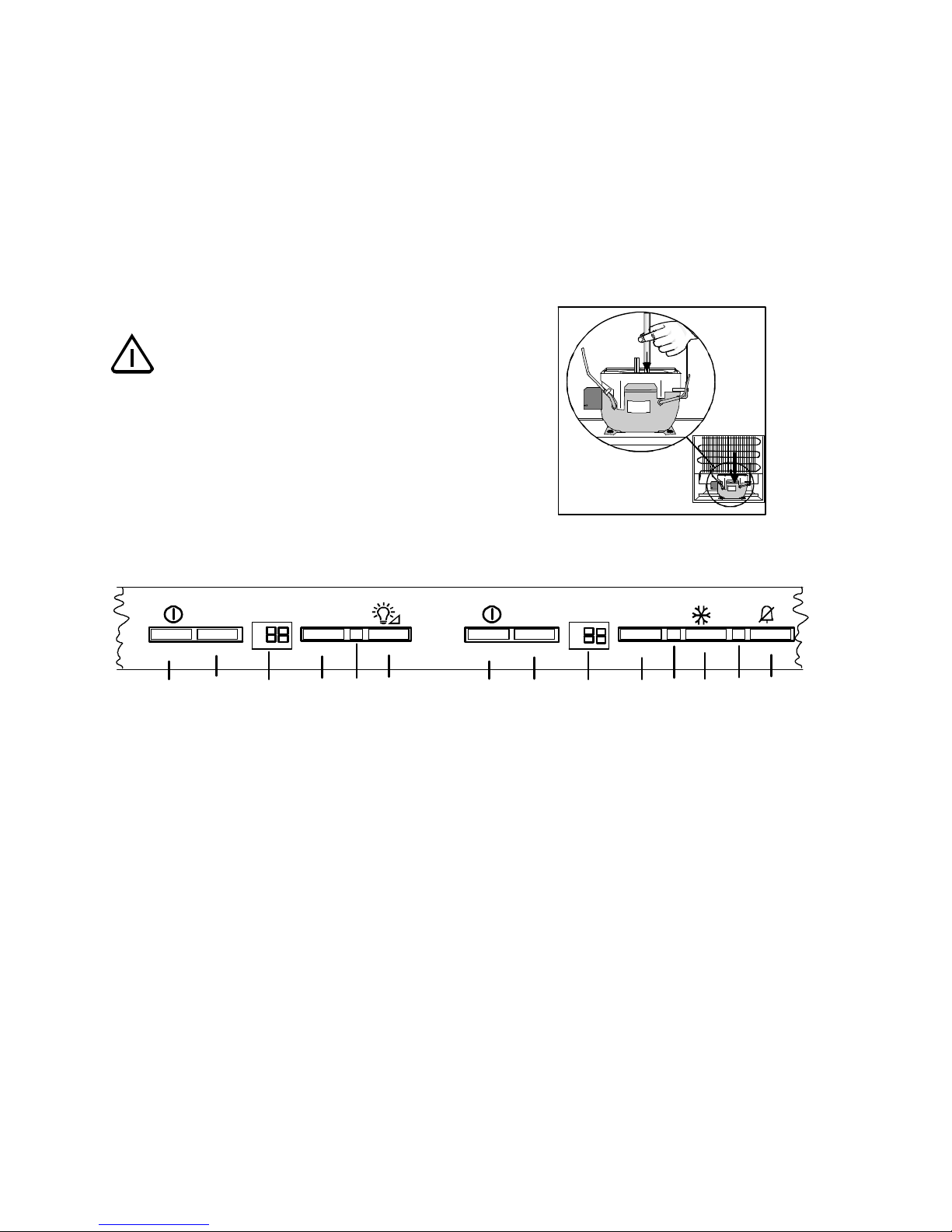

ABCDEFGHIKLM
JN
-
+
-
+-
ACTION FREEZE
A. Refrigerator power switch Switches the refrigerator on and off.
B. Temperature adjustment buttons/thermostat Used to set the temperature
(warmer).
C. Temperature display Shows the average temperature inside the refrigerator.
D. Temperature adjustment buttons/thermostat Used to set the temperature
(colder).
E. Yellow indicator lamp Lights when lighting is on.
F. Lighting
G. Freezer power switch Switches the freezer on and off.
H. Temperature adjustment buttons/thermostat Used to set the temperature
(warmer).
I. Temperature display Shows the highest temperature inside the freezer.
J. Temperature adjustment buttons/thermostat Used to set the temperature
(colder).

8
K. Yellow indicator lamp
Lights when Fast Freeze is operating.
L. FAST FREEZE button
Used to switch the Fast Freeze feature on and off.
M. Red warning lamp
Lights when one of the alarms in the cabinet has been
triggered.
N. Alarm shut-off button
Used to turn the audible alarm off.
Use of the fridge compartment
First switch on
Switching on:

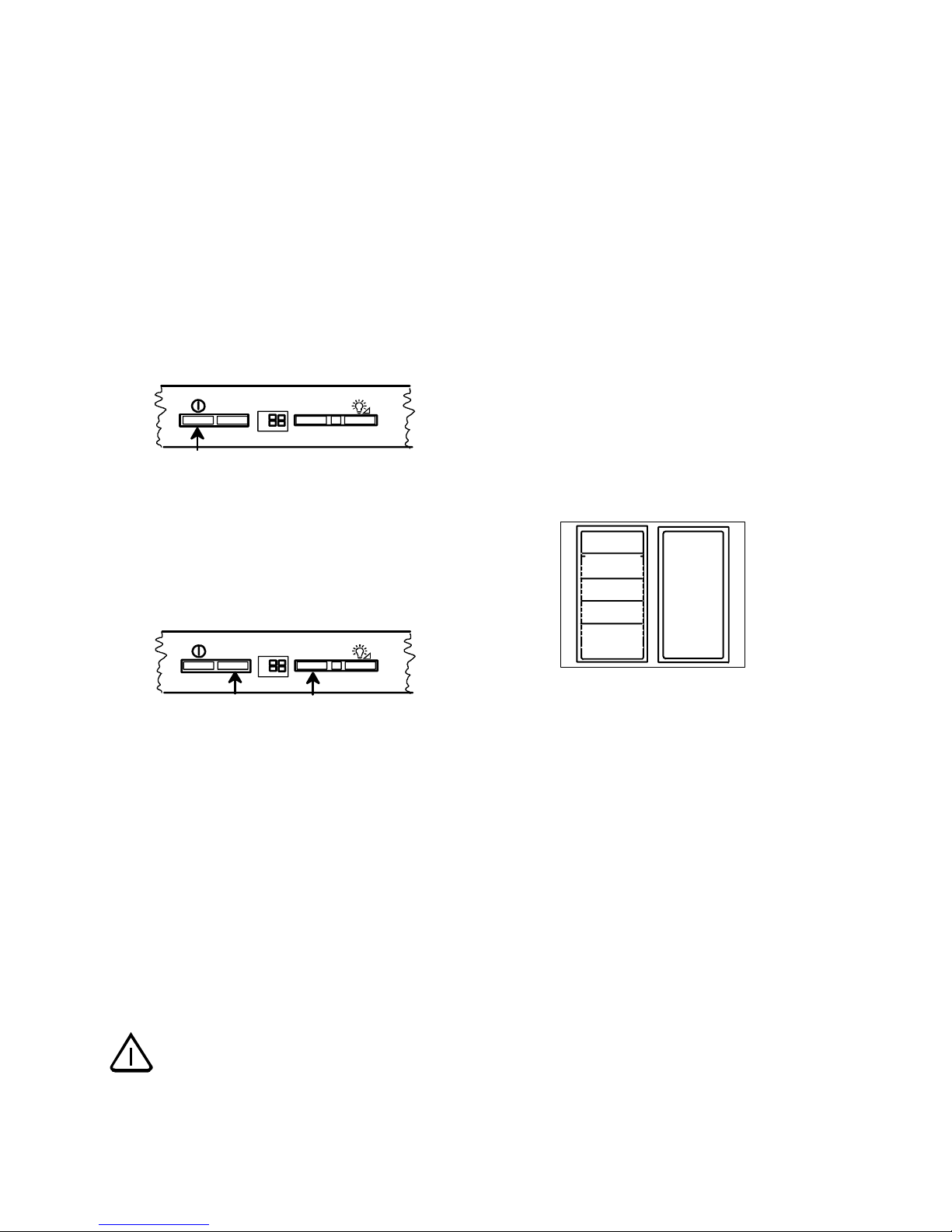

Switchonthefridgebypressingthe
power switch.
+-
Setting the temperature
Press the buttons until the desired
temperature flashes in the temperature
display (The temperature can be set
between +6°C and +15°C.)
"+" raises the temperature.
"-" lowers the temperature.
+-
Once set, the temperature display
shows the current temperature inside
the cabinet.
Allow the cabinet to run for a period of
24 hours whenever the temperature
setting is changed. This will allow the
temperature to stabilise inside the
cabinet.
It is not necessary to reset the
temperature when the cabinet is
switched on after it has been out of
use. The thermostat recalls the
previously set temperature.
Attention
!
Difference between the temperature
displayed and temperature setting is
normal. Especially when:
- a new setting has recently been
selected
- the door has been left open for a
long time
- warm food has been placed in the
compartment.
Temperature inside the wine cooler
NOTE: The picture shows the coldest
and warmest places inside the fridge.
(+ warm, - cold)
+
+
Wine Placement
Storage tips
The amount of time to store wine
depends on its maturity, type of grape,
alcohol content, and dissolved
fructose and tannins.
When purchasing your wine, find out
whether it is mature or if it will improve
over time.

9
In the lower part of the cooler.
Cold air
prolongs the time to maturity. Accord-
ingly, store old and mature wine as well
as wine you would like to store for a
long time in the lower portion of the
cooler. The lower part should also be
usedtostorewinethatistobeserved
cold.
In the upper part of the cooler.
In the
upperpart,storewinethatyouwishto
let further mature, wines that are
served at a warmer temperature, and
those wines you intend to consume
relatively soon.
Store the bottles lying down
so that
the corks do not dry out.
Store the wine in the dark.
The cooler
doors are made with double-paned
glass with a dark coating. This will
protect the wine against light damage
if the cooler is placed in a well-lit area.
Avoid turning on the light in the cooler
too often or for too long. The wine
should be stored in the dark.
Handle the bottles with care,
so that
the wine is not agitated.
Heed any advice and recommenda-
tions
given at the time of purchase or
in the professional literature concern-
ing the wine's quality, durability and
optimal storage temperature.
Recommended storage temperatures:
- for white wines +10 to +12°C
- for rosé wines and light red wines
+12to+16°C
- for champagne and sparkling wines
+6 to +8°C
If you stack several bottles on top of
one another,
make sure they do not
touch the cabinet's cooling plate.
Measuring the temperature
If the temperature is measured using a
standard, single thermometer, this
should be put in a glass of water
centrally placed inside the cabinet.
This will reflect the temperature inside
the food products. Do not place the
thermometer hanging or lying directly
on the shelf.
Switching off
To switch off, push the ON/OFF
button. This will result in a countdown
from "3" to "1" taking place in the
temperature display. On reaching "1"
the fridge will switch off. The
temperature display will go off.
If the freezer is turned off, the
refrigerator will also turn off. E.g. while
defrosting the freezer.
Note:
The appliance cannot be switched on
or off if unplugged, or if there is no
power being supplied to it. Following
connection to the mains power supply,
the appliance returns to the same
operating state as before the
interruption of main power.
If the appliance is not going to be used
for an extended period:
1. Switch off the appliance, to do this
press the ON/OFF button.
2. Remove the mains plug.
3. Clean the appliance thoroughly (see
section: "Maintenance and Cleaning").
4. Leave door open to avoid
accumulation of odours.

10
Alarms and other features
Door open alarm
If the fridge door remains open for
more than 5 minutes, the red warning
lamp starts flashing and an audible
alarm sounds.
To switch off the alarm:
Press the "alarm shut-off button". The
red warning lamp goes out when the
door is closed.
Lighting
The cooler lighting may be turned on
with the door closed. This makes it
easy to survey the contents of the
cooler without opening the door. The
cooler lighting should normally be off,
so that the wine is not unduly exposed
to light. The lighting turns off automati-
cally after about 40 minutes.
+-
Use of the freezer compartment
The freezer is provided with the symbol
whichmeansthatitis
suitable for freezing fresh food and for
long term storage of frozen and
deep-frozen food.
To start the freezer and set the correct
temperature
Switching on:
Switch on the freezer by pressing the
power switch.
-
+-
ACTION FREEZE
The alarm sounds if the temperature
inside the freezer reaches room
temperature. Turn off the alarm by
pressing the switch-off button.
-
+-
ACTION FREEZE
Setting the temperature
Press the buttons until the desired
temperature blinks on the temperature
display. (The temperature can be set
between -15°C and -24°C.)
"+" increases the temperature.
"-" decreases the temperature.
-
+-
ACTION FREEZE
Once set, the temperature display
shows the current temperature inside
the freezer.
Allow the cabinet to run for a period of
24 hours whenever the temperature
setting is changed. This will allow the
temperature to stabilise inside the
cabinet.
It is not necessary to reset the
temperature when the cabinet is
switched on after it has been out of
use. The thermostat recalls the
previously set temperature.
