Evolution Aqua evo15 User manual

English
EVO010121MAN
WARNING:
• Ensure that the unit is switched off at the mains before you attempt to conduct
any type of maintenance on the UVC.
• Ensure the unit is installed in the recommended orientation.
• Fit the quartz sleeves and O-rings and switch on pump to check that unit is water
tight before fitting the bulb, bulb socket and end cap.
• Ensure that the end cap is tight before running the unit.
• After replacing bulbs or before tightening the end cap, make sure that the O-Rings
are in the correct position, and the bulb sockets are dry.
• If the electrical connections get wet, dry thoroughly before switching power on.
• This unit should only be installed by a qualified electrician.
INSTALLATION AND OPERATING MANUAL
Complete instructions for all models of evoUV
Evolution Aqua Ltd. Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t [phone] - e[email protected] - wwww.evolutionaqua.com
Downloaded from http://www.watergardeningdirect.com

2
IMPORTANT SAFETY INSTRUCTIONS
- READ AND FOLLOW ALL INSTRUCTIONS
- WARNING - To reduce the risk of injury, do not permit children to use this product
unless they are closely supervised at all times. This appliance is not intended for use by
persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
- WARNING - Risk of Electric Shock. Connect only to a branch circuit protected by a
ground-fault circuit interrupter (GFCI). Contact a qualified electrician if you cannot verify
that the circuit is protected by a GFCI.
- WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
- WARNING - To reduce the risk of electric shock, do not use extension cord to
connect unit to electric supply; provide a properly located outlet.
- WARNING - Do not operate the UV-C emitter when it is removed from the appliance
enclosure.
- Unintended use of the appliance or damage to the housing may result in the escape of
dangerous UV-C radiation. UV-C radiation may, even in little doses, cause harm to the
eyes and skin. Never look directly at an illuminated UV bulb.
- Appliances that are obviously damaged must not be operated.
- Do not run this unit dry. Please ensure that the unit is full of water before switching it on.
- Always isolate the unit from mains electricity and turn off any water supply before carrying
out any maintenance.
- Always disconnect all pond appliances from the mains supply before putting
your hands into the water.
- Use in the area only if the installation complies with the relevant wiring
regulations.
- Power must be supplied through a Residual Current Device (RCD) with a
residual operating current not exceeding 30mA.
- This unit must be earthed when earth wire is fitted.
- Never use a fuse larger than 3 amps on the power lead.
- The unit must not be submerged in water.
- If the quartz sleeve is cracked, replace it immediately.
- The unit must be fully frost protected or taken inside during winter months.
SAVE THESE INSTRUCTIONS
Downloaded from http://www.watergardeningdirect.com

3
CONTENTS
UV Diagram and components list PAGES 4 - 6
Flow Rates PAGE 7
Installing the quartz sleeve PAGE 8
Positioning and mounting the UV PAGE 9
Connection to your pipework PAGE 11
Water Testing PAGE 14
Connection to the Electricity Supply PAGE 15
Installing the UV bulb PAGE 16
UV Bulb Replacement PAGE 17
Replacing / Cleaning the Quartz Sleeve PAGE 18
Electrical box replacement PAGE 19
In Built Protection PAGE 19
Trouble Shooting PAGE 20
Frequently Asked Questions PAGE 21
Guarantee PAGE 22
UNBOXING THE UV
On unpacking, you will see that the UV bulb and quartz sleeve are packed separately for safe
transit. Please refer to pages 8 and 16 of this manual for instructions on how to install the bulb
and quartz sleeve. Quartz Sleeve O-Rings and End Cap Flat Washers are packed in separate
small bags inside the box.
Stainless steel mounting brackets and screws are also supplied in bags and need to be fitted.
On the 110 UV, the mounting brackets can be found in the cardboard end fitments.
Please take time to familiarise yourself with your UV and its components.
INTRODUCING THE EVOLUTION AQUA EVO UV
Congratulations on purchasing an Evolution Aqua evoUV. Our range of evoUV pond clarifiers
have been manufactured using the latest technology and design techniques. evoUVs have
been designed to clear green water which is caused by single celled green algae, and
prevent it from returning. evoUVs will work alongside many different filtration systems but
when used alongside Evolution Aqua’s pond filtration systems, the evoUV will deliver crystal
clear and healthy pond water.
Please read this instruction manual carefully from start to finish before attempting to install
your evoUV.
Downloaded from http://www.watergardeningdirect.com

4
(B) (C)(D) (H) (G)
(F)
(I)
(E)
(A)
(J) (K) (L)

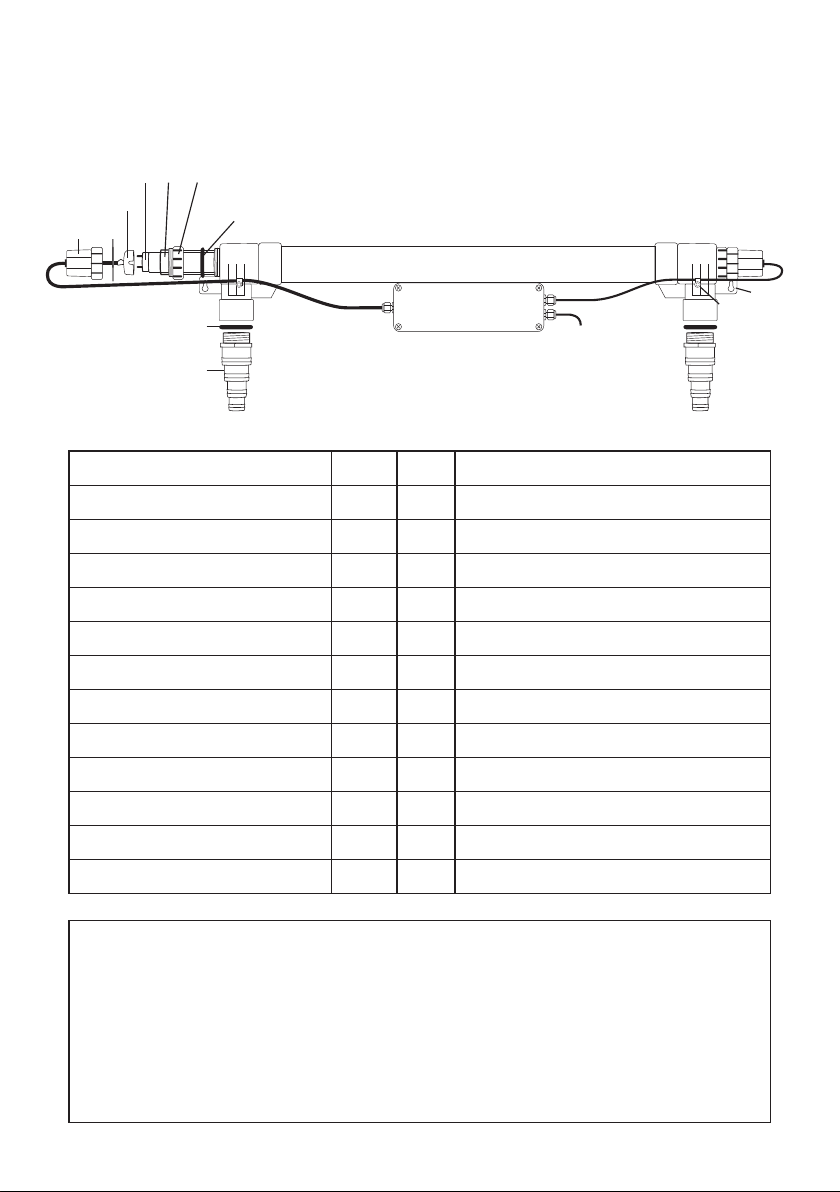

15W AND 25W UV DIAGRAMS AND COMPONENTS LIST
Please familiarise yourself with the components shown in the diagram below:
These are packed in small bags
inside the packaging.
Order code: EVOUVSPARESML
You will receive two quartz sleeve
O-Rings and two end cap flat
washers with this spare part.
IDENTIFYING THE O-RINGS
2 x Quartz Sleeve
O-Ring (G)
2 x End Cap
Flat Washer (I)
Round
O-Ring
Flat
Washer
Description Label Qty Order Code
Inlet / Outlet - 1½Hosetail A 2 HOSETAIL15TH
End Cap B 2 EVOCONNUT
UV Bulb C 1 Available from your EA dealer
Quartz Sleeve D 1 Available from your EA dealer
Hosetail O-Ring E 2 EVOUVORINGHOSET
Bulb Socket F 2 LAMPHOLDER-T8
Quartz Sleeve O-Ring G 2 EVOUVORING2
Locking Nut H 2 EVO-M/F
End Cap Flat Washer I 2 EVOUVFLATWASHER
Electrical Box J 1 Available from your EA dealer
Cable Clip K 2 -
Mounting Bracket L 2 -
Downloaded from http://www.watergardeningdirect.com

5
30W / 55W / 75W UV DIAGRAMS AND COMPONENTS LIST
Please familiarise yourself with the components shown in the diagram below:
(B)
(C) (D) (H)
(G)
(F)
(I)
(E)
(A)
(K) (L)
(J)
Description Label Qty Order Code
Inlet / Outlet - 1½Hosetail A 2 HOSETAIL15TH
End Cap B 2 EVOCONNUT
UV Bulb C 1 Available from your EA dealer
Quartz Sleeve D 1 Available from your EA dealer
Hosetail O-Ring E 2 EVOUVORINGHOSET
Bulb Socket F 2 LAMPHOLDER-T8
Quartz Sleeve O-Ring G 2 EVOUVORING2
Locking Nut H 2 EVO-M/F
End Cap Flat Washer I 2 EVOUVFLATWASHER
Electrical Box J 1 Available from your EA dealer
Cable Clip K 2 -
Mounting Bracket L 2 -
These are packed in small bags
inside the packaging.
Order code: EVOUVSPARESML
You will receive two quartz sleeve
O-Rings and two end cap flat
washers with this spare part.
IDENTIFYING THE O-RINGS
2 x Quartz Sleeve
O-Ring (G)
2 x End Cap
Flat Washer (I)
Round
O-Ring
Flat
Washer
Downloaded from http://www.watergardeningdirect.com

6
(B)
(C) (D) (H)
(G)
(F)
(I)
(J)
(A)
(A)
(L)
110W UV DIAGRAMS AND COMPONENTS LIST
Please familiarise yourself with the components shown in the diagram below:
For European models two 2" imperial to 63mm metric reducers are supplied.
Description Label Qty Order Code
Inlet / Outlet A - -
End Cap B 4 EVOCONNUT
UV Bulb C 2 Available from your EA dealer
Quartz Sleeve D 2 Available from your EA dealer
Bulb Socket F 4 LAMPHOLDER-T8
Quartz Sleeve O-Ring G 4 EVOUVORING2
Locking Nut H 4 EVO-M/F
End Cap Flat Washer I 4 EVOUVFLATWASHER
Electrical Box J 1 Available from your EA dealer
Mounting Bracket L 2 -
These are packed in small bags
inside the packaging.
Order code: EVOUVSPARELGE
You will receive four quartz sleeve
O-Rings and four end cap flat
washers with this spare part.
IDENTIFYING THE O-RINGS
4 x Quartz Sleeve
O-Ring (G)
4 x End Cap
Flat Washer (I)
Round
O-Ring
Flat
Washer
Downloaded from http://www.watergardeningdirect.com

7
FLOW RATES
Please note: For optimum performance we recommend that you pass the entire volume of
your pond through the evoUV unit once every 2 to 3 hours. We do not recommend the use
of pumps with operating pressures in excess of 3 bar.
Your evoUV will keep your pond clear of green water up to its maximum capacity.
However, it is important to note that there are factors that affect how you select the right
size of evoUV for your pond.
You will need to take into consideration such things as stocking levels, sunlight / shade,
daily sunshine amounts etc. This is not always possible to calculate, and if this is the
case, use the tables below as a guide. It must be stressed however, that these are only
guidelines, and you should take advice from your local Evolution Aqua dealer
USA - Southern States / Mediterranean 3 Watts UV per 1,000 litres
Northern Europe including UK 2 Watts UV per 1,000 litres
USA - Northern States / Canada 1 Watts UV per 1,000 litres
*evo110 offers even more UV per volume than the evo75 for more demanding situations
Model Max. pond size Max. flow rate Bulb power Inlet /
Outlet Fittings supplied
evo15 15,000 Litres
3,300 UK Gallons
3,963 US Gallons
7,500 Litres/hr
1,650 UK Gallons/hr
1,982 US Gallons/hr 15W (1 x 15W T8) 1½" 2 x 1½"
Threaded
Hosetails
evo25 20,000 Litres
4,400 UK Gallons
5,284 US Gallons
10,000 Litres/hr
2,200 UK Gallons/hr
2,642 US Gallons/hr 25W (1 x 25W T8) 1½" 2 x 1½"
Threaded
Hosetails
evo30 30,000 Litres
6,600 UK Gallons
7,925 US Gallons
15,000 Litres/hr
3,300 UK Gallons/hr
3,962 US Gallons/hr 30W (1 x 30W T8) 1½" 2 x 1½"
Threaded
Hosetails
evo55 55,000 Litres
12,100 UK Gallons
14,530 US Gallons
20,000 Litres/hr
4,400 UK Gallons/hr
5,284 US Gallons/hr 55W (1 X 55W T8) 1½" 2 x 1½"
Threaded
Hosetails
evo75 75,000 Litres
16,500 UK Gallons
19,815 US Gallons
25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr 75W (1 X 75W T8) 1½" 2 x 1½"
Threaded
Hosetails
evo110 75,000 Litres
16,500 UK Gallons
19,815 US Gallons
25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr 110W (2 X 55W T8) 2" No
Fittings
Supplied
POND IS IN
FULL SHADE POND IS IN PART SHADE POND IS IN FULL SUN
POND SIZE
LOW
STOCK HIGH STOCK LOW STOCK HIGH STOCK LOW STOCK HIGH STOCK
<7,500 Litres
<1,650 UK Gallons
<1,982 US Gallons
evo15 evo15 evo15 evo15 evo15 evo25
<15,000 Litres
<3,300 UK Gallons
<3,963 US Gallons
evo15 evo25 evo15 evo25 evo25 evo30
<20,000 Litres
<4,400 UK Gallons
<5,284 US Gallons
evo25 evo30 evo30 evo30 evo30 evo55
<30,000 Litres
<6,600 UK Gallons
<7,925 US Gallons
evo30 evo55 evo55 evo55 evo55 evo55
<55,000 Litres
<12,100 UK Gallons
<14,530 US Gallons
evo55 evo75 /
evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110*
<75,000 Litres
<16,500 UK Gallons
<19,815 US Gallons
evo75 /
evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110*
Downloaded from http://www.watergardeningdirect.com

8
INSTALLING THE QUARTZ SLEEVE
End Cap (B) UV Bulb (C)
Bulb Socket (F)
End Cap Sealing Ring (I)
Quartz
Sleeve (D) Thread
Quartz
Sleeve
O-Ring (G)
Locking
Nut (H)
1. Starting at one end of the unit, unscrew the black end cap (B). You will notice
that this black end cap houses the bulb socket (F).
2. Unscrew the white locking nut (H) from the same end.
3. Repeat steps 1 and 2 at the other end of the unit.
4. Take the quartz sleeve (D) from the packaging box and slide it through the UV until it
finds the hole at the far end of the unit.
5. Take the quartz sleeve O-Ring (G) and fit it around one end of the quartz sleeve.
6. Slide this quartz sleeve O-Ring (G) towards the thread on the UV body,
ensuring that equal amounts of quartz sleeve are visible at each end of the unit.
7. Fit the quartz sleeve O-Ring
(G) at the other end of the
quartz sleeve, again ensuring
that equal amounts of quartz
sleeve are visible at each
end of the unit.
8. Now screw the white locking
nut (H) back into position.
9. Ensure the locking nut
is HAND TIGHTENED to
prevent causing damage to
the O-Ring. No tools
are needed.
10. Repeat steps 8 and 9 at the other end of the unit.
11. The quartz sleeve is now in position ready to take the UV bulb.
12. Run for 24 hours to check the installation is correct with no leaks. See page 14 for
details. Re-install if any leaks are detected - if no leaks proceed to lamp installation.
EQUAL AMOUNTS MUST BE VISIBLE
IMPORTANT: Ensure that equal amounts of the
quartz sleeve are visible at each end of the unit
before fitting the locking nuts.
HAND TIGHTEN FITTINGS ONLY - DO NOT USE TOOLS
Downloaded from http://www.watergardeningdirect.com

9
POSITIONING AND MOUNTING THE UV
Fitting mounting brackets (15W to 75W)
Stainless steel brackets and screws can be found in bags inside the packaging.
You will need to install these mounting brackets to the rear of the UV at each
end using a 3mm allen key. HAND TIGHTEN ONLY.
Fitting mounting brackets (110W)
Stainless steel mounting brackets, nuts and bolts can be found inside the packaging.
On the 110 UV, you can find the two mounting brackets inside the cardboard fitting
inside the box. Nuts and bolts are packed in a small bag. You will need to install
these mounting brackets to the rear of the UV at each end. Use a 8mm nut runner
and spanner. HAND TIGHTEN ONLY.
3mm
8mm 3mm 3 Core
Mains Cable
Length according to installation
6mm
3mm
8mm
3mm 3 Core
Mains Cable
Length according to installation
6mm
3mm 8mm 3mm 3 Core
Mains Cable
Length according to installation
6mm
Downloaded from http://www.watergardeningdirect.com

10
POSITIONING AND MOUNTING THE UV
If you are going to position your evoUV outside or in an area where it is likely to get splashed
regularly with water, then you must mount the unit the correct way up. If your evoUV will be
positioned in a permanently dry environment then it can be installed in any position.
Your evoUV must not be submerged in water or placed in a position where water may collect
around the unit. The electrics within the evoUV units are sealed in a showerproof unit. evoUV
has an IP rating of X5.
Please ensure that there is enough space at one end of the evoUV to enable bulb / quartz
sleeve removal and maintenance.
PLEASE NOTE: Wall mounting screws and wall plugs are not provided.
If installing the unit prior to or without a pond filter, we would recommend the use of a
pre-filter on the water pump to prevent excess solids from being pumped into the unit.
The evoUV may be connected to the water flow on any pumped line, this could be,
for instance, a skimmer line or any other additional pumped line. The two most common
forms of set up are pump fed and gravity fed, shown below:
POND
UV
Pump
Raised 12”
off ground
1½” or 2” Pipe
1½” or
2” Pipe
4” Pipe
Return to pond
Gravity Fed Installation
Pump Fed Installation
We recommended installing a ball valve either side of the evoUV for maintenance.
POND
Water Level Return to pond
UV
Alternative return via waterfall / blade
Alternative
return
Water
Pump 4” Pipe
1½” or 2” Pipe
Downloaded from http://www.watergardeningdirect.com

11
CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
IMPORTANT: DO NOT OVERTIGHTEN FITTINGS.
The two universal hosetails supplied with the evoUV, should be screwed into the inlet /
outlet at either end of the unit. Hosetails should be tightened using hand pressure only.
Ensure that the O-Rings are in position before assembling. Please note that there is no
correct direction of flow through the unit, either end may be used as the inlet or outlet.
CONNECTION WITH FLEXIBLE HOSE
The evoUV is supplied with two universal hosetails to take ¾”, 1”, 1¼”, and 1½” diameter
flexible hose. If you are using one of the two larger sizes, the smaller sections of the hosetails
must be cut off to ensure sufficient water flow and to prevent possible damage to the pump.
We recommend that you use the largest diameter hose available. The hosetails should be
trimmed away from the unit as shown in the diagram below. Once the hosetails have been
trimmed, attach them to the unit as shown below. Secure the flexi-hose to the hosetail with
a stainless steel hose clip (not provided).
CUT AND REMOVE
UNWANTED HOSETAILS
CUT
1½” 1¼” 1” ¾”
CUT CUT
Screw into
evoUV
(Hand tight only)
Use these fittings to connect 1½" Flexible Hose to an evoUV.
Use a stainless steel hose clip (not supplied) to secure the hose to the fitting.
DO NOT OVERTIGHTEN HOSETAIL
CONNECTION TO FLEXIBLE HOSE
EA FITTING CODE:
HOSETAIL15TH
Threaded Hosetail Fitting
O-Ring
Downloaded from http://www.watergardeningdirect.com

12
CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
CONNECTION TO IMPERIAL PRESSURE PIPE - DO NOT OVERTIGHTEN FITTINGS.
The unit may also be rigid plumbed by the use of adaptors and solvent weld adhesive,
available from Evolution Aqua stockists.
GLUED CONNECTION TO
1½" PRESSURE PIPE
GLUED CONNECTION TO 2" PRESSURE PIPE
VERSATILE CONNECTION TO
1½" PRESSURE PIPE
SCREW SCREW
GLUE GLUE
EA CODE:
K82-23-55
EA CODE:
K82-78-55
EA CODE:
U10-050
EA CODE:
U10-050
1½" Straight
Connector
Converter
Threaded Male
to Plain Female
The unit may also be rigid plumbed to
2" Pressure Pipe. For versatility you can
install a 2" Double Union Ball Valve
(K25-50-63) over the top of the inlet
/ outlet of the evoUV and then connect
up to 2" Pressure Pipe.
1½" Single
Union
Threaded
Male to
Plain Female
2" Double
Union
Ball Valve
1½"
Pressure
Pipe
1½"
Pressure
Pipe
EA CODE:
K25-50-63
Downloaded from http://www.watergardeningdirect.com

13
CONNECTION TO YOUR PIPEWORK (evo110 only)
CONNECTION TO METRIC PIPEWORK
In countries where metric pipework is used, you can connect all evoUVs to 63mm pipe.
On evo15 to evo75 models, we recommend using a 2" to 63mm Plain Female Straight
Connector Converter (K81-25-66) (not supplied). This can be glued directly onto the inlet /
outlet of the evo15 - evo75 models and then to 63mm pipe.
For evo110 models, adapters are supplied in the box to allow connection to 63mm pipe.
CONNECTION TO IMPERIAL PRESSURE PIPE - DO NOT OVERTIGHTEN FITTINGS.
The evo110 may also be rigid plumbed to 2" Pressure Pipe by the use of adaptors and
solvent weld adhesive, available from Evolution Aqua stockists.
GLUED CONNECTION TO 2" PRESSURE PIPE
2" Pressure Pipe
GLUE
2" Double
Union
Ball Valve
EA CODE:
K25-50-63
2" Single Union
Plain Female to
Plain Female
EA CODE:
K82-74-66
The unit may also be rigid plumbed to
2" Pressure Pipe.
We advise you to fit a length of 2” pipe
into the inlet and outlet and then glue:
2” Double Union Ball Valve
(K25-50-63)
or
2" Plain Female to Plain Female Single Union
(K82-74-66).
Downloaded from http://www.watergardeningdirect.com

14
WATER TESTING THE QUARTZ, O-RINGS AND LOCKING NUTS
Now that the unit is in position and connected to pipework, the quartz sleeve and O-ring at
each end can be leak tested to ensure that they have been fitted properly. Failure to test for
leaks and improper installation at this stage may cause water to seep into and damage the
bulb socket and end cap flat washer.
STEP 1: Fit quartz sleeve, o-rings and
locking nuts.
STEP 3: Position and mount UV and
connect inlet and outlet connections.
STEP 5: Check locking nuts for signs of
water leaking.
STEP 7: If no water leaks, quartz sleeve
has been properly installed. Proceed to
connecting the UV to the power supply.
STEP 2: Check the locking nuts are
hand tight only.
STEP 4: Connect up to pipework and
turn on pump to start water flow.
STEP 6: If water seeps from locking
nuts, check quartz sleeve installation.
See Troubleshooting on page 18.
Failure to test for leaks and improper
installation at this stage may cause
water to seep into and damage
the bulb socket and ballast. Water
damage from improper installation is
NOT covered under warranty.
WARNING


EQUAL AMOUNTS MUST BE VISIBLE


EQUAL AMOUNTS MUST BE VISIBLE


EQUAL AMOUNTS MUST BE VISIBLE


EQUAL AMOUNTS MUST BE VISIBLE


EQUAL AMOUNTS MUST BE VISIBLE


EQUAL AMOUNTS MUST BE VISIBLE


EQUAL AMOUNTS MUST BE VISIBLE
Downloaded from http://www.watergardeningdirect.com

15
CONNECTION TO THE ELECTRICITY SUPPLY
Electrical installations must be done by a qualified electrician.
The power supply must meet the specifications on the product.
The cores in the supply cable are coloured in accordance with the
following code:
UK / EU:
Brown = Live
Blue = Neutral
Green / Yellow = Earth
Do not use the supply cable to lift the UV as this may cause damage.
WARNING - A Residual Current Device (RCD), also known as the Residual Current Circuit
Breaker (RCCB), with a tripping current not exceeding 30mA must be installed in the
supply circuit. A means of disconnection from the supply having a contact separation of at
least 3mm in all poles must be incorporated in the wiring.
Caution: Use in the area of a swimming pool only if the installation complies with the
relevant wiring regulations. Please consult a qualified electrician.
All electrical installations and wiring must be adequately protected to prevent
any damage.
Enough electrical cable is supplied with the unit to connect to the mains electric. This unit
must be connected to permanent wiring. A switch with 3mm contact separation must be
provided in the fixed wiring to provide disconnection from the electricity supply.
It is recommended that the UV unit is wired in conjunction with the pump so that when the
pump is turned off, so is the UV unit.
USA SPECIFIC
GROUNDING INSTRUCTIONS - This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the risk of electric shock by providing a
path of least resistance for electric current. This appliance is equipped with a cord having
an appliance-grounding conductor and a grounding plug. The plug must be plugged into
an appropriate outlet that is installed and grounded in accordance with all local codes and
ordinances.
WARNING - Improper connection of the appliance-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly grounded. Do not modify the plug provided
with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified
technician.
USA WIRING
Black = Live
White = Neutral
Green = Earth
Downloaded from http://www.watergardeningdirect.com

16
INSTALLING THE UV BULB
1. Remove all packaging from the UV bulb (C).
2. Slide the UV bulb (C) carefully through the quartz sleeve (D) that you have
just fitted and tested, as per the instructions on pages 8 and 14.
3. While holding one of the black end caps (B) gently push the cable through the end cap
which will make it easier to fit the bulb socket (F) in step 5.
IMPORTANT:Do not pull the cable by holding just the bulb socket.
4. Fit the End Cap Flat Washer (I) over the bulb socket and locate it in the end cap so it
is seated on the inside lip of the end cap.
IMPORTANT:Ensure the end cap flat washer is not twisted and it remains in this
location throughout the installation.
5. In no particular order, align the
UV bulb pins with the holes in
the bulb socket and carefully
push the bulb socket firmly onto
the UV bulb pins. You may need
to hold the other end of the UV
bulb to help you fit the socket.
6. Ensure the UV bulb socket is
firmly connected to the UV bulb.
7. Repeat steps 3 to 6 at the other end of the unit.
8. Now at one end of the unit, slide the black end cap (checking that the flat washer in
position) over the bulb socket while carefully holding the cable to prevent the bulb
connector disconnecting from the UV bulb.
9. Screw this end cap onto the thread on the white locking nut (H) already connected to
the UV body. HAND TIGHTEN ONLY.
10. Repeat steps 8 and 9 at the other end of the unit.
11. Check that all of the fittings are hand tightened. No tools are needed.
12. On multiple bulb units, do not mix up the bulb connectors as this will result in the bulb
not illuminating.
Please ensure that there is enough space at one end of the UV to enable bulb / quartz
sleeve removal and maintenance.
(B) (I) (F) (C) (H)(D)
HAND TIGHTEN FITTINGS ONLY - DO NOT USE TOOLS
Downloaded from http://www.watergardeningdirect.com

17
TO REMOVE A UV BULB:
It is not necessary to stop the water circulating through the UV to change the bulb.
1. Disconnect the electricity supply.
2. Unscrew the black end cap at one end of the unit. Take care not to unscrew the white
locking nut also.
3. Carefully slide the black end cap over the wire to reveal the bulb socket.
Take care not to lose the end cap flat washer.
4. Disconnect the bulb socket.
5. Repeat steps 2 to 4 at the other end of the UV.
6. With the end caps out of the way, carefully slide out the UV bulb.
WARNING: If the end caps / electrical connections get wet during this procedure,
please ensure that they are thoroughly dried before re-connecting.
TO INSTALL A NEW UV BULB:
Follow the instructions on page 16 to fit a new UV bulb.
IMPORTANT: After checking all the fittings are correctly tightened you can switch your unit
back on.
As already mentioned, it is essential that the unit is protected from frost during the winter
months, or disconnected from water and electricity supplies and stored indoors. During
the spring and summer season, the quartz sleeve, which separates the UV bulb from the
water passing through the unit, will need to be cleaned two or three times. This is essential,
as dirt or limescale building up on the quartz sleeve will inhibit the penetration of the
ultraviolet light into the water and affect the efficient working of the unit.
UV BULB REPLACEMENT
ALWAYS ISOLATE THE UNIT FROM ANY ELECTRICITY AND WATER SUPPLY
BEFORE CARRYING OUT MAINTENANCE ON THE UNIT.
Downloaded from http://www.watergardeningdirect.com

18
REPLACING / CLEANING QUARTZ SLEEVE
DANGER: ULTRAVIOLET RADIATION. Disconnect Power Before Replacing Lamp
ALWAYS ISOLATE THE UNIT FROM ANY ELECTRICITY AND WATER SUPPLY BEFORE
CARRYING OUT MAINTENANCE ON THE UNIT.
TO REMOVE A QUARTZ SLEEVE:
PLEASE NOTE: Removing the quartz sleeve will cause water to flow out of the unit.
Flow can be directed to the bypass using the installed bypass. If no bypass is installed then the
pump should be turned off and other valves used to isolate the UV.
1. Remove the UV bulb as described on page 16.
2. With the electricity supply disconnected, UV isolated and UV Bulb removed,
unscrew the locking nut at one end of the UV.
3. Carefully remove the quartz sleeve O-Ring and keep safe.
4. Unscrew the locking nut from the other end and remove the quartz sleeve O-Ring and keep
safe.
5. Carefully remove the quartz sleeve taking care not to allow it to drop inside the
UV body.
6. To drain any water that may be left in the unit, we would recommend that you unscrew the
mounting bracket(s), disconnect the unit from the pipework, and tilt the unit to drain the
chamber of water.
7. Clean the sleeve and polish with a soft cloth or paper towel. If you live in a hard water area,
you may get limescale on the quartz sleeve; this can be easily removed by using vinegar or a
cold water descaler.
WARNING: If the end caps / electrical connections get wet during this procedure,
please ensure that they are thoroughly dried before re-connecting.
TO RE-INSTALL A QUARTZ SLEEVE:
Follow the instructions on pages 8 and 16 to re-install the quartz sleeve and UV bulb.
IMPORTANT: After checking all the fittings are correctly tightened you can switch your
unit back on.
TROUBLESHOOTING
During this procedure or if you notice water leaking from around the end caps you should check
the following:
1. Check the O-Ring is undamaged.
2. Check there are no cracks and breaks in the quartz sleeve.
3. Check that the locking nut is compressing the O-Ring to form a water tight seal.
4. Check that the end caps are sufficiently tight.
5. All components are clean and free from dirt and debris.
*Please note that service items are not subject to a claim under warranty. The service items
listed on pages 4 to 6 are available from your EA stockist.
Downloaded from http://www.watergardeningdirect.com

19
ELECTRICAL BOX REPLACEMENT
The electrical box with ballast can be easily replaced in the event of any issues.
Spare electrical boxes are available from your Evolution Aqua dealer.
Use the installation instructions provided with the spare part to install the unit.
IN BUILT PROTECTION
The evoUV range of pond clarifiers have thermal overload protection which automatically
shuts down and then enables a fast re-start when the problem has been cleared. This may
be as a result of water in the end caps. Please see the troubleshooting section.
Thermal Overload Protection -
This will automatically switch off the unit should the temperature exceed the maximum
operating temperature limits.
Automatic start up and shut down protection -
This protects the electrical components in the event of a power surge.
Downloaded from http://www.watergardeningdirect.com

20
TROUBLE SHOOTING
My pond water is not clear, is this due to the evoUV not working correctly?
Koi, goldfish and other pond inhabitants can cause murky water by stirring up the bottom of
the pond. This murky water should not be confused with suspended algae. Always check
all your pond filtration is working and is being maintained correctly prior to checking the
evoUV. Mechanical filtration is necessary.
If the UV bulb is not lit, then you need to investigate the power to your unit.
• Has your RCD tripped? If yes, check your wiring and reset.
• Examine the UV bulb for signs of failure, and replace if necessary.
• Is the UV bulb fitted correctly? Unscrew the end caps and ensure correct fitting as per the
instructions as described in this manual.
• Are the end caps dry? If not, allow to dry thoroughly. We recommend the use of a hair-
dryer for this.
The unit worked well when I first installed it but recently my pond has gradually gone
green again – what is wrong?
Quartz sleeve may have become dirty and requires cleaning. Also make sure you have the
right model for your pond size. Ensure your pond filtration is removing fish waste and debris
efficiently. Dirt in ponds will affect the efficiency of the evoUV. Check that your pond water
volume is pumping through the evoUV every 2 to 3 hours.
Only after you have carried out these checks should you contact your Evolution Aqua
dealer, who will then be able to advise you further.
The unit appears to be leaking from the end fittings?
This could possibly be caused by an incorrectly fitted, damaged or overtightened
O-Ring on the quartz sleeve. Please check the quartz sleeve O-Ring, reposition it or if
necessary replace it with a new one. Follow the steps on page 14 to test.
IMPORTANT: Do not fit the bulb socket or end cap until the issue is solved.
If water enters the bulb socket it can cause irreparable damage to bulb socket and ballast.
Damage caused by improper fitting of the quartz sleeve, o-rings and locking nuts are not
covered under warranty.
The ballast appears to have failed.
Replacement ballast boxes including ballasts, wires and lamp connectors can be purchased
as a spare part from Evolution Aqua stockists. See the evoUV spares section on our website.
Downloaded from http://www.watergardeningdirect.com
