PARTS LIST
INCLUDED
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
24-Hour Service Hotline [phone] OCT 13
*8195724*


PF95LP Series Portable
Filtration Systems
Installation & Operation Manual

Please read all sections of this manual and retain for future reference.
Installation, maintenance, and repairs should be performed by your Frymaster/Dean
Factory Authorized Service Agency.
WARNING
Safe and satisfactory operation of your equipment depends on its proper installation.
Installation MUST conform to local codes, or in the absence of local codes, with the
latest edition of the National Electric Code, N.F.P.A. 70.
WARNING
ELECTRICAL GROUNDING INSTRUCTIONS
This filter is equipped with a three-prong, grounded plug for your protection against
shock hazard and should be plugged directly into a properly grounded, three-hole
receptacle. Do not cut off, remove or otherwise bypass the grounding prong on this
plug.
If it is necessary to use an extension cord, it MUST be a three-conductor, grounded
cord of 16 gauge or greater.
DANGER
Do not filter more than one fry tank at a time.
Hot fluid – Do not fill above a point 1-½ inch below the OIL CONTAINER RIM.
WARNING
This filter unit is not suitable for outdoor use. When operating this unit, it MUST be
placed on a horizontal surface.
WARNING
This filter unit is not suitable for installation in an area where a water jet can be used,
and this appliance MUST NOT be cleaned with a water jet.

NOTICE:
If this filter unit is cleaned with water, disconnect the unit from power source before
cleaning and thoroughly dry the filter unit before reconnecting to electrical power
source.
DANGER
The crumb tray (if equipped) in portable filter systems must be emptied into a fireproof
container at the end of frying operations each day. Some food particles can
spontaneously combust if left soaking in certain shortening material.
NOTICE:
Drawings and photos used in this manual are intended to illustrate operational, cleaning
and technical procedures and may not conform to on-site management operational
procedures.
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS
MANITOWOC EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART
PURCHASED DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED
SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS
ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER,
FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS,
DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY
OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY
MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE
CENTER.

PF95LP Series Portable Filtration Systems
Installation & Operation Manual
TABLE OF CONTENTS
Page #
1. INTRODUCTION 1-1
2. IMPORTANT INFORMATION 2-1
3. INSTALLATION INSTRUCTIONS 3-1
4. FILTER OPERATION 4-1
5. CLEANING AND MAINTENANCE 5-1
6. TROUBLESHOOTING 6-1
7. PARTS LIST 7-1

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 1: INTRODUCTION
1-1
1.1 Parts Ordering/Service Information
Place parts orders directly with your local Frymaster/Dean Factory Authorized Servicer (FAS).
Your nearest Frymaster FAS is accessible at www.frymaster.com or you can contact the Frymaster
Service Department at 1-800-24-FRYER or 1-318-865-1711.
To help speed your order, the following information is required:
Model Number Type
Serial Number
Optional Features
Item Part Number Quantity Needed
1.2 Service Information
Call the 1-800-551-8633 or [phone] Service Hotline number for the location of your nearest
Factory Authorized Servicer. Always give the model and serial numbers of your filter unit. Also,
identify if your unit is supplied with or without a heater.
To assist you more efficiently, the following information will be needed:
Model Number Type
Serial Number
Optional Features
Nature of Problem:
Additional information (i.e. oil temperature at filter time, time of day and other pertinent
information) may be helpful in solving your service problem.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 1: INTRODUCTION
1-2
1.3 After Purchase
In order to improve service, have the following chart filled in by the Authorized Service Technician
who installed this equipment.
Authorized Service
Technician/FAS
Address
Telephone/Fax
Model Number
Serial Number
1.4 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
ones below.
CAUTION
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER
DANGER boxes contain information about actions or conditions that may cause or result in injury
to personnel, and which may cause damage to your system and/or cause your system to malfunction.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 1: INTRODUCTION
1-3
1.5 Service Personnel
1.5.1 Definitions
A. Qualified and/or Authorized Operating Personnel
1. Qualified/authorized operating personnel are those who have carefully read the information
in this manual and have familiarized themselves with the equipment functions, or have had
previous experience with the operation of equipment covered in this manual.
B. Qualified Installation Personnel
1. Qualified installation personnel are individuals, or firms, corporations, or companies that,
either in person or through a representative, are engaged in and are responsible for the
installation of electrical appliances. Qualified personnel must be experienced in such work,
be familiar with all electrical precautions involved, and have complied with all requirements
of applicable national and local codes.
C. Qualified Service Personnel
1. Qualified service personnel are those who are familiar with Frymaster/Dean equipment and
have been authorized by Frymaster/Dean to perform service on Frymaster/Dean equipment.
All authorized service personnel are required to be equipped with a complete set of service
parts manuals and stock a minimum amount of parts for Frymaster/Dean equipment.
Failure to use qualified service personnel will void the Frymaster/Dean warranty on your
equipment.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 2: IMPORTANT INFORMATION
2-1
2.1 General
PF95LP portable filters can be used with a variety of Frymaster fryers, as well as other
manufacturers’ equipment. Oil capacity is approximately 105 pounds. Unit specifications are listed
below.

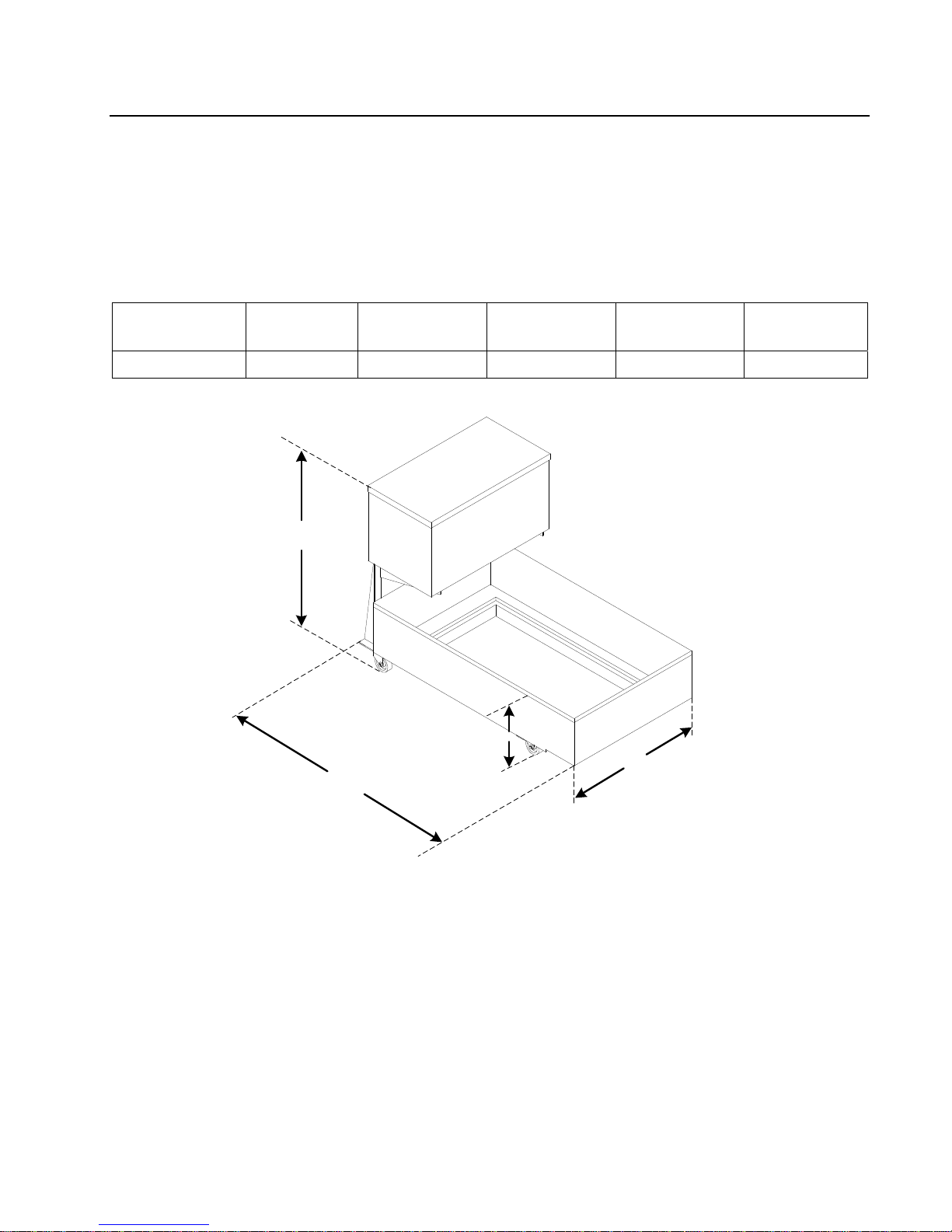

Model Unit Height
(inches) Unit Width (inches) Unit Length (inches) Tank Height (inches) Oil Capacity (pounds)
PF95LP 24 18 33 ½ 9 105
Unit Length Unit Width
Unit Height
Tank Height
PF95LP Series filter unit dimensions (unit and tank heights are measured from
bottom of casters to top of unit and tank, respectively).

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 2: IMPORTANT INFORMATION
2-2
2.1 General (cont.)
Oil or shortening is gravity-drained from the fryer into the filter, and then filtered through filter
paper. Filter powder, which enhances the filtering process, is distributed over the paper prior to
filtering.
All units are shipped completely assembled with accessories packed inside the filter pan. All units
are adjusted, tested and inspected at the factory before shipment.
WARNING
The on-site supervisor is responsible for ensuring that operators are made aware of
the inherent dangers of operating a hot oil filter system, particularly the aspects of
oil filtration, and draining/cleaning procedures.
An ON/OFF switch activates/deactivates the
filter pump, and a 7-amp (120V), or 5-amp
(230V) circuit breaker switches the power OFF if
an overload occurs. An internal backup thermal-
overload switch on the pump-motor provides
additional protection.
NOTE: If the circuit breaker is triggered,
depress the reset button to activate the
circuit after the failure has been
detected and repaired.
2.2 Rating Plate
Information on the rating plate includes model and serial numbers, as well as electrical requirements.
The rating plate is located on the back housing, near the electrical receptacle. Have the rating plate
information handy when communicating with the factory about a unit or requesting special parts or
information. Without rating plate information, proper identification of the unit cannot be confirmed.
7-Amp circuit breaker On/Off Switch

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 2: IMPORTANT INFORMATION
2-3
2.3 Pre-Installation
NOTE: Failure to use qualified service personnel will void the Frymaster/Dean warranty.
A. Standards: Use of this filter unit must be in accordance with all applicable state and local
codes.
B. Electrical Connections: Domestic PF95 filter units require a 115V 60 Hz., 15 amp electrical
supply. International/CE units require 230V 50 Hz., 7 amp electrical supply. Units are
equipped with a grounded male receptacle for use with a 16-3 SJT power cord set. If an
extension cord is required, it must be a three-conductor, grounded power cord of at least 16
gauge.
2.4 Unpacking the Filter System
Ensure the container is upright. Unpack the filter carefully and remove all accessories from the
carton. Do not discard or misplace parts and/or accessories; they will be needed for filter setup
and operation. Any accessories or starter kits included with the unit will be packaged inside
the filter tank.
After unpacking, immediately check the equipment for visible signs of shipping damage. If
such damage has occurred, contact the carrier and file the appropriate freight claims. Do not
contact the factory, as the responsibility of shipping damage is between the carrier and dealer
or end-user.
If your equipment arrives damaged:
a. File claim for damages immediately – Regardless of extent of damage.
b. Visible loss or damage – Be sure this is noted on the freight bill or express receipt and is
signed by the person making the delivery.
c. Concealed loss or damage – If damage is unnoticed until equipment is unpacked, notify
freight company or carrier immediately, and file a concealed damage claim. This should be
done within 15 days of date of delivery. Retain the shipping container for inspection.
NOTE: Frymaster does not assume responsibility for damage or loss incurred in transit.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 3: FILTER PREPARATION
3-1
3.1 Assembling The Filter System
On initial installation and before each use, remove all loose parts from the filter, wash the filter pan
and all accessories in hot, soapy water and dry thoroughly.
WARNING!
Water or boil-out solution MUST not be allowed to drain into the filter pan or filter
system. Irreversible damage will result if water is allowed into the system, and the
warranty will be voided.
PF95LP Series portable filtration systems use a filter support grid, one sheet of filter paper and a
hold-down ring to secure the filter paper in place.
3.1.1 Filter Paper Configuration
See illustration for proper assembly.
1. Filter Pan Cover
2. Hold-Down Ring
3. Filter Paper (one sheet)
4. Screen/Support Grid
5. Filter Pan Assembly
A. First, place the support grid in the bottom of filter pan.
B. Place one sheet of filter paper on top of the support grid. Ensure the paper evenly covers the
filter pan bottom.
C. Position the hold-down ring on top of the filter paper and latch the hold-down ring and filter
paper securely against the filter pan bottom, forming a tight seal.
D. Sprinkle 8 ounces of filter powder over the filter paper, distributing the powder as evenly as
possible. If filtering a second frypot immediately after the first, add only 4 ounces of filter
powder for the second filtering.
E. Place the crumb catcher screen (if applicable) in the filter pan. Allow the crumb catcher screen
to rest on the top edges of the hold-down ring.
F. Place filter pan cover onto the filter pan assembly.
12
3
4
5

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 3: FILTER PREPARATION
3-2
3.1.1 Filter Paper Configuration (cont.)

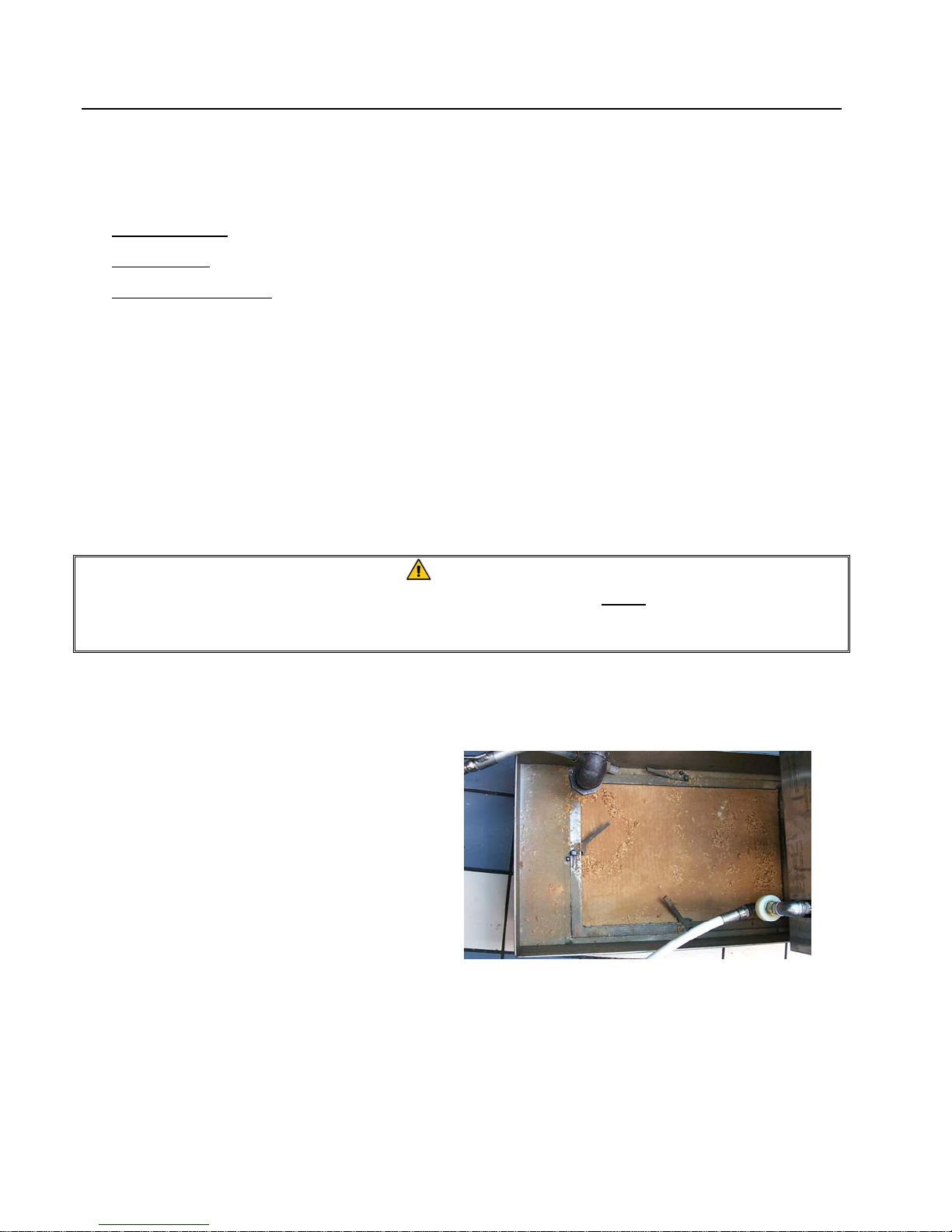

G. Position filter under the fryer drainpipe to gravity drain the fryer. Lock the rear casters to
prevent filter from moving out of position during the filtering process.
PF95LP portable filter positioned correctly next to fryer drain valve, with rear casters
locked in place.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-1
4.1 General
PF95LP Series portable filters are designed to operate primarily as an independent filter unit.
Operations always start by ensuring the unit is properly plugged in, then rolling the filter to the fryer
to be filtered. The filter works directly under the fryers’ drain valves. The general layout of a
PF95LP Series portable filter with major components identified is illustrated below.
FRYPOT
WAND OIL-RETURN HOSE
QUICK-DISCONNECT
COUPLING
PUMP
FILTER PAN
DRAIN VALVE WITH
EXTENSION
LOCKING
REAR
CASTERS
Arrows indicate direction of oil flow during the filtration process.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-2
4.2 Filtering Tools
These tools are not required, but are recommended to make the filtering task easier.
A. Measuring Cup: Used to measure eight ounces by volume of filter powder.
B. Scrub Brush: To clean sediment and residue from the filter pan and frypot.
C. Appropriate Clothing.
4.3 Filter Preparation
1. Position the PF95LP portable filter next to the fryer. Remove filter pan lid and position
filter unit under frypot drain-valve extension.
2. Ensure the filter power switch is in "OFF" position prior to connecting to power supply.
3. Plug power cord into electrical outlet. The filter unit is ready for filtering. After filtering,
follow instructions in Section 4.4, Changing Filter Paper.
DANGER
The crumb tray (if equipped) in portable filter systems must be emptied into a
fireproof container at the end of frying operations each day. Some food particles
can spontaneously combust if left soaking in certain shortening material.
4.4 Changing Filter Paper
Filter paper should be replaced after each filter
session, and most certainly at the beginning of
each workday. If filter paper is replaced once
per day, excess sediment should be scraped from
the filter paper after each frypot is filtered (see
photo). Use care not to tear the paper when
scraping off sediment. Filter at closing if
possible. This ensures the oil is at proper
filtering temperature.
Note: If filtering at closing, remove and discard
the used filter paper in a fireproof container
when filter operations are complete. Wash all
components in soapy water and dry completely.
If filtering more than one frypot with the same
filter paper, scrape excess sediment from the
filter paper after each filtering.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-3
4.4 Changing Filter Paper (cont.)
Remove and replace the paper as follows:
1. Remove filter cover. Place the hose wand in the wand holster, located on the left side of the
pan (arrow).
2. Open the locking latches of the hold-
down ring and lift the ring out of the
filter tank.
3. Roll both ends of the filter paper into the
center, ensuring no sediment falls out,
and discard.
Removing hold-down ring. Note location of
wand holster (arrow).
Removing dirty filter paper from pan.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-4
4.4 Changing Filter Paper (cont.)
4. Remove and check the filter paper
support screen for cleanliness and clean
if necessary.
5. Check the filter-pan for cleanliness and
clean if necessary; check the drain ports
at the bottom rear of the filter pan and
clear any solidified shortening from the
opening (black arrow). Also ensure vent
hole on top of tube is clear of shortening
and/or debris (white arrow).
6. Replace the filter paper support screen
and place a new sheet of filter paper on
top of the screen.
Removing paper support screen from pan.
Solidified shortening can build-up in the nipple-
pipe assembly (black arrow).
Placing new sheet of filter paper over paper
support screen.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-5
4.4 Changing Filter Paper (cont.)
7. Replace the hold-down ring and secure
by locking latches in place.
8. Measure 8 ounces of filter powder and
distribute evenly over the paper surface.
9. Replace filter pan cover. The filter is
ready for operation.
Secure the hold-down ring latches to lock filter
paper in place.
Evenly distribute 8 ounces of filter powder over
the filter paper surface.
Filter unit ready for filtering operations.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-6
4.5 Unit Operation
1. When filtering, follow these steps:
2. Follow the appropriate instructions in Sections 4.3 and 4.4 to prepare the filter unit for operation.
3. Position the filter unit under the fryer drain valve extension prior to draining fryer.
4. Turn the fryer main power switch to the "OFF" position.
DANGER
Do not leave filter unit unattended during the filtering operation. Pressurized oil
moving through the lines can cause the flexible return hose and wand assembly to
pop loose and spray hot oil.
Avoid spilling hot oil onto floor surfaces. When draining fryer into filter, never
exceed the maximum capacity of the filter pan.
5. Open the fryer door and place the filter in the proper position under the fryer drain valve
extension (see photo below). Lock rear casters to prevent filter movement during the filtering
process.

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-7
4.5 Unit Operation (cont.)
DANGER
The oil temperature of the fryer to be filtered should be approximately 350°F (175°C).
Position drain handles properly prior to operating the filter unit. Failure to do this
can result in burn injury to the user.
6. Open the drain-valve and allow the frypot oil
to drain into the filter pan.
7. With the oil return wand in frypot, turn filter
switch "ON" to begin pumping clean oil into
the fryer. Allow the oil to recycle through the
fryer for a few seconds to wash out sediment
on the bottom of the frypot before closing the
drain valve.
Note: The oil return wand can also be
mounted in the wand holster inside the pan,
for extended filtering periods (polishing) prior
to refilling frypot. NEVER LEAVE THE
FILTER SYSTEM UNATTENDED WHILE
FILTERING!
Frypot draining into filter pan. Ensure oil is at
operating temperature before opening drain
valve.
Use the nozzle to rinse sediment and debris
from the frypot during the filtering process ("U"
units only).

PF95LP SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: FILTER OPERATION
4-8
4.5 Unit Operation (cont.)
8. When filtering is complete, close the drain
valve handle. It takes approximately 5 to 7
minutes for the filter to pump all the oil back
into the fryer.
9. Allow the pump to run for 10-15 seconds
after air starts to flow through the wand,
before shutting off the filter. Clearing
residual shortening or oil from the return
lines reduces the likelihood of clogged lines.
NOTE: After filtering, scrape off debris and sediment accumulated on the filter paper and
discard into a fireproof container.
CAUTION
If using solid shortening, the return hose must be completely drained after filtering,
or the shortening will solidify and plug the hose or oil return lines as it cools.
NOTE: If filtration operations problems are encountered during use, please refer to Chapter 6
in this manual.
