Electrovision T143FH User guide

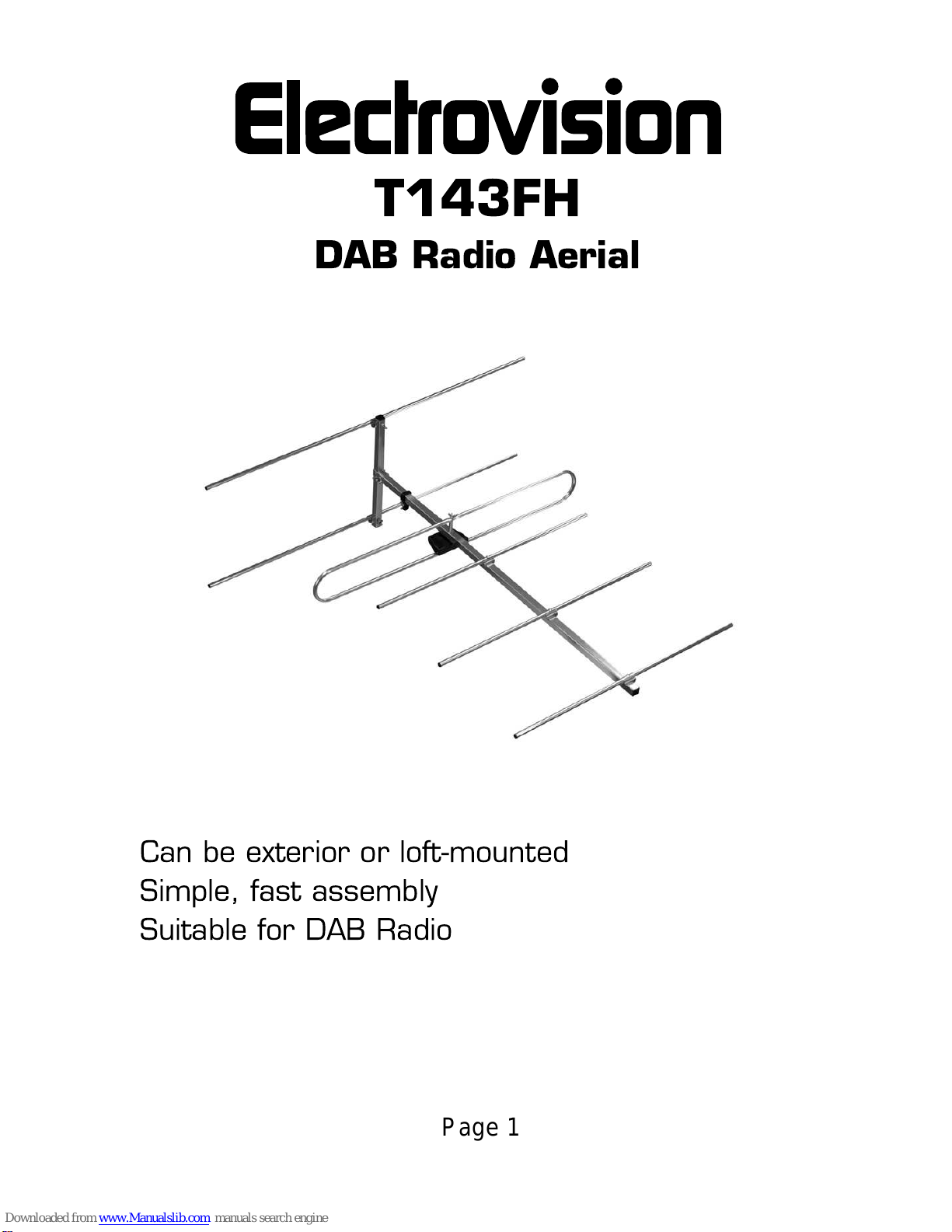

T143FH
DAB Radio Aerial
Can be exterior or loft-mounted
Simple, fast assembly
Suitable for DAB Radio
Page 1

IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the user of
the product for future reference.
BEFORE USE
Inspect the product for any signs of damage. If the product is
damaged, DO NOT use it, and contact your supplier immediately.

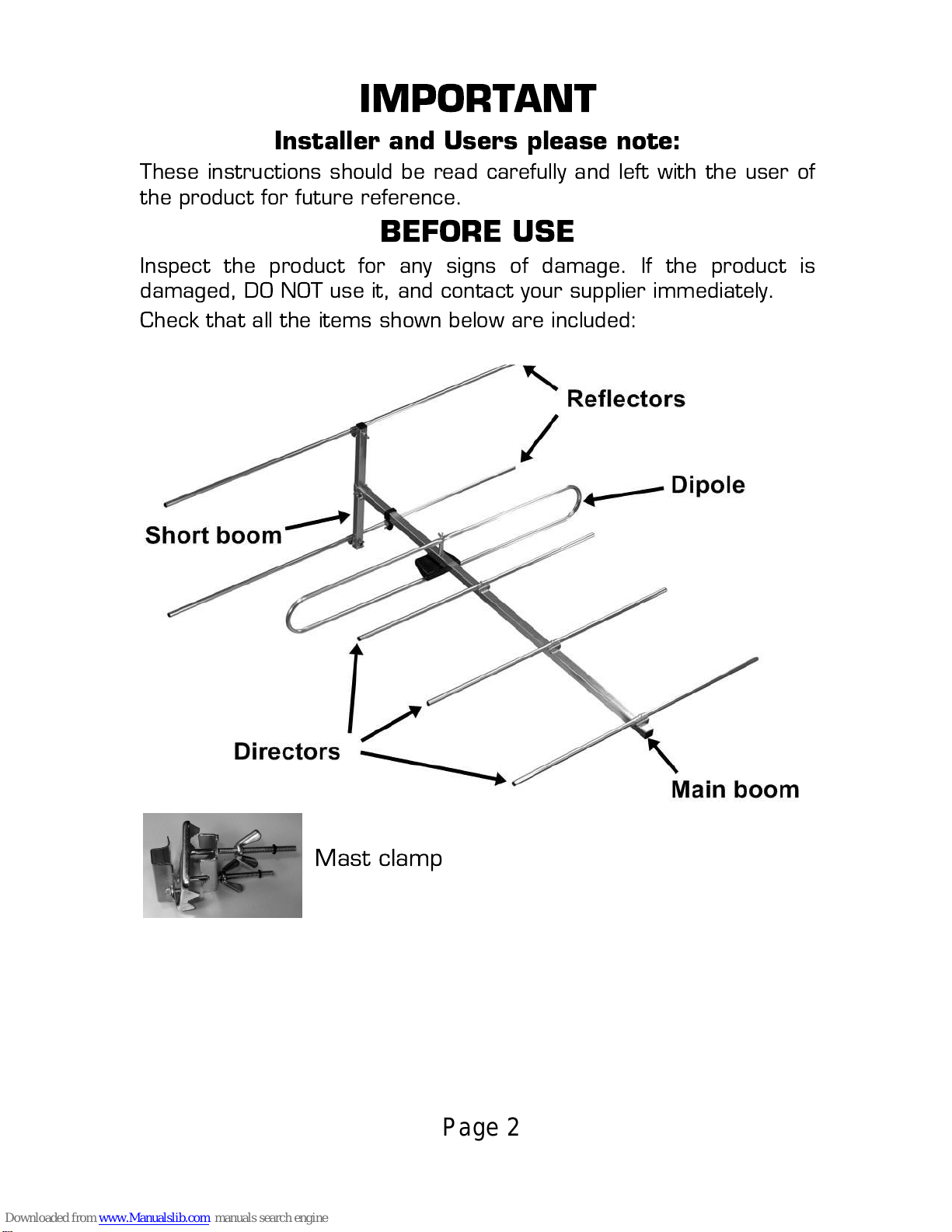

Check that all the items shown below are included:
Mast clamp
Page 2

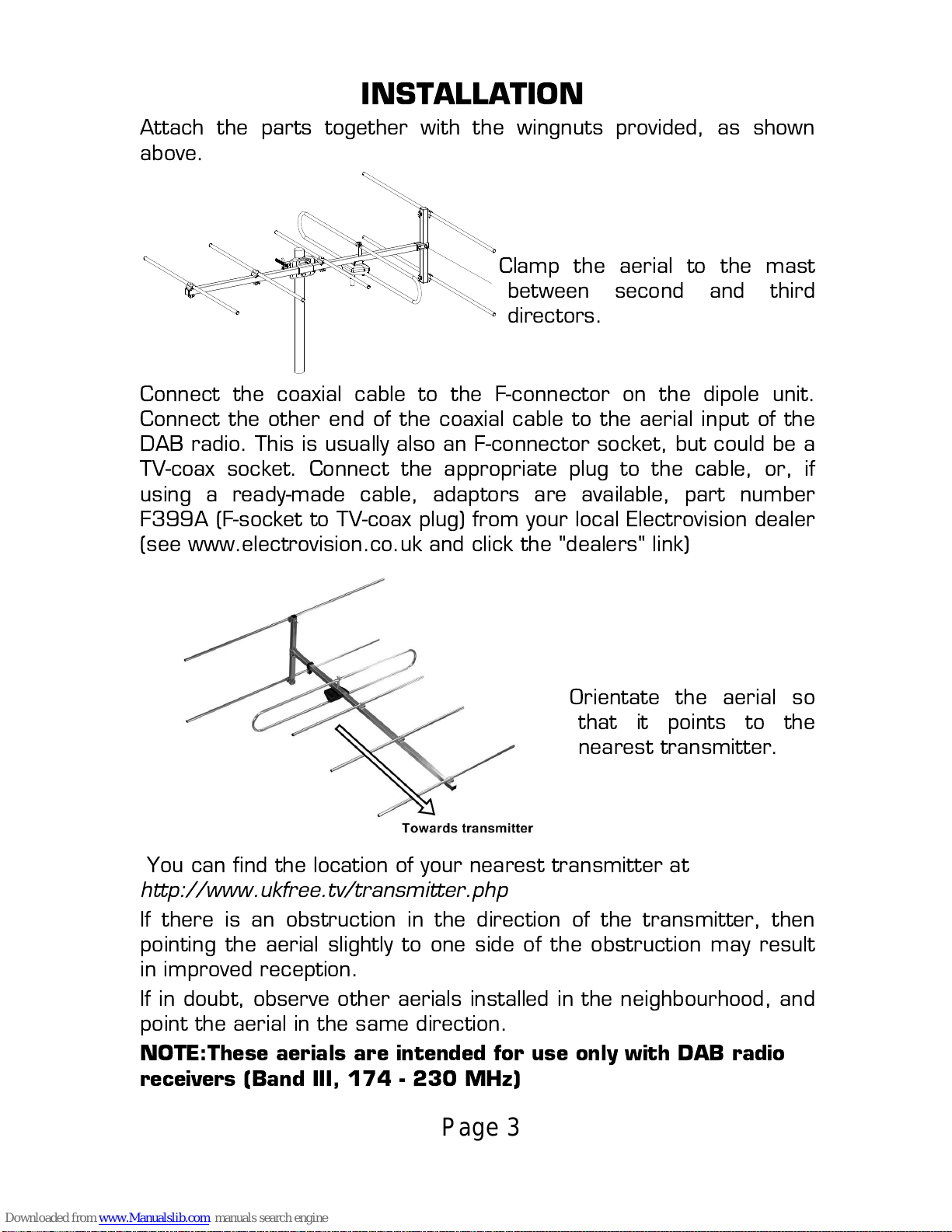

INSTALLATION
Attach the parts together with the wingnuts provided, as shown
above.
Clamp the aerial to the mast
between second and third
directors.
Connect the coaxial cable to the F-connector on the dipole unit.
Connect the other end of the coaxial cable to the aerial input of the
DAB radio. This is usually also an F-connector socket, but could be a
TV-coax socket. Connect the appropriate plug to the cable, or, if
using a ready-made cable, adaptors are available, part number
F399A (F-socket to TV-coax plug) from your local Electrovision dealer
(see www.electrovision.co.uk and click the "dealers" link)
Orientate the aerial so
that it points to the
nearest transmitter.
You can find the location of your nearest transmitter at
http://www.ukfree.tv/transmitter.php
If there is an obstruction in the direction of the transmitter, then
pointing the aerial slightly to one side of the obstruction may result
in improved reception.
If in doubt, observe other aerials installed in the neighbourhood, and
point the aerial in the same direction.
NOTE:These aerials are intended for use only with DAB radio
receivers (Band III, 174 - 230 MHz)
Page 3

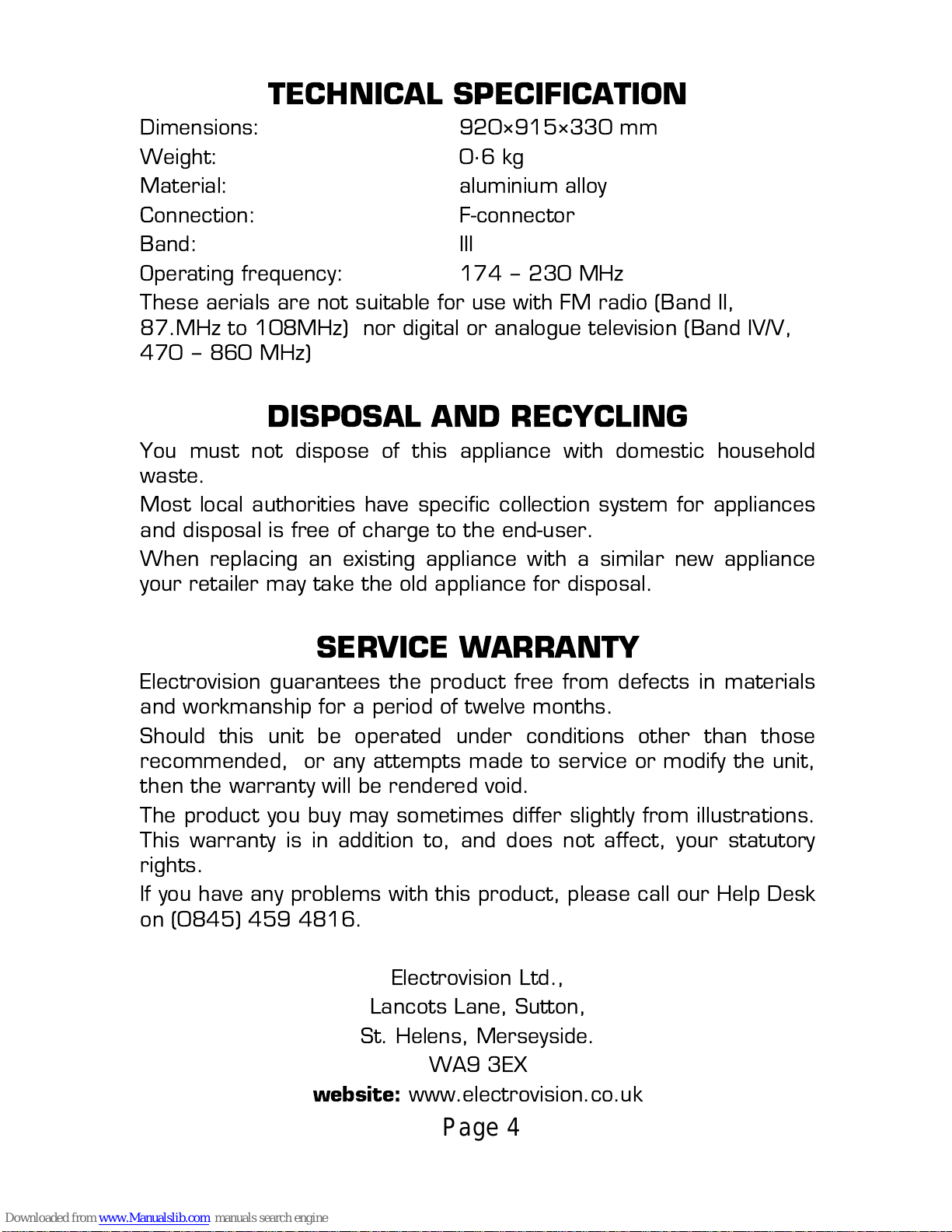

TECHNICAL SPECIFICATION
Dimensions: 920×915×330 mm
Weight: 0·6 kg
Material: aluminium alloy
Connection: F-connector
Band: III
Operating frequency: 174 − 230 MHz
These aerials are not suitable for use with FM radio (Band II,
87.MHz to 108MHz) nor digital or analogue television (Band IV/V,
470 − 860 MHz)
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic household
waste.
Most local authorities have specific collection system for appliances
and disposal is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance
your retailer may take the old appliance for disposal.
SERVICE WARRANTY
Electrovision guarantees the product free from defects in materials
and workmanship for a period of twelve months.
Should this unit be operated under conditions other than those
recommended, or any attempts made to service or modify the unit,
then the warranty will be rendered void.
The product you buy may sometimes differ slightly from illustrations.
This warranty is in addition to, and does not affect, your statutory
rights.
If you have any problems with this product, please call our Help Desk
on [phone].
Electrovision Ltd.,
Lancots Lane, Sutton,
St. Helens, Merseyside.
WA9 3EX
website: www.electrovision.co.uk
Page 4
