ELEKTROBOCK TS01 User manual

TS01TS01
WITH NIGHT ATTENUATION
THERMOSWITCH SOCKET
Utilization examples:
230 V AC
16 A
electric heating
plates
direct heating
bodies
hot-air
fans
electric
tubular radiators
build-in temperature
sensor
automatic night
attenuation of temperature
indications
heating
socket for connecting your
heating 230 V AC/16 A
adjusting the
temperature
, 11-28 °C

Specification
Power supply 230 V / 50 Hz
Hysteresis 0,3 °C
Range of possible temperature
, 11 °C to 28 °C
Anti-freeze temperature = +3 °C
Step of temperature setting by 1 °C
Protection IP20
Output relay max. 16 A
Operation temperature 0 to 40 °C
MADE IN CZECH REPUBLIC

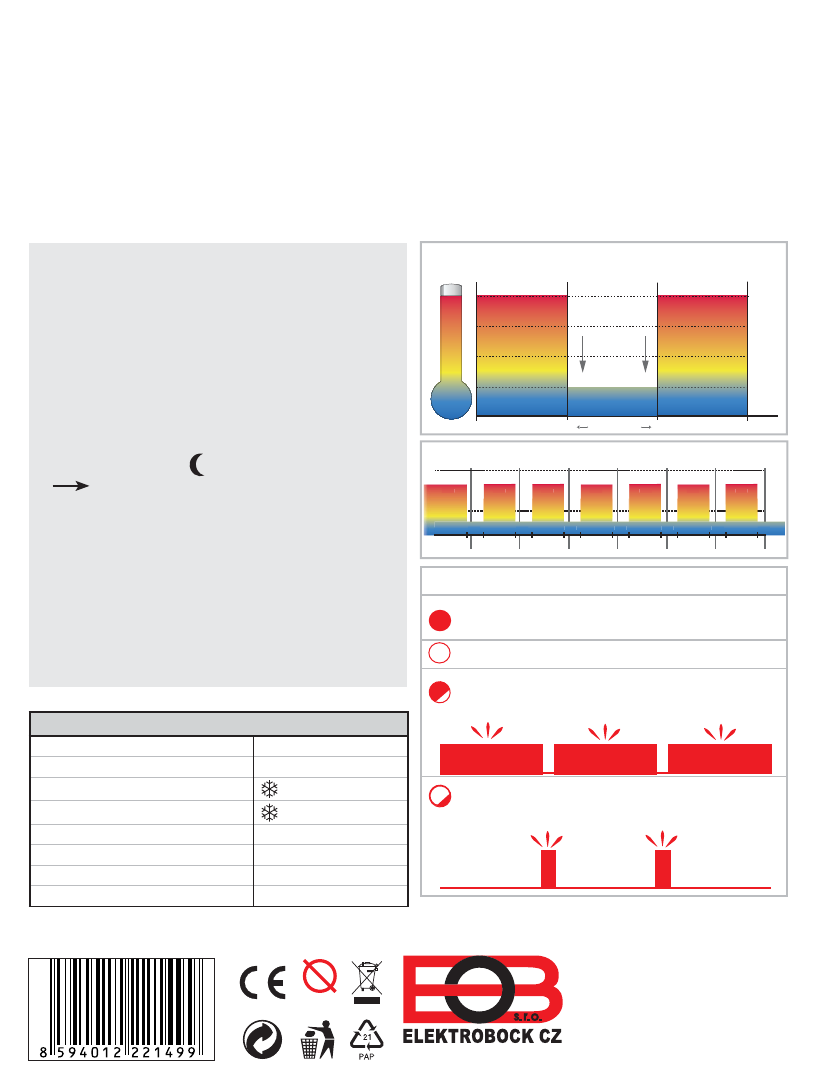

Graph of night attenuation within one day:
INSTALLATION AND SETUP TS01:
1. Insert the TS01 into the socket
(230 V/ 50 Hz) and connect your heating
device into the TS01.
2.By turning the adjustment wheel to set the
desired daily temperature. Heating
indicator will lights on.
3.At a time when you want to reduce the room
temperature, press the button for automatic
night attenuation .
The temperature drops for 8 hours
by 3°C. This cycle is repeated every day.
* The function of attenuation night you can
simply deactivate by turning the adjustment
knob of temperature.
** If you want to change the start time of
automatic night setback, press the button in
the required time.
Graph of night attenuation within whole week:
2
2
6
Monday time (h
)
tem
p
erature
(
°
C
)
Tuesda
y
W
ednesda
y
Thursda
y
Frida
y
Saturday Sunday
2
2
6
22
6
2
2
6
2
2
6
2
2
6
2
2
22 °
C
22 °
C
22 °
C
22 °
C
22 °
C
22 °
C
22 °
C
19 °C 19 °C 19 °C 19 °C 19 °C 19 °C 19 °C
2
0
2
5
22 6
drop
o 3 °C
8 hours
18 time (h)
temperature (°C)
18
22 °C
22 °C
19 °C
LED indication
permanently lit
relay is switched on
– heating is ON
unlit heating is OFF
lit, every 8 sec
short unlit
function of night attenuation is
active - heating is ON
unlit, flashing
every 8 sec
function of night attenuation is
active - heating is OFF
8 s 8 s 8 s
TS01TS01
Electronic thermo-switch socket
with automatic night attenuation of temperature
TS01 is thermo-switch socket with a simple analogue control for regulation of electric heating
systems (infrared-heating, direct heating bodies, towel dryers).
2-year warranty is granted for the product. In case of guarantee or postguarantee
service, send the thermostat to the manufacturer’s address.
ELEKTROBOCK CZ s.r.o.
Blanenská 1763
Kuřim 664 34
Tel.: [phone]
www.elbock.cz
The biggest advantage of TS01 is the automatic night attenuation. Only one push of a
button for decrease the desired temperature by 3°C for 8 hours.
The cycle is repeated every day at the same time.
8 s 8 s 8 s
Pb
LEAD FREE
in compliance with RoHS
