ELEKTROBOCK TS10 User manual

Fce
i
/
-
+
Thermoswitch
socket
TS10
Temperature regulation of appliance
DESCRIPTION OF
CONTROLS
directheating
bodies
electrical
tubular
radiators
electrical
heating
plates
build-in
temperature
sensor
= selection of functions
(AUTO, MANU, CL:O,
PROG, PA:r, OF:F)
= selection of temperatures
(comfort, economic)
= setting of temperature,
time, functions
= conrmation (ENTER),
information about actual
temperatur (tE:A), present
time (CL:O), sum of
operating hours (SU:MA)
and day (dE:n)
Utilization examples:
ECO Design

DISPLAY DESCRIPTION
OPERATING INSTRUCTIONS
1. FUNCTIONS OF TS10
indication of set time
and temperature
program
After connection in 230V-socket is TS10 immediately ready for use
and can be programmed according following instructions.
If sign dO:bI is ashing on the display, the back-up battery is not
fully charged and it is necessary let the TS10 in 230V-socket to
charge for minimal 2 days (full charge take about 4 days). After
charging it is possible to remove TS10 from socket without losing
the actual time and you can provide the programming outside the
230V-socket. (Maximal backup time is 50 hours).
1. AUTO : thermo-switch socket works according to program as set.
2. MANU : serves for manual setting of temperature (the selection by or by
/
-
+
buttons), the temperature should be constant up to next change of
mode.
3. CLO : setting of present day and time.
4. PAr : setting of parameters (constants).
5. PROG : programming mode.
6. OFF : in this mode is TS10 permanently switched-o (antifreeze is 3°C activ).
After pushing the Fce button you can select following functions by pushing /
-
+
buttons.
indication of temp.
comfort
economy
indication of
operating mode or
selected function
ATTENTION! If we disconnect TS10 from the network 230V, the TS10
comes to stand-by mode and only actual time will be shown on display
(the colon symbol will not be ashing) and the buttons will be functionless.
The activation of the buttons you can make by pressing the ibutton.
!
Note: If you do not push any button in 2 minutes, TS10 returns into set mode.
Longer pushing of /
-
+
buttons speeds up their functions.
indication of
required
temperature
2
If the TS10 is not in 230V-socket the showed temperature is 2 °C lower than real
actual temperature.

• press the Fce button, by pressing /
-
+
select PA:r (PARAMETERS)
and conrm by ibutton.
• PA:r2 shows on the display
• PA:r3 is showed on the display
• conrm by iand by pressing /
-
+
buttons
set comfort temperature, again conrm by
pressing ibutton.
• PA:r2 is showed on the display
• conrm by iand by pressing /
-
+
buttons
set economic temperature, again conrm by
pressing ibutton.

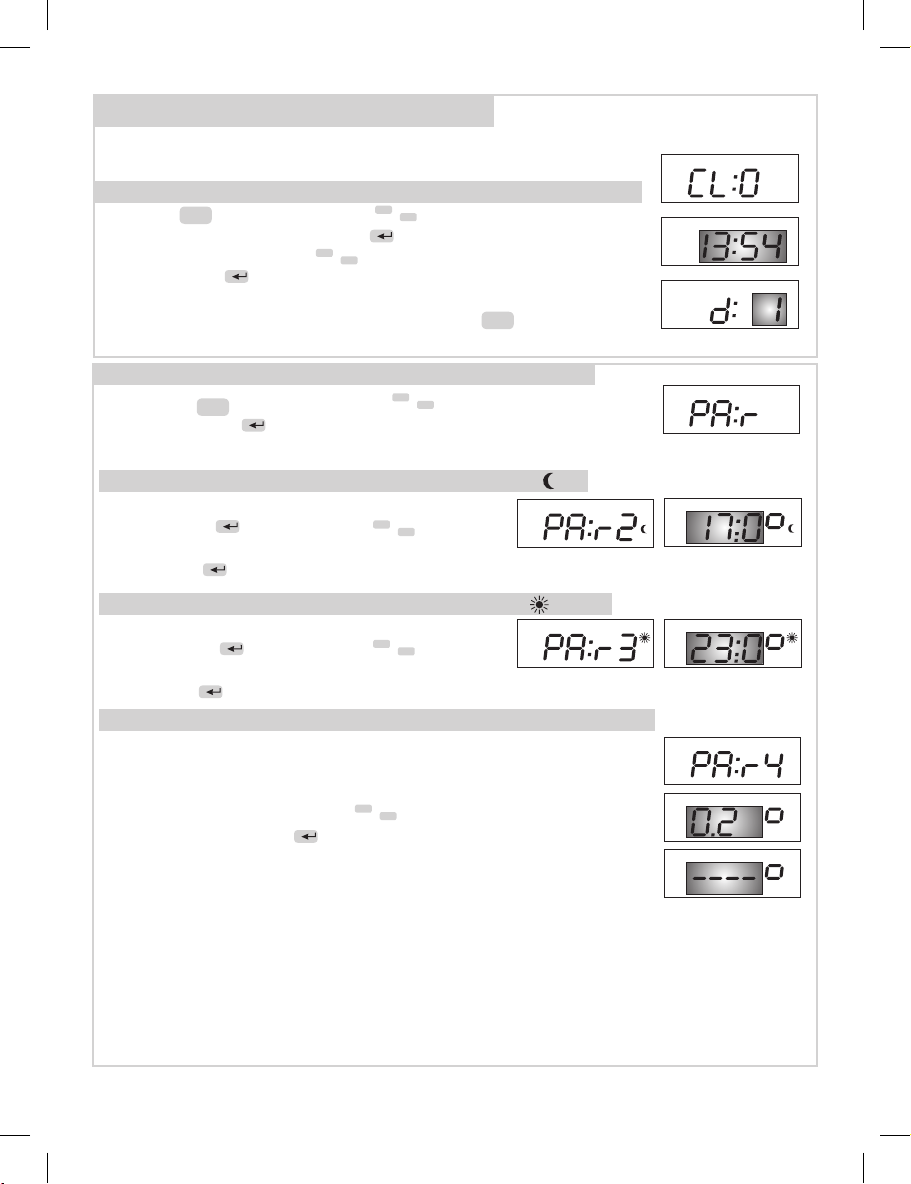

Setting of parameters (constants) - “ PA:r “
PA:r3 comfort temperature (factory setting 23°C)
PA:r 4 Function Open window (factory setting as inactive --.--)
PA:r2 economic temperature (factory setting 17°C)
2. PROCEED DURING PROGRAMMING
Before the programming itself, it is necessary to set present day, time and
parameters (constants), namely in following way.
Press the Fce button, by pressing /
-
+
select CL:O
(CLOCK) function and conrm by i. Indication of hours
ashes on the display, use /
-
+
buttons to set required data
and conrm by ibutton. Use the same method for minutes
and day (d:1 represents Monday, d:2 Tuesday etc. and d:7
Sunday). After the completion of setting, press Fce button to
return.
Setting of current day and time - “ CL:O “ function
3
• PA:r4 shows on the display
• this function is from factory set as inacive (--.--).
For activation it is necessary to set the temperature drop
(0.2°C bis 5°C) with using of /
-
+
buttons.
• Conrm by pressing ibutton
Function „OPEN WINDOW DETECTION“
when the temperature drops by preset value within 4 minutes,
the thermostat switch o the heating to save the energy. It will
be alternately displayed sign „OPEn“ and information about required temperature.
This mode is terminated when the temperature rise again, or after change of required
temperature or after 30 minutes.
Tne next „open window“ mode can occur only after 10 minutes.
Note: Function „open window“ can run after 10 minutes afte rst connection to 230V
socket.

• press Fce and by /
-
+
buttons select PROG (PROGRAMMING)
function and conrm by pressing ibutton.
• by pressing /
-
+
select the day, which should be programmed
according to following table
• conrm by ibutton, the sign 1:U1 shows on display for setting
up of the rst time interval.
• by /
-
+
buttons set the time of rst change (min.step of 30
min).
• assign comfort or economic temperature to the setting time by repeated pressing
of button.
• conrm by i, display automatically shows symbol 1:U2 the second time interval in
the rst day.
• use the same procedure for the setting of further time intervals (max. 4).
• leave the programming regime by pressing Fce and by select the AUTO
function and TS10 starts to work according to the program set.

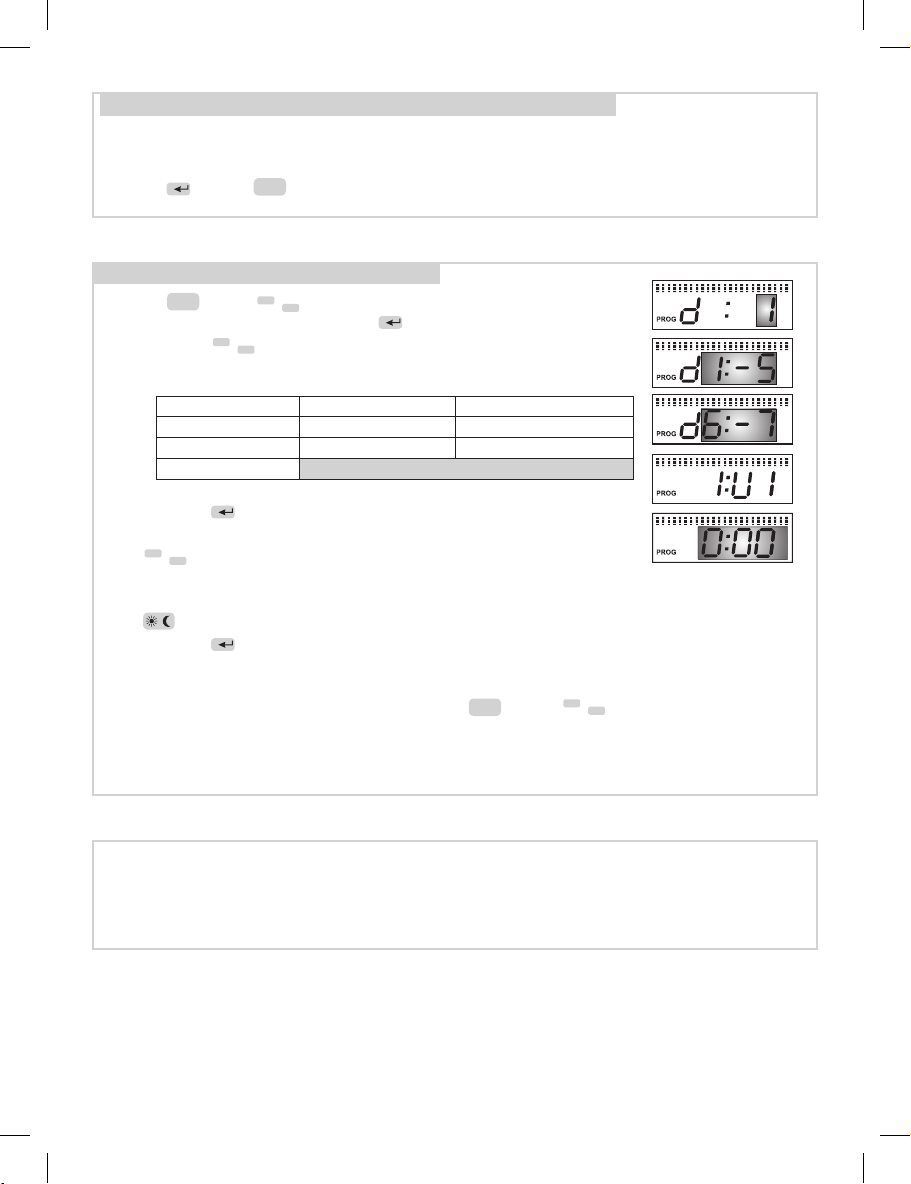

Programming function “PROG”
d:1 Monday d:5 Friday d1:5 Monday to Friday
d:2 Tuesday d:6 Saturday d6:7 Saturday to Sunday
d:3 Wednesday d:7 Sunday
TABLE: SELECTION OF DAY TO BE PROGRAMMED
d1:7 whole week
d:4 Thursday
Status indication of TS10:
AUTO (or MANU) is shown = connected device is switched on
AUTO (or MANU) ashes = connected device is switched o
PA:r9 Firmware version
4
/
-
+
• PA:r9 shows on the display
• Firmware version for information only
• press ibutton Fce button to return.

By simple pressing of /
-
+
in AUTO mode it is possible to make a short-term
change of required temperature. The socket will maintain this temperature up
to next temperature change as dened in the program.
If the room temperature is lower than 3 °C, TS10 switch on automatic the
connected device. As soon as the temperature rise the TS10 comes back to the
preset mode.
Press Fce and by /
-
+
button select OF:F function
and conrm by i. In this way, TS10 is permanently
switched o. In this mode, symbol OF:F and antifreeze temperature
3°C are showed alternatively on the display. For deactivation of this function
press Fce button and select dierent mode with using of /
-
+
button.
Note: in OFF mode is maintained the antifreeze temperature 3°C!
Short-term change of temperature in AUTO mode:
Antifreeze protection:
Function“ OFF “ :
3. ANOTHER FUNCTIONS
1.Press Fce button and choose with /
-
+
function MANU and conrm i.
2.By /
-
+
buttons set the required temperature e.g. 5 °C.
3.This temperature will be kept till the further manual temperature change.
EXAMPLE keeping of constant temperature
representation of
program course on LCD
1. Set on 18°C (PA:r2)
2. Set on 23°C (PA:r3)
3. Select programming of whole week d1:7 (Prog)
4. 17:U1 assign time 6:00 and temperature
5. 17:U2 assigm time 9:00 and temperature
6. 17:U3 assign time13:00 and temperature
7. 17:U4 assign time 19:00 and temperature
8. Leave the programming mode by pressing button
and select AUTO mode.
EXAMPLE denition of weekly program
[h]
Mo - So
5

If following error message is shown on the display,
contact immediately the manufacturer
(it is dealing with a failure of temperature sensor) (ERROR)
1.Connect TS10 in 230V/50 Hz socket.
2.Program it according to instructions.
3.Connect the heating body you want to control.
Installation:
Error messages:
It serves for keyboard blocking, as a protection against unauthorized
handling.
Press Fce button, then simultaneously press and
-
now the keyboard is
blocked.
Message LO:C (LOCK) is shortly displayed on the display. The function can be
cancelled, e.g. the keyboard unblocked by simultaneous pressing of and
+
.
Child lock:
6
• Press the Fce button, by pressing /
-
+
select function PA:r and conrm by i
button.
• By pressing /
-
+
buttons select PA:r9 conrm by i.
• Simultaneously press Pand
-
buttons, it will restore the factory settings!
Note: Use only when necessary, all saved changes will be deleted!
! RESET - restoring the default settings

Technical parameters
Power supply 230 V / 50 Hz
Number of temp. changes 4 temperature changes for each day
Hysteresis 0,5 °C
Minimal programming time 30 minutes
Range of possible temp. 3°C to 40°C
Step of temperature setting by 0.5°C
Minimal step of indication 0,5°C
Measurement accuracy ± 1 °C
Protection IP20
Back-up battery NiMH 2.4 V/ > 50 hours
Output relay, max. 16 A
Working temperature 0 to 40 °C
Thermo-switch socket TS10
TS10 is a digitally switched socket for automatic regulation of electrical
heating systems (direct heating bodies, towel driers, infrared heatings)
in family houses,  ats, offi ces. Up to four time intervals with two
temperature levels can be set for each day.
Further advantages:
• di erent temperature program for each day
• the possibility to set 2 temperature levels ( , )
• simple control and programming
• possibility to make a short-term change in program temperature
• permanent switching o of the appliance (OFF)
• open window detection
• well-arranged display
• back-up battery NiMH 2,4 V, for more than 50 operating hours
Send the socket for guarantee and after guarantee service to manufacturer’s address.
