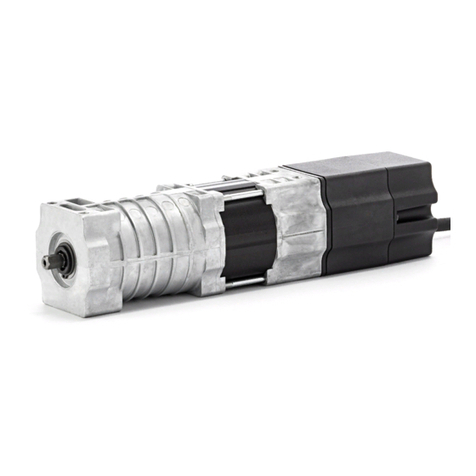

elero SHK Series User manual

SHK attachment (haul chain)
for D 170–250 and D 350 (with brake)
GB
Warning!
Important safety instructions!
Observe the following instructions.
Risk of injury due to electric shock.
The connections to the 230 V mains must be made
by authorised specialist personnel.
SHK for D. 170-250 and D 350 (with brake)
1. Switch the mains power off and secure the device against being
turned on again unintentionally.
2. Open the motor terminal box.
3. Remove the motor cable from the motor terminal board.
4. Remove the blind screw connection* on the NHK housing.
This is on the bottom.
5. Remove the 4 x countersunk screws from the NHK housing.
6. Place the SHK attachment on the NHK housing and push it
forward until the flange is touching.
Note:
Ensure that the anti-rotation teeth* are at the bottom.
7. Fix the SHK housing with 4 countersunk screws M6x70 DIN 965
and 4 x toothed washers 6.4 DIN 6797.
Note: It is essential to check the function of the micro switch.
When the bearing bush is lowered (turn the chain wheel),
the NHK contact (see wiring diagram in the NHK
operating instructions) must be open.
8. Connect the motor cable to the motor terminal board.
9. Screw the terminal box cover down securely.
Note: It is essential to mount the shim ring 25x35x0.2 provided
between the KL safety piece and the chain guide.
The drive is now ready for operation!
Anti-rotation teeth*
Terminal box cover
Blind screw connection*
Micro switch
Driving bush
Chain guide
SHK 350 attachment
KL safety piece
Shim ring 25x35x0.2
Rotor shaft
Brake
SHK housing
for D.. 170-250 for D.. 350 (with brake)
Toothed washer
V 6.4 DIN 6797
M6x70 DIN 965
Countersunk screws NHK housing
Rotor shaft
SHK housing
top
bottom

SHK attachment (haul chain)
for D 500–750
Warning!
Important safety instructions!
Observe the following instructions.
Risk of injury due to electric shock.
The connections to the 230 V mains must be made
by authorised specialist personnel.
SHK 750 for D.. 500-750
1. Switch the mains power off and secure the device against being
turned on again unintentionally.
2. Open the motor terminal box.
3. Remove the motor cable from the motor terminal board.
4. Remove the blind screw connection* on the NHK housing.
This is on the bottom.
5. Remove the 4 x cylindrical head screws on the NHK housing.
6. Open the NHK housing and remove the conical disc.
Note: The conical disc* must be removed!
7. Set the NHK housing on the spacer again.
8. Place the SHK750 attachment on the NHK housing and push it
forward until the flange is touching.
9. Fix the SHK housing with 4 x cylindrical head screws M8x95
DIN 912 and 4 x toothed washers A8.4 DIN 6797.
Note: It is essential to check the function of the micro switch.
When the bearing bush is lowered (turn the chain
wheel), the NHK contact (see wiring diagram in the NHK
operating instructions) must be open.
10. Connect the motor cable to the motor terminal board.
11. Screw the terminal box cover down securely.
Note: It is essential to mount the shim ring 25x35x0.2 provided
between the KL safety piece and the chain guide.
The drive is now ready for operation!
11. Die mitgelieferte Passcheibe 25x35x0.2 mu zwischen der KL-Sicherung und
10. Motorsteckerleitung ins Motorklemmb rett einstecken u.den Klemm kastendeckel festschrauben.
2. Motor-Klemm kastendeckel ˆffnen u. Motorsteckerleitung vom Motorklemmb rett entfernen.
1. Netzanschlu spannungsfrei schalten, oder Steckvorrichtung ausstecken und
Beim Eintauchen der Mitnehmer- Buchse (durch drehen am Kettenrad) mu der
8. Mit (4x) Zylinderschrauben M8x95 DIN 912 und (4x) Zahnscheiben A8.4 DIN 6797
7. SHK 750-Anbauteil auf das NHK-Geh use stecken u.vorschieben bis derFlansch anliegt.
14 302.9101/12.1.98Pred.
das SHK-Geh use befestigen.
6. NHK-Geh use wieder auf den Distanzring setzen.
5. NHK-Geh use ˆffnen und die Kegelschei be entfernen.
der Kettenf¸h rung montiert werden.
12. Antrieb in Betrieb nehmen !
9. Die Funktion des Mikroschalters ist unbedingt zu ¸ berpr¸ fen.
4. Zylinderschrauben (4x) am NHK-Geh use entfernen.
3. Blindverschraubung unten am NHK-Geh use entfernen.
KL safety piece
Shim ring 25x35x0.2
SHK 750 attachment
Cylindrical head screw
M8x95 DIN 912
Toothed washer
A8.4 DIN 6797
SHK housing
NHK housing
Conical disc* Spacer
Brake
Micro switch
Blind screw connection*
Terminal box cover
Driving bush
Chain guide
Wichtig:Die Kegelscheibe mu entfernt werden !
Achtung :
NHK-Kontakt (siehe Schaltplan) geˆffnet werden.
gegen Wiedereinschalten sichern.
Montage-Ablauf:
Montageanleitung von SHK 750
für D.. 500-750
