Elife LA GRANDE User manual

POWER ASSISTED BICYCLES
LA GRANDE
OWNERS MANUAL

Welcome to the World of e.bike cycling.
POWER ASSISTED BICYCLES
Firstly may we congratulate
you on purchasing your new
electric power assisted e.bike.
Please take time to read your
manual. We have tried to write
it in a way that is simple and
easy to follow, whilst
explaining how your bike
works and how it is maintained.
At any point if you feel you
need help we have a tehnical
helpline for support.
Please call our
Technical help line:
(weekdays 9am-5pm)
01702208187
(standard call rate charge applies)
Simply explained this is how your e.life bike basically works.
1.
Press the button under the battery to ON. (Fig.12)
2. Switch the power on by pressing the top left button on your controller on
the handlebars.
(Fig.11)
2. As you begin to pedal a sensor will read the level of effort needed to
turn the wheels of your bike.
3. After one complete turn of the pedal the electric motor kicks in making
pedaling much easier.
4. There are 4 setting on your controller on the handlebar, allowing you toset
the level of assistance you require. (Fig.11)
For example: Riding up a hill you’ll probably use ‘High’, mode.
5.
Change the level of assistance you need at any time and as often as you wish.
6. The motor works to assist pedaling, stop pedaling and the motor stops too.
7. Applying the brakes cuts the motor
(Fig.10)
8. Youcan also choose to switch the assist OFF and ON on the controller at any
point in your journey. This helps to save battery power when its not needed.
The more you use the assist, the more power it uses, each rider is different so figures canvary
considerably with different rider weight and the terrain you ride. Generally with normal use, you
should be able to obtain around 20 miles, before you need to re-charge yourbattery.
We Recommend that you get used to your new e.life bike and the level of assist you place on
it, you’ll soon be able to work out how long a journey you can make and safely return under
assist. You can of course ride as you would a normal bike if the charge runs out.
1

INDEX
Page 1 Welcome to E.Life
Page 2 Index & Check List
Page 3 Unpacking your new E.Life
Page 3-4 Unfolding your E.Life
Page 4 Fitting the saddle
Page 5 Pre-Ride checks
Page 5 Getting Started
Page 6 Understanding yourcontroller
Page 7 Understanding your Battery
Page 8 Charging your Battery
Page 9 Maintenance of your E.Life
Page 10 Simple Troubleshooting
Page 11 Warranty
Page 12 Replacement Batteries &Chargers
Page 13 National ServiceCentre
2
POWER ASSISTED BICYCLES
There are video tutorials online oron IdealWorld’s
website designedto assist you if you need help.
Please call our
Technical help line:
(weekdays 9am-5pm)
01702208187
(standard call rate charge applies)
Contents check list
1. Your E.Life
2. Box containing:
a. B a ttery Cha rger
3. Box containing:
a. Tool kit and bag
b. This M anual
4. Set of Keys
( a tt a c h e d t o handl e ba r c abl e s)
IMPORTANT!
P LE A SE R E M E MB E R TH A T
I T I S IMP O R T AN T TO K EE P
THE C AR TO N YO UR BIK E
ARRI VED IN , CO URI E R S
C ANN OT COLLECT YO UR
BIK E WI THO U T A C AR TO N
SHO U LD YO U H A VE N EED
TO R ET URN I T TO U S.

Unpacking your new e.bike
POWER ASSISTEDBICYCLES
Your bike comes 100% assembled in the Carton
Fig.1
Fig.2
Fig.3
Fig.4
1. Before you begin to unpack your e.bike we recommend you get another
person to assist you as it s much easier with 2 persons to lift out of the box .
2. Remove all the packing materials used to protect the bike and dispose of it
later in a responsible manner.
3. Once you have unpacked the bike it is a good idea to check to make sure
there has not been any damage in transit. ( If you find anything missing or
damaged, contact Ideal World customer services)
Idealworld.tv › gb/self-service

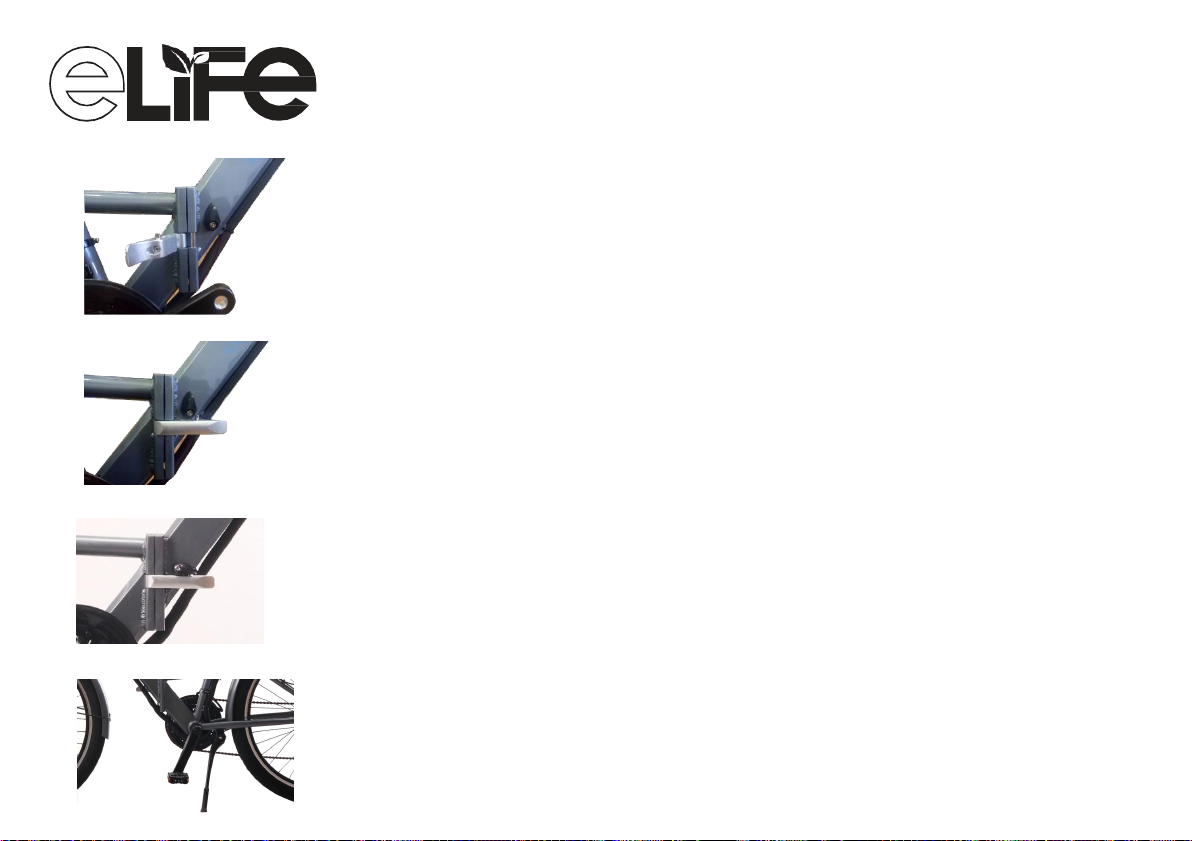

Unfolding your e.bike
Step 1. Frame
1. Unfold the frame until the 2 sections are inline (Fig.1)
2.
Push the large lever towards the fame to lock together (Fig.2)
3. Turn the Black security clip clockwise until covers the pin on the Lever,
this prevents the Lever from opening. (Fig.3)
4.
To fold your frame for transport of storage simply reverse steps 1-3.
PLEASE NOTE:
When you have unfolded your frame its a good idea to rest your bike on thebike
stand which is attached to the left rear chain stay, this makes it much easier to
complete the other steps. (Fig.4)
3

Unfolding your e.bike
POWER ASSISTEDBICYCLES
Step 2. Pedals
1.
To fold the pedals for storage or transportation, pull the pedal
outwards and fold downwards.)
Fig.5 Fig.6
Photo shows pedal movement direction
Fitting the Saddle
(Fig.7)
The Saddle and Seatpost are already fitted together.
Fig.7
1. Adjust the saddle height to suit you by releasing the screwusingthe tool in
your tool bag and tightening when at the correct height.
4
NOTE :Should you ever need to replace the pedals
remember the right pedal tightens clockwise and
the l ef t peda l an ti -c l ockw i se.
NOTE: Be sure not raise the seatpost higher than
the minimum insertion mark clearly on the
seatpost.

Pre-Ride Checks
Complete these checks before every ride
POWER ASSISTED BICYCLES
1.
Check to make sure all nuts/fastenings are tight
2.
Check that your tyres are inflated sufficiently (see tyre wall )
3. Check that the brakes are working correctly. (These are set by thefactory
and should not require adjusting).
4. Check your battery for charge.
(Note: Your new e.life battery is supplied with a partial charge)
Getting Started

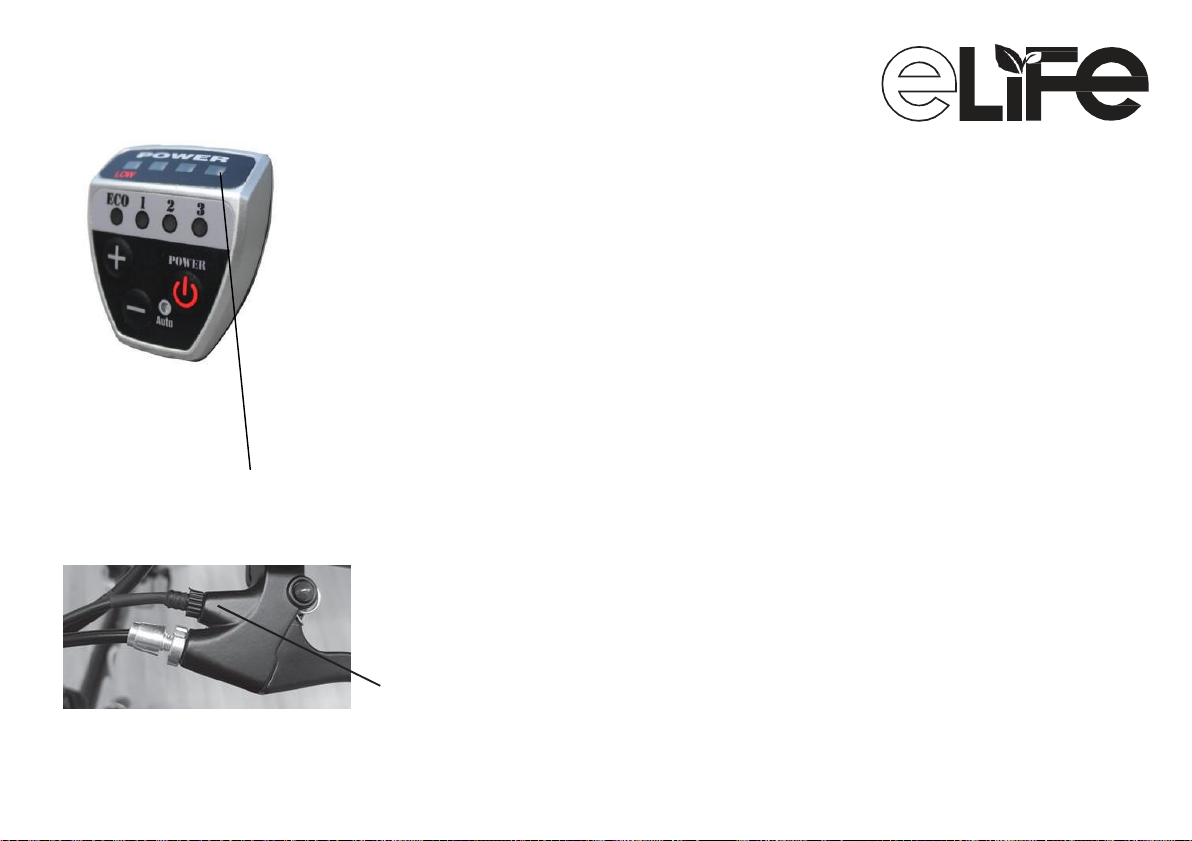

Fig.9
The Battery charge level is shown
on the Control module on your
handlebar.
Fig.10
Switch the battery on with the button under the battery. (Fig.12)
1. Press top button on the Controller on your handlebars
(Fig.11)
2.
‘MODE’ is set on‘1’ - This is a default setting.
THAT‘S IT........You’re ready to go.
3.
To start , simply begin to pedal. Once the crank is turning you will feel
the motor kick-in and the electric system begin to assist you.
4.
You have 4 levels of assist and its a good idea to try all levels to give youa
feel of the effect this has on your riding. (Fig.11)
5.
Remember, stopping pedaling or braking cuts the motor assist, so you can
always feel safely in total control.
Applying the brakes activates the brake sensorwhich
cuts the power to the motor.
5

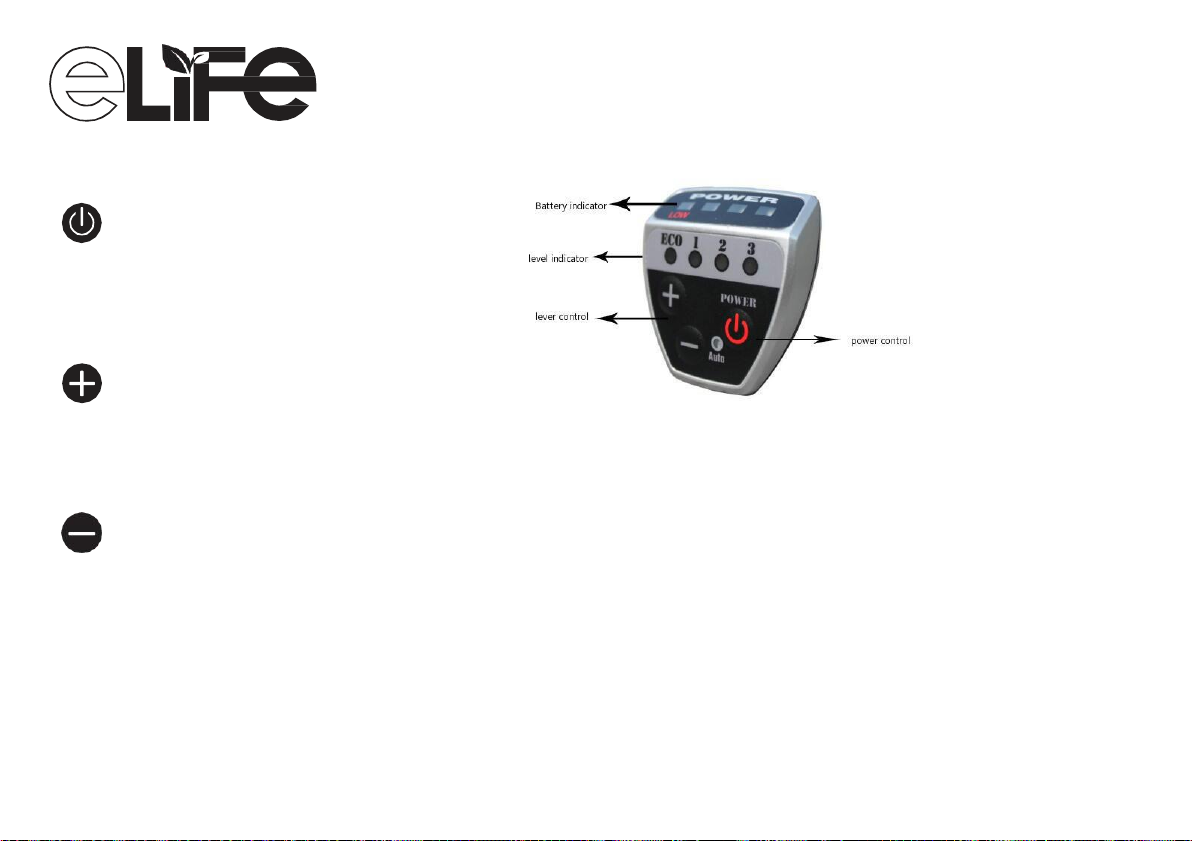

Understanding your controller
POWER ASSISTED BICYCLES
Your Module Controller has many functions and is relatively simple to use, to the left is
listed the the buttons and their functions.
Press to switch ON/OFF
Press to increase assist
level 0-3.
Press to reduce assist
level 3-0.
Fig.11
6
Your Controller is ÿtted to the left side of the Handlebar.
1. ON/OFF button - Switch on after you have switched battery switch to ‘ON’
2. Lever buttons - 1, 2 and 3, easy selection levels of assistance
3. Battery Indicator lights - These are red and go down as you use the power.
4. As you ride up a hill the power indicator drops down showing increased
resistance levels, but once back to level ground the indicator lights will
return to a more accurate position of available power levels.
5. This bike has a 6km walking mode function, which allows you to push
your bike effortlessly over steep ridges or hills. You can activate this
function by holding down the minus button for 3 seconds.

Understanding your battery
1. Security POWER ASSISTED BICYCLES
1.
You are supplied with 2 keys to secure your battery to your bike.
It is advisable to separate the keys as they cannot be replaced iflost.
2.
Insert the key and unlock the battery enabling you to remove for security
or to charge away from the bike. (Fig.16 and 17)
3. Once unlocked the battery is withdrawn from the frame to replace simply
reverse the procedure.
2. Battery operation
1. Switching ON/OFF is by way of a switch which lies under the bottom of
the battery (Fig.12)
Remember to switch OFF when not in use as this may drain thebattery
2. Battery Charger
1. NOTE: Only charge your battery with the Charger supplied with your e.life
The charger is set to 220/240V. Never use 110vsetting.
2. Avoid dropping the Charger as this may damage the sensitive electronics
within the casing.
3. Youcan leave the battery charging, it will stop charging by itself when it has
reached full charge, but it is not recommended to leave charging for any
considerable time over what is required.
7

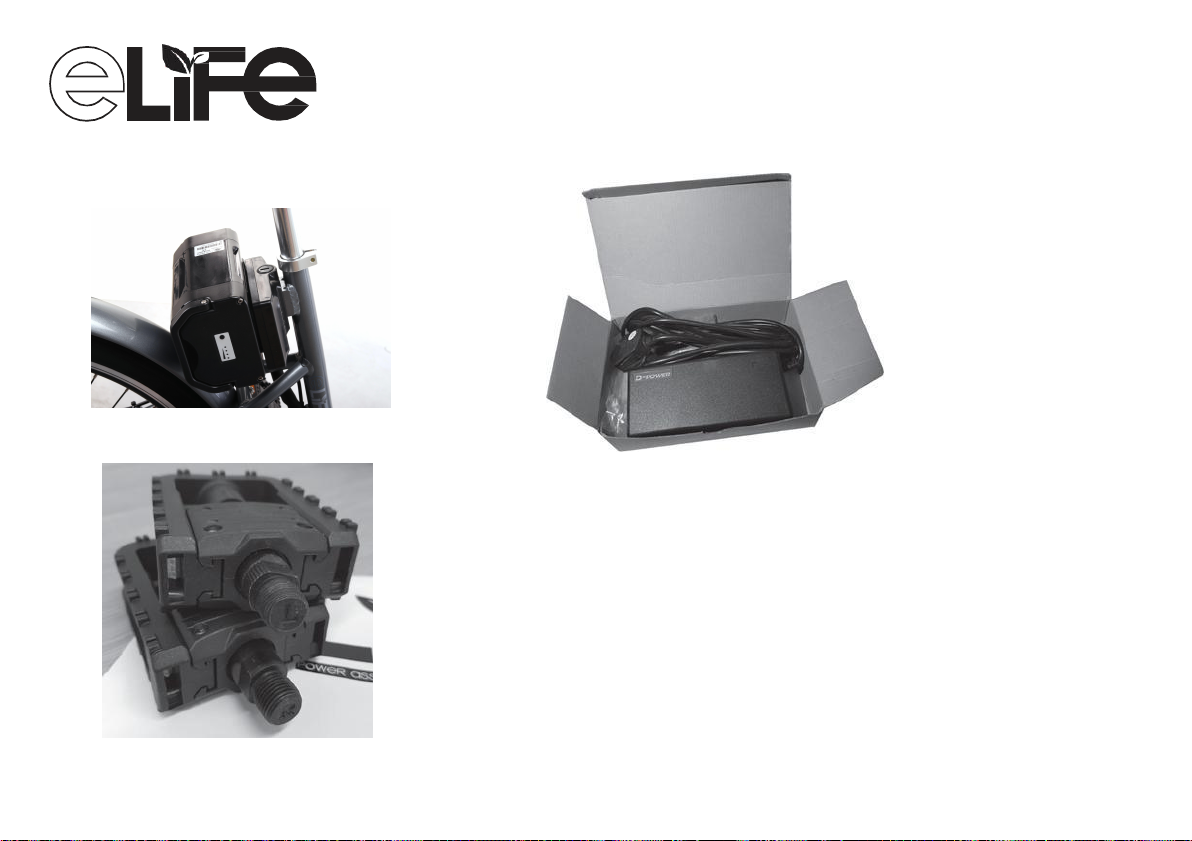

Fig.12
Press the button under
the battery.

Charging your Battery
POWER ASSISTEDBICYCLES
Your Lithium Battery arrives partially charged.
Your Battery can be charged on or off your bike.
1.
Plug your charger into the mains, the LED light will illuminate GREEN
2. Connect the charger to the battery using the lead provided, the LED light on
the charger will change to RED. This indicates it is charging.
3. Once Fully charged the LED light on the charger switches back to GREEN
indicting the battery is fully charged, and then goes off..
Basic rules to follow when charging your battery
Fig.13
1. Do not cover charger with any material of substance that may restrict
airflow to the charger. The charger needs to ‘Breath’ to keep cool.
2. Charging your battery each time you use it no matter how far the trip,will
prolong the life of the battery.
3.
DO NOT leave the battery discharged for long periods.
4. Never open the charger or change settings on charger.
8
To full y c ha rge y ou r ba ttery
t a ke s app r ox. 2 - 3 hou r s

Maintenance of your e.bike
General POWER ASSISTED BICYCLES
1. Wipe your bike over with a dry cloth, or neutral detergent.
2. Use lubrication oil for metal parts. i.e. chain, axles.
3. Wipe down Plastics, paint coated parts with a quality cloth.
4. Increase the frequency of lubricating oil at wet or humid areas
( Recommend 30SAE lubricating oil)
Weekly Inspection
It is recommended that after this period you should inspect your bike as
things will slacken off and need re-tightening.
Fig.14
It is ok to oil the front and rear axles
and chain . The Motor should not be
lubricated.
3 Month Inspection
We recommend after 3 months you complete a full service on your
bike to keep it in excellent working order. The simplest way is to take into
your local bike shop.
When stored and not in use remove the battery and store in a cool, dry
place, charging periodically as the battery will discharge over time of non
use. Failure to do this will result in the battery falling into a dormant state
rendering the battery unrepairable.
PLEASE NOTE:
If you do not feel that you can complete the maintenance of your bike, please
take it to your local bicycle workshop where they will be able to assist you.
9

Simple Troubleshooting
POWER ASSISTED BICYCLES
If unsure on any of these
points, or you fail to correct
the problem, please call the
helpline who will be able to
advise you.
Please call our
Technical help line:
(weekdays 9am-5pm)
01702208187
(standard call rate charge applies)
10
Problem
Check
Action
Low Speed
ba ttery po wer
Cha rge B a ttery
T yre p re ssu re
I nfla te tyre
I f tyre fla t
Re pai r tyre
Load
Do not overload
The Motor is not
working
P o wer indi c a t o r
light does not
come on
Every plug
Ensure every plug is
connected
Check the sensor is
still in place on the
on the bottom bracket
Contact Helpline
P o wer indi c a t o r on
ba ttery is on , bu t
t h e bi ke do e sn ’t
w o rk .
Loose wiring or
connection.
Check wiring and
connections,
check Sensor as above
Contact Helpline.
Re du ce ba ttery
p er fo rm an ce .
I s t h e ba ttery
full y c ha rge d?
I f N OT , c ha rge full y .
Charger not giving
full charge.
Check the light on
charge remains
RED during
charging period?
I f N OT , re pla ce c ha rger
Lo w B a ttery po wer
c ha rger w o rk s
c o rrect l y ?
Re pla ce B a ttery .
Br a ke s loos e
Cable tension
Worn blocks
Ta ke t o cyc l e shop
fo r s erv i ce .

Warranty
Subject to the following, Ideal World warrants that the goods
will correspond with their specification at the time of
purchase and will be free from defects in material and
workmanship.
Ideal World offers a 2 year warranty on the frame from any
problems relating to manufacturer workmanship or arising
from material defects including breakages or cracking caused
whilst riding ( other than rider misuse).
Ideal World offers 12 months warranty on the battery and
motor for any problems relating to manufacturers
workmanship or arising from material defects. The warranty
does not cover misuse or failure to follow the manufacturer’s
operational instructions correctly.
All other components are guaranteed for 1 year for problems
related to manufacturer workmanship or arising from
material defects with the exception of consumable
components for example brake blocks, pads, grips, tyres and
tubes.
Ideal World offers this warranty to the original purchaser of
the product. This warranty is not transferable to a third party.
POWER ASSISTED BICYCLES
PLEASE NOTE:
Any figures quoted regarding battery performance or distances which can be
obtained per single charge are based on standard test conditions. Diverse terrain and
rider weight will of course produce varying results from those stated.
11

Replacement Batteries & Chargers
POWER ASSISTED BICYCLES Replacement batteries and chargers are available to fit your bike and can be purchased
separately from Ideal World.
Should you ever need to remove or replace your pedals it is important
to know that left-hand pedal screws in ANTI-CLOCKWISE and the
right-hand pedal screws in CLOCKWISE.
Pedals are normally stamped on the ends of the axle of the pedal
as in the photo, L and R.
12

Nation service Centre
ELIFE have teamed up with
to offer all Ideal World customers a
Nationwide Service for your e.bike.
If you live in Scotland or Cornwall or
anywhere in between and you want
the best electric bike service then
please contact us for more information.
Monday - Saturday 9am - 5pm.
Line 1. 02380 236 540
Line 2. 02380 224 344
POWER ASSISTED BICYCLES
IMPORTANT!
P LE A SE R E M E MB E R TH A T
I T I S IMP O R T AN T TO K EE P
THE C AR TO N YO UR BIK E
ARRI VED IN , CO URI E R S
C ANN OT COLLECT YO UR
BIK E WI THO U T A C AR TO N
SHO U LD YO U H A VE N EED
TO R ET URN I T TO U S.
Please call our
Technical help line:
(weekdays 9am-5pm)
01702208187
(standard call rate charge applies)
13

Thereare videotutorialsonlineoronIdealWorld’s
website designed to assist you if you need help.
POWER ASSISTED BICYCLES
DistributedintheUKby
Ideal World
Ideal Home House,
Newark Road,
Peterborough,
PE1 5WG
Please call our
Technical help line:
(weekdays 9am-5pm)
01702208187
(standard call rate charge applies)
