Elinchrom Quadra Hybrid User manual

Elinchrom SA Quadra Hybrid 10.06.2012 (73111) Printed in Switzerland
USER MANUAL
GEBRAUCHSANLEITUNG
MANUEL D’UTILISATION
MANUALE D’USO
MANUAL DE INSTRUCCIONES
Quadra Hybrid
Ultra compact Battery Power Pack system
Li-Ion: 10268.1 / Lead-Gel: 10266.1
EL-Skyport Receiver RX built-in with full support for:
• EL-SkyportTransmitterSpeedfunctions
• EL-SkyportComputerRemoteControl
• EL-SkyportWiFiRemoteControlforAppletmMobiledevices
is a registered trademark of ELINCHROM LTD, RENENS, SWITZERLAND
EN
DE
FR
IT
SP

EN
1
User Manual
Introduction 2
Declaration of conformity, disposal and recycling, CE marking 3
User Safety Information 4
Quadra Hybrid Characteristics 5
Before You Start 5
Quadra Hybrid A & S Flashheads 6
Control Panel 7
Functions 8 - 10
Menu Functions 11
Reset to default settings 11
Photocell 12
Eye- Cell Pre-Flash Setup 12
Radio Remote Control: EL-Skyport setup 13
Charge Ready Beep 13 - 14
Fast- Slow Recycling 14
Auto-OFF 14
Display Setup 14
Pilotlight LED 15
Flash Power Steps 15
Auto Return 15
Battery Charging 16
Fuses 16
Battery Exchange 16
Troubleshooting 17
Specications 18
Guarantee 91
Product Registration 95
Elinchrom Product Chart 92
TABLE OF CONTENTS
Tolerances and specifications conforming to IEC and CE standards. Technical data subject to change without notice.

2
User Manual
EN
QUADRA HYBRID
This equipment has been tested and complies with the norms for a class B digital device, pursuant to
Part 15 of the FCC Rules and meets all requirements of the Canadian Interference-Causing Equipment
Regulations. These norms are to provide adequate protection against interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does not cause harmful interferences to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to correct the interferences by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ELINCHROM S.A. is not responsible for any radio or television interference caused by unauthorised
modifications of this equipment or the substitution or attachment of connecting cables and equipment other
than those specified by ELINCHROM S.A. The correction of interference caused by such unauthorised
modification, substitution or attachment will be the responsibility of the user.
FCC Class B Compliance Statement / USA & Canada
INTRODUCTION
Dear Photographer,
Thank you for buying your Quadra Hybrid battery flash unit. All Elinchrom products are manufactured using
the most advanced technology. Carefully selected components are used to ensure the highest quality and the
equipment is submitted to many controls both during and after manufacture. We trust that it will give you many
years of reliable service.
All flash units are manufactured for the studio and location use of professional photographers. Please read the
instructions carefully, before use, for your safety and to obtain the maximum benefit from the many features.
This unit embodies the very latest technology and is manufactured in Switzerland, by Elinchrom S.A.,
complying with all Swiss and E.C. relevant norms.

EN
3
User Manual
CE MARKING
Product name Quadra Hybrid
Trade name ELINCHROM
Model numbers Li-Ion: 10268.1 / Lead-Gel: 10266.1
Name of responsible party ELINCHROM S.A
Av. De Longemalle 11
1020 Renens / Schweiz
Phone : [phone]
Fax: [phone]
ELINCHROM S.A. hereby declares that the equipment bearing the trade name and model number specified
above was tested conforming to the applicable FCC rules, and that all the necessary steps have been taken
and are in force to assure that the production units of the same equipment will continue to comply with the
Commissions requirements.
This device has been manufactured to the highest standards from materials which can be
recycled or disposed of in a manner that is not environmentally damaging. The device may be
taken back after use to be recycled, provided that it is returned in a condition that is the result
of normal use. Any components not reclaimable will be disposed of in an environmentally
acceptable manner. If you have any question on disposal, please contact your local office or
your local ELINCHROM Agent (visit our website for a list of all ELINCHROM agents world wide).
The shipped version of this device complies with the requirements of ECC directives 89/336/ECC
«Electromagnetic compatibility» and 73/23/ECC «Low voltage directive».
Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may damage other equipement
Supplementary information, remarks, and tips follow this symbol. Text which follows this
symbol describes activities that must be performed in the order shown.
«Quotation marks» indicate names of chapters or terms
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
DECLARATION OF CONFORMITY
DISPOSAL AND RECYCLING
Notational Conventions
The meaning of the symbols and fonts used in this manual are as follows:

4
User Manual
EN
• Before you travel or transport the unit: Select the function “Auto Off” and switch Off the unit. This will give
a maximum of security and no loss of battery supply during transport.
• Avoid condensation related problems.
• Keep flash units out of reach of unauthorised persons whenever possible.
• Switch off when not in use and disconnect Flashheads.
• There is high voltage and can be high currents, so please apply all the usual safety precautions when
handling the unit, changing fuses, etc, as you would with mains powered electronic flash.
• The units may retain an internal charge for a considerable time even though disconnected from the battery.
• Do not open the unit. In the event of damage or apparent failure, contact the Elinchrom repair service.
• On no account should any object be inserted into the flash plugs, use only the original EL Flashheads.
• Do not use in restricted area (like hospitals, always ask permission before).
• Internal defect charge capacitors may explode whilst the unit is in use, never switch on flash unit, once it
has been found to be faulty.
FLASH TUBES AND LED-PILOTLIGHT
• Flashtubes and the LED-Reflector dishes may become very hot during and after use!
• Never touch a flash tube or exchange before the unit cooled down and is disconnected from the battery.
• Do not fire flashes from short distances directed towards a person.
• Do not use near flammable / explosive material.
TRAVELLING BY AIR
Due to strict security regulations, please note:
• Remove the 20 A fuse from the top side of the Battery Box, this deactivates the battery
• Remove the Battery Box from the Quadra Hybrid unit and store in your luggage “hold” baggage.
• The sealed lead battery confirms to the special provisions of UN No. 2800/238. Also this battery satisfies
the special provisions A67 prescribed in Non-Dangerous Goods Regulations by IATA.
• Please read the separate Li-Ion Battery Box User Manual for detailed information, in case Li-Ion Batteries
are used!
Because a portable unit is frequently used “on location” please be aware of the danger, or inconvenience,
which it may represent to others for example children.
OUTDOORS
• A thermal cut out protects internal electronic components. At high ambient temperatures or after rapid or
frequent use, the thermal cut out may interrupt the capacitor charge.
• The display shows “E2”. After cooling down, the Quadra Hybrid restarts automatically. A Beep signal
announces that the unit is ready for operation. Note: The acoustic signal occurs only if the „Beep“ function
is switched on.
• In humid conditions cover or otherwise protect the Power Pack and the Flashhead. The humidity
protection conforms to the norms of IP20.
• If the unit has been exposed to very cold conditions, sudden exposure to warm or humid air may cause
condensation and malfunction.
• Never exchange the Battery unit under damp / humid conditions - look for a dry and clean area!!
• The battery locking system cannot be protected against humidity / water / rain.
• Take care that the battery is correctly locked.
• Outlets not in use must be covered with the protection caps.
• Always switch off the unit before connecting or disconnecting heads.
• Protect the Quadra Hybrid Heads when used in wet conditions.
• Flashhead cables must be connected correctly at both ends. Use this cable only for Quadra Hybrid and
the Quadra Hybrid S & A Heads.
USER SAFETY INFORMATION

EN
5
User Manual
Quadra Hybrid is a portable unit which will be frequently used “on location”. Please be aware of the danger, or
inconvenience, which it may represent to others for example children.
• Before you travel or transport the unit select the function “Auto Off” This gives a maximum of security and
avoids loss of battery power during transport.
• If you travel by air remove the battery box and the fuse.
• Before reconnecting the Battery, insert the 20 A fuse and ensure that the Battery Box is well locked in
position.
• Connect the flash cable first to the RQ Head and then to the RQ Power Pack.
• Check all connections again and switch on the unit.
• Compact portable Battery Flash System for outdoors and studio photography.
• 400 ws with asymmetrical 2:1 power distribution.
• Small and lightweight Flashhead with plug-in flash tube and LED / Daylight Pilotlight.
• Integrated EL-Skyport Transceiver, programmable 4 Groups, 8 Frequency channels, flash power &
Pilotlight remote control, flash triggering. To activate and use these functions, the optional EL- Skyport
Transmitter 19350 is required.
• Extended RX features with EL-Skyport software version 3.x for PC™ or MAC™
• Eye Cell; Anti-Red-Eye pre flash management system.
• Optimised battery management system with programmable Auto-Off and efficient power saving LED
Daylight 20 W (equals ca. 40 W Halogen).
• Display for power settings in f-stops or ws
• Quick battery change system with safety locking.
• 6.6 f-stop power range
• Speed outlet; short flash duration up to 1/6000 s
• Automatic head recognising system, the display shows correct power values if the asymmetrical power
outlet B is used.
• Auto Dump Function, discharges the unit precisely to the displayed power.
• Fast battery recharging with RQ Multivoltage Charger.
With a flat battery, the Quadra Hybrid may still be used in emergency with the Charger connected. Efficient
battery charging will only re-commence when the unit is switched off.
• The charging time is approximately 1.5 h to full charge depending on the battery condition.
• The Battery may be re-charged at any time. “Topping up” will not damage it.
• We suggest a spare Battery Box. Whilst one is in use, the other can recharge.
• To recharge the Battery externally, release the Battery Box, and connect the charger.
• Before changing the Battery Box, ensure that the RQ Charger is disconnected and switch off the unit.
• Connect first the charger with the Battery Box and than connect to the mains.
• Always switch off the unit before connecting or disconnecting Flashheads or the Battery Box!
• Protect Battery contacts against short circuits. Metal and moisture must be kept away from
the terminals at all times.
• The ambient temperature whilst charging: min. 0°C (32°F) up to max.40°C (104°F)
• The ambient temperature whilst the unit is in use: min. -20°C (-4°F) up to max. 40°C (104°F)
• Use only the original RQ-Multivoltage Charger.
• Please read the separate Li-Ion Battery Box User Manual for detailed information, in case
Li-Ion Batteries are used!
BATTERY LEAD-GEL OR LI-ION
QUADRA HYBRID CHARACTERISTICS
BEFORE YOU START

6
User Manual
EN
Quadra Hybrid offer a 66% for outlet A and 33% for outlet B (2:1) asymmetrical light distribution with two
connected RQ Heads.
66% for outlet A and 33% for outlet B
Outlet A: 25 ws – 400 ws (one connected RQ Head) - gives maximum power
Outlet B: 8.2 ws – 132 ws (one connected RQ Head) – gives shortest flash durations
Outlet A & B: 66% A, 34% B for asymmetric light distribution of power 25 ws – 400 ws
• Switch off the unit before connecting or disconnecting Flashheads or the Battery Box!
• Connect the flash cable with the RQ Head and then with the RQ power pack plug A or B or both.
• Lock the flash cables with the security rings before use.
• Power Pack outlets not in use must be protected with the security covers.
• Check all connections again before switching on the unit.
• The metal contact pins can be damaged by high flash voltage arcing, if flash cables
are incorrectly fitted or the unit is switched on whilst connecting or disconnecting
heads.
• Do not use Heads or Power Packs with burned contacts. Plugs and sockets must be
replaced immediately. Please contact the Elinchrom Service Centre!!
The system offers two Quadra Hybrid Heads with LED Pilotlight:
• The S Head is designed for universal photography equipped with a standard omega plug-in flashtube
• The A Head offers a very short flash duration for action freezing photography. The new A tube is a single
twin pole plug-in flash tube also with even light distribution.
• The super efficient LED Pilotlight 20 W (equals ca. 60 W Halogen) functions only when used with the
Quadra Hybrid Battery Power Pack.
• Switch on the LED-Pilotlight by pressing the touch once. The LED lights for 15 s (standard), or longer
depending which user setting is programmed. By pressing the touch again, the LED switches off.
• The new RQ Reflector range with bayonet fits only to Quadra Hybrid S & A Heads.
• Elinchrom accessories with the 12 cm standard bayonet require the new RQ EL-Adapter 26339.
• Always switch off the unit before connecting or disconnecting Flashheads.
• Flashhead cables must be connected correctly at both ends with the security rings.
Use these cables only for Quadra Hybrid and the Quadra Hybrid S & A Heads.
• The Quadra Hybrid Flashheads must be protected in wet conditions.
• Power Pack outlets not in use must be protected with the protection caps.
• Never touch flashtube or the LED when the unit is in use, these components can get
quite hot.
• Use only original Elinchrom Accessories.
SECURITY ADVISE
QUADRA HYBRID A & S FLASHHEADS
FLASHHEAD OUTLET SOCKETS

EN
7
User Manual
CONTROL PANEL
BASIC FUNCTIONS
1. On / OFF
2. LED Pilotlight
3. Power setting - 1/10 steps (or Setup touches
for programmable function)
4. Power setting + 1/10 steps (or Setup touches
for programmable function)
TEST
5. Manual fl ash release
6. Ready indication
SETUP
7. Setup Menu
8. Setup Sub Menu
DISPLAYS
9. Photocell functions
10. EL-Skyport Remote Control
11. Ready Charge Beep
12. Slow Charge
13. Auto-OFF (The unit shuts downs to save
Battery energy. The time delay can be
individually programmed)
14. Battery Charge Status
15. “Ws” (Joule) displays the power setting in
Wattseconds.
16. Display: for flash power & setup
OUTLETS / PHOTOCELL SENSOR
17. Outlet A (100%)
18. Outlet B (33%)
19. Photocell
20. Synchronisation plug for 3.5 mm jack
11
412
10 9
6
213 1
8
14
53
7
15
20
18
17
19
16
CONTROL PANEL

8
User Manual
EN
ON / OFF (1)
Switches the unit on / off. Replace Batteries or connect / disconnect Heads only if the unit is
switched off and the RQ charger is disconnected. If the unit cannot be switched off, release the
Battery Box and contact your Elinchrom Service centre.
LED PILOTLIGHT (2)
Switches the LED ON / OFF. The Pilotlight on Timer can be programmed in the Menu function “L”
from 1 s up to 60 s. To deactivate the Timer for continuous Pilotlight, press this touch more than
3 s.
Note: Continuous Pilotlight will consume Battery energy. The number of flashes will be reduced.
Pilotlight function with Ranger FreeLite / Ranger A & S Flashheads (Ranger RX
Series). To use these Heads the Ranger Quadra Head Adapter Cable 11036 is required. The
Halogen-Pilotlight can be switched on for 15 s or 30 S settings. By pressing this touch button
once, the Halogen lamp switches on for 15 seconds.
By pressing the touch twice in 2 seconds, the Halogen lamp switches off after 30 seconds. To
switch off the Halogen lamp sooner, just press the button again (after two seconds). This Halogen
lamp function is only available with FreeLite / Ranger S and A heads. The total allowed wattage
for Quadra Hybrid with two Heads is 100 W / 12 V. By using the Halogen Pilotlight the number of
flashes out of one charged Battery will be reduced!
FLASH POWER SETTING (3-4)
Using the power up/down buttons the flash power will be changed in 1/10th steps. The steps
can be re-programmed in the Power-Menu “i” from 1/10th – 5/10th or 1 f-stop. The power is
displayed with “P” in f-stop equivalent values or, Watt / sec when the “Ws” function is activated
and illuminated. Maximum is 6 / 400 Ws minimum is 0.4 / 8.2 Ws. By pressing the power touches
continuously the quick mode is activated for fast power changing. The electronic will apply the
new settings after one second and charges or discharges the unit. The Auto Dump Function
(ADF) discharges the unit to precisely the displayed power. Frequent auto dumping may cause
overheating and activate the charge “cut-off”. This risk may be limited or avoided by “open
flash” reduction but please note that the consequent re-charging will reduce the total number of
“available” flashes.
OPEN FLASH (5)
A test flash may be released manually, when the green LED is illuminated.
If flash power values have been reduced the „Open flash“ can discharge and charge the unit
faster to the new settings instead of waiting fort he Auto Dump Function, but please note that the
consequent re-charging will reduce the total number of available flashes.
The flash release blocks whilst charging, but not during discharging.
FUNCTIONS
i

EN
9
User Manual
The actual flash power is shown in an f-stop compatible format, or can be changed
to Ws. This feature is active when the “Ws“ LED is illuminated. In the „Ws“ mode
the display shows 8.2 Ws minimum and 400 Ws maximum power. In the f-stop
compatible format the steps can be programmed from 1/10th - 5/10th or in 1 f-stop
steps.
The micro electronic controls all power changes precisely. The display shows
power settings from minimum 0.4 to maximum 6.0 power. The total power range is
6.6 f-stops.
During charging or discharging the display “flashes”. In case of overheating or
malfunction the display shows “ErX”, whereby X stands for the fault number 1-4.
MENU / SETUP (7)
SUB MENU (8)

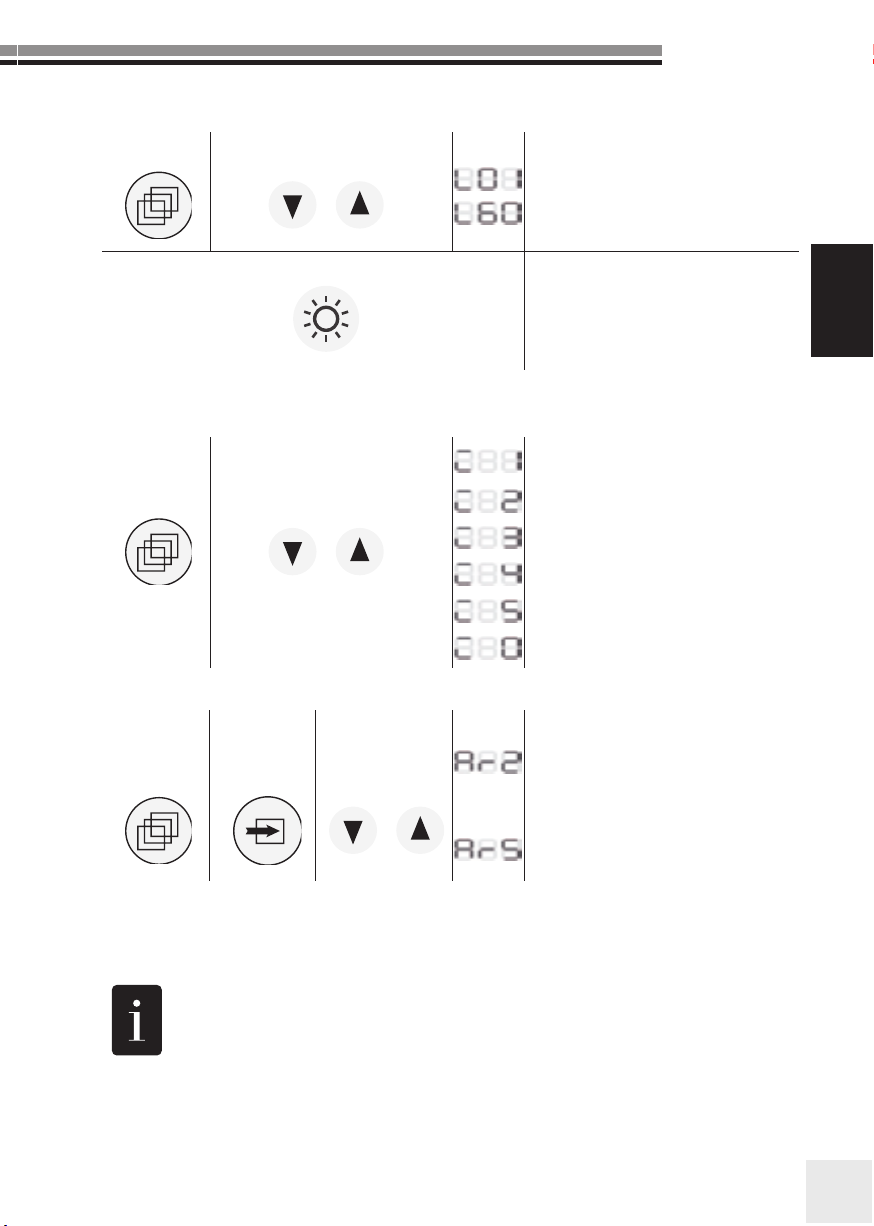

This touch activates the Menu setup functions. After 2-5 s (see setup for “Auto Return”) if no other
command has been applied the unit returns to normal mode and the display shows the flash
power setting. All changes are automatically stored.
The Sub Menu touch enables to the access additional features oft the main menu.
BATTERY STATUS INDICATOR (14)
The green LED’s indicate the actual Battery charge status. At full charge both LED’s are
illuminated. At 50% charge, only one LED is illuminated. At approximately 10% charge the LED
starts flashing, with about 10 flashes at full power in fast recycle mode available before the “Auto
Battery Save” system shuts down the Quadra Hybrid after 4 Beeps. The “intelligent” electronics
saves the battery from over discharging. With only 10% battery charge, the units switches
automatically into slow charge mode.
DIGITAL POWER DISPLAY (16)
PHOTOCELL STATUS LED (9)
When switched on, the Quadra Hybrid can be remotely triggered by another flash unit!
The Photocell is specially designed to work under ambient light situations, but direct sunlight
(or other direct strong lights) may reduce the sensitivity of the Photocell.
LED off: Photocell is deactivated
LED on: Photocell is activated, the unit can be released remotely by another flash unit.
LED flashes: The Photocell is in pre flash mode. This function enables to synchronise cameras
with the activated Anti-Red-Eye pre-flash function. Details
For synchronisation use the included Sync cable 11088. Connect this cable with the 3.5 mm jack
socket of the unit and the PC plug with the camera PC contact. Remove the rubber security cover
before use. The Sync voltage is reduced to 5 V to protect your Camera electronics.
SYNCHRONISATION WITH SYNC CABLE (20)

10
User Manual
EN
The integrated EL-Skyport Transceiver offers:
• Wireless flash triggering / synchronisation
• Wireless control of the flash power setting
• Wireless on/off control of the LED Pilotlight
• Programmable 4 Groups
• Programmable 8 Frequency channels, to prevent interference with other wireless systems. To
activate and use these functions, the optional EL-Skyport Transmitter 19350 is required.
• Additional “RX” features are available with the EL-Skyport software version 3.x for PC™ or
MAC™: for details, see the documentation of EL-Skyport 3.x. at our website.
EL-SKYPORT STATUS LED
LED off: The EL-Skyport wireless system is deactivated.
LED on: The EL-Skyport wireless system is ready to use.
Frequency channel and Group settings must be identical between Transmitter and
Transceiver. Only the Elinchrom Skyport Transmitter is compatible.
In case of signal interference, try a different frequency.
The BEEP is active when the LED is illuminated.
1 x Beep: The unit is ready for operation.
3 x Beeps: The unit is overheated (or the charge circuit might be defective). The display will
show “Er1 to 4”
4 x Beeps: The Auto-OFF function is active and the unit shuts down or the Battery charge
level is too low.
The green LED indicates that the slow function is selected. The “Slow” mode increases the number
of flashes by approximately 40 %, from 110 in “Fast” recycle mode to 150 flashes. The slow recycle
mode also increases the battery life, but the recycling time is extended!
Please read the separate Li-Ion Battery Box User Manual for detailed information, in case Li-Ion
Batteries are used!
This function, when active, shuts down the Quadra Hybrid, when the unit is not in use. The Timer
can be individually programmed and is a useful feature to save Battery power. Any re-use of the
unit restarts the timer, before shutting down. 4 Beeps, if the function is active indicate that the unit
shuts down.
RADIO REMOTE CONTROL EL-SKYPORT /
REMOTE CONTROL & SYNCHRONISATION (10)
READY CHARGE BEEP (11)
SLOW CHARGE (12)
AUTO-OFF (13)
i

EN
11
User Manual
Quadra Hybrid offers many new individual programmable features. This chapter shows how to access and
customise the exciting new options. All functions are accessible with the following touch buttons:
1. Switch the Quadra Hybrid OFF.
2. Press power up and down buttons together at the same time and switch the unit ON again by pressing
the two buttons.
3. Release the buttons soon the unit is switched on.
4. Done, the unit is back to standard settings.
Menu: Press this button multiple times to select the function you want to setup.
Sub Menu: Press this button to access preselected functions and further sub functions.
Power UP: Select higher values.
Power Down: Select lower values.
If after 2-5 seconds no other settings have been applied the unit returns to standard mode and the display
shows the flash power setting. All changes applied changes are stored automatically.
PHOTOCELL / ELINCHROM EYE-CELL (C/CP)
• OFF / ON / EYE-CELL
• Eye-Cell Setup
• Eye-Cell Pre-Flash Time Frame settings
• Eye-Cell Pre-Flash Block Time settings
INTEGRATED WIRELESS SYSTEM / EL-SKYPORT
TRANSCEIVER (R)
• OFF / ON
• Group 1-4 settings
• Frequency Channel 1-8 settings
CHARGE READY BEEP (A)
• OFF / ON
• Charge Ready Beep -On- timer settings
SLOW CHARGE (SL)
• OFF / ON

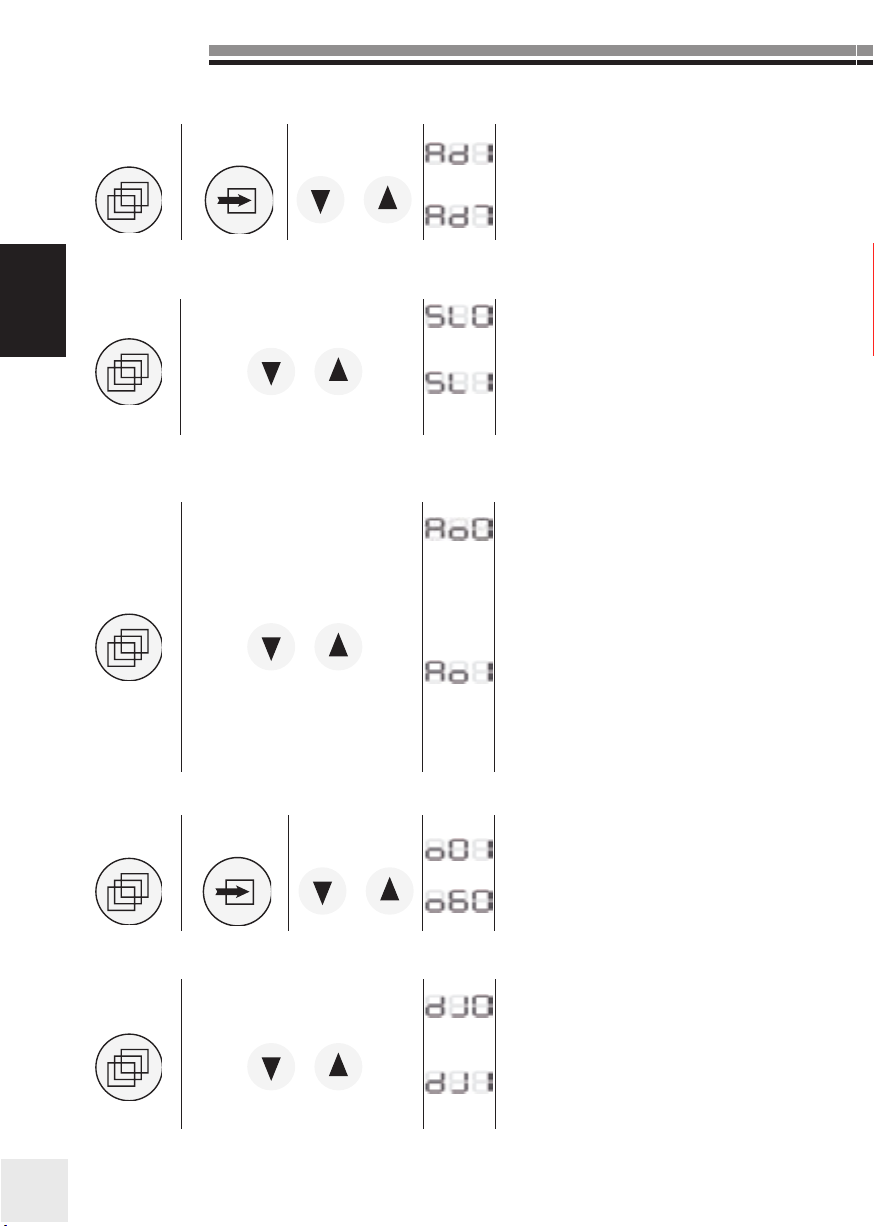

AUTO-OFF FUNCTION (AO)
• OFF / ON
Flash Power Display (dJ)
• Displays the flash power in Ws or in
f-stop Elinchrom format.
LED-Pilotlight Shut Down Setting (L)
• Programmable Pilotlight Shut Down-
settings
Flash Power Steps Per Push (i)
• Change flash power in 1/10th – 5/10th
or 1 f-stop steps
Menu Auto Return (Ar)
• Programmable delay time until the
unit returns from the“Menu” mode to
normal “Flash Power Display“ mode. All
programmed features are automatically
stored
RESET TO MANUFACTURERS DEFAULT SETTINGS:
QUADRA HYBRID BASIC-MENUS
MENU FUNCTIONS

12
User Manual
EN
SPECIAL PHOTOCELL – EYE-CELL SETUP (MANUAL PRE-FLASH CONFIGURATION)
Press 1x Scroll to select function Photocell OFF
Photocell ON
Photocell Pre-Flash Mode (shows the
number of received camera flashes when
the camera on flash is set to Anti-Red-
Eye mode) To change values, please
follow instructions below.
Press 1x Press 1x Scroll to select
function
Automatic pre-flash setup, Learning
Mode. Make a test exposure and release
camera flashes with activated Anti-Red-
Eye function
The Quadra Hybrid Photocell will
recognize all flashes and stores this
value. The Pre-Flash function is now
active
Photocell / Eye-Cell setup, Preset Mode
Press 1x Press 2x Scroll to change
value
ct. is the time window of all released
anti red-eye flashes incl. the main
flash. Change setting only when the
pre-flash procedure is longer than the
manufacturer settings. Set the value ct.
between 1 and 7 to ensure that all pre-
flashes including the main flash are inside
the time frame Standard value = 4
Press 1x Press 3x Scroll to change
value Pre-Flash Block -Time:
to set the minimum delay between each
pre-flash. (Normally only for LED Anti-
Red-Eye cameras) Standard value = 1
Change only if Photocell cannot identify camera pre-flashes. Advanced users only!
< > < > < >
PHOTOCELL – BASIC FUNCTIONS
PHOTOCELL / EYE-CELL SETUP - ANTI-RED-EYE PRE-FLASH LEARNING MODE
PHOTOCELL / EYE-CELL - PRE-FLASH TIME FRAME SETTING - ADVANCED USERS ONLY!
PHOTOCELL / EYE-CELL - PRE-FLASH BLOCK TIME SETTING - ADVANCED USERS ONLY!

EN
13
User Manual
RADIO REMOTE CONTROL / EL-SKYPORT BASIC FUNCTIONS
Requires the optional EL-Skyport Transmitter 19350
Press 2x Scroll to select function EL-Skyport Transceiver OFF
EL-Skyport Transceiver ON
EL-Skyport Speed Sync Mode
Press 2x Press 1x Scroll to select
workgroup To select 4 workgroups – adjusting and
synchronising individual units or groups.
The optional EL-Skyport Transmitters is
required to remote and trigger Quadra
Hybrid Standard value =1 (Group 1)
FREQUENCY CHANNEL SETUP BETWEEN QUADRA HYBRID UND EL-SKYPORT TRANSMITTER
Note: Frequency channel settings must be the same between Transmitter and Transceiver.
Press 2x Press 2x
Scroll to select
frequency channel
Select between 8 Frequency channels –
for separate working groups or in case of
interference with other wireless systems
The optional EL-Skyport Transmitters is
required to remote and trigger Quadra
Hybrid Standard value =1 (Frequency
Channel 1)
Frequency channel Quadra Hybrid EL-Skyport Transmitter Setup
Press 3x Scroll to select function Charge Ready Beep OFF
Charge Ready Beep ON
< >
EL-SKYPORT BASIC FUNCTIONS
GROUP SETTING
FREQUENCY CHANNEL SETUP
CHARGE READY BEEP – BASIC FUNCTION

14
User Manual
EN
Press 3x Press 1x Scroll to change
value BEEP -ON- time Setting, chose between
value 1 - 7
Standard value = 3
Press 4x Scroll to select function Fast recycling
Slow recycling / About 40% more
flashes out of one Battery charge. The
slow charge mode also increases the
battery lifetime, but the recharging time
is doubled!
Press 5x Scroll to change value
“Auto-OFF” OFF
Note: The Battery will be discharged
continuously. At minimum Battery charge
level the unit shuts down to prevent
Battery damages by over-discharging!
“Auto-OFF“ ON
The Quadra Hybrid display shows the
minutes before the unit shuts down when
not in use. Any re-use of the unit restarts
the waiting time, before shutting down.
The Auto-OFF function saves battery
power! 4 Beeps (if the function is active)
indicate that the unit shuts down.
Press 5x Press 1x Scroll to change
value Set the Timer shut down time between 1
to 60 minutes
Press 6x Scroll to select function
Display shows flash power in f-stop
Elinchrom format.
Display shows flash power in Ws / Joule
The Symbol “Ws” LED lights up and
indicates that this function is active
< > < >
CHARGE READY BEEP -ON- TIMER SETTING
FAST / SLOW RECYCLING
AUTO-OFF – BASIC SETUP
AUTO-OFF TIMER SETUP
DISPLAY IN WS / JOULE OR F-STOP STEPS

EN
15
User Manual
Press 7x Scroll to change value
Set the Pilotlight LED Timer between
1..60 seconds
Press more than 3 s To deactivate the Timer for continuous
Pilotlight, press this touch more than 3 s.
Note: Continuous Pilotlight will consume
Battery energy. The number of flashes
will be reduced
SPECIAL FUNCTIONS
Press 8x Scroll to change value
1/10 flash power steps per push
Standard setting
2/10 flash power steps per push
3/10 flash power steps per push
4/10 flash power steps per push
5/10 flash power steps per push
1/1 flash power steps per push
Press 8x Press 1x Scroll to change
value
After approximately 2 seconds the unit
returns from the “Setup Menu” to normal
display mode. All configurations are
stored automatically.
After approximately 5 seconds the unit
returns from the “Setup Menu” to normal
display mode. All configurations are
stored automatically.
PILOTLIGHT LED -ON- TIME
FLASH POWER STEPS PER PUSH
AUTO RETURN FROM MENU TO NORMAL DISPLAY MODE
NOTE ABOUT HIDDEN MENUS
Some Quadra menus are dedicated for servicing or manufacturer needs, they do not add any user
function. If the display shows the information below: « U x » where x is « 0..3 » or « Ud » or « t00 »,
press immediately the ON / OFF (1) key to leave this menu, otherwise your device would not
work correctly if parameters are changed.

16
User Manual
EN
The Battery and the Quadra Hybrid electronic is secured with an ATO 20 A fuse.
The unit and the LED Pilotlight are electronically protected against overheating and cut-outs.
The Battery topside includes transport pockets for two ATO 20 A fuses.
N.B. Remove the Battery fuse when you travel by air.

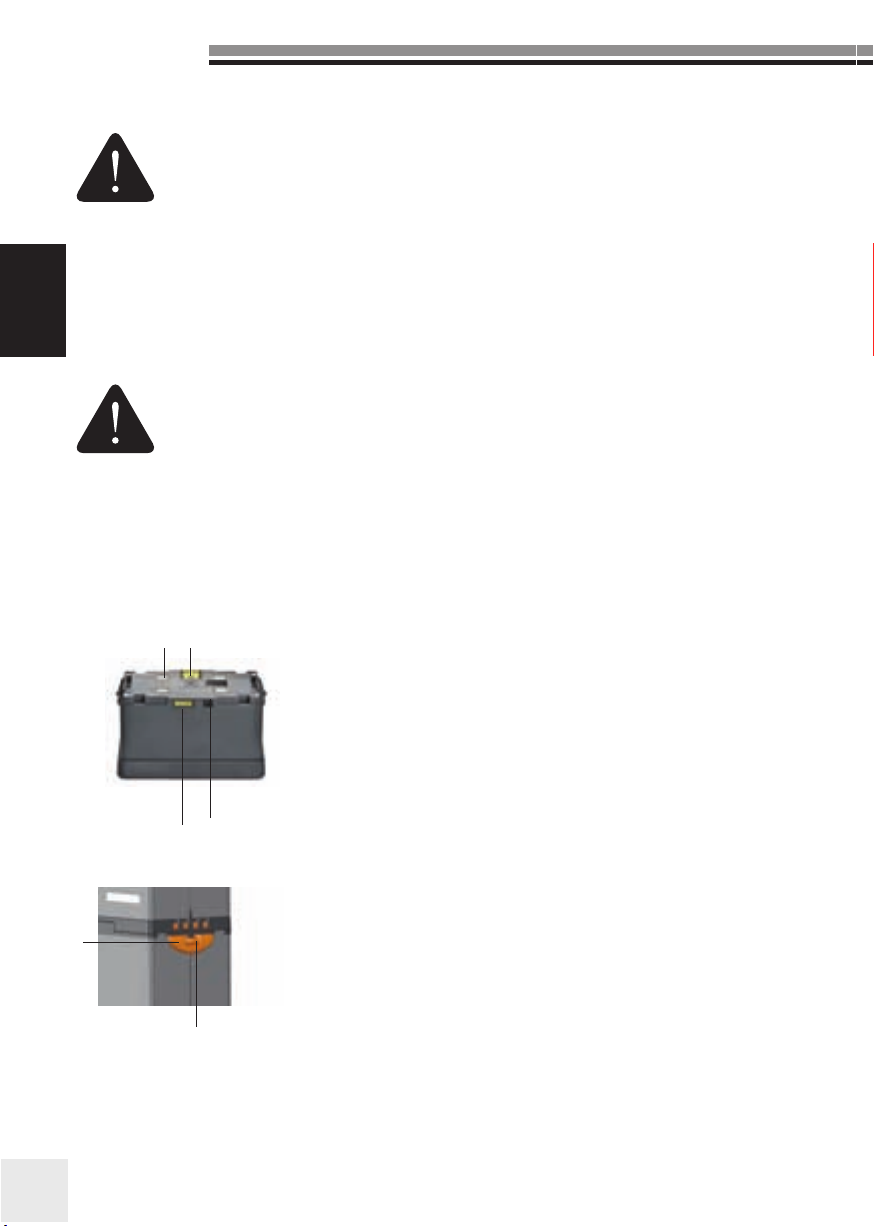

1. Battery contacts
2. Transport pocket for spare fuses
3. Battery Fuse ATO 20 A
4. Battery charge plug
FUSE
Use only the original RQ Multi-Voltage Charger 19284. Other chargers may force technical problems. The RQ
charger indicates the charging status with a multicolored LED:
Yellow: Charging in progress, 1.5 h for a discharged battery
Green: Recharged; NOTE: if the battery is disconnected or without the fuse the LED lights up
green as well!
No LED light: Failure, contact the Elinchrom Service.
The 12 V / 3.6 A Battery can be recharged from any charge level, there is no Memory-Effect.
The number of flashes may vary from Battery to Battery (due to aging, recycling speed etc.)
Even new Batteries may vary; N.B. The full capacity of the Battery is available only after some
charge cycles. Used batteries may need to be recycled. Check your local regulations! Use only
the original Elinchrom Quadra Hybrid Battery.
Please read the separate Li-Ion Battery Box User Manual for detailed information, in case
Li-Ion Batteries are used!
1
2
1 2
34
BATTERY EXCHANGE

➠
➠
1. Push Button
2. Security Lock
• Place the Quadra Hybrid pack on a flat, dry and clean surface.
• Simultaneously press the central security locks down before pressing on
the outer releases to separate the battery unit.
• Place the new, charged Battery Box on a clean surface.
• Place the Quadra Hybrid housing over the Battery Box.
• Press smoothly down on the Quadra Hybrid pack until you hear two clicks
(left / right) activating the locking mechanism.
• Check, that the Battery Box is well connected on both sides of the unit!
BATTERY CHARGING / FUSES

EN
17
User Manual
E1
• Switch the unit OFF and wait 5 minutes.
• Switch the unit ON again.
• If the unit shows this fault again, please contact your Elinchrom Service Centre.
E2
• The unit is overheated due to workload or high ambient temperature. Avoid direct sunlight.
• Switch the unit OFF and allow to cool down for approximately 15 minutes (depending on the
ambient temperature). Switch ON again .
• If the unit shows “Er 2 again, please contact your Elinchrom Service Centre.
E3
• Indicates an internal fault in the discharge circuit; “Auto Dump Function“ .
• Switch the unit OFF and ON again.
• Release a „Test Flash“ to check the charge circuitry.
• This fault should be controlled at your Elinchrom Service Centre.
E4
• Indicates an internal fault in the charge circuit.
• Switch the unit OFF.
• Ensure the Battery Box is correctly attached to the unit and fuse ATO 20 is fitted.
• If the unit shows this fault again, please contact your Elinchrom Service Centre.
UNIT DOES NOT SWITCH ON
• Check if the ATO 20 A fuse is fitted in the Battery Box, exchange if the fuse is faulty.
• Check if the Battery Box is correctly attached.
UNIT CONTROLS DO NOT RESPOND AND CANNOT BE SWITCHED OFF
• Disconnect all Flashhead cables.
• Disconnect the Battery Box.
• Disconnect the RQ Charger, if connected.
• Refit the Battery Box and switch the unit ON.
• If the unit shows this fault again, please contact your Elinchrom Service Centre.
THE DISPLAY FLASHES, NO FLASH CAN BE RELEASED
THE DISPLAY SHOWS:
• Switch the unit OFF.
• Check if all Flashhead cables are correctly fitted.
• Check eventually another RQ Flashhead or flash cable.
• If the unit continues to show this fault, please contact your Elinchrom Service Centre.
THE UNIT SHUTS DOWN SHORTLY AFTER SWITCHING ON, EVEN THOUGH THE BATTERY IS FULLY
CHARGED
• Check if the ATO 20 A fuse is placed in the Battery Box, exchange if the fuse is faulty.
• Check if the Battery Box is correctly fitted.
• Maybe the Battery is faulty, try another Battery Box.
• Check the Quadra Hybrid Charger. The GREEN, RED or YELLOW LED should be active if the RQ Charger
is connected to the Battery and the mains.
• In case no LED light up replace, the RQ Charger and recharge the Battery Box again.
• If the unit shows this fault again, please contact your Elinchrom Service Centre.
TROUBLESHOOTING

18
User Manual
EN
Tolerances and specifications conforming to IEC and CE standards. Technical data subject to change without notice.
SPECIFICATIONS QUADRA HYBRID ASYMMETRIC
TYPE OF BATTERY LEAD-GEL
PB BATTERY
LI-ION
BATTERY
Flash Power 400 J (Ws)
F-Stop, 1m, 100ISO with Reflector 48° 64.5
Power Range A Output (100%) 25-400 J (Ws)
Power Range B Output (33%) 8.2-132 J (Ws)
Variable Flash Power 6.6 f-stop / 8.2 – 400 Ws
Recycling, 100% FAST at min. / max. power
(A or A+B output) 0.41 s / 2.26 s 0.36 s / 2.0 s
Recycling, 100% SLOW at min. / max. power
(A or A+B output) 0.95 s / 7.8 s 0.86 s / 6.6 s
Recycling, 33% FAST at min. / max. power (B output) 0.18 s / 0.8 s 0.17 s / 0.73 s
Recycling, 33% SLOW at min. / max. power (B output) 0.37 s /2.7 s 0.33 s / 2.3 s
Flash duration at t 0,5, Quadra Hybrid-S Flashhead Outlet A (100%)
Outlet B (33%)
Outlet A+B (100%)
1/1200
1/3000
1/1500
Flash duration at t 0,5, Ranger Q-A Flashhead Outlet A (100%)
Outlet B (33%)
Outlet A+B (100%)
1/2800
1/5700
1/4000
Flashes out of one charged battery
at min power Slow / Fast 2000 / 1500 4800 - 4200
Flashes out of one charged battery
at max power Slow / Fast 150 / 110 320 / 280
Quick Charger, recharging time 2 h 1 h 30 min @
16.8 V / 3.5 A
EL-Skyport Built in Built-In
Dimension (Quadra Hybrid including Battery Box) 15 x 8.5 x 21
cm
15 x 8.5 x
18.5 cm
Dimension of the Battery Box 15 x 8.5 x
9 cm
15 x 8.5 x 6.5
cm
Weight: RQ with Battery Box 3 kg 2 kg
Weight: Battery Box 1.7 kg 0.73 kg

19
Gebrauchsanleitung
DE
VERMERK: Toleranzen der technischen Daten für Bauelemente und Messwerte entsprechen den IEC und EC
Normen. Technische Änderungen vorbehalten. Die Werte können durch Bauelementetoleranzen schwanken
und sind als Richtwerte zu verstehen und nicht im rechtlichen Sinne als zugesicherte Eigenschaften. Keine
Haftung für Druckfehler.
INHALTSVERZEICHNIS
Einleitung 20
Konformitätserklärung, Entsorgung 21
Sicherheitshinweise 22
Quadra Hybrid A & S Blitzköpfe 23
Eigenschaften 24
Vor dem Start 24
Digitales Display 25
Funktionen 26 - 28
Menü-Funktionen 29
Reset 29
Photozelle 30
Eye-Cell Vorblitzerkennung 30
EL-Skyport Funkempfänger 31
Akustisches Signal 31 - 32
Langsamladung 32
Auto-OFF 32
Displayanzeige in Joule / Ws 32
LED - Pilotlichtdauer 33
Einstellung der Leistungsschritte pro Tastendruck 33
Menü Auto Return 33
Batterieaufladung und Sicherungen 34
Akkuwechsel 34
Betriebsfehler, Funktionsstörungen 35
Technische Daten 36
Garantie 91
Produktregistrierung 95
Systemüberblick 92
