Jupio BGM0003 User manual

Rechargeable Lithium-ion Battery Pack
Model: BGM0003
Replaces Dionic 90 / 160
Thank you for purchasing this rechargeable Lithium-ion battery pack. We recommend that you read this
User Manual with care before using the battery and keep this manual for yout future reference.
Features Charge
• High capacity, compact and light-weight. •
Charge time may vary depending on different conditions and charger used.
• Five-step LED indicator for easy battery capacity check. •
Operating temperature range of 0°C~45°C. For optimum charging performance
10°C~30°C is recommended
• If the temperature of the battery is below 0°C, the battery will
Specifications not fully charge even if designated charge time has lapsed. The
battery must be charged within the recommended temparature
Type: BP-type Li-ion rechargeable battery
range.
Maximum Voltage DC 16.8V
Nominal Voltage: DC 14.4V
Nominal Capacity: 10.7Ah 158Wh Discharge
Battery Protection Circuit:
Over-discharge, over-charge and over-
current
• Maximum coninuous discharge current is 6.0A
Maximum Discharge Current: 6.0A (Note: When using the battery with video or lighting equipment power
Operation Time to shoot without a Light: Approx 200min consumption of te equipment must be 6.0A or below. For the
Internal Resistance (maximum):
≦
260mΩ protection of the battery, a load of 6.0A or over may activate the
Power Indicator 5-LED Power Status interal protection circuit and terminate the supply of power.)
End Voltage: 11V • The normal operating temperature should be in the range of -20°C~50°C.
Operating Temperature: If the temperature drops below -20°C, discharge may stop.
Charging:
0°C to 45°C (-10°C to 30°C
recommended)
•
The operating voltage range of this battery is 13V~16V. At the end of discharge
and when its voltage reached 13V and beyond, the voltage
Discharging: -20°C to 50°C will drop sharply. (For battery voltage alarm setting, please refer to
Storage:
-20°C to 60°C (-0°C to 20°C
recomended)
camera manual)
Dimension: 133.3(W)X84.5(D)X71.3(H)mm
Weight: 925g
User Manual

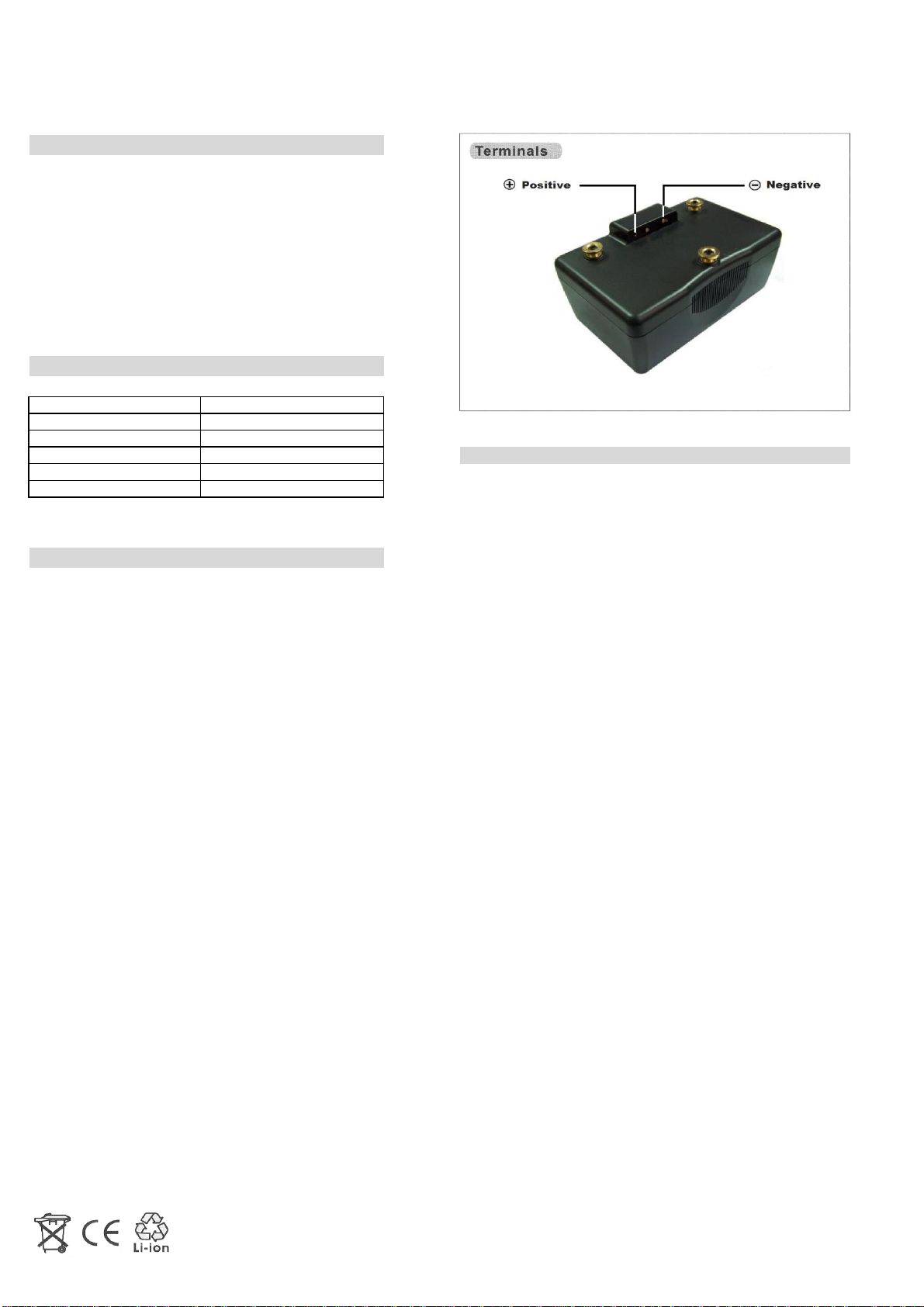

Storage
• Storage temperature range -20°C~60°C.
For prolonged battery life, store at 0°C~20°C is recommended.
• To store the battery for a short period, the battery should be
stored in discharged condition.
• To store the battery for a long period, charge the battery for
about 20 minutes every five months.
•Before re-use it, it is advisable to re-charge the battery fully.
Battery Capacity Status LED Indication
LED indicators Battery Capacity
● ● ● ● ◌
Below 20%
● ● ● ◌ ◌ Below 40%
● ● ◌ ◌ ◌ Below 60% Caution
● ◌ ◌ ◌ ◌ Below 80%
◌ ◌ ◌ ◌ ◌ 100% charged • Do not puncture or short-circuit the battery.
• Do not burn the battery pack or immerse it in water.
● OFF ◌ ON • Always keep the battery in dry place and stay away from humid.
• Do not attempt to break or dismantle the battery pack.
Battery Protection Circuitry
• Over-charge protection:
If during charge the battery voltage exceeds a preset level.
charging is automatically stopped to prevent the battery from
being overcharged. The charger will show a charging fault,
though the batteries LEDs will continue to show the battery
charge capacity. If this happens contact your supplier.
• Over-discharge protection:
If the battery voltage reaches 9.2V during discharge, the
protection circuit will operate. Then the LED indicators will not
operate. When the battery is re-charged and the voltage reaches
12.0V, the LEDs will reset and operate again.
• Over-current protection:
When exposed to a high discharge current, large in-rush current
or an external short circuit, the protection function is activated
preventing battery discharge. Then the LED indicators will not
operate. The over-current protection is automatically reset by
disconnecting the battery from equipment in use.
• Thermal protection:
If the internal temperature of the battery pack exceeds preset level, the
thermal fuse will activate and power supply will be terminated. In such
cases the battery cannot be reset. If this happens contact your supplier.
