ELK-P1215 / P1215K Installation Manual Page 1
ELK-P1215 / P1215K
Power Supply /
Battery Charger Kit
For the latest downloadable version of this manual, visit our website: http://www.elkproducts.com
Installation and Setup Guide
APPLICATION
The ELK-P1215 Power Supply/Battery Charger Kit is a plug-in14VDC
Power Supply (ELK-P1417) combined with an intelligent Charger
Board (ELK-P1215CB). It can supply up to 1.5 Amps of current
at 12VDC (nominal). The charger board features a Low Battery
Supervision output, Low Battery Cuto, as well as a Manual On/
O switch. The Power Supply features built-in overload reset and
screw terminals for connections. The ELK-P1215K kit includes an
ELK-1250 5Ah Battery.
SPECIFICATIONS
ELK-P1417
Plug-in power supply with receptacle mounting bracket
• Input Voltage Range: 100 - 240 Volts AC, 50/60Hz
• Input Current: 0.8 Amps AC
• Output Voltage Range: 13.8 to 14 Volts DC.
• Continuous Output Current: 1.7 Amps DC
• Complies with UL 60950
• Compliant with Energy Star EISA Level V
• RoHS compliant (RoHS2-2011/65/EU)
• Size w/ mounting bracket: 3.07" x 2.83" x 1.5" (78 x 72 x 38 mm)
• AC input plug style: NEMA 1-15P (non-polarized)
• Positive and Negative screw terminals on DC output
ELK-P1215CB
• Power Supply Input: 14 Volts DC provided by ELK-P1417
• Continuous Output Current: 1.5 Amps. **
• Low Battery Trouble: 11 Volts. (nominal)
• Low Battery Cuto: 9 Volts. (nominal)
• PC Board Size: 2.25" X 2.5" (57.15mm X 63.5mm )
• Standby Battery Charging Capacity: 1 to 12 Ah, Sealed Lead Acid
• Battery Wire Length: 16" with F1-Faston No. 187 Receptacles
• Master Power Switch turns On/O the DC Input and Battery
• Operating Temp: 32° to +120° degrees F
• Humidity: 95% RH (max.), non-condensing
** Higher output current (up to 2.5 Amps) may be drawn for a short
time provided a fully charged battery is connected.
AVAILABLE PART NUMBERS/CONTENTS
ELK-P1215 Power Supply/Charger Kit (pictured above)
ELK-P1417 Plug-in Power Supply
ELK-P1215CB Circuit Board
ELK-P1215K Power Supply/Charger Kit & Battery (pictured below)
ELK-P1417 Plug-in Power Supply
ELK-P1215CB Circuit Board
ELK-1250 12V, 5Ah Battery
ELK-P1417 Plug-in Power Supply ONLY, 14VDC @ 1.7A
ELK-P1215
Features or Specications subject to change without notice.
800-797-9355
www.elkproducts.com
email: [email protected]
PO Box 100 • Hildebran, NC 28637 • USA
FEATURES
• Auto-Resetting Overload Protection
• Built-In Battery Charging Circuit
• Low Battery Trouble Output
• Low Battery Deep Discharge Cuto Protection
• Master Power Switch
• Lifetime Limited Warranty
* ELK Batteries carry a
Two Year Warranty
ELK-P1417 ELK-P1215CB
ELK-P1215K
ELK-P1417 ELK-P1215CBELK-1250
Page 2 ELK-P1215 / P1215K Installation Manual

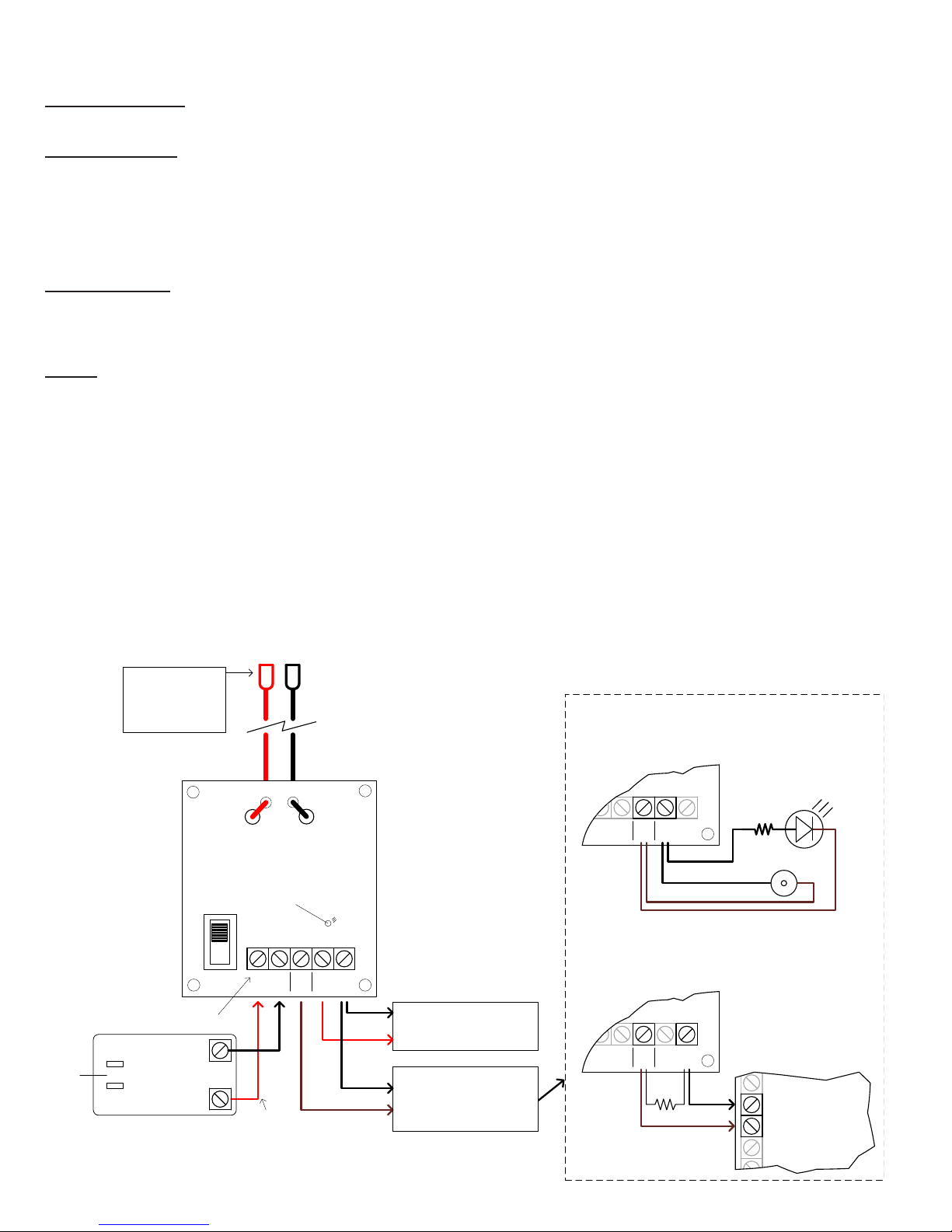

DCOutput
12Voltsat1.5Amps
Maximum
+‐
ON
OFF
MASTER
SWITCH
12VSLA
BATTERY
ELK‐P1215CB
12VDCCHARGERBDW/SUPV+CUTOFF
MAX.1.5A
MasterPowerSwitch
TurnsOn/OfftheDC
InputandBattery
+‐
BatteryWiresto
SealedLeadAcid
StandbyBattery
(+)Red (‐)Black
ELK‐P1417
NEG+NEG
12VDCOUT
+
‐
SUP
+
‐
‐
+
LED(D4)isusedascircuitry
voltagereferenceonlyandisnot
intendedasauserindicator
D4
Plugs
into
120VAC
Note:
OutputVoltagefromELK‐P1417is
13.8to14voltsDCtoproperly
chargethebattery.
18AWGmin.,
10'maxlength.
‐
DCInput
**UseELK‐P1417ONLY**
DCPowerSupply
ELK‐P1417
F1‐FastonNo.187Receptacles
LowBatterySupervision
OpenDrainOutputthatpullsto
groundwhenactive.
(100mAmax)
HookuptoaSecurityZone.
EndofLinesupervisedzoneusing2200ohmEndofLineResistor
or
RemovetheEOLresistorifusingun‐supervised“normallyopen”zone.
ELK‐P
12VDC
ELK‐P1417
NEG+NEG
12VDCOUT
+
‐
SUP
‐NEG
ZoneInput
SecurityControl
2200
EOL
ELK‐P
12VDC
ELK‐P1417
NEG+NEG
12VDCOUT
+
‐
SUP
‐
12VoltsDCSounder
‐+
+
LEDw/required
1000OhmResistor
1000
LEDwitha1000ohmresistoror12VoltsDCSounder.
Examplehookupsforalertingalowbatterycondition
OPERATION
Master Power Switch
This switch allows users to turn On or O all power from the DC Output terminals for servicing.
Battery Supervision
If DC power from the ELK-P1417 is lost (i.e. AC power outage), the battery should continue to supply power to the ELK-P1215CB DC Output
terminals. The battery's voltage is then monitored and if the voltage drops to 11 volts, then the –SUP low battery supervision output will turn ON
(pull to ground) indicating a Low Battery condition.
The -SUP output can be connected to an LED, 12 Volts DC Sounder, or a zone on a Security Control to report a low battery condition.
Note: The –SUP output will only work until Low Battery Cuto activates, (see below) at which time -SUP becomes inactive since all power to the
P1215CB board will be completely shuto.
Low Battery Cutoff
If DC power from the ELK-P1417 continues to be lost for an extended period, the battery should continue to supply power to the ELK-P1215CB
DC Output terminals. The battery's voltage is monitored during this time and if the voltage drops to 9 volts, then the battery will be Cuto
(disconnected) from the DC Output terminals. This helps to prevent “deep discharging” of the battery.
Hookup
1. Observe correct polarity on all connections.
2. The ELK-P1215CB circuit board can be mounted directly on top of a battery. (ELK-P1215K kit includes battery, sold separately for ELK-P1215 kit)
3. Connect the two battery wires to the battery terminals. Red wire to positive, Black wire to negative.
4. Connect ONLY the ELK-P1417 Power Pack to the DC Input terminals. DO NOT CONNECT an AC TRANSFORMER.
Two-conductor jacketed cable having Red and Black color coded wires are recommended, minimum 18 AWG. Maintain polarity if using
non-color coded Zip cord. The consequences of using too small of a wire gauge, or extending the wire length beyond the recommended
lengths may harm the ability to properly charge the battery, especially at full DC Output Load.
If using 18AWG - Do NOT exceed a distance of 10 feet.
If using 16AWG - Do NOT exceed a distance of 15 feet.
If using 14AWG - Do NOT exceed a distance of 25 feet.
5. Plug the ELK-P1417 into a constant 120VAC source.
6. Connect the DC Output to the desired load.
7. Turn on Master Power Switch.
Printed in USA L654 8/28/2014
