Ella's Bubbles Deluxe AM3057 L User manual

AM3057 L / AM3058 R
Deluxe
2018
AM3107 L / AM3108 R
Elite
AM3117 L / AM3118 R
Royal
AM3085
Companion
ELLAAIR AND MICROBUBBLE
MASSAGE WALK IN BATHS
OWNERS MANUAL
REPRESENTING THESE MODEL NUMBERS:
IMPORTANT
Warranty Activation Form MUST be completed for both the Owner and Installer to
validate the warranty.
Failure to complete both pages will void the warranty on this bathtub.
Completed Ella Warranty Activation Forms can be emailed to [e-mail],
faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608
AM3167 L / AM31688 R
Petite

Table of Contents
Unpack and Inspect ......................................................................................................................................... 1
Move your Ella Walk in Bath ............................................................................................................................ 2
Important Safety Instructions ....................................................................................................................... 3-4
Before Installation ............................................................................................................................................ 5
Drain and Plumbing ........................................................................................................................................ 6
Preparing the Sub-oor................................................................................................................................... 7
Service Access and Door Seal ....................................................................................................................... 8
Microbubble System Diagram ........................................................................................................................ 9
Air Massage System Diagram ........................................................................................................................ 10
Heated Seat and Backrest Option Diagram ................................................................................................ 11

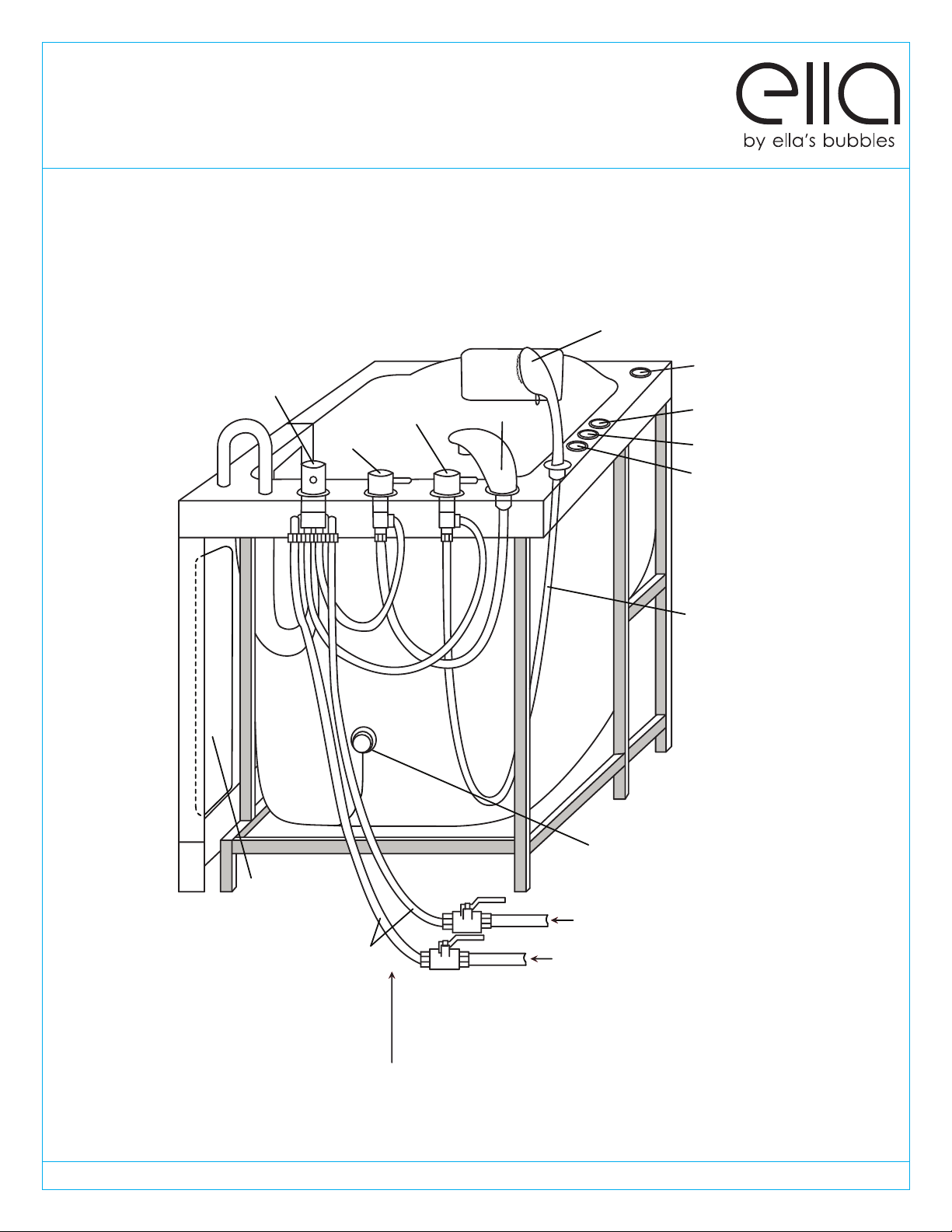

Water Supply Lines ........................................................................................................................................... 12
Installation of Spout.......................................................................................................................................... 13

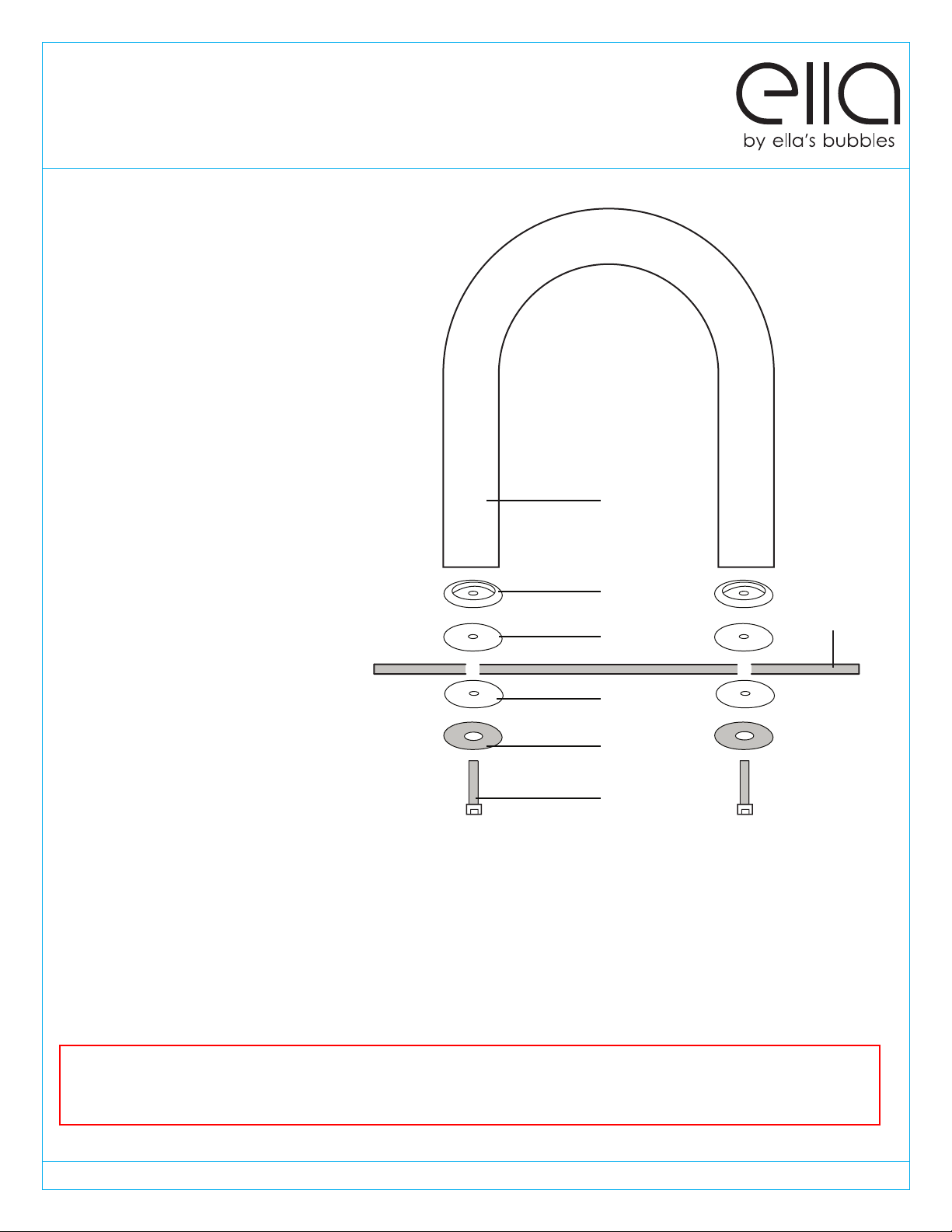

Installation of Deck Mount Grab Bar ............................................................................................................. 14
Installing Extension Kits.....................................................................................................................................15

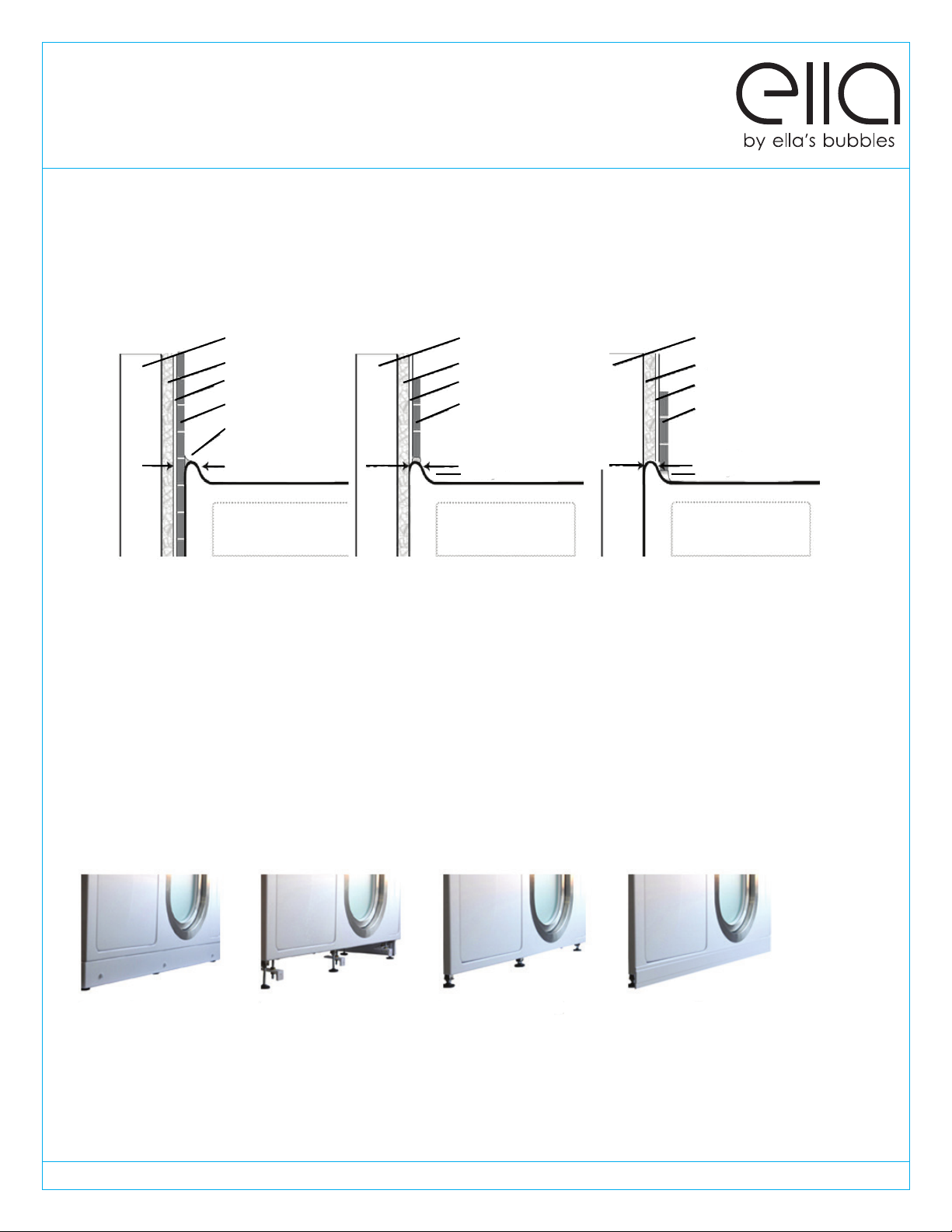

Finishing Installation.......................................................................................................................................... 16

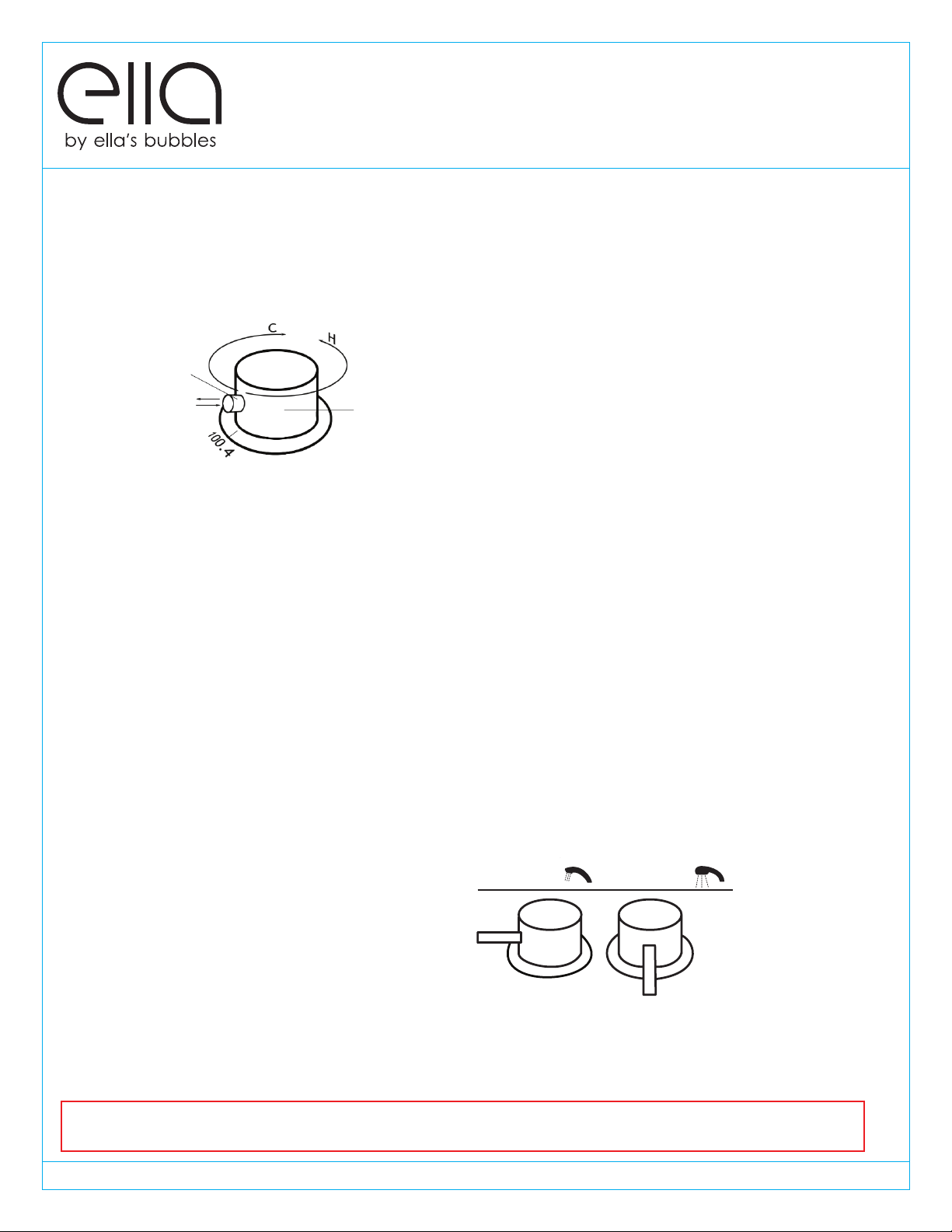

Operating Instructions .................................................................................................................................17-19
Cleaning and Maintenance............................................................................................................................ 20
Warranty Information....................................................................................................................................... 26
Warranty Activation Form ......................................................................................................................... 27-28
www.ellasbubbles.com 03/18
NuWhirl System..............................................................................................................................................21-25

NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as
not to damage cardboard crate or its wooden pallet. Do not dispose of shipping material
until installation is complete. Please visit our website, www.ellasbubbles.com for complete
details of return/exchange policy.

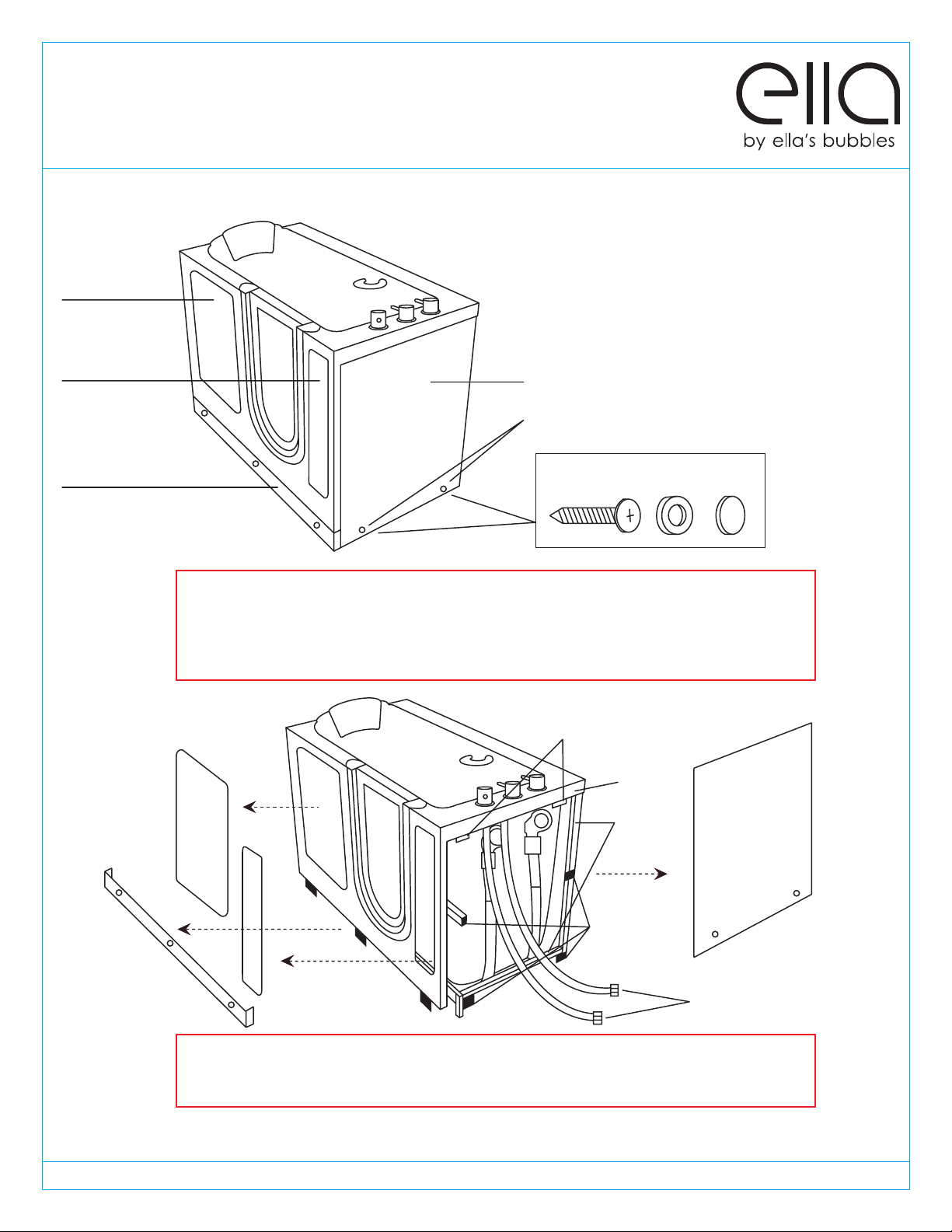

Unpack and Inspect
www.ellasbubbles.com Page 1 03/18

Large Access Panel (1)
Small Access Panel (2) End Access Panel (4)
White Screw Caps
Toe Kick Access (3)
- Access to parts
- Option to lower the Threshold
•Remove all four (4) access panels before
moving the tub
•Take off the screw caps
•Unscrew the screws with a
Philips head screwdriver
•Remove the end access panel
Screw Washer Cap
WARNING: Do not carry the walk in tub by the panels. Be careful when carrying
the tub, avoid front panel contact with the floor or stairs to prevent damages.
Make sure no loose parts are hanging down. Remove all four (4)access panels
before carrying the tub to prevent them from falling out and breaking.
Slide On Brackets
Deck
Frame
Access Panel
Screw-On
Support Brackets
Water Supply Lines
End Access
Panel
WARNING: Lift and carry the tub only by the frame. Protect the bottom of the
tub to avoid breaking the air jets positioned on the bottom of the tub.
Move your Ella Walk in Bath
www.ellasbubbles.com Page 2 03/18

WARNING:
***Read through the entire manual completely before beginning installation.***
Contract a licensed plumber and electrician for installation. Be sure you and your
contractor are aware and follow all local plumbing and electrical codes. Your Ella Walk
in Bath is not intended for outdoor use. Install the tub in accordance with the instructions
in the manual. Use ONLY the parts and accessories provided or as recommended by the
manufacturer.
CAUTION:
When using this product, basic precautions should always be followed. Read and follow
all instructions pertaining to risk of re, electric shock and injury. Make sure and have your
licensed electrician test all connections to the dedicated line, including the GFCI.
Risk of electric shock; Do not permit electric appliances within 3 feet (1.5m) of the tub. i.e.:
hair dryers, lamps, phones, radios, televisions, etc.
To reduce the risk of injury, do not permit children or persons with disabilities to use this
product unless they are supervised by an able-bodied adult at all times. Never drop or
insert any objects into any openings.
Do not turn on the Hydro jets without water reaching the waterline. The waterline is the point
where all jets are covered with water.
DANGER:
Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health. Check
and adjust the temperature before use. Consult your physician before using your Ella Walk in
Bath if you have a heart condition or other health issues. People using medications, herbal
remedies, sleep aids, and/or having adverse medical history should consult a physician
before using this product.
Pregnant women should NOT use this product before consulting their physician. Avoid the
use of alcohol, drugs or other medications while using your walk in bath.
Be aware, hyperthermia is a risk when raising body temperature. Do no keep body
submerged in heated bath for extended periods of time. The symptoms of hyperthermia
include an increase in body temperature which can cause dizziness, lethargy, drowsiness
and fainting. Avoid using the heated bath after strenuous activity.
Exercise caution while entering and exiting your Ella Walk in Bath.
Important Safety Instructions
www.ellasbubbles.com Page 3 03/18

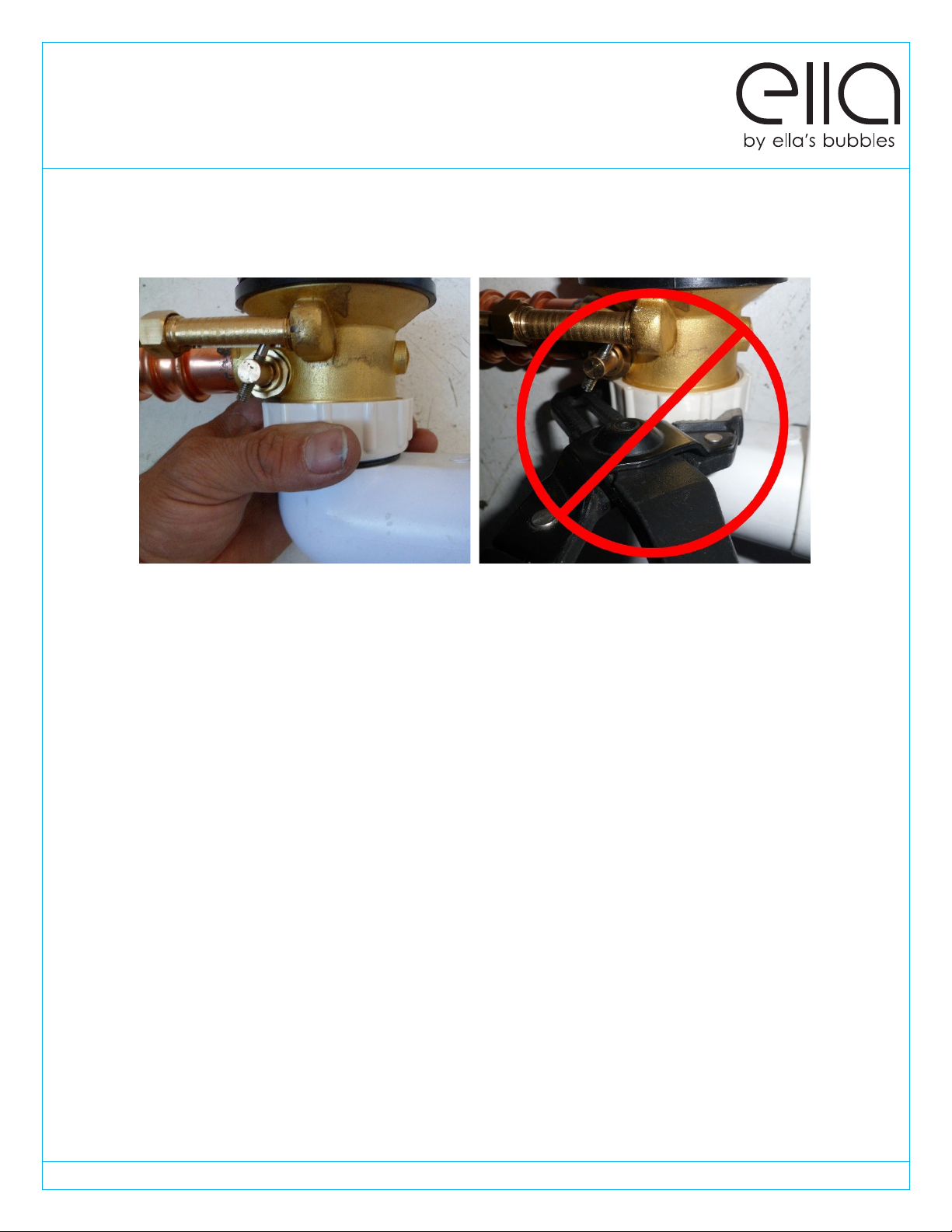

WARNING: To prevent stripping the PVC threads, ONLY hand tighten the drain elbow.
DO NOT tighten with tools.
Important Safety Instructions Continued
www.ellasbubbles.com Page 4 03/18

Protecting the Bath
Cover and protect the bath shell and xtures from scratches or other damages during the
installation and tests. Remove the access panels when moving the Walk in Bath and always
lift the bathtub from the frame (Page #2).
Water Test
Fill tub for a minimum of 20 minutes to test that the Hydro and Air Pumps are functioning
properly before nal in-wall installation to avoid unnecessary repairs or removal.
Electrical
The unit MUST be connected to a circuit protected by a ground fault circuit interrupter
(GFCI) provided and installed by a licensed electrician and tested periodically (refer to
instructions provided by GFCI manufacturer). Electrical requirement is one dedicated 120 V
electrical line with a 20AMP GFCI three prong outlet. A licensed electrician for your area is
required to install and test the electrical installation process.
DO NOT use any kind of extension cords to power the unit.
Operating the pumps without first filling the bath to above the jets can cause permanent
damage to your equipment.
Push the GFCI “test” button into “reset” mode. If the GFCI fails to operate in this manner,
there is a ground current flow or a device malfunction, indicating the possibility of electrical
shock. If this occurs, turn OFF the power and do not use the bathtub until the source of the
problem has been identified and corrected.
Water Heater Suggestions
MODEL # DESCRIPTION SINGLE BATHER*
93057/93058 DELUXE 60*
93107/93108 ELITE 50*
93167/93168 PETITE 40*
93117/ 9 3118 ROYAL 60*
93085 COMPANION 60*
*For households with additional bathers, it is recommended you have the next size available water heater
Before Installation
www.ellasbubbles.com Page 5 03/18

Drain and Plumbing
Disclaimer:
In an effort to continually improve our product, specications and congurations are subject to change without notice. Before ordering or installing,
consider future access to essential equipment.
Make sure that the drain rough in has been placed at the proper location. The
specications and drawings shown below and on page #7 are for the Ella Deluxe (each
model comes with separate specications, please refer each model's specication).
The dual drain can be connected with a “T” or “Y” connection into existing house drain.
Proper materials must be used based on local plumbing code requirements.
NOTE: Flexible drains are not permitted in some areas. The customer and their contractor
are responsible for using the appropriate solution to meet the current local construction
and plumbing code requirements, proper drainage, and rodding access to the drain. The
contractor and customer is responsible for testing the house drain prior the installation of
the walk-in bathtub to assure proper drainage of the bathtub. The drainage time varies due
to condition of the house drain. The stated drainage time of 80 seconds only applies under
ideal plumbing conditions.
Two Drain Openers with Overflows
To P Trap
Below Floor
Drain Elbow Options
NOTE: Deluxe Model Shown
Specifications vary by model, please refer to the
drawing that matches the model being installed.
Front
Two 2" Drains
12" 2 1/4" Threaded Connection of 2" Drain for
Elbow or Drain Pipe Connection
28 3/4"
9 1/2" 8 1/2"
Ella’s Elbow Drain
3-1/4"
7/16"
2-3/8"
2-5/16"
2-3/16"
1-7/8"
1-1/2"
1"
5-1/2"
1-1/4"
2-3/8"
2-5/8"
1-11/16"
www.ellasbubbles.com Page 6 03/18

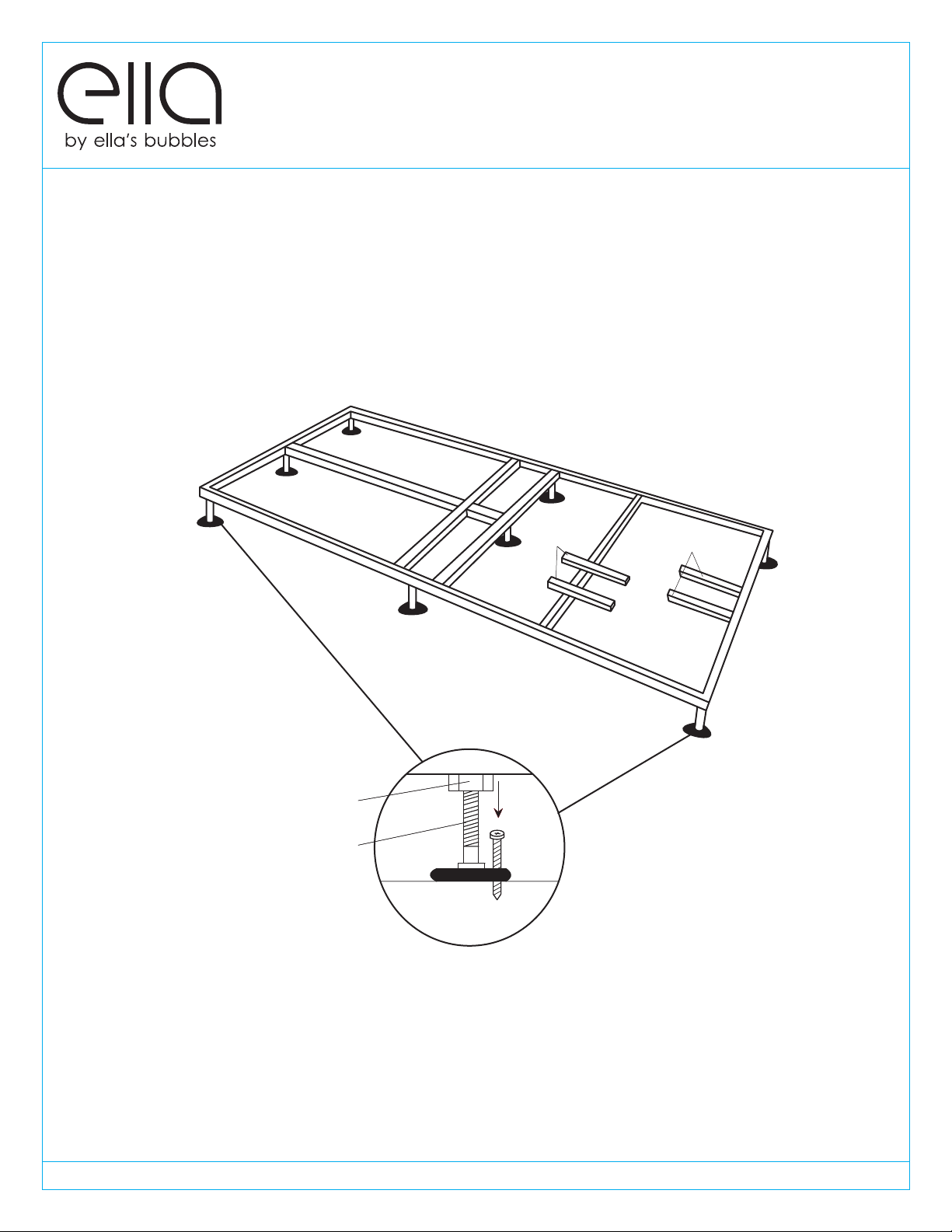

Preparing the Sub-oor
Prepare the sub-oor for the drain and ensure that the area is level. The supporting sub-oor
must be able to support the total weight of the bathtub, bather and water.
Use a level and make sure that the sub-oor below the tub is leveled. If the oor is not
perfectly level, adjust the appropriate leveling legs to re-align the tub to perfect level. It is
important that all of the leveling legs are completely supporting the tub (touching the oor
with equal weight distribution) and the tub is leveled for the door seal to work properly. If the
tub is not perfectly leveled, it could result in water leakage and void the warranty.
NOTE: Drawing above shows frame layout for Deluxe walk in bath. The Companion,
Elite, Petite and Royal frame and drain layouts may very. Please reference appropriate
specication drawings for proper drain locations. Adjust the legs and lower the bath
to within 1/16th of an inch above the oor or tile. Seal with white silicone or caulking if
appropriate. If the sub-oor does not support the total weight of the bath, bather and the
water, it can result in warping of the shell, misalignment of the door and/or create leaks and
damages to the building structure.
Disclaimer:
In an effort to continually improve
our product, specications and
congurations are subject to change
without notice. Before ordering or
installing, consider future access to
essential equipment.
Black Nut
Adjustable Height Leg
Make sure all 8 legs are level
Air Pump
Brackets Hydro Pump
Brackets
www.ellasbubbles.com Page 7 03/18

It is the responsibility of the installer or owner to provide access for service required, per
code. Ella is not responsible for any costs related to obtaining access for repair. The owner
shall assume responsibility for such costs, and if appropriate, must seek recovery from the
installer.
Do not insulate around the tub equipment. The tub, frame and all parts have been
engineered to provide the proper ventilation. Any obstructions may cause the pumps or
other electrical components to overheat.
Door Seal
Please keep in mind that the door has been closed for an extended period of time
throughout shipping and the bathtub has been stored in various temperatures. It is possible
for the silicone seal to stick to the frame when stored for extended periods of time. When
the bathtub is received, the door seal should be checked for deformations from shipping
and re-formed and adjusted where necessary. To restore the door seal, the seal must be
released and allowed to relax with the door open. This is done by squeezing the seal with
your nger tips and pulling it away from the door frame to regain its exibility and original
form. It is recommended that the door be kept open when not in use to increase the lifetime
of the door seal and maintain its exibility.
Service Access and Ventilation
www.ellasbubbles.com Page 8 03/18

Infusion™ MicroBubble Therapy
System Diagram
Electrical
Switch Low Pressure Pump
110-120 V
10A
Water In
Out
On/Off Push Control
To Power Outlet
110-120 V
15 A MicroBubbles
Out
to Jet
MicroBubble
Pressure Tank
Air Hose
Wall Outlet
GFCI Protected
Dedicated Line
Infusion™ Microbubble Therapy
System Diagram
www.ellasbubbles.com Page 903/18

Air Massage System Diagram with Push
Control
www.ellasbubbles.com Page 1003/18

ellasbubbles.com
page 11
03/18
Heated Seat and Backrest
Specifications
Voltage:
Input - 120V
Wattage:
Back - 47.4W
Seat - 44.6W
Total - 92W
Components:
(1) Controller Box
(1) LED Keypad
(2) Seat Heater
(2) Backrest Heater
Heated seat and
backrest (optional)

Ella Dual Massage Walk in Baths with the Standard Ella Faucet (Thermostatic Control Valve)
include two 4 ft. long 1/2” I.P.S. connection exible water supply lines. Please note: The
5-Piece Fast Fill Roman and 5-Piece Traditional Roman Fauce Sets do not include the I.P.S.
connection exible water supply lines.
NOTE: It is recommended that shut off valves are installed behind the opening and in reach
from the small access panel.
Water Supply Lines
Air Flow Control Dial
Air Pump ON/OFF
LED ON/OFF
Hydro Pump ON/OFF
5' Hand Shower
Pull Out Hose
LED Fixture and Bulb
(bulb can be replaced from here)
Cold Water Line
Hot Water Line
Small Front
Access Panel
4' Long 1/2" Flexible Stainless
Steel Braided Hose with 1/2"
I.P.S. Connector to Shut Off Valves
This side covered with end access panel for 2 wall installation option.
Pull Out
Hand Shower
Thermostatic
Control Valve
Hand Shower
Diverter Spout
Spout
Diverter
www.ellasbubbles.com Page 1203/18

ALWAYS INSTALL SPOUT BEFORE THE WALK IN BATH IS IN PLACE.
Parts List: Rubber gasket x (1)
Rubber washer x (1)
Brass mounting nut x (1)
To Install the supplied spout, rst place the rubber gasket on the bottom of the spout and
make sure it is properly seated in its groove. Put the spout in through the hole in the tub shell
(shown in the drawing above). Install the rubber washer and then the brass mounting nut.
Locate the water line from the spout diverter and connect it to the threading on the bottom
of the spout. Tighten all ttings and check for leaks.
*NOTE: Rubber gasket only comes with the Elite, Royal and Petite models. Spout must be
tightened down prior to installation of tub.
WARNING: Do not over tighten the water supply line. To tighten properly, it should be hand
tight plus about a half a turn.
Installation of Spout
Thermostatic
Control Valve
Spout
Diverter
Spout
Spout
Water Line
Nut
Tub
Shell
Rubber Gasket
Spout
Rubber Washer
*
www.ellasbubbles.com Page 1303/18

Parts List: Chrome grab bar x (1)
Escutcheon x (2)
Rubber washers x (4)
Metal washers x (2)
Bolts x (2)
To install the supplied grab bar rst locate all the parts needed for installation. See drawing
shown above. Ready the bolt assembly by rst placing a metal washer onto the bolt
followed by a rubber washer. Feed the bolt up through the tub shell and place another
rubber washer over the extruded bolt followed by the escutcheon. You may start the
threading into the grab bar to hold the assembly loosely in position and then repeat the
process for the second bolt. Once the entire assembly is in place, tighten the bolts with the
supplied Allen wrench.
WARNING: Under no circumstances install the grab bar without the large metal washer
underneath the tub shell. Doing so will leave the tub shell vulnerable to cracking and void
the warranty.
Installation of Deck Mount Grab Bar
www.ellasbubbles.com Page 1403/18
Grab Bar
Escutcheon
Rubber
Washer
Rubber
Washer
Metal
Washer*
Bolt
Tub Shell

1.
3. & 4.
Deluxe Dimensions: 5"W x 29 1/2"L x 37"H
Elite Dimensions: 7"W x 29 3/4"L x 37 3/4"H
Royal Dimensions: 7"W x 31 3/4"L x 37 3/4"H
Petite Dimensions: 7"W x 27 2/4"L x 37 3/4"H
L" Stainless Steel Brackets ...........................
L" Acrylic Bracket ........................................
1" x 1/8" Bolts ...............................................
1" x 1/4" Bolts ...............................................
1" Screw .......................................................
1/2" Nuts .......................................................
3/8" Nuts .......................................................
Medium Washers .........................................
Small Washers ..............................................
Plastic Washer .............................................
Plastic Cap ...................................................
Installing Extension Kits
Qty (3)
Qty (1)
Qty (7)
Qty (7)
Qty (1)
Qty (9)
Qty (7)
Qty (14)
Qty (14)
Qty (1)
Qty (1)
1. Install 3 extension support
brackets
provides in the kit.
2. Clamp in place, the
extension panel to the walk
in tub shell, lining up the
facade of top and front.
3. Pre-drill (+3/8") slightly wider
holes than mounting screws
to allow for nal adjustment
to the panel.
4. Mount extension with 7
screws, washers and bolts.
5. Apply Silicone or white
caulking as needed.
The extension kit can be installed as needed. Opening can be lled as desired.
www.ellasbubbles.com
Deluxe . Elite . Royal . Petite . Companion
Installing Extension Kits
4
(Image 4)
www.ellasbubbles.com Page 1503/18

Finishing Installation
www.ellasbubbles.com Page 1603/18
After all of the water and electrical testing is completed and all xtures are checked, the
tub can be installed to the surrounding wall or walls. Ella Walk in Baths come with low
rise tile ange which allows for two or one wall installations. The extension panel of the
bathtub can be installed as needed for 60" openings.
The tub can be nished and tiled over as shown in images. Caulking must be applied to
joints as needed after the bathtub is installed.
Threshold Lowering Option
Lowering the threshold is an option that can be chosen during installation. Because your
Ella Walk in Bath is set up for easy installation, lowering the threshold requires the drain
option to be set up below the oor (Page #6). To lower the Walk in Bath threshold; First,
remove the toe kick panel to expose the adjustable leg supports. Adjust the height of the
tub while keeping the Walk in Bath plumb level on all four corners. Finish the installation
with baseboard.
NOTE: Any alterations or installed additions are the responsibility of the installer. Ella
Accessible Bathrooms is not responsible for any damage to the unit or for water damage,
which could occur due to improper installation.
Drywall
Glue
Tile
Caulking
5/8”Tub Lip
Stud Stud Stud
Drywall Drywall
Glue Glue
Tile Tile
5/8”Tub Lip 5/8”Tub Lip
Caulking Caulking
Panel On Panel Off Lowered Threshold Baseboard On (not supplied)

Operating Instructions
www.ellasbubbles.com Page 17 03/18
1. Thermostatic Control Valve:
Before turning on the water, please adjust the thermostatic control valve to the desired
water temperature. To raise the temperature above the preset 100.4 Fahrenheit, press
and hold in the button handle while turning. For hotter water turn counterclockwise.
Conversely, turn the valve clockwise for colder water. The thermostatic control valve is
pre-set to 100.4 Fahrenheit for your safety.
Button Handle
Round Knob
2. Using the Door:
Entering the walk in bath, the door can be closed and locked with the handle from a
seated or standing position. Do not apply any body weight on the door when entering
or exiting the walk in bath. The door hinges are well built and are very durable, however
leaning on or applying weight on the door may damage and mis-align the door and
create leaks. Such damages are not covered by the warranty.
3. Using the Diverter Valves:
Close the door and ll up the bathtub with water by moving the faucet diverter handle in
to the ON position. The faucet and hand shower may be used individually or at the same
time.
4. Using the Pull out Hand Held Shower:
To use the pullout hand held shower turn its diverter handle to the ON position. The hand
held shower is equipped with a 5 ft. long retractable ex hose. The pressure of the shower
can be adjusted by turning the round shower head of the hand unit.
WARNING: Do NOT attach the hand held shower to the wall. This may cause water to
leak behind your walk in tub.
*The button knob stops here at 100.4 Fahrenheit. To adjust to a hotter temperature past 100.4 F,
press the button knob in while turning the handle counter clockwise
*
ON OFF
- On / Off Diverter Positions -
For both the faucet and the hand shower
ON OFF
WARNING: Cleaning and replacement of TCV cartridge due to calcium or other
particle buildup in water is the customer’s responsibility. Ella’s Bubbles will provide
cleaning of the cartridges or replacement of TCV at no cost if they are shipped to
Ella’s Bubbles facility.

Operating Instructions Continued
www.ellasbubbles.com Page 18 03/18
5. Using the Hydro Massage:
To activate and deactivate the hydro massage pump, push the on/off the control button
(Page #9). There are two types of hydro jets in your walk in bath; adjustable and non-
adjustable types. Simply push on the head of an adjustable jet and turn the head in the
desired position. The in-line water heater will activate with the Hydro pump. An air ow
rate control dial can be found over the shoulder of the seating area. Turning the knob
clockwise will reduce the amount of air introduced into the hydro system. Adjust according
to personal preference.
6. Using the Air Massage
To activate and deactivate the air massage pump, push the on/off control button (Page
#10). Notice, when adding cool air into the bath water it can lower the water temperature.
7. Using the Ozone Sterilization
To activate and deactivate the ozone sterilization, push the on/off control button
(Page #12). Turn the ozone on for 10 minutes for every 30 minutes of tub use.
8. Using the Heated Backseat (Optional Feature)
To activate and deactivate the heated backseat, push the on/off control button
(Page #14). Turn on for warmth while the tub is lling up and draining.
NOTE: When the other pumps (air and hydro) are off and the Ozone generator is left on,
you will be able to hear the buzzing of the Ozone generator, this is normal and only needs
to be turned off.
