Ella's Bubbles Standard User manual

Standard
ACRYLIC WALK IN
BATHTUB
OWNERS MANUAL
&XVWRPHU6XSSRUW800.480.6850
(PDLO[email protected]
ellasbubbles.com

Table of Contents
ellasbubbles.com 3/22/23
Warranty Activation Form MUST be completed for both the Owner and Installer to validate the warranty.
Failure to complete both pages (26 and 27) will void the warranty on this bathtub.
Completed Ella Warranty Activation Forms can be emailed to [email protected],
faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608
IMPORTANT
Unpacking and Inspecting.............................................................................................................................................................1
Moving your Ella Walk In Bath..................................................................................................................................................... 2
Warnings and Lables................................................................................................................................................................. 3 - 4
Important Safety Instructions............................................................................................................................................... 5 - 6
Required Steps Prior to Installation........................................................................................................................................... 7
Door and Frame Adjustments............................................................................................................................................. 11-13
Service Access and Door Seal.................................................................................................................................................... 14
Reversible Extension Kit............................................................................................................................................................... 15
Side Panel Cutting Adjustments............................................................................................................................................... 16
Finishing installation.................................................................................................................................................................... 17
Operations Instructions...................................................................................................................................................... 18 - 20
Cleaning and Maintenance........................................................................................................................................................ 21
Warranty................................................................................................................................................................................... 22 - 24
Ella 2" T-Type Single Port Floor Drain........................................................................................................................................ 8
Drain Installation....................................................................................................................................................................... 9 -10

After inspecting the crate and accepting
the product please unpack the crate as
shown in images. When the product is
unpacked please remove front apron
with access panels and end panel before
carrying into the house. By removing the
apron and access panels you will be able
to grab on to the frame to carry tub
inside. Do not lift the bathtub by the
plumbing or other parts. Avoid hitting the
sides or the bottom not to break off the
air jets or other parts of the bathtub.
Inspect the plumbing or other parts that
may have loosened in transit or by
carrying the tub inside your home.
Upon receiving your walk-in bathtub
please inspect the crate and carton for
any damages. If damages found please
take few pictures of damages with your
phone and record the details on the
shippers delivery document and ask the
driver ti sign it. If you think product
maybe damaged note that on the
delivery document and call 800-
Damages must be recorded on shippers
delivery documents for proper claim
processing.
Unpacking and Inspecting
Details on Page 5
WARNING
REMOVE END PANELS BEFORE ATTEMPTING
TO MOVE OR CARRY. FAILURE TO DO SO CAN
LEAD TO DAMAGING AIR JETS AND OTHER
COMPONETS OF THE BATHTUB.
ellasbubbles.com 3/22/23
Page 1 of 24

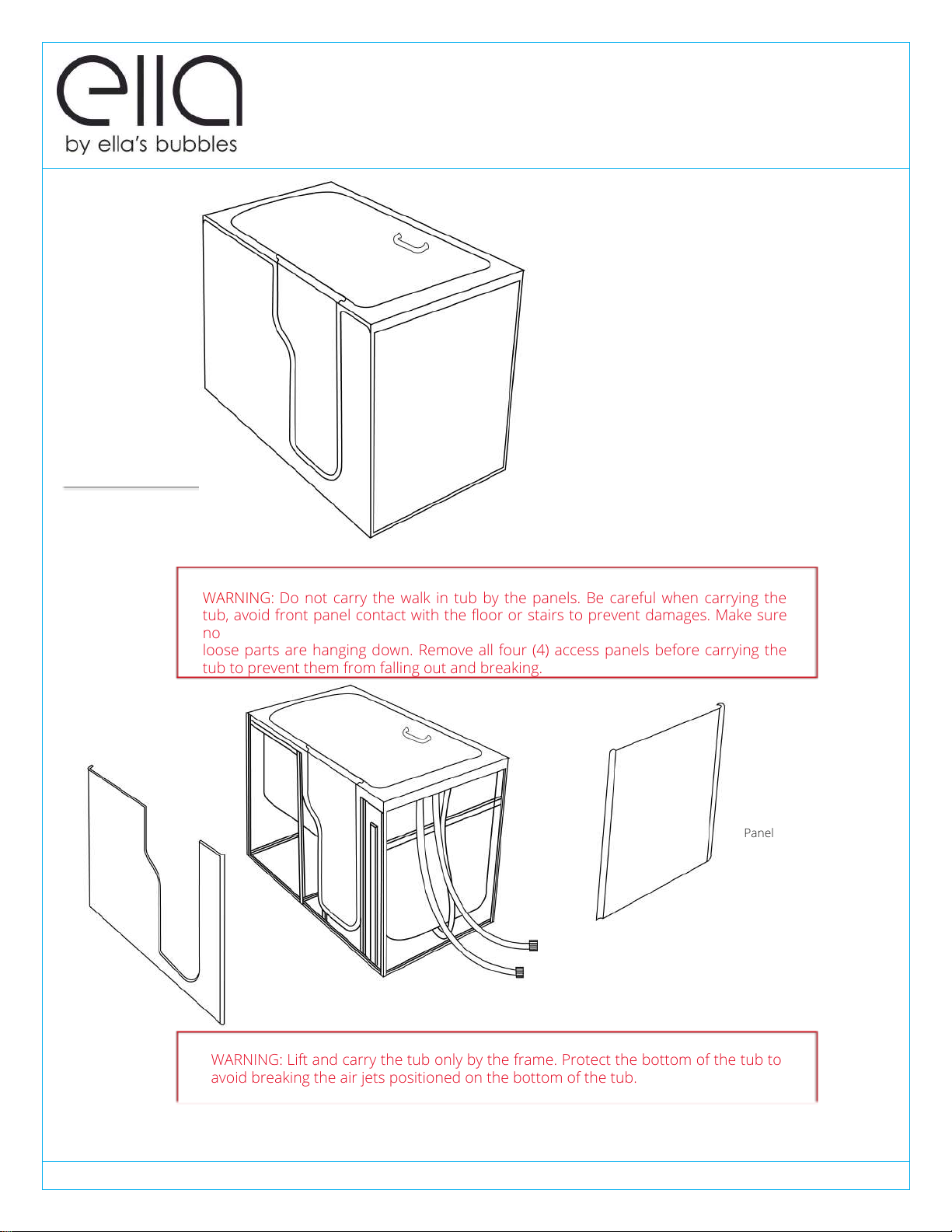

WARNING: Lift and carry the tub only by the frame. Protect the bottom of the tub to
avoid breaking the air jets positioned on the bottom of the tub.
WARNING: Do not carry the walk in tub by the panels. Be careful when carrying the
tub, avoid front panel contact with the floor or stairs to prevent damages. Make sure
no
loose parts are hanging down. Remove all four (4) access panels before carrying the
tub to prevent them from falling out and breaking.
•Remove all four (4) access panels
before moving the tub
•Take off the screw caps
•Unscrew the screws with a
Philips head screwdriver
•Remove the end access panel
Large Access Panel (1)
Small Access Panel (2)
Toe Kick Access (3)
- Access to parts
- Option to lower the Threshold
White Screw Caps
End Access Panel (4)
Side Panel
Panel
Moving your Ella Walk in Bath
Frame
Deck
Water Supply Lines
End Access
ellasbubbles.com 3/22/23
Page 2 of 24

Warnings and Labels
You must follow all the instructions in this manual.
FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN PRODUCT DAMAGE OR
INJURY TO BOTH INSTALLER AND HOMEOWNER. IT WILL ALSO RESULT IN ASSUMPTION OF ALL
LIABILITY BY SAID INSTALLER
NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as not to
damage cardboard crate or its wooden pallet. Do not dispose of shipping material until installation is
complete. Please visit our website, www.ellasbubbles.com for complete details of return/exchange
policy.

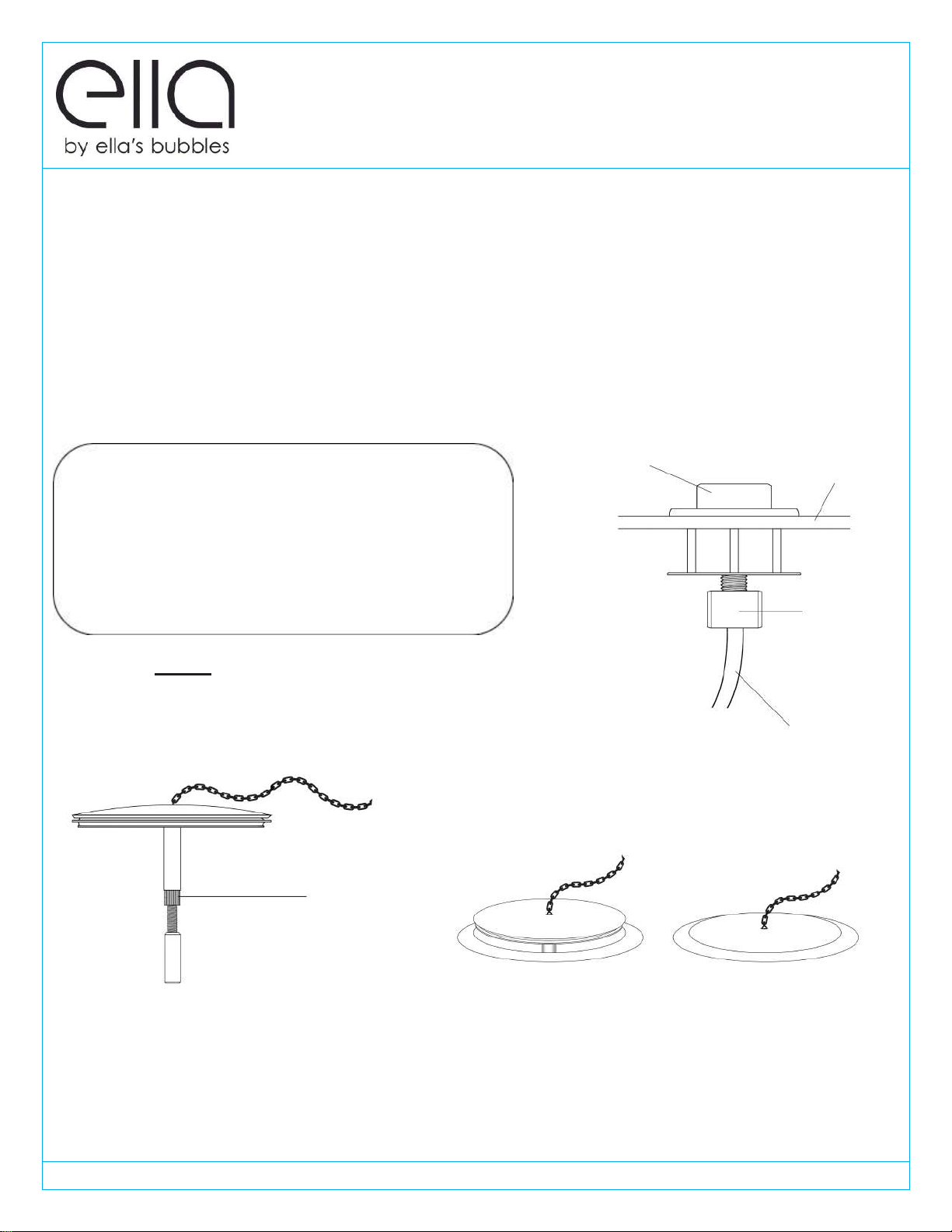

Backnut MUST be securely tightened.
Failure to do so will cause loosening
over time resulting in it coming apart
and falling down the drain.
Drain must open completely to drain
properly and close completely to avoid
unnecessary drainage.
Ella Economy comes equipped with one (1) 2" gravity driven
drain with (1) overflow and opener, one (1) emergency pull-up
up chain.
Drain open
all the way
Drain closed
completely
WARNING
MAKE SURE AIR PIPE CONNECTION TO PUSH
CONTROLS ARE PROPERLY TIGHTENED AND
THATPUSH CONTROLS ARE FUNCTING PROPERLEY
BEFORE FINALIZING INSTALLATION OF THE TUB.
ellasbubbles.com 3/22/23
Page 3 of 24
Push Control
Acrylic Shell
Back nut
Air hose

ellasbubbles.com 3/22/23
Page 4 of 24
Water from the hose can drip down
into the hand shower base and get
behind your tub without the barrel
protection.
3) Take your extension hose and screw the
end to the opposite side of the barrel.
4) Place the barrel in the shower base to plug
the hole.
1) Start by unscrewing your shower head mixer
from the hose.
2) Next take your stainless steel barrel and
screw it on the end of the hose.
5) Finally, screw on the shower head mixer to the
other end of the extension hose.
PLEASE READ BEFORE BEGINNING INSTALLATION
WARNING: Do not attach the hand held shower to the wall unless you have an extension hose
with a barrel protection. This may cause water to leak behind your walk in tub.
TO INSTALL BARREL EXTENSION HOSE:
WARNING!

Exercise caution while entering and exiting your Ella Walk in Bath.
WARNING: Read through the entire manual completely before beginning installation.
Contract a licensed plumber and electrician for installation. Be sure you and your contractor are
aware and follow all local plumbing and electrical codes. Your Ella Walk in Bath is not intended for
outdoor use. Install the tub in accordance with the instructions in the manual. Use ONLY the parts
and accessories provided or as recommended by the manufacturer.
CAUTION:
When using this product, basic precautions should always be followed. Read and follow all
instructions pertaining to risk of fire, electric shock and injury. Make sure and have your licensed
electrician test all connections to the dedicated line, including the GFCI. Risk of electric shock; Do not
permit electric appliances within 3 feet (1.5m) of the tub. i.e.: hair dryers, lamps, phones, radios,
televisions, etc. To reduce the risk of injury, do not permit children or persons with disabilities to use
this product unless they are supervised by an able-bodied adult at all times. Never drop or insert any
objects into any openings. Do not turn on the Hydro jets without water reaching the waterline. The
waterline is the point where all jets are covered with water.
DANGER:
Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health. Check and
adjust the temperature before use. Consult your physician before using your Ella Walk in Bath if you
have a heart condition or other health issues. People using medications, herbal remedies, sleep aids,
and/or having adverse medical history should consult a physician before using this product. Pregnant
women should NOT use this product before consulting their physician. Avoid the use of alcohol,
drugs or other medications while using your walk in bath. Be aware, hyperthermia is a risk when
raising body temperature. Do no keep body submerged in heated bath for extended periods of time.
The symptoms of hyperthermia include an increase in body temperature which can cause dizziness,
lethargy, drowsiness and fainting. Avoid using the heated bath after strenuous activity.
Important Safety Instructions
ellasbubbles.com 3/22/23
Page 5 of 24

Important Safety Instructions
WARNING: USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO
INJURY OR DEATH
ellasbubbles.com 3/22/23
Page 6 of 24

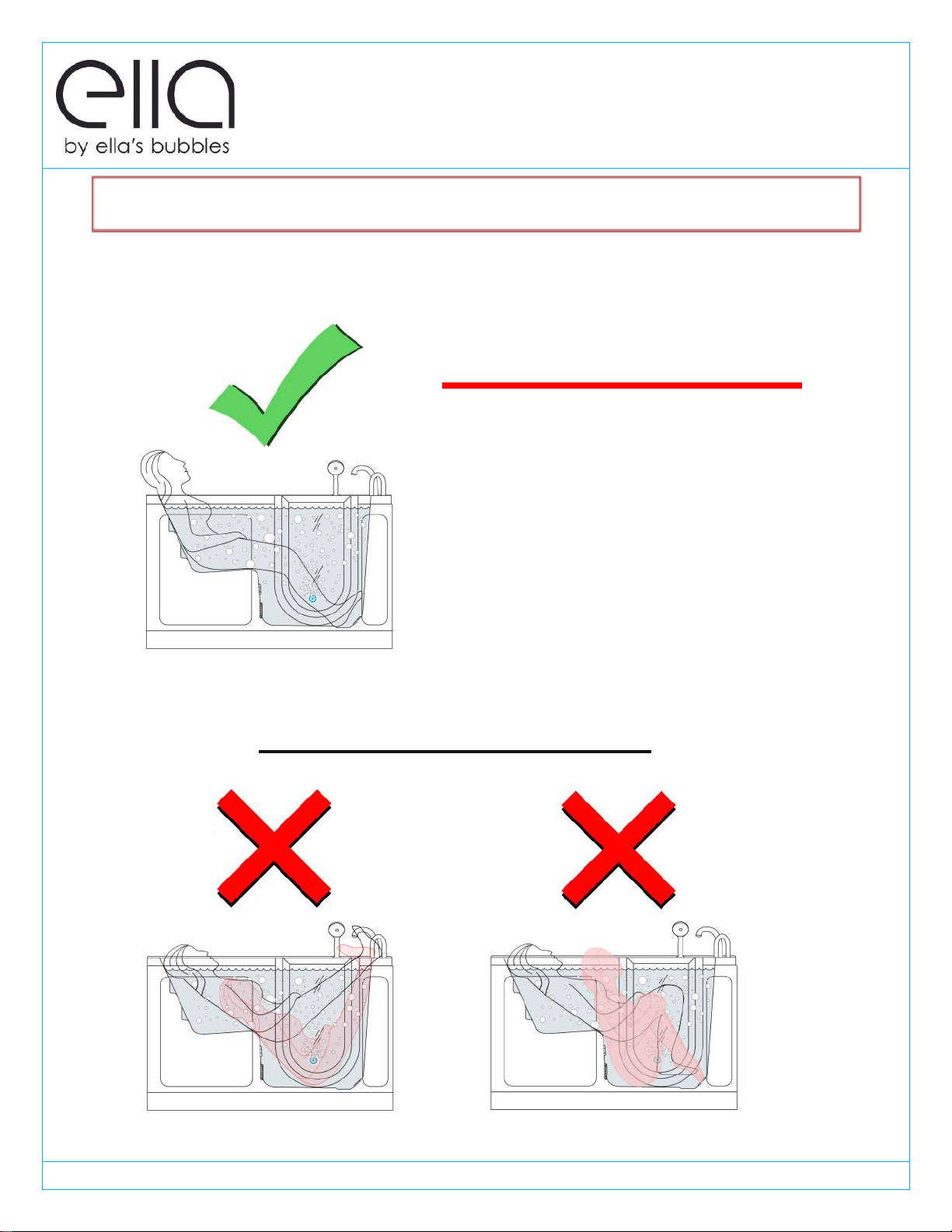

BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO
THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE
BACKREST. DO NOT ATTEMPT TO SLOUCH OR LIE
DOWN IN THE FOOT WELL AREA! DO NOT ATTEMPT
TO PUT YOUR FEET UP ON OPPOSITE SIDE OF TUB!
In the case of bathers who do not have all
functioning limbs or are paralyzed, bather must
be attended by caregiver at all times and use an
installed safety belt at all times.
CORRECT
WRONG POSITIONING
WARNING

Protecting the Bath
Cover and protect the bath shell and fixtures from scratches or other damages during the installation
and tests. Remove the access panels when moving the Walk in Bath and always lift the bathtub from
the frame.
Electrical
The unit MUST be connected to a circuit protected by a ground fault circuit interrupter (GFCI)
provided and installed by a licensed electrician and tested periodically (refer to instructions provided
by GFCI manufacturer). Operating the pumps without first filling the bath to above the jets can cause
permanent damage to your equipment. Push the GFCI “test” button into “reset” mode. If the GFCI fails
to operate in this manner, there is a ground current flow or a device malfunction, indicating the
possibility of electrical shock. If this occurs, turn OFF the power and do not use the bathtub until the
source of the problem has been identified and corrected.
Water Test
It is important to test that the Hydro and Air Pumps are functioning properly before final in-wall
installation to avoid unnecessary repairs or removal.
A. Place the tub on a completely flat surface in an area where it may be drained after testing.
B. Using a clean rag and warm water wipe down seal to insure it is free of debris.
C. Seal the drains (this can be done with tape) and fill the tub to at least three inches above the
highest jet, or to the bottom of the grab bar if no jets are present.
D. Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for leaks.
E. Using appropriately rated three-prong extension cords, all plugged in to separate outlets, operate
all electrical components (air blower, water pump, and heater if applicable) for another 30 minutes
and inspect for leaks again. Inspect the unions around the pump and heater.
F. If a leak persists at a union after tightening, it may have been over-tightened or might have a
displaced O-ring. Disassemble it and make sure the O-ring was seated properly. Do the same if a leak
persists at the heater. Verify that the heater threads match the pipe threads.
Required Steps Prior to Installation
ellasbubbles.com 3/22/23
Page 7 of 24

(One Drain Included)
Ella 2" T-Type Single Port Floor Drain
ellasbubbles.com 3/22/23
Page 8 of 24

Above the Floor Drain Installation

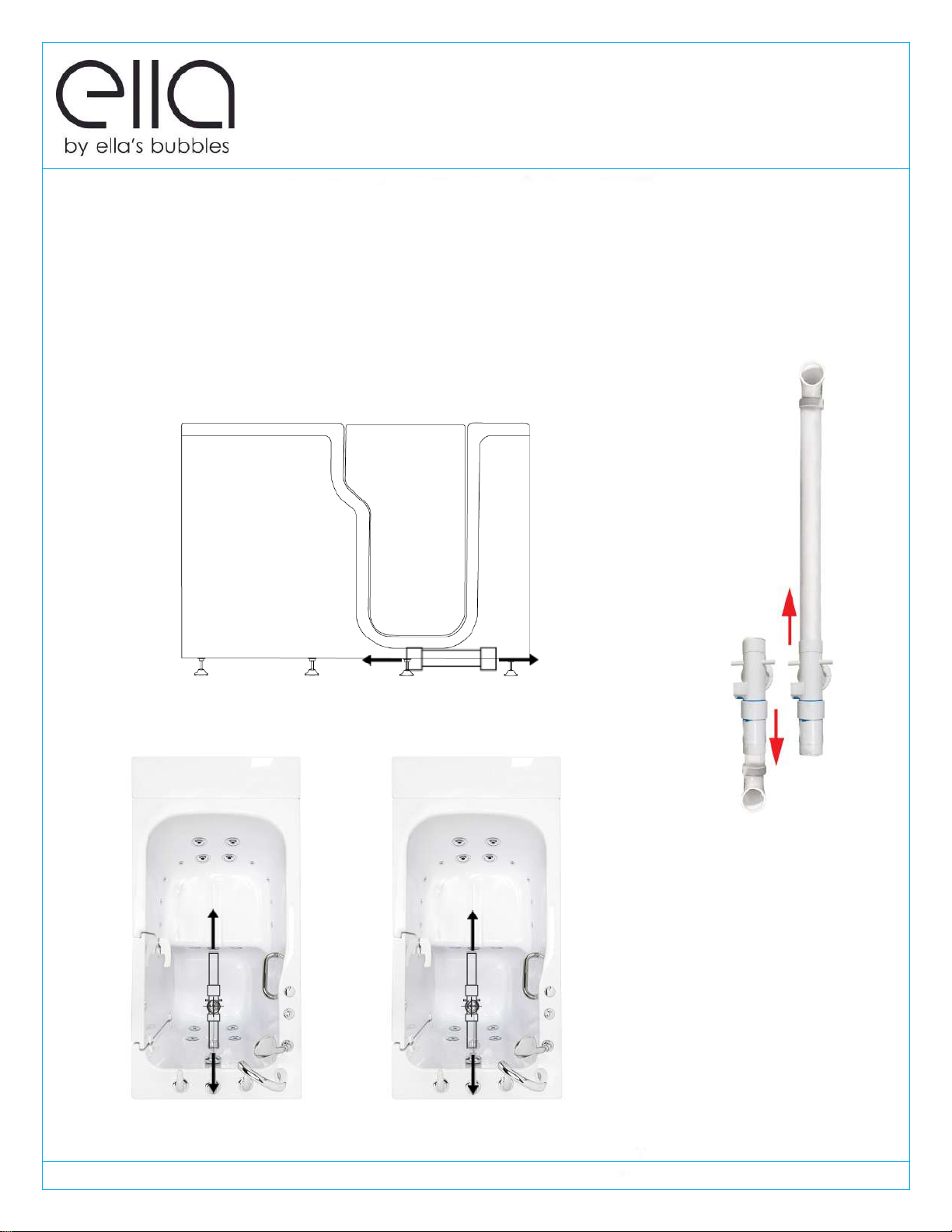

For best performance and faster drainage time, the 2" drain can be connected to both 2"
ports. One (1) included cap can be used to cap off 1 unused ports if 1 port selected to be
connected to the house drain. The direction is optional and shown in image below. For best
performance it is suggested to use Y vs T fitting to joint both 2" outlets and tap into the house
drain. The less turns in drainage system the less resistance and faster drainage.
Warning: make sure the
house drains function
properly before connecting
the bathtub drain. Dual drain
does not guarantee the fast
drainage of the house drain
if it's not functioning
properly.
ellasbubbles.com 3/22/23
Page 9 of 24

Recessing the Drain Below the Subfloor Level and Cutting the Apron and End Panel
Below the Floor Drain Installation Option
The leveling legs allow for the tub be lowered, however, the bottom of the apron, end panel and the drain
will hit the floor. It will be necessary to cut out access in the subfloor for the drain and cut the bottom of
the apron and/or end panel (in case of a corner installation) for the tub be lowered. If cutting the bottom
of the apron or end panel is needed, use masking tape and appropriate cutting tools to avoid damages to
the acrylic panel.
Warning: If this
custom installation is
done, the warranty
will not cover the
damaged or altered
parts of the bathtub.
ellasbubbles.com 3/22/23
Page 10 of 24

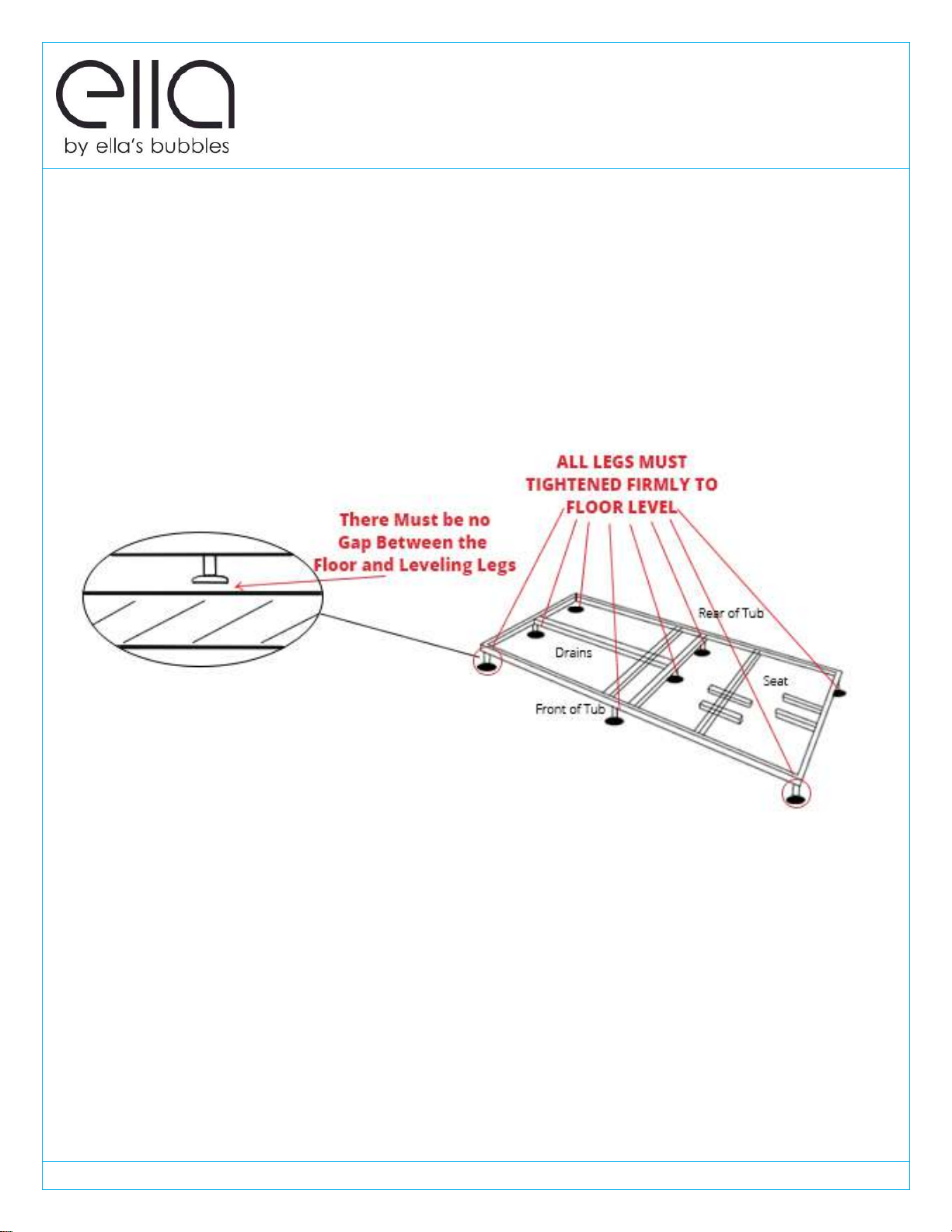

Prepare the sub-floor for the drain and ensure that the area is level. The supporting sub-floor
must be able to support the total weight of the bathtub, bather and water and must meet local
construction code requirements. Use a level and make sure that the sub-floor below the tub is
leveled. If the floor is not perfectly level, adjust the appropriate leveling legs to re-align the tub to
perfect level. It is important that all of the leveling legs are completely supporting the tub
(touching the floor with equal weight distribution) and the tub is leveled for the door seal to work
properly. If the tub is not perfectly leveled, it may cause frame and shell warping which can cause
changes in door alignment resulting in water leakage and void the warranty.
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub- floor does
not support the total weight of the bath, bather and the water, it can result in warping of the shell,
misalignment of the door and/or create leaks and could lead to damage of your home.
Door and Frame Adjustments
ellasbubbles.com 3/22/23
Page 11 of 24

Your walk in bathtub has been tested and leveled properly before leaving our facility. Our walk in
bathtubs have been set on a perfectly level surface to ensure no leaks and proper door closing. It is
up to your installer to test and make any adjustments necessary to ensure that all leveling legs
support the tub frame and that the door is aligned correctly to prevent any leaks. The door must
close smoothly to create a water tight seal.
Extending or shortening the legs will help correct any alignment issues to close the gap between the
door and the frame. Please call us immediately if any issues arise or if you have any concerns.
1-800-480-6850.
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub- floor does
not support the total weight of the bath, bather and the water, it can result in warping of the shell,
misalignment of the door and/or create leaks and could lead to damage of your home.
Door and Frame Adjustments
ellasbubbles.com 3/22/23
Page 12 of 24

WARNING: Failure to level the tub correctly WILL RESULT IN MISALIGNMENT! The drawings below
illustrate some examples of what types of frame warping will occur if the legs are not level with
the floor.
Door and Frame Adjustments
ellasbubbles.com 3/22/23
Page 13 of 24

It is the responsibility of the installer or owner to provide access for service required, per code. Ella is
not responsible for any costs related to obtaining access for repair. The owner shall assume
responsibility for such costs, and if appropriate, must seek recovery from the installer.
Do not insulate around the tub equipment. The tub, frame and all parts have been engineered to
provide the proper ventilation. Any obstructions may cause the pumps or other electrical
components to overheat.
Please keep in mind that the door has been closed for an extended period of time throughout
shipping and the bathtub has been stored in various temperatures. It is possible for the silicone seal
to stick to the frame when stored for extended periods of time. When the bathtub is received, the
door seal should be checked for deformations from shipping and re-formed and adjusted where
necessary. To restore the door seal, the seal must be released and allowed to relax with the door
open. This is done by squeezing the seal with your finger tips and pulling it away from the door frame
to regain its flexibility and original form. It is recommended that the door be kept open when not in
use to increase the lifetime of the door seal and maintain its flexibility.
Door Seal
Service Access and Door Seal
ellasbubbles.com 3/22/23
Page 14 of 24

1.Install 3 extension support
brackets provides in the kit.
2.Clamp in place, the extension panel to the
walk in tub shell, lining up the facade of top
and front.
3.Pre-drill (+3/8") slightly wider holes than
mounting screws to allow for final
adjustment to the panel.
4.Mount extension with 7 screws, washers
and bolts.
5.Apply Silicone or white caulking as needed.
Economy Dimensions: 7"W x 29 1/2"L x 371/2a"H L" Stainless Steel Brackets ...........................Qty
(3) L" Acrylic Bracket ........................................Qty
(1)
1" x 1/8" Bolts ...............................................Qty (7)
1" x 1/4" Bolts ...............................................Qty (7)
1" Screw .......................................................Qty (1)
1/2" Nuts .......................................................Qty (9)
3/8" Nuts .......................................................Qty (7)
Medium Washers .........................................Qty
(14) Small Washers
..............................................Qty (14) Plastic
Washer .............................................Qty (1) Plastic
Cap ...................................................Qty (1)
The extension kit can be installed as needed. Opening can be filled as desired.
Reversible Extension Kit
3.& 4.
Mount 2 Extension Panel Clips
ellasbubbles.com 3/22/23
Page 15 of 24

Side panel attachment applied
by pushing the Velcro tas together
on the frame and in side of the side panel.
Side panel has to be cut 3/8" to ensure flush fit against wall and proper side attachment with Velcro.
1. Over lap that needs to be cut.
2. Place tape over side panel
3. Mark a line 3/8" from top to
bottom of side panel.
4. Clamp down a metal straight
edge to insure a straight cut. then
use saw blade to cut the side panel.
5. Attach side panel using Velcro
Side Panel Cutting
Adjustments.
ellasbubbles.com 3/22/23
Page 16 of 24

The walk-in bathtub can be installed and finished with tile or wall panel as shown in image above.
The walk-in bathtub deck design is flat, allowing for tile or wall panel to overlap the tile flange and
the deck for a proper seal and to have enough distance between the controls and the wall. It is
suggested to install the tile flange to the edge of the bathtub with 100% silicone before pushing the
walk-in tub against the wall into the place. Any thin (1/8" or 3/16") rustproof and waterproof
material like acrylic, thin stainless steel, or fiberglass strip can be used as a tile flange. A tile flange
can also be supplied by a contractor (available online). The strip can be approximately 5" tall, just
enough to be glued to the edge of the tub and overlap the edge by 2" giving enough water barrier.
Silicone-based caulking must be applied to joints.
NOTE: Any alterations or installed additions are the responsibility of the installer. Ella Accessible
Bathrooms is not responsible for any damage to the unit or for water damage, which could occur
due to improper installation.
Finishing the Installation of the
Walk-In Bathtub to the Wall
ellasbubbles.com 3/22/23
Page 17 of 24

Operations Instructions
1 of 6
1. Entering the walk-in bathtub:
The U-shape inward swing door handle is located on the inside of the tub, and is designed for a safer
entry with an added deck and a wall mounted grab bar.
Once you are in the tub, remain standing and close the door. While the door may be closed from a
sitting position, it is much more difficult.
NOTE: Standard S-Shape Inward-Swing Door Walk-In Bathtub with Hydro Massage Option
Shown Above
(If Applicable)
ellasbubbles.com 3/22/23
Page 18 of 24
