Ella's Bubbles OA3252 L User manual

Malibu Front Entry
OA3052 L / OA3052 R
Mobile
OA2645 L / OA2645 R
Single Drain
OAF3240 L / OAF3240 R
Single Drain
Monaco
OA3252 L / OA3252 R
Lounger
OA2660 L / OA2660 R
ELLA ACRYLIC WALK IN BATHTUBS
OWNERS MANUAL
Transfer26
Transfer60
OLA3060 L / OLA3060 R
Transfer30
OLA3052 L / OLA3052 R OLA2652 L / OLA2652 R
TransferXXXL
OLA3655L / OLA3655 R
Transfer32
OLA3252 L / OLA3252 R

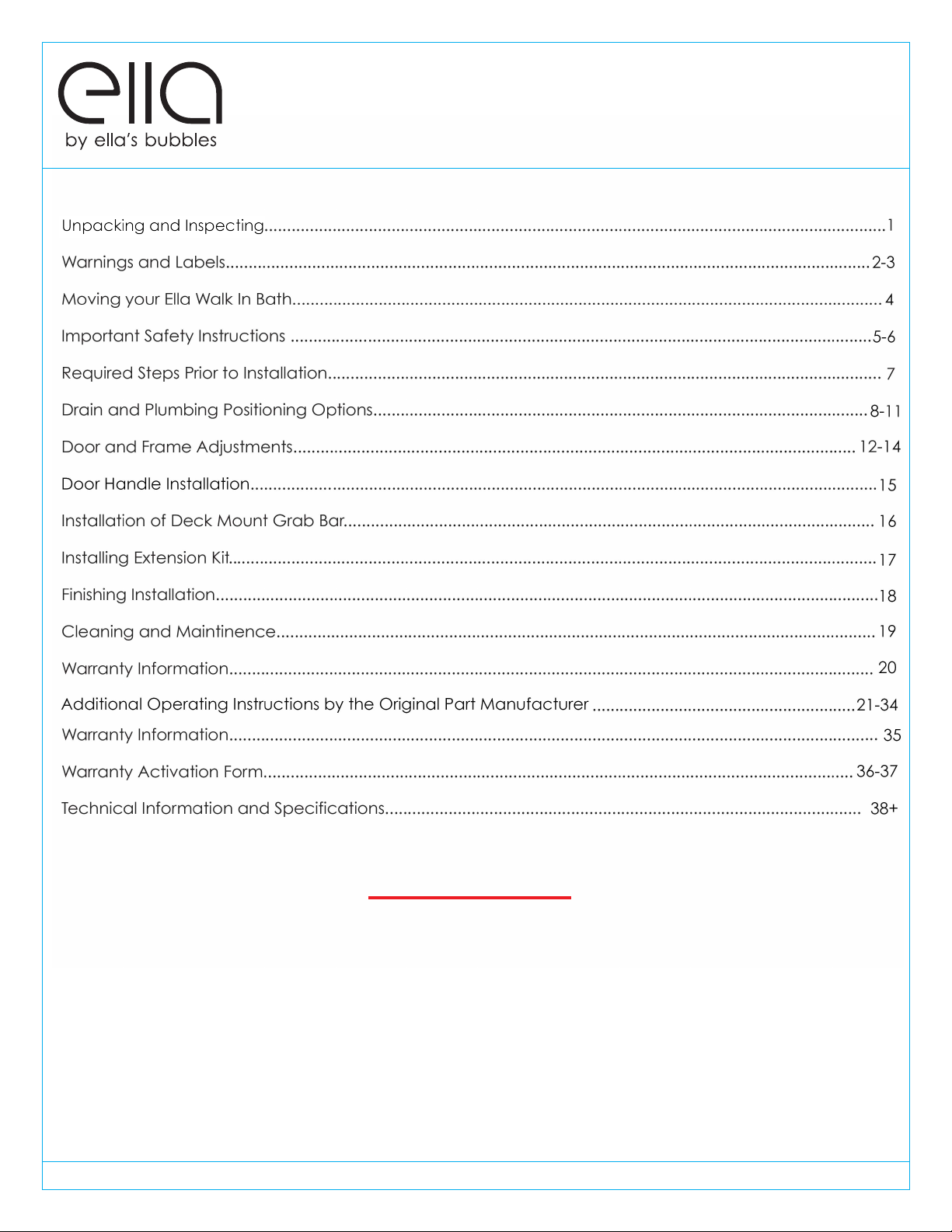

Table of Contents
www.ellasbubbles.com
IMPORTANT
Warranty Activation Form MUST be completed for both the Owner and Installer to validate
the warranty.
Failure to complete both pages will void the warranty on this bathtub.
Completed Ella Warranty Activation Forms can be emailed to [e-mail],
faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608

NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as
not to damage cardboard crate or its wooden pallet. Do not dispose of shipping material
until installation is complete. Please visit our website, www.ellasbubbles.com for complete
details of return/exchange policy.
Unpacking andInspecting
www.ellasbubbles.com Page 1
Inspect the carton for
damage: Take a picture if
possible.
CAREFULLY RECORD ALL
PERCEIVED DAMAGE
DO NOT LIFT THE TUB BY THE
PLUMBING. Doing so can
result in leaks, for which the
installer is responsible. All
Walk-In Tubs are water tested
before they leave our
factory and the bath tub you
have purchased has passed
inspection.
Inspect the plumbing for any
fittings that may have
loosened in transit.
You must follow all the instructions in this manual.
FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN PRODUCT
DAMAGE OR INJURY TO BOTH INSTALLER AND HOMEOWNER. IT WILL ALSO RESULT IN
ASSUMPTION OF ALL LIABILITY BY SAID INSTALLER

Warnings and Labels
Your Ella's bathtub comes with several warning label stickers throughout and are as follows:
www.ellasbubbles.com Page 2
Details on Page 12
Details on Page 3
Push Control
Acrylic Shell
Back nut
Air hose

Warnings and Labels Continued
www.ellasbubbles.com Page 3
Backnut MUST be securely tightened.
Failure to do so will cause loosening
over time resulting in it coming apart
and falling down the drain.

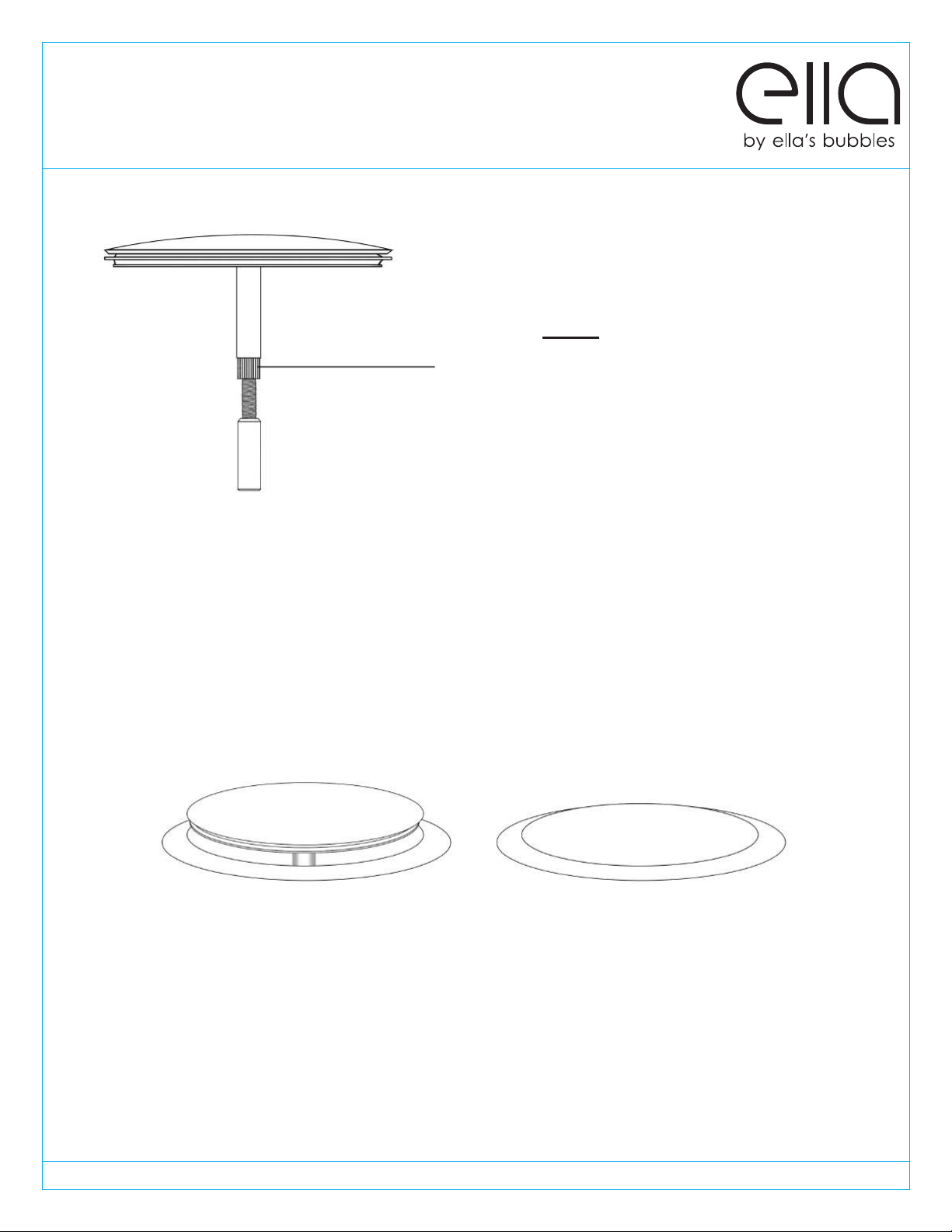

Drain open
all the way
Drain closed
completely
Drain must open completely to drain
properly and close completely to avoid
unnecessary drainage.

Moving your Ella Walk in Bath
www.ellasbubbles.com Page 4

WARNING:
***Read through the entire manual completely before beginning installation.***
Contract a licensed plumber and electrician for installation. Be sure you and your
contractor are aware and follow all local plumbing and electrical codes. Your Ella Walk
in Bath is not intended for outdoor use. Install the tub in accordance with the instructions
in the manual. Use ONLY the parts and accessories provided or as recommended by the
manufacturer.
CAUTION:
When using this product, basic precautions should always be followed. Read and follow
all instructions pertaining to risk of re, electric shock and injury. Make sure and have your
licensed electrician test all connections to the dedicated line, including the GFCI.
Risk of electric shock; Do not permit electric appliances within 3 feet (1.5m) of the tub. i.e.:
hair dryers, lamps, phones, radios, televisions, etc.
To reduce the risk of injury, do not permit children or persons with disabilities to use this
product unless they are supervised by an able-bodied adult at all times. Never drop or
insert any objects into any openings.
Do not turn on the Hydro jets without water reaching the waterline. The waterline is the point
where all jets are covered with water.
DANGER:
Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health. Check
and adjust the temperature before use. Consult your physician before using your Ella Walk in
Bath if you have a heart condition or other health issues. People using medications, herbal
remedies, sleep aids, and/or having adverse medical history should consult a physician
before using this product.
Pregnant women should NOT use this product before consulting their physician. Avoid the
use of alcohol, drugs or other medications while using your walk in bath.
Be aware, hyperthermia is a risk when raising body temperature. Do no keep body
submerged in heated bath for extended periods of time. The symptoms of hyperthermia
include an increase in body temperature which can cause dizziness, lethargy, drowsiness
and fainting. Avoid using the heated bath after strenuous activity.
Exercise caution while entering and exiting your Ella Walk in Bath.
Important Safety Instructions
www.ellasbubbles.com Page 5

WARNING:
***USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO INJURY OR DEATH***
Important Safety Instructions
www.ellasbubbles.com Page 6
BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO
THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE
BACKREST. DO NOT ATTEMPT TO SLOUCH OR LIE
DOWN IN THE FOOT WELL AREA! DO NOT ATTEMPT
TO PUT YOUR FEET UP ON OPPOSITE SIDE OF TUB!
In the case of bathers who do not have all
functioning limbs or are paralyzed, bather must
be attended by caregiver at all times and use an
installed safety belt at all times.
CORRECT
WRONG POSITIONING
WARNING

Required Steps Prior to Installation
www.ellasbubbles.com Page 7
Place the tub on a completely flat surface in an area where it may be drained after
testing.
Using a clean rag and warm water wipe down seal to insure it is free of debris.
Seal the drains (this can be done with tape) and fill the tub to at least three inches
above the highest jet, or to the bottom of the grab bar if no jets are present.
Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for
leaks.
Using appropriately rated three-prong extension cords, all plugged in to separate outlets,
operate all electrical components (air blower, water pump, and heater if applicable) for
another 30 minutes and inspect for leaks again. Inspect the unions around the pump and
heater.
If a leak persists at a union after tightening, it may have been over-tightened or might
have a displaced O-ring. Disassemble it and make sure the O-ring was seated properly.
Do the same if a leak persists at the heater. Verify that the heater threads match the
pipe threads.
Protecting the Bath
Cover and protect the bath shell and fixtures from scratches or other damages during the

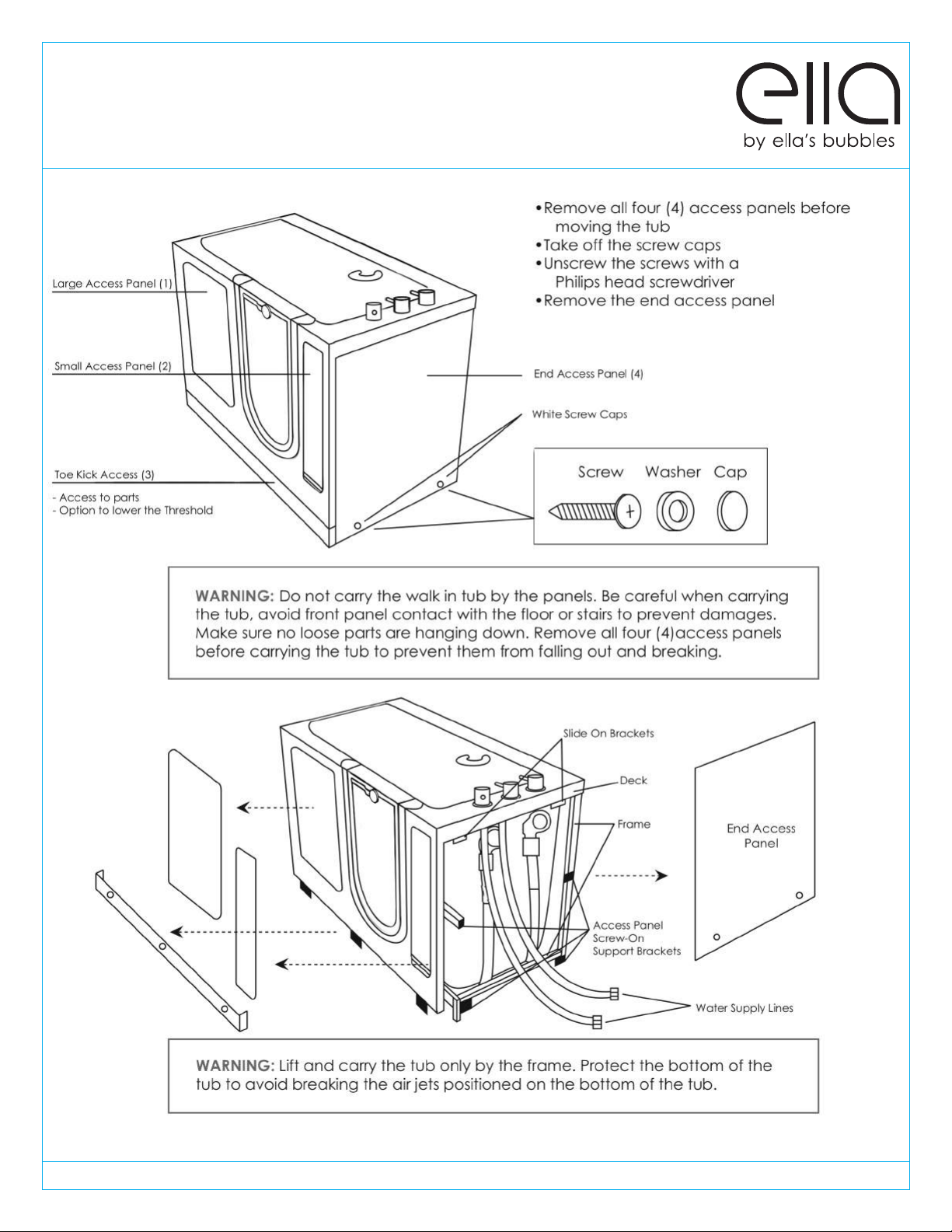

installation and tests. Remove the access panels when moving the Walk in Bath and
always lift the bathtub from the frame (Page #2).
Electrical
The unit MUST be connected to a circuit protected by a ground fault circuit interrupter
(GFCI) provided and installed by a licensed electrician and tested periodically (refer to
instructions provided by GFCI manufacturer). Electrical requirements vary based on
package; please refer to package diagrams included in the specifications. A licensed
electrician for your area is required to install and test the electrical installation process.
DO NOT use any kind of extension cords to power the unit.
Operating the pumps without first filling the bath to above the jets can cause permanent
damage to your equipment.
Push the GFCI “test” button into “reset” mode. If the GFCI fails to operate in this manner,
there is a ground current flow or a device malfunction, indicating the possibility of electrical
shock. If this occurs, turn OFF the power and do not use the bathtub until the source of the
problem has been identified and corrected.
Water Test
It is important to test that the Hydro and Air Pumps are functioning properly before final in-
wall installation to avoid unnecessary repairs or removal.
A.
B.
C.
D.
E.
F.

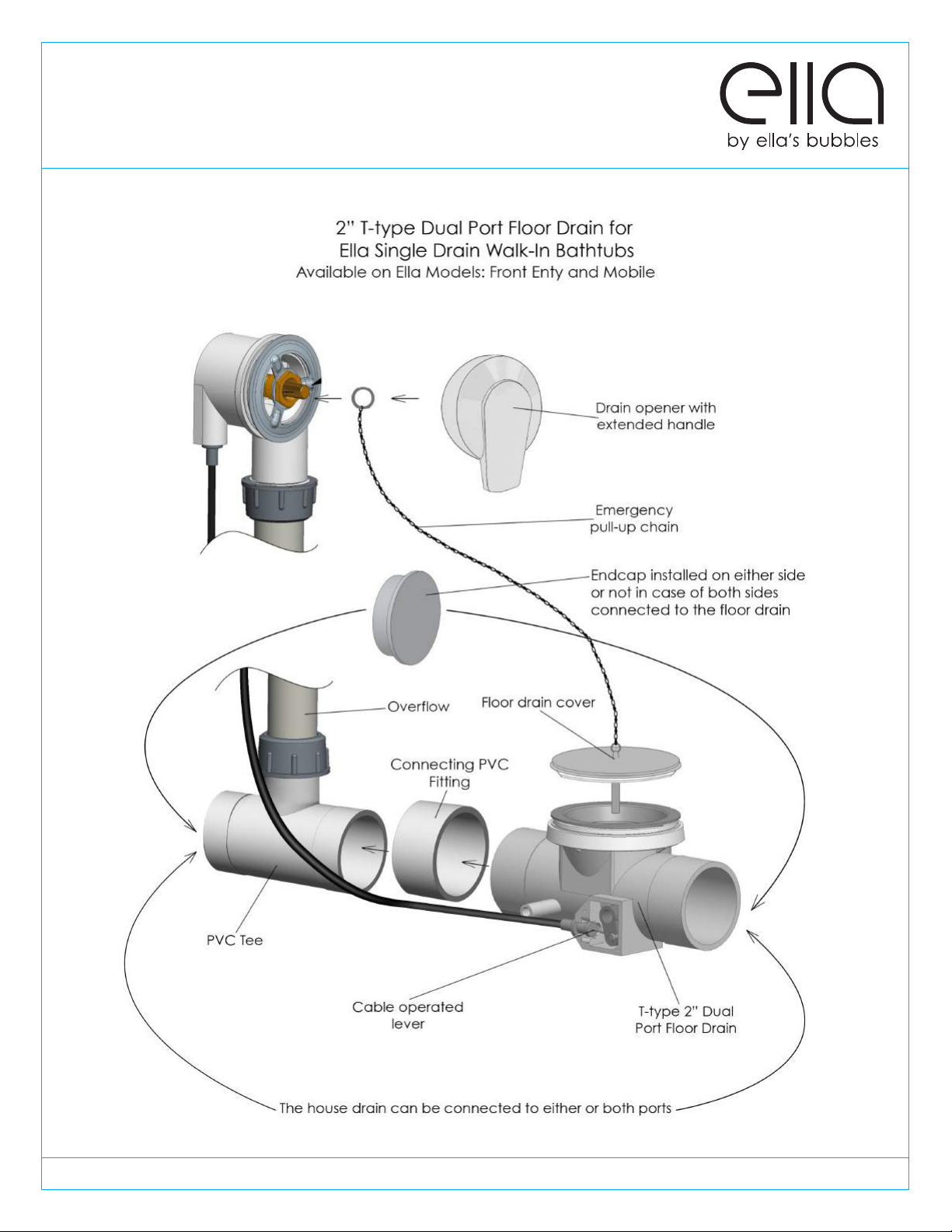

Drain and Plumbing Positioning Options
www.ellasbubbles.com Page 8

Drain and Plumbing Positioning Options
www.ellasbubbles.com Page 9

Drain and Plumbing Positioning Options
www.ellasbubbles.com Page 10
The drain positioning should be determined by a licensed plumber. The pictures above only show a few of the
many possible options for drainage setup. For faster drainage all 4 ports may be connected to house drain.

Drain and Plumbing Positioning Options
www.ellasbubbles.com Page 11
The drain positioning should be determined by a licensed plumber. The pictures above only show a few of the
many possible options for drainage setup. For faster drainage all 4 ports may be connected to house drain.

Door and Frame Adjustments
Prepare the sub-floor for the drain and ensure that the area is level. The supporting sub-floor
must be able to support the total weight of the bathtub, bather and water and must meet
local construction code requirements.
Use a level and make sure that the sub-floor below the tub is leveled. If the floor is not
perfectly level, adjust the appropriate leveling legs to re-align the tub to perfect level. It is
important that all of the leveling legs are completely supporting the tub (touching the floor
with equal weight distribution) and the tub is leveled for the door seal to work properly. If the
tub is not perfectly leveled, it may cause frame and shell warping which can cause
changes in door alignment resulting in water leakage and void the warranty.
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub-
floor does not support the total weight of the bath, bather and the water, it can result in
warping of the shell, misalignment of the door and/or create leaks and could lead to
damage of your home.
www.ellasbubbles.com Page 12

Door and Frame Adjustments
Your walk in bathtub has been tested and leveled properly before leaving our facility. Our
walk in bathtubs have been set on a perfectly level surface to ensure no leaks and proper
door closing. It is up to your installer to test and make any adjustments necessary to ensure
that all leveling legs support the tub frame and that the door is aligned correctly to prevent
any leaks. The door must close smoothly to create a water tight seal.
Extending or shortening the legs will help correct any alignment issues to close the gap
between the door and the frame. Please call us immediately if any issues arise or if you
have any concerns. 1-800-480-6850.
www.ellasbubbles.com Page 13
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub-
floor does not support the total weight of the bath, bather and the water, it can result in
warping of the shell, misalignment of the door and/or create leaks and could lead to
damage of your home.

WARNING: Failure to level the tub correctly WILL RESULT IN MISALIGNMENT! The drawings
below illustrate some examples of what types of frame warping will occur if the legs are
not level with the floor.
Door and Frame Adjustments
www.ellasbubbles.com Page 14

Door Handle Instructions
www.ellasbubbles.com Page 15

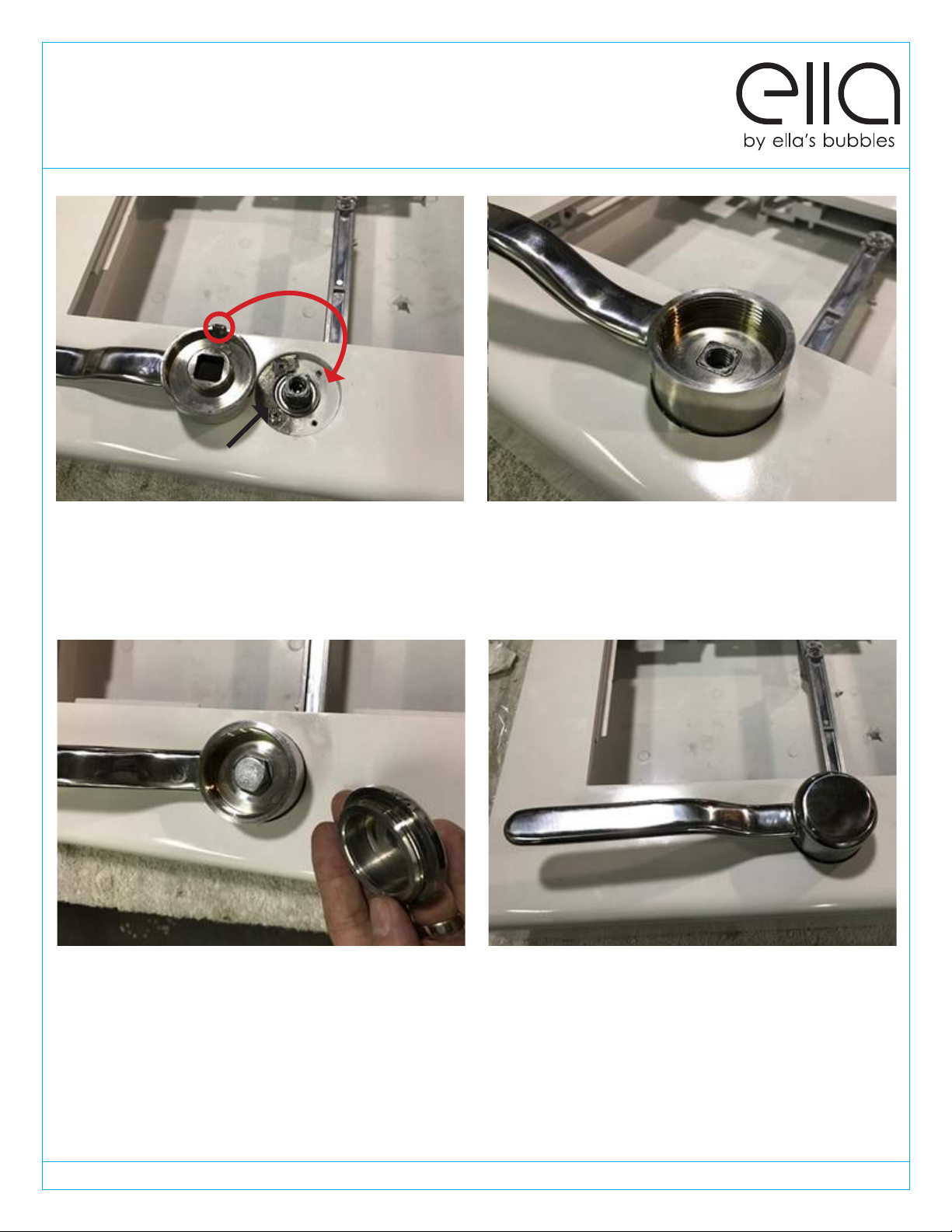

The door handle must be placed correctly so the handle stopper stops the
door handle and protects the door mechanism from breaking. There must
not be a gap between the door and door handle if it is installed correctly.
Make sure to tighten the screw with a wrench. The screw holds the door
handle at approximately torque of 10 pounds. Screw on the cover and
tighten it by hand (do not use a wrench).
Door Stopper

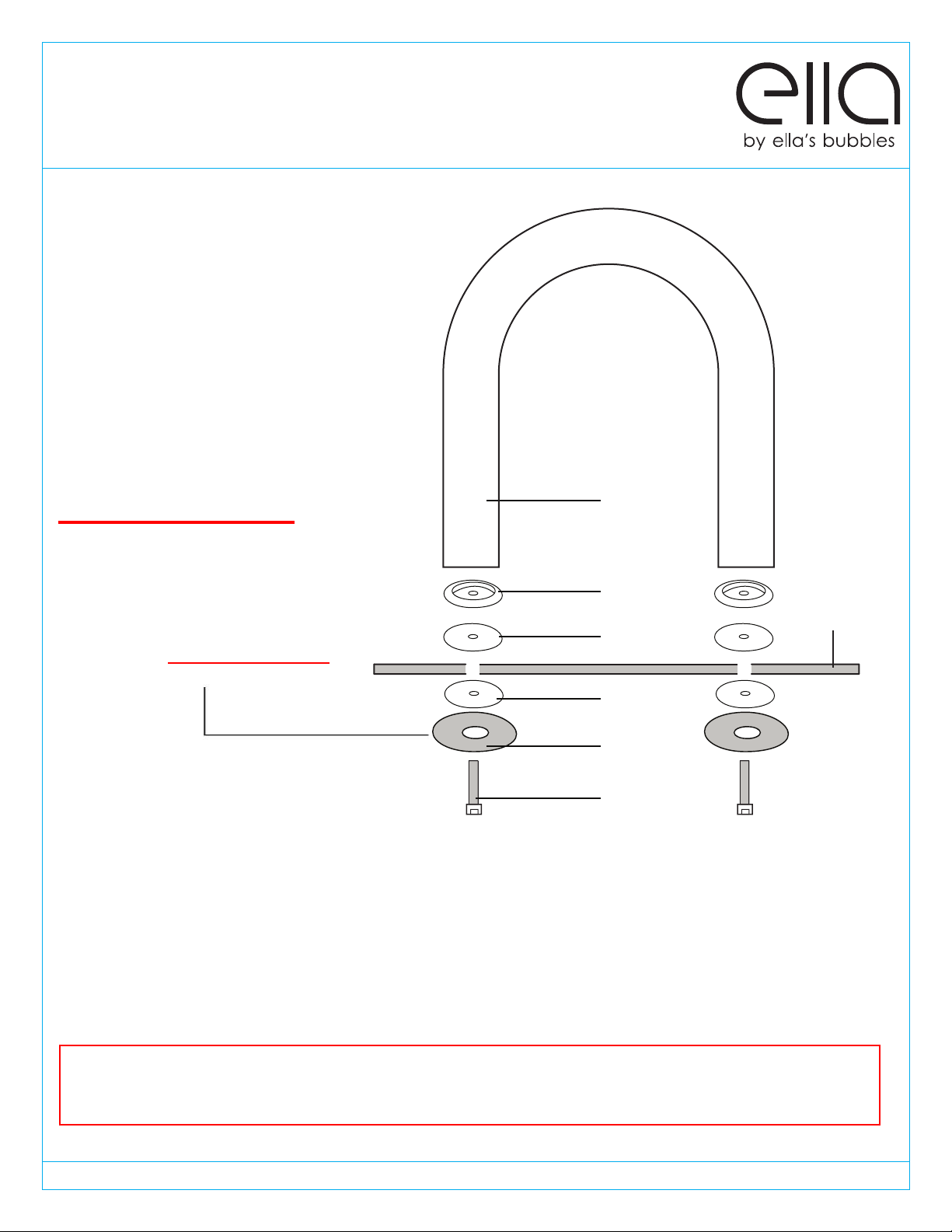

Parts List: Chrome grab bar x (1)
Escutcheon x (2)
Rubber washers x (4)
Metal washers x (2)
Bolts x (2)
To install the supplied grab bar first locate all the parts needed for installation. See drawing
shown above. Ready the bolt assembly by rst placing a metal washer onto the bolt
followed by a rubber washer. Feed the bolt up through the tub shell and place another
rubber washer over the extruded bolt followed by the escutcheon. You may start the
threading into the grab bar to hold the assembly loosely in position and then repeat the
process for the second bolt. Once the entire assembly is in place, tighten the bolts with the
supplied Allen wrench.
WARNING: Under no circumstances install the grab bar without the large metal washer
underneath the tub shell. Doing so will leave the tub shell vulnerable to cracking and void
the warranty.
Installation of Deck Mount Grab Bar
www.ellasbubbles.com Page 16
Grab Bar
Escutcheon
Rubber
Washer
Rubber
Washer
Metal
Washer
Bolt
Tub Shell
WARNING
GRAB BAR WASHERS MUST BE INSTALLED TO
PREVENT CRACKING OF THE ACRYLIC SHELL,
FAILURE TO DO SO WILL VOID THE WARRANTY
*THE LARGER METAL WASHER IS THE MOST
IMPORTANT OF THE WASHERS, THIS ONE
ABSOLUTELY MUST BE INSTALLED TO
PREVENT ACRYLIC SHELL DAMAGE
*

1.
3. & 4.
Deluxe Dimensions: 5"W x 29 1/2"L x 37"H
Elite Dimensions: 7"W x 29 3/4"L x 37 3/4"H
Royal Dimensions: 7"W x 31 3/4"L x 37 3/4"H
Petite Dimensions: 7"W x 27 2/4"L x 37 3/4"H
L" Stainless Steel Brackets ...........................
L" Acrylic Bracket ........................................
1" x 1/8" Bolts ...............................................
1" x 1/4" Bolts ...............................................
1" Screw .......................................................
1/2" Nuts .......................................................
3/8" Nuts .......................................................
Medium Washers .........................................
Small Washers ..............................................
Plastic Washer .............................................
Plastic Cap ...................................................
Installing Extension Kits
Qty (3)
Qty (1)
Qty (7)
Qty (7)
Qty (1)
Qty (9)
Qty (7)
Qty (14)
Qty (14)
Qty (1)
Qty (1)
1. Install 3 extension support
brackets
provides in the kit.
2. Clamp in place, the
extension panel to the walk
in tub shell, lining up the
facade of top and front.
3. Pre-drill (+3/8") slightly wider
holes than mounting screws
to allow for nal adjustment
to the panel.
4. Mount extension with 7
screws, washers and bolts.
5. Apply Silicone or white
caulking as needed.
The extension kit can be installed as needed. Opening can be lled as desired.
www.ellasbubbles.com
Deluxe . Elite . Royal . Petite . Companion
Installing Extension Kits
4
(Image 4)
www.ellasbubbles.com Page 17

Finishing Installation
www.ellasbubbles.com Page 18
After all of the water and electrical testing is completed and all xtures are checked, the
tub can be installed to the surrounding wall or walls. Ella Walk in Baths come with low
rise tile ange which allows for two or one wall installations. The extension panel of the
bathtub can be installed as needed for 60" openings.
The tub can be nished and tiled over as shown in images. Caulking must be applied to
joints as needed after the bathtub is installed.
Threshold Lowering Option
Lowering the threshold is an option that can be chosen during installation. Because your
Ella Walk in Bath is set up for easy installation, lowering the threshold requires the drain
option to be set up below the floor. To lower the Walk in Bath threshold; First, remove the
toe kick panel to expose the adjustable leg supports. Adjust the height of the tub while
keeping the Walk in Bath plumb level on all four corners. Finish the installation
with baseboard.
NOTE: Any alterations or installed additions are the responsibility of the installer. Ella
Accessible Bathrooms is not responsible for any damage to the unit or for water damage,
which could occur due to improper installation.

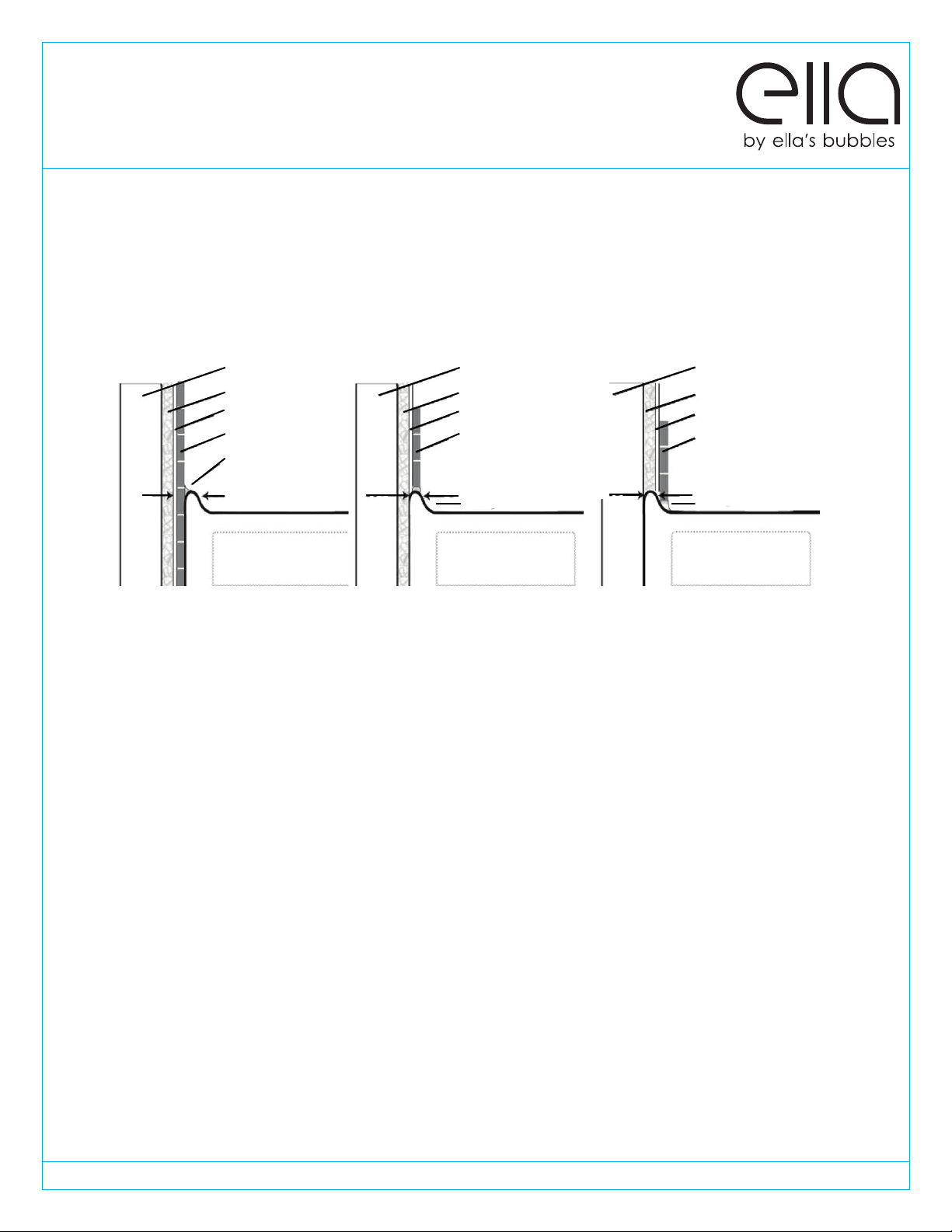

Drywall
Glue
Tile
Caulking
5/8”Tub Lip
Stud Stud Stud
Drywall Drywall
Glue Glue
Tile Tile
5/8”Tub Lip 5/8”Tub Lip
Caulking Caulking
