Ella's Bubbles WALK IN BATHTUB S Series User manual

S-SERIES ACRYLIC
WALK IN BATHTUB
OWNERS MANUAL

Table of Contents
IMPORTANT
Warranty Activation Form MUST be completed for both the Owner and Installer to validate
the warranty.
Failure to complete both pages (p.18 and p.19) will void the warranty on this bathtub.
Completed Warranty Activation Forms can be emailed to [email protected],
faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608
S-Series
Walk In Bathtub

Unpacking and
Inspecting
03/18
Inspect the carton for
damage: Take a picture if
possible.
CAREFULLY RECORD ALL
PERCEIVED DAMAGE
DO NOT LIFT THE TUB BY THE
PLUMBING. Doing so can
result in leaks, for which the
installer is responsible. All
Walk-In Tubs are water tested
before they leave our
factory and the bath tub you
have purchased has passed
inspection.
Inspect the plumbing for any
fittings that may have
loosened in transit.
You must follow all the instructions in this manual.
FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN PRODUCT
DAMAGE OR INJURY TO BOTH INSTALLER AND HOMEOWNER. IT WILL ALSO RESULT IN
ASSUMPTION OF ALL LIABILITY BY SAID INSTALLER
NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as
not to damage cardboard crate or its wooden pallet. Do not dispose of shipping material
until installation is complete. Please visit our website, www.ellasbubbles.com for complete
details of return/exchange policy.
S-Series
Walk In Bathtub

Warnings and Labels
Your bathtub comes with several warning label stickers throughout and are as follows:
03/18
Details on Page 12
Details on Page 3
Push Control
Acrylic Shell
Back nut
Air hose
S-Series
Walk In Bathtub

Warnings and Labels
continued
03/18
Backnut MUST be securely tightened.
Failure to do so will cause loosening
over time resulting in it coming apart
and falling down the drain.
Drain open
all the way
Drain closed
completely
Drain must open completely to drain
properly and close completely to avoid
unnecessary drainage.
S-Series
Walk In Bathtub

WARNING!
PLEASE READ BEFORE BEGINNING INSTALLATION
WARNING: Do not attach the hand held shower to the wall unless you have an extension
hose with a barrel protection. This may cause water to leak behind your walk in tub.
Water from the hose can drip down
into the hand shower base and get
behind your tub without the barrel
protection.
TO INSTALL BARREL EXTENSION HOSE:
1)) Star by unscrewing your shower head
mixer from the hose.
2) Next take your stainless steel barrel and
screw it on the end of the hose.
3)) Take your extension hose and screw t
end to the opposite side of the barrel.
4)) Place th barrel in the shower base to
plug the hole.
5) Finally, screw on the shower head mixer to
the other end of the extension hose.
03/18
S-Series
Walk In Bathtub
S-Series
Walk In Bathtub

Please heed all warnings listed in the
previous pages to avoid potential issues

Large Access Panel (1)
Small Access Panel (2) End Access Panel (4)
White Screw Caps
Toe Kick Access (3)
- Access to parts
- Option to lower the Threshold
•Remove all four (4) access panels before
moving the tub
•Take off the screw caps
•Unscrew the screws with a
Philips head screwdriver
•Remove the end access panel
Screw Washer Cap
WARNING: Do not carry the walk in tub by the panels. Be careful when carrying
the tub, avoid front panel contact with the floor or stairs to prevent damages.
Make sure no loose parts are hanging down. Remove all four (4)access panels
before carrying the tub to prevent them from falling out and breaking.

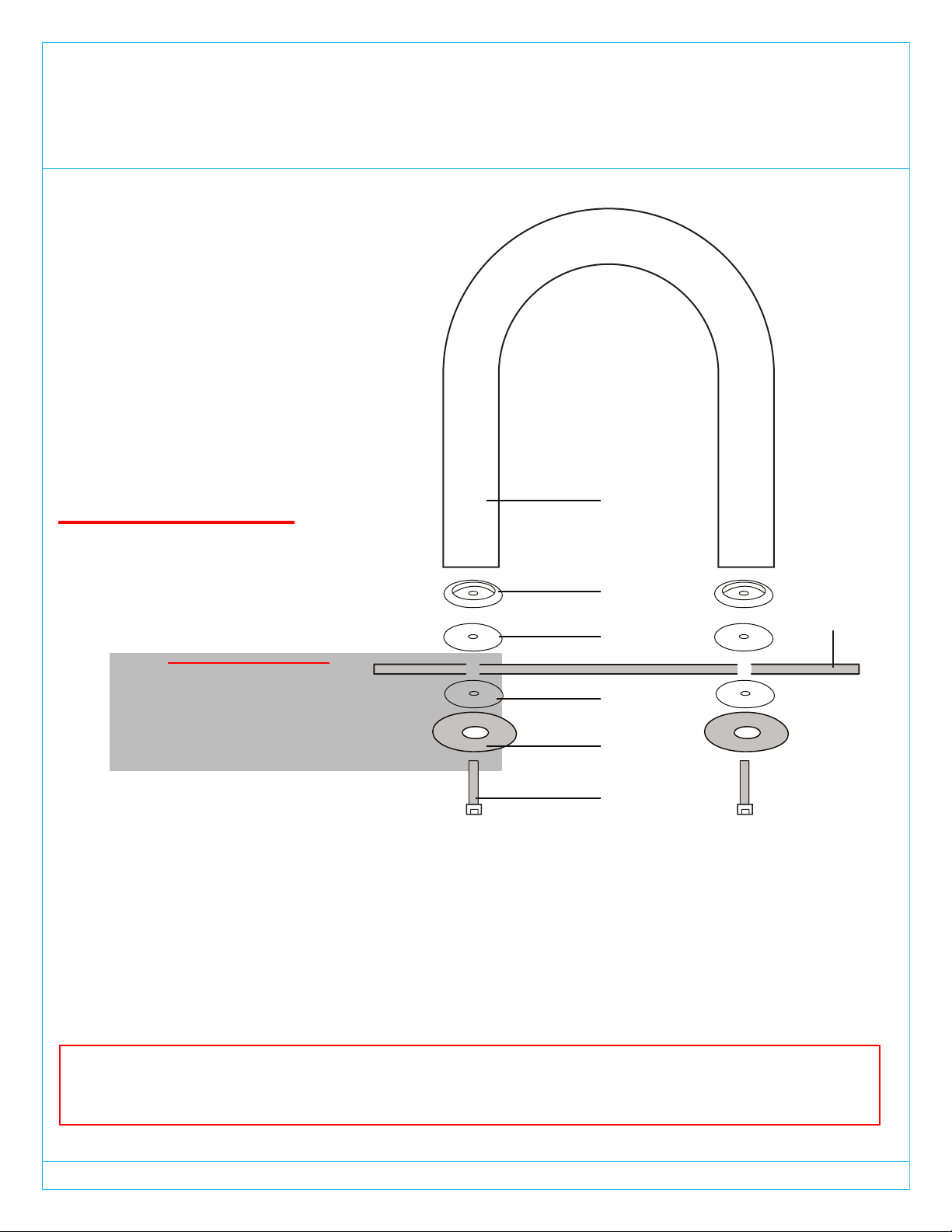

Slide On Brackets
Deck
Frame
Access Panel
Screw-On
Support Brackets
Water Supply Lines
End Access
Panel
WARNING: Lift and carry the tub only by the frame. Protect the bottom of the
tub to avoid breaking the air jets positioned on the bottom of the tub.

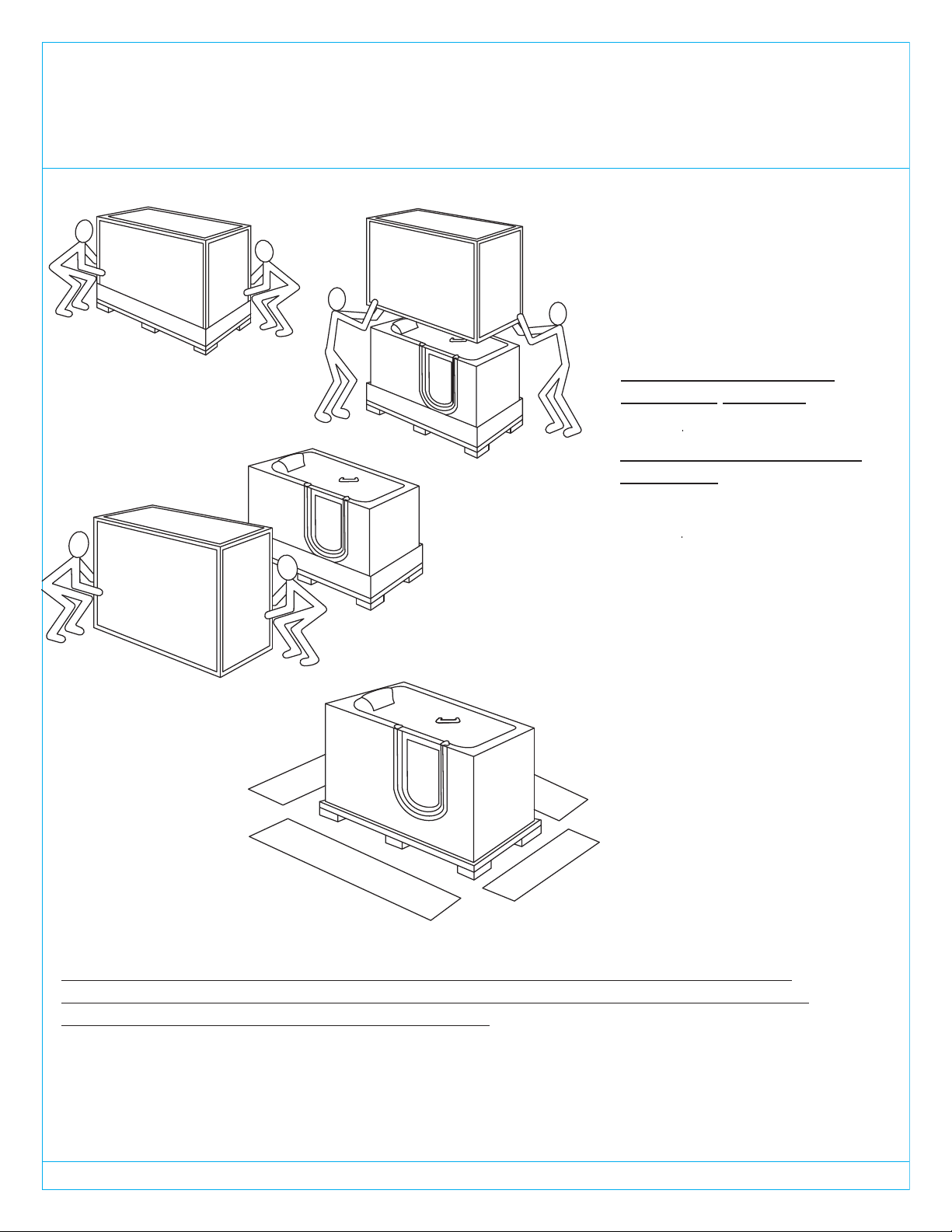

Moving your
Walk in Bath
03/18
S-Series
Walk In Bathtub

WARNING:
***Read through the entire manual completely before beginning installation.***
Contract a licensed plumber and electrician for installation. Be sure you and your
contractor are aware and follow all local plumbing and electrical codes. Your Walk
in Bath is not intended for outdoor use. Install the tub in accordance with the instructions
in the manual. Use ONLY the parts and accessories provided or as recommended by the
manufacturer.
CAUTION:
When using this product, basic precautions should always be followed. Read and follow
all instructions pertaining to risk of re, electric shock and injury. Make sure and have your
licensed electrician test all connections to the dedicated line, including the GFCI.
Risk of electric shock; Do not permit electric appliances within 3 feet (1.5m) of the tub. i.e.:
hair dryers, lamps, phones, radios, televisions, etc.
To reduce the risk of injury, do not permit children or persons with disabilities to use this
product unless they are supervised by an able-bodied adult at all times. Never drop or
insert any objects into any openings.
Do not turn on the Hydro jets without water reaching the waterline. The waterline is the point
where all jets are covered with water.
DANGER:
Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health.
Check and adjust the temperature before use. Consult your physician before using your
Walk in Bath if you have a heart condition or other health issues. People using medications,
herbal remedies, sleep aids, and/or having adverse medical history should consult a
physician before using this product.
Pregnant women should NOT use this product before consulting their physician. Avoid the
use of alcohol, drugs or other medications while using your walk in bath.
Be aware, hyperthermia is a risk when raising body temperature. Do no keep body
submerged in heated bath for extended periods of time. The symptoms of hyperthermia
include an increase in body temperature which can cause dizziness, lethargy, drowsiness
and fainting. Avoid using the heated bath after strenuous activity.
Exercise caution while entering and exiting your Walk in Bath.
Important Safety
Instructions
03/18
S-Series
Walk In Bathtub

WARNING:
***USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO INJURY OR DEATH***
Important Safety
Instructions
03/18
BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO
THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE
BACKREST. DO NOT ATTEMPT TO SLOUCH OR LIE
DOWN IN THE FOOT WELL AREA! DO NOT ATTEMPT
TO PUT YOUR FEET UP ON OPPOSITE SIDE OF TUB!
In the case of bathers who do not have all
functioning limbs or are paralyzed, bather must
be attended by caregiver at all times and use an
installed safety belt at all times.
CORRECT
WRONG POSITIONING
WARNING
S-Series
Walk In Bathtub

Required Steps
Prior to Installation
03/18
Place the tub on a completely flat surface in an area where it may be drained after
testing.
Using a clean rag and warm water wipe down seal to insure it is free of debris.
Seal the drains (this can be done with tape) and fill the tub to at least three inches
above the highest jet, or to the bottom of the grab bar if no jets are present.
Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for
leaks.
Using appropriately rated three-prong extension cords, all plugged in to separate outlets,
operate all electrical components (air blower, water pump, and heater if applicable) for
another 30 minutes and inspect for leaks again. Inspect the unions around the pump and
heater.
If a leak persists at a union after tightening, it may have been over-tightened or might
have a displaced O-ring. Disassemble it and make sure the O-ring was seated properly.
Do the same if a leak persists at the heater. Verify that the heater threads match the
pipe threads.
Protecting the Bath
Cover and protect the bath shell and fixtures from scratches or other damages during the
installation and tests. Remove the access panels when moving the Walk in Bath and
always lift the bathtub from the frame.
Electrical
The unit MUST be connected to a circuit protected by a ground fault circuit interrupter
(GFCI) provided and installed by a licensed electrician and tested periodically (refer to
instructions provided by GFCI manufacturer). Electrical requirements vary based on
package; please refer to package diagrams included in the specifications. A licensed
electrician for your area is required to install and test the electrical installation process. DO
NOT use any kind of extension cords to power the unit.
Operating the pumps without first filling the bath to above the jets can cause permanent
damage to your equipment.
Push the GFCI “test” button into “reset” mode. If the GFCI fails to operate in this manner,
there is a ground current flow or a device malfunction, indicating the possibility of electrical
shock. If this occurs, turn OFF the power and do not use the bathtub until the source of the
problem has been identified and corrected.
Water Test
It is important to test that the Hydro and Air Pumps are functioning properly before final in-
wall installation to avoid unnecessary repairs or removal.
A.
B.
C.
D.
E.
F.
S-Series
Walk In Bathtub

Door and Frame
Adjustments
Prepare the sub-floor for the drain and ensure that the area is level. The supporting sub-floor
must be able to support the total weight of the bathtub, bather and water and must meet
local construction code requirements.
Use a level and make sure that the sub-floor below the tub is leveled. If the floor is not
perfectly level, adjust the appropriate leveling legs to re-align the tub to perfect level. It is
important that all of the leveling legs are completely supporting the tub (touching the floor
with equal weight distribution) and the tub is leveled for the door seal to work properly. If the
tub is not perfectly leveled, it may cause frame and shell warping which can cause
changes in door alignment resulting in water leakage and void the warranty.
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub-
floor does not support the total weight of the bath, bather and the water, it can result in
warping of the shell, misalignment of the door and/or create leaks and could lead to
damage of your home.
03/18
S-Series
Walk In Bathtub

Door and Frame
Adjustments
Your walk in bathtub has been tested and leveled properly before leaving our facility. Our
walk in bathtubs have been set on a perfectly level surface to ensure no leaks and proper
door closing. It is up to your installer to test and make any adjustments necessary to ensure
that all leveling legs support the tub frame and that the door is aligned correctly to prevent
any leaks. The door must close smoothly to create a water tight seal.
Extending or shortening the legs will help correct any alignment issues to close the gap
between the door and the frame. Please call us immediately if any issues arise or if you
have any concerns. 1-800-480-6850.
03/18
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub-
floor does not support the total weight of the bath, bather and the water, it can result in
warping of the shell, misalignment of the door and/or create leaks and could lead to
damage of your home.
S-Series
Walk In Bathtub

WARNING: Failure to level the tub correctly WILL RESULT IN MISALIGNMENT! The drawings
below illustrate some examples of what types of frame warping will occur if the legs are
not level with the floor.
Door and Frame
Adjustments
S-Series
Walk In Bathtub

It is the responsibility of the installer or owner to provide access for service required, per
code. is not responsible for any costs related to obtaining access for repair. The owner shall
assume responsibility for such costs, and if appropriate, must seek recovery from the installer.
Do not insulate around the tub equipment. The tub, frame and all parts have been
engineered to provide the proper ventilation. Any obstructions may cause the pumps or
other electrical components to overheat.
Door Seal
Please keep in mind that the door has been closed for an extended period of time
throughout shipping and the bathtub has been stored in various temperatures. It is possible
for the silicone seal to stick to the frame when stored for extended periods of time. When
the bathtub is received, the door seal should be checked for deformations from shipping
and re-formed and adjusted where necessary. To restore the door seal, the seal must be
released and allowed to relax with the door open. This is done by squeezing the seal with
your finger tips and pulling it away from the door frame to regain its flexibility and original
form. It is recommended that the door be kept open when not in use to increase the
lifetime of the door seal and maintain its flexibility.
Service Access
and Ventilation
S-Series
Walk In Bathtub

Parts List: Chrome grab bar x (1)
Escutcheon x (2)
Rubber washers x (4)
Metal washers x (2)
Bolts x (2)
To install the supplied grab bar first locate all the parts needed for installation. See drawing
shown above. Ready the bolt assembly by rst placing a metal washer onto the bolt
followed by a rubber washer. Feed the bolt up through the tub shell and place another
rubber washer over the extruded bolt followed by the escutcheon. You may start the
threading into the grab bar to hold the assembly loosely in position and then repeat the
process for the second bolt. Once the entire assembly is in place, tighten the bolts with the
supplied Allen wrench.
WARNING: Under no circumstances install the grab bar without the large metal washer
underneath the tub shell. Doing so will leave the tub shell vulnerable to cracking and void
the warranty.
Installation of Deck
Mount Grab Bar
Grab Bar
Escutcheon
Rubber
Washer
Rubber
Washer
Metal
Washer
Bolt
Tub Shell
WARNING
GRAB BAR WASHERS MUST BE INSTALLED TO
PREVENT CRACKING OF THE ACRYLIC SHELL,
FAILURE TO DO SO WILL VOID THE WARRANTY
*THE LARGER METAL WASHER IS THE MOST
IMPORTANT OF THE WASHERS, THIS ONE
ABSOLUTELY MUST BE INSTALLED TO
PREVENT ACRYLIC SHELL DAMAGE
*
S-Series
Walk In Bathtub

1.
3. & 4.
Deluxe Dimensions: 5"W x 29 1/2"L x 37"H
Elite Dimensions: 7"W x 29 3/4"L x 37 3/4"H
Royal Dimensions: 7"W x 31 3/4"L x 37 3/4"H
Petite Dimensions: 7"W x 27 2/4"L x 37 3/4"H
L" Stainless Steel Brackets ...........................
L" Acrylic Bracket ........................................
1" x 1/8" Bolts ...............................................
1" x 1/4" Bolts ...............................................
1" Screw .......................................................
1/2" Nuts .......................................................
3/8" Nuts .......................................................
Medium Washers .........................................
Small Washers ..............................................
Plastic Washer .............................................
Plastic Cap ...................................................
Installing Extension Kits
Qty (3)
Qt y (1)
Qty (7)
Qty (7)
Qt y (1)
Qty (9)
Qty (7)
Qty (14)
Qty (14)
Qt y (1)
Qt y (1)
1. Install 3 extension support
brackets
provides in the kit.
2. Clamp in place, the
extension panel to the walk
in tub shell, lining up the
facade of top and front.
3. Pre-drill (+3/8") slightly wider
holes than mounting screws
to allow for nal adjustment
to the panel.
4. Mount extension with 7
screws, washers and bolts.
5. Apply Silicone or white
caulking as needed.
The extension kit can be installed as needed. Opening can be lled as desired.
www.ellasbubbles.com
Deluxe . Elite . Royal . Petite . Companion
Installing Extension Kits
4
(Image 4)
S-Series
Walk In Bathtub

Finishing Installation
After all of the water and electrical testing is completed and all fixtures are checked,
the tub can be installed to the surrounding wall or walls. Walk in Baths come with low
rise tile ange which allows for two or one wall installations. The extension panel of the
bathtub can be installed as needed for 60" openings.
The tub can be nished and tiled over as shown in images. Caulking must be applied to
joints as needed after the bathtub is installed.
Threshold Lowering Option
Lowering the threshold is an option that can be chosen during installation. Because your
Walk in Bath is set up for easy installation, lowering the threshold requires the drain
option to be set up below the floor. To lower the Walk in Bath threshold; First, remove the
toe kick panel to expose the adjustable leg supports. Adjust the height of the tub while
keeping the Walk in Bath plumb level on all four corners. Finish the installation
with baseboard.
NOTE: Any alterations or installed additions are the responsibility of the installer.
Accessible Bathrooms is not responsible for any damage to the unit or for water damage,
which could occur due to improper installation.
Drywall
Glue
Tile
Caulking
5/8”Tub Lip
Stud Stud Stud
Drywall Drywall
Glue Glue
Tile Tile
5/8”Tub Lip 5/8”Tub Lip
Caulking Caulking
Panel On Panel Off Lowered Threshold Baseboard On (not supplied)

Recommended Acrylic Cleaners
Use only cleaning products whose labels
state that they are SAFE for ACRYLIC.
Always test products on a small are of skirt
before applying to complete bath area.
• White Vinegar & Water
(Recommended)
• ZEP Professional strength shower
tub & tile cleaner
• Dawn dish detergent
• Rubbermaid commercial strength
shower tub & tile cleaner
• Home Depot HDX shower tub & tile
cleaner
• Scrub free original soap scum remover
• Kaboom shower tub & tile cleaner with
oxy clean
• Simple green all purpose cleaners
(any scent)
• Simple green lime scale remover
• Simple green natural bathroom cleaner
• All tilex products
• All Pine-Sol Products
• All Fragranzia Products
DO NOT USE the following on your
ACRYLIC Bath System. The use of the
following chemicals will cause a dull
surface or chemical cracks. The use of
these products will VOID YOUR WARRANTY.
• Any product containing ammonia
• Dow scrubbing bubbles
•Abrasive Cleaners
•Ajax
•Comet
•Fantistik
•Soft Scrub
•Mr. Clean
• Nail Polish Remover
•Scouring Pads
•Ammonia
•Tough Act
• Powder or Crystal Drain Cleaners
• Greenworks Bathroom Cleaner
• Scrub Free w/Bleach
• Seventh generation bathroom
cleaner - regular
•Magic Eraser
Cleaning and
Maintenance
Monthly Maintenance
It is recommended that once a month
the tub is ushed. As well, with every
month of normal use, clean out
the pumps inlet cover (shown right)
by unscrewing the cover (counter
clockwise) and removing any hair and
debris from the cover and housing.
Remount the cover in place. Never
operate the system with the cover off,
as the pump creates a strong suction
and damage to the pump or injury may
occur.
S-Series
Walk In Bathtub

Cleaning and
Maintenance
www.ellasbubbles.com
Recommended Acrylic Cleaners
Acrylic tubs provide customers with a better quality tub vs gel coat tubs. Unfortunately, these tubs can scratch if cleaned
incorrectly. The way to proceed is gently, very gently. The good news: gentle cleaning does not translate into high
maintenance. On the contrary, you'll probably save some cash by foregoing pricey chemical cleansers. Here's how to clean
your acrylic tub safely and naturally: Wash your tub often, at least once a week, and use a mild soap -- plain old
dishwashing liquid is best -- with lots of hot water. Most dirt will simply wash off with clean water. We recommend using liquid
dish washing soap such as Joy, Palmolive or similar. Clorox bleach, Windex, ammonia based glass cleaners, Formula 409 and
Fantastic are stronger cleaners that are also safe to use. Always clean with a soft sponge. Never, ever use abrasive cleaning
products (those containing fine grit; check the label) or abrasive cleaning pads. Use of these chemicals will destroy the
acrylic and void your warranty. Waxing is another no-no. Your acrylic tub is naturally very shiny and designed to stay that
way without additional help. Lastly, is your water supply kind of alkaline? If so, you might notice a little hard-water buildup
appearing over time. The easiest fix, believe it or not, is plain white vinegar. Spray a 50/50 mix of water and vinegar on the
affected areas and let it soak for a while. Rub gently, then rinse.
Better Life Natural Tub and Tile Cleaner
The Bucko Soap Scum and Grime Remover/Bathroom Cleaner
Good Green Cleaner Starter Set
Don Asiett's Tub n Tile Concentrate
CLR PB-BATH-32PRO Multi Purpose Daily Bath Cleaner Oh Yuk Jetted Tub System Cleaner
Rejuvenate Scrub Free Soap Scum Remover Non-Toxic Non-Abrasive Cleaning Formula
Bio Clean: Eco Friendly Hard Water Stain Remover
AmazonBasics Professional All-Purpose Cleaner
Jelmar PB-BK-2000 CLR Fresh Scent Bath and Kitchen Cleaner
Shower Power - Powerful Bathroom Cleaner from Concentrate - Tub and Shower Cleaner
Spray Nine 26832 Heavy Duty Cleaner/Degreaser and Disinfectant
Better Life Natural Tub and Tile Cleaner
If you would like a deeper clean than the recommended dish soap and hot water, you can try some of the products listed
below that have been approved for use with Acrylic.
S-Series
Walk In Bathtub
