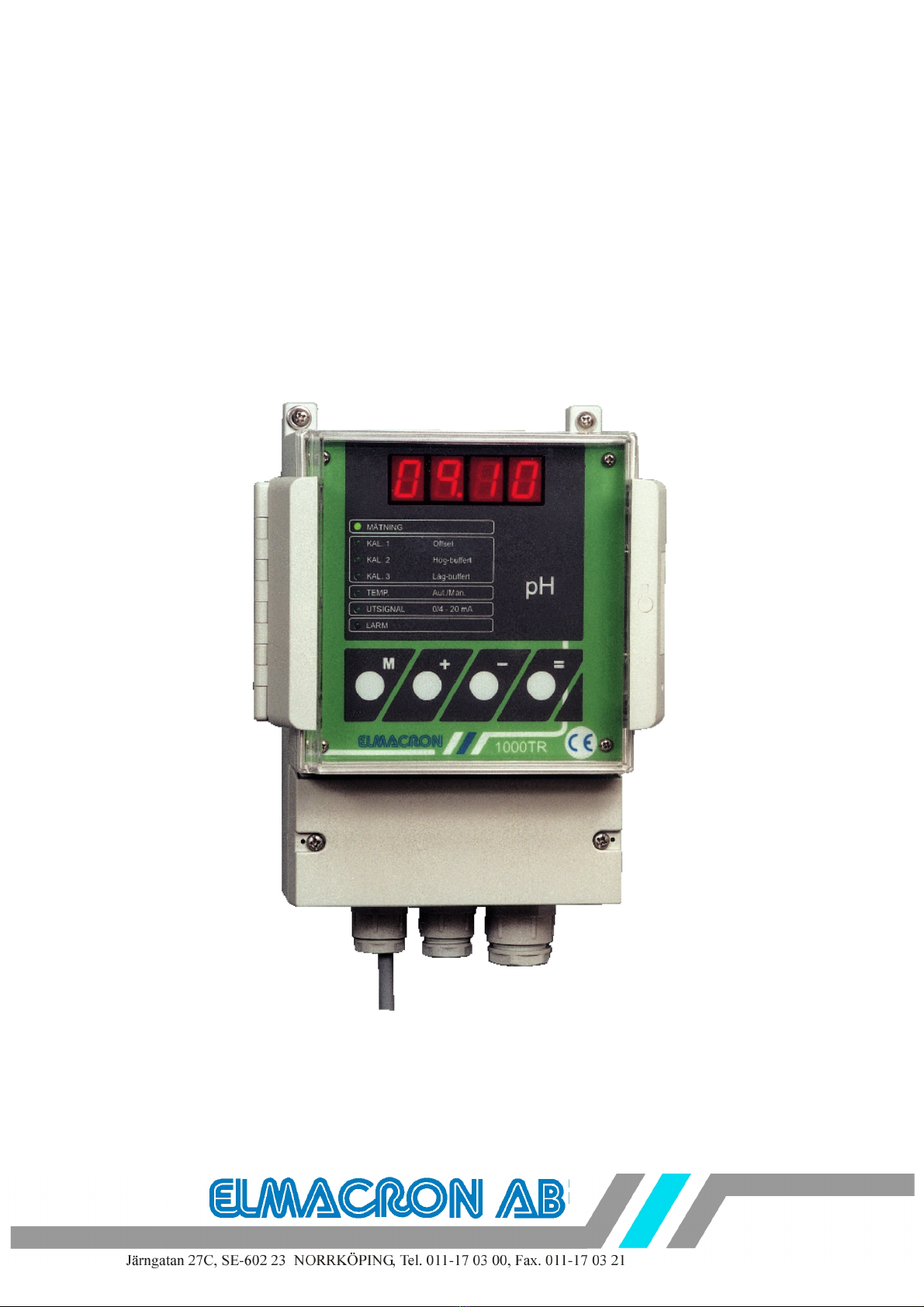

ELMACRON 1000TR User manual

1000TR
ORP mV
Instructions

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 1 -
- Senast utskrivet 2006-10-27
11:39
CONTENTS
1. INTRODUCTION ............................................................................................................................................. 2
1.1 COMMON INTRODUCTION...................................................................................................................... 2
1.2 PARTS & ACCESSORIES ........................................................................................................................... 2
2. INSTALLATION .............................................................................................................................................. 3
2.1 CASING ........................................................................................................................................................ 3
2.2 MOUNTING ................................................................................................................................................. 3
2.3 ELECTRICAL INSTALLATION................................................................................................................. 3
2.3.1 Connection of the power supply ............................................................................................................. 4
2.3.2 Connection of the electrode.................................................................................................................... 4
2.3.3 Connection of a recorder........................................................................................................................ 4
2.4 CHECK THE CONNECTIONS.................................................................................................................... 4
3. FUNCTIONS ..................................................................................................................................................... 5
3.1 COMMON FUNCTIONS ............................................................................................................................. 5
3.2........................................................................................................................................................................ 5
3.2.1 MEASURE .............................................................................................................................................. 5
3.2.2 CAL. 1..................................................................................................................................................... 5
3.2.3 CAL. 2..................................................................................................................................................... 5
3.2.4 CAL. 3..................................................................................................................................................... 5
3.2.5 OUTPUT ................................................................................................................................................ 5
3.2.6 ALARM ................................................................................................................................................... 5
3.3 KEY FUNCTIONS ....................................................................................................................................... 6
4. PARAMETER SETTINGS .............................................................................................................................. 7
4.1 DEFAULT SETTINGS ................................................................................................................................. 7
4.2 PARAMETER SETTINGS ........................................................................................................................... 7
4.2.1 Set the output signal ............................................................................................................................... 7
4.3 CALIBRATION............................................................................................................................................ 7
4.3.1 Calibration solutions .............................................................................................................................. 7
4.4 OPERATION ................................................................................................................................................ 9
4.5 CHANGING THE PARAMETER SETTINGS ............................................................................................ 9
4.5.1 Changing the output range ..................................................................................................................... 9
5. MAINTENANCE ............................................................................................................................................ 11
5.1 HARDWARE CHECK ............................................................................................................................... 11
5.2 PRE-CALIBRATION ................................................................................................................................. 11
5.3 RESET OF DEFAULT SETTINGS............................................................................................................ 12
6. TROUBLE SHOOTING................................................................................................................................. 12
7. SPECIFICATIONS ......................................................................................................................................... 13

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 2 -
- Senast utskrivet 2006-10-27
11:39
1. INTRODUCTION
1.1 COMMON INTRODUCTION
1000TR is a new CE-approved series of transmitters from Elmacron AB. In the series, there are
instruments for pH, Redox%, Redox mV and temperature measurement.
1000TR is easy to program, calibrate and use.
The layout on the instrument is clear; a large display with four LED-segments, diode indication for the
menu and four large function keys. All settings are made through the function keys on the front panel.
When connecting an electrode to 1000TR-mV the display shows the actual mV-value in the solution
measured.
1000TR-mV is provided with an isolated output 0/4 - 20 mA, proportional to the mV-value, for
connection to, for example, a computer, printer or other recording equipment. When measuring is
interrupted, the output stays frozen at the last measured value.
1.2 PARTS & ACCESSORIES
1000TR is delivered without connection cables and electrodes.
Article Function Code number
Power supply cord, standard Power supply 20-R037-000
Calibration solution 86 mV Calibration of the Redox-electrode
Calibration solution 255 mV Calibration of the Redox-electrode
Calibration solution 470 mV Calibration of the Redox-electrode
Kinhydron Preparation of calibration solution 90-T517-000
Calibration solution pH 2 Preparation of calibration solution 90-T512-000
Calibration solution pH 8 Preparation of calibration solution 90-T515-000

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 3 -
- Senast utskrivet 2006-10-27
11:39
2. INSTALLATION

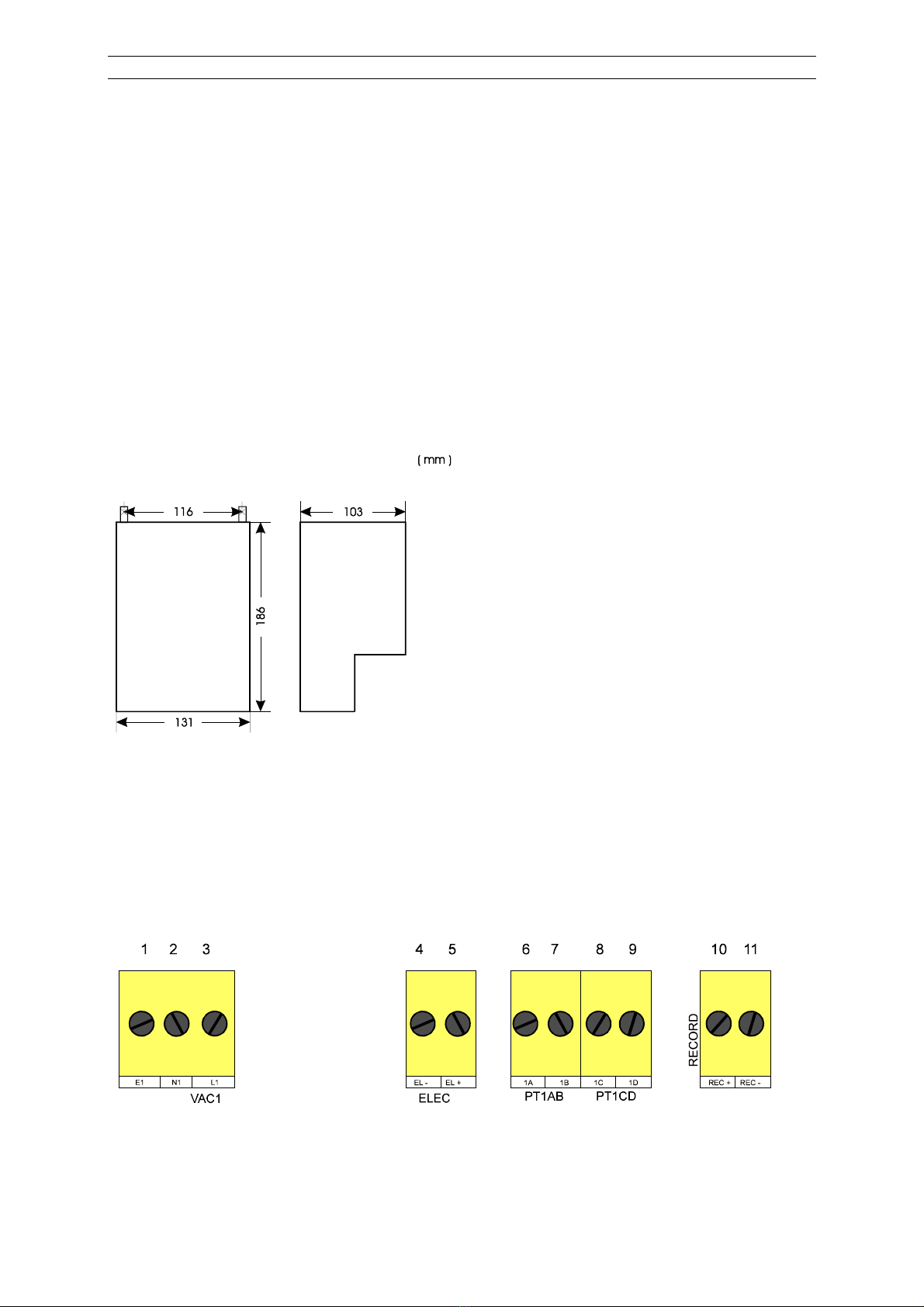

2.1 CASING
The casing is made of die-cast polystyrol with a transparent front cover that is closed with a snaplock.
The connection terminals are located in a separate partition at the lower part of the transmitter.
At the bottom of the instrument there are four cable glands ( two 15,2 and two 18,6 ) for the electrical
connections.
The protection class is IP65.
2.2 MOUNTING
The instrument is designed for wall mounting. Be sure that the instrument is mounted at a non-
vibrating place.
1000TR is mounted vertically with two fastening screws (∅7) through the mounting brackets on the
instrument.
2.3 ELECTRICAL INSTALLATION
It is recommended that each instrument is provided with a separate power switch.
The electrode coax cable must be protected by a screen and may not be installed near power cables.
Avoid extension of cables.
The connection terminals are located in a separate space at the lower part of the transmitter.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 4 -
- Senast utskrivet 2006-10-27
11:39
2.3.1 Connection of the power supply
Connect the power supply to terminal 1 (earth), terminal 2 (zero) and terminal 3 (live).
2.3.2 Connection of the electrode
Electrode cabling is a critical part of the whole system.
•Use a low noise coax cable between the electrode and the input terminal on the controller.
•Low noise cables has, in general, a black semi-conductive sheath between the centrewire
insulation and the shield. Remove this sheath.
•Keep the cable away from power wires.
•Max recommended length of cable is 10 meters.
•Connect the shield ( reference ) of the coax cable to terminal 4 ( EL - ).
•Connect the centre ( metal pin ) of the coax cable to terminal 5 ( EL + ).
NOTE! When using electrode PtPK/G:
•connect the shield ( reference ) of the coax cable to terminal 5 ( ELECTR+ )
•connect the centre ( metal pin ) of the coax cable to terminal 4 ( ELECTR- )
2.3.3 Connection of a recorder
Connect the recorder to terminal 10 ( REC + ) and terminal 11 ( REC - ).
2.4 CHECK THE CONNECTIONS
Before the power supply is turned on; check that the connections are mechanical and electrical
correct.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 5 -
- Senast utskrivet 2006-10-27
11:39
3. FUNCTIONS
3.1 COMMON FUNCTIONS
All settings are made through the function keys on the front panel. The keys +and –are accelerating
in three steps when they are kept pressed.
Chosen function is indicated by a green diode in the menu, at alarm a red diode is activated at the
same time as the diode at the actual function activates. When pressing Myou step down in the menu.
When calibration or setting mode is entered the output signal stays "frozen" at the latest value, until =
is pressed.
3.2
3.2.1 MEASURE
When power supply is connected the measuring starts.
3.2.2 CAL. 1
Calibration point 1. Pre-set value: 0 mV, other values can be chosen in the calibration mode.
3.2.3 CAL. 2
Calibration point 2. Pre-set value: 1000 mV, other values > 0 mV can be chosen in the calibration
mode.
3.2.4 CAL. 3
Calibration point 3. Pre-set value: -1000 mV, other values < 0 mV can be chosen in the calibration
mode.
3.2.5 OUTPUT
Can be set to 0 - 20 mA or 4 - 20 mA. The function is scaleable.
3.2.6 ALARM
When an error occurs in the measuring mode, the alarm diode activates at the same time as the error
code is shown on the display. At serious errors, the error code is flashing on the display.
MEASURE
CAL. 1
CAL. 2
CAL. 3
OUTPUT
ALARM
Offset
High-buffet
Low-buffer
0/4 - 20 mA

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 6 -
- Senast utskrivet 2006-10-27
11:39

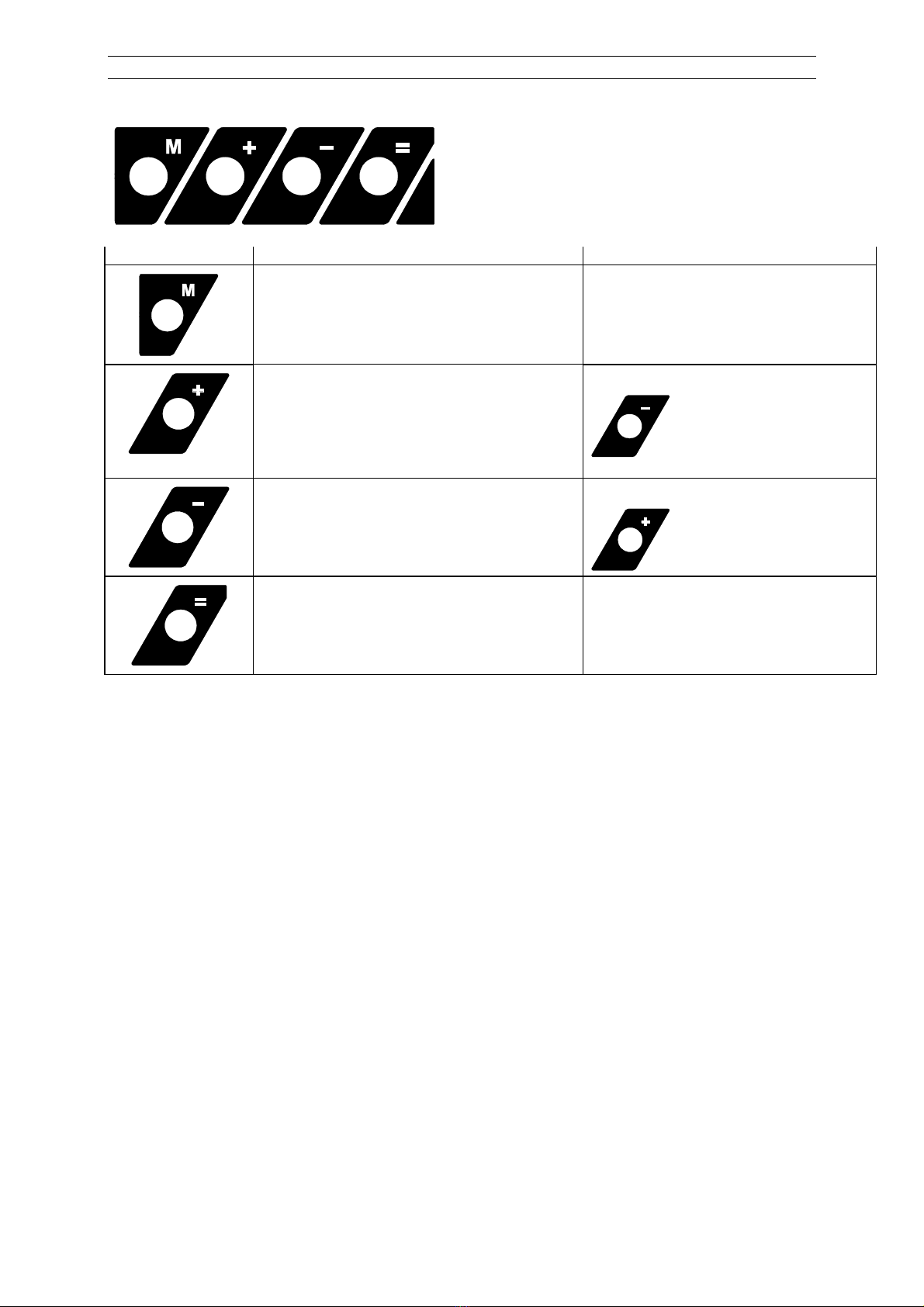

3.3 KEY FUNCTIONS
KEY FUNCTION 1 ( at parameter setting mode ) FUNCTION 2 ( in measuring mode )
Steps down the menu
Accelerating key.
Increase the value in setting mode.
Used when making a choice according to the
display.
Interrupt measuring together with
Accelerating key.
Decrease the value in setting mode.
Interrupt measuring together with
Confirm performed settings and choices. Starts measuring.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 7 -
- Senast utskrivet 2006-10-27
11:39
4. PARAMETER SETTINGS
4.1 DEFAULT SETTINGS
When delivered, 1000TR have the following default settings.
Output 0 - 20 mA
Offset 0 mV
Low-buffer -1000 mV
High-buffer 1000 mV
Slope 100% ( 20 °)
4.2 PARAMETER SETTINGS
All settings has to be confirmed with =to be saved. To leave the setting mode without saving the
settings: press M.
Before starting up the transmitter the following parameters has to be set: Temperature compensation
and output range.
Turn the power on.
4.2.1 Set the output signal
1. Interrupt the measuring by pressing +and –at the same time until the measuring is
interrupted and the diode at CAL.1 is activated.
2. Press Muntil the diode at OUTPUT. is activated. At the display: 0 - 20 .
3. Choose between 0 - 20 and 4 - 20 mA with +.
4. The display shows SPAn . Press =to confirm.
5. The display shows -1000 . Set the mV-value corresponding to 0 (alt. 4) mA.
6. Press =to confirm. The display shows 1000 .
7. Set the mV-value corresponding to 20 mA. Press =to confirm.
8. The diode at MEASURE is activated and the display shows Hold.
9. Press =to start the measurement.
4.3 CALIBRATION
It is recommended that the instrument is calibrated regularly, to get the highest possible accuracy in
the measuring. Calibration can be performed at 1, 2 ( recommended ) or 3 calibration points.
4.3.1 Calibration solutions
There are ready-to-use solutions with a number of different values to buy. If you wish to prepare your
own solution, do as follows:
+19 mV: Add a small amount of kinhydron in a small beaker with buffersolution pH 8. Stir and
then leave for 5 minutes.
+374 mV: Add a small amount of kinhydron in a small beaker with buffersolution pH 2. Stir and
then leave for 5 minutes.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 8 -
- Senast utskrivet 2006-10-27
11:39

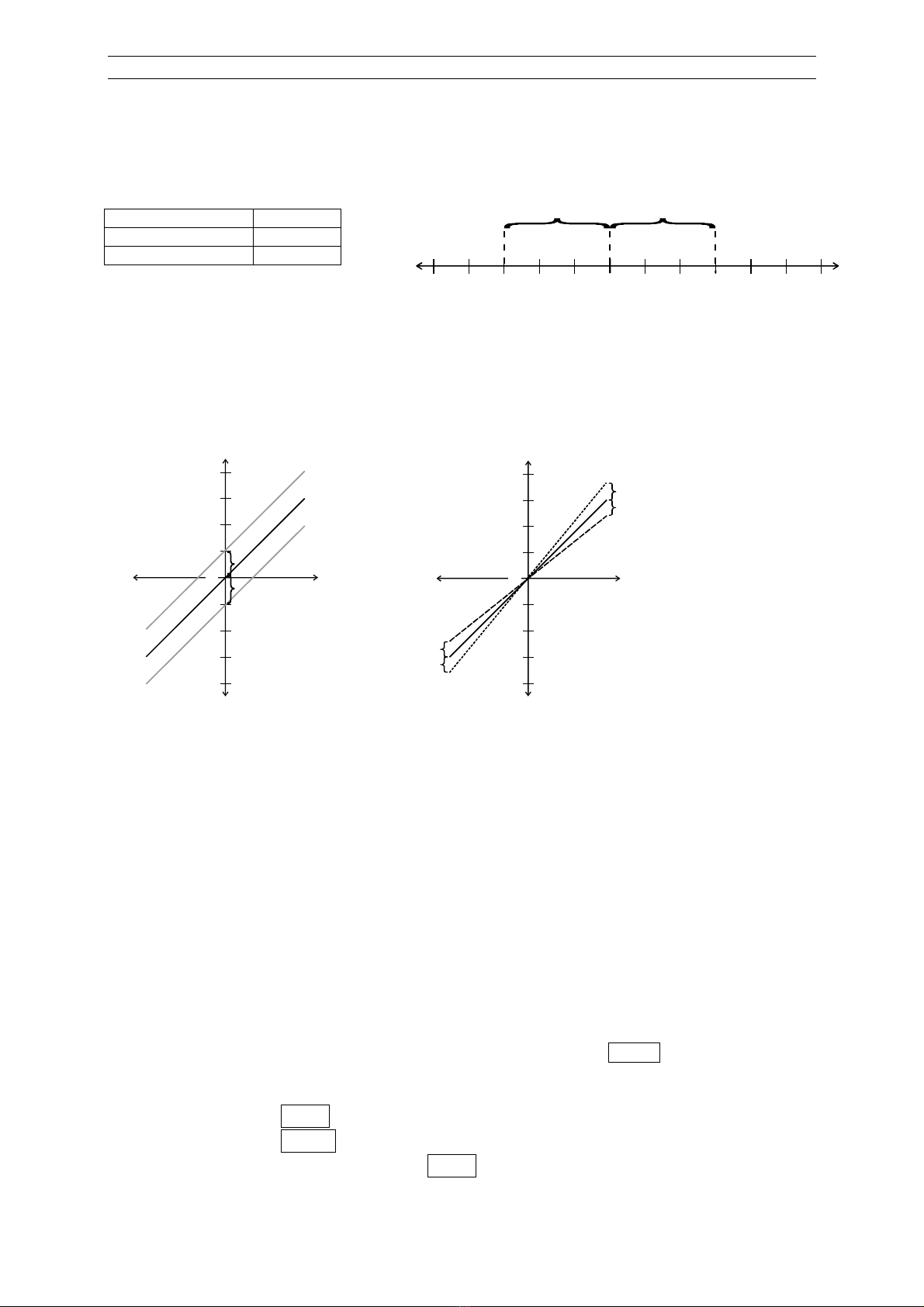

These solutions have limited durability and should be used immediately after preparation.
Use the solution that is closest to 0 mV as offset-solution.
1. Interrupt the measuring by pressing +and –at the same time.
2. Clean the electrode in diluted hydrochloric acid. Rinse with water and weep it clean with
soft paper.
3. The instrument automatically steps down to CAL. 1 ( calibration point 1). Pre-set “zero-
point” is at 0 mV, if another offset value is desired it can be set with +and -. Press = to
confirm.
4. Put the electrode in buffer 1. Press = to start. Wait until the value at the display has
stabilised. Use +and –to set the correct value. Press =to save the calibration.
If the measured value differs more than ± 100 mV* from the pre-set buffer value, calibration can
not be performed. When pressing = a message is shown, ( see chapter 6 ). Locate and correct
the error and try again. Press M to interrupt the calibration at this value and continue with next
calibration point.
5. The instrument automatically steps to CAL. 2 (calibration point 2).
At calibration point 2, the instrument is calibrated at a high-buffer value ( > 0 mV ). If no calibration at
point 2 is desired, the point can be ignored by pressing Muntil the diode at CAL.3 is activated.
6. The pre-set value on buffer 2 is 1000 mV, if another value is desired it can be set with +
and -.
7. Rinse the electrode membrane carefully with water.
8. Put the electrode in buffer 2. Press = to start. Wait until the value at the display has
stabilised. Use +and –to set the correct value. Press =to save the calibration. If the slope
differs more than ±10%* the calibration is not accepted and the value can not be adjusted.
If the slope differs more than ±10%,* the alarm diode is activated and the calibration can not be
done, when pressing =an error message is shown, (see chapter 6). Accept the error by
pressing =. Locate and correct the error and try again. Press M to interrupt the calibration.
9. The instrument automatically steps to CAL. 3 (calibration point 3).
At calibration point 3, the instrument is calibrated at a low-buffer value (< 0 mV ). If no calibration at
point 3 is desired, the point can be ignored by pressing M.
10. The pre-set value on buffer 3 is -1000 mV, if another offset value is desired it can be set
with +and -.
11. Rinse the electrode membrane carefully with water.
12. Put the electrode in buffer 3. Press = to start. Wait until the value at the display has
stabilised. Use +and –to set the correct value. Press =to save the calibration. If the slope
differs more than ±10%* the calibration is not accepted and the value can not be adjusted.
If the slope differs more than ±10%,* the alarm diode is activated and the calibration can not be
done, when pressing =an error message is shown, (see chapter 6). Accept the error by
pressing =. Locate and correct the error and try again. Press M to interrupt the calibration.
13. Step to MEASURE with M.
14. Rinse the electrode membrane carefully with water.
15. Do not forget to reset to the process temperature when manual temperature compensation
is chosen.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 9 -
- Senast utskrivet 2006-10-27
11:39
16. The instrument is now ready for measuring. Press Mto start.
*The accepted range is calculated in relation to the distance from the offset value.
Example:
Offset ( zero point )
0mV
Calibration point 1
600 mV
Calibration point 2
-
600 mV
Accepted slope is ±10% from ideal slope. The deviation is calculated according to:
∆mV600 = 600 - 0 = 600, which gives max deviation = ±10 % of 600 = ±60 mV.
∆mV-600 = (-600) - 0 = (-600), which gives max deviation = ±10 % of (-600) = ±60 mV.
The accepted intervals in the example: calibration point 1 = 540 - 660 mV
calibration point 2 = (-660) - (-540) mV
Accepted limits for the offset value is (-100) - 100 mV
4.4 OPERATION
Measuring is started when the power supply is turned on. After an interruption off the measuring it can
be restarted by pressing =when the MEASURE diode is activated.
The display shows the actual value in the solution measured at the same time as the corresponding
mA-signal is sent to the output.
During the operation, the diode at MEASURE is activated.
4.5 CHANGING THE PARAMETER SETTINGS
All settings has to be confirmed with =to be saved. To leave the setting mode without saving the
settings: press M.
4.5.1 Changing the output range
1. Interrupt the measuring by pressing +and –at the same time until the measuring is
interrupted and the diode at CAL.1 is activated.
2. Press Muntil the diode at OUTPUT is activated. At the display: 0 - 20.
3. Choose between 0 - 20 and 4 - 20 mA with +.
4. Press =to confirm.
5. The display shows SPAn . Press =to confirm.
6. The display shows -1000 . Set the mV-value corresponding to 0 (alt. 4) mA.
7. Press =to confirm. The display shows 1000 .
0
200 400 600 800 1000 -200-400
-600
-800
-1000
600 mV 600 mV
0
100
200
-400
300
100
100
-300
400
-200
m
V
-100
60
60
60
60
0
200
400
-800
600
-600
800
-400
m
V
-200

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 10 -
- Senast utskrivet 2006-10-27
11:39
8. Set the mV-value corresponding to 20 mA. Press =to confirm.
9. The diode at MEASURE is activated and the display shows Hold.
5. Press =to start the measurement.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 11 -
- Senast utskrivet 2006-10-27
11:39
5. MAINTENANCE
5.1 HARDWARE CHECK
A check of the hardware is necessary only if you suspect that there is something wrong with your
transmitter.
1. Disconnect the power supply.
2. Short-circuit the electrode input.
3. Connect a mA-meter to the REC-output.
4. Press Mand connect the power supply, keep Mpressed during 5 seconds until the four
upper diodes are activated.
5. The transmitter performs a self-test according to table 5.1.1
5.1.1 Hardware check
CH01 Test of LED on display All 4 LED-segments are activated
CH02 Test of function keys Press the keys one by one and the corresponding
sign is shown on the display
CH03 Test of output signal Press =. 20.00 is shown on the display at the
same time as the corresponding signal is sent to
the output. Press =.04.00 is shown on the
display at the same time as the corresponding
signal is sent to the output. Press =
CH04 test of diodes All the menu diodes are activated
The version number is shown, then the instrument starts to measure.
5.2 PRE-CALIBRATION
The transmitter is always pre-calibrated when delivered. Pre-calibration is only necessary when the
instrument has been shut of for a longer period.
1. Turn the power off.
2. Short-circuit the electrode input.
2. Press –and turn on the power supply. Keep the key pressed until the display shows
CAL1.
CAL1.CAL1.
CAL1. (10 seconds). Every second diode is activated.
3. Press =to continue.
4. On the display E0.00
E0.00E0.00
E0.00 during 5 sec.
5. The version number is shown during 5 sec.
6. The instrument returns to measuring mode, the measuring starts automatically.

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 12 -
- Senast utskrivet 2006-10-27
11:39
5.3 RESET OF DEFAULT SETTINGS
The settings are reset according to chapter 4.1.
1. Turn off the power supply.
2. Press +and turn on the power supply. Keep the key pressed until the display shows C
CC
C l
lll
r
rr
r
O
OO
O(10 seconds). The four lower diodes are activated.
3. Press =to continue.
4. The display shows the version number and then the measuring starts up.
6. TROUBLE SHOOTING
CODE INDICATES PROBABLE CAUSE CORRECTION
E-01 Buffer 1 - measured value > +
100 mV
or
the measured value exceeds
the upper interval limit
Faulty buffer solution
Old/bad electrode
Check the buffer solution
Replace the electrode
E-02 Buffer 1 - measured value < -
100 mV
or
the measured value exceeds
the lower interval limit
Faulty buffer solution
Old/bad electrode
Check the buffer solution
Replace the electrode

G:\Instruktioner\Instruktioner i W ord\1000TR\Engelska\1000TR mV Eng.doc
- 13 -
- Senast utskrivet 2006-10-27
11:39
7. SPECIFICATIONS
Instrument
Version
Dimensions 186x131x103
Weight Ca 1,0 kg
Max length , electrode cable 10 meters
Display Four 7-segment LED
Keyboard 4 push buttons
Connections Terminals
Power supply 230 VAC, 50 Hz
Backup > 10 years
Range, mV ±1000 mV
Accuracy, mV ±1 mV
Resolution, mV ±1 mV
Offset Range ± 100 mV, steps 0.1 mV
Slope ±10%
Calibration 1, 2 or 3 points
Input mV-inp z = 1012 Ω
Outputs
Output 0 - 20 mA / 4 - 20 mA ( ±1% )
Max load, output 270 Ω
