Elmdene POE-MINIPOD User manual

Technical Support Line [phone] (Option 3) POE-MINIPOD PAK200793_01A Nov 2016© 2016 Elmdene International Ltd
POE-MINIPOD
BATTERY BACKED UP POESOURCE
FEATURES
The Elmdene POE-MINIPOD is a unique PoE+ powered device that can charge a 12V 7Ah battery whilst
continuing to provide a PoE compliant output (up to 14W) to the PoE Powered Device (PD). If the PoE
power being provided to the input fails, the battery seamlessly takes over continuing to provide PoE to the
device for up to 4 hours
Housed in steel IP66 rated enclosure
Installer friendly IP66 rated external cable glands offer plug and play solution
Powered remotely by PoE+ (PoE 802.3at)
Provides up to 14W to PD whilst charging the battery
Houses industry standard 12V 7Ah SLA battery
Deep Discharge protection
Fault Output
SPECIFICATION
Input Specification
PoE+
PoE802.3at
Power Pin Assignment
4/5(+), 7/8(-)
Output Specification
PoE+
PoE802.3at (16W max with battery charging)
Power Pin Assignment
4/5(+), 7/8(-)
Standby Battery
Battery Type (not supplied)
12V 7Ah Valve Regulated Lead Acid
Battery Charging Fuse protection
F1.25A
Mechanical
Dimensions
w x h x d (mm)
200 x 230 x 80
Battery Capacity
1 x NP7 (8Ah)
Weight (kg)
2.0
Enclosure Material
1.2mm steel grey powder coated
Environmental
Temperature -10 to +40°C (operating) 75% RH non-condensing
Elmdene International Ltd Tel: [phone]
3 Keel Close, Interchange Park, Fax: [phone]
Portsmouth, Hampshire, PO3 5QD, UK Web: www.elmdene.co.uk

Technical Support Line [phone] (Option 3) POE-MINIPOD PAK200793_01A Nov 2016© 2016 Elmdene International Ltd
CONNECTIONS
INPUT PoE802.3at connection from PoE+ source
OUTPUT PoE802.3at connection to PD
FAULT: Relay output for PoE+ fail. Open if loss of PoE+.
BATT +, - Connection to standby battery. Use cables provided (Observe polarity)
INSTALLATION INSTRUCTIONS
This unit is only suitable for installation as permanently connected equipment. This PSU is SUITABLE for external
installation. This unit must be fed from a PoE802.3at power source.
Mounting
1) Mount securely in correct orientation (RJ45 glands facing downwards) using the wall brackets provided
Power Up
2) Attach suitable cable from PoE+ source to INPUT RJ45 connector
3) Attach suitable cable between PD and OUTPUT RJ45 connector
4) Connect charged 12V 7Ah VRLA battery using cables provided
NOTE: ensure correct polarity of battery connections: +ve use Red lead, -ve use Black lead.
5) Observe RED LED is ON when PoE+ is present
6) Observe PD indicates power is present
7) Remove INPUT cable from POE-MINIPOD and observe PD continues to indicate power is present
8) Reconnect INPUT cable
Signalling
9) Connect fault output to appropriate inputs of Control and Indicating Equipment (CIE) if required.
10) Close cover and secure using fastening key provided.

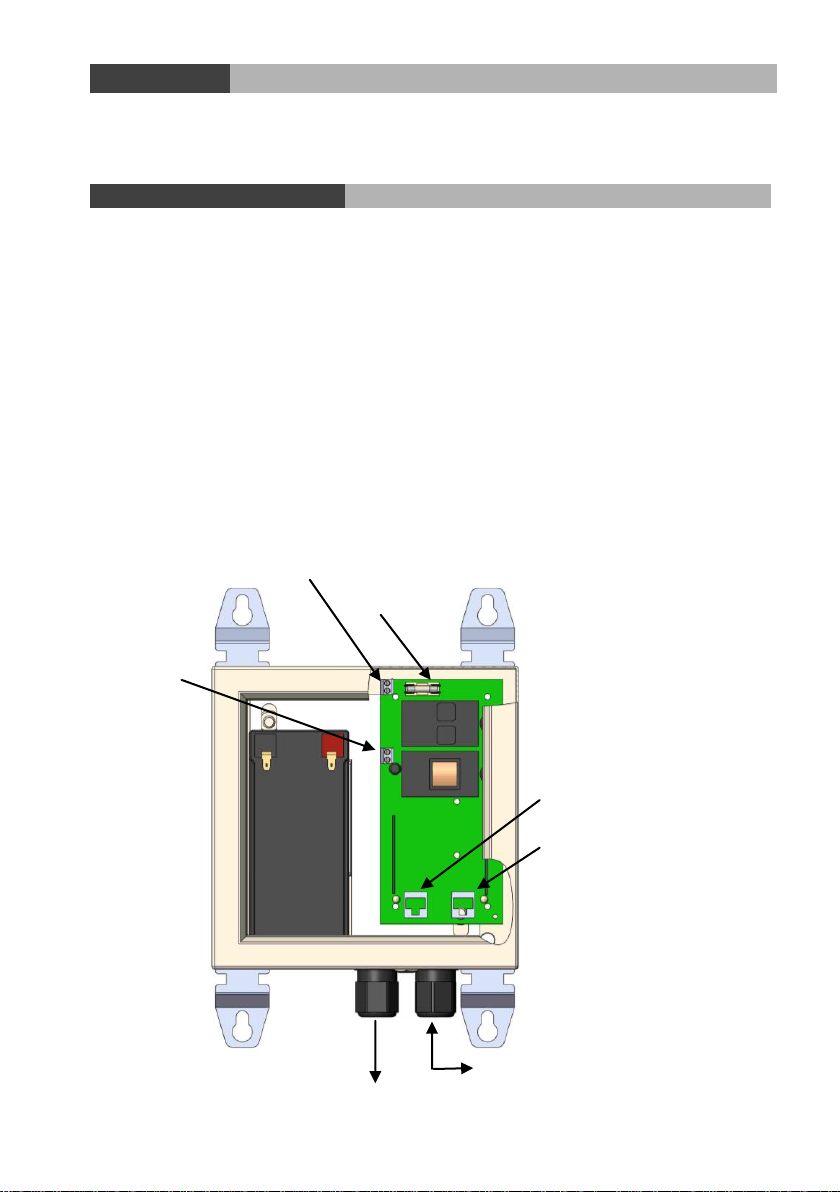

To PD
e.g. PoE Camera
To Switch / PoE+ source
Fuse
Battery connection
+ve / -ve
Fault
Output
OUTPUT (pre-wired)
INPUT (pre-wired)

Technical Support Line [phone] (Option 3) POE-MINIPOD PAK200793_01A Nov 2016© 2016 Elmdene International Ltd
OPERATING INSTRUCTIONS
In the event of loss of PoE+ to the PoE-MINIPOD, the Fault signal contacts will open and the POE-MINIPOD will continue
to deliver up to 14W PoE802.3at for up to 4 hours (dependant on charge state or capacity of battery)
If the output of the POE-MINIPOD fails, the cause of the failure should be investigated e.g. short circuit load, connection
of a deeply discharged battery. The fault should be rectified before restoring power to the POE-MINIPOD. If any of the
fuses require replacing, ensure the correct fuse rating and type is used.
MAINTENANCE
This unit is intended for use by Service Personnel only. There are NO USER SERVICEABLE parts inside.
There is no regular maintenance required of the POE-MINIPOD other than periodic testing, and replacement of the
standby battery. Reference should be made to the battery manufacturer's documentation to determine
typical/expected battery life with a view to periodic replacement of the battery.
COMPLIANCE
This power supply unit meets the essential requirements of the following European Directives:
Low Voltage 2014/35/EU
EMC 2014/30/EU
WEEE 2012/19/EU
RoHs2 2011/65/EU
DISPOSAL OF PRODUCT AT END OF LIFE
This product falls within the scope of EU Directives 2012/19/EU Waste Electrical and Electronic
Equipment (WEEE) and 2013/56/EU (Battery). At the end of life, the product must be separated from
the domestic waste stream and disposed via an appropriate approved WEEE disposal route in
accordance with all national and local regulations.
Before disposal of the product, any batteries must be removed, and disposed separately via an
appropriate approved battery disposal route in accordance with all national and local regulations.
Package used batteries safely for onward transport to your supplier, collection point or disposal facility.
Caution: Risk of fire or explosion
if bare battery wires are allowed to touch.
See Specification for battery type information. The battery is marked with the crossed out wheelie bin
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For more information see: www.recyclethis.info
The packaging supplied with this product may be recycled.
Please dispose of packaging accordingly.
