Elmo TT-02RX Setup guide

With Interactive Whiteboard
USB
RGB OUT
To projector
RGB IN
To computer
USB
To computer
Plug-in for
AC adaptor
VIDEO OUT To TV monitor
Rear
panel
1Configure
your classroom
Basic Configuration
Install Image
Mate software
AC plugs
AC plugs
RGB cable
With Computer
Power on the TT-02RX,
Zoom and Focus
Press the Auto-focus button to focus
after zooming.
Twist the zoom knob to zoom in/out
2
LED light
Use as necessary
Rotate
Rotate the camera
column close to a
small object, turn
the camera head
horizontally to view
students giving a
presentation,
speech, etc.
3
4Capture and Review
QUICK TRAINING GUIDE: TT-02RX
1
Power
Adjust
brightness
C. Review saved images
View the
live image
View computer
desktop
Capture the image
of worksheets,
student work, etc.
and save them on
the SD card.
Quickly and easily
review later during
class by pressing
the SD button.
Pause the camera image.
Press again to unfreeze.
Menu (see page 2)
A. Insert SD card
B. Capture image
ResolutionFuture accessory

Zoom
Power
Adjust brightness
View images/videos
from SD card
Take a picture and
save to SD card
View computer desktop
Picture–in-Picture Compare the live image to
the paused image.
Auto-focus: Press after zooming
The Highlight allows you to emphasize a specific
area of the image. Move the highlight using arrow
buttons [▲][►][▼][◄].
The Mask feature lets you to hide the answer
to a written problem or following along when
reading text, etc. To move the mask, use
[▲][►][▼][◄].
Press the Scroll to zoom instantly then use
[▲][►][▼][◄] to scroll around your image.

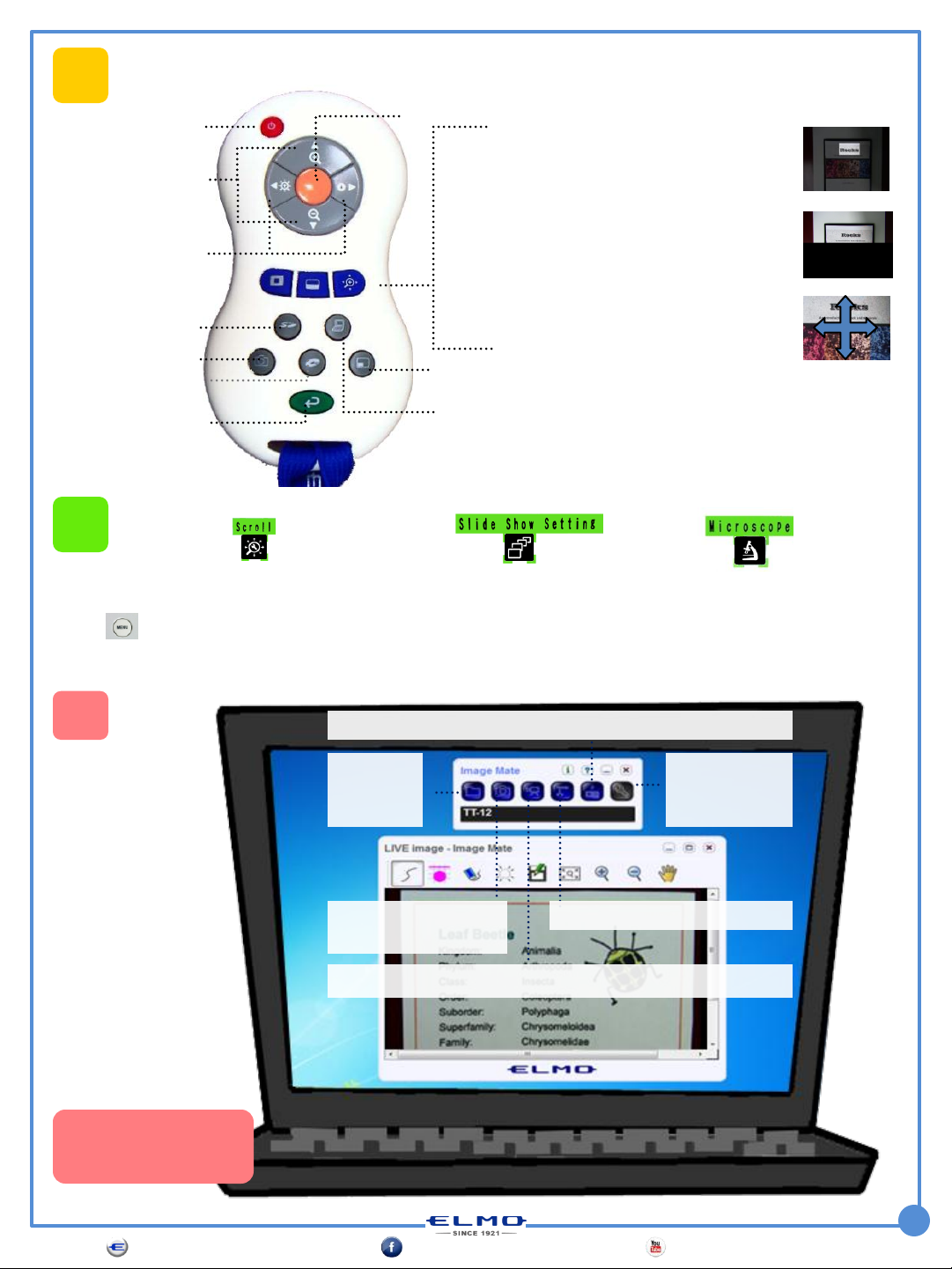

5Control the TT-02RX from anywhere in the classroom
2
7
Connect the TT-02RX
to a computer and
install Image Mate to
save images and
videos to the
computer. You can
also annotate on the
live image and record
time-lapse
photography (set
interval time in
Settings before
beginning time-lapse)
Take a picture
and save to computer
Record video and time-lapse photography
Remote to control the document camera from the desktop
Open
previously
saved files
View live image
Select the time-
lapse interval,
file format, etc.
Additional
Menu features
6
Return to live image
Install
Image Mate
software
www.elmousa.com 1-800-947-ELMO www.facebook.com/ElmoClassrooms www.youtube.com/ElmoCams
Future accessory
Connect your microscope
using the provided adaptor
and set to Microscope mode
to view slides. Zoom, capture
images and record video.
Preset the scroll to 2X, 3X,
or 4X zoom. You can quickly
zoom and scroll around the
image by pressing Scroll on
the remote.
Press [SD card] then [Menu]
Start a slideshow of the images
from your SD card. Choose the
interval time, order, and which
images to play, etc.
Download Image Mate at
http://www.elmousa.com/
support/101
Press to see
all features
