Elmo Dome Camera TND4104X User manual

DOME CAMERA
INSTRUCTION MANUAL
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
TND4104X
INFORMATION
This equipment has been tested and found
to comply with the limits for Class A digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his
own expense.
USER-INSTALLER CAUTION: Your
authority to operate this FCC verified
equipment could be voided if you make
changes or modifications not expressly
approved by the party responsible for
compliance to Part of the FCC Rules.
CAUTION
•Do not use any power supply other than
specified.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
* The CAUTION label is attached on the
bottom of camera.

1
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturer's
instructions.
8. Do not install near heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Only use attachment/accessories specified by the manufacturer.
10. Unplug this apparatus during lighting storms or when unused for long periods of time.
11. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have been fallen onto the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

2

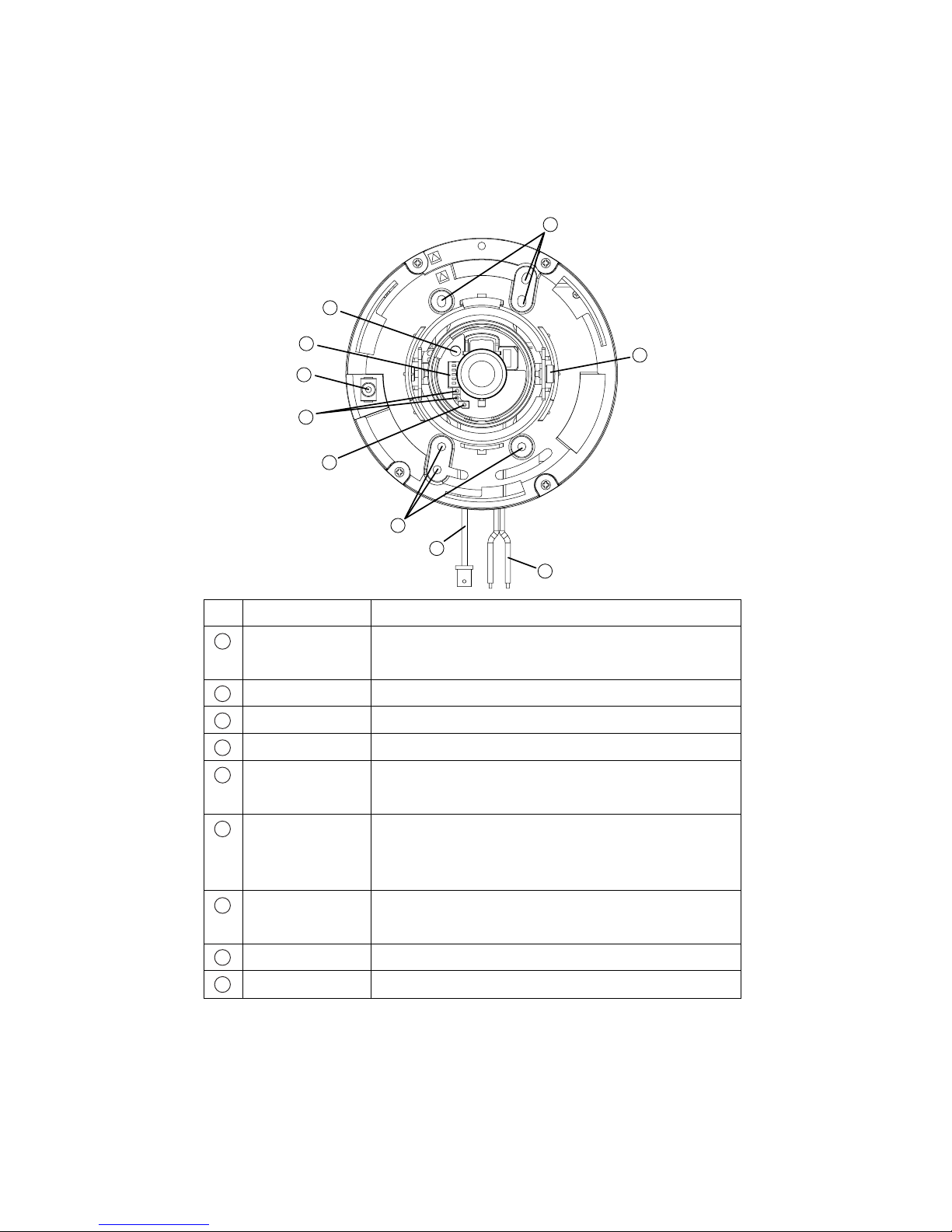

No. Name Function
Name and Function of Each part
1
2
3
4
5
The main body of the camera section.
For adjusting the image size.
For adjusting the focus.
Protective cover for the lens.
Protective cover for the main body.
Main body
Zoom ring
Focus ring
Cover lens
Dome cover main body
6
5
3
2
1

3
For fixing the main body with screws.
Used when the white balance is in the PUSH mode.
For setting the vertical sync. phase.
For adjusting the brightness of the image.
For locking the tilt after adjusting the image up/down
direction.
Connect this to output images. When adjusting the image
shooting direction, field angle or focus (in wiring work, for
example), connect a monitor TV, etc.
Image output terminal to be connected to the image input
terminal such as monitor TV.
Connect this to the AC24V 60Hz or DC12V power supply.
Refer to P4.[Selector Switch (Details)]
No.
7
8
9
6
6
12
10
11
13
14
Name Function
Screw hole for
mounting main body
AW PUSH
DOWN/UP
ALC adjustment volume
Tilt lock screw
Monitor terminal
BNC cable
AC/DC power cord
Selector switch
14
13
12
11
10
9
8
7
6

4

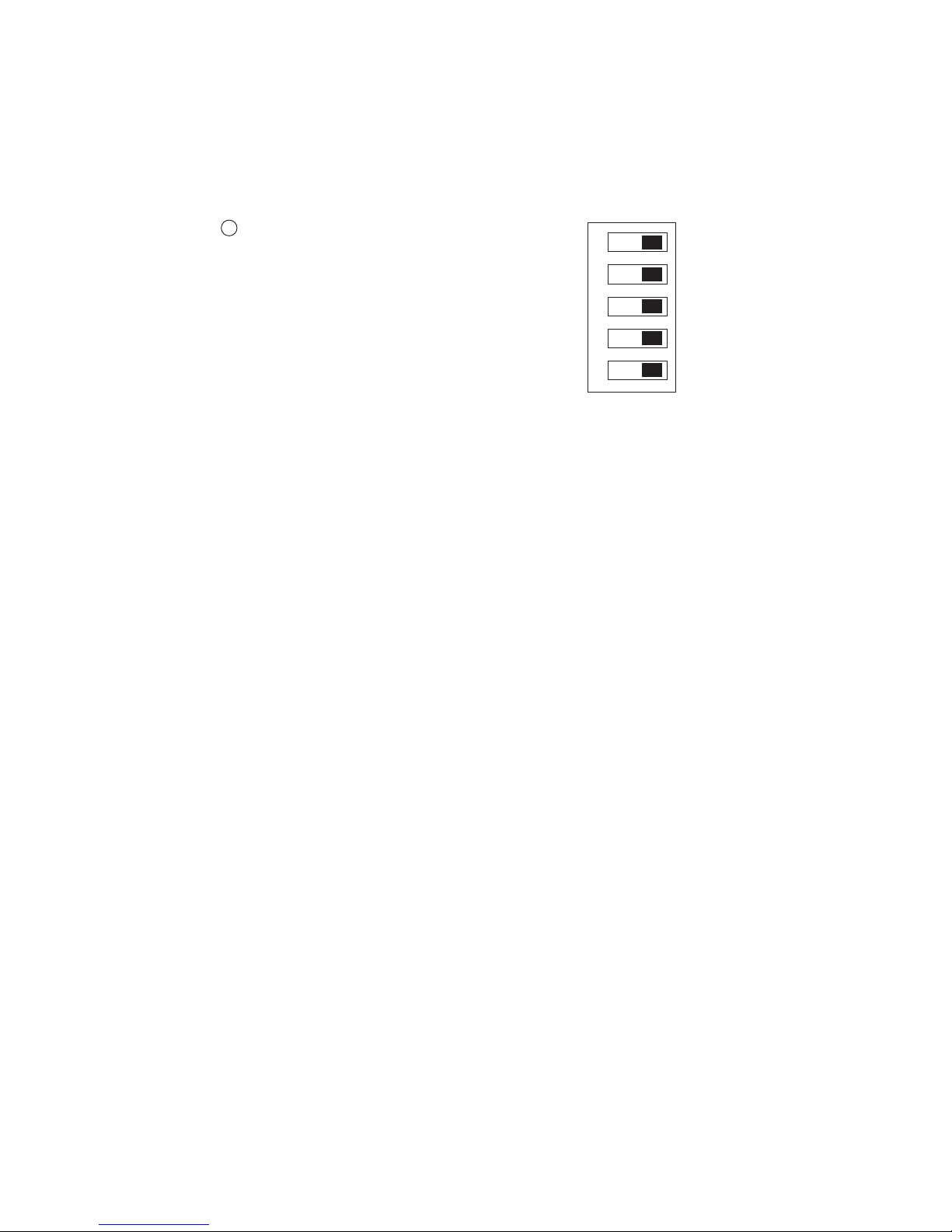

Selector switch (Details)
1.SENS UP switch
To set the max. value (upper limit value) of the
operating gain in the auto gain control circuit, set this
switch to ON position. In case the back lighting is too
dark and the camera sensitivity is insufficient, set this
switch to ON position.
2. BLC (Back Light Control) switch
In case the back lighting is too bright to shoot the
main object clearly, set this switch to ON position.
3. INT/LL switch(Set at LL position from the factory)
a. INT. (internal) control switch
When the internal synchronization is used, set the switch to the INT side.
b. L.L. (Line-lock) control switch
Matching the vertical synchronization with the power frequency is called the
line-lock.
When two or more cameras are connected to a monitor TV through a video
switcher, the vertical sync. phase can be locked with the power frequency, and
a stable vertical sync. is obtained without being disturbed at the time of
switching. Line-Lock is operative only when the AC24V 60Hz power supply is
connected.
Use Down/up Buttons to adjust the vertical sync. phase.
4. PUSH/ATW switch
This is the switch to select the white balance PUSH/ATW.
PUSH: When the lighting from the source is constant, it is possible to fix the AW
setting.
Place something white (paper, etc.) in front of the lens in a way that the
whole screen may be covered, then push the AW PUSH switch. At this
moment the setting is saved and retained even after the power is turned
OFF.
ATW: The camera automatically adjusts the white balance as it continuously
measures the color temperature of the lighting source.
5. 1/100s
When this switch is turned ON, the shutter speed is set to 1/100 second. It is
effective in reducing the light intensity.
Caution:
When this switch is turned ON, AES does not operate.
14
5
4
3
2
1
1/100S
PUSH/ATW
INT/LL
BLC
SENS UP
ON OFF
(This figure shows the setting
before shipment from our factory.)

5
How to Install

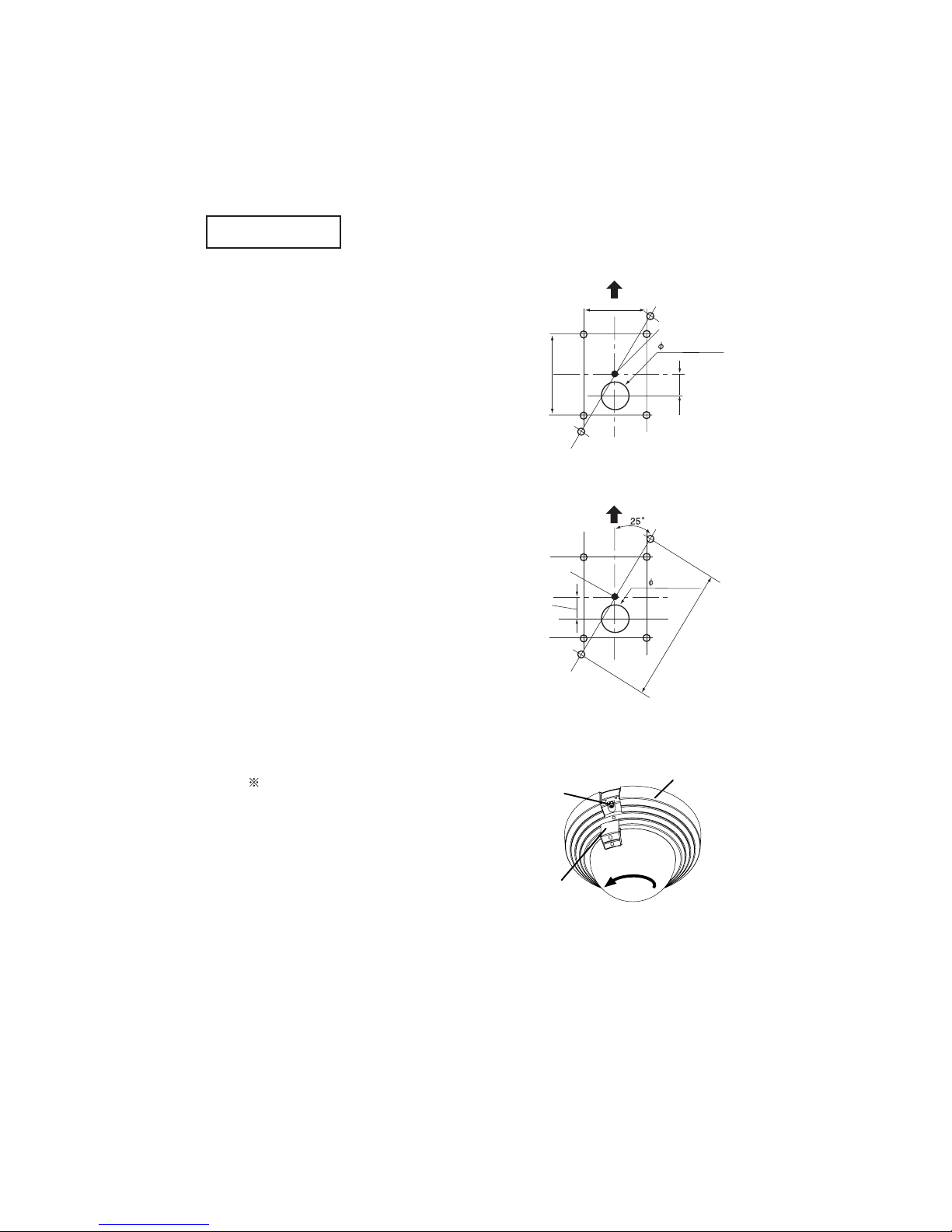

1. Make holes in the mounting surface.
(Fig. 1)(Fig. 2)
2. Unscrew the dome cover screw and dome
cover main body mount screw (Fig. 3).
Be careful not to drop any of the dome
cover screw and dome cover main
body mount screw.
3. Remove the dome cover main body by
turning it counterclockwise (arrow
direction) (Fig. 3).
83.5mm(3.29inch)
46mm(1.81inch)
Center of camera
10mm(0.39inch)
20mm(0.79inch)
Dome cover
main body
mount screw
Dome cover
main body
Dome cover
screw
Ceiling/wall/box (Fig. 1)
10mm(0.39inch)
Center of
camera
121.2mm(4.77inch)
20mm(0.79inch)
Gang box (Fig. 2)
(Fig.3)
Front of camera
Front of camera

6
4. Fasten the main body to the ceiling/wall
surface/box with a main body mount
screw (Figs. 4).
Make sure that it is fixed firmly.
Make sure of the position of the front
of the camera.

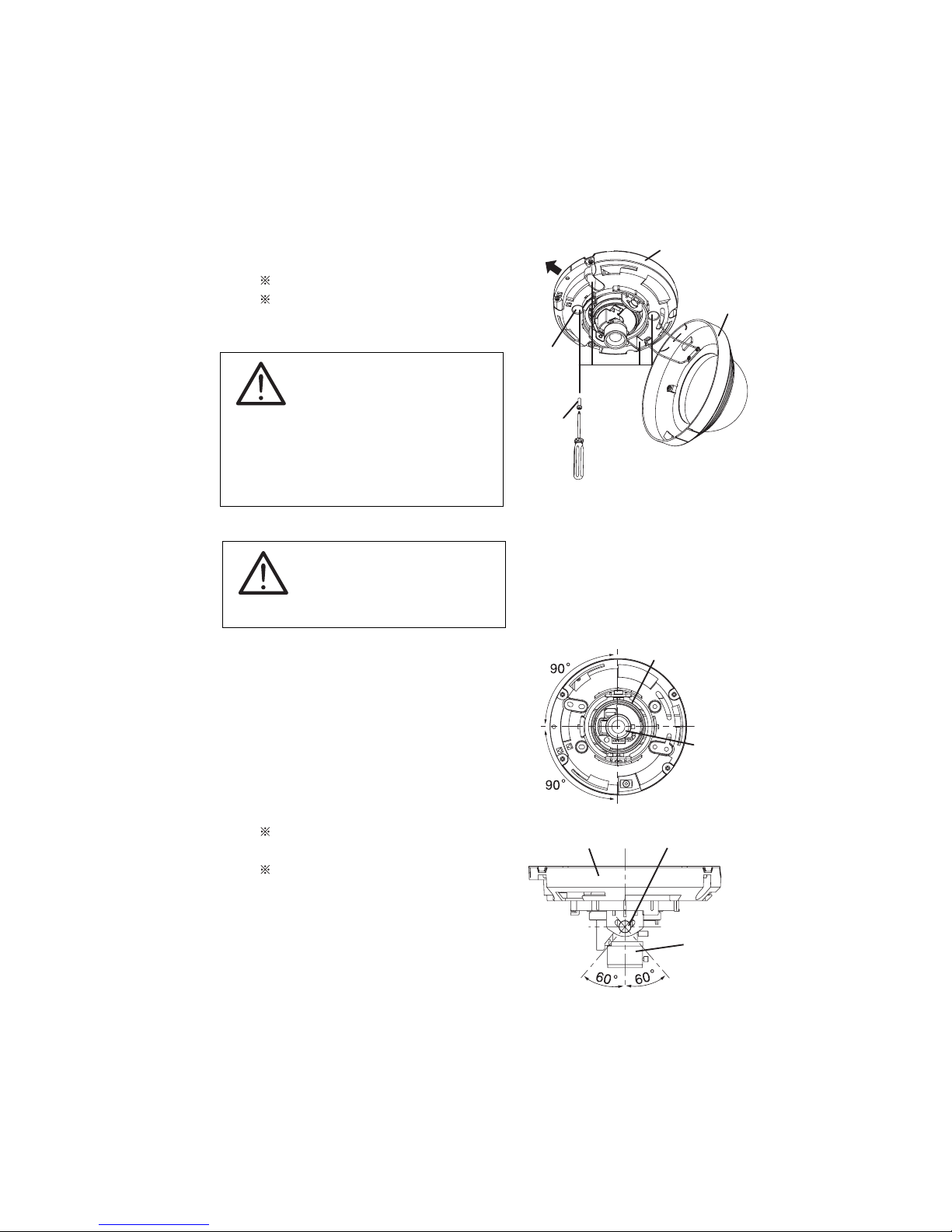

5. While watching the monitor, adjust the
image direction.
· Right/left direction (Fig.5)
Rotate the base pan to right or left, and
adjust the right/left direction.
· Up/down direction (Fig.6)
Loosen the tilt lock screw, and adjust
up/down direction.
After setting the up/down direction,
fasten the tilt lock screw.
Be careful not to drop the tilt lock
screw.
Manually fasten the tilt lock screw.
If fastened with pliers or the like, the
tilt lock screw may be broken.
(Fig.4)
Main body
Dome cover
main body
Screw hole
for mounting
main body
Base pan
Lens
(Fig.5)
Warning
Weight of the main body and
mounting metal piece is 650 g.
Make sure that the ceiling or wall
is strong enough to support the
weight of the main body and
mounting metal piece
altogether.If not strong enough,
the device may drop and injure
the personnel around.
Caution
Please do not hold a part of the
lens, when adjusting the image
direction. It may cause a
breakdown of the lens.
Tilt lock screw
(Fig.6)
Main body
Main body
mount screw
(not attached)
Front of camera
Lens

7

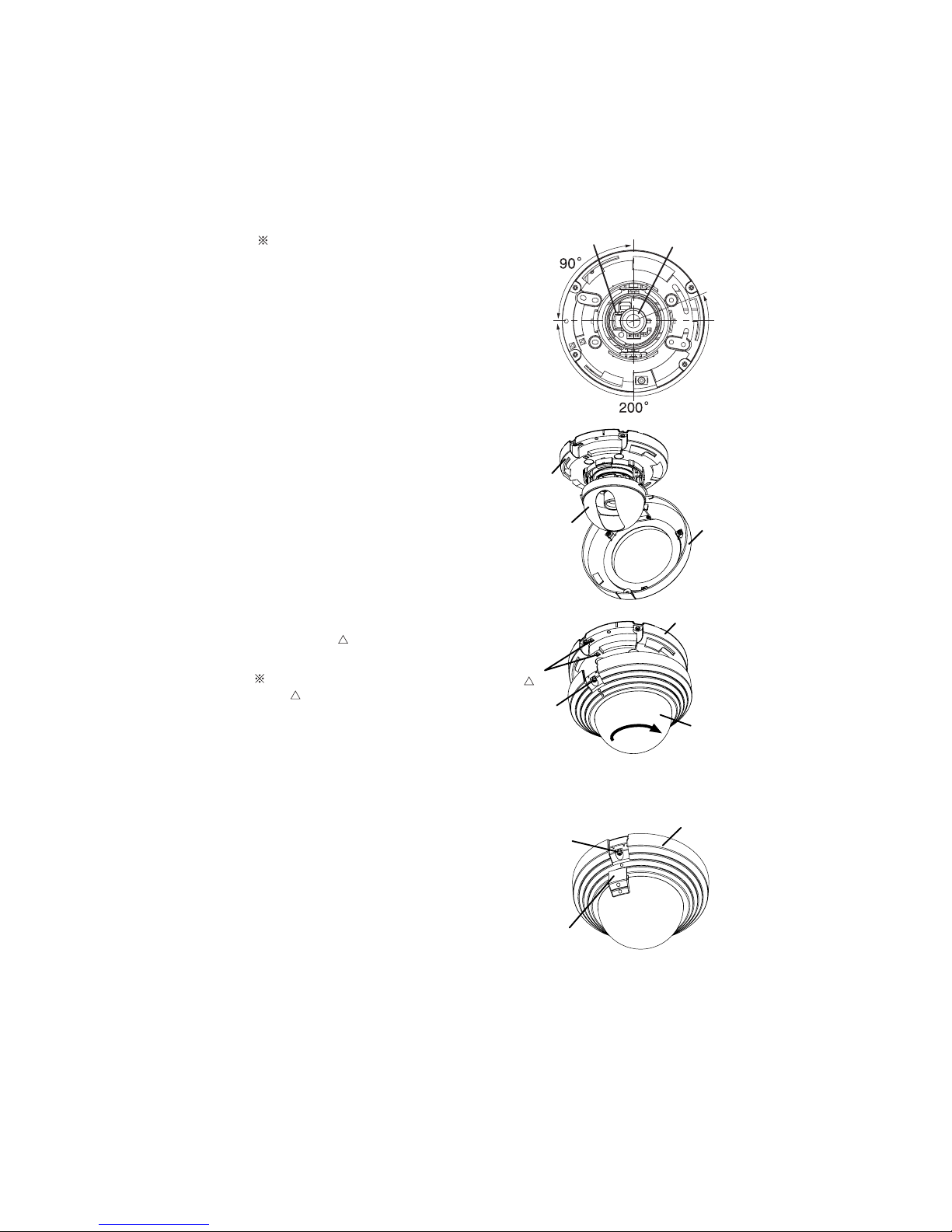

6. Correct the tilting of the image (Fig. 7).
Be sure to hold the cover motor.
7. Install the cover lens (Fig. 8).
8. Mount the dome cover main body by
matching the dome cover main body mount
screw with the mark on the main body and
turning it clockwise (arrow direction) (Fig. 9).
If the mount screw does not match with
the mark, the dome cover main body
cannot be installed.
9. Fasten the dome cover main body mount
screw, then cover screw (Fig. 10).
Cover motor Lens
(Fig.7)
(Fig.8)
(Fig.9)
Cover
lens
Main
body
Dome
cover
mainbody
Main body
mark
Dome
cover
main body
mount screw
(Fig.10)
Dome cover
main body
mount screw
Cover
screw
Dome
cover
main body
Dome
cover
main body

8
When any failure is suspected
Symptoms
Image is not displayed.
Color is not correct.
Image is disarrayed.
Check here.
Are cables connected correctly?
Are the power plugs of peripheral units inserted correctly
into the receptacles?
Is the video monitor adjusted correctly?
Is any connector of this machine or video monitor loose or
contacted poorly?

9
162
(
6.38
)
9
2.8
(
3.65
)
101.6
(
4.00
)
Appearance
All dimensions in mm(inch)

10
Specifications
Power source
Power consumption
Image pick-up device
Effective picture element
Scanning area
Scanning system
Scanning frequency
Sync.system
Resolution
S/N ratio
Standard illumination
Lowest illumination
White balance
AGC
Backlight control (BLC)
Power
VIDEO OUT terminal
Lens
Angle of view
Dimensions
Weight
Ambient temperature
Ambient humidity
Accessory
AC24V(AC15V-27V) 60Hz 0.5Hz or
DC12V(DC11V-35V)
AC : Approx.2.5W or DC : Approx.2.8W
1/3" color interline-transfer CCD
768(H)X494(V)
4.88mm(H)X3.66mm(V)
2:1interlaced
LL : 15.75kHz (H), 60Hz (V)
INT : 15.734kHz (H), 59.94Hz (V)
AC : Line-lock/Internal (switchable)
DC : Internal
480TV lines(H) 350TV lines(V)
50dB
100lx (F1.6 under incandescent lamp)
0.6lx (F1.6 under incandescent lamp)
ATW/PUSH (switchable)
Built-in (SENS UP switchable)
Provided (switchable)
Power cable (Non-plug)
BNC cable output VBS 1.0V(p-p) 75
Varifocal lens F1.6 f=4~9mm
Horizontal 31.6 (TELE)~71.0 (WIDE)
Vertical 23.6 (TELE)~51.8 (WIDE)
Diameter : 162mm(6.38") Height : 92.8mm(3.65")
Approx. 650g(1.43lbs)
-10 ~50 (14 ~122 )
30%~90%
Instruction manual, Registration certification card
for monitoring camera, 2P Terminal block
Model TND4104X

11
6X1NSJA02 Printed on recycled paper
Printed in CHINA
ELMO (Europe) G.m.b.H.
Neanderstr. 18
40233 Dusseldorf,
Germany
Tel. [phone]
Fax. [phone]
E-mail:[email protected]
Web:http://www.elmo.de/
ELMO Mfg. Corp.
1478 Old Country Road,
Plainview, NY 11803-5034
U.S.A.
Tel. [phone]
Fax. [phone]
E-mail:[email protected]
Web:http://www.elmousa.com/
ELMO Canada Mfg. Corp.
44 West Drive, Brampton,
Ontario, L6T 3T6,
Canada
Tel. [phone]
Fax. [phone]
E-mail:[email protected]
Web:http://www.elmocanada.com/
ELMO CO., LTD. 6-14, Meizen-cho, Mizuho-ku,
Nagoya, 467-8567 Japan
E-mail : [email protected]
OVERSEAS SUBSIDIARY COMPANIES
and are registered trademarks of ELMO COMPANY, LIMITED.
