Elnec DATAMAN-48PRO2 User manual

User manual for
DATAMAN-448PRO2
Super fast universal 4x 48-pindrive concurrent multiprogramming system with ISP capability
DATAMAN-48PRO2
Super fast universal 48-pindrive Programmer with USB/LPT interface and ISP capability
DATAMAN-48PRO2C
Super fast universal 48-pindrive Programmer with USB interface and ISP capability
DATAMAN-40PRO
Universal 40-pindrive Programmer with USB interface and ISP capability
DATAMAN-MEMPRO
Universal memory Programmer
4
th
January 2013
1

COPYRIGHT ©2013
Dataman Programmers Ltd
This document is copyrighted by Dataman Programmers Ltd, United Kingdom. All rights reserved. This
document or any part of it may not be copied, reproduced or translated in any form or in any way without
the prior written permission of Dataman Programmers Ltd.
The control program is copyrighted by Dataman Programmers Ltd. The control program or any part of it
may not be analyzed, disassembled or modified in any form, on any medium, for any purpose.
Information provided in this manual is intended to be accurate at the moment of release, but we
continuously improve all our products. Please check for an updated manual on our website at
www.dataman.com.
Dataman Programmers Ltd assumes no responsibility for misuse of this manual.
Dataman Programmers Ltd reserves the right to make changes or improvements to the product described
in this manual at any time without notice. This manual contains names of companies, software products,
etc., which may be trademarks of their respective owners. Dataman Programmers Ltd respects those
trademarks.
ZLI-0305D
2

How to use this manual
This manual explains how to install the control program and how to use your programmer. It
is assumed that the user has some experience with PCs and installation of software. Once
you have installed the control program we recommend you consult the context sensitive
HELP within the control program rather than the printed User manual. Revisions are
implemented in the context sensitive help before the printed User manual.
_____________________________________
We continuously update our manual. You may find the latest version from our website
(www.dataman.com).
3

Table of contents
How to use this manual...................................................................................................................3
Introduction........................................................................................................................................7
Products configuration ....................................................................................................................9
PC requirements ...........................................................................................................................10
Free additional services: ...............................................................................................................11
Quick Start .......................................................................................................................................12
Detailed description ........................................................................................................................15
DATAMAN-448PRO2 .......................................................................................................................16
Introduction ...................................................................................................................................17
DATAMAN-448PRO2 elements....................................................................................................19
Manipulation with the programmed device ...................................................................................20
In-system serial programming by DATAMAN-448PRO2 ..............................................................20
Selftest ..........................................................................................................................................22
Technical specification..................................................................................................................23
DATAMAN-48PRO2 / DATAMAN-48PRO2C ..................................................................................29
Introduction ...................................................................................................................................30
DATAMAN-48PRO2 / DATAMAN-48PRO2C elements................................................................32
Connecting DATAMAN-48PRO2 / DATAMAN-48PRO2C to the PC ............................................33
Manipulation with the programmed device ...................................................................................34
In-system serial programming by DATAMAN-48PRO2 / DATAMAN-48PRO2C ..........................35
Multiprogramming by DATAMAN-48PRO2 / DATAMAN-48PRO2C............................................. 37
Selftest ..........................................................................................................................................37
Technical specification..................................................................................................................38
DATAMAN-40PRO ...........................................................................................................................44
Introduction ...................................................................................................................................45
DATAMAN-40PRO elements........................................................................................................46
Connecting DATAMAN-40PRO to PC ..........................................................................................47
Manipulation with the programmed device ...................................................................................47
In-system serial programming by DATAMAN-40PRO ..................................................................47
Selftest ..........................................................................................................................................49
Technical specification..................................................................................................................49
DATAMAN-MEMPRO .......................................................................................................................53
Introduction ...................................................................................................................................54
DATAMAN-MEMPRO elements ...................................................................................................55
Connecting DATAMAN-MEMPRO to PC......................................................................................56
Manipulation with the programmed device ...................................................................................56
Selftest ..........................................................................................................................................56
Technical specification..................................................................................................................57
Setup.................................................................................................................................................60
Software setup ..............................................................................................................................61
Hardware setup.............................................................................................................................67
PG4UW .............................................................................................................................................71
PG4UW-the programmer software ...............................................................................................72
File ................................................................................................................................................75
Buffer ............................................................................................................................................81
Device ...........................................................................................................................................89
Programmer ................................................................................................................................119
Options........................................................................................................................................123
Help.............................................................................................................................................135
4

PG4UWMC ..................................................................................................................................... 138
Common notes.............................................................................................................................. 148
Maintenance ............................................................................................................................... 149
Software ..................................................................................................................................... 150
Hardware .................................................................................................................................... 156
ISP (In-System Programming).................................................................................................... 156
Other........................................................................................................................................... 158
Troubleshooting and warranty .................................................................................................... 159
Troubleshooting.......................................................................................................................... 160
If you have an unsupported target device .................................................................................. 160
Warranty terms ........................................................................................................................... 161
5

Conventions used in the manual
References to the control program functions are in bold, e.g. Load, File, Device, etc.
References to control keys are written in brackets <>, e.g. <F1>.
Terminology used in the manual:
Device any kind of programmable integrated circuits or programmable devices
ZIF socket Zero Insertion Force socket used for insertion of target device
Buffer part of memory or disk, used for temporary data storage
Printer port type of PC port (parallel), which is primarily dedicated for printer
connection.
USB port type of PC port (serial), which is dedicated for connecting portable and
peripheral devices.
HEX data format format of data file, which may be read with standard text viewers; e.g.
byte 5AH is stored as characters '5' and 'A', which mean bytes 35H and
41H. One line of this HEX file (one record) contains start address and
data bytes. All records are secured with checksum.
6

Quick Start
Introduction
7

This user manual covers the following programmers: DATAMAN-448PRO2,
DATAMAN-48PRO2, DATAMAN-48PRO2C, DATAMAN-40PRO and DATAMAN-MEMPRO
DATAMAN-448PRO2 is a super fast universal 4x 48-pindrive concurrent
multiprogramming system designed for high volume production programming with minimal
operator effort. The chips are programmed at near theoretical maximum programming speed.
Using build-in in-circuit serial programming (ISP) connectors the programmer is able to
program ISP capable chips in-circuit.
DATAMAN-48PRO2 is a super fast universal USB/LPT interfaced universal programmer and
logic IC tester with 48 powerful pindrivers. Using build-in ISP connector the programmer is
able to program ISP capable chips in-circuit. This design allows easily add new devices to the
device list. DATAMAN-48PRO2 is a true universal and a true low cost programmer, providing
one of the best "value for money" in today's market.
DATAMAN-48PRO2C is a cost effective version of DATAMAN-48PRO2 programmer
(without some special devices and LPT port interface). If you need program some of the
mentioned devices, please take a look at DATAMAN-48PRO2 programmer.
DATAMAN-40PRO is a small, fast and powerful USB interfaced programmer of all kinds of
programmable devices. Using build-in in-circuit serial programming (ISP) connector the
programmer is able to program ISP capable chips in-circuit. It has design, which allows easily
add new devices to the device list.
DATAMAN-MEMPRO is a small, fast and powerful USB interfaced programmer for EPROM,
EEPROM, Flash EPROM, NVRAM, serial EEPROM and static RAM tester.
DATAMAN-MEMPRO can be upgraded to DATAMAN-40PRO.
All our programmers work with almost any IBM PC Pentium compatible or higher, portable or
desktop personal computers. Programmers use the USB port or parallel (printer) port of PC.
All programmers function flawlessly on Windows operating system (see section PC
requirement).
All programmers are driven by an easy-to-use, control program with pull-down menus, hot
keys and online help. Control program is common for all the above mentioned programmers.
Advanced design, including protection circuits, original brand components and careful
manufacturing allows us to provide a three year warranty for DATAMAN-448PRO2,
DATAMAN-48PRO2, DATAMAN-48PRO2C and DATAMAN-40PRO and one year warranty
for DATAMAN-MEMPRO on parts and labour for the programmers (limited 25,000 cycle
warranty on ZIF socket). This warranty terms are valid for customers, who purchase a
programmer directly from Dataman company. The warranty conditions of Dataman
distributors may be different and depending the law system or reseller’s warranty policy.
8

Quick Start
Products configuration
Before installing and using your programmer, please carefully check that your package
includes all next mentioned parts. If you find any discrepancy with respective parts list and/or
if any of these items are damaged, please contact your distributor immediately.
DATAMAN-448PRO2 DATAMAN-48PRO2 DATAMAN-48PRO2C DATAMAN-40PRO DATAMAN-MEMPRO
programmer
•••••
USB cable
•••••
LPT cable
- * - - -
ISP cable 4x
••••
power cordset
•••••
internal power supply
•••- -
external power supply
- - - ••
48 pins diagnostic POD – type I 1x
••- -
40 pins diagnostic POD – type I -
- - ••
Diagnostic POD for ISP connectors #2 1x
••- -
ZIF anti-dust cover 4x
••••
software CD
•••••
User manual
•••- -
Quick Guide
•••••
brochure Notes about ESD
•••••
antistatic set
•- -
vacuum handling tool kit
•- -
sticker register your programmer
•••••
shipping case
•••••
* optional accessories
9

PC requirements
Minimal PC requirements
2x DATAMAN-448PRO2 DATAMAN-448PRO2 DATAMAN-48PRO2 DATAMAN-48PRO2C DATAMAN-40PRO DATAMAN-MEMPRO
OS - Windows XP 2000 2000 2000 2000
CPU C2D 2,6GHz P4 P4 P4 P4
RAM [MB] 1000 512 256 256 256
free disk space [MB] 400 200 200 200 200
USB 2.0 high speed
••- - -
USB 1.1
- - •••
LPT
- - •- -
CDROM
•••••
Recommended PC requirements
2x DATAMAN-448PRO2 DATAMAN-448PRO2 DATAMAN-48PRO2 DATAMAN-48PRO2C DATAMAN-40PRO DATAMAN-MEMPRO
OS - Windows Win 7 Win 7 Win 7 Win 7 Win 7
CPU C2Quad C2D C2D C2D C2D
RAM [MB] 2000 1000 1000 512 512
free disk space [MB] 2000 1000 1000 1000 1000
USB 2.0 high speed
••••
2x USB 2.0 high
speed controllers
•
LPT IEEE1284
- - •- -
These PC requirements are valid for 2.84/11.2011 version of PG4UW. For other version see
Help / About control program.
10

Quick Start
If two programmers are to be connected to a single PC, then we strongly recommend to
connect each programmer to separate USB 2.0 High speed controller (USB EHCI). For more
information see "Hardware setup" chapter.
Free disk space requirement depends also on used IC device size and number of attached
programming sites. For large devices the required free space on disk will be approximately
1000MB + 2x Device size x number of programming sites attached to this PC.
Very easy indication, if your PC in hardware/software configuration is good enough for the
current software version and current situation with PG4UW/PG4UWMC, is to run Windows
task manager (Ctrl+Alt+Del) and see the performance folder. It have to be max. 80% of CPU
usage at full run of programming system.
Note: For convenience, we suggest that you use a supplementary multi I/O card to provide
an additional printer port (LPT2 for example), in order to avoid sharing the same LPT port
between printer and programmer.
Free additional services:
•free technical support (phone/fax/e-mail).
•free lifetime software update via Web site.
Free software updates are available from our
Internet address www.dataman.com.
11

Quick Start
12

Quick Start
Installing programmer hardware
•connect the USB (or LPT) port of programmer to a USB (or printer) port of PC using
supplied cable
•connect the connector of the power supply adapter to the programmer or turn on
programmer by switch
Installing the programmer software
Run the installation program from the CD (Setup.exe) and follow the on-screen instructions.
For the latest information about the programmer hardware and software release, please visit
our website www.dataman.com.
Run the control program
Double click on
After start, control program PG4UW automatically scans all existing ports and searches for
any connected DATAMAN programmer. Program PG4UW is common for some the
DATAMAN's programmers, hence PG4UW will try to find all supported programmers.
Menu File is used for source files manipulation, settings and viewing directory, changes
drives, changes start and finish address of buffer for loading and saving files and loading and
saving projects.
Menu Buffer is used for buffer manipulation, block operation, filling a part of buffer with string,
erasing, checksum and of course editing and viewing with other items (find and replace
string, printing...).
Menu Device is used for a work with selected programmable device: select, read, blank
check, program, verify, erase and setting of programming process, serialization and
associated file control.
Menu Programmer is used for work with programmer.
Menu Options is used to view and change various default settings.
Menu Help is used for view supported devices and programmers and information about
program version.
Programming a device
1. select device: click on
2. load data into buffer:
a) from file: click on
b) from device: insert device to ZIF and click on
3. insert target device to ZIF
13

4. check, if the device is blank: click on
5. program device: click on
6. additional verify of device: click on
14

Detailed description
Detailed description
15

DATAMAN-448PRO2
16

DATAMAN-448PRO2
Introduction
DATAMAN-448PRO2 is very fast universal 4x 48-pindrive concurrent multiprogramming
system designed for high volume production programming with minimal operator effort. The
chips are programmed at near theoretical maximum programming speed.
DATAMAN-448PRO2 consist of four independent isolated universal programming modules,
based on the DATAMAN-48PRO2 programmer hardware. Therefore the sockets can run
asynchronously (concurrent programming mode). Each programming module starts
programming at the moment the chip is detected to be inserted in the socket properly -
independently on the status of other programming modules. It result three programming
modules works while you replace the programmed chip at the fourth.
Modular construction of hardware - the programming modules works independently - allows
for continuing operation when a part of the circuit becomes inoperable. It also makes service
quick and easy.
Hands-free operation: asynchronous and concurrent operation allows a chip to begin
programming immediately upon insertion of a chip. The operator merely removes the finished
chip and inserts a new chip. Operator training is therefore minimized...
DATAMAN-448PRO2 support all kinds of types and silicon technologies of today and
tomorrow programmable devices without family-specific module. You can be sure the next
devices support require the software update and (if necessary) simple package converter
(programming adapter), therefore the ownership cost are minimized.
Using built-in in-circuit serial programming (ISP) connector, the programmer is able to
program ISP capable chips in circuit.
DATAMAN-448PRO2 provide very competitive price coupled with excellent hardware design
for reliable programming. It has probably best "value for money" programmer in this class.
DATAMAN-448PRO2 provide very fast programming due to high-speed FPGA driven
hardware and execution of time-critical routines inside of the programmer. It is at least so fast
than competitors in this category, for many chips much faster than most competitors. As a
result, when used in production this programmer waits for an operator, and not the other way
round.
DATAMAN-448PRO2 interfaces with the IBM PC/compatible, portable or desktop personal
computers through USB (2.0) port.
DATAMAN-448PRO2 provides a banana jack for ESD wrist straps connection to easy-to-
implement the ESD protection control and also other banana jack for earth wire.
FPGA based totally reconfigurable 48 powerful TTL pindrivers provide H/L/pull_up/pull_down
and read capability for each pin of socket. Advanced pindrivers incorporate high-quality high-
speed circuitry to deliver signals without overshoot or ground bounce for all supported
devices. Pin drivers operate down to 1.8V so you'll be ready to program the full range of
today's advanced low-voltage devices.
17

DATAMAN-448PRO2 performs on each programming module device insertion test (wrong
or backward position) and contact check (poor contact pin-to-socket) before it programs
each device. These capabilities, supported by overcurrent protection and signature-byte
check help prevent chip damage due to operator error.
DATAMAN-448PRO2 have the selftest capability, which allows run diagnostic part of
software to thoroughly check the health of the each programming module.
DATAMAN-448PRO2 have a built-in protection circuits for eliminate damage of programmer
and/or programmed device due to environment or operator failure. All ZIF socket pins of
DATAMAN-448PRO2 programmer are protected against ESD up to 15kV.
DATAMAN-448PRO2 perform programming verification at the marginal level of supply
voltage, which, obviously, improves programming yield, and guarantees long data retention.
Various socket converters are available to handle device in PLCC, SOIC, PSOP, SSOP,
TSOP, TSSOP, TQFP, QFN (MLF), SDIP, BGA and other packages.
DATAMAN-448PRO2 programmer is driven by an easy-to-use control program with pull-
down menu, hot keys and on-line help. Selecting of device is performed by its class, by
manufacturer or simply by typing a fragment of vendor name and/or part number.
Standard device-related commands (read, blank check, program, verify, erase) are boosted
by some test functions (insertion test, signature-byte check), and some special functions
(autoincrement, production mode - start immediately after insertion of chip into socket).
All known data formats are supported. Automatic file format detection and conversion during
load of file.
The rich-featured autoincrement function enables to assign individual serial numbers to
each programmed device - or simply increments a serial number, or the function enables to
read serial numbers or any programmed device identification signatures from a file.
The software also provides a lot of information about programmed device. As a special, the
drawings of all available packages, explanation of chip labeling (the meaning of prefixes
and suffixes at the chips) for each supported chip are provided.
The software provide full information for ISP implementation: Description of ISP connector
pins for currently selected chip, recommended target design around in-circuit programmed
chip and other necessary information.
The remote control feature allows PG4UW software to be flow controlled by other
application – either using .BAT file commands or using DLL file. For DATAMAN-448PRO2 is
remote control limited for ISP programming only.
Jam files of JEDEC standard JESD-71 are interpreted by Jam Player. Jam files are
generated by design software which is provided by manufacturer of respective programmable
device. Chips are programmed in ZIF or through ISP connector (IEEE 1149.1 Joint Test
Action Group (JTAG) interface).
18

DATAMAN-448PRO2
VME files are interpreted by VME Player. VME file is a compressed binary variation of SVF
file and contains high-level IEEE 1149.1 bus operations. VME files are generated by design
software which is provided by manufacturer of respective programmable device. Chips are
programmed in ZIF or through ISP connector (IEEE 1149.1 Joint Test Action Group (JTAG)
interface).
Multiple devices are possible to program and test via JTAG chain: JTAG chain (ISP-Jam) or
JTAG chain (ISP-VME).
It is important to remember that in most cases new devices require only a software update
due to the DATAMAN-448PRO2 is truly universal programmer. With our prompt service you
can have new devices can be added to the current list within hours!
Advanced design including protection circuits, original brand components and careful
manufacturing and burning allows us to provide a three-year warranty on parts and labor for
the DATAMAN-448PRO2 (limited 25,000-cycle warranty on ZIF socket).

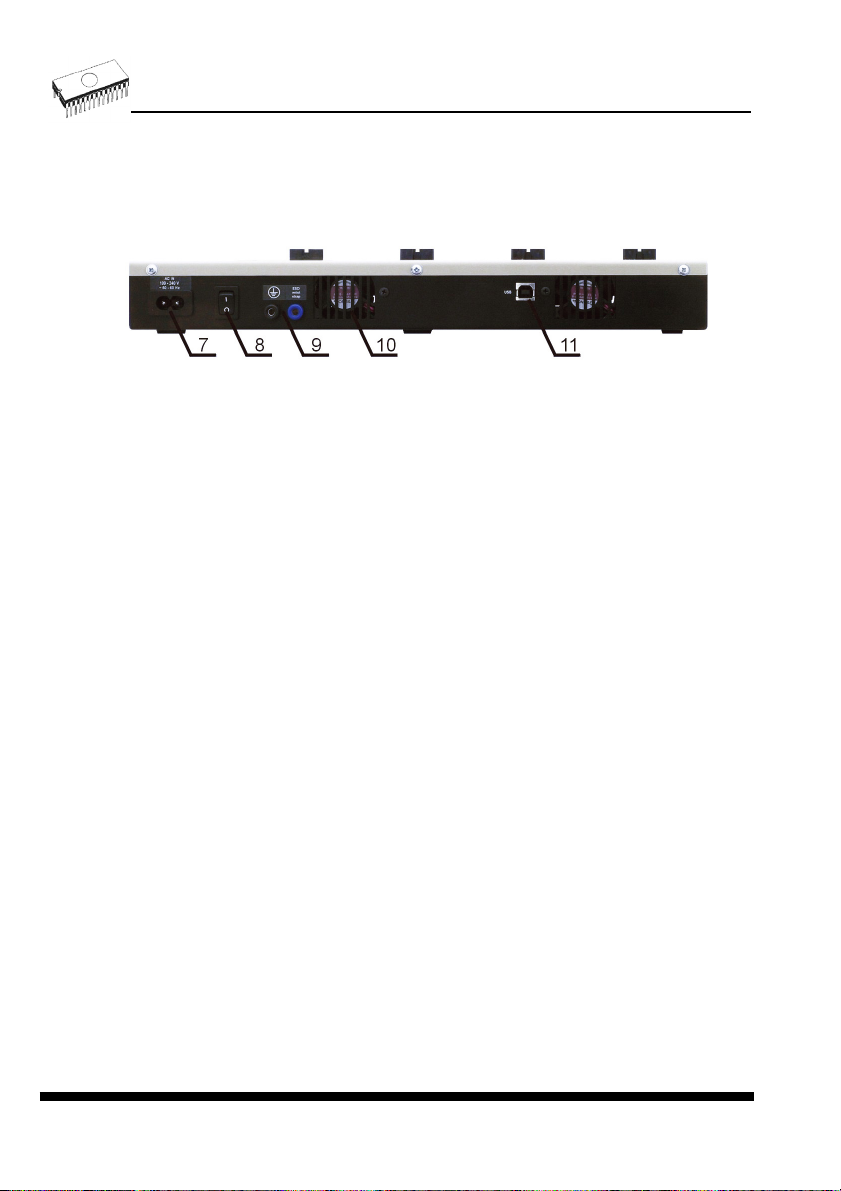

DATAMAN-448PRO2 elements
1) 48 pin ZIF socket
2) work result LEDs
3) power/sleep LED of site
4) YES! Button
5) ISP connector
6) LED indicator power
19

7) power supply connector
8) power switch
9) "GND" connector can be used for grounding of the programmer
"ESD wrist strap" connector is place for attaching of ESD wrist strap
10) temperature controlled fans
11) type B USB connector for PC ↔DATAMAN-448PRO2 communication cable
Manipulation with the programmed device
After selection of desired device for your work, you can insert it into the open ZIF socket (the
lever is up) and close socket (the lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket on the programmer's cover. The
programmed device is necessary to insert into the socket also to remove from the socket
when LED BUSY light off.
Note: Programmer's protection electronics protect the target device and the programmer
itself against either short or long-term power failures and, partly, also against a PC failure.
However, it is not possible to grant the integrity of the target device due to incorrect, user-
selected programming parameters. Target device may be not destroyed by forced interruption
of the control program (reset or switch-off PC), by removing the physical connection to the
programmer, but the content of actually programmed cell may remains undefined. Don't
unplug the target device from the ZIF socket during work with devices (LED BUSY shine).
In-system serial programming by
DATAMAN-448PRO2
Optimized advanced pindriver deliver programming performance without overshoot or ground
bounce for all device technologies. Pin drivers operate down to 1.8V so you'll be ready to
program the full range of today's advanced low- voltage devices.
The ISP programming solution performs programming verification at the marginal level of
supply voltage, which, obviously, improves programming yield, and guarantees long data
retention.
The ISP programming solution provides also the power supply for the target system.
The software provide full information for ISP implementation: Description of ISP connector
pins for currently selected chip, recommended target design around in-circuit programmed
chip and other necessary information.
20
