ECS B250H4-M20 User manual

Version:1.0
B250H4-M20

B250H4-M20 USER MANUAL
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. The manufacturer reserves the right to revise this publica-
tion and to make changes from time to time in the content hereof without obligation
of the manufacturer to notify any person of such revision or changes.
TrademarkRecognition
Windows®7/8/10 are registered trademarks of Microsoft Corp.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
FederalCommunicationsCommission(FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits govern-
ing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.

ii
B250H4-M20 USER MANUAL
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference
that may cause undesired operation.
CanadianDepartmentofCommunications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouilieur du Canada.
The manual consists of the following:
Describes features of the
motherboard.
page 1
Describes installation of
motherboard components.
page 7
page 27
page 59
Installing the Motherboard
Introducing the Motherboard
Provides information on
using the BIOS Setup Utility.
Describes the motherboard
software.
AbouttheManual
This device is in conformity with the following EC/EMC directives:
Chapter 4
Chapter 1
Chapter 2
Chapter 3
Using BIOS
Using the Motherboard Software
Chapter 5
Trouble Shooting
Provides basic trouble
shooting tips.
page 63

Electromagnetic compatibility of multimedia equipment - Emission
requirements
EN 55032
EN 61000-3-2 Electromagnetic Compatibility(EMC)
Part 3-2: Limits-Limits for harmonic current emissions (equipment input
current 16A per phase)
EN 61000-3-3 Electromagnetic Compatibility(EMC)
Part 3-3: Limits-Limitation of voltage changes, voltage fluctuations and flicker
in public low-voltage supply systems, for equipment with rated current 16A
per phase and not subject to conditional connection
EN 55024 Information technology equipment-Immunity characteristics-Limits and
methods of measurement
EN 60950 Safety for information technology equipment including electrical business
equipment
CE marking







iii
B250H4-M20 USER MANUAL
Chapter 2 7
Installing the Motherboard 7
Safety Precautions.............................................................................7
Installing the Motherboard in a Chassis......................................7
Checking Jumper Settings.................................................................8
Installing Hardware..................................................................9
Installing the Processor.............................................................9
Installing the CPU Cooler.........................................................11
Installing Memory Modules....................................................12
Installing Add-on Cards...........................................................13
Connecting Optional Devices..................................................16
Installing a SATA Hard Drive...................................................21
Connecting Case Components.......................................................22
Front Panel Header.................................................................24
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...................................................................................1
Pakage Contents............................................................................1
Specifications................................................................................2
Motherboard Components..........................................................4
I/O Ports..............................................................................................6
Chapter 3 27
Using BIOS 27
About the Setup Utility................................................................27
The Standard Configuration....................................................27
Entering the Setup Utility........................................................27
Resetting the Default CMOS Values.....................................28
Using BIOS........................................................................................29
BIOS Navigation Keys..............................................................29
Main Menu.............................................................................31
Advanced Menu......................................................................32
Chipset Menu..........................................................................44
Tweak Menu............................................................................51
Security Menu..........................................................................54
Boot Menu...............................................................................55
Exit Menu................................................................................56

iv
B250H4-M20 USER MANUAL
Chapter 4 59
Using the Motherboard Software 59
Auto-installing under Windows 10/8.x..........................................59
Running Setup.........................................................................59
Manual Installation..........................................................................61
ECS Utility Software (Intelligent EZ Utility).....................................61
Chapter 5 63
Trouble Shooting 63
Start up problems during assembly..............................................63
Start up problems after prolong use............................................64
Maintenance and care tips..............................................................64
Basic Troubleshooting Flowchart...................................................65
Updating the BIOS.............................................................................57

1
B250H4-M20 USER MANUAL
Chapter1
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the B250H4-M20 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1151
socket for Intel®Kabylake/Skylake processor.
This motherboard is based on Intel®B250 Express Chipset for best desktop platform
solution. It supports up to 32 GB of system memory with dual channel DDR4 2400/
2133 MHz. One PCI Express x16 Gen3 slot and one PCI Express x1 Gen3 slot are
suported, intended for Graphics Interface. In addition, one M.2 slot is for extending
usage.
It integrates USB 2.0 and USB 3.0 interface, supporting up to six USB 2.0 ports (two
USB 2.0 ports at the rear panel, and two USB 2.0 headers support additional four USB
2.0 ports) and six USB 3.0 ports (four USB 3.0 ports at the rear panel and one USB 3.0
header supports additional two USB 3.0 ports).
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including one PS/2 mouse connector, one PS/2 keyboard connector, one HDMI port,
one VGA port, four USB 3.0 ports, two USB 2.0 ports, one RJ45 LAN connector, and
audio jacks for line-in, line-out and microphone.
In addition, this motherboard supports four SATA 6Gb/s connectors for expansion.
Your motherboard package ships with the following items:
Package Contents
B250H4-M20 Motherboard
User Manual
DVD
I/O Shield
2 SATA 6Gb/s Cables





The package contents above are for reference only, please take the actual package items as
standard.

Chapter1
2
B250H4-M20 USER MANUAL
CPU
Specifications
•Intel®B250 Chipset
Chipset
• Dual-channel DDR4 memory architecture
• 2 x 288-pin DDR4 Long-DIMM sockets support up to 32 GB
• Supports 2400/2133 MHz DDR4 Long-DRAM (by CPU)
Memory
• 1 x PCI Express x16 Gen3 slot
• 1 x PCI Express x1 Gen3 slot
• 1 x M.2 slot (2242/2260/2280 supports PCI-E Gen3 x 4 SSD &
Intel®OptaneTM Technology)
• Supported by Intel®B250 Chipset
- 4 x Serial ATA 6Gb/s devices
Expansion
Slots
Storage
• 1 x PS/2 keyboard and PS/2 mouse connectors
• 1 x HDMI port
• 1 x VGA port
• 2 x USB 2.0 ports
• 4 x USB 3.0 ports
• 1 x RJ45 LAN connector
• 1 x Audio port (1x Line in, 1x Line out, 1x Mic_in Rear)
Rear Panel I/O
• Realtek RTL8111H Gigabit Lan
- 10/100/1000 Fast Ethernet Controller
- Wake-on-LAN
•LGA1151 socket for Intel®Kabylake/Skylake processor
• Supports CPU up to 65W TDP
Note: Please go to ECS website for the latest CPU support list.
• 1 x 24-pin ATX Power Supply connector
• 1 x 4-pin 12V Power connector
• 1 x 4-pin CPU_FAN connector
• 1 x 4-pin SYS_FAN connector
• 1 x Front Panel audio header
• 1 x Front Panel switch/LED header
• 1 x USB 3.0 header supports additional two USB 3.0 ports
• 4 x Serial ATA 6Gb/s connectors
• 2 x 10-pin USB 2.0 headers support additional four USB 2.0
ports
• 1 x Serial port header (COM)
• 1 x CLR_CMOS jumper
• 1 x Case open header
• 1 x Buzzer header
Internal I/O
Connectors &
Headers
• Realtek ALC662
- 6 Channel High Definiton Audio Codec
- Compliant with HD audio specification
Audio
LAN
Note: Please go to ECS website for the latest Menory support list.

3
B250H4-M20 USER MANUAL
Chapter1
• AMI BIOS with 64Mb SPI Flash ROM
- Supports Plug and Play, STR(S3)/STD(S4)
- Supports Hardware Monitor
- Supports ACPI & DMI
- Supports Audio, LAN, can be disabled in BIOS
- F7 hot key for boot up devices option
- Supports BIOS parameters copied to the flash disk
- Supports Pgup clear CMOS Hotkey (Has PS2 KB Model only)
System BIOS
Form Factor • Micro-ATX Size, 225mm x 185mm
• Supports eBLU*/eDLU/eSF*AP Support
Note: *Microsoft .NET Framework 3.5 is required.

Chapter1
4
B250H4-M20 USER MANUAL
Motherboard Components

5
B250H4-M20 USER MANUAL
Chapter1
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket LGA1151 socket for Intel®Kabylake/Skylake processor
2. CPU_FAN 4-pin CPU cooling fan connector
3. DIMM_1~2 288-pin DDR4 Module slots
4. ATX_POWER Standard 24-pin ATX power connector
5. F_PANEL Front panel switch/LED header
6. CASE Case open header
7. SATA1~4 Serial ATA 6.0 Gb/s connectors
8. BZ Buzzer header
9. F_USB1~2 10-pin Front Panel USB 2.0 headers
10. USB3F Front Panel USB 3.0 header
11. COM Onboard serial port header
12. F_AUDIO Front panel audio header
13. PCIEX1_1 PCI Express x1 Gen3 slot
14. CLR_CMOS Clear CMOS jumper
15. BT Battery
16. PCIEX16 PCI Express x16 Gen3 slot for graphics interface
17. M2 2242/2260/2280 supports PCI-E Gen 3 x 4 SSD & Intel®
OptaneTM Technology
18. SYS_FAN 4-pin System cooling fan connector
19. ATX_12V 4-pin +12V power connector

Chapter1
6
B250H4-M20 USER MANUAL
I/O Ports
1. PS/2 Mouse(green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard(purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. HDMI Port
You can connect the HDMI device to the HDMI port.
4. VGA Port
Connect your monitor to the VGA port.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
8. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
9. Line-out(lime)
It is used to connect to speakers or headphones.
10. Microphone(pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port

Chapter2
7
B250H4-M20 USER MANUAL
Chapter 2
Installing the Motherboard

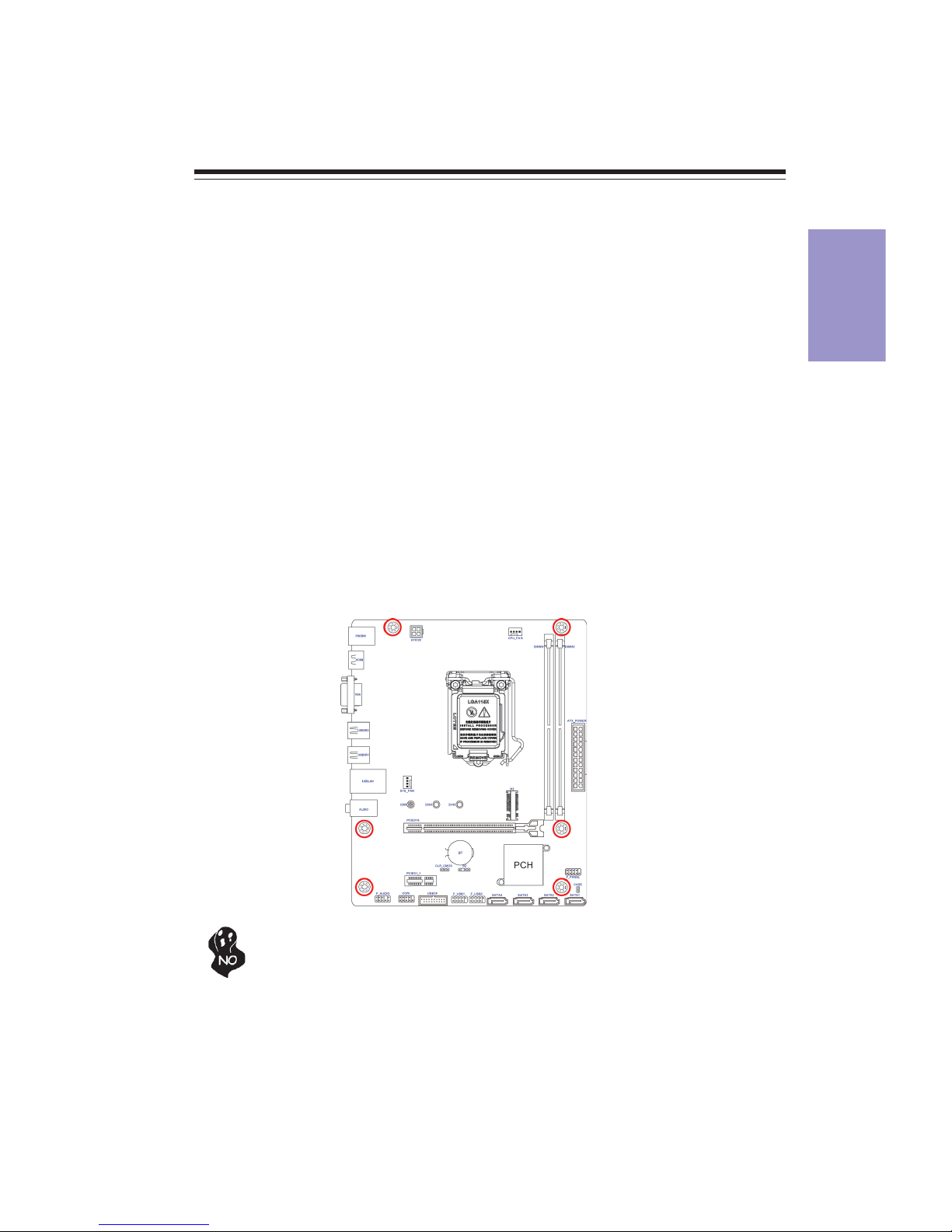

2-1. Safety Precautions
2-2. Installing the motherboard in a Chassis
This motherboard carries a Micro ATX form factor of 225 x 185 mm. Choose a chassis
that accommodates this from factor. Make sure that the I/O template in the chassis
matches the I/O ports installed on the rear edge of the motherboard. Most system
chassis have mounting brackets installed in the chassis, which corresponds to the
holes in the motherboard. Place the motherboard over the mounting brackets and
secure the motherboard onto the mounting brackets with screws.
Follow these safety precautions when installing the motherboard:
• Wear a grounding strap attached to a grounded device to avoid damage
from static electricity.
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard.
• Leave components in the static-proof bags.
• Always remove the AC power by unplugging the power cord from the power
outlet before installing or removing the motherboard or other hardware
components.
Do not over-tighten the screws as this can stress the motherboard.

Chapter2
8
B250H4-M20 USER MANUAL
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
2-3. Checking Jumper Settings

Chapter2
9
B250H4-M20 USER MANUAL
2-4. Installing Hardware
2-4-1. Installing the Processor
• This motherboard has an LGA1151 socket.
• When choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the clock speed
and system bus frequency of the processor, and the quantity of internal
cache memory and external cache memory.
• You may be able to change the settings in the system Setup Utility. We
strongly recommend you do not over-clock processor or other
components to run faster than their rated speed.

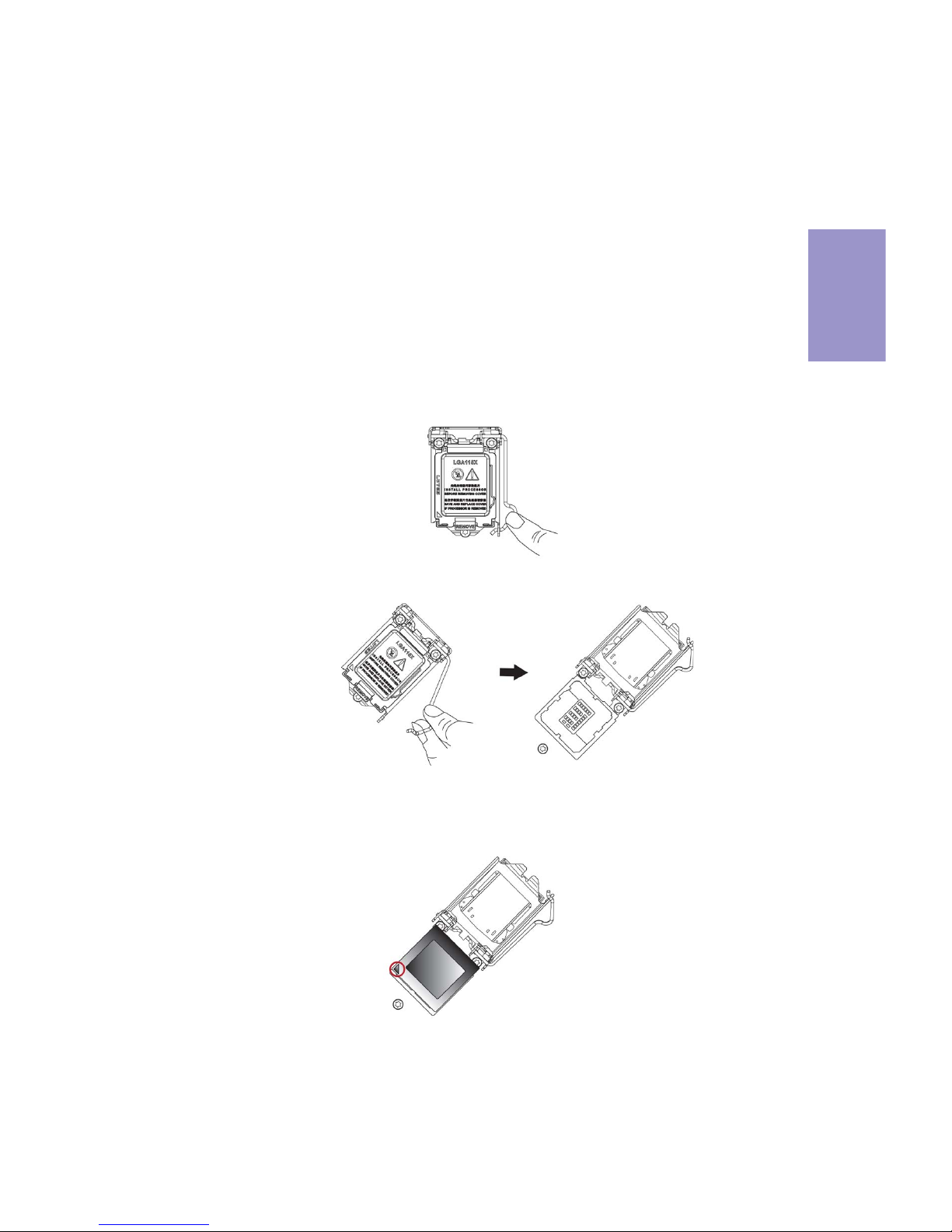

• The following illustration shows CPU installation components.
A. Press the hook of lever down with your thumb and pull it to the right
side to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open
position.
C. Grasp the edge of the package substrate. Make sure pin 1 indicator
is on your bottom-left side. Aim at the socket and place the package
carefully into the socket by purely vertical motion.

Chapter2
10
B250H4-M20 USER MANUAL
D. Rotate the load plate onto the package IHS (Intergraded Heat
Spreader). Engage the load lever while pressing down lightly onto the
load plate. Secure the load lever with the hook under retention tab. Then
the cover will flick automatically.
Please save and replace the cover onto the CPU socket if processor is re-
moved.

Chapter2
11
B250H4-M20 USER MANUAL
A. Apply some thermal grease onto the contacted area between the
heatsink and the CPU, and make it to be a thin layer.
B. Fasten the cooling fan supporting base onto the CPU socket on the
motherboard. And make sure the CPU fan is plugged to the CPU fan
connector.
C. Connect the CPU cooler power connector to the CPU_FAN connector.
2-4-2. Installing the CPU Cooler
• Install the cooling fan in a well-lit work area so that you can clearly see the
motherboard and processor socket.
• Avoid using cooling fans with sharp edges in case the fan casing and the
clips cause serious damage to the motherboard or its components.
• To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 3800 rpm at least. CPU fan and heat sink instal-
lation procedures may vary with the type of CPU fan/heatsink supplied.
The form and size of fan/heatsink may also vary.
• DO NOT remove the CPU cap from the socket before installing a CPU.
• Return Material Authorization (RMA) requests will be accepted only if the
motherboard comes with the cap on the LGA1151 socket.
• The following illustration shows how to install CPU fan.

Chapter2
12
B250H4-M20 USER MANUAL
2-4-3. Installing Memory Modules
• This motherboard accommodates two memory modules. It can support
two 288-pin DDR4 2400/2133 MHz.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install at least one module in any of the two slots. Total memory
capacity is 32 GB.
• Refer to the following to install the memory modules.
We suggest users not to mix memory type. It is recommended to use the
same brand and type memory on this motherboard.
C. The slot latche is levered upwards and latch on to the edges of the
DIMM.
A. Push the latche on the mobilizable side of the DIMM slot down.
B. Install the DIMM module into the slot and press it firmly down until it
seats correctly. Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot.
* For reference only

Chapter2
13
B250H4-M20 USER MANUAL
2-4-4. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can
increase the motherboard’s capabilities by adding hardware that performs tasks
that are not part of the basic system.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.
The PCI Express x1 slot is fully compliant to the PCI Express Base
Specification revision 3.0.
PCIEX1_1 Slot
PCIEX16 Slot The PCI Express x16 slots is used to install an external PCI
Express graphics card that is fully compliant to the PCI Express
Base Specification revision 3.0.
This is M.2 slot, 2242/2260/2280 supports PCI-E Gen3 x 4 SSD &
Intel®OptaneTM Technology.
M2 Slot

Chapter2
14
B250H4-M20 USER MANUAL
1 Remove a blanking plate from the system case corresponding to the slot
you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
Follow these instructions to install an add-on card:
For some add-on cards, for example graphics adapters and network adapt-
ers, you have to install drivers and software before you can begin using the
add-on card.
Please refer the following illustrations to install the add-on card:
Install the VGA Card in the PCIEX16 slot
Install the LAN Card in the PCIEX1 slot

Chapter2
15
B250H4-M20 USER MANUAL
Please refer the following steps to install the M.2 SSD card:
1 Demount the screw not used according to the length of your M.2 SSD card.
2 Insert the M.2 SSD card into M2 slot in the fool-proof way.
3 Lock the screw as the following picture shows to make sure the M.2 SSD
card is installed in place.
M2
M2
M2
