mikroProg™is a fast USB programmer with hardware
Debugger support. Smart engineering allows mikroProg™
to support all Tiva™and Stellaris® ARM®Cortex™-M3 and
Cortex™-M4 microcontrollers in a single programmer.
for Tiva™
™

I want to express my thanks to you for being interested in our products and for having
condence in MikroElektronika.
The primary aim of our company is to design and produce high quality electronic products
and to constantly improve the performance thereof in order to better suit your needs.
The Tiva™, ARM®and Windows®logos and product names are trademarks of Texas Instruments®, ARM®Holdings and Microsoft®in the USA. and other countries.
TO OUR VALUED CUSTOMERS
Nebojsa Matic
General Manager

Page 3
Introduction to mikroProg™4
Key features 5
1. Driver installation 6
step 1 – Start installation 7
step 2 – Accept EULA 7
step 3 – Installing the drivers 8
step 4 – Finish installation 8
2. Connecting to a PC 9
3. mikroProg Suite™for ARM®software 10
4. Connecting with a target device 12
5. Connector Pinout 13
6. Connection schematic examples 14
Connecting with LM3SX00 series 15
Connecting with LM3S1000 series 16
Connecting with LM3S2000 series 17
Connecting with LM3S3000 series 18
Connecting with LM3S5000 series 19
Connecting with LM3S6000 series 20
Connecting with LM3S8000 series 21
Connecting with LM3S9000 series 22
Connecting with TM4C123 series 23
Connecting with TM4C129 series 24
Table of Contents

Page 4
mikroProg™for Tiva™is a fast programmer and hardware debugger. Smart engineering allows mikroProg™to support all Tiva™and
Stellaris® ARM®Cortex™-M3 and Cortex™ -M4 devices in a single programmer! Outstanding performance, easy operation, elegant design
and low price are it’s top features. It is supported in MikroElektronika ARM®compilers, as well as in other ARM®compilers.
Introduction to mikroProg™

Page 5
01
02
03
04
05
06

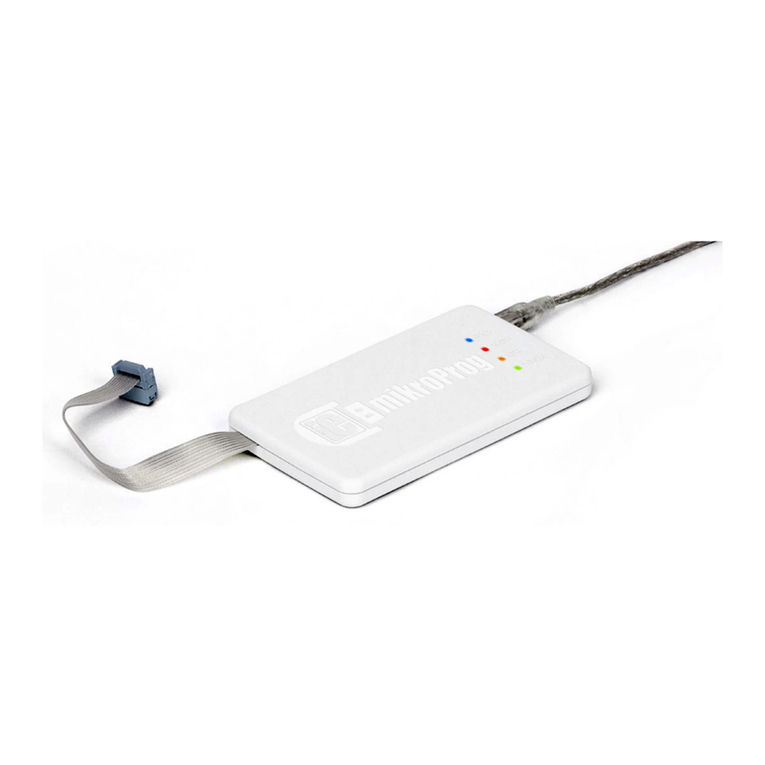

Flat cable
