ELPRO 905U-L User manual

Quick Start Guide
WI-I/O 9-L-T Wireless I/O
Transmitter Unit

ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 2 of 8

This document is the WI-I/O 9-L-T Wireless I/O Transmitter Unit Quick Start Guide and
contains the following sections:
Section Read this section if you want to …
Basic steps for using your unit Learn the basic steps for installing and using your unit.
Factory default configuration Understand how the transmitter sends information to the receiver.
Unit components Understand the different parts of your unit.

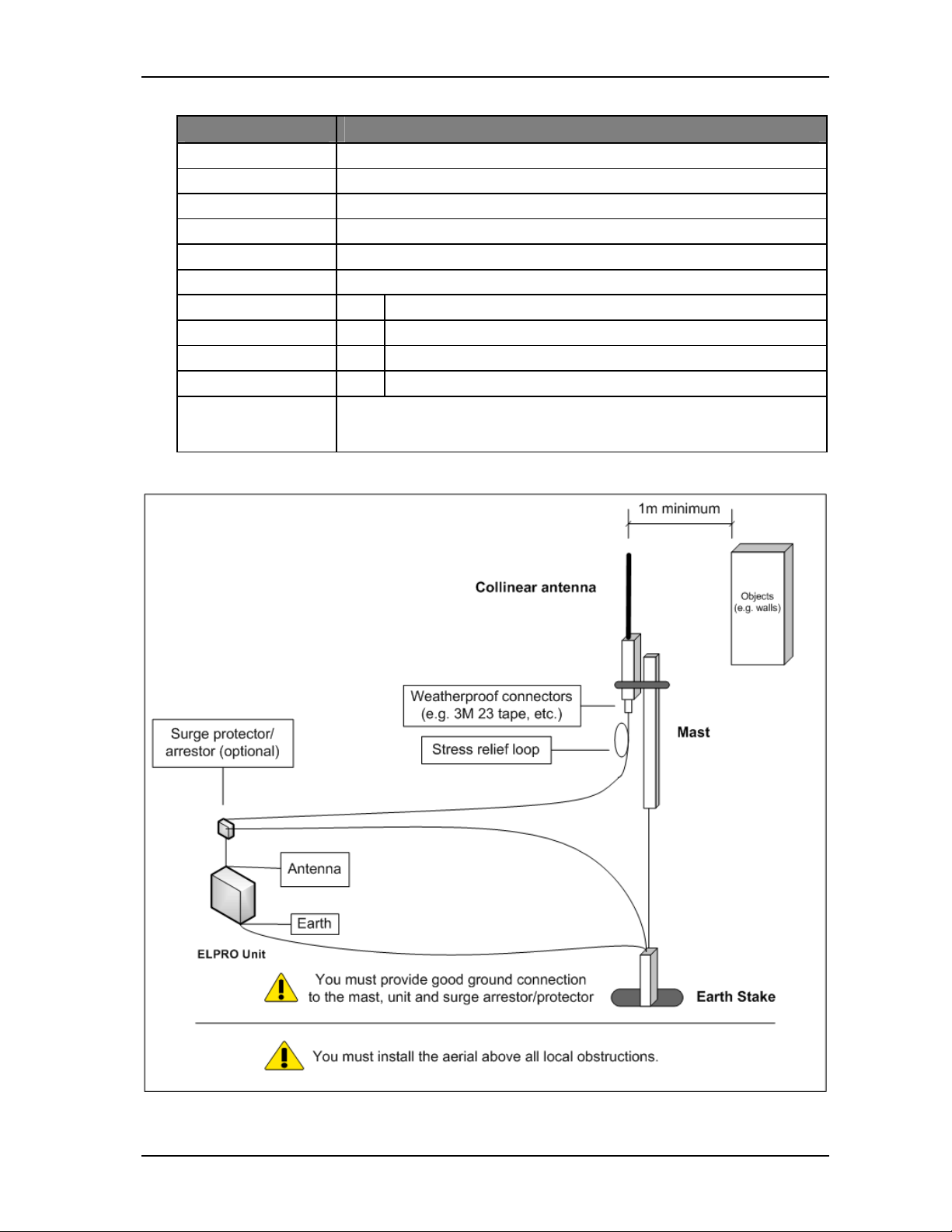

Antenna installation Learn how to install an antenna with your unit.
Resetting factory defaults Reset your unit to the original factory default settings.
Linking transmitter and receiver units Link your units to work as a dedicated pair.
Safety information Understand important safety information related to your unit.
NOTE: You must read this information before installing your unit.
Specifications Know technical information about your unit.
For more information, see the next sections.

This document describes how to configure your unit using the default factory configuration that
lets you easily setup your network as a simple send/receive network using a dedicated pair of
transmitter and receiver units.
The basic steps for using your unit are:
1. Connect the antenna, power supply and transducer signals using the instructions in
this document. Power supply and transducer connection is described in the section
Unit components and connections. Antenna connection is described in the section
Antenna installation. For more information, see the WI-I/O 9-L-x Install Manual.
2. Reset the transmitter and receiver units to the factory default configurations.
3. Link the transmitter and receiver units to work as a dedicated pair.
4. Bench test your configuration before deploying.
NOTE: You can also configure your network using a user-defined customised configuration that
lets you set specific information about your network. For more information on setting a user-
defined customised configuration, see the WI-I/O 9-L-x User Manual on the enclosed CD.

When you configure the units using the configuration in this document, the inputs from the
transmitter are sent to the outputs at the receiver as follows:
WI-I/O 9-L-T (Transmitter) Sends WI-I/O 9-L-R (Receiver)
Digital Input 1 Digital Output 1
Digital Input 2 Digital Output 2
Analogue Setpoint Digital Output 3
Analogue input (4-20 mA) Analog output
Thermocouple Input (Not used)
Setpoint Output (Local indication)
Communication Failure (Comes on if no messages from WI-I/O 9-
L-T)
System OK (On if system OK) System OK (On if system OK)

ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 3 of 8


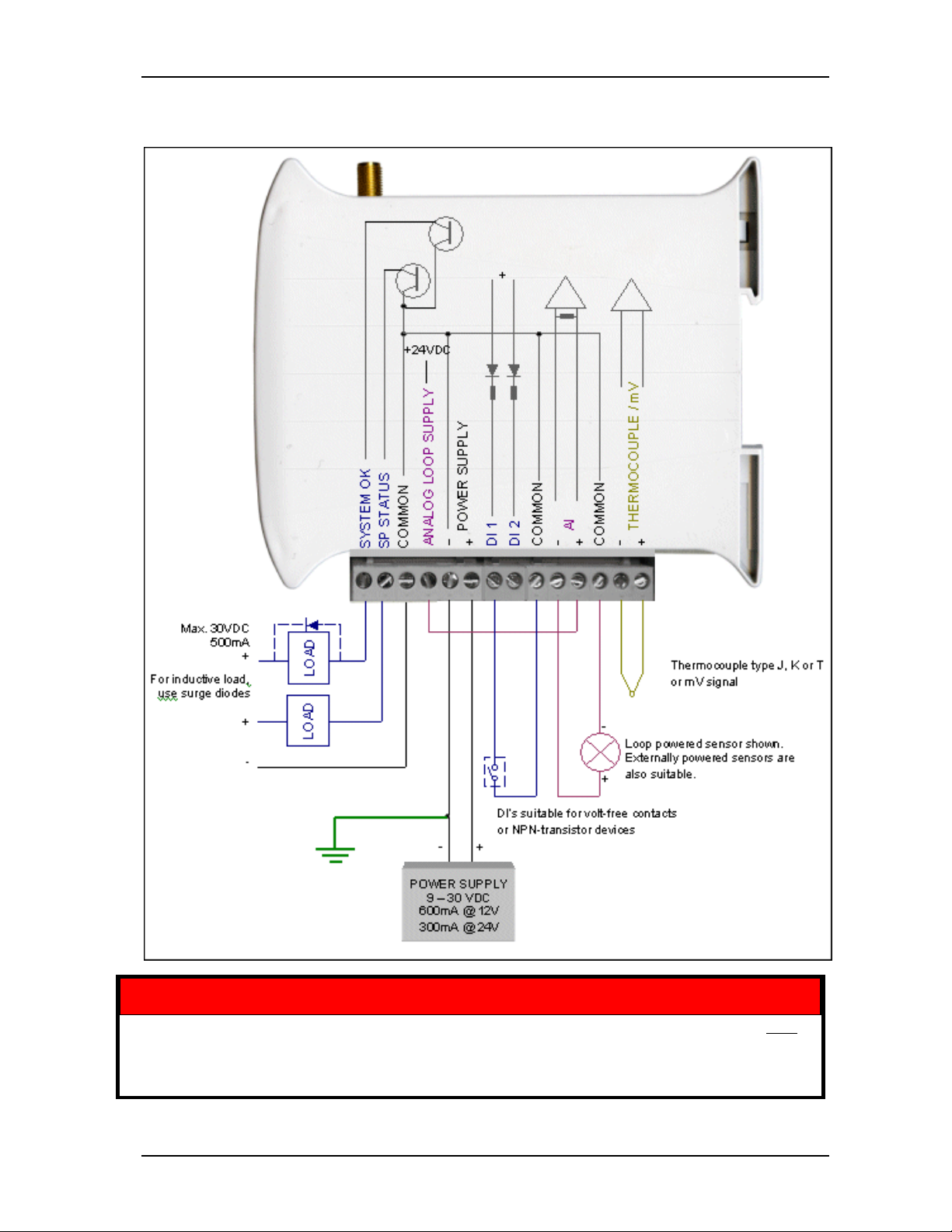

Your WI-I/O 9-L-T transmitter unit has the following components and terminal connections:
In order to comply with Electrical Safety Regulations, this module must be installed in an Electrical AND
Fire enclosure. This enclosure may be a single or multiple enclosures. Access to the module is to be
made by a Service Person only.
**IMPORTANT ELECTRICAL SAFETY INFORMATION**

ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 4 of 8

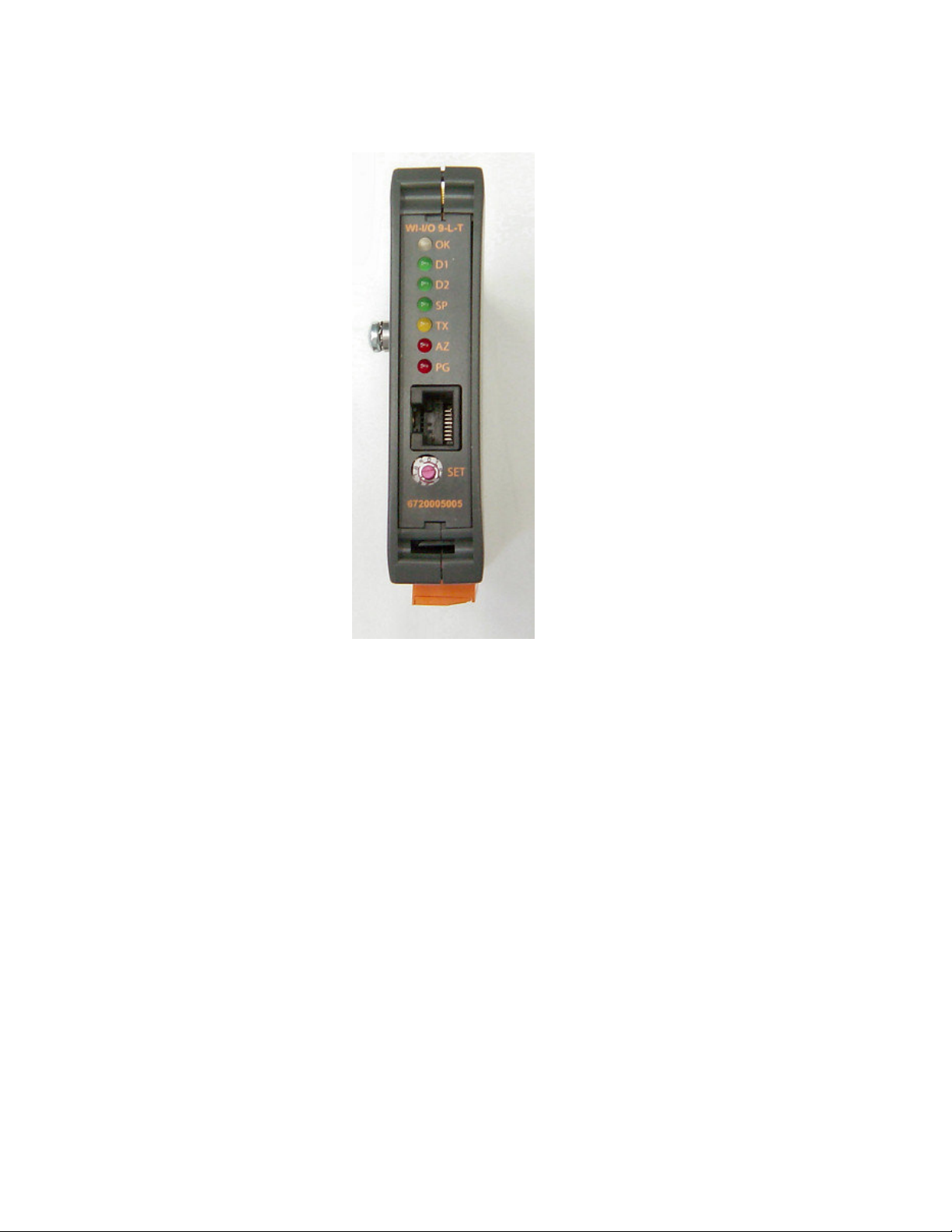

The front panel contains the following components:
The triangle on the rotary switch indicates the current position, for example:
NOTE: To avoid damaging the rotary switch, use a screwdriver to change the position.
The rotary switch uses the following setpoint levels:
Position Lower level (mA) Upper level (mA)
1 4.8 6.4
2 6.4 8.0
3 8.0 9.6
4 9.6 11.2
5 11.2 12.8
6 12.8 14.4
7 14.4 16.0
8 16.0 17.6
9 17.6 19.2
Position 0 Position 1
SMA antenna connector
at top of unit
Rotary switch for set-point
settings
RS232 configuration
port

ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 5 of 8
The LEDs on the front panel indicate the unit status:
LED Status Indicates
None No power supply.
OK LED Green Current status of the unit OK.
OK LED Red Fault condition detected in unit.
TX Led Flashes Transmitting Message.
PG LED on Configuration Cable Connected.
Input LED ON Input LEDS (i.e. D1,D2, SP, AZ.) light when the corresponding input is active.
D1 Digital Input 1 is active (Low).
D2 Digital Input 2 is active.
SP Analog Setpoint is active.
AZ Analog Input is zero mA
All LEDs medium flash Medium speed flash (1.6HZ) indicates the module is half-way through the
configuration process. Medium flash also happens when you set the rotary switch
to position 0 when powering on the unit.


ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 6 of 8

To reset the default factory configuration:
1. Set the RSSI rotary switch to position 0 using a screwdriver.
2. Power on the WI-I/O 9-L-T transmitter.
3. The WI-I/O 9-L-T transmitter flashes all LEDs at medium flash (i.e. 1.6 Hz).
NOTE: If the LEDs do not flash, you must repeat steps 1 and 2 until the LEDs flash before
continuing.
4. Set the RSSI rotary switch to another position (i.e. position 1) within 5 seconds.
5. Set the RSSI rotary switch to position 0 within another 5 seconds.
6. The WI-I/O 9-L transmitter lights all LEDs for 2 seconds before returning to normal
operation.
NOTE: If the LEDs do not light for 2 seconds, you must repeat the process from step 1
until the LEDs light before continuing.
7. You can now link the transmitter and receiver units.

You must reset the transmitter unit to factory defaults (to disable encryption) before linking the
transmitter and receiver units. For more information, see the previous section.
NOTE: You must complete the linking process in 60 seconds.
To link the transmitter and receiver units:
1. Press and hold down the RSSI Pushbutton on the receiver.
2. Power on the receiver while holding down the RSSI Pushbutton
3. Release the RSSI Pushbutton as soon as the Receiver LEDS flash (within 5 seconds
of powering the receiver).
4. The receiver will flash all LEDs for a maximum 60 seconds while it tries to link to the
transmitter.
5. Power on the transmitter. The transmitter sends a special “Link” message to allow the
receiver to recognise the transmitter.
6. When the units link, the receiver lights all LEDs for 2 seconds before returning to
normal operation.
NOTE: If the receiver LEDs continue flashing within the 60 seconds, the units are not
linked and you should retry the linking process by powering the transmitter off and on
again. If you exceed the 60 seconds, you must restart the linking process from step 1.
7. You can now bench test your configuration before deploying.

ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 7 of 8

Thank you for selecting the WI-I/O 9-L-T transmitter for your telemetry needs. We trust it will give you many years of
valuable service. To ensure your WI-I/O 9-L-T transmitter enjoys a long life, double-check ALL your connections with
the user’s manual before powering on the unit.
WARNING: Incorrect termination of supply wires may cause internal damage and will void warranty.
Exposure to RF energy is an important safety consideration. The FCC has adopted a safety standard for human
exposure to radio frequency electromagnetic energy emitted by FCC regulated equipment as a result of its actions in
Docket 93-62 and OET Bulletin 65 Edition 97-01.
FCC Notice when used in USA: WI-I/O 9-L-T Module
Part Additional information
15 This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part15 of the FCC rules (Code of Federal Regulations 47CFR Part 15). Operation is subject to the condition
that this device does not cause harmful interference.
90 This device has been type accepted for operation by the FCC in accordance with Part90 of the FCC rules
(47CFR Part 90). See the label on the unit for the specific FCC ID and any other certification designations.
Industry Canada: Wireless I/O Module
RSS-119 - This device has been type accepted for operation by Industry Canada in accordance with RSS-119 of the
Industry Canada rules. See the label on the unit for the specific Industry Canada certification number and any other
certification designations.
NOTE: Any changes or modifications not expressly approved by Weidmuller Inc. could void the user’s authority to
operate this equipment.
To operate this equipment legally the user must obtain a radio-operating license from the government agency. This is
done so the government can coordinate radio users in order to minimize interference.
Safety information - FCC Notice
This device complies with Part 15.247 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference; and
This device must accept any interference received, including interference that may cause undesired operation
NOTE: This equipment is suitable for use in Class 1 Division 2 groups A, B and C or non-hazardous locations only.

Input/output Number Additional information
Digital inputs 2 Dry-contact digital inputs slow-pulsed at 10Hz.
All inputs are suitable for voltage free contacts (e.g. mechanical
switches) or NPN transistor devices (e.g. electronic proximity
switches).
NOTE: PNP transistor device inputs are NOT suitable.
Analog inputs 1 0-20mA differential input; 16-bit resolution, 0.1% accuracy, 10 ohm
input impedance.
Thermocouple inputs 1 J, K or T type thermocouple with on-board cold-junction
compensation.
Cold junction compensation accuracy ±1ºover ambient temp
range: -40ºto +70ºC.
Power supply 1 9-30 VDC 1 Amp CSA certified Class 2 power supply. For use in
Class 1 Div 2 explosive areas, the power supply must be approved
for Class 1 Div 2 use.
WARNING: Explosion hazard - do not disconnect while circuit is
live unless area is known to be non-hazardous.
Transmitter 1 1 Watt Frequency Hopping Spread Spectrum (FHSS) Transmitter.
Frequency 902-928 MHz Actual frequency range depends on country.

ELPRO 905U-L Wireless I/O Transmitter Unit Quick Start Guide
ELPRO 905U-L Wireless I/O Transmitter Unit v1.7 page 8 of 8
Document information
Quick Start Guide WI-I/O 9-L-T Wireless I/O Transmitter Unit
Contact details
Address > 821 Southlake Blvd., Richmond, VA 23832
Telephone > [phone]
Fax > [phone]
Email > [email protected]
Website > www.wireless.weidmuller.com
Limited lifetime warranty, disclaimer and limitation of remedies
Weidmuller Inc. products are warranted to be free from manufacturing defects for the “serviceable lifetime” of the
product. The “serviceable lifetime” is limited to the availability of electronic components. If the serviceable life is
reached in less than three years following the original purchase from Weidmuller Inc., Weidmuller Inc. will replace
the product with an equivalent product if an equivalent product is available.
This warranty does not extend to:
- Failures caused by the operation of the equipment outside the particular product's specification, or
- Use of the module not in accordance with this User Manual, or
- Abuse, misuse, neglect or damage by external causes, or
- Repairs, alterations, or modifications undertaken other than by an authorized Service Agent.
Weidmuller Inc.’s liability under this warranty is limited to the replacement or repair of the product.
This warranty is in lieu of and exclusive of all other warranties. This warranty does not indemnify the purchaser of
products for any consequential claim for damages or loss of operations or profits and Weidmuller Inc. is not liable for
any consequential damages or loss of operations or profits resulting from the use of these products. Weidmuller Inc.
is not liable for damages, losses, costs, injury or harm incurred as a consequence of any representations, warranties
or conditions made by Weidmuller Inc. or its representatives or by any other party, except as expressed solely in this
document.
