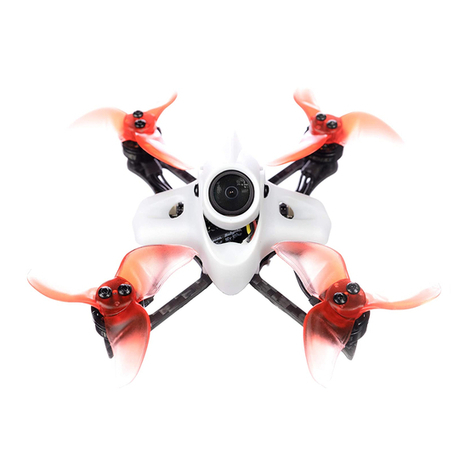

Emax Tinyhawk II User manual

Thanks for purchasing the Tinyhawk II. Designed in California, assembled in China.

Tinyhawk II
emax-usa.com
Disclaimer
Please read the disclaimer carefully before using this product. By using this product,
you hereby agree to this disclaimer and signify that you have read them carefully and
completely. This product is not suitable for people under the age of 18. Adult
supervision is highly recommended for kids under the age of 18.
Our Tinyhawk II features open-source flight controller and Electronic Speed
Controllers to meet the FPV enthusiasts' need to upgrade their quad.
Please read the instruction manual and warnings carefully. Before every flight, make
sure the battery is fully charged and power connections are secure. DO NOT fly
around crowds, children, animals or objects. EMAX ACCEPTS NO LIABILITY FOR
DAMAGE(S) OR INJURIES INCURRED DIRECTLY OR INDIRECTLY FROM THE
USE OF THIS PRODUCT.
Precautions
Please follow the instructions to assemble and to operate this product in a proper
way.
Pilots do not use this product if you have physical or mental illness, dizziness,
fatigued, or use while under the influence of alcohol or drugs.
Please fly in a safe area away from people
Do not modify or use other parts and accessories not approved for the use of EMAX.
Do not use this product in harsh environments (such as winds, rain, lightning, snow,
etc.).
Do not use this product in a strong electromagnetic environment.
Support
Please visit emax-usa.com or emaxmodel.com for any updates or support needs.

Tinyhawk II
emax-usa.com
Table of Contents
Disclaimer................................................................................................................................. 1
Precautions............................................................................................................................... 1
Support...................................................................................................................................... 1
Product specification............................................................................................................... 1
Tinyhawk II........................................................................................................................1
Parameter......................................................................................................................... 1
Product list............................................................................................................................ 1
Tinyhawk II Structure.......................................................................................................... 2
Tinyhawk II................................................................................................................................3
Propeller Direction and Mounting......................................................................................3
Propeller Dismount.............................................................................................................. 3
Tinyhawk II VTX Settings....................................................................................................... 4
VTX Channel Settings with the Button............................................................................. 4
Button Menu Diagram....................................................................... 错误！未定义书签。
CE and FCC unlicensed user chart.................................................................................. 5
Unlocked FCC HAM licensed user chart........................................................................ 6
Changing VTX setting via Betaflight OSD....................................................................... 6
Tinyhawk II All-in-One Flight Controller................................................................................8
Emax On-Board Receiver.................................................................................................. 8
Binding Procedure........................................................................................................... 8
Emax Tinyhawk II Flight Controller (FC).......................................................................... 9
Stock Flight Controller Settings..................................................................................... 9
Adjusting Software Settings (Betaflight Configurator)................................................9
Reprogramming Tinyhawk II Flight Controller.......................................................... 10
Set the Correct Settings................................................................错误！未定义书签。
Flight........................................................................................................................................ 12
Radio Stick Controls..........................................................................................................12
Left Stick Diagram......................................................................................................... 12
Right Stick Diagram...................................................................................................... 12
Fly Tinyhawk II................................................................................................................... 12
Arming............................................................................................................................. 13
Flying Modes.................................................................................................................. 13
Line of Sight Flying........................................................................................................13
First Person View (FPV) Flying................................................................................... 13

Tinyhawk II
1
emax-usa.com
Product specification
Product list
1. Tinyhawk II × 1
2. Instruction manual × 1
3. Emax 1s HV 450 mAh × 1
4. Emax 2s HV 300 mAh × 1
5. Charger × 1
6. Extra Propeller Set (2x CW, 2x CCW)
7. Screwdriver x 1
8. Spare screws x 1
9. fc damper x 1
10. rubberbands x 1
Tinyhawk II
Parameter
Diagonal wheelbase (without paddles)
75mm
Maximum size of the aircraft (without
antenna, cable tie)
110×96×42(mm)
Aircraft weight (without battery)
31g
Motor
TH0802 16000KV
Propeller
Avan TH Turtlemode Propeller
Main Flight Controller
F4（MATEKF411RX firmware）
4 in one 5A ESC
SPI RX receiver（Compatible with Frsky remote
control D8/D16 mode）
Camera
RunCam Nano 2 Camera
Transmitter
0-25-100-200mW Adjustable frequency 37CH,
Support SmartAudio
LED
Red
Battery
1 Cell 450 mAh HV lipo battery

Tinyhawk II
2
emax-usa.com
Tinyhawk II Structure

Tinyhawk II
3
emax-usa.com
Tinyhawk II
Propeller Direction and Mounting
There are 2 spinning directions for Tinyhawk II propellers, Clockwise (CW) and
Counter-Clockwise (CCW). When Buying a set of propellers, 2 CW and 2 CCW will
be given. The blunt leading edge indicates the direction the propeller is suppose to
rotate as compared to the sharp trailing edge. When mounting propellers please
make sure the correct orientation shown in the diagram below.
Caution: Failure to mount the propellers in the correct orientation will cause
Tinyhawk II to not fly correctly and with no control. Please double check for the
correct orientation.
1. Line up the 3 struts of the propeller with the 3 struts on the motor bell.
2. Press on the propeller while supporting the backside of the motor with our
fingers.
3. Press on until the motor shaft is flush with the propeller.
Caution: Failure to support the motor sufficiently can cause the frame to break. Use
caution when pressing the propellers on.
Propeller Dismount
Use caution when dismounting the propellers. Only do so if completely necessary to
change to a new propeller.
1. Use a small tool (such as a 1.5mm hex wrench or the small screwdriver
provided) to press on the metal on the bottom of the motor and Tinyhawk II.
2. Press on the blades of the propeller with your fingers until the propellers pop
off the motor.
Caution: Failure to support the motor sufficiently can cause the frame to break. Use
caution when pressing the propellers off.

Tinyhawk II
4
emax-usa.com
Tinyhawk II VTX Settings
NOTE: You must “disable” VTX Smart AUDIO on UART 2 in order for push button
VTX adjustment to work as described below.
Vtx Schematic and Button Diagram
VTX Channel Settings with the Button
1. Normal display
When powered on, the parameters of frequency group band, frequency point and
power are displayed twice by LED cycle., then the LED is extinguished. To check
frequency group band ,channel and power status click the button once quickly, and
LED starts to indicate frequency band band , frequency channel and power. First
indicate the frequency group band and then indicate the frequency channel, final
indicative power. After all 2 rounds of LED display cycles, all LED will be off.
2. Menu Entry / Exit
(1)Press the button and hold for 5s to enter the menu. After entering the menu,
band LED lights up.

Tinyhawk II
5
emax-usa.com
(2)Press the button and hold for 5s again to save parameters and exit the menu.
After saving and exiting the menu, all LED goes out.
3.Enter/Exit Band / Channel / Power option
(1) After entering menu, short click button to switch frequency group band /
frequency point / power, and the LED of the corresponding menu is lit.
(2) Press the button and hold for 2s to enter frequency group band / channel /
power option.
(3) Press the button and hold for 2s again to exit frequency group band / channel /
power option and return to the menu.
4. Band / Channel / Power parameter change
After entering frequency group band / channel / power option, short click button to
change the parameter.
Notice: If you change to an illegal channel using SmartAudio, there will be no image
transmitting from Tinyhawk II. To switch back to a legal channel, press the button on
the vtx and follow the vtx menu guide shown below.
CE and FCC unlicensed user chart

Tinyhawk II
6
emax-usa.com
Unlocked FCC HAM licensed user chart
* From the factory this video transmitter is designed to operate within CE and FCC
unlicensed users specifications. To use the unlocked features of this VTX the user is
required to have a HAM radio license or prior consent from the FCC.By purchasing
this equipment, the user is agreeing that they understand these responsibilities and
will operate the equipment legally. Emax cannot be held responsible for your actions
if you purchase and/or use this product in violation of your government's regulations.
Changing VTX setting via Betaflight OSD
Tinyhawk II is equipped with SmartAudio and is already configured with stock
settings. The SmartAudio line is operated on UART 2 TX.
1. Power on Tinyhawk II, goggles, and Controller.
2. Follow the tips on screen to enter the main settings menu: THROTTLE MID+ YAW
LEFT+ PITCH UP to enter OSD parameter adjustment menu. as shown in Figure 1.
3. In the menu interface, switching PITCH up/down to choose menu option. Move the
cursor to “FEATURES” and stir Roll stick right to enter next menu. as shown in
Figure 2. Using PITCH stick to move cursor to “VTX SA”, as shown in Figure 3.Then
pull ROLL stick right to enter VTX configuration menu, as shown in Figure 4.
Figure 1 Figure 2
Figure 3 Figure 4
4. In the menu of VTX SA, we can configure the BAND, CHAN and POWER. Pulling
the PITCH stick to move cursor up and down to choose VTX options that need
setting. While pulling ROLL stick left and right to change the corresponding
parameters.Once the parameters is set, moving the cursor to “SET”, then turn ROLL

Tinyhawk II
7
emax-usa.com
stick right to enter “SET” and choose “YES” and turn ROLL stick right to save setting
parameters, as shown in Figure 5.
5. In the menu of VTX SA, moving cursor to "CONFIG" to enter menu; While moving
cursor to "PIT FMODE" and pulling ROLL stick right can turn off the VTX power, as
shown in Figure 6.
NOTE: Because the VTX module offers power setting of 25mW / 100mW / 200mW
by default the Betaflight OSD displays 25mW, 200mW and 800mW as power options
If you wish to have the VTX at 100mW setting select > 200mW
If you wish to have the VTX at 200mW setting select > 800mW
Figure 5 Figure 6
