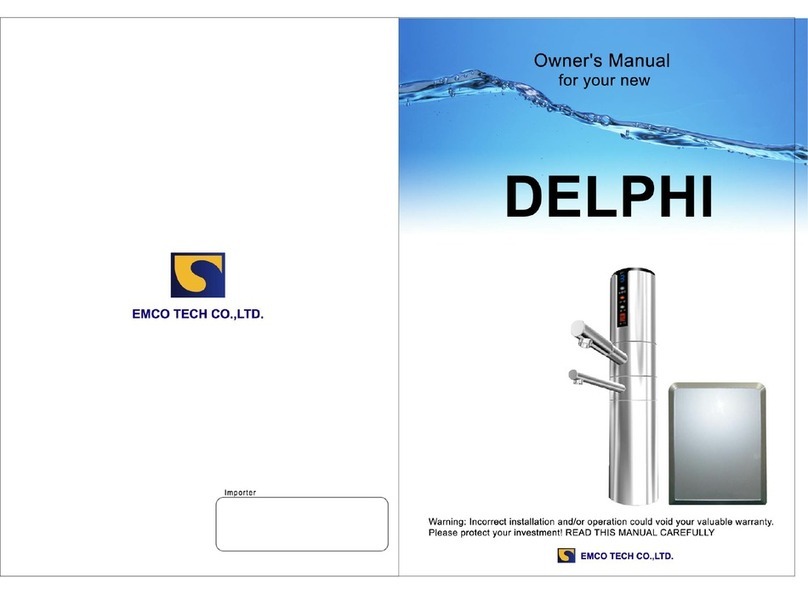

Emco Tech Delphi IO400U User manual

CONGRATULATIONS ON YOUR NEW PURCHASE!
1 2
You have just purchased the finest, most advanced water system in the world!
Your new Delphi undersink ionizer is designed to provide you with many years of the cleanest,
healthiest and most "functional" water available.
Your new Delphi undersink is the only fully remote faucet that allows you to get both alkaline and
acidic water at the sink. There are many specific uses and benefits of this amazing water, so read
this manual carefully to learn how to get both optimum performance out of your ionizer and to protect
your investment.
Your new Delphi undersink produces filtered alkaline, ionized water.
Just exactly what is that? The Delphi undersink employs computer accurate and selectable magnetic
energy to perform electrolysis through patented platinum bonded titanium electrodes inside a water cell.
Inside this advanced cell, the magnetic energy separates the water into an alkaline (high pH) and
acid (low pH) stream without using any chemicals. Ionizing the water in this way re-structures the
molecules and reduces their cluster size, binds extra oxygen molecules, and concentrates ionized,
absorbable and beneficial minerals like Calcium, Magnesium and Potassium.
Your new Delphi undersink also produces Acidic water.
This type of water has a low pH (less than pH6) and has many excellent uses.
You will now have the convenience and benefits of water that "functions" in many ways that ordinary tap,
filtered or bottled water cannot.
What is alkaline electrolyzed-reduced water?
Why the Delphi is the world's most advanced ionizer
Congratulations / Introduction
Power Related
Installation Precautions
During Usage
pH Reagent Liquid Precautions
Some helpful tips
Description
Safety Precautions
TABLE OF CONTENTS
03-04
05-06
07
08
09
10
10
01-02
Names and functions of Parts I
Names and functions of Parts II
How to Install
How to Use
How to Measure pH
How to set your individual pH levels
How to Add Calcium
Regularly check and clean your Pre-Filter
How to Replace the Filter
About your revolutionary Biostone Filter
Installation, Use and Maintenance
Customer Service
Trouble shooting guide
Specifications
11-12
13-14
15-17
18-21
22
23-24
25
26
27-28
29-30
31-32
33-34

3 4
Safety Precautions
Warning
Caution
Property damage, serious injury or death may result if these instructions and precautions
are not observed.
Physical injuries or material damage may be caused if the instructions are not observed.
Do's and Dont's
DO NOT
DO
Do not disassemble it. Disconnect the power cord from
the wall outlet while using.
Do not touch it. Ground product for protection from
electric shock.
After the adjustment period you can drink the water at this next level.
This level is also great for cooking rice and other grains
- fluffier and great tasting!
Alkaline/acidic electrolyzed-reduced water is "functional water".
This water is first filtered then transformed through electrolysis to be higher in pH, hydrate more
effectively, be highly oxygenated and act as a strong antioxidant.
Some people like this for drinking though it can start to taste strong
It is superb for making tea or coffee as it enhances the taste and reduces
bitterness!
Generally most people find this very strong tasting and with powerful
detoxifying effects.
Great for boiling vegetables! Alkaline water will eliminate the bitter taste
and brings out more of their natural color.
What is alkaline electrolyzed-reduced water?
Some uses for the different levels of Alkaline water
The Acid water has both antiseptic and antibacterial properties.
It also has an astringent effect and can be used for cosmetic purposes.
For initial consumption period
(4-7 days). Let your body adjust slowly to the increase in pH.
Many people find that this lower level is actually perfect for them.
What would I use the Filtered water for?
The pH of Purified water is neither raised nor lowered and would be the
same as your tap water.
This water is simply cleaned of impurities by the advanced filtration system.
You can use it both as drinking water and to take medications with.
Some uses for the different levels of Acidic water
Precautions for use of Alkaline water - don't develop a "drinking" problem!
Use it while brushing your teeth,
gargle with it and use it as a
natural mouth wash!
It is an excellent astringent;
use it for washing your face or
as a natural after shave.
In the kitchen use it to help
clean kitchen utensils.
This setting has sterilizing
properties - use it to sterilize
cutting boards,
dish towels etc…
If you have never consumed alkaline water - do not use a setting higher than 1 to begin with.
Let your body adjust slowly and naturally for 4-7 days. After this initial adjustment period, you
can gradually increase the alkalinity of the water.
Do not take medications with alkaline water. Take medications only with purified water.
Consult with a physician before drinking alkaline water if you have:
- Chronic disease
- A dysfunctional liver or intestines
- Are currently under medical treatment
Do not drink alkaline water if you have achlorhydria.
Consult a physician before using acidic water if you have:
- Sensitive skin
- Allergies
Only use potable drinking water in your ionizer.
Poor water quality may have negative effects on your health and your ionizer! Most municipal
water sources will be fine in your ionizer.
Well water and water from smaller systems should be checked, and may require pre-filtering.
Your ionizer is not under warranty for any damage or required cleaning caused by hard water
deposits.
Please read these pages carefully. They contain very important information to keep YOU and your new ionizer safe!

You remove the filter cover and the spring-loaded filter housing makes it a
snap to replace your filter. MAKE SURE NOT TO THROW AWAY THE FILTER
MAKE SURE NOT TO THROW AWAY THE FILTER
CUP AT BOTTOM OF FILTER!!!
CUP AT BOTTOM OF FILTER!!!
Enhanced convenience in filter replacement
MICOM control system optimizes the pH and ORP of your water and helps
keeps your ionizer in top working condition.
A new indicator light alerts you if service is needed on your ionizer.
MICOM control system
Unlike the ionizers with a manually controlled water supply, where users must
constantly check the flow rate, your ionizer has patented SOL valves which
automatically control the flow rate. This ensures you ease of use and optimal
operation - no guess work involved!
One-touch ON/OFF water supply
5 6
Unique diaphragms made of natural pulp coated with PE and processed with
surfactants keep pH, ORP and ion exchanges between acid and alkaline
uniform despite changes in pressure, flow amount or velocity.
They prevent scale buildup by employing a new material called fremion.
Triple diaphragms
We use the most advanced platinum-titanium electrode plating process that
consistently produces water with optimum ORP (Oxidation Reduction Potential)
at the selected pH level.
5-layered platinum-titanium electrodes
Fully automated flux control through an advanced new patented valve system
greatly enhances the optimization of pH and ORP in your water.
Flux control
Easy to understand symbols and colors identify the type and level of water you have
selected on the machine.
Your ionizer has an attractive colored FND display that easily identifies your
selections.
The easy to read digital indicator gives you an approximate indication of remaining
water filter life. Optimum performance is ensured by always changing your filter on
time. In addition to the digital counter, a new indicator light will flicker when your
current filter life is up, reminding you to change your filter.
Digital Filter Life Indicator
With the SOL valve system, your ionizer produces top quality alkaline water
without the separate cleaning cycle of every other ionizer.
The SOL valve system keeps desirable flow levels and pressure which prevents
scale build up and protects from overloading the electrolysis cell.
This feature also reduces the amount of flow from the Acidic drain line.
A revolutionary new automatic dynamic flow system employing
patented SOL valves.
Premium filter materials ensure production of healthier and cleaner water, trapping
a wide variety of contaminants while allowing beneficial minerals to pass through.
Top quality 9 step single-body nano-silver multi-stage filter
9
Wide choice range of pH. Enhanced convenience with One-Touch operation
9 settings for pH
A voice alerts you to your selection of alkaline, acidic or purified water.
You can adjust the volume level or simply switch the sound ON/OFF as
you desire.
Voice Indicator
When a cross section of an electrode is examined at 700 times magnification,
you can see that the electrodes have very sharp points and form valleys.
Your ionizer employs special electrodes that generate reduced water with
optimal ORP and stable pH level.
Mountain range-like specialized electrodes
ORP
Why the Delphi undersink is the world's
most advanced ionizer Water selection and mode indicators
Your new Delphi undersink is the only fully remote fucet that
allows you to get both alkaline and acidic water at the sink.

7 8
Electrical power precautions
Do not attempt to repair the machine if you encounter a technical problem, first contact the
IonWays Associate you purchased the machine from, then IonWays Technical Support if needed.
Safety Precautions
If your ionizer becomes submerged in water, unplug the power
cord from the wall BEFORE removing the ionizer from the water.
Failure to do so may cause electric shock!
NEVER
NEVER
attempt to repair or service the unit yourself.
Contact your dealer.
Attempting to do so will void your valuable warranty!
Attempting to do so will void your valuable warranty!
Do not use your ionizer at voltages other than specified (AC 110V FOR USA).
Use a GFI outlet. Do not plug in your ionizer where it will exceed the rating of
outlet or electric wiring.
Failure to do so can result in fire, injury and/or damage to yourself,
wiring or your ionizer!
NEVER touch the power cord or plug with wet hands
- this may result in electric shock!
Ensure the power plug is firmly and properly inserted into the outlet
- failure to do so may result in electric shock or fire!
Installation Precautions
Protect your ionizer from freezing temperatures.
Protect your ionizer from direct sunlight.
Do not put anything heavy on top of your ionizer.
Do not install your ionizer on an unstable or soft surface.
Install only on a hard and level surface.
Maintenance Precautions
Common Sense Precautions
Always unplug your ionizer when changing the fuse or cleaning your ionizer
- failure to do so may result in electric shock.
Do not attempt to repair or service the unit yourself. Contact your dealer.
Attempting to do so will void your valuable warranty!
Make sure to use your ionizer only with potable water which is
suitable for human consumption.
DO NOT use your ionizer with well water, water with extreme hardness, high sediment or
TDS levels without first consulting your dealer.
Do not wash your ionizer by immersion or by pouring water over the main body;
always unplug your ionizer while cleaning the casing.
Clean with damp sponge or cloth.
220V

9 10
Safety Precautions
During Use
Do not run hot water through your ionizer.
Do not clean by pouring water over or spraying the ionizer.
Do not close, bend, pinch, press or otherwise obstruct
output ports or hoses.
If the appliance makes strange or unusual noises or burning
smells are detected, unplug the power cord immediately and
contact your dealer to arrange service.
Unplug your ionizer if you plan not to use it for an extended
period or turn off the main power switch on the back of the unit.
Filter replacement may be necessary.
pH Reagent Liquid Precautions
Do not expose the pH measuring reagent to extreme heat, flames
or fire. It is combustible.
Do not drink the pH reagent liquid, put it in the eyes or apply to the body.
- If the liquid is ingested, induce vomiting immediately and call
a doctor.
- If the liquid gets in the eyes, flush immediately and thoroughly
with cool water; call a doctor.
- If spilled or dropped on your body, wash if off immediately.
Make sure to keep the pH reagent liquid tightly closed and out of the reach of children.
Acidic water is effective for washing and rinsing.
In order to clean the product's internal parts and in order to drink clean water, acidic water should
be run through the alkaline water tube 2 or 3 times per week and the faucet pipe should be cleaned
as well.
Some helpful tips
For storing your alkaline water, glass or ceramic is best. Always try and
keep your stored water cool and away from direct sunlight.
You can use plastic, but only use lexan (number7) or poly bottles
(Nalge type). It is always best fresh out of the machine and ideal
if consumed on a day-to-day basis.
Do not store alkaline water in stainless steel, bronze or
aluminum containers.
Save the box and Styrofoam your ionizer came packed in.
This will help if your ionizer needs to be transported at a later date.
Do not use an ionizer downstream of a sodium-based ion exchange
softening system or Reverse Osmosis system without first consulting
your dealer.
Unplug your ionizer if you plan not to use it for an extended
period or turn off the main power switch on the back of the
unit. Filter replacement may be necessary.

11 12
Calcium cap
Speaker
Volume controller
Names and functions of Parts I
Front Back
Rear cover
Connector Port
Huse holder
Acidic water outlet port
Alkaline water outlet port
Tap water inlet
Main switch
AC Power cord
Filter cover
Body

13 14
Names and functions of Parts II
Faucet Display Panel
Body
Acidic Water Outlet
Alkaline Water Outlet
Function display panel
LEVEL
ALKALINE
ACIDIC
FILTERED
FILTER LIFE
3
Alkaline water display indicator
If Alkaline water is selected the BLUE
BLUE
indicator will be lit.
Acidic water display indicator
If Acidic water is selected the ORANGE
ORANGE
indicator will be lit.
Filtered water display indicator
If Filtered water is selected the GREEN
GREEN
indicator will be lit.
pH level indicator
This numeric display will indicate which level (1-4) is selected.
If alkaline water is selected the number will be displayed in BLUE
BLUE
,
if acidic water is selected, the number will be displayed in ORANGE
ORANGE
.
Filter life indicator
Displays the current filter life used.
When the scale reaches the top and flickers,
it is time to replace your filter.
"ALKALINE" water button
Used to select alkaline water and the desired level (1-4)
"FILTERED" water button
Used to select filtered water.
"ACIDIC" water button
Used to select acidic water and the desired level (1-4)
"POWER" button
Starts and stops water flow into your ionizer.
POWER
FILTERED ACIDIC
ALKALINE

15 16
Accessories
How to Install How to connect water faucet
How To Install Connecting the Delphi faucet
pH test kit
Hose(1/4")
Hose(5/16")
Manual
Alkaline Water
Acidic Water
Tap Water
Tap Water
Connect Wire
Water Ionizer
DUST PRE- FILTER
Faucet
Tap water
Faucet
Circle Plate
Circle Plate
Tool
Large Alkaline
Water Fitting
Small Acidic
Water Fitting
1
2
Use appropriate tools to make 30mm
diameter hole in the location where you will set
up the faucet. Make sure the faucet location
will allow both spouts to reach the sink.
Place the faucet in the hole properly over
the gasket.
3
4
Insert the faucet in the hole and then screw
it with a nut to make it be fixed.
30mm
(Alkaline Water Hose)
(Acidic/Tap Water Hose)
Connector Cord
1/4” Tube(Acidic Water)
5/16” Tube(Alkaline Water)
Acidic Water
Alkaline Water Connector Cord
All the fittings are push in style fittings. To attach the hoses to any fitting, firmly insert the end of
the hose into the fitting. Pull firmly to check to connection - you should not be able to pull the
hose out. To release the hose from the fitting, you must push the spring loaded ring protruding
from the end of the fitting while pulling the hose out.
WARNING
WARNING
: incorrect installation could void your valuable warranty
: incorrect installation could void your valuable warranty
- professional installation is recommended.
- professional installation is recommended.
After the faucet is fixed, connect it to fitting
with 5/16” hose(for Alkaline) like figure 4.
Check the hose whether it is inserted properly
or not. Also, connect it with 1/4” hose(for Acidic)
like figure 4 and connect the faucet to the body
with connector cord.
Figure 1
Figure 2
Figure 3
Figure 4
Gasket
(installed under
the Faucet)
Product Requirement :
Product Requirement :
Water pressure should be maintained at a constant rate,
Water pressure should be maintained at a constant rate,
when the water pressure is too low, water cannot flow through the unit.
when the water pressure is too low, water cannot flow through the unit.

17 18
How to Install
Connecting the faucet and cold water hoses to the Ionizer
Tap water
6
7
8
9
10
11
12
Connect Wire
Hose(5/16")
Hose(1/4")
Alkaline Water
Tap Water(1/4")
Acidic Water
Power Cord
DUST PRE- FILTER
Faucet
1
2
3
4
1
2
3
POWER UP YOUR IONIZER.
Turn the power button on.
Turn the power button to the "ON" position
on the back of the ionizer.
- The power button is ALWAYS left on.
- The power button is ALWAYS left on.
TURN ON THE WATER
Turn on the water by opening the water supply valve.
To select Alkaline water
Initial operation
START WATER FLOW THROUGH YOUR IONIZER
- Depress the "POWER" button on the top of your Delphi faucet to start the water flow.
- NOTE: The water may initially come out discolored (light to charcoal gray) due to carbon
particulates in the new filter.
- This is not harmful and is typical of all carbon filters. Allow the water to flow for 2-3 minutes
in the "Purified" mode and this will flush all the carbon dust.
With the water running through your Delphi faucet then:
Depress the "ALKALINE" button to select the desired setting from 1 - 4. The alkaline water will come
out from the top spout. The display panel on the front of the faucet will show a blue Alkaline indicator
and blue number corresponding to the level selected.
Note: Your ionizer will always "remember" the last setting used.
If the previous selection was Alkaline Level 2, when you start flow through the ionizer next time
you use the ionizer it will automatically process at Alkaline Level 2.
How to Use
Place the Ionizer in an appropriate place under your sink
Connect the 1/4inch Acidic Water Hose to the small fitting on the Acidic Hose extending
from the faucet to Acidic Water Outlet on the Ionizer. Pull firmly to check to connection -
you should not be able to pull the hose out.
Connect 5/16 inch Alkaline Water Hose attached to the threaded stem of the faucet to the
Alkaline Water Outlet on the ionizer. Pull firmly to check to connection - you should not be
able to pull the hose out.
Install the dust pre-filter in the middle of a length of 1/4 inch hose with the arrow pointed at
the ionizer. Connect the 1/4 inch hose with dust filter to Tap Water Inlet on the bottom of
the ionizer. Pull firmly to check to connection - you should not be able to pull the hose out.
Join the wire from the faucet to the Connect Wire. Plug the Connector Cord into the
Connector Port on the back of the ionizer.
Connect the power cord into an appropriate outlet.
Make sure the outlet you plug your Delphi into is live, and remember that many outlets under
the sink are controlled by an on/off switch.
External Valve
Connect the external valve between the hoses.
If the water pressure is excessively high, adjust the water flow by turning
the external valve.
To get the proper pH and ORP value of ionized water, set the external valve
to allow 1.5 liters of water per minute to flow through the ionizer.
How to install the external valve
1/4" hose

19 20
How to Use
To select Acidic water To change levels of Alkaline water
How to Use
LEVEL
ALKALINE
ACIDIC
FILTERED
FILTER LIFE
1
4
To select a different level, depress the "ALKALINE" button to move to next level until the
desired setting level is achieved. The blue number will change accordingly.
Alkaline water levels Note: pH levels will always vary with different source water.
Weak Alkaline water (pH7.5 -
pH8.5). This level is used for
initial consumption period
(4-7 days). Let your body
adjust slowly to this increase
in pH.
Weak to Medium Alkaline
water (pH8 - pH9). Move
up to this level after the
initial adjustment period.
Adjust to this level for 3-4
days. Most people will drink
at level 2 or 3.
Strong Alkaline water (pH9.5
- pH10+). Generally, most
people find this very strong
tasting and with powerful
detoxifying effects.
Medium to Strong Alkaline
water (pH8.5 - pH9.5).
This is the most common level
of alkalinity for drinking
purposes. Some people may
start to detect a strong change
in taste.
Alkaline Water
Acidic Water LEVEL
ALKALINE
ACIDIC
PURIFIED
FILTER LIFE
1
Alkaline Water
Acidic Water
Note: Acidic water is for external use only. DO NOT DRINK
1
2
With the water running through your Delphi faucet then:
Depress the "ACIDIC" button to select the desired setting.
The display panel will show an orange symbol and number corresponding to the level selected.
The Acidic water will come out from the top spout.
Descriptions of Acidic water levels Note: pH levels will vary with different source water.
4
3
To select a different level, depress the "ACIDIC" button to move to next level until the desired
setting level is achieved. The orange number will change accordingly.
Weak Acidic water (pH6.5 -
pH5.5). Used for oral hygiene,
mouth wash etc.
Weak to Medium Acidic
water (pH6 - pH5.5).
For skin care, as an
astringent.
Strong Acidic water
(pH5 and lower).
For sterilization purposes.
Medium to Strong Acidic water
(pH5.5 - pH5).
For cleaning in the kitchen.
Note: Your ionizer will always "remember" the last setting used.
If the previous selection was Acidic Level 2, when you start flow through the ionizer next time
you use the ionizer it will automatically process at Acidic Level 2.

21 22
How to Use
To select "Filtered" water
LEVEL
ALKALINE
ACIDIC
FILTERED
FILTER LIFE
0
1
Filtered Water
With the water running through your Delphi faucet, press the "FILTERED" button.
The display panel will show a green symbol.
The purified water will come out of the top spout.
Nothing comes out of the lower spout.
With the water running through your Delphi faucet then depress
the power button. The water will stop and the display panel
will go dark indicating the ionizer is in standby or "asleep".
How to Shut off the water flow from your ionizer
1
2
3
If the reagent and water are not mixed well, the correct result may not be
displayed.
Fill one of the receptacles provided about 1/4 full
with alkaline, acidic or purified water.
ALKALINE
WATER
ACIDIC
WATER
PURIFIED
WATER
ALKALINE
WATER
ACIDIC
WATER
PURIFIED
WATER
How to Measure pH
Drop 2 or 3 drops of the pH reagent into the container
and shake it.
The pH value is determined by matching the color the pH
color chart provided.
DO NOT consume water containing reagent
Keep the pH reagent liquid, color chart, and test tubes away from direct sunlight
KEEP pH reagent liquid AWAY FROM CHILDREN and OPEN FLAMES!
For contact with eyes, flush liberally with fresh water, seek medical help
If ingested, induce vomiting, seek medical help
Important Note: Water quality and mineral content vary greatly in different localities
and will directly impact performance of your ionizer with respect to pH.

Depress the "FILTERED" button for 5 seconds
on the faucet.
Depress the "ALKALINE" button to raise to
the desired setting, and depress the "ACIDIC"
button to lower to the desired setting.
With the beep sound, the default setting
level 3 appears on the pH level indicator
of the display panel.
(You can select the desired setting from 0-6)
To fix the setting you selected, depress
the "FILTERED" button on the faucet.
User can regulate the electrical current of the water ionizer
based on the water source.
How to set your individual pH levels
FILTERED
FILTERED

15
6
2
3
4
25 26
How to Add Calcium
Stop the water flow prior to calcium replacement.
- Water will overflow if you open the calcium cap while
water is coming out.
Unscrew the cap to the left and remove.
-The first time you remove it the cap
may be tight. Use a butter knife to
work it free. Open
Close
Take the basket apart from the cap and dispose of the
remaining beads. The beads never completely disappear
- it's the calcium coating on the beads that slowly releases
into the water. Beads will release calcium for about 1-2
months depending on amount of use and pH of water.
Wash the basket and remove all water.
Add the new calcium beads and close
the cap.
Insert the basket into the calcium port and
twist the cap closed.
- Water will overflow if you do not close
the cap tightly.
REGULARLY CHECK AND CLEAN YOUR IN-LINE PRE-FILTER
Keeping the in-line pre-filter clean is critical to the proper operation of your ionizer.
First ensure your water supply is turned off.
Then remove the in-line pre-filter by pressing the spring loaded ring protruding from the end
of the fitting while pulling the hose out. Rinse out the filter thoroughly to remove any built up
particulate. Rinse from both sides.
Reinstall it.
Clean the filter in this way any time you notice a decreased flow from your ionizer.
To release the hose from the fitting, you must push the spring loaded ring protruding from the
end of the fitting while pulling the hose out.
Adding calcium to your machine is NOT needed unless you have unusually soft water,
low in minerals. If your machine is making adequate pH, there is no need to
add the calcium insert.
Plastic cap Calcium cap(Chrome)
New cartridge
NOTE :
NOTE :
If you do not remove the plastic cap of a calcium cartridge,
If you do not remove the plastic cap of a calcium cartridge,
will crack the internal calcium port or leak the internal.
will crack the internal calcium port or leak the internal.

When the digital filter life indicator reaches
full or you see the flickering filter symbol,
it is time to replace your filter.
Flush out the GAC carbon dust.
- The water will initially come out discolored (light to charcoal
gray) due to carbon particulates in the new filter.
This is not harmful and is typical of all GAC filters.
Allow the water to flow for 2-3 minutes in the "Purified" mode
and this will flush all the carbon dust.
Open the filter housing cover.
-First, slide the cover upwards (figure 1) Then,
slide the cover to the left (figure 2) and remove it.
1
5
6
7
2
3
4
5
Remove the expired filter.
- Taking hold of the filter securely with your right hand,
press the filter firmly down against the spring loaded
mechanism (figure1) to disengage the top of the filter
and then pull it toward you (figure2) and up to remove it.
- The upper part of the filter is separated from housing by
pressing firmly down. Once you have engaged the spring
loaded mechanism, you can then easily remove the filter
from the main body by pulling it toward you.
Press the reset button located at the top of the filter housing compartment,
and hold for up to 15 seconds while Ionizer is in standby mode (water not running,
power to machine on). NOTE: When filter life indicator is reset, and also when
machine is new, no bars will be showing.
27 28
①
②
①
②
①
②
①
②
Filter
cover
How to Replace the Filter
How to Replace the Filter
IMPORTANT! Stop water flow prior to filter replacement.
Immediately after filter replacement, the water will come
out black and unclear due to the activated carbon particulates
in the new filter but will become clear momentarily.
(It is not harmful.)
Reset
Button
Please replace filter when any one of the flowing occur:
- When severely polluted water has been run through the
ionizer and filter
- Excessive odor in output water and/or severely decreased
flow rate
- After prolonged period of inactivity of over 30 days
Reset
Check for leakage by running water through your ionizer before replacing
the housing cover.
Replace the filter housing cover.
LEVEL
ALKALINE
ACIDIC
FILTERED
FILTER LIFE
0
Insert the new filter into the compartment.
- Remove the plastic caps covering both ends of the new filter.
- Seat the large opening on the bottom of the filter cartridge
onto the base in the center of the filter cushion.
- Push the filter down and into the housing compartment
ensuring the opening at the top of the filter is seated
properly into the fitting at the top of the housing.

29 30
Calcium:
It slightly increases the alkaline mineral content in your water. It improves water taste and odors,
and it is particularly effective in removing the chloride. You get calcium on tap!
Tourmaline:
Tourmaline emits Far Infra Red (FIR) energy naturally. FIR produces well documented health
benefits and it also has an amazing effect on water.
The Biostone contains the semi -precious gemstone tourmaline in ceramic form,
so you get FIR on tap!
Non-woven fabric filter
Filters out sediment and particulate.
Granular Activated Carbon (GAC) :
The workhorse of the filtration media. GAC is especially effective at removing chlorine, its odor
and taste, agricultural chemicals, phenol, trihalomethane and other chemical contaminants.
Silver is coated on the surface of the granular activated carbon to inhibit bacterial growth in
between use.
Non woven fabric filter :
Filters out sediment and particulate.
Composition of filter
Solenoid valve
Water flow
sensor
Water
cell
Filter
Tap water
About your revolutionary Biostone Filter

31 32
Trouble Shooting Guide
The Function Display
Panel does not come on.
A power plug is not property
inserted, or it is inserted into a
faulty outlet.
The fuse is blown.
The fuse is not inserted properly.
ResolutionCause(s) Abnormal condition ResolutionCause(s) Abnormal condition
Properly insert power plug into
a correctly functioning power
outlet
Replace the fuse. A spare fuse
is included in your reagent kit.
(3A / 250V fuse)
The Function Display Panel /
display indicators do not
come on even after turning
the tap on.
Faulty PCB
(Printed Circuit Board)
Immediately unplug the unit
and contact your dealer to
arrange service.
pH test shows alkaline water
color as neutral (7) while
acidic water color gets
yellow (6). This is normal
if initial pH is 6.5
Faulty or evaporated reagent:
alkaline / acidity are always
produced in inverse proportion.
Therefore, showing an acidic
color means inversely that
alkaline water has to be
generated from the unit.
Lack of alkaline color can
result from a chemical
reaction where carbonic
acid in water evaporates
some test reagent elements.
Test pH value on level
3 or 4 water;
replace reagent.
Power supply is suddenly
cut off while operating the
unit.
Elevated level of salt in the
water or high TDS; extended
operation at high pH;
sudden flux in electrical
current. In these cases your
machine will shut down
automatically to protect the
electrodes and circuitry.
Wait - the unit will become
operational again after about
one hour. Your ionizer has a
safety mechanism built-in to
protect the electrodes and
circuitry. This mechanism will
shut the ionizer down
automatically. This mechanism
protects the unit from overuse
or excessive electric current.
Low output of alkaline water
from the unit.
Filter is clogged. Premature
clogging may be caused by
sudden drop in water quality and
an influx of sediment or other
contaminants, which stress
the filter.
Low pressure in your household
plumbing.
The input hose is bent, kinked or
otherwise restricted.
Replace your filter.
Clean Pre-filter
Ensure water supply valves are
fully open. The water pressure
in house may be too low.
Straighten the bent hose.
Strange smell from
Alkaline water.
Expired filter from ordinary use
or premature clogging due to
flux in water quality.
Sudden flux in water quality with
elevated level of Choline
(not Chlorine). Elevated Choline
levels are observed in some
areas during summer months.
These levels fall within safe
drinking water standards, yet
will cause a reaction with ionized
water causing a unique smell.
Replace your filter.
Select lower pH level (1-2).
If still present, filter replacement
may be necessary.
Water appears milkish;
white snow like particles
in the bottom of your glass.
You have high hardness (calcium
primarily) in your water. The white
is extracted CaCO3 (Calcium
carbonate). After Co2 in water is
bonded with Ca where elevated
levels of CO3 exist in your water.
In water where elevated levels of
CO3 exist, what you see after
ionization is Co2 in the water
bonded with Ca.
This is calcium! It is not only
harmless, but actually good for
you. Remember the ionizer
separates and condenses the
alkaline minerals and this is what
you are seeing. You can lower
the setting (1-2) and reduce
this effect. Typically this only
occurs in hard water areas.
At first no smell, but then
smell from the alkaline
water about one hour after.
Your water bottle or receptacle
is foul and needs cleaning.
Contamination mixes with
alkaline water when filling your
bottle. Expired filter.
Clean your bottle or receptacle.
Try selecting lower pH level
(1~2). Replace your filter.
Water leakage from the
filter cartridge housing.
Filter not installed correctly
into filter housing.
Remove your filter and reinstall it
properly following the filter
replacement instructions.
Increase the quantity of source
water inflow.
No acid water flow from the
acidic output port.
Acidic output hose is bent,
kinked or otherwise restricted.
Straighten the bent hose;
increase water flow from supply.
Poor / Irregular pH
Production at levels
1,2,3 and 4
Either overly hard or soft water
(excess or lack of minerals
in water)
Adjust the voltage output, please
refer to page 23 in this manual

33 34
AC120V / 220V / 230V
0.38A(80W)
Approx 6.5kg
4 level
FND indicator
245 X 130X 330(mm)
Delphi
When you first open the faucet box you will find an allen wrench and the spouts for your faucet.
You need to install the spouts to the faucet. There are allen screws in the faucet where the spouts
attach. Use the allen wrench to loosen those screws a little to install the spouts.
Once you loosen the screws, slide the longer of the two spouts into the top hole and tighten
the allen screw. Be Careful not to over tighten screws and make sure that the spout is flush with
the faucet. Next do the same with the lower or shorter spout.
Once this procedure is done and the faucet is installed check the spouts for leaks.
How to assemble the spouts
12
3
