Emerson RXi User manual

Quick Start Guide
GFK-3071B
May 2020
RXi –Industrial Monitor

i RXI Industrial Monitor Quick Start Guide GFK-3071B
Caution Notes as Used in this Publication
WARNING
Warning notices are used in this publication to emphasize that hazardous voltages, currents, temperatures, or other
conditions that could cause personal injury exist in this equipment or may be associated with its use.
In situations where inattention could cause either personal injury or damage to equipment, a Warning notice is used.
CAUTION
Caution notices are used where equipment might be damaged if care is not taken.
Note: Notes merely call attention to information that is especially significant to understanding and operating the equipment.
These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible
contingency to be met during installation, operation, and maintenance. The information is supplied for informational
purposes only, and Emerson makes no warranty as to the accuracy of the information included herein. Changes,
modifications, and/or improvements to equipment and specifications are made periodically and these changes may or
may not be reflected herein. It is understood that Emerson may make changes, modifications, or improvements to the
equipment referenced herein or to the document itself at any time. This document is intended for trained personnel
familiar with the Emerson products referenced herein.
Emerson may have patents or pending patent applications covering subject matter in this document. The furnishing of
this document does not provide any license whatsoever to any of these patents.
Emerson provides the following document and the information included therein as-is and without warranty of any kind,
expressed or implied, including but not limited to any implied statutory warranty of merchantability or fitness for
particular purpose.

ii RXI Industrial Monitor Quick Start Guide GFK-3071B
Contents
Specifications and Physical Characteristics .................................1
Specifications ............................................................................................................... 1
Technical Drawings & Dimensions ............................................................................... 2
Regulatory Information ................................................................................................. 8
Initial Setup 9
Environmental Conditions............................................................................................. 9
Intended Use ................................................................................................................ 9
I/O and Connectors ...................................................................................................... 9
Connecting Input Power (24V DC-in) ..............................................................................9
DC_IN1 10
HDMI (HDMI Input) .......................................................................................................10
DP1 (Display Port Input) ...............................................................................................11
DP2 (Display Port Output).............................................................................................12
CN6 (USB 2.0) ..............................................................................................................12
CN7 (Line Out) ..............................................................................................................13
LED Indicators ............................................................................................................ 13
Operation Status LEDs (Screen)...................................................................................13
OSD 14
AD Board OSD Functions .............................................................................................14
Enter Burn-in Mode .......................................................................................................14
Exit Burn-in Mode..........................................................................................................15
If unable to exit Burn-in Mode........................................................................... 15
OSD Controls ............................................................................................................. 15
OSD Keypad .................................................................................................................15
Virtual OSD Keypad ......................................................................................................16
Main Menu .................................................................................................................. 16

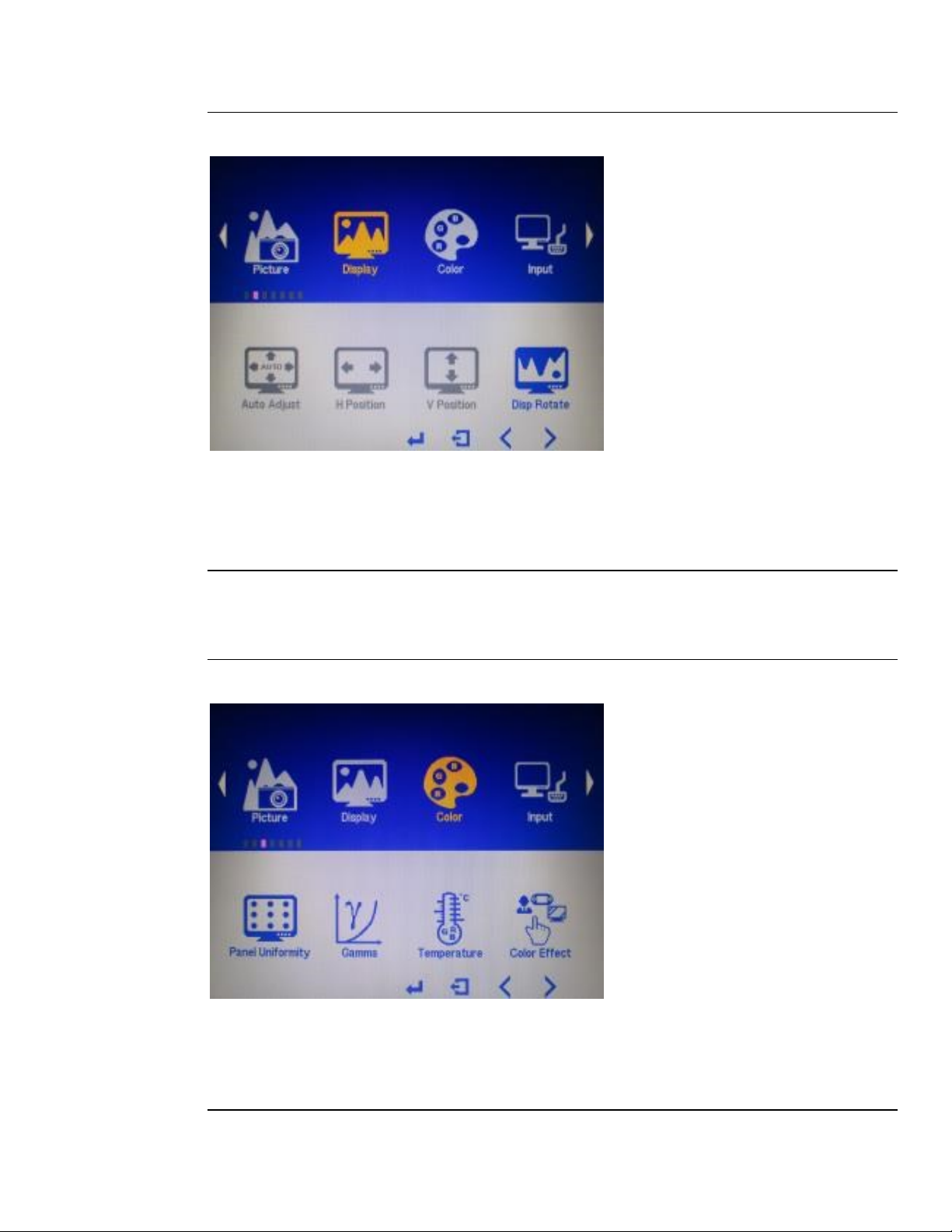

Display 17
Color 17
Input 18
Audio 18
Other 19
Mounting Information..............................................................20
Panel Mount ............................................................................................................... 20
Panel Cutout Dimensions..............................................................................................20
Installation Steps...........................................................................................................21
Mounting to Modular Display ...................................................................................... 22
VESA Mount ............................................................................................................... 24
Technical Support & Contact Information .................................28

1 RXI Industrial Monitor Quick Start Guide GFK-3071B
Specifications and Physical Characteristics
Specifications
Size (inch)
7"
10"
12"
15"
19"
24"
Display
Resolution
1024 x 600 WSVGA
1280 x 800 WXGA
1920 x 1080 Full HD
Format
Widescreen (16:0)
Widescreen (16:10)
Widescreen (16:9)
Orientation
Landscape
Reading Angle (°)
150 (H) / 145 (V)
170 (H) / 170 (V)
176 (H) / 176 (V)
170 (H) / 170 (V)
178 (H) / 178 (V)
Display Off-Color
Black
Contrast
800:1
1000:1
800:1
1000:1
5000:1
Brightness (cd/m2)
500
400
450
350
300
Brightness with Outdoor
SLR Screen (cd/m2)
1000
N/A
MTBF Backlighting
50 000 h (at 25°C)
Touchscreen
Technology
Projected Capacitive Touch (PCT/PCAP)
Touch Sensor
Multi-touch (Ten-Point)
Interfaces
Port 1
1 x HDMI-In
Port 2
1 x Display Port-In
Port 3
1 x Display Port-Out
Port 4
(MST - Daisy Chain)
Port 5
1 x USB Input (For Touch)
Status Indicators
Front Bezel Tri-color LED
Amber/Green/Red
Power-Supply
Voltage [V]
+24VDC ±20% (19.2 V to 28.8 V, 3-Pin Connector, Isolated, use 28-14AWG (0.2-1.5mm²) wire rated 90C,
1.7 in-lbs (0.19Nm) torque
Protection-
Class/Installation
Front-Side
IP66/Type 4/Type 4X (when mounted to flat surface of a suitably rated enclosure)
Back-Side
IP20/Open Type product for mounting in an ultimate enclosure Pollution Degree 2 environment
Design
Housing
Aluminum Die Casting (Front)
Environment
Operating Temperature
-20°C to +65°C
Storage Temperature
-30°C to +70°C
Operating Humidity
85% RH (non- condensing) @ 30°C
Operating Altitude
10000 f t. (3.000 m)
Vibration
1Grms / 5 ~ 500Hz (Random) / Operation IEC 60068-2-64
10G peak acceleration (11 msec. duration)/operation IEC 60068-2-27
Mounting
Panel Cutout Dimensions
(W x H)
183.5 x 128.5 mm
255.5 x 174 mm
317 x 214.5 mm
398 x 245.5 mm
482 x 297 mm
581 x 360 mm
VESA Mounting
100 x 100
Hardware Included
Mounting Clamps and Allen Screws
Physical
Specification
Net Weight (kg)
2.0
2.6
3.8
5.1
6.9
9.0
Dimensions (W x H x D)
192 x 137 x
65 mm
267 x 186.2 x
65 mm
329.1 x 226.8 x 66 mm
410.2 x 257.6 x 65 mm
500 x 315 x
70 mm
600 x 382 x
71 mm

2 RXI Industrial Monitor Quick Start Guide GFK-3071B

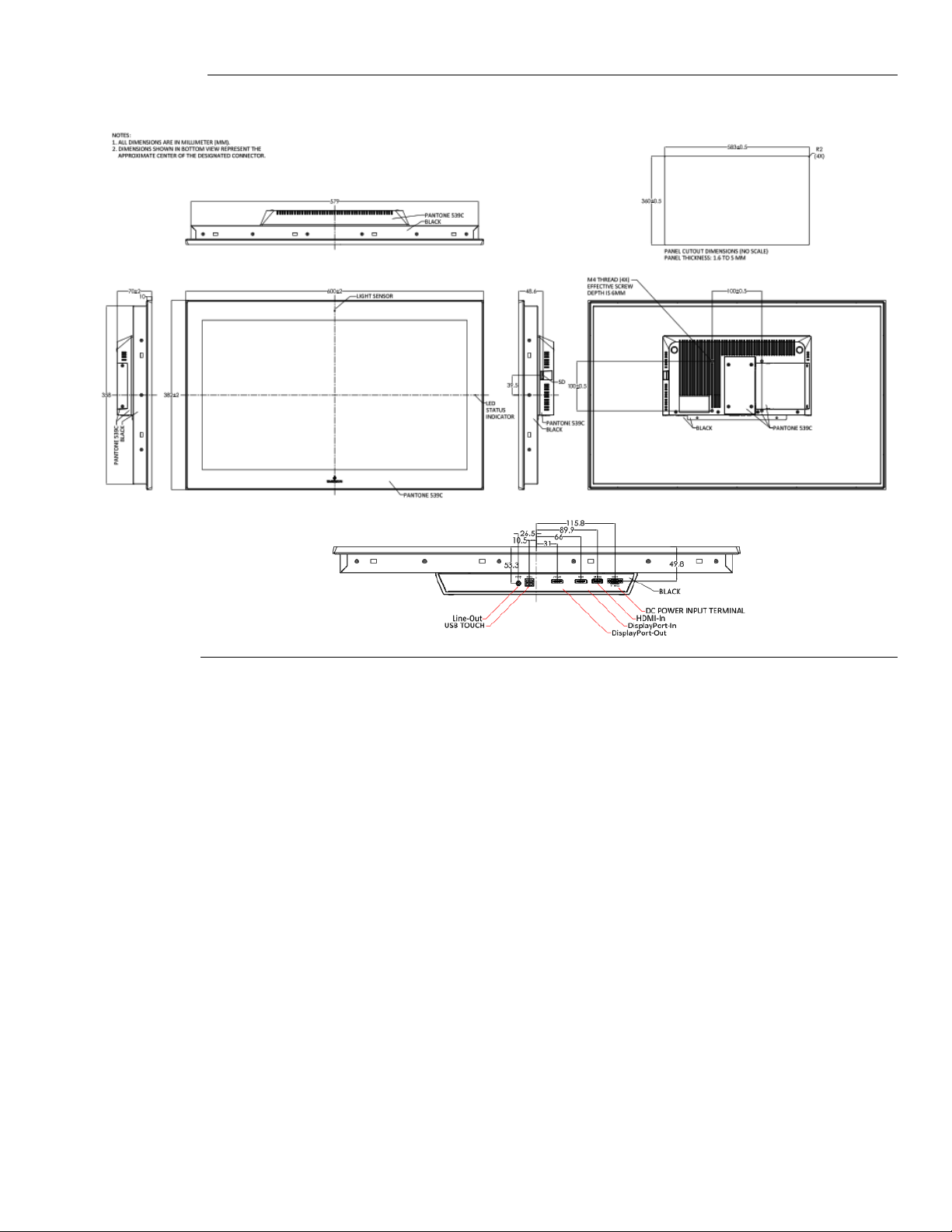

Technical Drawings & Dimensions
Figure 1: Dimensions of 7”

3 RXI Industrial Monitor Quick Start Guide GFK-3071B
Figure 2: Dimensions of 10”

4 RXI Industrial Monitor Quick Start Guide GFK-3071B
Figure 3: Dimensions of 12”

5 RXI Industrial Monitor Quick Start Guide GFK-3071B
Figure 4: Dimensions of 15”

6 RXI Industrial Monitor Quick Start Guide GFK-3071B
Figure 5: Dimensions of 19"

7 RXI Industrial Monitor Quick Start Guide GFK-3071B
Figure 6: Dimensions of 24”

8 RXI Industrial Monitor Quick Start Guide GFK-3071B
Regulatory Information
The FCC requires the following note to be published according to the FCC guidelines:
NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
•Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Industry Canada requires the following to be published: CAN ICES-3 (A)/NMB-3 (A)
CAUTION

9 RXI Industrial Monitor Quick Start Guide GFK-3071B
Initial Setup
Environmental Conditions
Environmental conditions as identified in Section 1.1 shall be followed during installation and operation.
Intended Use
The RXi Industrial Monitor is intended for use in industrial environments only. Adherence to supplied
documentation is part of the intended use. Installation, commissioning, and maintenance shall be
carried out by qualified personnel.
I/O and Connectors

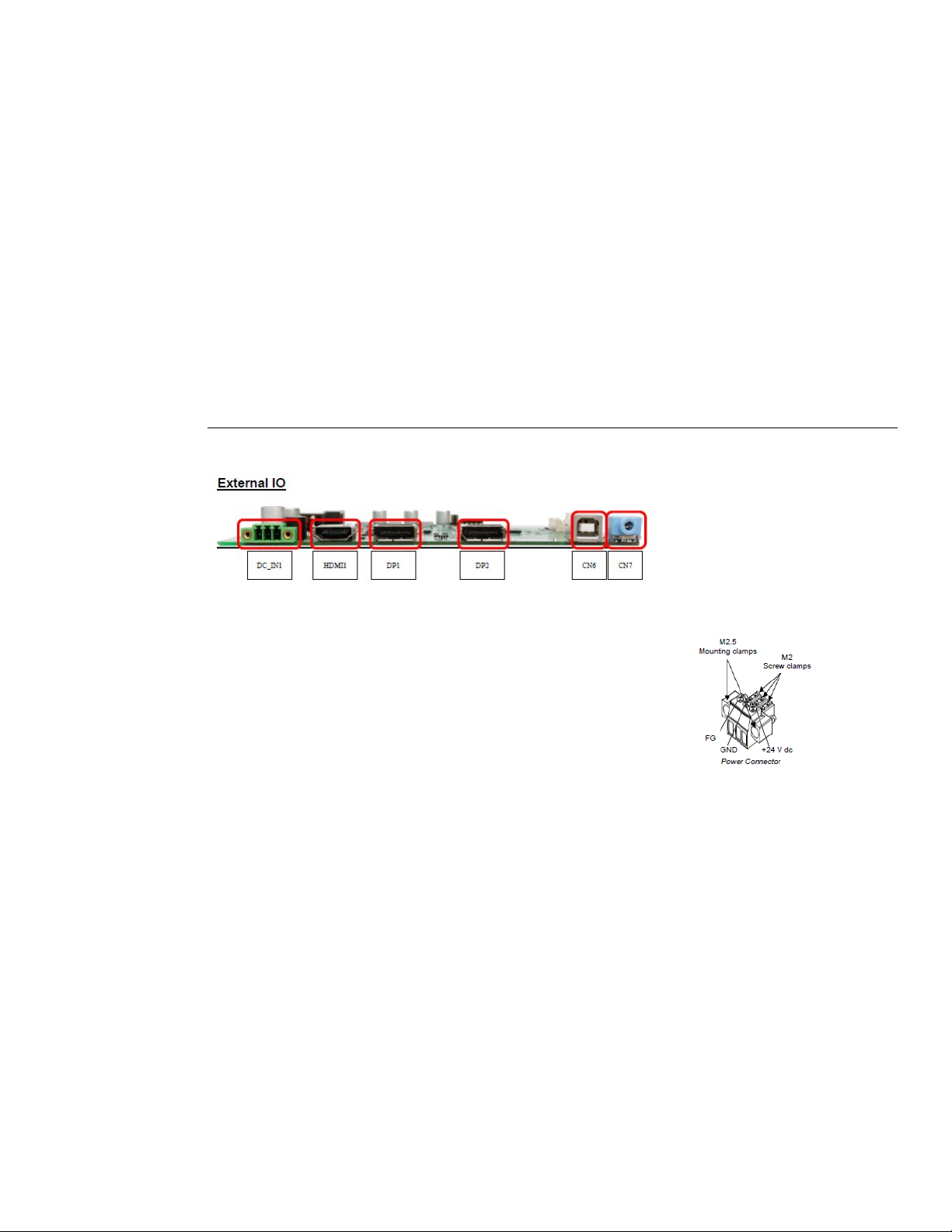

Figure 7: Jumpers and Connectors Location
Connecting Input Power (24V DC-in)
To connect to power, follow these steps:
1. Verify that the power cable is not energized.
2. Loosen the screw clamps on the mating power connector.
3. Strip the insulation from the power cables.
4. Secure the power cable to the mating connector, noting polarity, and tighten the screw clamps. The
torque for the attaching screws is 0.3 Nm (2.26 in-lb).
5. Apply dc power to the unit. During normal startup and operation, the LED status indicator displays
as follows:
•Solid amber while the RXi - Industrial Display unit is starting up
•Solid green during normal operation
6. Once power is applied, the unit begins initializing. The first thing to display is the splash screen.
Be sure to connect a DC power cord to this 3-pin power connector. Using a voltage out of the range may
fail to boot the system or cause damage to the system board.

10 RXI Industrial Monitor Quick Start Guide GFK-3071B
DC_IN1
(3.5mm Pitch 1x3 Pin Connector), DC24V power input connector
Pin #
Power Input
Pin1
DC+24V
Pin2
Ground
Pin3
FG
HDMI (HDMI Input)
(HDMI Connector), High Definition Multimedia Interface connector, provide high-quality video and
audio input.
Figure 8: HDMI Layout
Signal Name
Pin#
Pin#
Signal Name
DATA2+
1
2
DATA2 Shield
DATA2-
3
4
DATA1+
DATA1 Shield
5
6
DATA1-
DATA0+
7
8
DATA0 Shield
DATA0-
9
10
CLK+
HDMI CAB DET
11
12
CLK-
NC
13
14
NC
HDMI SCL
15
16
HDMI SDA
GND
17
18
HDMI 5V
HDMI HPD
19

11 RXI Industrial Monitor Quick Start Guide GFK-3071B
DP1 (Display Port Input)
(Display Port Connector), Display Port Interface connector, provide high-quality video and audio input.
Signal Name
Pin#
Pin#
Signal Name
LANE3-
1
2
GND
LANE3+
3
4
LANE2-
GND
5
6
LANE2+
LANE1-
7
8
GND
LANE1+
9
10
LANE0-
GND
11
12
LANE0+
GND
13
14
GND
AUX_CHP
15
16
DP CAB DET
AUX_CHN
17
18
DP HPD
RETURN
19
20
DP 3.3V

12 RXI Industrial Monitor Quick Start Guide GFK-3071B
DP2 (Display Port Output)
(Display Port Connector), Display Port Interface connector, provide high-quality video and audio
output.
Signal Name
Pin#
Pin#
Signal Name
LANE0+
1
2
GND
LANE0-
3
4
LANE1+
GND
5
6
LANE1-
LANE2+
7
8
GND
LANE2-
9
10
LANE3+
GND
11
12
LANE3-
GND
13
14
GND
AUX_CHP
15
16
GND
AUX_CHN
17
18
DP HPD
RETURN
19
20
DP 3.3V
CN6 (USB 2.0)
(2.0mm 1x9 Pin wafer connector), For external USB2.0 signal.
Figure 9: USB 2.0
Pin #
Signal Name
1
USB 5V
2
USB-
3
USB+
4
GND

13 RXI Industrial Monitor Quick Start Guide GFK-3071B
CN7 (Line Out)
(Diameter 3.5mm Jack), Line Out audio port. Line Out can be connected to headphones, speakers or an
amplifier.
Figure 10: Line Out
LED Indicators
Operation Status LEDs (Screen)
All RXi Industrial Displays have a tri-color LED built into the screen that provides visual indication of the
operation status.
LED State
System State
Amber, Solid
Operating system starting
Green, Solid
Normal operating state
Green, Blinking
Backlight off
Red, Blinking
Backlight failure
Off
Power not applied to unit

14 RXI Industrial Monitor Quick Start Guide GFK-3071B
OSD
AD Board OSD Functions
Figure 11: AD Board OSD Functions Legend
Power switch: To turn ON or OFF the power
Shift the icon to the left side or shift it up
Shift the icon to the right side or shift it down
Menu: To enter OSD menu for related icon and item
Auto Button: One-touch auto adjustment
Enter Burn-in Mode
Before entering burn-in mode, first disconnect the AC power cord, then press and hold the
buttons, then release after the AC power cord is connected and the “RGB” appears on the top left corner
of your screen. Now it can be put into the burn-in mode for changing colors.

15 RXI Industrial Monitor Quick Start Guide GFK-3071B
Exit Burn-in Mode
Before exiting burn-in mode, please first disconnect the AC power cord, then press the button
(If for any reason this button is non-functional, press and hold the button) until the AC power
cord is connected. Do not release the button until the AC power cord is connected again and the
wording of “RGB” appears on the top left corner of your screen, then wait for 3 seconds. If there
is no input plugged into the unit, the “CABLE NOT CONNECTED” message will denote that it has
successfully left burn-in mode.
If unable to exit Burn-in Mode
If the “RGB” is still on the top left corner of the screen, press to enter “Miscellaneous” and
choose “Reset”, and then select “Yes”, and press . When the screen goes black, disconnect
power and repeat the above steps.
If the “RGB” is not found, disconnect the AC power cord first, then press and hold the
buttons until the AC power cord is connected, and wait for 2 to 3 seconds. When “RGB” appears,
repeat the above steps.
OSD Controls
OSD Keypad
To make any adjustment to the settings of the Industrial Monitor, select the following:
1. Press (Menu) to show the OSD menu or dismiss the OSD menu.
2. Select the icon that you wish to adjust with the ( / or +/-) key in the menu.
3. Press (Menu) and then choose the item with the ( / or +/-) key.
4. Press (Menu) and then adjust the quality with the ( / or +/-) key.

16 RXI Industrial Monitor Quick Start Guide GFK-3071B
Virtual OSD Keypad
Figure 12: Virtual OSD Keyboard
Main Menu
Figure 13: Picture Menu Options
In the PICTURE menu, there are the following items:
-AutoBacklight
-Backlight
-Brightness
-Contrast
-Sharpness

17 RXI Industrial Monitor Quick Start Guide GFK-3071B
Display
Figure 14: Display Menu Options
In the DISPLAY menu, there are the following items:
-Auto Adjust
-H Position
-V Position
-Disp Rotate
Color
Figure 15: Color Menu Options
In the COLOR menu, there are the following items:
-Panel Uniformity
-Gamma
-Temperature
-Color Effect
