Emerson GQ365 User manual

GQ365

GQ365
Quick Start: Operations
Quick Start: TV Connection (AV out for CD+G disc only)
Quick Start: Cradle for MP3/MP4/iPod®/Zune®
Front View
Controls: Front View Defined and Operation
Back and Bottom View & Peripherals
Troubleshooting Guide
Technical Specifications
Features
What’s in the box

2

3

4
If treated properly, your Compact Disc + Graphics Karaoke System will provide you with many years of
entertainment. You become the "star" when you sing along with your favorite karaoke music discs. Your
voice will mix with the music and play through the unit's speakers. It will sound as though you are in a
concert with you being the "star".
It's important you take a few moments to read and understand this manual. This small effort will
familiarize yourself with the many features and how to use them to your benefit.
Demo CD+G - the demo CD + G included with this unit contains karaoke favorites any family can sing
to. Each song has a left track and right track for music. Use the balance knob to cut out the lead vocals
so only your voice can be heard. When connected to your TV, the music lyrics will be displayed on your
TV screen. Each word is "swiped" with a different color to indicate when it should be sung. This helps the
singer keep time with the music.

GQ265
CDG Disc
• Karaoke Unit
• Audio/Video RCA Cable
• Uni-Directional Microphone
• AC Cord
• i Cable
• i Cradle
• CD+G disc
• Instruction Manual and Warranty Card
• Two Microphone inputs
• Echo Control
• AUX input for MP3/MP4/iPod®
• iCable
• Built-in Personal Player Cradle
• USB Charger for iPod® and MP3 Players
• AC/DC power (Batteries not included)
Universal Cradle
Uni-Directional Microphone
What’s in the box
Instruction
Manual &
Warranty Card

6
Quick Start: Operations
Playing a CD or CD+G disc
1. Connect the AC adaptor to rear of unit or insert 8 "C" batteries in the bottom of the unit.
2. Optional: To see lyrics on your TV screen, connect the yellow video output on the player
to a yellow video input on your TV.
3. Optional: To have more audio power, connect the red and white audio outputs on your
player to red and white audio inputs on your TV or stereo. (See connection on page 7)
4. Turn on the unit by POWER ON/OFF.
5. Select the disc mode (on the top panel).
6. Load the CD or CD+G disc into the unit’s CD-Drive, located on the top of the unit.
7. Press PLAY button to start the loaded disc. Press the PAUSE button to suspend the music.
Press the STOP button to stop the disc; Press PREV. or NEXT to get the previous or next
tracks.
8. Rotate the MASTER VOL. to adjust the volume of
the music. Likewise, rotate the MIC VOL. to adjust the
microphones volume.
9. Rotate the BALANCE knob to adjust the music & vocal
in different percentages.
10. Rotate the ECHO knob to get echo depth while singing.
11. Press the REPEAT button once to repeat the current
playing song (the repeat indicator blinks). Press
REPEAT twice to repeat all tracks on the
disc (the repeat indicator light up all the time). Press
REPEAT again to cancel the repeat function (the
indicator light will be off).

Quick Start: TV Connection (AV out for CD+G disc only)
The CD+G lyrics can be displayed on a connected television.
1. Plug one set of the RCA cable( included) into the OUTPUT on the back of the
karaoke unit;
2. Plug the other set of the RCA cable into the input on the television;
3. Set the television to the appropriate video mode(such as video 1, video 2 etc.);
4. Power on the karaoke unit, then Insert a CD+G disc, and Press the PLAY button;
5. Video plays on the television now.
We have the
songs you
love to sing...
Quick Start: Cradle for MP3/MP4/iPod®/Zune®
Connect the USB port(on the back
of the unit) to charge your personal
player.(USB cable not included).
Turn on the karaoke unit, Select the switch to
the “AUX IN” mode, Turn on your personal
player and play; Now you will have the
MUSIC play by the karaoke unit’s speaker
Connect MP3/MP4/iPod®/Zune®

1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
15
1. PLAY and PAUSE indicator
2. REPEAT indicator
3. PROGRAM indicator
4. POWER indicator
5. PROGRAM button
6. ECHO control
7. POWER button
8. MASTER VOLUME control
9. REPEAT button
10. PREVIOUS button
11. PLAY & PAUSE button
12. MICROPHONE VOLUME control
13. BALANCE control(L: Music, R:Vocal)
14. DISC & AUX IN switcher
15. STOP button
16. NEXT button
17. MICROPHONE Input jacks
Front View
8

Controls: Front View Defined and Operation
1. PLAY and PAUSE Indicator: When the disc is playing, the indicator lighting
up all the time, when in PAUSE mode, the light is blinking;
2. REPEAT Indicator: When repeat a single track, the light is blinking, when
repeat the whole tracks, the light is light up all the time;
3. PROGRAM indicator: When the unit is playing a program tracks, the light
is up;
4. POWER indicator: When is unit is ON, the light is up;
5. PROGRAM: For set the tracks in a desire play order
a) While loading a CD or CD+G disc, press STOP it in the stop mode;
b) Press the PROGRAM Button to begin programming the tracks, the indicator
is blinking;
c) Select the track that you want to play 1st , by use PREV. or NEXT button;
d) Press PROGRAM. again to select
e) Do “c” and “d” again for the 2nd and the 3rd…songs
f) Press “PLAY” to play the programmed tracks in order.
6. ECHO: Adjust the echo effect for the microphones while singing, rotate the
knob to your desired level
7. POWER ON/OFF: Press to turn on and turn off the unit;
8. MASTER VOLUME: Music volume control
9. REPEAT: For repeat single track or all tracks in the disc, press one time to
repeat the current playing track, press twice to repeat the wholes tracks, press the
3rd time to cancel the repeat function;
10. PREV.: Press to skip to previous track;
11. PLAY/PAUSE: Press it to play a disc from the beginning, press again during the
playing, the music will suspending, press one more time to resume to the track;
12. MIC VOL.: Rotate the knob to adjust the microphones volume while singing;
13. BALANCE: Knob for adjust the balance between music and vocal (only CD+G
disc);
14. DISC/AUX IN: Function selection between DISC and AUX IN
(MP3/Zune/iPod) music;
15. STOP: Press to stop the disc during playing;
16. NEXT: Press to skip to next track;
17. MICROPHONE INPUT JACK: Use the inputs as receptacle of microphone
plug(6.3mm), one microphone included, 2 microphones can work together.
9

1
2
5
6
3
4
Back and Bottom View & Peripherals
1. iPod/Zune/MP3 cable slot: Removable cradle for your personal player;
2. AV output port: Audio and Video output port (to TV or stereo system), use the RCA
cable (included) to connect the television.
3. AUX IN jack: Connect to your personal player (your iPod/Zune/MP3 player’s
earphone jack) by using i-cable (included)
4. USB power supply port: it provide a 5v voltage, connect the USB cable to your
personal player for charging (USB cable not included, Please use the one that comes
with your iPod/Zune/MP3 player)
5. AC Jack: Connect to a 110v power outlet.
6. Battery Compartment: Holds 8 "C" Batteries. Slide the door to open or close.
Back View:
Bottom View:
10

11
Power cord disconnect or loose
Selected the wrong music source
Volume on the MIN Turn up the Master VOL. or the Mic
VOL.
Check the connection or the power outlet
Press DISC&AUX IN button to switch
the music source.
Check connection, see pgs.7
4
Unit Dimensions: 227(L) X 245(W) X 218(H)mm
9”(L) X 9.5”(W) X 8.5”(H) Inch

12

1185 Gooden Crossing,Largo,
Florida, 33778, USA
13

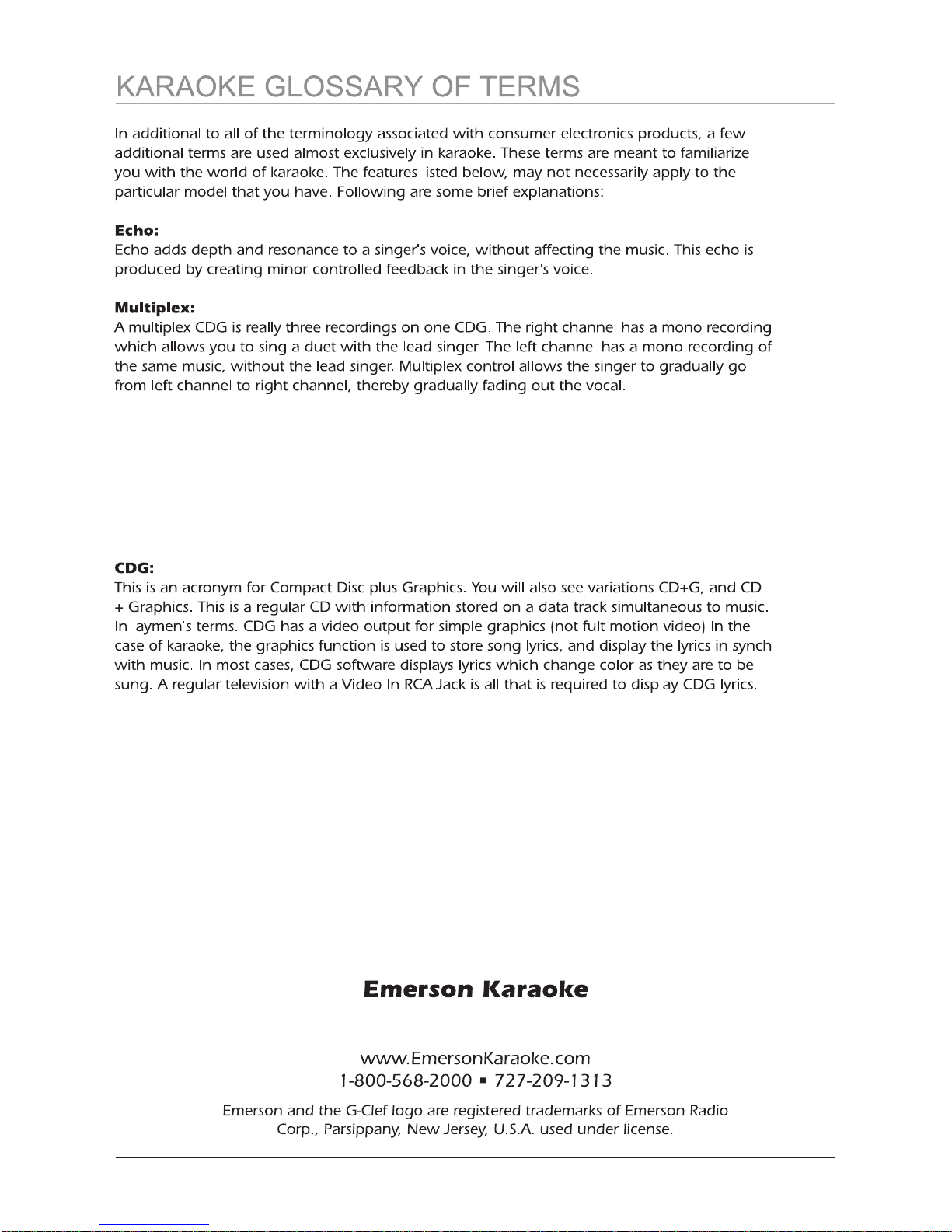

Multiplex Karaoke Disc(CDG)
Multiplex Karaoke Disc (CDG) is when music on left balance side, and vocal on right ballance side.
Regular Karaoke CDGs
Regular Karaoke CDGS only have music without Vocals on them. Check CDG verbiage before
buying to get correct Disc your want. All CDGs have Lyrics on TV.
