Quick Start Guide
00825-0100-4001, Rev LA
March 2020
Rosemount™ 3051 Pressure Transmitter
and 3051CF Series Flow Meter
with 4-20 mA HART® and 1-5 Vdc Low
Power Protocol

Contents
About this guide...........................................................................................................................3
Mount the transmitter..................................................................................................................5
Housing rotation........................................................................................................................ 12
Set the jumpers..........................................................................................................................13
Connect the wiring and power up...............................................................................................14
Verify configuration................................................................................................................... 18
Trim the transmitter...................................................................................................................22
Safety Instrumented Systems (SIS).............................................................................................24
Product certifications................................................................................................................. 28
Quick Start Guide March 2020
2 Emerson.com/Rosemount

1 About this guide
This guide provides basic guidelines for Rosemount 3051 Transmitters. It
does not provide instructions for configuration, diagnostics, maintenance,
service, troubleshooting, Explosion-Proof, Flame-Proof, or intrinsically safe
(I.S.) installations. Refer to the Rosemount 3051 Reference Manual for more
instructions. This guide is also available electronically on Emerson.com/
Rosemount.
1.1 Safety messages
Before installing the transmitter, confirm the correct device driver is loaded
on the host systems.
Procedures and instructions in this section may require special precautions
to ensure the safety of the personnel performing the operations.
WARNING
Explosions
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in
accordance with the local, national, and international standards, codes,
and practices.
Before connecting a handheld communicator in an explosive
atmosphere, ensure that the instruments in the loop are installed in
accordance with intrinsically safe or non-incendive field wiring practices.
In an explosion-proof/flameproof installation, do not remove the
transmitter covers when power is applied to the unit.
Process leaks
Process leaks could result in death or serious injury.Process leaks may cause
harm or result in death.Process leaks may cause harm or result in death.
Install and tighten process connectors before applying pressure.
To avoid process leaks, only use the O-ring designed to seal with the
corresponding flange adapter.
Electrical shock
Electrical shock could cause death or serious injury.Electrical shock can result
in death or serious injury.Electrical shock can result in death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
March 2020 Quick Start Guide
Quick Start Guide 3

WARNING
Conduit/cable entries
Unless marked, the conduit/cable entries in the transmitter housing use a
½–14 NPT thread form. Entries marked “M20” are M20 × 1.5 thread form.
On devices with multiple conduit entries, all entries will have the same
thread form. Only use plugs, adapters, glands, or conduit with a compatible
thread form when closing these entries.
When installing in a hazardous location, use only appropriately listed or Ex
certified plugs, glands, or adapters in cable/conduit entries.
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
Quick Start Guide March 2020
4 Emerson.com/Rosemount

2 Mount the transmitter
2.1 Liquid flow applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the drain/vent valves are oriented
upward.
2.2 Gas flow applications
Procedure
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Note
Bracket required to support the transmitter and the ¼-in. tubing
going into the transmitter.
March 2020 Quick Start Guide
Quick Start Guide 5

2.3 Steam flow applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Quick Start Guide March 2020
6 Emerson.com/Rosemount

2.4 Panel and pipe mount
Figure 2-1: Panel and Pipe Mounting
Panel mount(1) Pipe mount
Coplanar flange
Traditional flange
Rosemount 3051T
Rosemount 3051H
(1) 5/16 x 1½ panel bolts are customer supplied.
March 2020 Quick Start Guide
Quick Start Guide 7

2.5 Bolting considerations
If the transmitter installation requires assembly of the process flanges,
manifolds, or flange adapters, follow these assembly guidelines to ensure a
tight seal for optimal performance characteristics of the transmitters. Use
only bolts supplied with the transmitter or sold by Emerson as spare parts.
Figure 2-2 illustrates common transmitter assemblies with the bolt length
required for proper transmitter assembly.
Figure 2-2: Common Transmitter Assemblies
A
4 × 1.75-in.
(44 mm)
D
4 × 1.75-in.
(44 mm)
4 × 2.25-in.
(57 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.50-in.
(38 mm)
B
4 × 2.88-in.
(73 mm)
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange
adapters
Bolts are typically carbon steel or stainless steel. Confirm the material by
viewing the markings on the head of the bolt and referencing .Table 2-1 If
bolt material is not shown in Table 2-1, contact the local Emerson
representative for more information.
2.5.1 Bolt installation
Note
Carbon steel bolts do not require lubrication and the stainless steel bolts are
coated with a lubricant to ease installation. However, no additional lubricant
should be applied when installing either type of bolt.
Procedure
1. Finger-tighten the bolts.
Quick Start Guide March 2020
8 Emerson.com/Rosemount

2. Torque the bolts to the initial torque value using a crossing pattern
(see Table 2-1 for torque values).
3. Torque the bolts to the final torque value using the same crossing
pattern (see Table 2-1 for torque values).
4. Verify that the flange bolts are protruding through the isolator plate
before applying pressure.
Table 2-1: Torque Values for the Flange and Flange Adapter Bolts
Bolt
material
Head markings Initial
torque
Final torque
Carbon Steel
(CS)
B7M
300 in-lb 650 in-lb
Stainless
Steel (SST)
316
316
316
SW
316
STM
316
R
B8M
150 in-lb 300 in-lb
March 2020 Quick Start Guide
Quick Start Guide 9

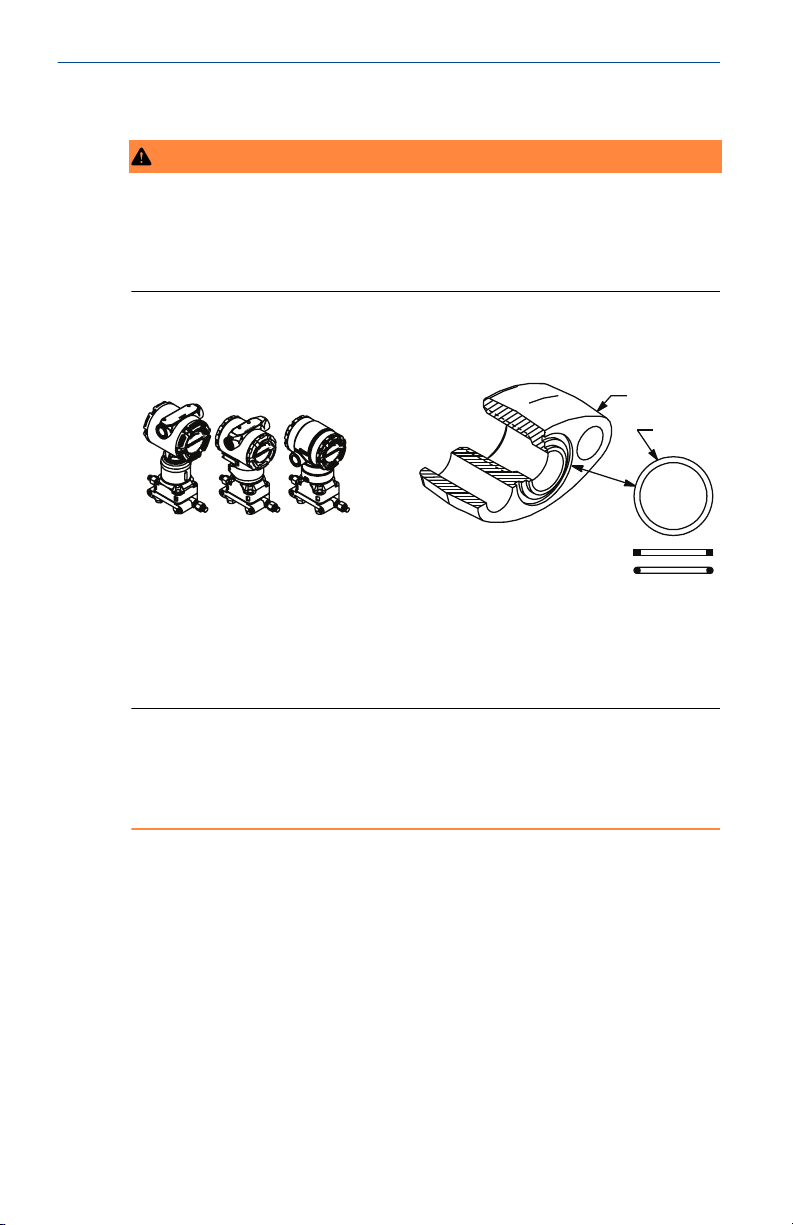

2.6 O-rings with flange adapters
WARNING
Failure to install proper flange adapter O-rings may cause process leaks,
which can result in death or serious injury. The two flange adapters are
distinguished by unique O-ring grooves. Only use the O-ring that is designed
for its specific flange adapter, as shown below.
Figure 2-3: O-ring Location
A
B
C
D
Rosemount 3051S/3051/2051
A. Flange adapter
B. O-ring
C. PFTE-based profile (square)
D. Elastomer profile (round)
Whenever the flanges or adapters are removed, visually inspect the O-rings.
Replace them if there are any signs of damage, such as nicks or cuts. If you
replace the O-rings, re-torque the flange bolts and alignment screws after
installation to compensate for seating of the PTFE O-ring.
2.7 Environmental seal for housing
For NEMA® 4X, IP66, and IP68 requirements, use thread sealing (PTFE) tape
or paste on male threads of conduit to provide a water and dust tight seal.
Consult factory if other ingress protection ratings are required.
Always ensure a proper seal by installing the electronics housing cover(s) so
that metal contacts metal. Use Rosemount O-rings.
For M20 threads, install conduit plugs to full thread engagement or until
mechanical resistance is met.
Quick Start Guide March 2020
10 Emerson.com/Rosemount

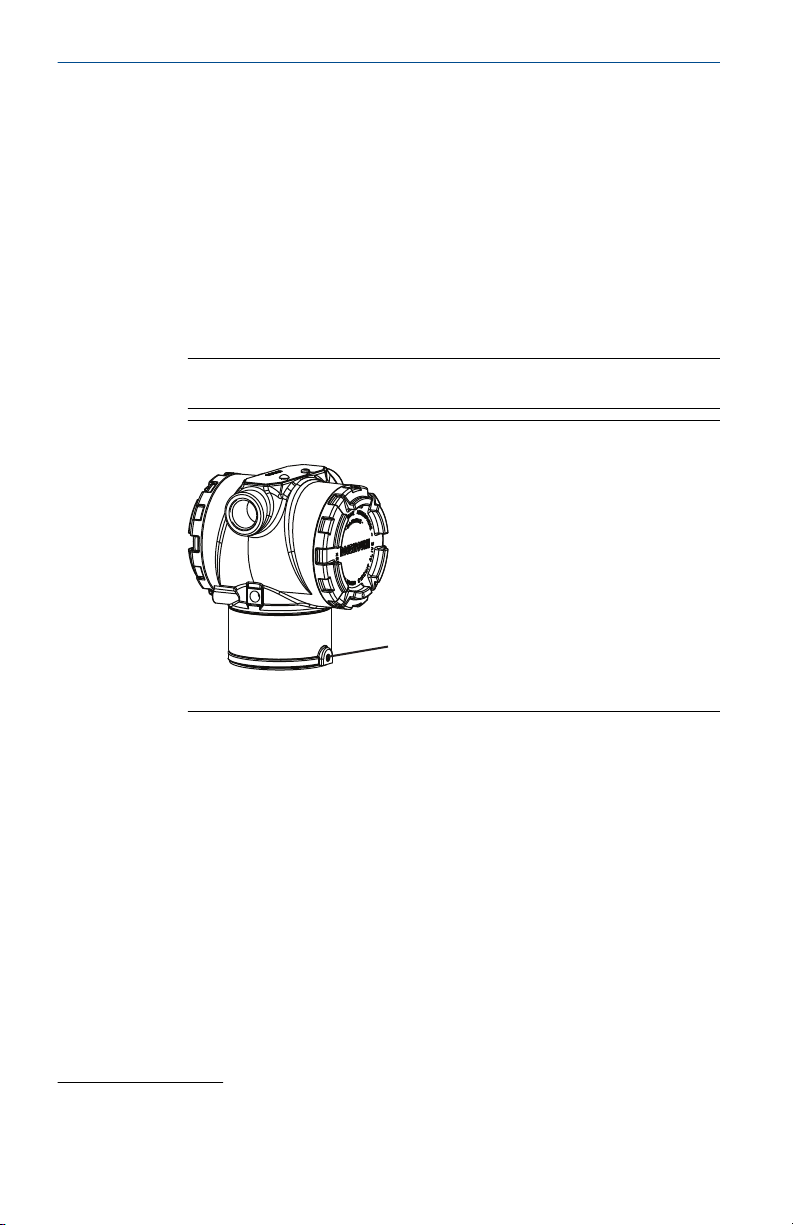

2.8 In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the in-line gage
transmitter is located in the neck of the transmitter, behind the housing. The
vent path is 360° around the transmitter between the housing and sensor.
(See Figure 2-4.)
Keep the vent path free of any obstruction including but not limited to paint,
dust, and lubrication by mounting the transmitter so that fluids can drain
away.

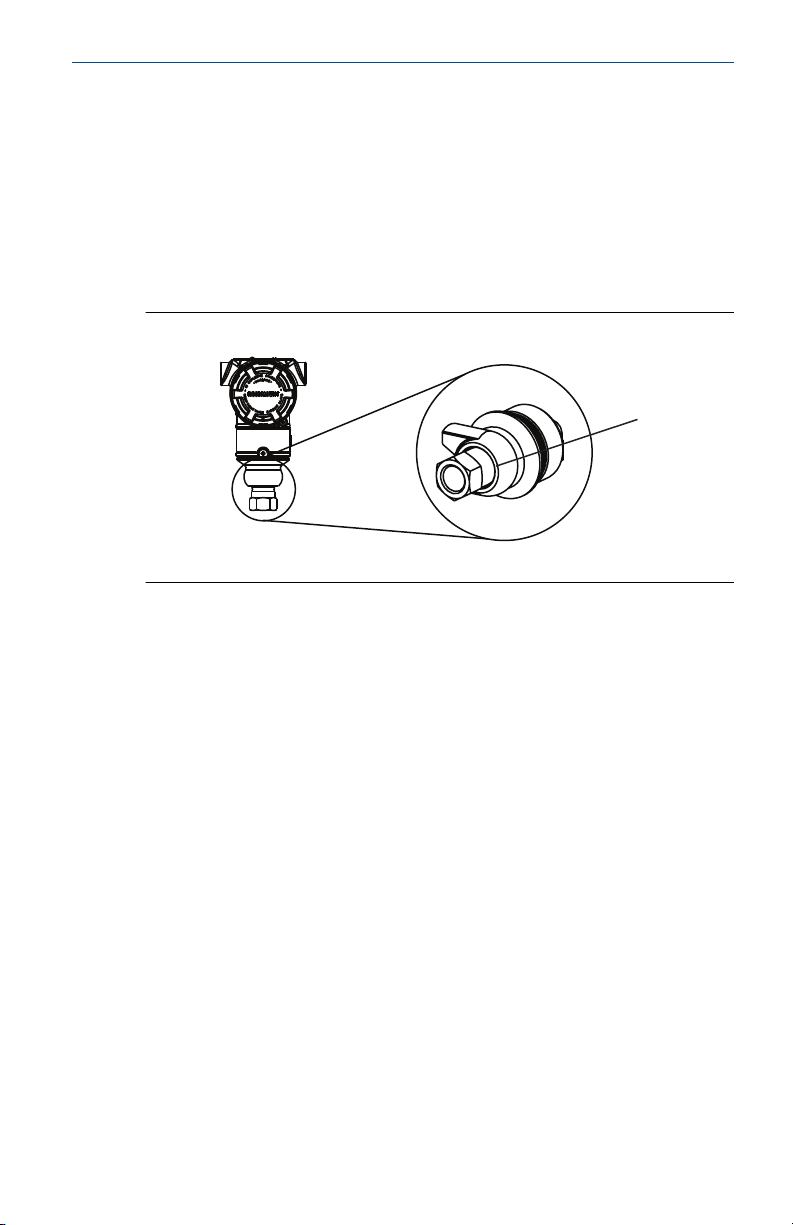

Figure 2-4: In-line Gage Low Side Pressure Port
A
A. Pressure port location
March 2020 Quick Start Guide
Quick Start Guide 11

3 Housing rotation
To improve field access to wiring or to better view the optional LCD display:
Procedure
1. Loosen the housing rotation set screw using a 5/64-in. hex wrench.
2. Turn the housing left or right up to a maximum of 180 ° from its
original position.(3)
3. Re-tighten the housing rotation set screw to a maximum of 7 in-lb
when desired location is reached.
Note
Over-rotating will damage the transmitter.
Figure 3-1: Housing Rotation
A
A. Housing rotation set screw (5/64-in.)
(3) Rosemount 3051C original position aligns with "H" side; Rosemount 3051T original
position is the opposite side of the bracket holes.
Quick Start Guide March 2020
12 Emerson.com/Rosemount

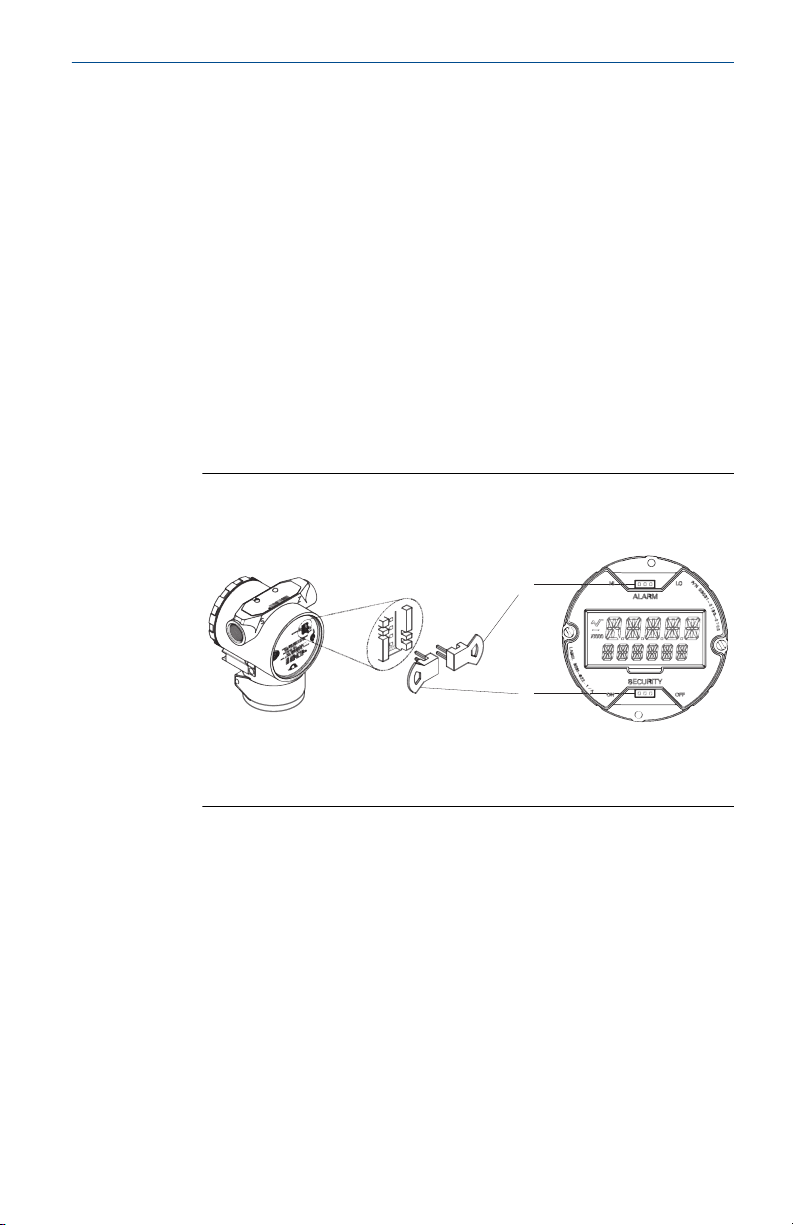

4 Set the jumpers
If alarm and security jumpers are not installed, the transmitter will operate
normally with the default alarm condition alarm high and the security off.
Procedure
1. If the transmitter is installed, secure the loop, and remove power.
2. Remove the housing cover opposite the field terminal side. Do not
remove the instrument cover in explosive atmospheres when the
circuit is live.
3. Reposition the jumper. Avoid contact with the leads and the
terminals. See Figure 4-1 for the location of the jumper and the ON
and OFF positions.
4. Reattach the transmitter cover. The cover must be fully engaged to
comply with explosion-proof requirements.
Figure 4-1: Transmitter Electronics Board
Without LCD display With LCD display
A
B
A. Alarm
B. Security
March 2020 Quick Start Guide
Quick Start Guide 13

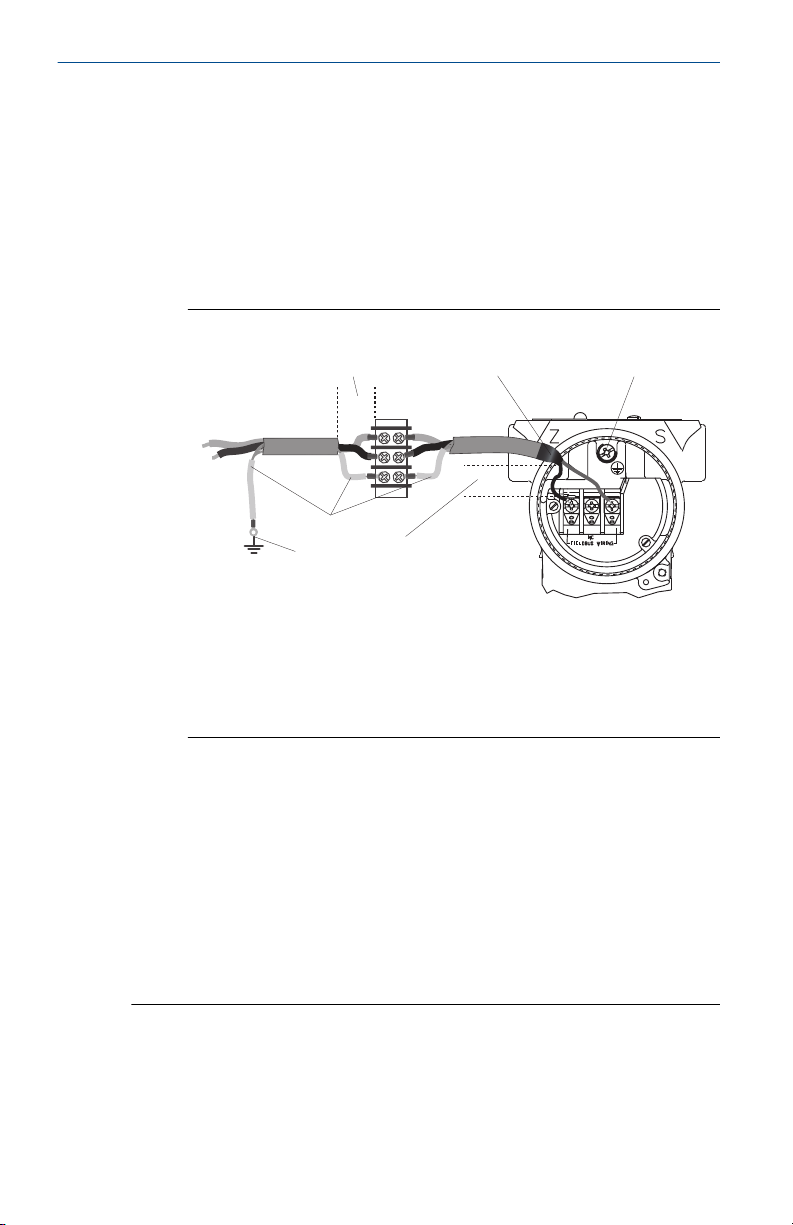

5 Connect the wiring and power up
Figure 5-1 shows wiring connections necessary to power a Rosemount 3051
and enable communications with a handheld communicator.
Use the following steps to wire the transmitter:
Procedure
1. Remove the housing cover on the field terminals side.
2. Connect the positive lead to the “+” terminal (PWR/COMM) and the
negative lead to the “–” terminal.
3. Ensure full contact with terminal block screw and washer. When
using a direct wiring method, wrap wire clockwise to ensure it is in
place when tightening the terminal block screw.
The use of a pin or a ferrule wire terminal is not recommended as the
connection may be more susceptible to loosening over time or under
vibration.
4. Ensure proper grounding.
It is important that the instrument cable shield:
•Be trimmed close and insulated from touching the transmitter
housing
•Be connected to the next shield if cable is routed through a
junction box
•Be connected to a good earth ground at the power supply end
Do not connect the powered signal wiring to the test terminals.
Power could damage the test diode in the test connection. Shielded
twisted pair cable should be used for best results. Use 24 AWG or
larger wire and do not exceed 5,000 ft (1500 m).
5. Plug and seal unused conduit connections.
6. If applicable, install wiring with a drip loop. Arrange the drip loop
so the bottom is lower than the conduit connections and the
transmitter housing.
7. Replace the housing cover.
Quick Start Guide March 2020
14 Emerson.com/Rosemount

Figure 5-1: Transmitter Wiring Diagrams (4–20 mA)
A
B
C
A. Current meter
B. RL ≥ 250Ω
C. 24 Vdc supply
Figure 5-2: Low Power Transmitter Wiring
AB
A. Voltmeter
B. 6–12 Vdc supply
Note
Installation of the transient protection terminal block does not
provide transient protection unless the Rosemount 3051 case is
properly grounded.
5.1 Signal wiring grounding
Do not run signal wiring in conduit or open trays with power wiring, or near
heavy electrical equipment. Grounding terminations are provided on the
outside of the electronics housing and inside the terminal compartment.
These grounds are used when transient protect terminal blocks are installed
or to fulfill local regulations. See Step 2 for more information on how the
cable shieldshould be grounded.
March 2020 Quick Start Guide
Quick Start Guide 15

Procedure
1. Remove the field terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 5-3.
•Be trimmed close and insulated from touching the transmitter
housing
•Continuously connect to the termination point
•Be connected to a good earth ground at the power supply end
Figure 5-3: Wiring
DP
B
A
D
EA
C
A. Minimize distance
B. Trim shield and insulate
C. Ground for transient protection
D. Shield connected to power supply ground
E. Insulate shield
3. Replace the housing cover.
It is recommended the cover be tightened until there is no gap
between the cover and the housing.
4. Plug and seal unused conduit connections.
5.2 Power supply for a 4-20 mA HART
The transmitter operates on 10.5-4.2 Vdc at the terminal of the transmitter.
The dc power supply should provide power with less than two percent ripple.
Loops with a 250 Ω resistance require a minimum of 16.6 V.
Note
The transmitter must have a minimum of 250 Ω to communicate with a
Field Communicator. If you are using a single power supply to power more
than one Rosemount 3051 Transmitter, make sure the power supply used
Quick Start Guide March 2020
16 Emerson.com/Rosemount

and the circuitry common to the transmitters do not have more than 20 Ω of
impedance at 1200 Hz.

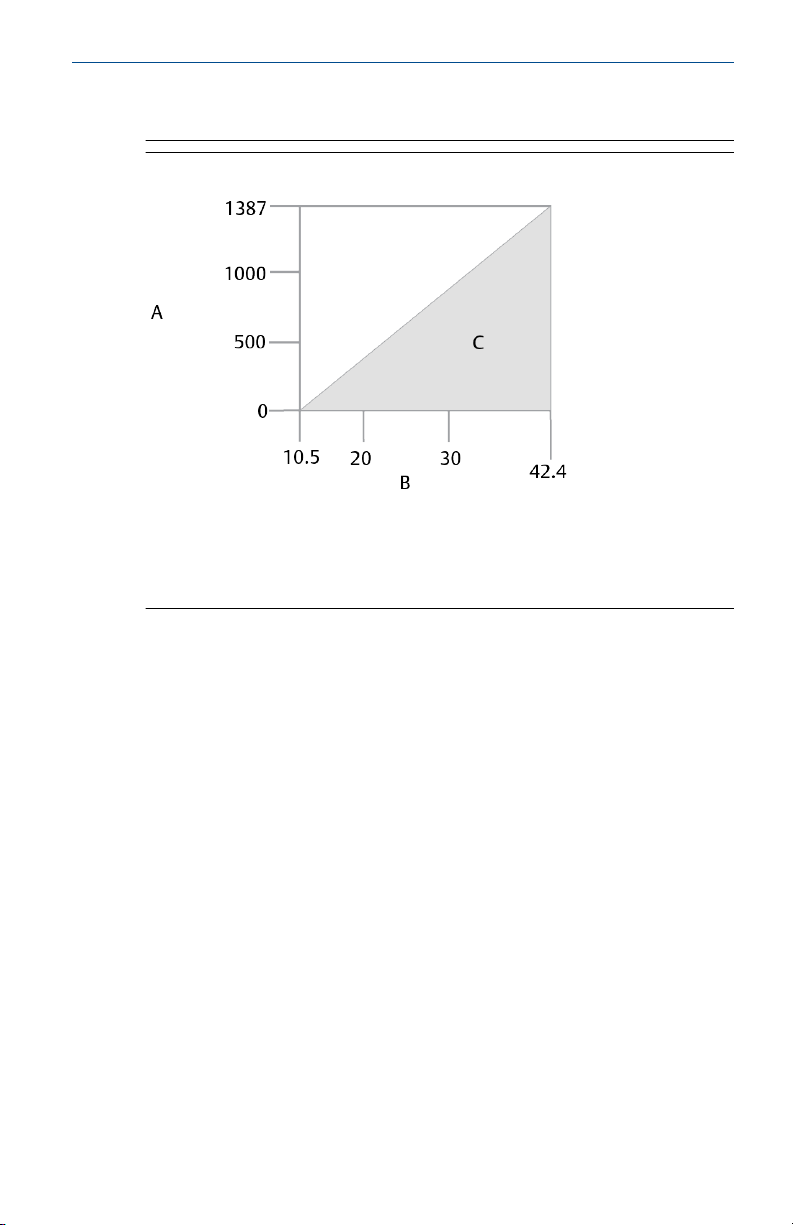

Figure 5-4: Load Limitation
Maximum loop resistance = 43.5 x (power supply voltage - 10.5)
A. Load (Ωs)
B. Voltage (Vdc)
C. Operating region
The total resistance load is the sum of the resistance of the signal leads and
the load resistance of the controller, indicator, I.S. barriers, and related
pieces. If you use intrinsic safety barriers, include the resistance and voltage
drop.
5.3 Power supply for 1-5 Vdc HART Low Power
Low power transmitters operate on 6–12 Vdc. The dc power supply should
provide power with less than two percent ripple. The Vout load should be 100
kW or greater.
March 2020 Quick Start Guide
Quick Start Guide 17

6 Verify configuration
6.1 Handheld communicator user interface
The Traditional Interface - Device Revision 3 and DD Revision 2 Fast Key
sequence can be found on page 12.

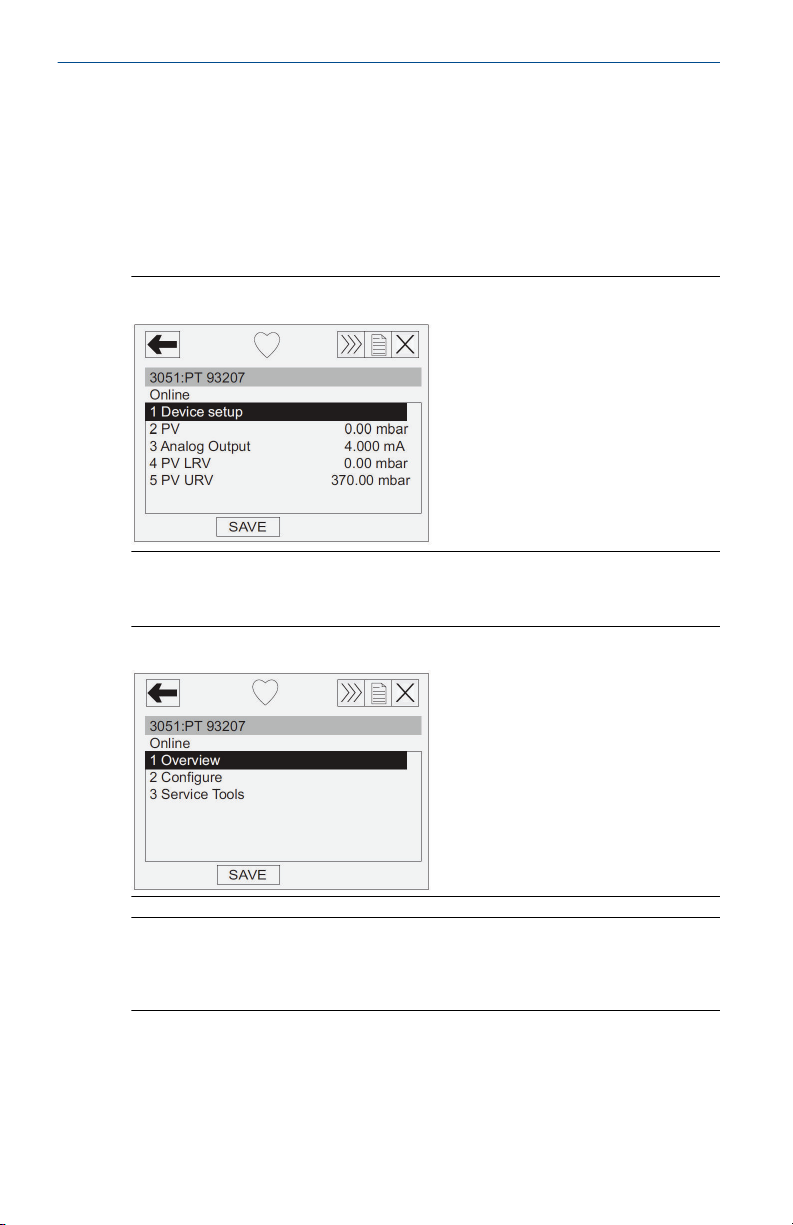

Figure 6-1: Traditional Interface - Device Revision 3 and DD Revision 2
The Device Dashboard - Device Revision 3 and DD Revision 6 Fast Key
sequence can be found on Table 6-2.
Figure 6-2: Device Dashboard - Device Revision 3 and DD Revision 6
Note
A check (✓) indicates the basic configuration parameters. At minimum,
these parameters should be verified as part of the configuration and startup
procedure.
Quick Start Guide March 2020
18 Emerson.com/Rosemount

Table 6-1: Traditional Interface - Device Revision 3 and DD Revision 2
Fast Key Sequence
Function Fast Key Sequence
Alarm and Saturation Levels 1, 4, 2, 7
Analog Output Alarm Type 1, 4, 3, 2, 4
Burst Mode Control 1, 4, 3, 3, 3
Burst Operation 1, 4, 3, 3, 3
Custom Meter Configuration 1, 3, 7, 2
Custom Meter Value 1, 4, 3, 4, 3
✓ Damping 1, 3, 6
Date 1, 3, 4, 1
Descriptor 1, 3, 4, 2
Digital To Analog Trim (4–20 mA Output) 1, 2, 3, 2, 1
Disable Local Span/Zero Adjustment 1, 4, 4, 1, 7
Field Device Information 1, 4, 4, 1
Full Trim 1, 2, 3, 3
Keypad Input – Rerange 1, 2, 3, 1, 1
Local Zero and Span Control 1, 4, 4, 1, 7
Loop Test 1, 2, 2
Lower Sensor Trim 1, 2, 3, 3, 2
Message 1, 3, 4, 3
Meter Options 1, 4, 3, 4
Number of Requested Preambles 1, 4, 3, 3, 2
Poll Address 1, 4, 3, 3, 1
Poll a Multidropped Transmitter Left Arrow, 4, 1, 1
Range Values 1, 3, 3
Rerange 1, 2, 3, 1
Scaled D/A Trim (4–20 mA Output) 1, 2, 3, 2, 2
Self Test (Transmitter) 1, 2, 1, 1
Sensor Info 1, 4, 4, 2
Sensor Temperature 1, 1, 4
Sensor Trim Points 1, 2, 3, 3, 5
March 2020 Quick Start Guide
Quick Start Guide 19

Table 6-1: Traditional Interface - Device Revision 3 and DD Revision 2
Fast Key Sequence (continued)
Function Fast Key Sequence
Status 1, 2, 1, 1
✓Tag 1, 3, 1
Transfer Function (Setting Output Type) 1, 3, 5
✓Transmitter Security (Write Protect) 1, 3, 4, 4
Trim Analog Output 1, 2, 3, 2
✓Units (Process Variable) 1, 3, 2
Upper Sensor Trim 1, 2, 3, 3, 3
Zero Trim 1, 2, 3, 3, 1
Table 6-2: Traditional Interface - Device Revision 3 and DD Revision 2
Fast Key Sequence
Function Fast Key Sequence
✓Alarm and Saturation Levels 1, 7, 5
Burst Mode Control 2, 2, 4, 1
Burst Option 2, 2, 4, 2
Custom Display Configuration 2, 2, 3
✓Damping 2, 2, 1, 2
Date 2, 2, 6, 1, 4
Descriptor 2, 2, 6, 1, 5
Digital to Analog Trim (4–20 mA Output) 3, 4, 2, 1
Disable Zero & Span Adjustment 2, 2, 5, 2
Rerange with Keypad 2, 2, 2, 1
Loop Test 3, 5, 1
Lower Sensor Trim 3, 4, 1,2
Message 2, 2, 6, 1, 6
✓Range Values 2, 2, 2
Scaled D/A Trim (4–20 mA Output) 3, 4, 2, 2
Sensor Temperature/Trend (Rosemount 3051S) 2, 2, 1, 6
✓Tag 2, 2, 6, 1,1
✓Transfer Function 2, 2, 1, 3
Quick Start Guide March 2020
20 Emerson.com/Rosemount
