EMG F-MF SET Service manual

.390
(10)
(6)
(8)
.235
.310
INSTALLATION INFORMATION
EMG MODEL: MARTY FRIEDMAN F-MF SET
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2017 Copyright EMG INC. All Rights Reserved.
PO BOX 4394
SANTA ROSA, CA
95402 USA
P [phone]
F [phone]
EMGPICKUPS.COM
0230-0235rC
(1) Wired in Series
(2) Loaded with 500K Volume and Tone with a 20’ (6M) cable
(3) Loaded with 1 MegOhm / 47pf
MF-NECK
F-MF-BRIDGE
SPECIFICATIONS: MODEL:
MF-N5 (NECK) F-MF-B5 (BRIDGE)
Logo Color Gold Gold
Magnet Type Alnico 5 Alnico 5
Gauss Strength 275 275
Inductance (Henries) (1) 4.3 8.58
DC Resistance (kOhm) 7.55 16.2
Q .44 .39
Resonant Frequency (KHz) (2) 3.00 2.25
Resonant Frequency (KHz) (3) 4.54 3.39
Impedance at Resonance (kOhm) (2) 81 121
Installation notes:
All EMG-Passive Pickups are compatible with each other. The connector system is an easy method of installation, avoiding the need to solder.
EMG Accessory Circuits like the VLPF, EXG, SPC or RPC Controls can be added to any EMG Passive System, all EMG Accessory circuits have
buffered inputs and can be used on either passive or active pickups.
SPECIAL NOTE: The Red Wire of the HZ Pickup is NOT for battery power, it is a coil wire.
B245
2.75
1.50
3.09
3/48 MOUNTING HOLES
.900 .725 (18.4)
(69.8)
(38.1)
(22.8)
(78.5)
WHITE GREEN
RED
BLACK
COIL 2
SCREW BOBBIN
STUD BOBBIN
FINGERBOARD PICKUP BRIDGE PICKUP
+_
+_
BLACK RED
GREEN
WHITE
STUD BOBBIN
SCREW BOBBIN
+_
+_
COIL 1
COIL 1
COIL 2
EMG COIL WIRING
2 VOLUME CONTROLS (500K)
2 TONE CONTROLS (500K)
ADJUSTMENT
SCREWS & SPRINGS
MONO OUTPUT
JACK BRIDGE GROUND
CONNECTOR
2 PICKUP IN/ OUT
BATTERY BUSS
.39 (9.9) TYP
.42 (10.6) TYP
OUTPUT CABLE 6” (15cm)
4 CONNECT CABLES 5.5” (14cm)
BRIDGE GROUND WIRE 6” (15cm)
2 PICKUP CABLES 15” (30cm)
Included IN THE MF SET:

Installation Instructions:
EMG Models: MARTY FRIEDMAN F-MF - SET
Diagram #3
One Pickup
One Volume
Diagram #4
One Pickup
One Volume
One Tone
Diagram #2
Diagram #5
General Notes:
Every attempt has been made to make this a solderless installation.
There are some instances where this is not possible;
1) If your instrument uses the long panel output jack, soldering will be required
2) Instruments with two pickups may need soldering to the selection
switch in some installations.
If you are installing only one pickup use the instructions on this page.
If you are installing two pickups go to page 3 and begin there.
VOLUME250K 500K
B159A
VOLUME250K 500K
B159A
F-MF SET Instructions Page 2
Attaching the bridge ground wire
6) Refer to Diagram #5.
As mentioned on page 1, it is common to “ground” (earth)
the strings on guitars that have passive pickups.
Included with the system is a black wire with a single black
connector attached. Also included is an IDC connector for
connecting the two wires together. Insert the bridge ground wire,
and the connector wire into the IDC connector, crimp the connector
with a pair of pliers until it snaps and this will connect the two wires.
You don’t need to strip the insulation from the wires.
Push the black connector onto terminal 2 (GND) of the volume control
as shown in the diagram. This will ground the strings to the system.
OUTPUT
GREEN AND SHIELD
RED BLACK AND WHITE
S
T
OUTPUT
S
T
250K 500K
B160A
TONE
EMG
B159A
VOLUME250K
NECK
VOLUME
STRING GROUND WIRE
COMING FROM THE BRIDGE
BLACK WIRE INCLUDED
WITH CONNECTOR
1
2
3
4
5
6
Diagram #1
EMG-HZ Wire Order:
Pin 1 Green (GRN)
Pin 2 White (WHT)
Pin 3 Braid (GND)
Pin 4 Red (RED)
Pin 5 Black (BLK)
Installation (One Pickup Guitars):
1) Plug the pickup cable onto the EMG Pickup header as shown
in Diagram #1 and route the cable to the control cavity.
If the cable is too long, wind up the excess and keep it
under the pickup or in the control cavity if possible.
Diagram #2 shows the factory pre-wired cable. The Green
wire and shield are pre-wired to Pin 1 and the Red wire is
pre-wired to Pin 2. The Red wire is the signal output from
the pickup. The White and Black wires are wired together and
covered with shrink tubing. This is standard humbucking series
wiring.
Master Volume control only
2) Refer to Diagram #3.
Plug both the Pickup cable and the output
cable onto the Volume control as shown, then go to step 4.
Master Volume and Tone control
3) Refer to Diagram #4.
Plug the Pickup cable onto the Volume
control as shown. Plug a connect cable from the Volume control
to the Tone control. Plug the output cable onto the tone
control as shown.
4) Connect the wires of the output cable to the output jack by
pushing the connectors on as shown.
WHITE wire to the TIP (T) contact,
BLACK wire to the SLEEVE (S) contact
We suggest that you plug in the instrument and
test it before closing the control cavity. FROM PICKUP
MASTER
TONE
OUTPUT CABLE
OUTPUT CABLE
FROM PICKUP
MASTER
VOLUME
MASTER
VOLUME
TO STRING GROUND
SEE DIAGRAM #5
TO STRING GROUND
SEE DIAGRAM #5
CLOSED
CRIMP
(INSERT WIRES)

F-MF SET INSTRUCTIONS Page 3
BRIDGE PICKUP INPUT
NECK PICKUP INPUT
OUTPUT
PLUG IN
LIKE THIS!
TIP
RING
SLEEVE
Diagram #7c
FROM TONE
OR VOLUME
NOT USED
Installation Instructions:
EMG Models: MARTY FRIEDMAN - MF SET
OUTPUT
S
T
****Tips and Tricks****
****Tips and Tricks****
Start your installation by:
Start your installation by:
1) Removing the strings
1) Removing the strings
2) Remove any existing Pickups and controls
2) Remove any existing Pickups and controls
(remember the order and function of each control)
(remember the order and function of each control)
3) Determine a good spot for the Pickup Buss and make sure the
3) Determine a good spot for the Pickup Buss and make sure the
cable or wires from the selection switch will reach the Pickup Buss,
cable or wires from the selection switch will reach the Pickup Buss,
4) Install the EMG Volume and Tone Controls and tighten them in.
4) Install the EMG Volume and Tone Controls and tighten them in.
5) Then install the pickups keeping any excess cable under the pickup
5) Then install the pickups keeping any excess cable under the pickup
rather than in the control cavity.
rather than in the control cavity.
2 Pickups / Toggle Select Switch / Master Volume and Tone
NECK PICKUP
BRIDGE PICKUP
OUTPUT TO MASTER VOLUME
Diagram #6b
2 Pickups
Toggle Style Select Switch
Master Volume & Master Tone
MASTER
TONE
FROM NECK PICKUP
FROM BRIDGE PICKUP
MASTER
VOLUME
OUTPUT CABLE
250K 500K
B160A
TONE
EMG
6
5
4
3
2
1

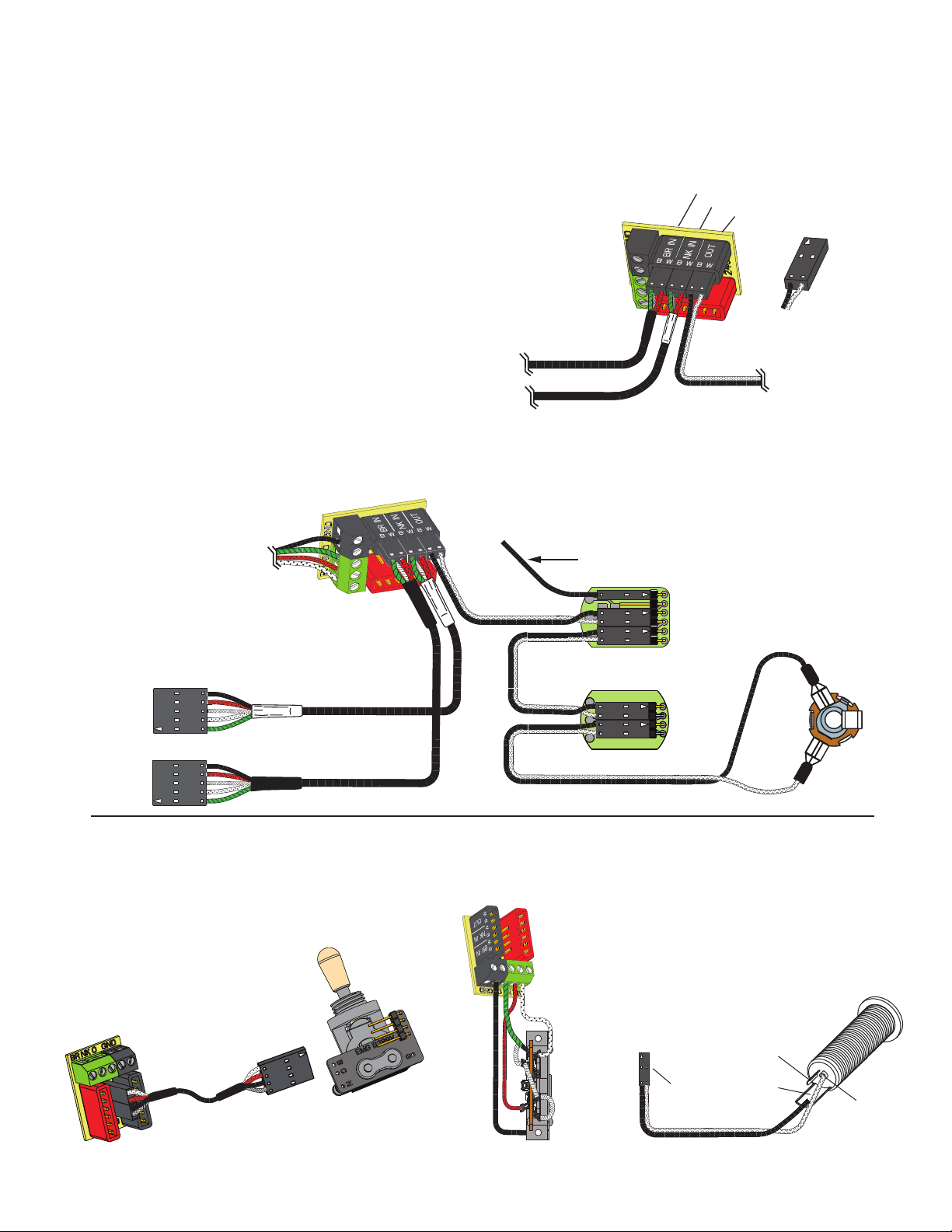

Soldering to the 152B Panel Jack:
If your instrument has a long Panel Jack like the one below
you will have to solder the output cable as shown.
Ground (Black) to the Sleeve
Signal (White) to the Tip
Battery Negative (Black) to the Ring
Diagram #7a
Connecting to the B289 3 Way Toggle:
Install the 4 pin Connector housing on the switch as shown
in the diagram below. Install both of the 2 pin connectors on
to the 4 pin connector between the black and red housings
as shown. The black and green terminal blocks will not be
used for the switch.
For more details you can refer to the B289 Instructions.
1) Install the Pickups and route the Pickup cables to the
control cavity.
If the cables are too long, wind up the excess and keep it under the pickup.
Refer to Diagram #6a
2) Mount the Volume and Tone controls into the body.
Plug both Pickup cables onto the Pickup Buss (BLACK Shroud) as shown,
Bridge Pickup to BR IN.
Neck Pickup to NK IN.
3) Plug a connect cable from the Pickup Buss (OUT) to the Master Volume
control as shown in Diagram #6b.
4) Plug a connect cable from the Master Volume to the Master Tone as shown.
5) If using the EMG solderless 3 way toggle refer to Diagram #7a. If using a
hardwired 3 way blade or lever switch see Diagram #7b.
6) Strip the insulation from the switch wires on your stock switch and Insert
them into the GREEN Terminal Block and tighten the screws with a small
screwdriver.
The Bridge pickup goes to the BR Terminal
The Neck pickup goes to the NK Terminal
The Output of the switch goes to the O Terminal
If there is a ground wire coming from the switch, insert it into one of the black
terminals on the terminal block. As shown in Diagram #6b.
7) Plug the output cable onto the Master Tone control and connect the output
wires to the output jack by pushing the connectors on as shown.
WHITE wire onto the TIP (T) contact,
BLACK wire onto the SLEEVE (S) contact
We suggest that you plug in the instrument
and test it before closing the control cavity.
Installation (Two Pickup Guitars with Selection switch):
Guitars with two pickups and a selection switch will use the EMG B245 Pickup Buss.
The Pickup Buss is a convenient way to wire your guitar without soldering.
Since you are installing passive EMG-HZ Pickups the RED
Shroud of the B245 Pickups Buss will not be used. It is for battery power.
TO STRING GROUND
SEE DIAGRAM #5
Diagram #6a
Diagram #7b
2 Pickups
Lever Style Select Switch
Master Volume & Master Tone
1234
5
6
7
8

F-MF SET Instructions Page 4
NK VOLUME
1) Install the Pickups and route the cables to the control cavity.
If the cables are too long, wind up the excess and keep it under the pickup.
2) Mount the Volume and Tone controls into the body
Plug both Neck and Bridge pickup cables onto the Volume Controls as shown.
Plug a connect cable from the Bridge (BR) Volume control to the Pickup Buss
(Position 1).
Plug a connect cable from the Neck (NK) Volume control to the Pickup Buss
(Position 2).
3) Plug a connect cable from the Bridge (BR) Volume control to the Bridge (BR) Tone
control as shown.
4) Plug a connect cable from the Neck (NK) Volume control to the Neck (NK) Tone
control as shown.
5) Strip the insulation from the switch wires and Insert them into the GREEN
Terminal Block and tighten the screws with a small screwdriver.
The Bridge pickup goes to the BR Terminal
The Neck Pickup goes to the NK Terminal
The Output of the switch goes to the O Terminal
If there is a ground wire coming from the switch, insert it into one of the black
terminals on the terminal block.
6) Plug the output cable onto the Pickup Buss (Position 3) and push the
connectors onto the jack as shown.
WHITE wire onto the TIP (T) contact,
BLACK wire onto the SLEEVE (S) contact
We suggest that you plug in the instrument and test it before closing the
control cavity.
VOLUME250K 500K
B159A
EMG
VOLUME250K
B159A
EMG
OUTPUT
S
T
OUTPUT
S
T
FROM NECK PICKUP
FROM BRIDGE PICKUP
BR VOLUME
NK TONE
Diagram #9
2 Pickups
2 Volume (either volume will act as a master)
2 Tone
Toggle Style Switch
NK VOLUME
FROM NECK PICKUP
FROM BRIDGE PICKUP
MASTER
TONE
Diagram #8
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
Master Tone
OUTPUT CABLE
OUTPUT CABLE
2 Pickups / Toggle Select Switch / 2 Volumes and 2 Tones)
Refer to Diagram #9
250K 500K
B160A
TONE
EMG
250K 500K
B160A
TONE
EMG
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
BR VOLUME
BR TONE
250K 500K
B160A
TONE
6
5
4
3
2
1
TO STRING GROUND
SEE DIAGRAM #5
TO STRING GROUND
SEE DIAGRAM #5
