Thank you for your purchase. You are on your way to
experiencing the next level of the elite experience with
the most advanced mountain bike available. We hope
you truly enjoy your new bicycle, and we are thankful to
be your brand of choice.
The following pages will provide you with the information
needed to properly operate, tune, and maintain your
new bicycle. If you require more information about this
product or if you are missing anything, please call or visit
our website www.eminentcycles.com.
Note: All Guides and OEM Manuals can be viewed or
download from our website under Parts & Service/Guides
& Manuals section.
Warning: Read this owner’s manual before riding your
bicycle. Use of this bicycle is at your own risk. Bicycling
can be a dangerous activity under even the ideal
conditions. Proper maintenance and assembly of this
bicycle could help reduce the risk of injury or damage.
This manual contains “Warnings” indicating a potential
hazard condition or situation, which should not be
disregarded. If ignored or corrective actions are not taken,
this could result in damage, injury, or death. Be sure to
read and understand all the sections of this manual.
Our mountain bikes are technologically advanced
high-performance products that use complex materials
and engineered fitments. In order for our products to
sustain it’s performance and safety, it will require periodic
maintenance which may include repairs, parts replace-
ment, or component replacement. This manual does not
cover these types of repairs in detail. Eminent Cycles
suggest these types of repairs are performed by a profes-
sional bicycle mechanic. Eminent Cycles does not warrant
repairs, parts, or components, nor accepts liability for any
maintenance done by non-professional bicycle mechan-
ics. Please contact our service department first if you are in
need of major maintennce or repair.
If you encounter issues with your bicycle that aren’t
covered in this manual, please contact our customer
service department at [email protected] as they
are eager to resolve your concern.
INTRODUCTION

03
This bicycle was designed for Enduro, All-Mountain, and
Technical Trail type recreational riding. Riding in more
extreme conditions than what is listed, increases the stress
on every part of your bicycle and decreases the lifespan
of the bike and its components. Avoid conditions that
could increase stress to the frame and its components.
It is not possible to define a timetable for replacement of
the frame or its components as this varies for each rider
and the terrain they ride. A thorough inspection of your
bicycle and components before each ride is recommend-
ed even if no crash has occurred.
Warning: Make sure you have reviewed and understood
the warnings, instructions, and maintenance techniques
required to operate your new bicycle before riding.
Warning: Riding an off road bicycle (mountain bicycle) is
inherently dangerous and as the rider, you voluntarily
assume the risk and responsibility that injury or death could
occur. We recommend that at all times, safety/protective
gear be worn during bicycle operation (example: full face
helmet, body armor, gloves, etc…).
Warning: Severe off road riding, jumping, and stunt riding
is extremely dangerous. Speeds can reach that of a
motorcycle and therefore the hazards and risks are very
high and similar. You voluntarily assume all risk and
responsibility when riding under these conditions and
Eminent Cycles does not warrant the bicycle frame or
components for such activities.
Warning: Riding during the rain or through water can
decrease initial braking functionality resulting in longer
braking distances. Please be cautious when riding in wet
conditions.
Warning: Riding during night conditions poses increased
risk and should be considered prior to riding.
INTENDEDUSE

EMINENTCYCLES.COM 04
Warning: Before you begin the process of removing the
bicycle and its components from the Bicycle Box, please
read the complete “Unboxing” section first! Following
these instructions will decrease the potential of detuning
or damage to the bicycle and it’s components during
unboxing and assembly.
The majority of this bicycle is shipped pre-assembled and
pre-tuned at the factory. Minimal assembly and time is
required to have a ready to ride bicycle. All tools and
your specific suspension settings are included in this
Bicycle Box.
Note: The Bicycle Box is designed to be reusable. Keep
this box for shipping your bicycle to your adventure
destinations or for any potential warranty service.
Warning: The Bicycle Box must be laying on its largest side
with the Eminent Logo and Text right side up along its
sides. 
UNBOXING


05
UNBOXING

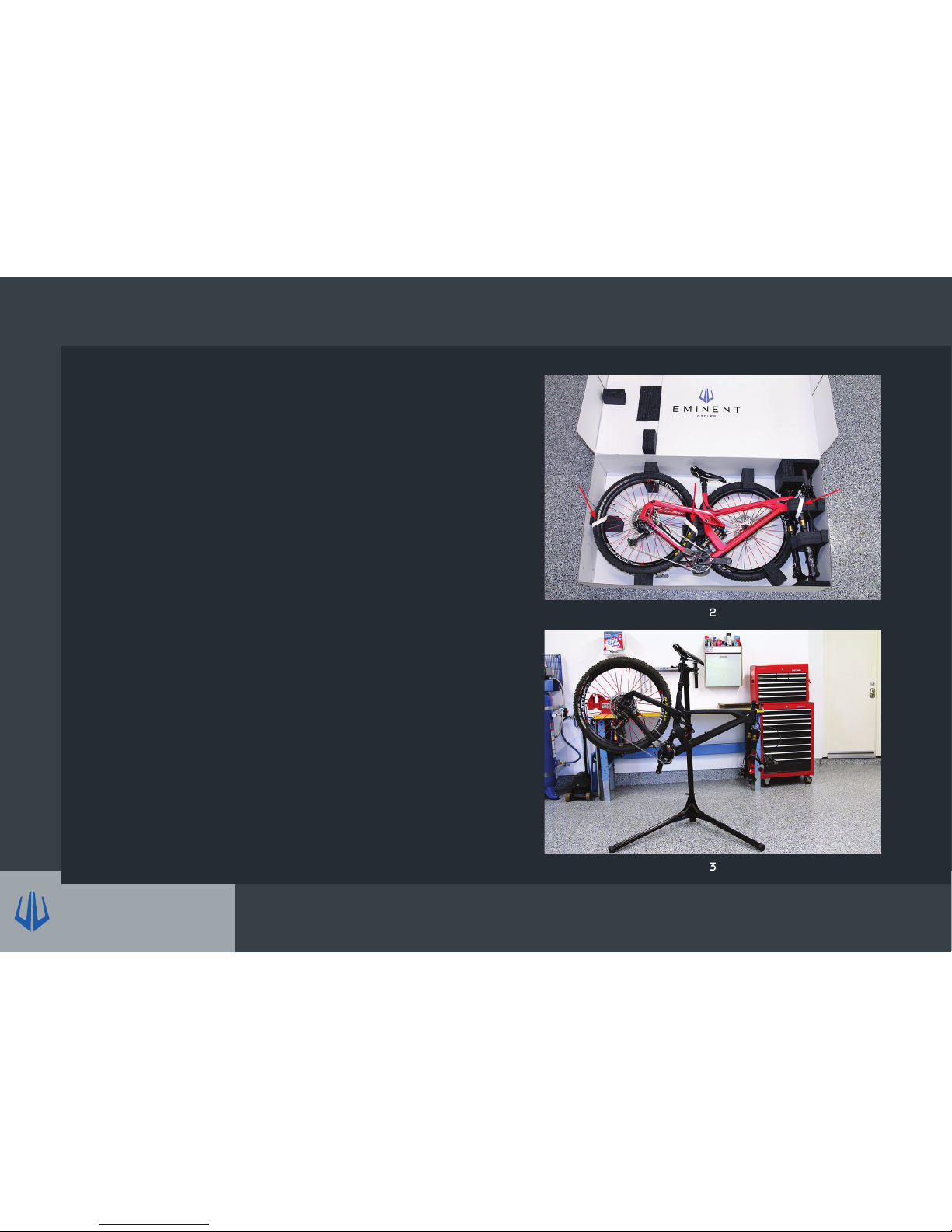

Step 1: Open the Bicycle Box cover so that it is laying flat
on the floor.
Step 2: Remove the straps that are holding the frame
assembly to the base of the box. Do not remove the
straps to the suspension just yet. 
Step 3: Carefully remove the bicycle frame assembly from
the box including the handlebars. Mount the frame
assembly in a bike stand or lay the bike assembly down on
a soft carpet floor. Gently place or drape the handlebars
near the frame. 

EMINENTCYCLES.COM 06
UNBOXING
Step 4: Remove the front wheel and all the parts, tools,
and paperwork included in the parts box. Place them
near the frame assembly. 
Step 5. Inspect the bicycle frame and components for
damage and that your specific build is correct to your
order per the invoice. If there are any issues, please
contact our customer service at service@eminentcy-
cles.com or give us a call.


07
Handlebar
Front Wheel
Suspension
Pedals
8
9
10
11
ASSEMBLY

EMINENTCYCLES.COM 08
Familiarize yourself with the tools provided in the parts box
(shock pump, torque wrenches, & multi tool).
HANDLEBAR

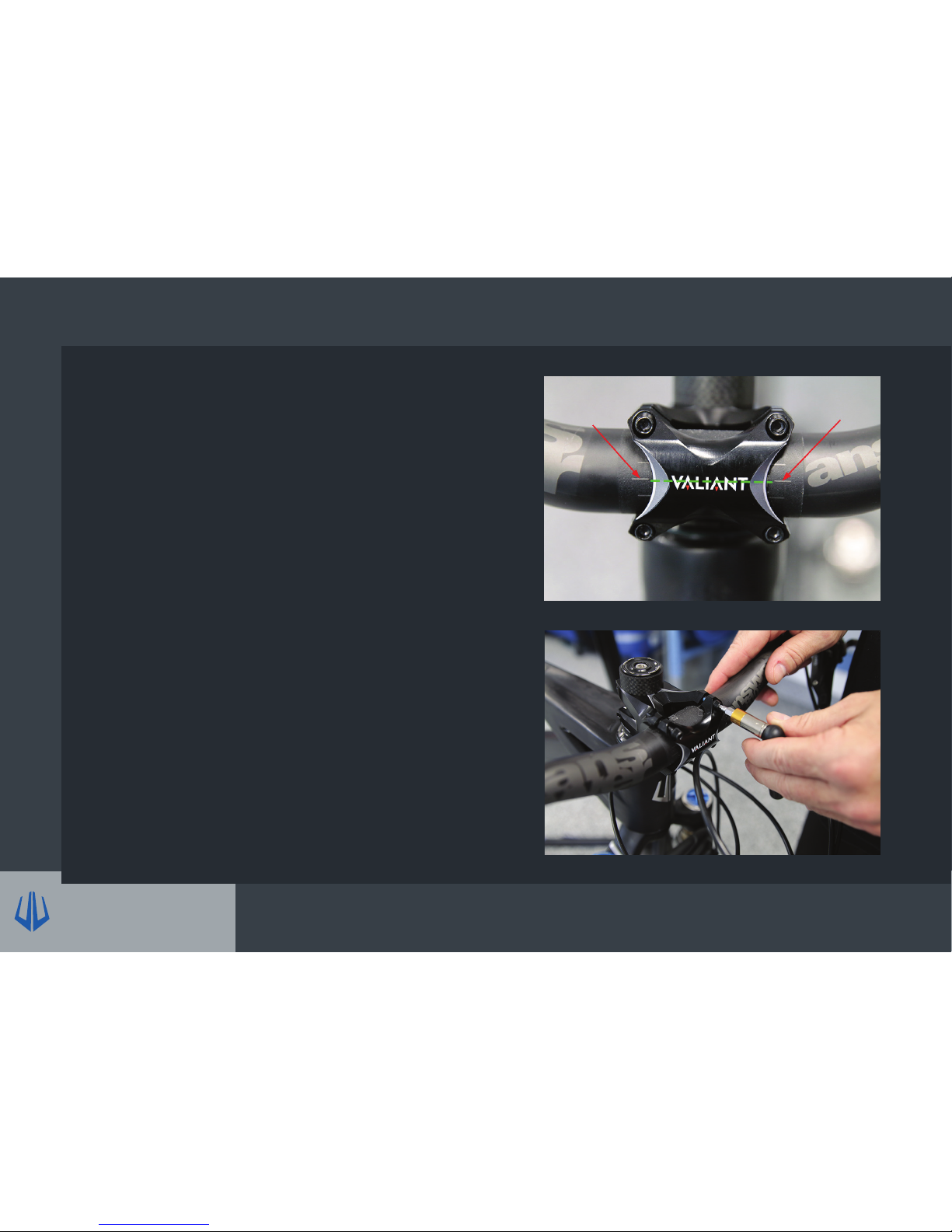

Step 1: Remove the stem faceplate using the supplied
torque wrench. 
Step 2: Position the handlebars on the stem and
reattached the faceplate over the handlebars. Tighten
the bolts using the supplied torque wrench. Proper bar
position is discussed in the Setup section of this manual.

ASSEMBLY



09
ASSEMBLY
FRONT WHEEL

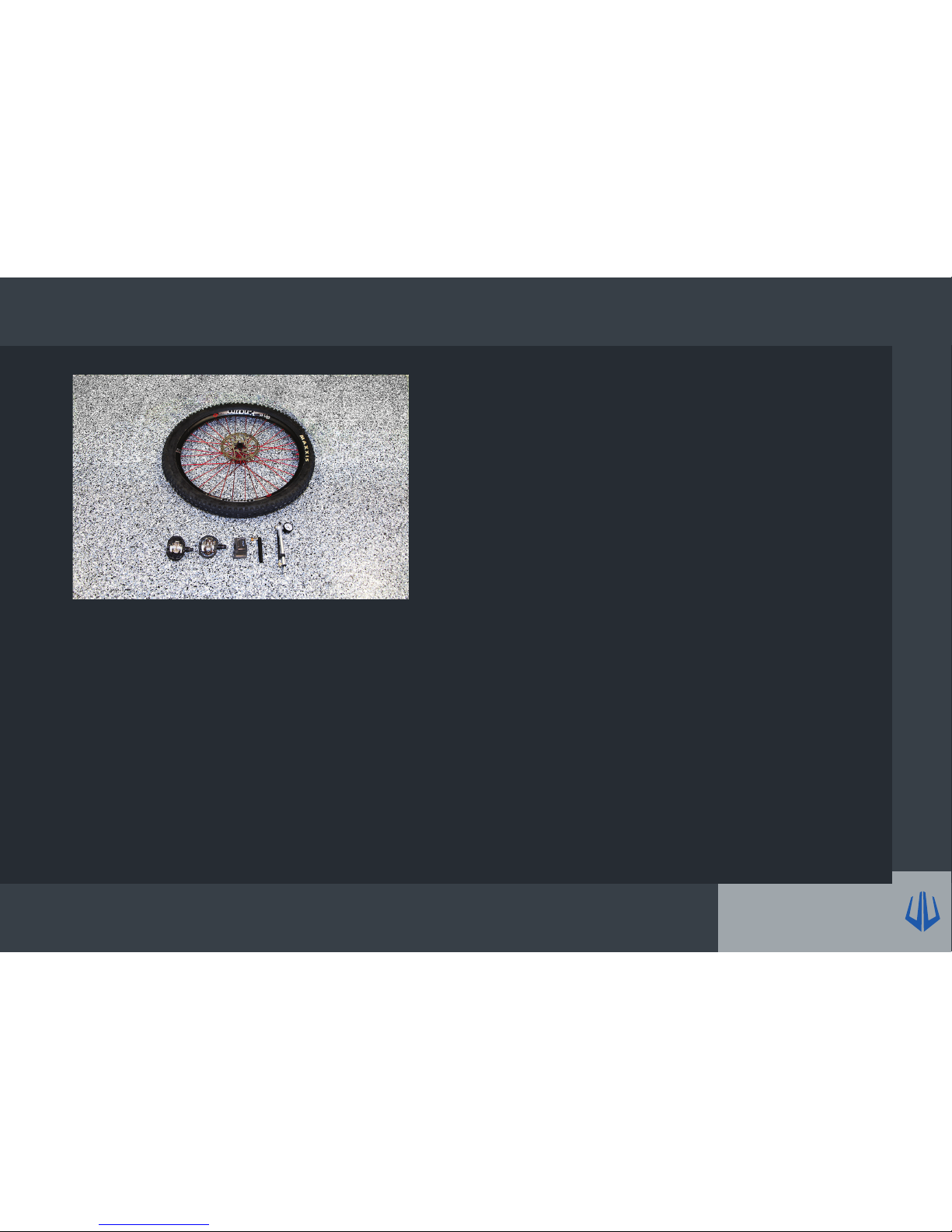

Step 1: Unscrew the axle from the front fork and remove
the Brake Caliper Spacer. 
Warning: Do not pull the brake lever without the wheels
installed as this could misalign the brake pads or damage
the brake caliper.
Step 2: Place the front wheel in the fork with the disc side
aligned to the brake. 
Step 3: Reinstall the axle through the fork and wheel.
Hand tighten the front axle and flip the quick release to
lock the front wheel in place. The quick release has
already been preset at the factory. 
Step 4: Add 30psi to the front and rear tires using a
bicycle pump with a presta valve adaptor.
Note: Your tires have inner tubes in them to get you up
and riding. The tires and wheels are tubeless ready and
seperate valve stems are supplied should you choose to
convert to tubeless.




EMINENTCYCLES.COM 10
SUSPENSION
Warning: Front and Rear suspension may be under
pressure and will expand rapidly when the shipping straps
are removed. Keep clear of the suspension when the
straps are removed.
Step 1: Remove the shipping straps holding the fork arch
to crown. 
Step 2: Remove the shipping straps holding the Rear
Suspension compressed. 
Warning: The suspension is shipped without the proper air
pressure and will need to be properly pressurized before
the bicycle is ridden. See the Setup section of this manual
for proper suspension settings.

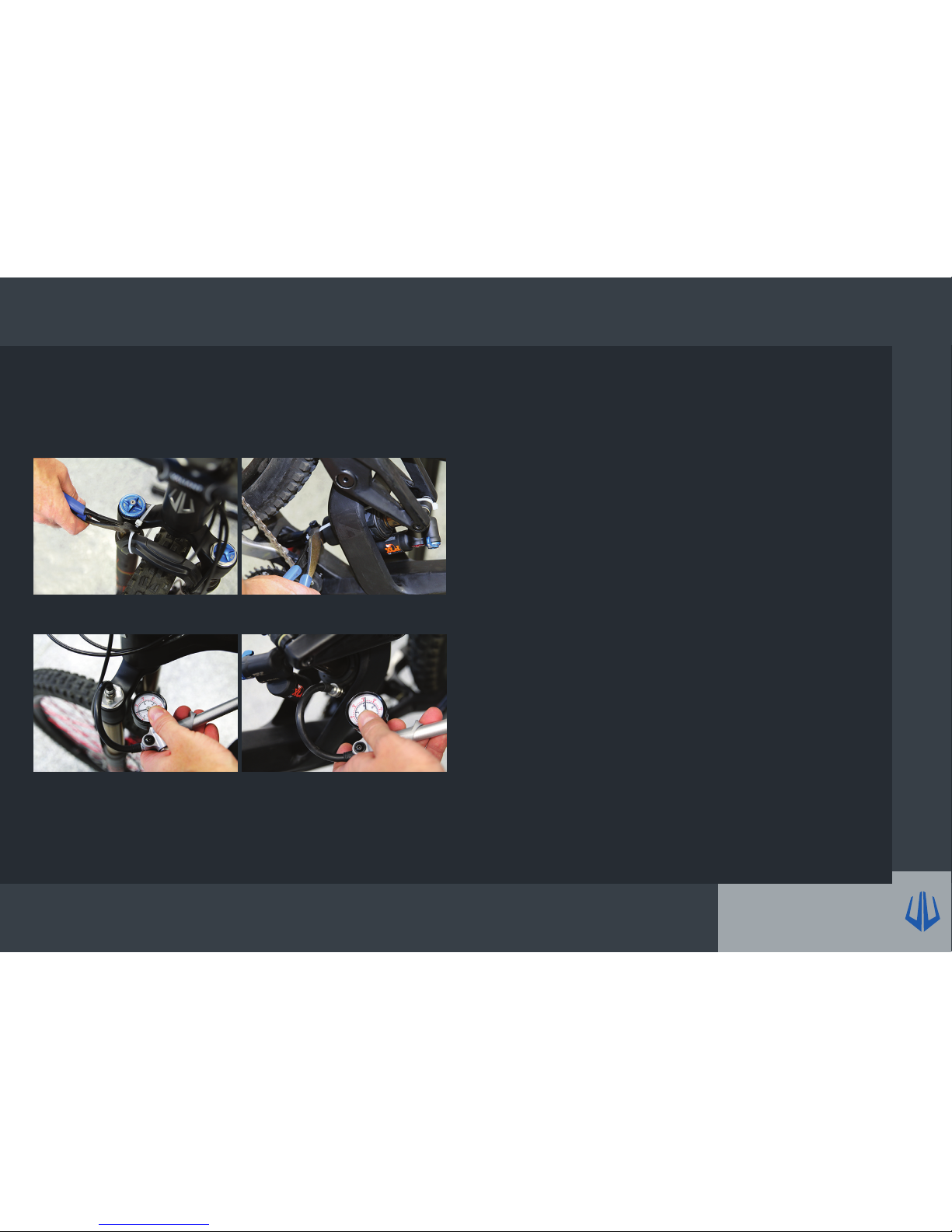

Step 3: Add 80psi of air to the fork and 170psi of air to the
shock using the supplied pump. These settings are for
initial setup only. 
ASSEMBLY
 
 

11
ASSEMBLY
PEDALS
The right and left pedals have the opposite thread
direction. Identify the right and left side pedal by an
indication near the threads or the thread direction
themselves. Install the pedals on the crank arms using the
supplied Allen wrench. 
Note: Pedals are an optional purchase at time of order.
For clipless pedal operation, please reference the pedal’s
OEM Manual found on our website.


EMINENTCYCLES.COM 12
ASSEMBLY
ASSEMBLY CHECK

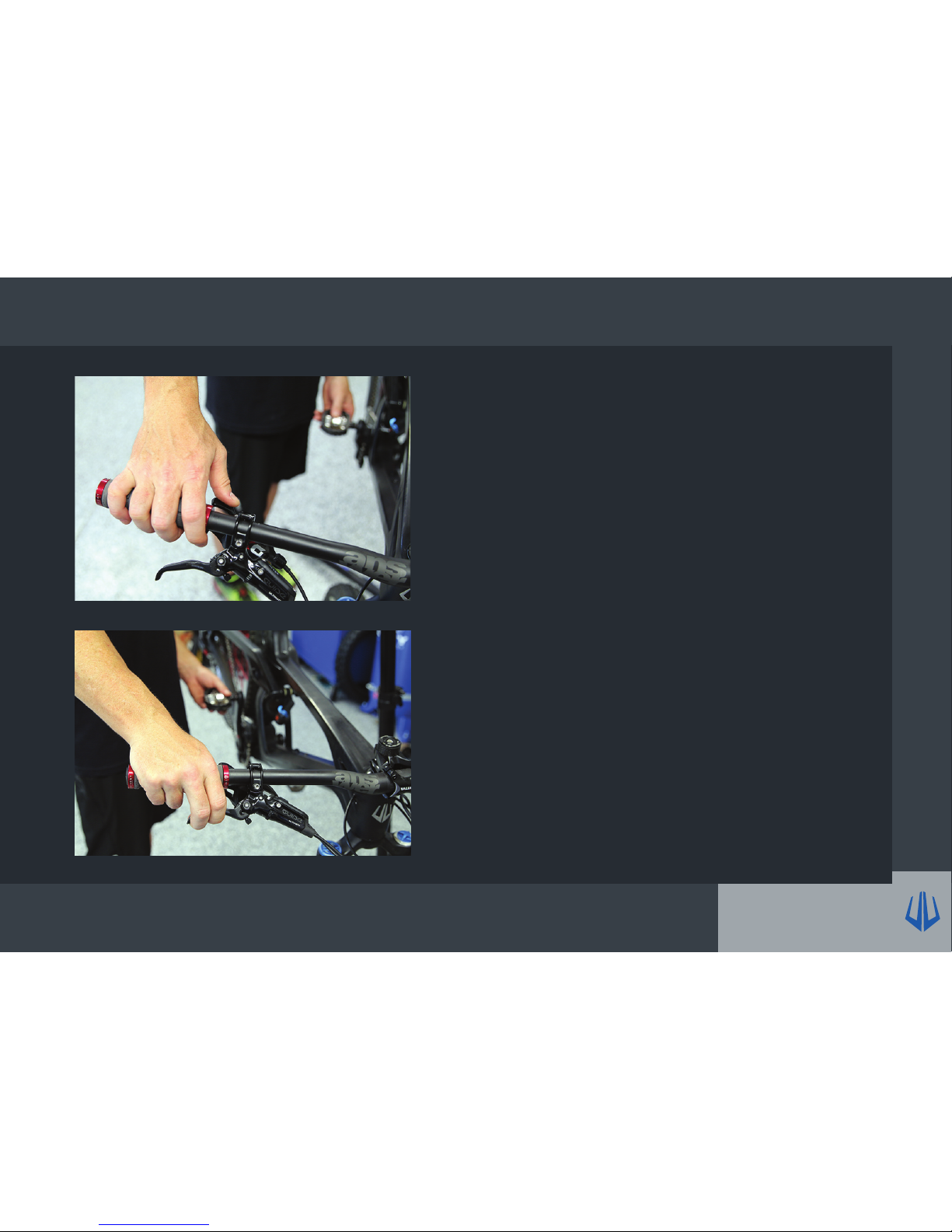

Step 1: If the bike is on a stand, spin the crankarm with
one hand on the pedal and shift through the gears.
Check for smooth shifts. 
Step 2: Spin the crankarm again and apply the rear
brake. Spin the front wheel and apply the front brakes.
Make sure that nothing is binding or loose and that the
brakes easly stop the wheels. 



13
Seatpost
Seat Height
Seat Position
Handlebar
Stem
Suspension - Sag
Suspension -
Compression & Rebound
14
15
16
17
18
19
22
SETUP

EMINENTCYCLES.COM 14
Size Min. Insertion Depth
56cm 100mm
59cm 100mm
62cm 125mm
65cm 125mm
68cm 150mm
Setup instructions are a guide to help place a rider in a
common starting position. These settings may not be final
settings as riding style, terran, and preference may vary. It
is recommeneded that you ride the bike a few times on
your typical trails to deterime the final positions.
SEATPOST
WARNING: To prevent damage to the frame, it is import-
ant to have a minimum amount of seatpost inserted into
the seat tube of the frame. The table shows the minimum
insertion height for each frame size that should be
maintained when setting the seat height.
Note: There is a hole in the back of the seat tube for visual
identification of minimum insertion on the 62cm, 65cm,
and 68cm frames.
SETUP

15
SEAT HEIGHT
To achieve a proper bike fit, it is beneficial to locate the
seat in the proper position.
Step 1: Extend the seat post to the highest position.

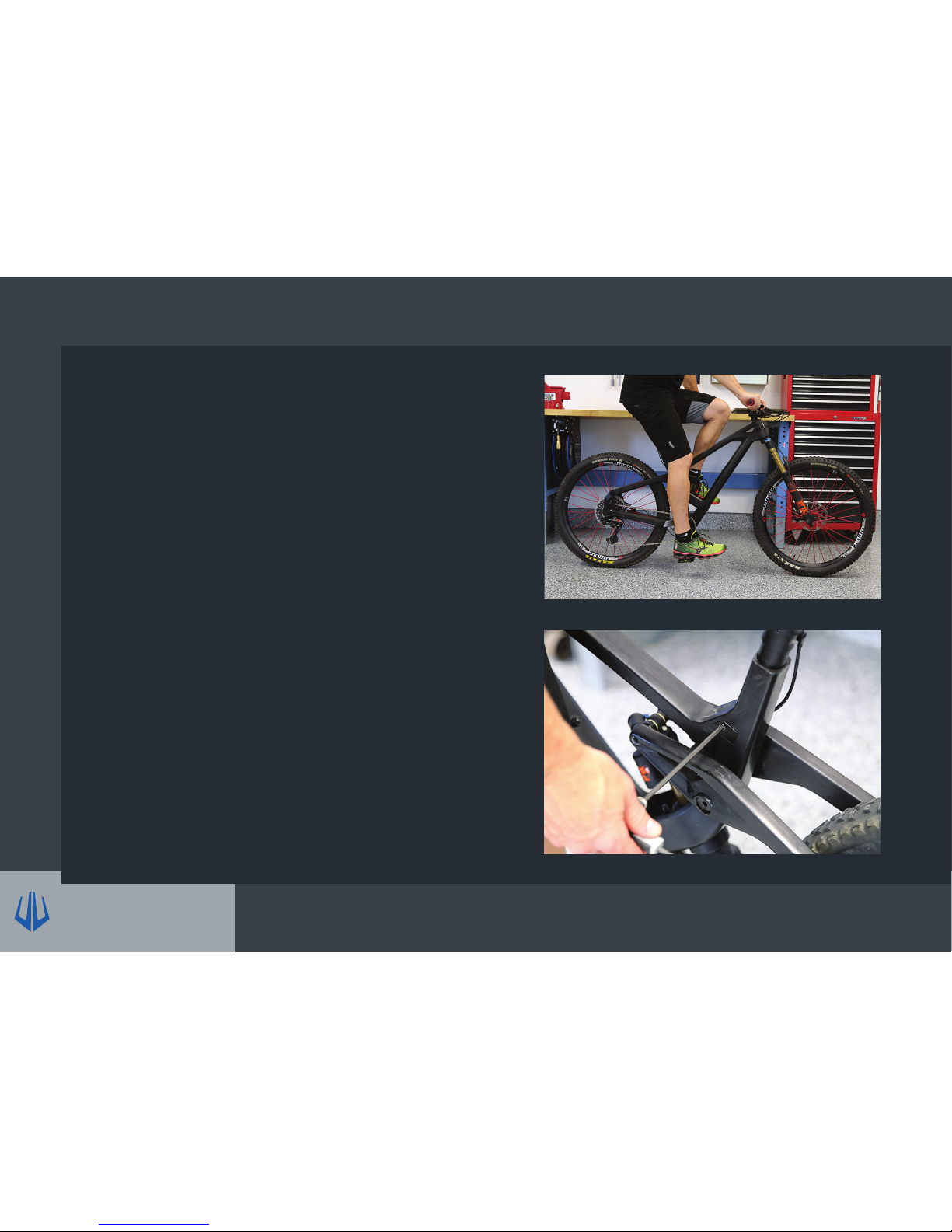

Step 2: Sit on the bike and use a sturdy table or wall to
balance yourself. With your riding shoes on, place your
heel on the pedals and rotate the crank so that one
pedal is at the lowest position relative to your seated
position. In this position your leg should almost be straight
(not stretched) with a very slight bend in the knee. If not,
your seat height will need to be adjusted. 
Step 3: Adjust the seat height by loosing the seatpost
clamp with the supplied Allen tool and slide the seatpost
in the desired direction then retighten. Test the new
position and adjust as needed. 
SETUP



EMINENTCYCLES.COM 16
SEAT POSITION
When setting the seat position there are two adjustments
to consider, the Angle and Horizontal position. The seat
angle should be set first as this adjustment can change
your horizontal position. 
Step 1: To test the proper seat angle, sit on the bike while
leaning against a wall and rotate your pedals around
backwards. Take note of the seat comfort relative to the
angle. Most of your weight should be on the back of the
seat with very little on the front. A level seat is a common
starting point.
Step 2: Adjust your seat angle by loosening the two seat
binder bolts with the supplied Allen tool. Adjust to the
desired position and retighten to 5Nm. Repeat step 1 and
adjust as needed. 
Step 3: Test the Horizontal position while riding on the street
or trail for best pedaling comfort. To adjust, loosen the two
seat binder bolts and slide the seat to the desired position
while keeping the same angle. Retighten to 5Nm.
Note: Tighten the front bolt to drop the front and tighten
the rear bolt to raise the front. Turn both the same amount
to torque the final position.
SETUP



17


HANDLEBAR
Step 1: Sit on the bike while leaning against a wall and
observe the current handlebar position. A level handle
bar is a common starting position. Level is indicated with
the center line on the handlebar to the center of the stem
faceplate. 
Step 2: To adjust, loosen the stem faceplate bolts with the
supplied Allen tools. Rotate the handlebars to the desired
position while keeping the bars centered to the stem.
Retighten and torque to 5Nm. Repeat step 1 and adjust as
needed. 
Note: For Valiant Stems, tighten the bottom faceplate
bolts first, then torque. Then tighten and torque the top
bolts.
Step 3: At this point the brake lever, shift lever, and
seatpost lever may not be in the desired location. Loosen
and adjust the position with the supplied Allen tool and
retighten to the proper torque. Torque values provided in
the Torque Chart section.
SETUP
