INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
DIRECT VENT ZERO CLEARANCE
GAS FIREPLACE HEATER
MODEL SERIES:
MILLIVOLT (MV)
DVCP36(PP,SP)30(N,P)-1
INTERMITTENT PILOT (IPI)
DVCP36(PP,SP)70(N,P)-1
UL FILE NO. MH30033
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING
If not installed, operated and maintained in
accordance with the manufacturer’s instructions,
this product could expose you to substances in
fuel or from fuel combustion which can cause
death or serious illness.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer, service
agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
GAS-FIRED
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
NOTICE: Barriers required and pre-installed on replace.

36092-2-0316Page 2
BEFORE YOU START
Unpacking the replace
NOTICE: The barrier screens supplied with this replace may
be damaged if force is applied to their surfaces. Take care not to
push against barrier screens.
1. Cut binding straps and shrink wrap. Shrink wrap should be
cut vertically along a corner post to avoid damage to barrier
screens.
2. Remove and discard corner posts.
3. Remove and discard top plywood sheet.
4. Verify that the replace has not been damaged during
shipping.
5. Remove non-combustible board on vent-end of replace and
set aside (peninsula only).
6. Remove replace from pallet.
7. Remove non-combustible boards from pallet and set aside.
8. Set replace in a location near to its nal installation location.
NOTICE: It is not necessary to remove the barrier screens from
the glass frames in order to remove the glass frames (see page
69).
Installation Considerations - Fireplace Installation
Guidelines
When planning a replace installation, it’s necessary to
determine:
• If the desired location of the replace is compatible with the
required framing dimensions, clearances to combustibles, venting
requirements, etc.
• If optional accessories are desired.
• Routing of gas supply piping (vent-end entrance).
• Electrical connections - for IP control system or optional light
or blower kit (vent-end connection)
• Electrical supply requirements for IP control system or
optional light or blower kit. (120V, 60Hz, 1Amp) (Vent-end
connection)
The replace can be mounted on any of these surfaces:
1. A at hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible material.
3. If allowed by local codes: A rectangular frame that contacts
all four edges on the bottom of the replace.
If the replace is installed directly on carpeting, tile or other
combustible material other than wood ooring, it should be
installed on a metal or wood panel extending the full width and
depth of the replace.
This replace is designed to be installed in a zero-clearance
enclosure. This means the combustible material can come in
contact with the top and side standoff spacers, and secured to
combustible framing using the framing brackets provided.
Sample Warnings and Denitions:
DANGER
Indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
1. Read the safety information on Pages 75 - 76.
2. If located in the Commonwealth of Massachusetts, please
note the special requirements on page 77.

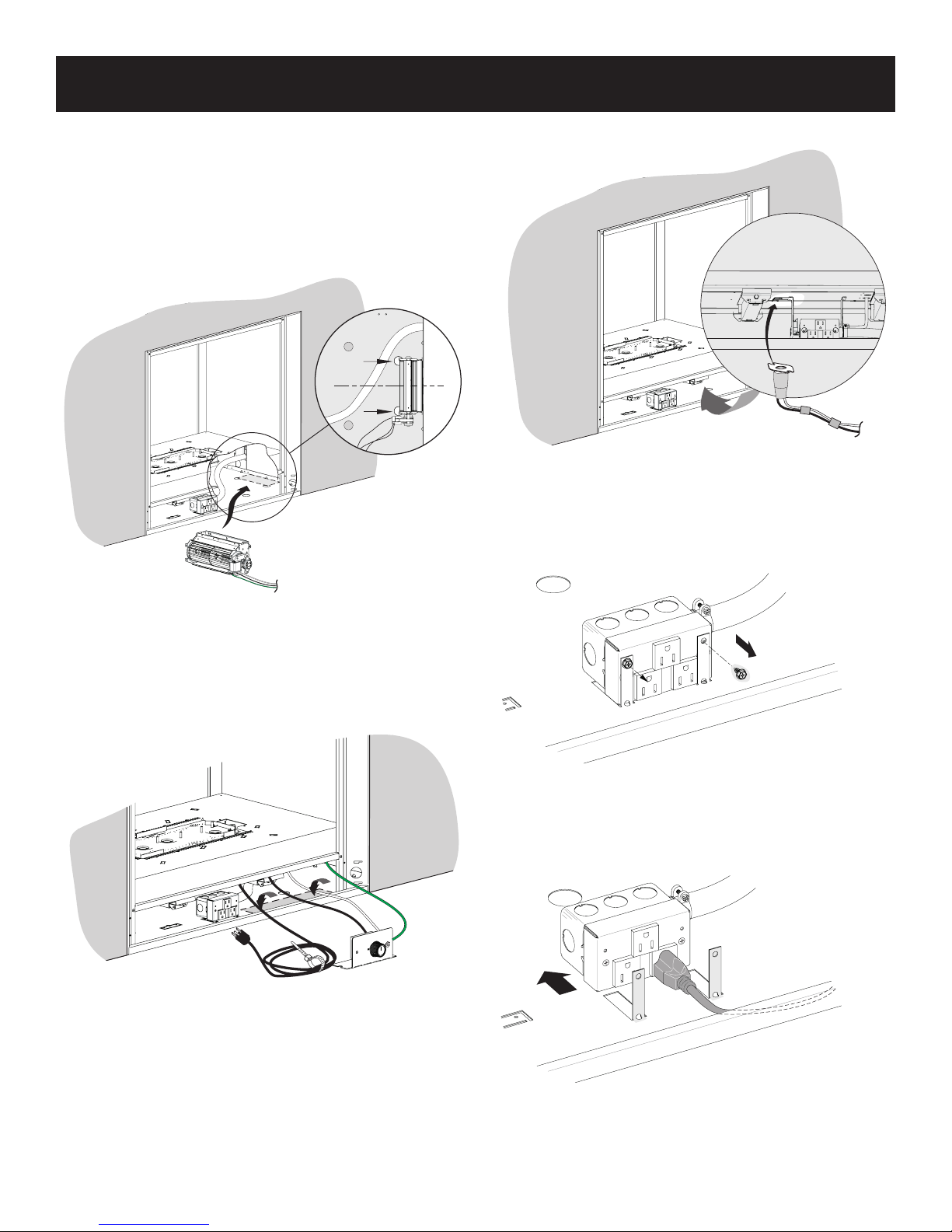

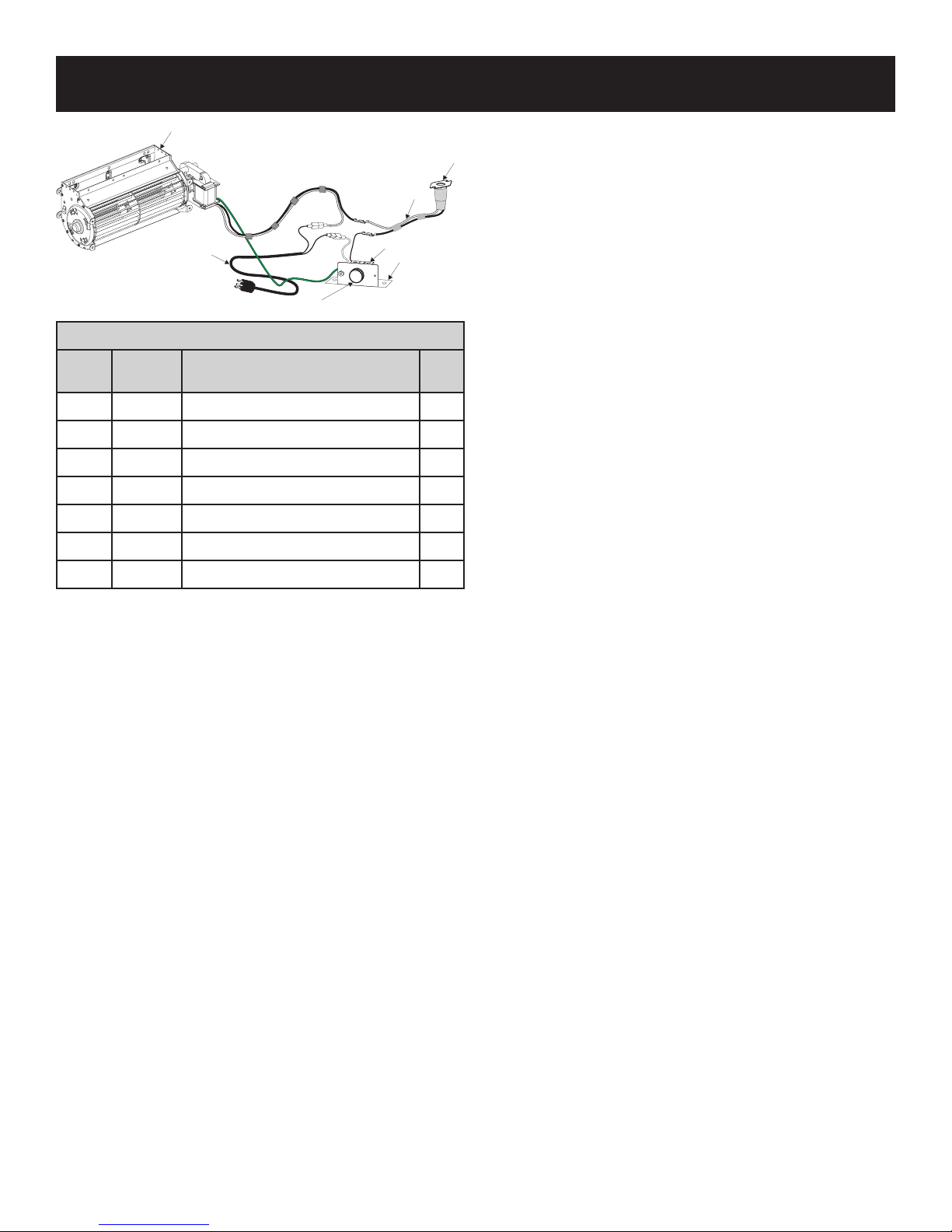

3. Are you going to install a blower into the replace? See
pages 8 - 9.
4. Where are you going to install the replace? See page 17.

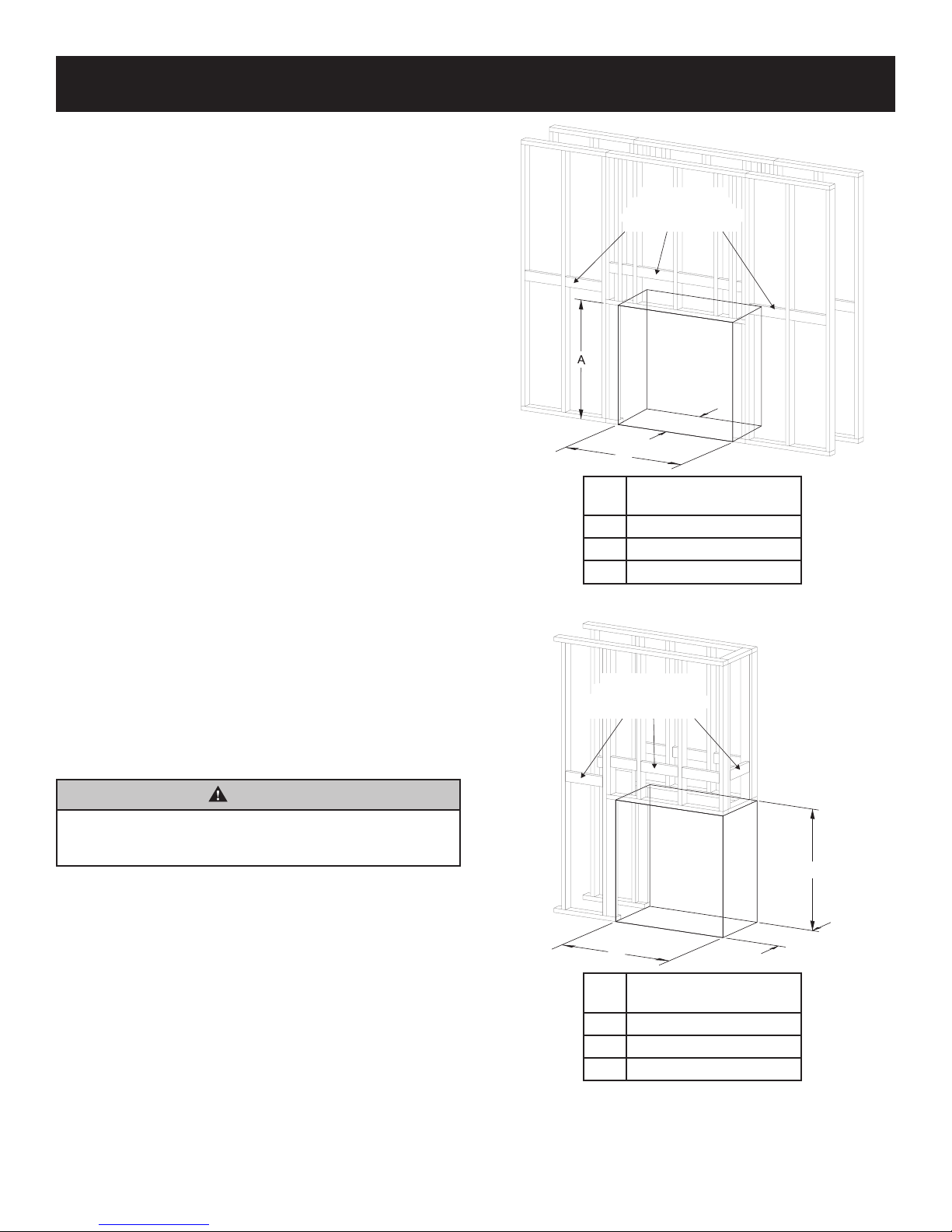

5. Frame the opening. See page 19.
6. Install the gas lines. See page 16.
7. Install the wiring. See pages 59 and 63.
8. Install the venting. See pages 25 - 32.
9. Install the replace. See pages 19 - 24.
10. Connect the venting system. See pages 33 - 34.
11. Install the logs. See page 36 - 54.
12. Light the replace and troubleshoot. See pages 60 - 61 and
64 - 67.
13. Show the homeowner how to operate the replace.
14. Show the homeowner how to do the basic maintenance.

36092-2-0316 Page 3
Items not shown to scale.
INDEX NO. DESCRIPTION QUANTITY
SUPPLIED
1 Rock Wool 1
2* Nailing Flange 5
3 Hardware Pack 1
4 Shut-Off Valve 1
5 Flue Restrictor 1
NS Non-Combustible Board - Long 2
NS** Non-Combustible Board - Short 1
NS Installation Instructions 1
NS - Not Shown in reference graphic.
*Five required for Peninsula models. Four required for See-Thru
models.
**Peninsula models only.
See Parts Lists on pages 70 - 73 for ordering replacement parts.
Do not order batteries, bolts, screws, washers or nuts. They are
standard hardware items and can be purchased at any local
hardware store.

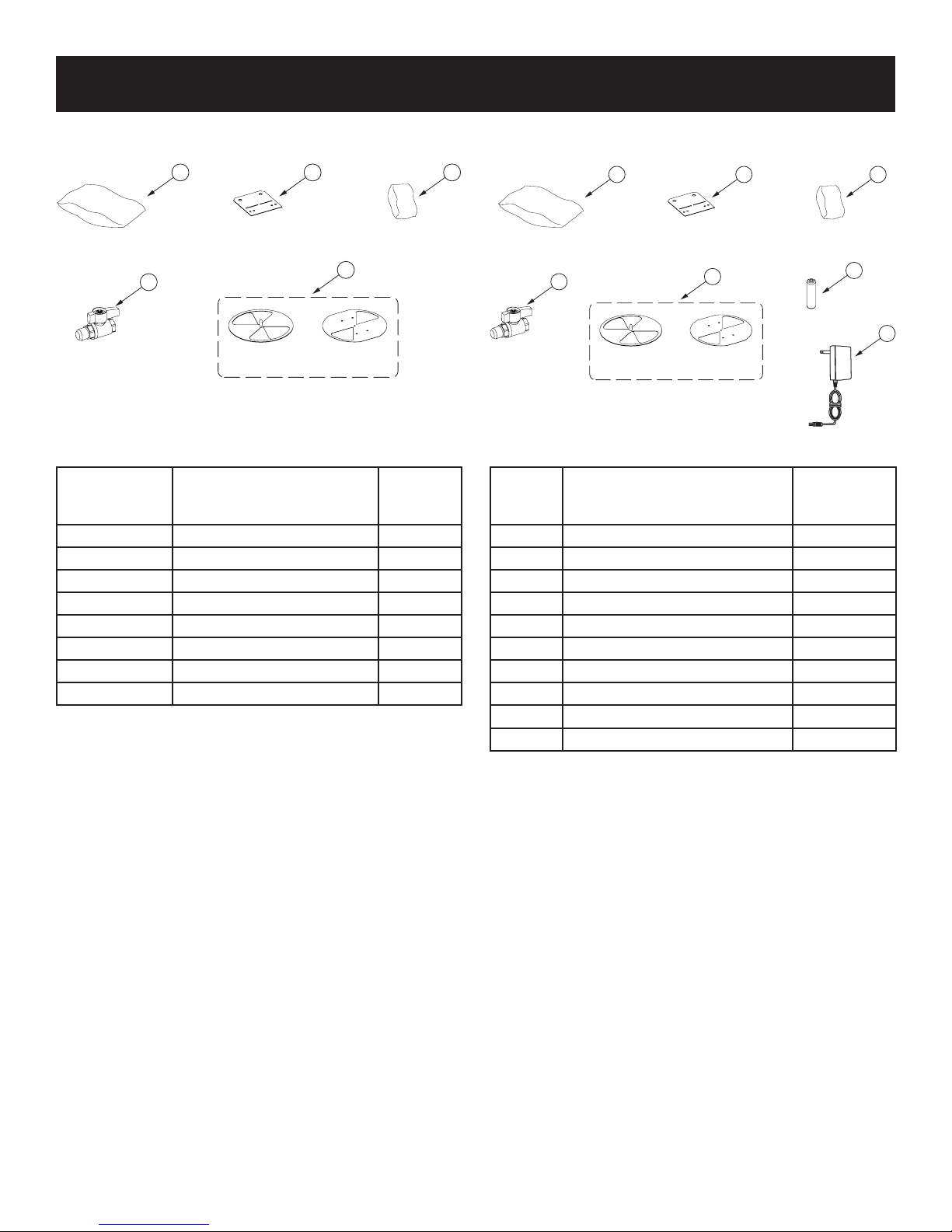

CARTON CONTENTS & HARDWARE PACK
CARTON CONTENTS - DVCP36(PP,SP)3 SERIES CARTON CONTENTS - DVCP36(PP,SP)7 SERIES
Items not shown to scale.
INDEX
NUMBER DESCRIPTION QUANTITY SUPPLIED
1 Rock Wool 1
2* Nailing Flange 5
3 Hardware Pack 1
4 Shut-Off Valve 1
5 Flue Restrictor 1
6 Battery 4
7AC Adapter 1
NS Non-Combustible Board - Long 2
NS** Non-Combustible Board - Short 1
NS Installation Instructions 1
NS - Not Shown in reference graphic.
*Five required for Peninsula models. Four required for See-Thru
models.
**Peninsula models only.
See Parts Lists on pages 70 - 73 for ordering replacement parts.
Do not order batteries, bolts, screws, washers or nuts. They are
standard hardware items and can be purchased at any local
hardware store.
LP UnitNAT Unit
1 2 3
5
4
LP UnitNAT Unit
1 2 3
6
7
5
4

36092-2-0316Page 4
TABLE OF CONTENTS
Introduction ............................................................................................................................................... 5
Specications............................................................................................................................................ 6
Accessories ............................................................................................................................................... 7
Blower Installation ............................................................................................................................... 8 - 9

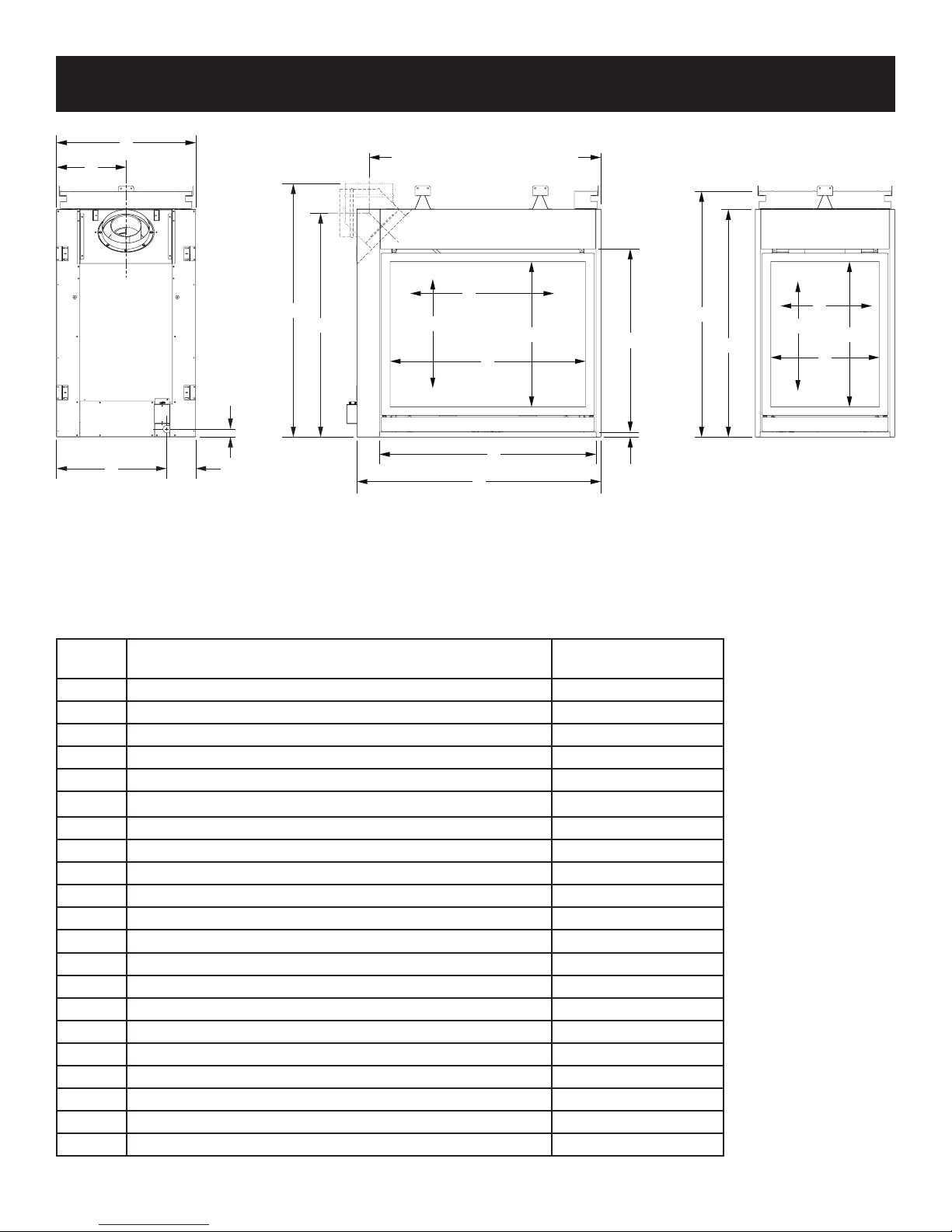

Fireplace Dimensions - See-Thru .......................................................................................................... 10
Fireplace Dimensions - Peninsula ..........................................................................................................11
Clearances ........................................................................................................................................ 12 - 13
Combustible Material.............................................................................................................................. 13
Vent Termination Clearances .......................................................................................................... 14 - 15
Gas Supply............................................................................................................................................... 16
Locating Fireplace....................................................................................................................................17
Junction Box Wiring Installation Instructions ..................................................................................... 18
Installation ........................................................................................................................................ 19 - 24
Venting Fireplace Top ...................................................................................................................... 25 - 32
Flue Restrictor ......................................................................................................................................... 25
Below Grade Installation.......................................................................................................................... 25
Top Vent System Identication ................................................................................................................ 26
Vent Systems........................................................................................................................................... 26
Venting Graph.......................................................................................................................................... 27
Horizontal Termination............................................................................................................................. 28
Vertical Termination.......................................................................................................................... 29 - 32
Venting Fireplace - Rear ......................................................................................................................... 32
DVVK-5F Flex Vent Instructions ..................................................................................................... 33 - 34
Finishing Installation .............................................................................................................................. 35
Optional Fiber or Porcelain Liners ........................................................................................................ 36
Glowing Embers ...................................................................................................................................... 37
Log Identication - LSU24SPF............................................................................................................... 38
Log Placement - LSU24SPF ............................................................................................................ 39 - 46
Log & Rock Identication - DG30MX.............................................................................................. 47 - 48
Log & Rock Placement - DG30MX .................................................................................................. 49 - 56
Millivolt Standing Pilot Operating Instructions............................................................................. 57 - 58
Millivolt Standing Pilot Wiring Diagram ................................................................................................ 59
Millivolt Standing Pilot Lighting Instructions....................................................................................... 60
Millivolt Standing Pilot Troubleshooting............................................................................................... 61
Intermittent Pilot Electronic System Operating Instructions ............................................................. 62
Intermittent Pilot Electronic System Wiring Diagram ......................................................................... 63
Intermittent Pilot Lighting Instructions................................................................................................. 64
Intermittent Pilot Control System Troubleshooting...................................................................... 65 - 67
Maintenance and Service ................................................................................................................ 68 - 69
See-Thru Parts View................................................................................................................................ 70
See-Thru Parts List ................................................................................................................................. 71
Peninsula Parts View .............................................................................................................................. 72
Peninsula Parts List ................................................................................................................................ 73
Master Parts Distributor List...................................................................................................................74
How To Order Repair Parts......................................................................................................................74
Important Safety Information................................................................................................................. 75
Safety Information for Users of LP Gas................................................................................................ 76
Requirements for Massachusetts.......................................................................................................... 77
Appliance Service History...................................................................................................................... 78
Warranty................................................................................................................................................... 79
SECTION PAGE

36092-2-0316 Page 5
Instructions to Installer
1. Leave instruction manual with owner after installation.
2. Have owner ll out and mail registration card supplied with
the replace or online.
3. Show owner how to start and operate the replace.
This direct vent gas replace heater is designed to operate with
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and
gas control systems.
Fireplace Certication
WARNING
This replace is not for use with solid fuels. Improper use
of the replace can cause serious injury or death from re,
burns, explosions, or carbon monoxide poisoning
This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z21.88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes including permits and
inspections.
The replace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 or Canadian Electric
code, CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualied agency. The term “qualied
agency” means any individual, rm, corporation or company
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
State of Massachusetts: The installation must be made
by a licensed plumber or gas tter in the Commonwealth of
Massachusetts.
WARNING
Any change to this replace or its controls can be
dangerous. Improper installation or use of the replace
can cause serious injury or death from re, burns,
explosions, or carbon monoxide poisoning.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, or CSA
B149.1 in Canada. *Available from the American National
Standards Institute, Inc. 11 West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number,
Serial Number and type of gas.
High Altitude
When installing this replace at an elevation above 2000 feet
(in the United States) it may be necessary to decrease the input
rating by changing the existing burner orice to a smaller size.
Generally, input should be reduced 4 percent for each 1000
feet above sea level. However, if the heating value of the gas
has been reduced, this general rule may not apply. Check with
Empire Comfort Systems for proper orice size identication.
Canadian High Altitude
Altitude: 0-4500 feet
When installing this replace at an elevation above 4500 feet (in
Canada), check with Empire Comfort Systems.
Consult your Empire Comfort Systems for assistance in
determining the proper orice for location.
Preparation
This direct vent gas replace and its components are tested and
safe when installed in accordance with this Installation Manual.
Report to your dealer any parts damaged in shipment, specically
check glass condition. Do not install replace with damaged,
incomplete, or substitute parts. Read all instructions before
starting installation and follow these instructions carefully during
installation to insure maximum benet and safety. Failure to
follow them will void your warranty and may present a re hazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace or vent system
component.
• Modication of the replace or direct vent system.
• Installation other than as instructed by Empire Comfort
Systems Inc.
• Improper positioning of the logs, decorative rock or glass
door.
• Installation and/or use of any component part not
manufactured or approved by manufacturer.
INTRODUCTION

36092-2-0316Page 6
SPECIFICATIONS
NATURAL GAS LP
PENINSULA
MODELS
SEE-THRU
MODELS
PENINSULA
MODELS
SEE-THRU
MODELS
Input BTU/Hr Maximum 34,000 34,000 32,000 32,000
Input BTU/Hr Minimum 23,000 23,000 26,500 26,500
KWH (Maximum) 9.96 9.96 9.38 9.38
KWH (Minimum) 6.74 6.74 7.76 7.76
Orice #33 #33 #51 #51
Air Shutter Opening*
3/16in
(1/8in w/40ft. Vertical Vent,
ue restrictor installed)
3/16in
(1/8in w/40ft. Vertical Vent,
ue restrictor installed)
FULLY OPEN FULLY OPEN
Height without standoff 39-1/2in 39-1/2in 39-1/2in 39-1/2in
Width 42-1/4in 45-1/2in 42-1/4in 45-1/2in
Depth 24in 24in 24in 24in
Gas Inlet Shutoff Valve (pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT
Venting 5” x 8”, See Page 26 5” x 8”, See Page 26 5” x 8”, See Page 26 5” x 8”, See Page 26
*NOTICE: Air shutter settings are factory minimum settings. Some venting congurations may require minor air shutter adjustments for
optimum performance.
GAS SUPPLY PRESSURES
GAS TYPE MAXIMUM MINIMUM MANIFOLD
NAT 14 4.5 3.5
LP 14 11 10

36092-2-0316 Page 7
Model Number Description May Be Used On
**DVP36PRB Rustic Brick Liner - “Soldier Course” Peninsula & See-Thru Models
**DVP36PFLKR Vertical Fluted Black Liner Peninsula & See-Thru Models
**DVP36PKR Porcelain Black Liner Peninsula & See-Thru Models
FBB14 Blower Kit Peninsula & See-Thru Models
LK7 Light Kit Peninsula & See-Thru Models
*LSU24SPF Campre Log Set Peninsula & See-Thru Models
*DG36MX Rustic Decorative Boulders Peninsula & See-Thru Models
DF362PNB 1.5in. Beveled Window Frame, Brushed Nickel Peninsula & See-Thru Models
DF242NB 1.5in. Beveled Window Frame End, Brushed Nickel Peninsula Models Only
DF362PBZ 1.5in. Beveled Window Frame - Oil Rubbed Bronze Peninsula & See-Thru Models
DF242BZ 1.5in. Beveled Window Frame End - Oil Rubbed Bronze Peninsula Models Only
DVD36PBLNB Decorative Contemporary Doors - Brushed Nickel Peninsula & See-Thru Models
* Fireplace requires a log set or mixed logs and stones kit.
** Liners are not required. To add liners, order two liners for See-Through models; One for Peninsula.
The following accessory parts can be obtained from your Empire Comfort Systems dealer. Contact your Empire Dealer for more
accessory options. If you need additional information, contact Empire Comfort Systems Inc., 918 Freeburg Ave., Belleville, Illinois
62220-2623.
ACCESSORIES
Remote Control Options
& Accessories
Description Models Used On
FRBC Millivolt Battery Remote ON/OFF DVCP36(PP,SP)(3,7)
FRBTC Millivolt Battery Remote Thermostat DVCP36(PP,SP)(3,7)
TMW Millivolt Wireless Wall Thermostat DVCP36(PP,SP)(3,7)
TRW Millivot Reed Switch Wall Thermostat DVCP36(PP,SP)(3,7)
FWS-1 Direct Ignition/Millivolt Wall Switch DVCP36(PP,SP)(3,7)
FRBTP Battery Operated Remote Control with Programmable Thermostat DVCP36(PP,SP)(3,7)
RVKN-1 Remote Kit, NAT (Stepper Motor) DVCP36(PP,SP)70(N,P)
RVKP-1 Remote Kit, LP (Stepper Motor) DVCP36(PP,SP)70(N,P)

36092-2-0316Page 8
BLOWER INSTALLATION
1. Remove the glass and screen frames, and the bottom
access panel from the side which is opposite the valve.
The glass and screen frame may be removed as a unit. It is
not necessary to separate the screen frame from the glass
frame.
2. Hold the blower assembly so that the magnets are on your
right side, and insert it into the replace through the opening
to the right of the junction box. See Figure 1.
Figure 1
3. Attach the magnet-side of the blower assembly to the outer
wall of the replace, and center it inside the replace using
the two holes in the oor as a visual guide. See Figure 1.
4. Set the rheostat control on the replace oor, with the
rheostat bracket situated as far to the right as possible. See
Figure 2.
Figure 2
5. Snap the fan control disc into the forked prongs on the valve
bracket. See Figure 3.
Figure 3
6. If more than one receptical is necessary in order to complete
the installation, unscrew the junction box from the locating
tabs so that it can be moved rearwards and plug the blower
cord into one of the two bottom recepticals. See Figures 4
and 5.
Figure 4
Figure 5
7. Re-attach the junction box to the locating tabs.
8. Re-install the glass and screen frames, and the access
panel.

36092-2-0316 Page 9
6
2
3
4
1
5
7
BLOWER ASSEMBLY PARTS LIST
INDEX
NO.
PART
NO
DESCRIPTION QTY
1 36118 BLOWER ASSEMBLY 1
2 R7649 FAN, CONTROL L120-20 1
3 R3529 CORD SET, 30 INCHES 1
4 R4192 RHEOSTAT, KNOB 1
5 R4186 RHEOSTAT, 3.0 AMP 115 VAC 1
6 10088 RHEOSTAT BOX BRACKET 1
7 R11768 WIRE HARNESS, FAN CONTROL 1
BLOWER INSTALLATION

36092-2-0316Page 10
FIREPLACE DIMENSIONS - SEE-THRU
INDEX
LETTER DIMENSION DESCRIPTION DVCP36SP(30,70) (Dimensions in Inches)
AThe maximum height of rebox face (excluding standoffs) 39-1/4
BThe maximum width of the rebox face (excluding nailing anges) 45
CThe maximum depth of the rebox 24
DThe height of the rebox opening 31-1/2
E The width of the rebox opening 37-1/4
FThe interior depth of the rebox (not shown) 20-1/4
HThe height to the rebox standoffs 42-3/8
I Width from the left side of the box to the centerline of vertical vent 48-5/8
J Depth from back of box to centerline of vent 12
K Height from the bottom of the box to the gas line opening 1-3/8
L Depth from the front of the box to gas line opening 5
M Depth from rear of box to gas line opening 19
N* Glass height 25-3/8
O* Glass width 31
QDistance from oor to replace opening 7/8
RHeight from oor to vent collar center line - Horizontal 39-1/2
SHeight from oor to vent collar - Vertical 44
U Screen opening width 33-5/8
V Screen opening height 25
*These dimensions are to the inside edges of the glass frame opening.
U
B
V
H
A
R
C
J
L
K
Q
D
M
S
E
N
O
I
(TO CENTER OF VERTICALLY
ORIENTED ELBOW)

36092-2-0316 Page 11

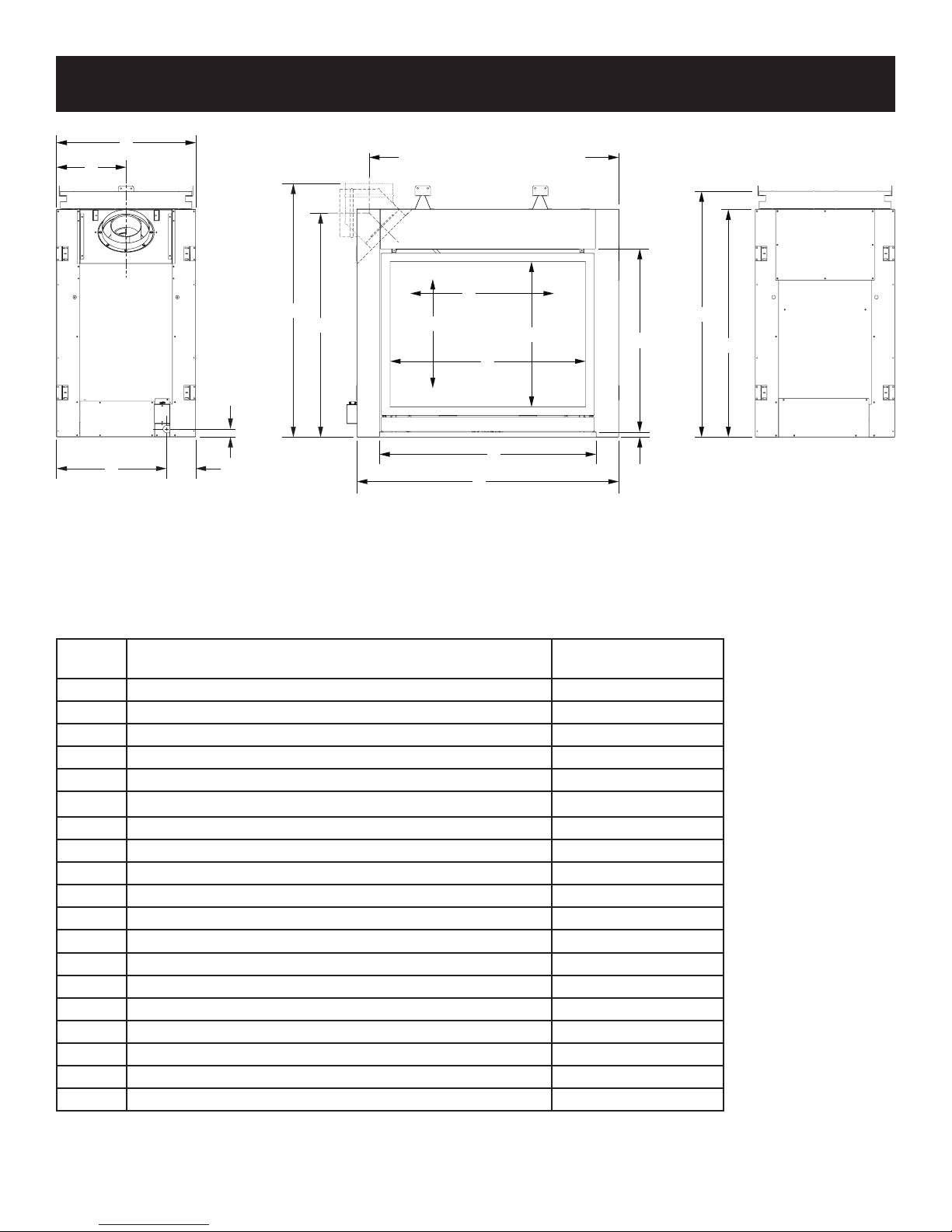

INDEX
LETTER DIMENSION DESCRIPTION DVCP36PP(30,70) (Dimensions in Inches)
AThe maximum height of rebox face (excluding standoffs) 39-1/4
BThe maximum width of the rebox face (excluding nailing anges) 42
CThe maximum depth of the rebox 24
DThe height of the rebox opening 31-1/2
E The width of the rebox opening 37-1/4
FThe interior depth of the rebox (not shown) 20-1/4
HThe height to the rebox standoffs 42-3/8
I Width from the left side of the box to the centerline of vent 45-5/8
J Depth from back of box to centerline of vent 12
K Height from the bottom of the box to the gas line opening 1-3/8
L Depth from the front of the box to gas line opening 5
M Depth from rear of box to gas line opening 19
N* Glass height 25-3/8
O* Glass width 31
QDistance from oor to replace opening 7/8
RHeight from oor to vent collar - Horizontal 39-1/2
SHeight from oor to vent collar - Vertical 44
T* Glass width - small 16
U Screen opening width 33-5/8
V Screen opening height 25
X Screen opening width - small 18-5/8
*These dimensions are to the inside edges of the glass frame opening.
FIREPLACE DIMENSIONS - PENINSULA
U
B
V
H
A
R
C
J
L
K
Q
D
I
(TO CENTER OF VERTICALLY-
ORIENTED ELBOW)
M
S
E
N
O
X
V
N
T

36092-2-0316Page 12
CLEARANCES

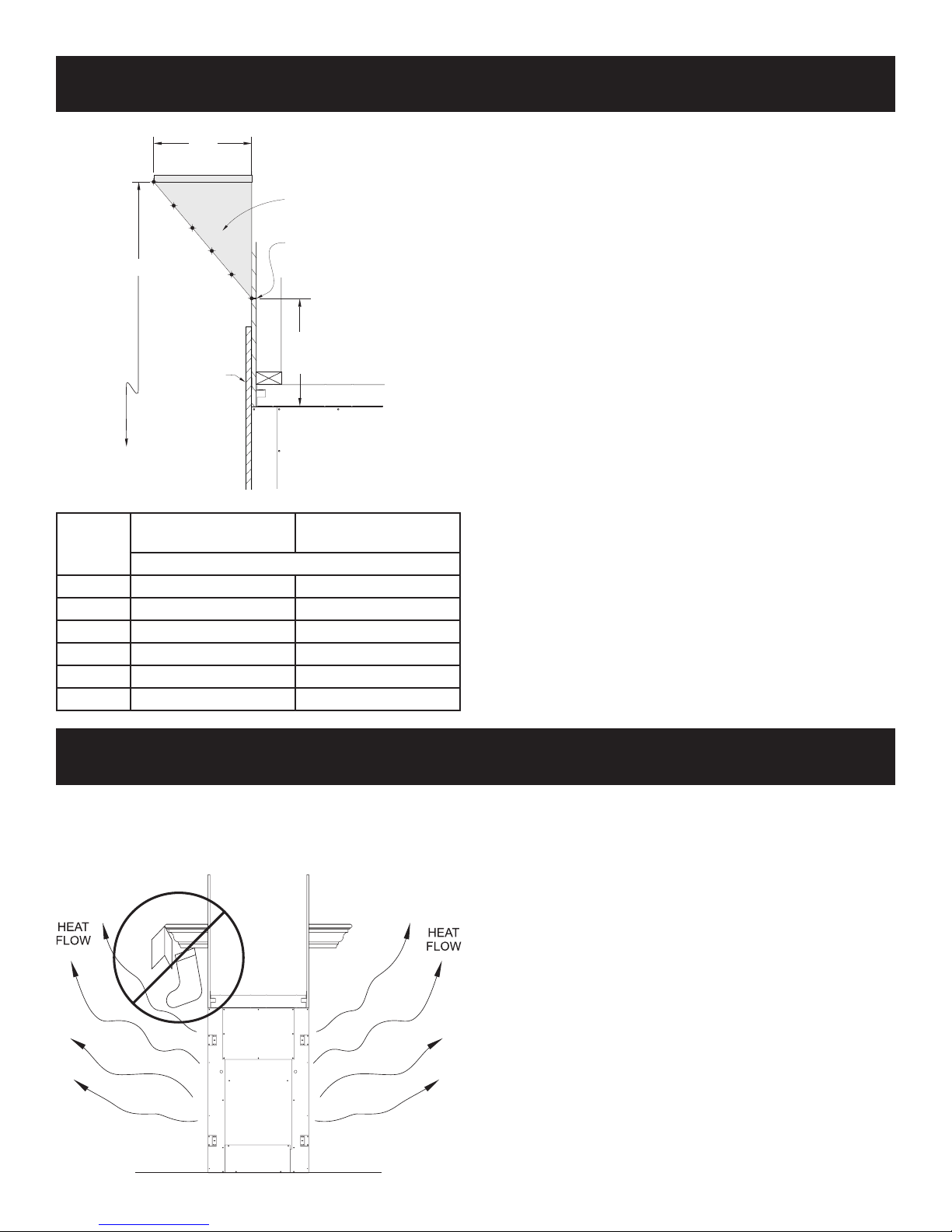

Television Considerations
Installing a television above a replace has become increasingly
popular; however, the area above any replace gets hot and most
TV manufacturers recommend against placing their products
near a heat source.
If you install a television above this replace, Empire Comfort
Systems accepts no responsibility for damage or injuries. Follow
the television manufacturer’s installation instructions, including
any recommendations regarding proximity to heat sources.
If you have a TV above your replace, turn off the replace and
let it cool completely before servicing or touching any buttons on
the TV.
Clearances
40”
TO FIREPLACE
OPENING (MIN.)
6”
TO FIREPLACE
OPENING (MIN.)
36” (MIN.)
NON-COMBUSTIBLE
BOARD, TO 16” ABOVE
FIREPLACE FACE
NOTICE: Dimensions apply to both See-Thru and Peninsula
models.

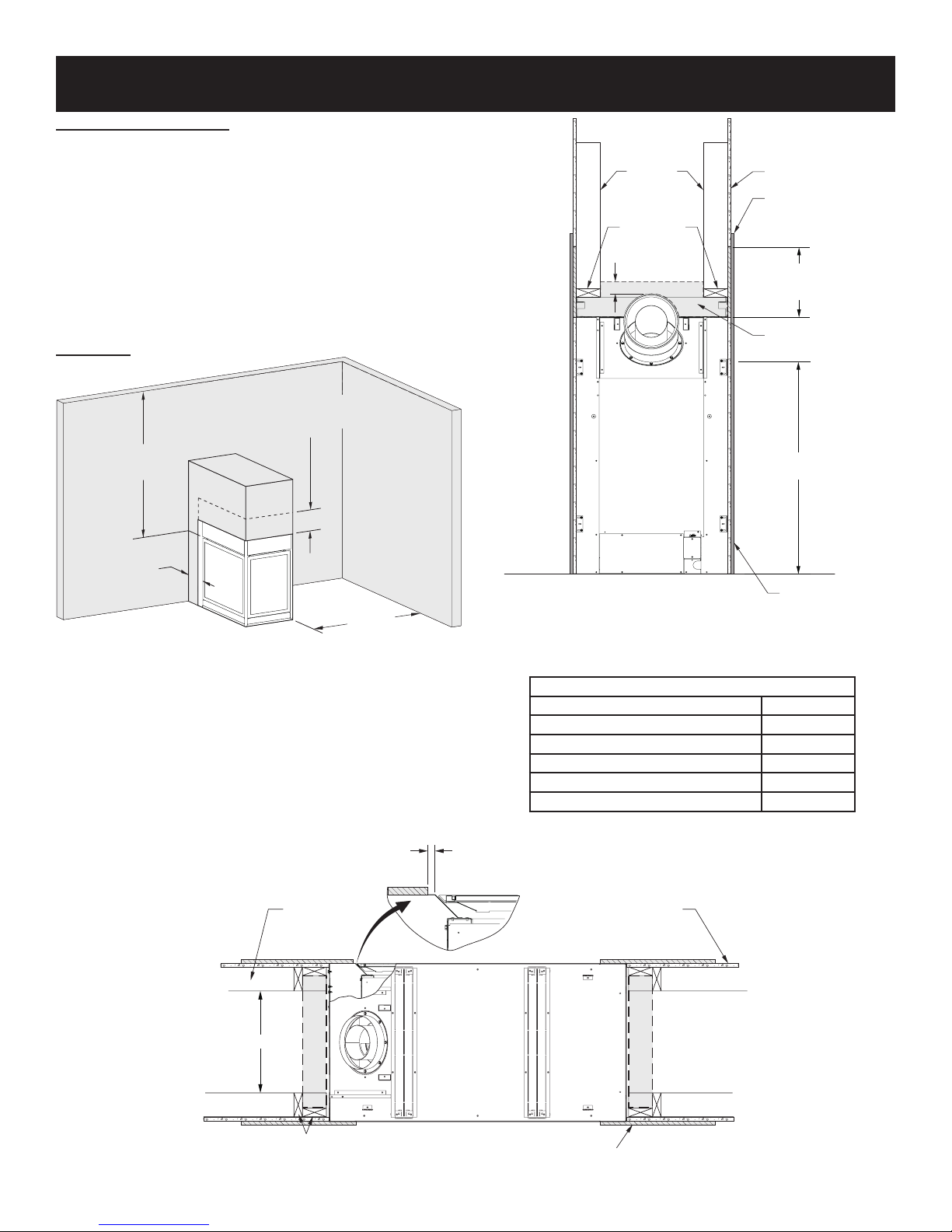

Figure 6 - Peninsula
FIREPLACE
OPENING
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
(COVER SEAM)
NON-COMBUSTIBLE
WALL COVERING
VERTICAL
FRAMING
HORIZONTAL
FRAMING
NON-COMBUSTIBLE
ZONE
3” ABOVE
VENT 16” NON-COMBUSTIBLE
BOARD HEIGHT - ALL
VISIBLE SIDES
NOTICE A: See Figure 9 for maximum mantel depth and
minimum height above replace.

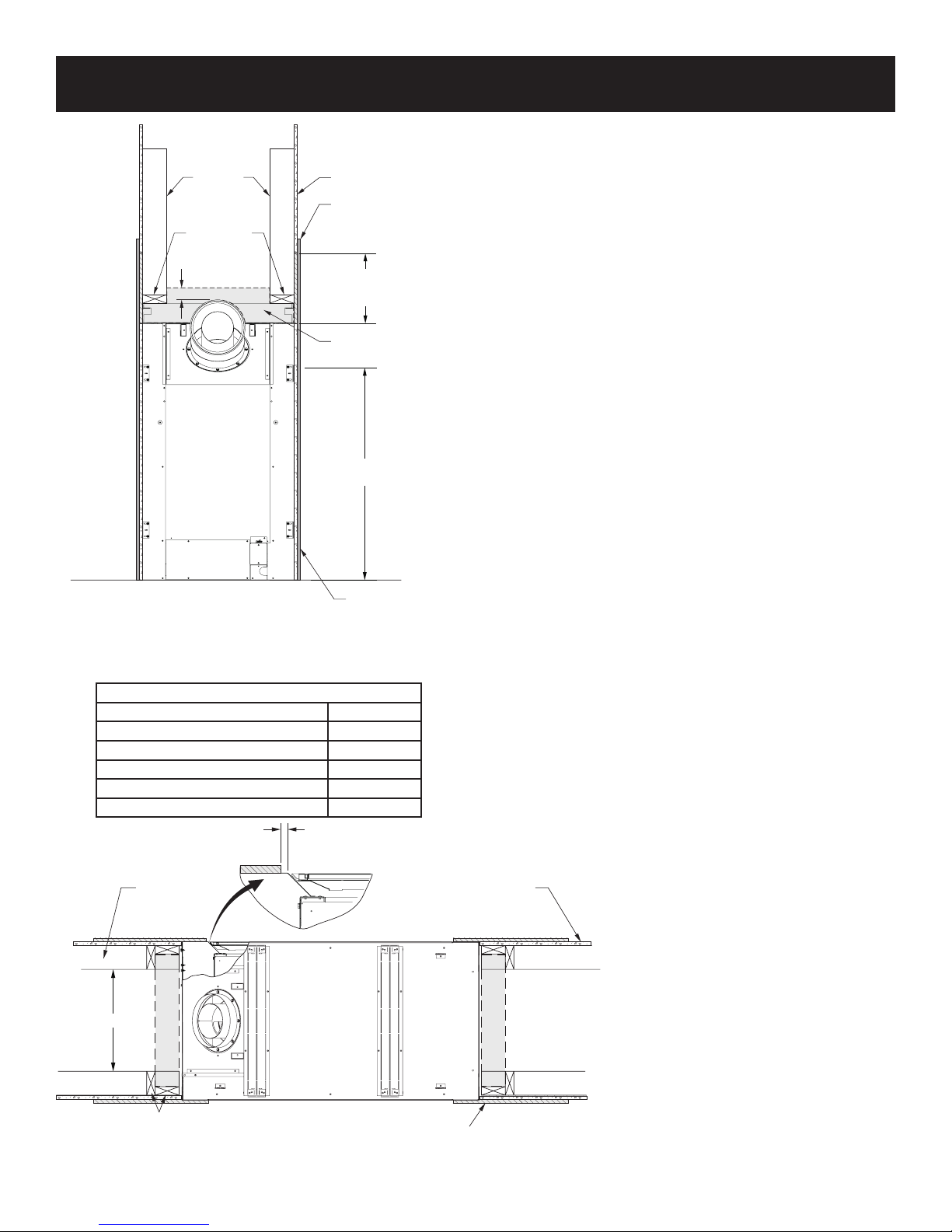

Figure 7
Clearance to Combustibles
Back 0in
Sides Near Face (See Figure 8) 0in
Floor 0in
Top Stand-off 0in
Outer Top to Framing 3in
Above Vent 3in
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
VERTICAL FRAMING:
NOTE ORIENTATION OF
STUD AGAINST THE FIREPLACE
20”
FRAMING
ON FLOOR
NON-COMBUSTIBLE
ZONE
NON-COMBUSTIBLE
ZONE
LEAVE SPACE BETWEEEN
WALL COVERING AND
FIREPLACE OPENING FOR
BEAD OF CAULK
Figure 8

36092-2-0316 Page 13
CLEARANCES
Mantel Chart
MANTEL COMBUSTIBLE TRIM
AND MANTELS
ALLOWED IN
SHADED AREA
B
C
D
E
X
Y
NON-
COMBUSTIBLE
FINISH
MATERIAL
MUST COVER
THE SURFACE
OF THE
FIREPLACE
FACE
TO TOPOF
FIREPLACE
OPENING
A
F
SEAM BETWEEN
NON-COMBUSTIBLE
BOARD AND DRYWALL
16”NON-COMBUSTIBLE
BOARD HEIGHT - ALL
VISIBLE SIDES OF UNIT.
INDEX
LETTER
Y - DISTANCE FROM
FIREPLACE OPENING
X - DISTANCE FROM
FINISHED WALL
(Dimensions in Inches)
A 26 12
B 24 8
C 22 6
D 20 4-1/2
E18 2-1/4
F 16 0
Figure 9
Do not attach combustible material to the mantel of your
replace. This is a re hazard. No greeting card, stockings or
ornamentation of any type should be placed on or attached to the
replace. This is a heating replace. The ow of heat can ignite
combustibles.
Figure 10
COMBUSTIBLE MATERIAL

36092-2-0316Page 14
Termination clearance for buildings with combustible and noncombustible exteriors.
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and
combustible materials is 3 inch on top, and 1 inch on bottom and
sides.
Important! When vent termination exits through foundation less
than 20 inch below siding outcrop, the vent pipe must extend
outward so that the horizontal vent termination is located ush to,
or beyond the outcrop siding.
Information on Various Venting Routes and Components
Important: It is always best to locate the replace in such a way
that minimizes the number of offsets and horizontal vent length.
Since it is very important that the venting system maintain its
balance between the combustion air intake and the ue gas
exhaust, certain limitations as to vent congurations apply and
must be strictly adhered to. See allowed vent congurations,
page 28 to 32.

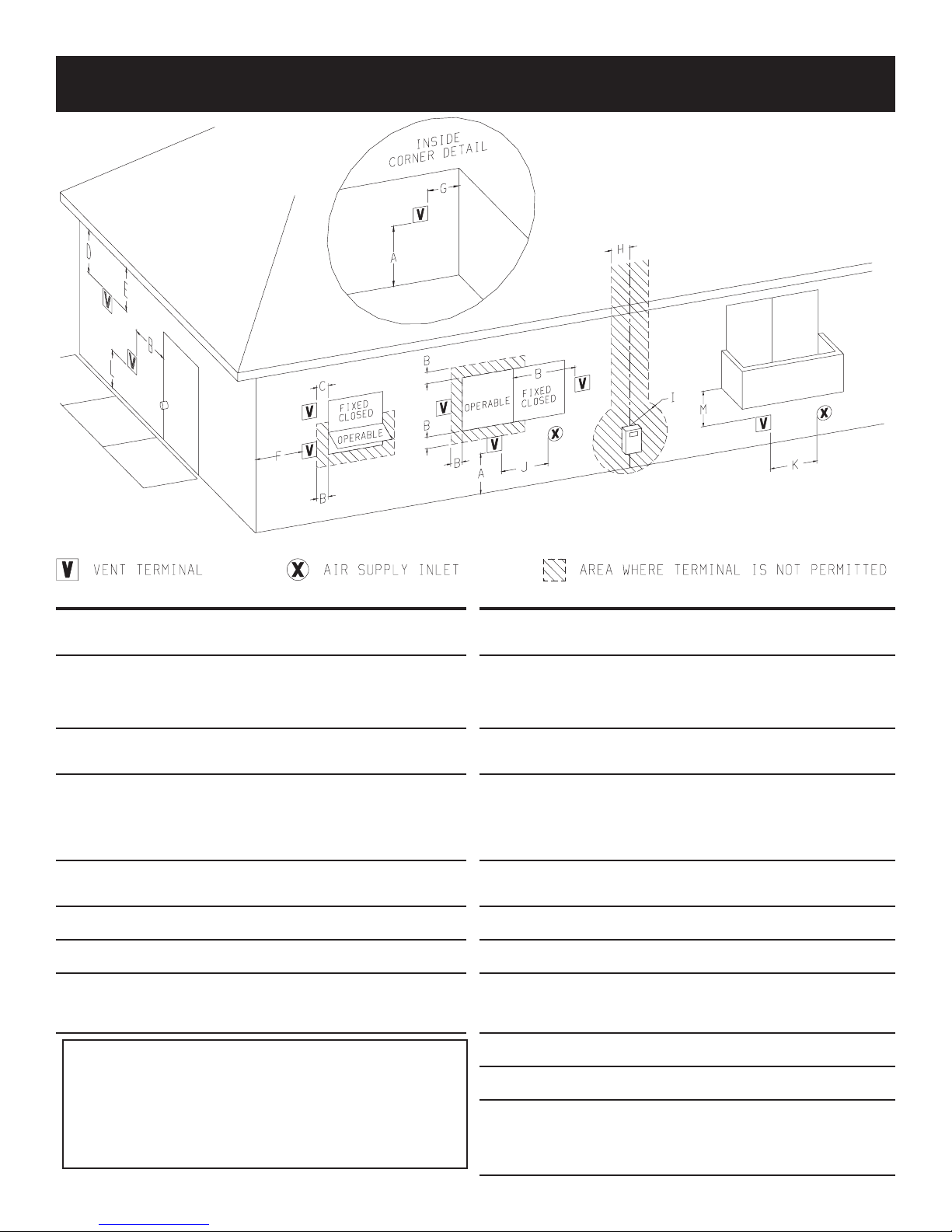

Figure 11
VENT TERMINATION CLEARANCES
The horizontal vent run refers to the total length of vent pipe from
the ue collar of the replace to the face of the outer wall.
Venting termination shall not be recessed into wall or siding.
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal).
This does not include vinyl. Empire Comfort Systems Inc.
will not be held responsible for heat damage caused from
terminating under vinyl overhangs, vinyl ceilings or vinyl
ventilated/unventilated softs.

36092-2-0316 Page 15
VENT TERMINATION CLEARANCES
Canadian Installations1 US Installations2 Canadian Installations1 US Installations2
A= Clearance above grade,
veranda, porch, deck, or
balcony
12 in 12 in I= Clearance to service
regulator vent outlet 3 ft *
B= Clearance to window or
door that may be open 12 in 9 in
J= Clearance to
nonmechanical air
supply inlet to building or
the combustion air inlet
to any other appliance
12 in 9 in
C= Clearance to
permanently closed
window
12 in 12 in
K= Clearance to a
mechanical air supply
inlet
6 ft 3 ft above if within 10 ft
horizontally
D= Vertical clearance
ventilated soft located
above the terminal within
a horizontal distance of 2
feet from the center line
of the terminal
24 in 24 in
L= Clearance above paved
sidewalk or paved
driveway located on
public property
7 ft † 7 ft
E= Clearance to
unventilated soft 12 in 12 in
M= Clearance under
veranda, porch deck, or
balcony
12 in ‡ 12 in
F= Clearance to outside
corner 6 in 6 in 1 In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
G= Clearance inside corner 9 in 9 in 2 In Accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas
Code
H= Clearance to each side
of center line extended
above meter/regulator
assembly
3 ft within a height
15 ft above the meter/
regulator assembly
3 ft † A vent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal).
This does not include vinyl. Empire Comfort Systems Inc.
will not be held responsible for heat damage caused from
terminating under vinyl overhangs, vinyl ceilings or vinyl
ventilated/unventilated softs.
‡Permitted only if veranda,, porch, deck, or balcony is fully open on a minimum
of two sides beneath the oor.
*For clearances not specied in ANSI Z223.1/NFPA 54 or CSA B149.1, one of
the following shall be indicated:
Clearance in accordance with local installation codes and the requirements of the
gas supplier.

36092-2-0316Page 16
GAS SUPPLY
The gas pipeline can be brought in through the vent-end of the
replace only. Consult the current National Fuel Gas Code, ANSI
Z223.1 installation code.
RECOMMENDED GAS PIPE DIAMETER
PIPE
LENGTH
SCHEDULE 40 PIPE
INSIDE DIAMETER
TUBING, TYPE L
OUTSIDE DIAMETER
(Dimensions in Inches)
NAT LP NAT LP
0-10 feet 1/2 3/8 1/2 3/8
10-40 feet 1/2 1/2 5/8 1/2
40-100 feet 1/2 1/2 3/4 1/2
100-150 feet 3/4 1/2 7/8 3/4
NOTICE: Never use plastic pipe. Check to conrm whether your
local codes allow copper tubing or galvanized.
NOTICE: Since some municipalities have additional local codes,
it is always best to consult your local authority and installation
code.
The use of the following gas connectors is recommended:
— ANSI Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exible appliance connector cannot exceed three feet in length.
2”
2” SHUT-OFF VALVE
INCLUDED IN
ENVELOPE PACK
FRONT
TOP
8-3/4”
8-3/4”
Figure 12
GAS SUPPLY PRESSURE (INCHES W.C.)
MINIMUM NORMAL MAXIMUM
Natural Gas 4.5 7.0 14.0
LP (Propane) 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5
LP (Propane) 10.0
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip leg be installed near
the gas inlet. See Figure 13. This should consist of a vertical
length of pipe tee connected into the gas line that is capped
on the bottom in which condensation and foreign particles may
collect.
Figure 13
Figure 14

36092-2-0316 Page 17
Figure 15
NOTICE: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet
with a minimum vertical run of 8 feet from replace oor. See details in Venting Section.
NOTICE: Inuslate to applicable codes when installing this replace against an exterior wall.
A minimum clearance of 6 inches must be maintained from the perpendicular wall to the rebox opening of the replace, if the replace
is installed in the room divider or peninsula room divider positions.
LOCATING FIREPLACE

36092-2-0316Page 18
WARNING
All wiring should be done by a qualied electrician
and shall be in compliance with all local, city and state
building codes. Before making the electrical connection,
make sure that main power supply is disconnected. The
replace, when installed, must be electrically grounded
in accordance with local codes or, in the absence of local
codes, with the National Electrical Code ANSI/NFPA 70
(latest edition). Improper installation of the replace can
cause serious injury or death from re, burns, explosions,
or carbon monoxide poisoning.
A factory installed junction box is located on the outside wall of the
replace on the vent side. Wiring must be fed to the junction box
and attached to the stranded wire inside with wire nuts. Connect
white to white, black to black, and ground (green stranded wire) to
the ground screw inside the junction box. See Figure 16.
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS
RECEPTACLE BOX
INSIDE FIREPLACE ELECTRIC
POWER IN
PRE-INSTALLED
CONDUIT TO
RECEPTACLE BOX
STRANDED WIRE
FROM CONDUIT
GROUND SCREW
INSIDE J-BOX
Figure 16

36092-2-0316 Page 19
INSTALLATION
Vent Runs
In planning the installation for the replace, it is necessary to
install certain components before the replace is completely
positioned and installed. These include the direct vent system,
gas piping for the replace and the electrical wiring. Study the
“Venting Fireplace” section starting on page 25 to understand
allowable vent runs.
Positioning the Fireplace
Determine the exact position of the replace so the direct vent
termination will be centered (if possible) between two studs.
This will avoid any extra framing. All vent kit pipes should be
assembled on the replace after the replace is moved into the
nal position.
The replace can be mounted on any of the following surfaces:
1. A at hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible material.
3. A rectangular frame constructed such that contact is made
on all four perimeter edges on the bottom of the replace (if
local codes allow).
Framing
Fireplace framing can be built before or after the replace is set
in place. Framing should be positioned to accommodate wall
covering and replace facing material. The replace framing
should be constructed of 2 x 4 lumber. The framing members
may rest on the replace standoffs, however the stand-offs
are not load-bearing. Refer to Figures 17 and 18 for minimum
framing dimensions.
You may install a see-through replace in a load-bearing wall,
however the wall’s framing must include a structural header
above the replace designed to support all of the weight.
Installing a peninsula unit requires special framing techniques
above the replace to minimize the amount of weight on the
replace – especially if you plan to nish the installation with
stone or tile. This may include additional structural members in
the ceiling to support the weight.
CAUTION
To avoid unnecessary rework, measure replace
dimensions and verify framing methods, and wall covering
details before framing construction begins.
NOTICE: Framing dimension A includes a three inch clearance
for standoffs on rebox. After installing rebox into framing, the
non-combustible board will cover the three inch opening above
the rebox. See Figure 19.
B
C
SUPPORT SEAMS
BETWEEN DRYWALL
AND NON-COMBUSTIBLE
BOARD WITH FRAMING
DVCP36SP
(Dimensions in inches)
A 42-1/2
B 45-1/2
C 23
Figure 17 - See-Thru
A
B
C
SUPPORT SEAMS
BETWEEN DRYWALL
AND NON-COMBUSTIBLE
BOARD WITH FRAMING
DVCP36PP
(Dimensions in inches)
A 42-1/2
B 41-3/4
C 23
Figure 18 - Peninsula

36092-2-0316Page 20
INSTALLATION
FIREPLACE
OPENING
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
(COVER SEAM)
NON-COMBUSTIBLE
WALL COVERING
VERTICAL
FRAMING
HORIZONTAL
FRAMING
NON-COMBUSTIBLE
ZONE
3” ABOVE
VENT 16” NON-COMBUSTIBLE
BOARD HEIGHT - ALL
VISIBLE SIDES
NOTICE: See Figure 9 on page 13 for maximum mantel depth
and minimum height above replace.
Figure 19
Clearance to Combustibles
Back 0in
Sides Near Face (See Figure 20) 0in
Floor 0in
Top Stand-off 0in
Outer Top to Framing 3in
Above Vent 3in
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
VERTICAL FRAMING:
NOTE ORIENTATION OF
STUD AGAINST THE FIREPLACE
20”
FRAMING
ON FLOOR
NON-COMBUSTIBLE
ZONE
NON-COMBUSTIBLE
ZONE
LEAVE SPACE BETWEEEN
WALL COVERING AND
FIREPLACE OPENING FOR
BEAD OF CAULK
Figure 20
