INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
DIRECT VENT ZERO CLEARANCE
GAS FIREPLACE HEATER
MODEL SERIES:
MILLIVOLT (MV)
DVCP36(PP,SP)30(N,P)-1
INTERMITTENT PILOT (IPI)
DVCP36(PP,SP)70(N,P)-1
UL FILE NO. MH30033
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
RWKHUJDVHVXQOHVVDFHUWL¿HGNLWLVXVHG
WARNING
If not installed, operated and maintained in
accordance with the manufacturer’s instructions,
this product could expose you to substances in
fuel or from fuel combustion which can cause
death or serious illness.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ÀDPPDEOHYDSRUVDQGOLTXLGVLQWKH
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
 'RQRWWU\WROLJKWDQ\DSSOLDQFH
 'RQRWWRXFKDQ\HOHFWULFDOVZLWFKGR
not use any phone in your building.
 /HDYHWKHEXLOGLQJLPPHGLDWHO\
 ,PPHGLDWHO\FDOO\RXUJDVVXSSOLHU
from a neighbor’s phone. Follow the
gas supplier’s instructions.
 ,I\RXFDQQRWUHDFK\RXUJDVVXSSOLHU
FDOOWKH¿UHGHSDUWPHQW
— Installation and service must be
SHUIRUPHGE\DTXDOL¿HGLQVWDOOHUVHUYLFH
agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
GAS-FIRED
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
NOTICE%DUULHUVUHTXLUHGDQGSUHLQVWDOOHGRQ¿UHSODFH

36092-0-0815Page 2
BEFORE YOU START
8QSDFNLQJWKH¿UHSODFH
NOTICE7KHEDUULHUVFUHHQVVXSSOLHGZLWKWKLV¿UHSODFHPD\
be damaged if force is applied to their surfaces. Take care not to
push against barrier screens.
1. Cut binding straps and shrink wrap. Shrink wrap should be
cut vertically along a corner post to avoid damage to barrier
screens.
2. Remove and discard corner posts.
3. Remove and discard top plywood sheet.
 9HULI\WKDWWKH¿UHSODFHKDVQRWEHHQGDPDJHGGXULQJ
shipping.
 5HPRYHQRQFRPEXVWLEOHERDUGRQYHQWHQGRI¿UHSODFHDQG
set aside (peninsula only).
 5HPRYH¿UHSODFHIURPSDOOHW
7. Remove non-combustible boards from pallet and set aside.
 6HW¿UHSODFHLQDORFDWLRQQHDUWRLWV¿QDOLQVWDOODWLRQORFDWLRQ
NOTICE: It is not necessary to remove the barrier screens from
the glass frames in order to remove the glass frames (see page
69).
Installation Considerations - Fireplace Installation
Guidelines
:KHQSODQQLQJD¿UHSODFHLQVWDOODWLRQLW¶VQHFHVVDU\WR
determine:
 ,IWKHGHVLUHGORFDWLRQRIWKH¿UHSODFHLVFRPSDWLEOHZLWKWKH
required framing dimensions, clearances to combustibles, venting
requirements, etc.
 ,IRSWLRQDODFFHVVRULHVDUHGHVLUHG
 5RXWLQJRIJDVVXSSO\SLSLQJYHQWHQGHQWUDQFH
 (OHFWULFDOFRQQHFWLRQVIRU,3FRQWUROV\VWHPRURSWLRQDOOLJKW
or blower kit (vent-end connection)
 (OHFWULFDOVXSSO\UHTXLUHPHQWVIRU,3FRQWUROV\VWHPRU
optional light or blower kit. (120V, 60Hz, 1Amp) (Vent-end
connection)
7KH¿UHSODFHFDQEHPRXQWHGRQDQ\RIWKHVHVXUIDFHV
 $ÀDWKDUGFRPEXVWLEOHRUQRQFRPEXVWLEOHVXUIDFH
2. A raised platform of combustible or non-combustible material.
3. If allowed by local codes: A rectangular frame that contacts
DOOIRXUHGJHVRQWKHERWWRPRIWKH¿UHSODFH
,IWKH¿UHSODFHLVLQVWDOOHGGLUHFWO\RQFDUSHWLQJWLOHRURWKHU
FRPEXVWLEOHPDWHULDORWKHUWKDQZRRGÀRRULQJLWVKRXOGEH
installed on a metal or wood panel extending the full width and
GHSWKRIWKH¿UHSODFH
7KLV¿UHSODFHLVGHVLJQHGWREHLQVWDOOHGLQD]HURFOHDUDQFH
enclosure. This means the combustible material can come in
contact with the top and side standoff spacers, and secured to
combustible framing using the framing brackets provided.
6DPSOH:DUQLQJVDQG'H¿QLWLRQV
DANGER
Indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
1. Read the safety information on Pages 75 - 76.
2. If located in the Commonwealth of Massachusetts, please
note the special requirements on page 77.
 $UH\RXJRLQJWRLQVWDOODEORZHULQWRWKH¿UHSODFH"6HH
pages 8 - 9.
 :KHUHDUH\RXJRLQJWRLQVWDOOWKH¿UHSODFH"6HHSDJH
5. Frame the opening. See page 19.
6. Install the gas lines. See page 16.
7. Install the wiring. See pages 59 and 63.
8. Install the venting. See pages 25 - 32.
 ,QVWDOOWKH¿UHSODFH6HHSDJHV
10. Connect the venting system. See pages 33 - 34.
11. Install the logs. See page 36 - 54.
 /LJKWWKH¿UHSODFHDQGWURXEOHVKRRW6HHSDJHVDQG
64 - 67.
 6KRZWKHKRPHRZQHUKRZWRRSHUDWHWKH¿UHSODFH
14. Show the homeowner how to do the basic maintenance.

36092-0-0815 Page 3
Items not shown to scale.

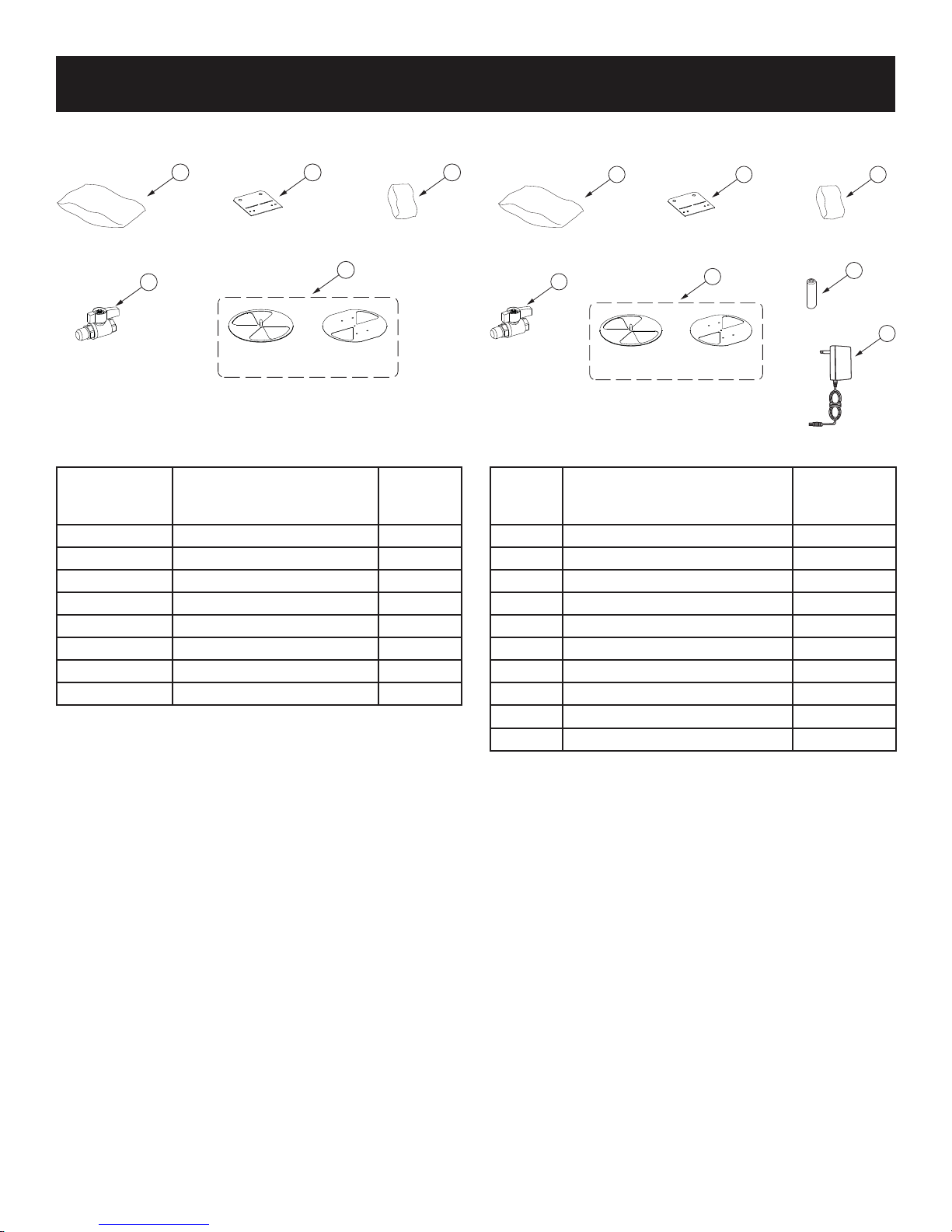

INDEX NO. DESCRIPTION QUANTITY
SUPPLIED
1 Rock Wool 1
2* Nailing Flange 5
3 Hardware Pack 1
4 Shut-Off Valve 1
5 Flue Restrictor 1
NS Non-Combustible Board - Long 2
NS** Non-Combustible Board - Short 1
NS Installation Instructions 1
NS - Not Shown in reference graphic.
*Five required for Peninsula models. Four required for See-Thru
models.
**Peninsula models only.
See Parts Lists on pages 70 - 73 for ordering replacement parts.
Do not order batteries, bolts, screws, washers or nuts. They are
standard hardware items and can be purchased at any local
hardware store.
CARTON CONTENTS & HARDWARE PACK
CARTON CONTENTS - DVCP36(PP,SP)3 SERIES CARTON CONTENTS - DVCP36(PP,SP)7 SERIES
Items not shown to scale.
INDEX
NUMBER DESCRIPTION QUANTITY SUPPLIED
1 Rock Wool 1
2* Nailing Flange 5
3 Hardware Pack 1
4 Shut-Off Valve 1
5 Flue Restrictor 1
6 Battery 4
7 AC Adapter 1
NS Non-Combustible Board - Long 2
NS** Non-Combustible Board - Short 1
NS Installation Instructions 1
NS - Not Shown in reference graphic.
*Five required for Peninsula models. Four required for See-Thru
models.
**Peninsula models only.
See Parts Lists on pages 70 - 73 for ordering replacement parts.
Do not order batteries, bolts, screws, washers or nuts. They are
standard hardware items and can be purchased at any local
hardware store.
LP UnitNAT Unit
1 2 3
5
4
LP UnitNAT Unit
1 2 3
6
7
5
4

36092-0-0815Page 4
TABLE OF CONTENTS
Introduction ............................................................................................................................................... 5
6SHFL¿FDWLRQV............................................................................................................................................ 6
Accessories............................................................................................................................................... 7
Blower Installation ...............................................................................................................................8 - 9
Fireplace Dimensions - See-Thru .......................................................................................................... 10
Fireplace Dimensions - Peninsula..........................................................................................................11
Clearances........................................................................................................................................ 12 - 13
Combustible Material.............................................................................................................................. 13
Vent Termination Clearances.......................................................................................................... 14 - 15
Gas Supply............................................................................................................................................... 16
Locating Fireplace....................................................................................................................................17
Junction Box Wiring Installation Instructions ..................................................................................... 18
Installation ........................................................................................................................................19 - 24
Venting Fireplace Top......................................................................................................................25 - 32
Flue Restrictor ......................................................................................................................................... 25
Below Grade Installation.......................................................................................................................... 25
7RS9HQW6\VWHP,GHQWL¿FDWLRQ ................................................................................................................ 26
Vent Systems...........................................................................................................................................26
Venting Graph.......................................................................................................................................... 27
Horizontal Termination.............................................................................................................................28
Vertical Termination..........................................................................................................................29 - 32
Venting Fireplace - Rear ......................................................................................................................... 32
DVVK-5F Flex Vent Instructions .....................................................................................................33 - 34
Finishing Installation .............................................................................................................................. 35
Optional Fiber or Porcelain Liners ........................................................................................................ 36
Glowing Embers...................................................................................................................................... 37
/RJ,GHQWL¿FDWLRQ/6863)............................................................................................................... 38
Log Placement - LSU24SPF ............................................................................................................39 - 46
/RJ5RFN,GHQWL¿FDWLRQ'*0;..............................................................................................47 - 48
Log & Rock Placement - DG30MX ..................................................................................................49-56
Millivolt Standing Pilot Operating Instructions.............................................................................57 - 58
Millivolt Standing Pilot Wiring Diagram................................................................................................ 59
Millivolt Standing Pilot Lighting Instructions.......................................................................................60
Millivolt Standing Pilot Troubleshooting............................................................................................... 61
Intermittent Pilot Electronic System Operating Instructions............................................................. 62
Intermittent Pilot Electronic System Wiring Diagram ......................................................................... 63
Intermittent Pilot Lighting Instructions.................................................................................................64
Intermittent Pilot Control System Troubleshooting......................................................................65 - 67
Maintenance and Service................................................................................................................68 - 69
See-Thru Parts View................................................................................................................................ 70
See-Thru Parts List ................................................................................................................................. 71
Peninsula Parts View.............................................................................................................................. 72
Peninsula Parts List................................................................................................................................73
Master Parts Distributor List...................................................................................................................74
How To Order Repair Parts......................................................................................................................74
Important Safety Information................................................................................................................. 75
Safety Information for Users of LP Gas................................................................................................ 76
5HTXLUHPHQWVIRU0DVVDFKXVHWWV.......................................................................................................... 77
Appliance Service History...................................................................................................................... 78
Warranty................................................................................................................................................... 79
SECTION PAGE

36092-0-0815 Page 5
Instructions to Installer
1. Leave instruction manual with owner after installation.
 +DYHRZQHU¿OORXWDQGPDLOUHJLVWUDWLRQFDUGVXSSOLHGZLWK
WKH¿UHSODFHRURQOLQH
 6KRZRZQHUKRZWRVWDUWDQGRSHUDWHWKH¿UHSODFH
7KLVGLUHFWYHQWJDV¿UHSODFHKHDWHULVGHVLJQHGWRRSHUDWHZLWK
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and
gas control systems.
)LUHSODFH&HUWL¿FDWLRQ
WARNING
7KLV¿UHSODFHLVQRWIRUXVHZLWKVROLGIXHOV,PSURSHUXVH
RIWKH¿UHSODFHFDQFDXVHVHULRXVLQMXU\RUGHDWKIURP¿UH
burns, explosions, or carbon monoxide poisoning
7KLV¿UHSODFHLVGHVLJQFHUWL¿HGLQDFFRUGDQFHZLWK$PHULFDQ
National Standard/CSA Standard ANSI Z21.88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes including permits and
inspections.
7KH¿UHSODFHZKHQLQVWDOOHGPXVWEHHOHFWULFDOO\JURXQGHGLQ
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70RU&DQDGLDQ(OHFWULF
code, CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
4XDOL¿HG,QVWDOOLQJ$JHQF\
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
VKDOOEHSHUIRUPHGRQO\E\DTXDOL¿HGDJHQF\7KHWHUP³TXDOL¿HG
DJHQF\´PHDQVDQ\LQGLYLGXDO¿UPFRUSRUDWLRQRUFRPSDQ\
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
State of Massachusetts: The installation must be made
E\DOLFHQVHGSOXPEHURUJDV¿WWHULQWKH&RPPRQZHDOWKRI
Massachusetts.
WARNING
$Q\FKDQJHWRWKLV¿UHSODFHRULWVFRQWUROVFDQEH
GDQJHURXV,PSURSHULQVWDOODWLRQRUXVHRIWKH¿UHSODFH
FDQFDXVHVHULRXVLQMXU\RUGHDWKIURP¿UHEXUQV
explosions, or carbon monoxide poisoning.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, or CSA
B149.1 in Canada. *Available from the American National
Standards Institute, Inc. 11 West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number,
Serial Number and type of gas.
High Altitude
:KHQLQVWDOOLQJWKLV¿UHSODFHDWDQHOHYDWLRQDERYHIHHW
(in the United States) it may be necessary to decrease the input
UDWLQJE\FKDQJLQJWKHH[LVWLQJEXUQHURUL¿FHWRDVPDOOHUVL]H
Generally, input should be reduced 4 percent for each 1000
feet above sea level. However, if the heating value of the gas
has been reduced, this general rule may not apply. Check with
(PSLUH&RPIRUW6\VWHPVIRUSURSHURUL¿FHVL]HLGHQWL¿FDWLRQ
Canadian High Altitude
Altitude: 0-4500 feet
:KHQLQVWDOOLQJWKLV¿UHSODFHDWDQHOHYDWLRQDERYHIHHWLQ
&DQDGDFKHFNZLWK(PSLUH&RPIRUW6\VWHPV
&RQVXOW\RXU(PSLUH&RPIRUW6\VWHPVIRUDVVLVWDQFHLQ
GHWHUPLQLQJWKHSURSHURUL¿FHIRUORFDWLRQ
Preparation
7KLVGLUHFWYHQWJDV¿UHSODFHDQGLWVFRPSRQHQWVDUHWHVWHGDQG
safe when installed in accordance with this Installation Manual.
5HSRUWWR\RXUGHDOHUDQ\SDUWVGDPDJHGLQVKLSPHQWVSHFL¿FDOO\
FKHFNJODVVFRQGLWLRQ'RQRWLQVWDOO¿UHSODFHZLWKGDPDJHG
incomplete, or substitute parts. Read all instructions before
starting installation and follow these instructions carefully during
LQVWDOODWLRQWRLQVXUHPD[LPXPEHQH¿WDQGVDIHW\)DLOXUHWR
IROORZWKHPZLOOYRLG\RXUZDUUDQW\DQGPD\SUHVHQWD¿UHKD]DUG
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
 ,QVWDOODWLRQRIDQ\GDPDJHG¿UHSODFHRUYHQWV\VWHP
component.
 0RGL¿FDWLRQRIWKH¿UHSODFHRUGLUHFWYHQWV\VWHP
 ,QVWDOODWLRQRWKHUWKDQDVLQVWUXFWHGE\(PSLUH&RPIRUW
Systems Inc.
 ,PSURSHUSRVLWLRQLQJRIWKHORJVGHFRUDWLYHURFNRUJODVV
door.
 ,QVWDOODWLRQDQGRUXVHRIDQ\FRPSRQHQWSDUWQRW
manufactured or approved by manufacturer.
INTRODUCTION

36092-0-0815Page 6
SPECIFICATIONS
NATURAL GAS LP
PENINSULA
MODELS SEE-THRU MODELS PENINSULA MODELS SEE-THRU MODELS
Input BTU/Hr Maximum 34,000 34,000 32,500 32,500
Input BTU/Hr Minimum 23,000 23,000 26,000 26,000
KWH (Maximum) 9.96 9.96 9.38 9.38
KWH (Minimum) 6.74 6.74 7.76 7.76
2UL¿FH #33 #33 #51 #51
Air Shutter Opening* 3/16in (1/8in w/40ft. Vertical Vent,
ÀXHUHVWULFWRULQVWDOOHG
3/16in
(1/8in w/40ft. Vertical Vent,
ÀXHUHVWULFWRULQVWDOOHG
)8//<23(1 )8//<23(1
Height without standoff 39-1/2in 39-1/2in 39-1/2in 39-1/2in
Width 42-1/4in 45-1/2in 42-1/4in 45-1/2in
Depth 24in 24in 24in 24in
Gas Inlet Shutoff Valve (pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT
Venting 5” x 8”, See Page 26 5” x 8”, See Page 26 5” x 8”, See Page 26 5” x 8”, See Page 26
*NOTICE: $LUVKXWWHUVHWWLQJVDUHIDFWRU\PLQLPXPVHWWLQJV6RPHYHQWLQJFRQ¿JXUDWLRQVPD\UHTXLUHPLQRUDLUVKXWWHUDGMXVWPHQWVIRU
optimum performance.
GAS SUPPLY PRESSURES
GAS TYPE MAXIMUM MINIMUM MANIFOLD
NAT 14 4.5 3.5
LP 14 11 10

36092-0-0815 Page 7
Model Number Description May Be Used On
**DVP36PRB 5XVWLF%ULFN/LQHU³6ROGLHU&RXUVH´ Peninsula & See-Thru Models
**DVP36PFLKR Vertical Fluted Black Liner Peninsula & See-Thru Models
**DVP36PKR Porcelain Black Liner Peninsula & See-Thru Models
FBB14 Blower Kit Peninsula & See-Thru Models
LK7 Light Kit Peninsula & See-Thru Models
*LSU24SPF &DPS¿UH/RJ6HW Peninsula & See-Thru Models
*DG36MX Rustic Decorative Boulders Peninsula & See-Thru Models
DF362PNB 1.5in. Beveled Window Frame, Brushed Nickel Peninsula & See-Thru Models
DF242NB LQ%HYHOHG:LQGRZ)UDPH(QG%UXVKHG1LFNHO Peninsula Models Only
DF362PBZ 1.5in. Beveled Window Frame - Oil Rubbed Bronze Peninsula & See-Thru Models
DF242BZ LQ%HYHOHG:LQGRZ)UDPH(QG2LO5XEEHG%URQ]H Peninsula Models Only
DVD36PBLNB Decorative Contemporary Doors - Brushed Nickel Peninsula & See-Thru Models
* Fireplace requires a log set or mixed logs and stones kit.
** Liners are not required. To add liners, order two liners for See-Through models; One for Peninsula.
7KHIROORZLQJDFFHVVRU\SDUWVFDQEHREWDLQHGIURP\RXU(PSLUH&RPIRUW6\VWHPVGHDOHU&RQWDFW\RXU(PSLUH'HDOHUIRUPRUH
DFFHVVRU\RSWLRQV,I\RXQHHGDGGLWLRQDOLQIRUPDWLRQFRQWDFW(PSLUH&RPIRUW6\VWHPV,QF)UHHEXUJ$YH%HOOHYLOOH,OOLQRLV
62220-2623.
ACCESSORIES
Remote Control Options
& Accessories Description Models Used On
FRBC Millivolt Battery Remote ON/OFF DVCP36(PP,SP)(3,7)
FRBTC Millivolt Battery Remote Thermostat DVCP36(PP,SP)(3,7)
TMW Millivolt Wireless Wall Thermostat DVCP36(PP,SP)(3,7)
TRW Millivot Reed Switch Wall Thermostat DVCP36(PP,SP)(3,7)
FWS-1 Direct Ignition/Millivolt Wall Switch DVCP36(PP,SP)(3,7)
FRBTP Battery Operated Remote Control with Programmable Thermostat DVCP36(PP,SP)(3,7)
RVKN-1 Remote Kit, NAT (Stepper Motor) DVCP36(PP,SP)70(N,P)
RVKP-1 Remote Kit, LP (Stepper Motor) DVCP36(PP,SP)70(N,P)

36092-0-0815Page 8
BLOWER INSTALLATION
1. Remove the glass and screen frames, and the bottom
access panel from the side which is opposite the valve.
The glass and screen frame may be removed as a unit. It is
not necessary to separate the screen frame from the glass
frame.
2. Hold the blower assembly so that the magnets are on your
ULJKWVLGHDQGLQVHUWLWLQWRWKH¿UHSODFHWKURXJKWKHRSHQLQJ
to the right of the junction box. See Figure 1.

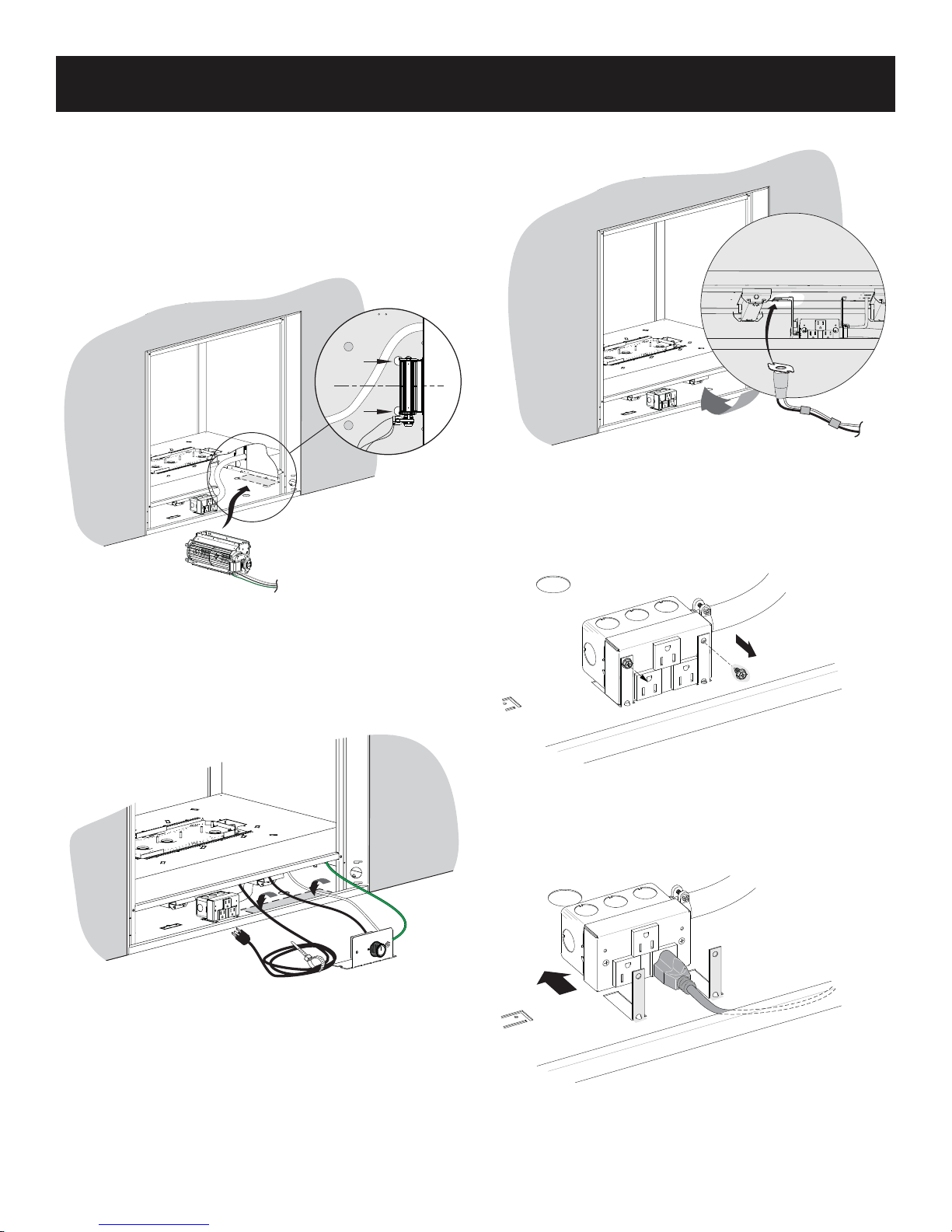

Figure 1
3. Attach the magnet-side of the blower assembly to the outer
ZDOORIWKH¿UHSODFHDQGFHQWHULWLQVLGHWKH¿UHSODFHXVLQJ
WKHWZRKROHVLQWKHÀRRUDVDYLVXDOJXLGHSee Figure 1.
 6HWWKHUKHRVWDWFRQWURORQWKH¿UHSODFHÀRRUZLWKWKH
rheostat bracket situated as far to the right as possible. See
Figure 2.
Figure 2
5. Snap the fan control disc into the forked prongs on the valve
bracket. See Figure 3.
Figure 3
6. If more than one receptical is necessary in order to complete
the installation, unscrew the junction box from the locating
tabs so that it can be moved rearwards and plug the blower
cord into one of the two bottom recepticals. See Figures 4
and 5.
Figure 4
Figure 5
7. Re-attach the junction box to the locating tabs.
8. Re-install the glass and screen frames, and the access
panel.

36092-0-0815 Page 9
6
2
3
4
1
5
7
BLOWER ASSEMBLY PARTS LIST
INDEX
NO. PART NO DESCRIPTION QTY
1 36118 %/2:(5$66(0%/< 1
2 R7649 FAN, CONTROL L120-20 1
3 R3529 &25'6(7,1&+(6 1
4 R4192 5+(267$7.12% 1
5 R4186 5+(267$7$039$& 1
6 10088 5+(267$7%2;%5$&.(7 1
7 R11768 :,5(+$51(66)$1&21752/ 1
BLOWER INSTALLATION

36092-0-0815Page 10

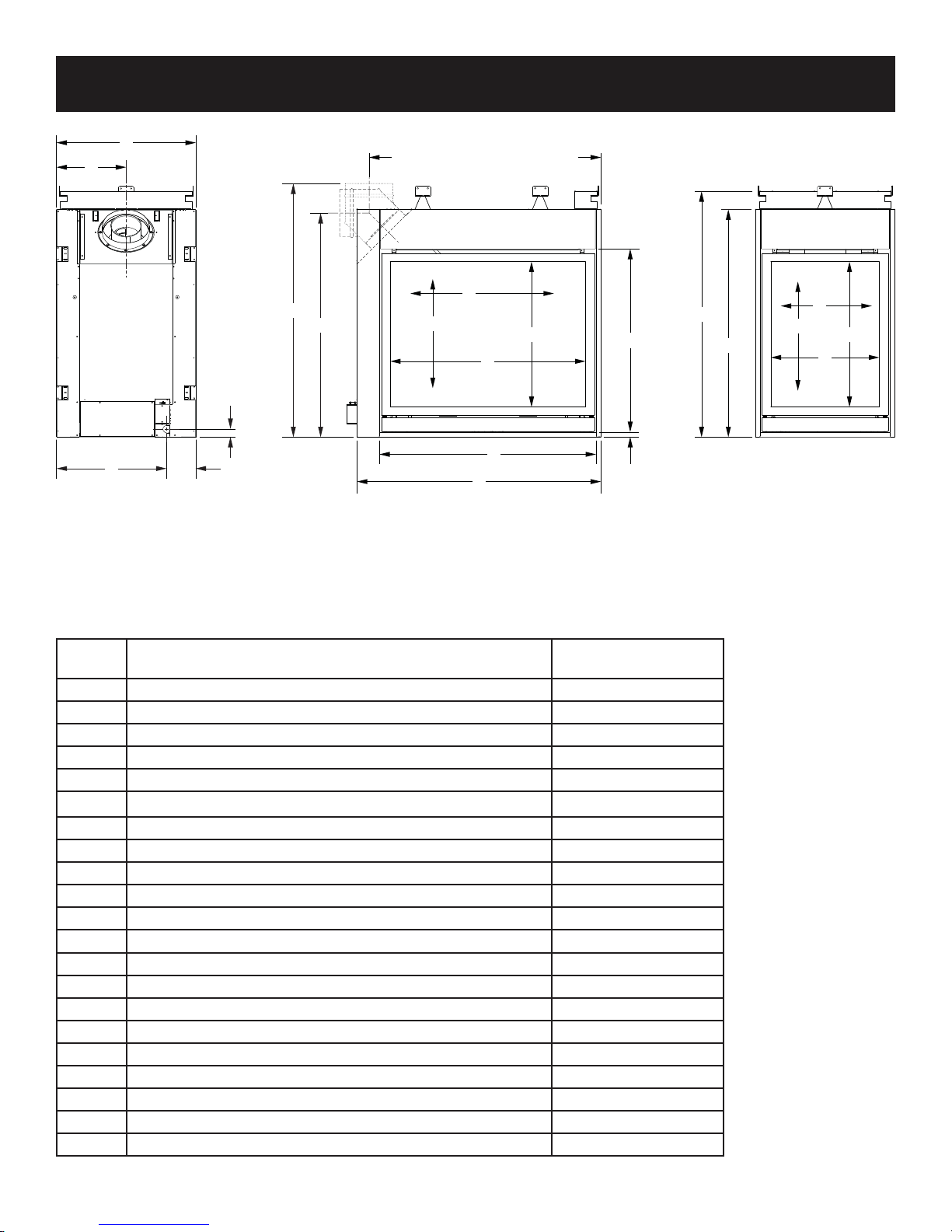

FIREPLACE DIMENSIONS - SEE-THRU
INDEX
LETTER DIMENSION DESCRIPTION DVCP36SP(30,70) (Dimensions in Inches)
A7KHPD[LPXPKHLJKWRI¿UHER[IDFHH[FOXGLQJVWDQGRIIV 39-1/4
B7KHPD[LPXPZLGWKRIWKH¿UHER[IDFHH[FOXGLQJQDLOLQJÀDQJHV 45
C7KHPD[LPXPGHSWKRIWKH¿UHER[ 24
D7KHKHLJKWRIWKH¿UHER[RSHQLQJ 31-1/2
( 7KHZLGWKRIWKH¿UHER[RSHQLQJ 37-1/4
F7KHLQWHULRUGHSWKRIWKH¿UHER[QRWVKRZQ 20-1/4
H7KHKHLJKWWRWKH¿UHER[VWDQGRIIV 42-3/8
I Width from the left side of the box to the centerline of vertical vent 48-5/8
J Depth from back of box to centerline of vent 12
K Height from the bottom of the box to the gas line opening 1-3/8
L Depth from the front of the box to gas line opening 5
M Depth from rear of box to gas line opening 19
N* Glass height 25-3/8
O* Glass width 31
Q'LVWDQFHIURPÀRRUWR¿UHSODFHRSHQLQJ 7/8
R+HLJKWIURPÀRRUWRYHQWFROODUFHQWHUOLQH+RUL]RQWDO 39-1/2
S+HLJKWIURPÀRRUWRYHQWFROODU9HUWLFDO 44
U Screen opening width 33-5/8
V Screen opening height 25
*These dimensions are to the inside edges of the glass frame opening.
U
B
V
H
A
R
C
J
L
K
Q
D
M
S
E
N
O
I
(TO CENTER OF VERTICALLY
ORIENTED ELBOW)

36092-0-0815 Page 11
INDEX
LETTER DIMENSION DESCRIPTION DVCP36PP(30,70) (Dimensions in Inches)
A7KHPD[LPXPKHLJKWRI¿UHER[IDFHH[FOXGLQJVWDQGRIIV 39-1/4
B7KHPD[LPXPZLGWKRIWKH¿UHER[IDFHH[FOXGLQJQDLOLQJÀDQJHV 42
C7KHPD[LPXPGHSWKRIWKH¿UHER[ 24
D7KHKHLJKWRIWKH¿UHER[RSHQLQJ 31-1/2
( 7KHZLGWKRIWKH¿UHER[RSHQLQJ 37-1/4
F7KHLQWHULRUGHSWKRIWKH¿UHER[QRWVKRZQ 20-1/4
H7KHKHLJKWWRWKH¿UHER[VWDQGRIIV 42-3/8
I Width from the left side of the box to the centerline of vent 45-5/8
J Depth from back of box to centerline of vent 12
K Height from the bottom of the box to the gas line opening 1-3/8
L Depth from the front of the box to gas line opening 5
M Depth from rear of box to gas line opening 19
N* Glass height 25-3/8
O* Glass width 31
Q'LVWDQFHIURPÀRRUWR¿UHSODFHRSHQLQJ 7/8
R+HLJKWIURPÀRRUWRYHQWFROODU+RUL]RQWDO 39-1/2
S+HLJKWIURPÀRRUWRYHQWFROODU9HUWLFDO 44
T* Glass width - small 16
U Screen opening width 33-5/8
V Screen opening height 25
X Screen opening width - small 18-5/8
*These dimensions are to the inside edges of the glass frame opening.
FIREPLACE DIMENSIONS - PENINSULA
U
B
V
H
A
R
C
J
L
K
Q
D
I
(TO CENTER OF VERTICALLY-
ORIENTED ELBOW)
M
S
E
N
O
X
V
N
T

36092-0-0815Page 12
CLEARANCES
Television Considerations
,QVWDOOLQJDWHOHYLVLRQDERYHD¿UHSODFHKDVEHFRPHLQFUHDVLQJO\
SRSXODUKRZHYHUWKHDUHDDERYHDQ\¿UHSODFHJHWVKRWDQGPRVW
TV manufacturers recommend against placing their products
near a heat source.
,I\RXLQVWDOODWHOHYLVLRQDERYHWKLV¿UHSODFH(PSLUH&RPIRUW
Systems accepts no responsibility for damage or injuries. Follow
the television manufacturer’s installation instructions, including
any recommendations regarding proximity to heat sources.
,I\RXKDYHD79DERYH\RXU¿UHSODFHWXUQRIIWKH¿UHSODFHDQG
let it cool completely before servicing or touching any buttons on
the TV.

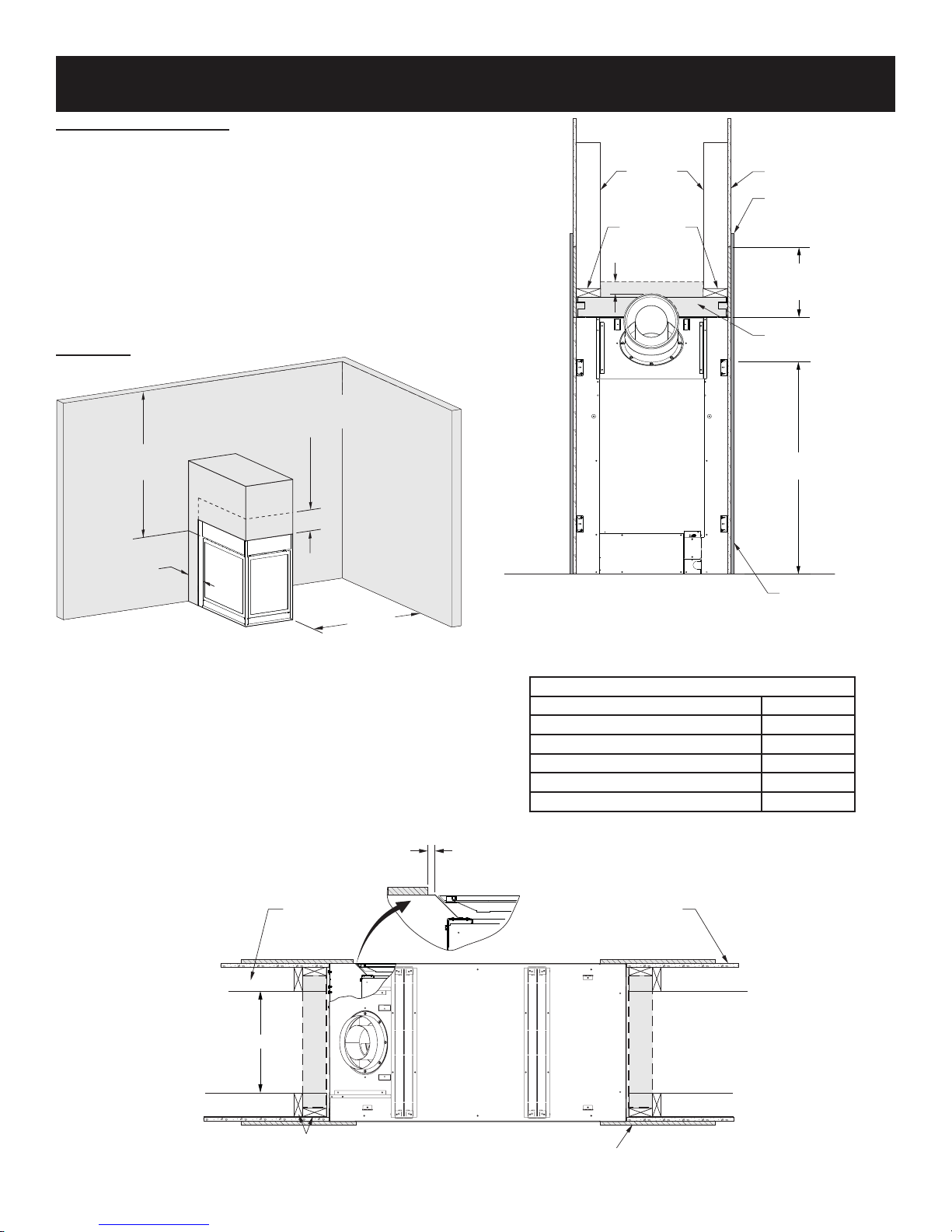

Clearances
40”
TO FIREPLACE
OPENING (MIN.)
6”
TO FIREPLACE
OPENING (MIN.)
36” (MIN.)
NON-COMBUSTIBLE
BOARD, TO 16” ABOVE
FIREPLACE FACE
NOTICE: Dimensions apply to both See-Thru and Peninsula
models. Figure 6 - Peninsula
FIREPLACE
OPENING

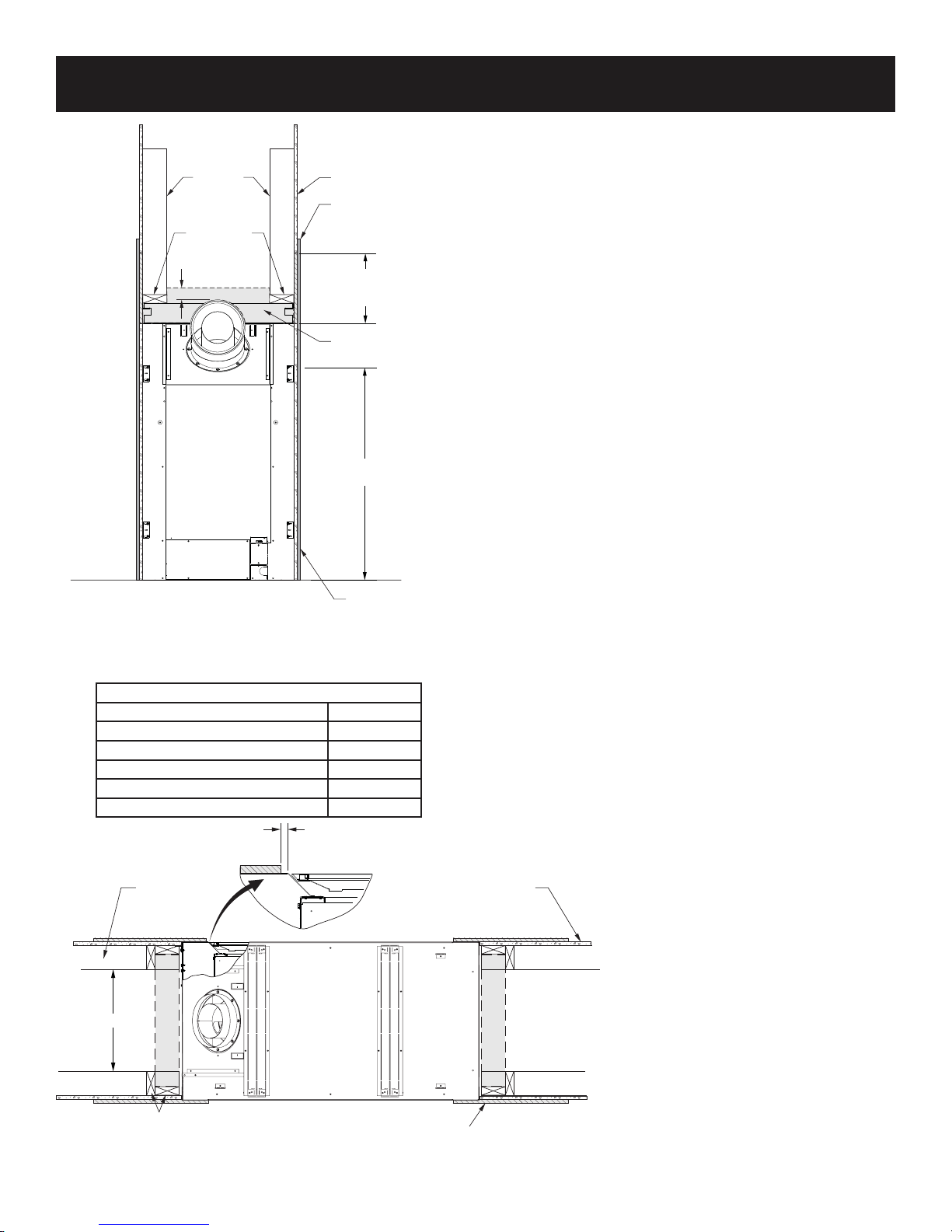

FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
(COVER SEAM)
NON-COMBUSTIBLE
WALL COVERING
VERTICAL
FRAMING
HORIZONTAL
FRAMING
NON-COMBUSTIBLE
ZONE
3” ABOVE
VENT 16” NON-COMBUSTIBLE
BOARD HEIGHT - ALL
VISIBLE SIDES
NOTICE A: See Figure 9 for maximum mantel depth and
PLQLPXPKHLJKWDERYH¿UHSODFH
Figure 7
Clearance to Combustibles
Back 0in
Sides Near Face (See Figure 8) 0in
Floor 0in
Top Stand-off 0in
Outer Top to Framing 3in
Above Vent 3in
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
VERTICAL FRAMING:
NOTE ORIENTATION OF
STUD AGAINST THE FIREPLACE
20”
FRAMING
ON FLOOR
NON-COMBUSTIBLE
ZONE
NON-COMBUSTIBLE
ZONE
LEAVE SPACE BETWEEEN
WALL COVERING AND
FIREPLACE OPENING FOR
BEAD OF CAULK
Figure 8

36092-0-0815 Page 13
CLEARANCES
Mantel Chart
MANTEL COMBUSTIBLE TRIM
AND MANTELS
ALLOWED IN
SHADED AREA
B
C
D
E
X
Y
NON-
COMBUSTIBLE
FINISH
MATERIAL
MUST COVER
THE SURFACE
OF THE
FIREPLACE
FACE
TO TOP OF
FIREPLACE
OPENING
A
F
SEAM BETWEEN
NON-COMBUSTIBLE
BOARD AND DRYWALL
16” NON-COMBUSTIBLE
BOARD HEIGHT - ALL
VISIBLE SIDES OF UNIT.
INDEX
LETTER
Y - DISTANCE FROM
FIREPLACE OPENING X - DISTANCE FROM FINISHED WALL
(Dimensions in Inches)
A26 12
B24 8
C22 6
D20 4-1/2
(18 2-1/4
F16 0
Figure 9
Do not attach combustible material to the mantel of your
¿UHSODFH7KLVLVD¿UHKD]DUG1RJUHHWLQJFDUGVWRFNLQJVRU
ornamentation of any type should be placed on or attached to the
¿UHSODFH7KLVLVDKHDWLQJ¿UHSODFH7KHÀRZRIKHDWFDQLJQLWH
combustibles.
Figure 10
COMBUSTIBLE MATERIAL

36092-0-0815Page 14
Termination clearance for buildings with combustible and noncombustible exteriors.
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and
combustible materials is 3 inch on top, and 1 inch on bottom and
sides.
Important! When vent termination exits through foundation less
than 20 inch below siding outcrop, the vent pipe must extend
RXWZDUGVRWKDWWKHKRUL]RQWDOYHQWWHUPLQDWLRQLVORFDWHGÀXVKWR
or beyond the outcrop siding.
Information on Various Venting Routes and Components
Important:,WLVDOZD\VEHVWWRORFDWHWKH¿UHSODFHLQVXFKDZD\
that minimizes the number of offsets and horizontal vent length.
Since it is very important that the venting system maintain its
EDODQFHEHWZHHQWKHFRPEXVWLRQDLULQWDNHDQGWKHÀXHJDV
H[KDXVWFHUWDLQOLPLWDWLRQVDVWRYHQWFRQ¿JXUDWLRQVDSSO\DQG
PXVWEHVWULFWO\DGKHUHGWR6HHDOORZHGYHQWFRQ¿JXUDWLRQV
page 28 to 32.
Figure 11
VENT TERMINATION CLEARANCES
The horizontal vent run refers to the total length of vent pipe from
WKHÀXHFROODURIWKH¿UHSODFHWRWKHIDFHRIWKHRXWHUZDOO
Venting termination shall not be recessed into wall or siding.
$77(17,219LQ\O6RI¿W9LQ\O&HLOLQJ9LQ\O2YHUKDQJ
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal).
7KLVGRHVQRWLQFOXGHYLQ\O(PSLUH&RPIRUW6\VWHPV,QF
will not be held responsible for heat damage caused from
terminating under vinyl overhangs, vinyl ceilings or vinyl
YHQWLODWHGXQYHQWLODWHGVRI¿WV

36092-0-0815 Page 15

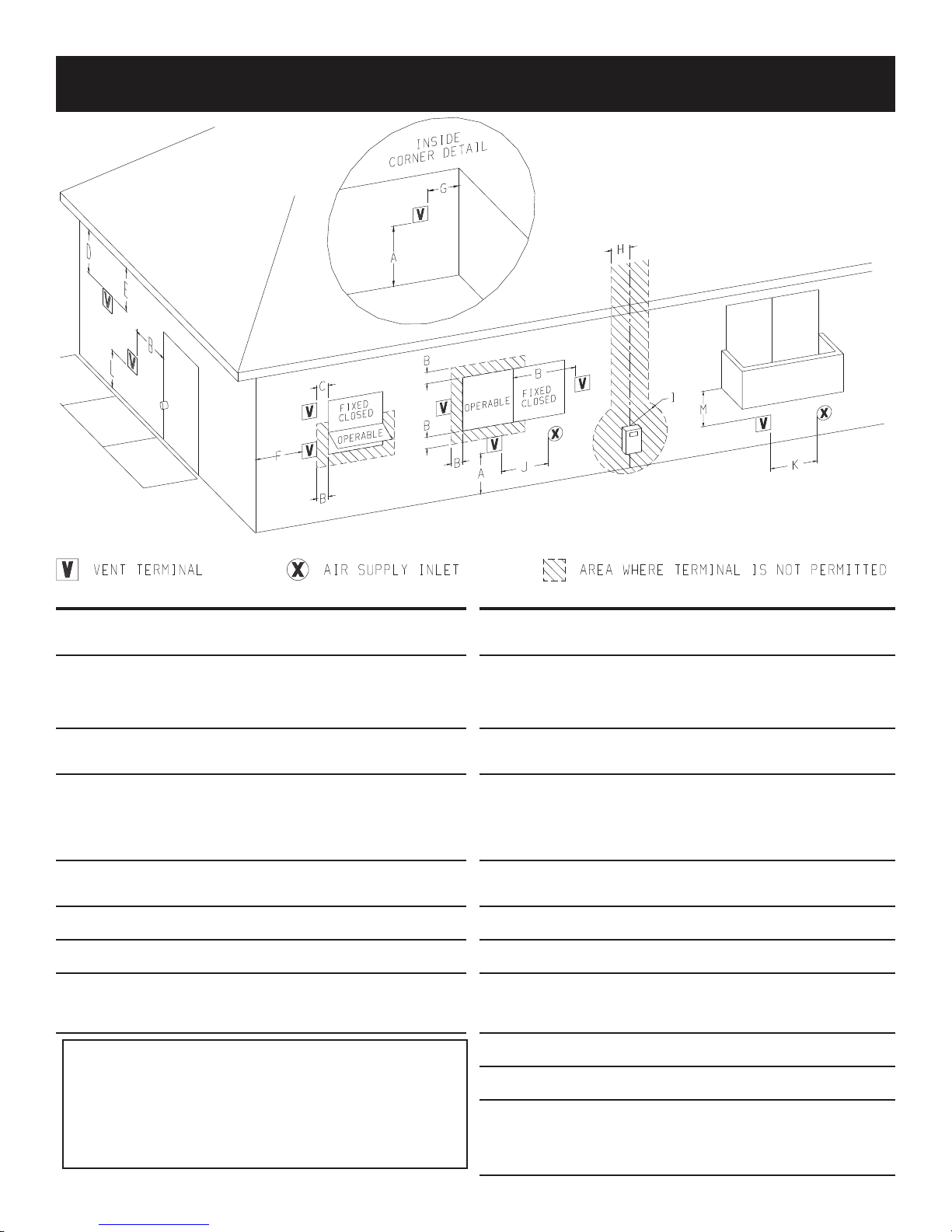

VENT TERMINATION CLEARANCES
Canadian Installations1 US Installations2 Canadian Installations1 US Installations2
A= Clearance above grade,
veranda, porch, deck, or
balcony 12 in 12 in I= Clearance to service
regulator vent outlet 3 ft *
B= Clearance to window or
door that may be open 12 in 9 in
J= Clearance to
nonmechanical air
supply inlet to building or
the combustion air inlet
to any other appliance
12 in 9 in
C= Clearance to
permanently closed
window 12 in 12 in K= Clearance to a
mechanical air supply
inlet 6 ft 3 ft above if within 10 ft
horizontally
D= Vertical clearance
YHQWLODWHGVRI¿WORFDWHG
above the terminal within
a horizontal distance of 2
feet from the center line
of the terminal
24 in 24 in
L= Clearance above paved
sidewalk or paved
driveway located on
public property
7 ft † 7 ft
( &OHDUDQFHWR
XQYHQWLODWHGVRI¿W 12 in 12 in M= Clearance under
veranda, porch deck, or
balcony 12 in ‡ 12 in
F= Clearance to outside
corner 6 in 6 in 1 In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
G= Clearance inside corner 9 in 9 in 2 In Accordance with the current ANSI Z223.1/NFPA54, National Fuel Gas
Code
H= Clearance to each side
of center line extended
above meter/regulator
assembly
3 ft within a height
15 ft above the meter/
regulator assembly 3 ft † A vent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings
$77(17,219LQ\O6RI¿W9LQ\O&HLOLQJ9LQ\O2YHUKDQJ
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal).
7KLVGRHVQRWLQFOXGHYLQ\O(PSLUH&RPIRUW6\VWHPV,QF
will not be held responsible for heat damage caused from
terminating under vinyl overhangs, vinyl ceilings or vinyl
YHQWLODWHGXQYHQWLODWHGVRI¿WV
‡Permitted only if veranda,, porch, deck, or balcony is fully open on a minimum
RIWZRVLGHVEHQHDWKWKHÀRRU
*)RUFOHDUDQFHVQRWVSHFL¿HGLQ$16,=1)3$RU&6$%RQHRI
the following shall be indicated:
Clearance in accordance with local installation codes and the requirements of the
gas supplier.

36092-0-0815Page 16

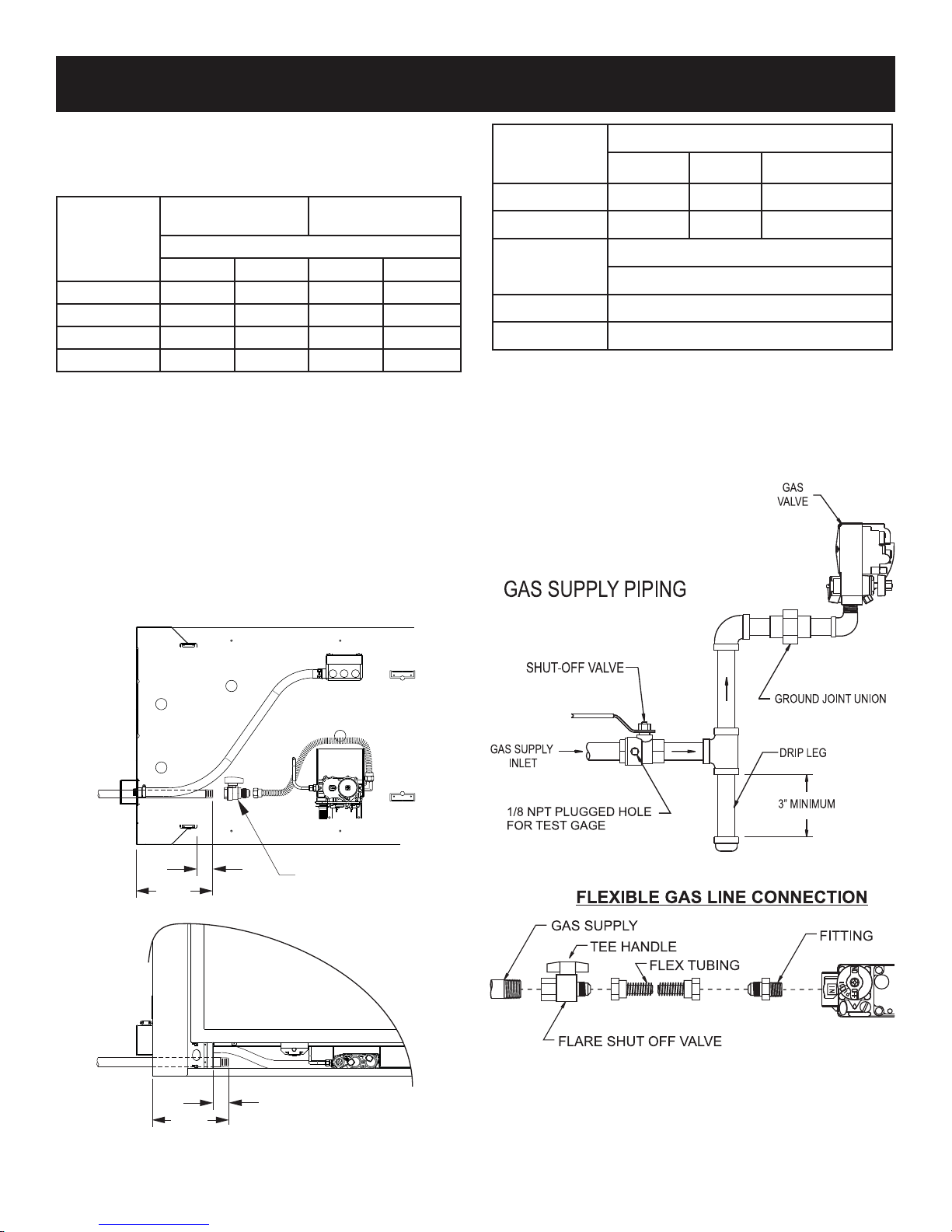

GAS SUPPLY
The gas pipeline can be brought in through the vent-end of the
¿UHSODFHRQO\&RQVXOWWKHFXUUHQW1DWLRQDO)XHO*DV&RGH$16,
Z223.1 installation code.
RECOMMENDED GAS PIPE DIAMETER
PIPE
LENGTH
SCHEDULE 40 PIPE
INSIDE DIAMETER TUBING, TYPE L OUTSIDE DIAMETER
(Dimensions in Inches)
NAT LP NAT LP
0-10 feet 1/2 3/8 1/2 3/8
10-40 feet 1/2 1/2 5/8 1/2
40-100 feet 1/2 1/2 3/4 1/2
100-150 feet 3/4 1/2 7/8 3/4
NOTICE:1HYHUXVHSODVWLFSLSH&KHFNWRFRQ¿UPZKHWKHU\RXU
local codes allow copper tubing or galvanized.
NOTICE: Since some municipalities have additional local codes,
it is always best to consult your local authority and installation
code.
The use of the following gas connectors is recommended:
— ANSI Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
ÀH[LEOHDSSOLDQFHFRQQHFWRUFDQQRWH[FHHGWKUHHIHHWLQOHQJWK
2”
2” SHUT-OFF VALVE
INCLUDED IN
ENVELOPE PACK
FRONT
TOP
8-3/4”
8-3/4”
Figure 12
GAS SUPPLY PRESSURE (INCHES W.C.)
MINIMUM NORMAL MAXIMUM
Natural Gas 4.5 7.0 14.0
LP (Propane) 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5
LP (Propane) 10.0
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip leg be installed near
the gas inlet. See Figure 13. This should consist of a vertical
length of pipe tee connected into the gas line that is capped
on the bottom in which condensation and foreign particles may
collect.
Figure 13
Figure 14

36092-0-0815 Page 17
Figure 15

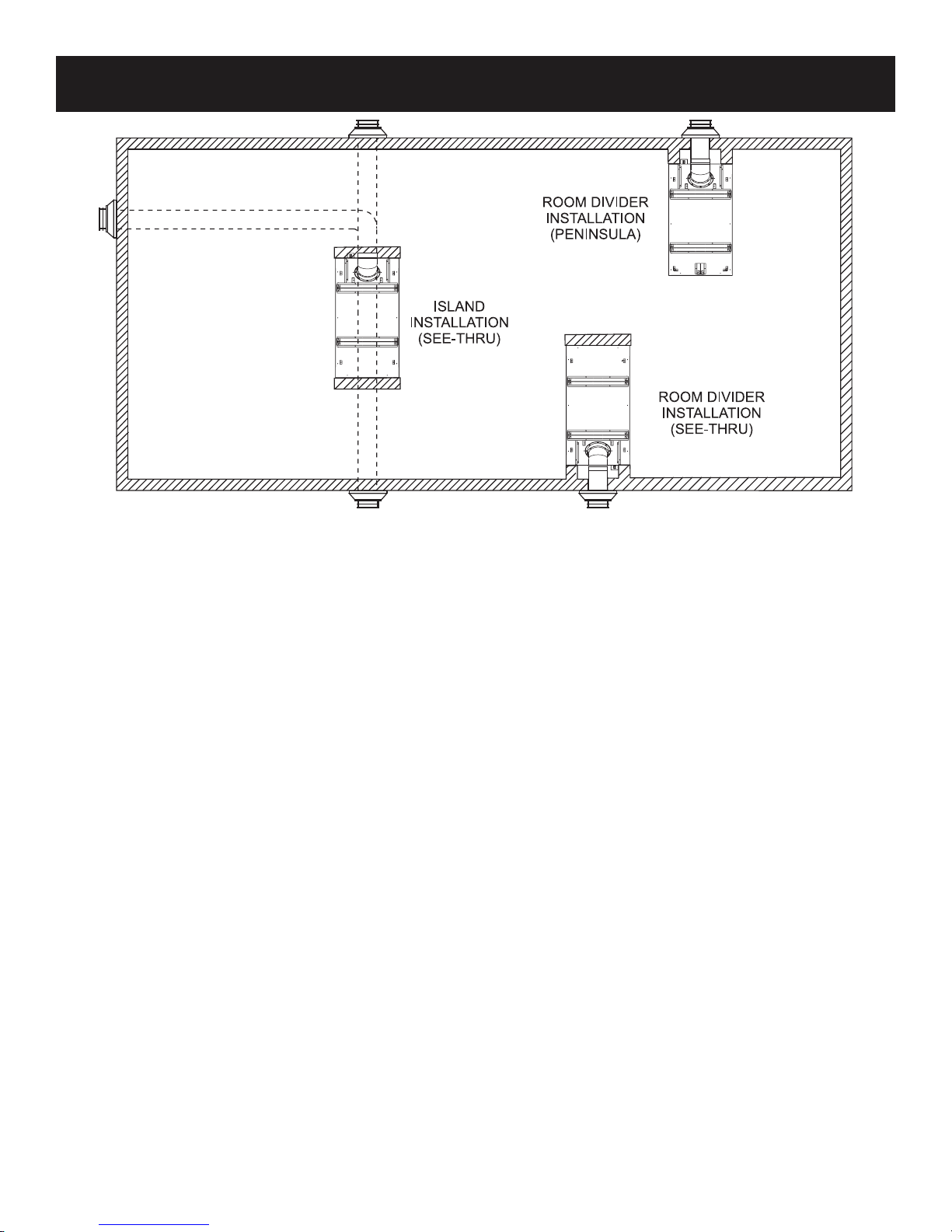

NOTICE: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet
ZLWKDPLQLPXPYHUWLFDOUXQRIIHHWIURP¿UHSODFHÀRRU6HHGHWDLOVLQ9HQWLQJ6HFWLRQ
NOTICE,QXVODWHWRDSSOLFDEOHFRGHVZKHQLQVWDOOLQJWKLV¿UHSODFHDJDLQVWDQH[WHULRUZDOO
$PLQLPXPFOHDUDQFHRILQFKHVPXVWEHPDLQWDLQHGIURPWKHSHUSHQGLFXODUZDOOWRWKH¿UHER[RSHQLQJRIWKH¿UHSODFHLIWKH¿UHSODFH
is installed in the room divider or peninsula room divider positions.
LOCATING FIREPLACE

36092-0-0815Page 18
WARNING
$OOZLULQJVKRXOGEHGRQHE\DTXDOL¿HGHOHFWULFLDQ
and shall be in compliance with all local, city and state
building codes. Before making the electrical connection,
make sure that main power supply is disconnected. The
¿UHSODFHZKHQLQVWDOOHGPXVWEHHOHFWULFDOO\JURXQGHG
in accordance with local codes or, in the absence of local
codes, with the National Electrical Code ANSI/NFPA 70
ODWHVWHGLWLRQ,PSURSHULQVWDOODWLRQRIWKH¿UHSODFHFDQ
FDXVHVHULRXVLQMXU\RUGHDWKIURP¿UHEXUQVH[SORVLRQV
or carbon monoxide poisoning.
Afactory installed junction box is located on the outside wall of the
¿UHSODFHRQWKHYHQWVLGH:LULQJPXVWEHIHGWRWKHMXQFWLRQER[
and attached to the stranded wire inside with wire nuts. Connect
white to white, black to black, and ground (green stranded wire) to
the ground screw inside the junction box. See Figure 16.
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS
RECEPTACLE BOX
INSIDE FIREPLACE ELECTRIC
POWER IN
PRE-INSTALLED
CONDUIT TO
RECEPTACLE BOX
STRANDED WIRE
FROM CONDUIT
GROUND SCREW
INSIDE J-BOX
Figure 16

36092-0-0815 Page 19
INSTALLATION
Vent Runs
,QSODQQLQJWKHLQVWDOODWLRQIRUWKH¿UHSODFHLWLVQHFHVVDU\WR
LQVWDOOFHUWDLQFRPSRQHQWVEHIRUHWKH¿UHSODFHLVFRPSOHWHO\
positioned and installed. These include the direct vent system,
JDVSLSLQJIRUWKH¿UHSODFHDQGWKHHOHFWULFDOZLULQJ6WXG\WKH
³9HQWLQJ)LUHSODFH´VHFWLRQVWDUWLQJRQSDJHWRXQGHUVWDQG
allowable vent runs.
Positioning the Fireplace
'HWHUPLQHWKHH[DFWSRVLWLRQRIWKH¿UHSODFHVRWKHGLUHFWYHQW
termination will be centered (if possible) between two studs.
This will avoid any extra framing. All vent kit pipes should be
DVVHPEOHGRQWKH¿UHSODFHDIWHUWKH¿UHSODFHLVPRYHGLQWRWKH
¿QDOSRVLWLRQ
7KH¿UHSODFHFDQEHPRXQWHGRQDQ\RIWKHIROORZLQJVXUIDFHV
 $ÀDWKDUGFRPEXVWLEOHRUQRQFRPEXVWLEOHVXUIDFH
2. A raised platform of combustible or non-combustible material.
3. A rectangular frame constructed such that contact is made
RQDOOIRXUSHULPHWHUHGJHVRQWKHERWWRPRIWKH¿UHSODFHLI
local codes allow).
Framing
)LUHSODFHIUDPLQJFDQEHEXLOWEHIRUHRUDIWHUWKH¿UHSODFHLVVHW
in place. Framing should be positioned to accommodate wall
FRYHULQJDQG¿UHSODFHIDFLQJPDWHULDO7KH¿UHSODFHIUDPLQJ
should be constructed of 2 x 4 lumber. The framing members
PD\UHVWRQWKH¿UHSODFHVWDQGRIIVKRZHYHUWKHVWDQGRIIV
are not load-bearing. Refer to Figures 17 and 18 for minimum
framing dimensions.
<RXPD\LQVWDOODVHHWKURXJK¿UHSODFHLQDORDGEHDULQJZDOO
however the wall’s framing must include a structural header
DERYHWKH¿UHSODFHGHVLJQHGWRVXSSRUWDOORIWKHZHLJKW
Installing a peninsula unit requires special framing techniques
DERYHWKH¿UHSODFHWRPLQLPL]HWKHDPRXQWRIZHLJKWRQWKH
¿UHSODFH±HVSHFLDOO\LI\RXSODQWR¿QLVKWKHLQVWDOODWLRQZLWK
stone or tile. This may include additional structural members in
the ceiling to support the weight.
CAUTION
7RDYRLGXQQHFHVVDU\UHZRUNPHDVXUH¿UHSODFH
dimensions and verify framing methods, and wall covering
details before framing construction begins.
NOTICE: Framing dimension A includes a three inch clearance
IRUVWDQGRIIVRQ¿UHER[$IWHULQVWDOOLQJ¿UHER[LQWRIUDPLQJWKH
non-combustible board will cover the three inch opening above
WKH¿UHER[See Figure 19.
B
C
SUPPORT SEAMS
BETWEEN DRYWALL
AND NON-COMBUSTIBLE
BOARD WITH FRAMING
DVCP36SP
(Dimensions in inches)
A 42-1/2
B 45-1/2
C23
Figure 17 - See-Thru
A
B
C
SUPPORT SEAMS
BETWEEN DRYWALL
AND NON-COMBUSTIBLE
BOARD WITH FRAMING
DVCP36PP
(Dimensions in inches)
A 42-1/2
B 41-3/4
C23
Figure 18 - Peninsula

36092-0-0815Page 20
INSTALLATION
FIREPLACE
OPENING
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
(COVER SEAM)
NON-COMBUSTIBLE
WALL COVERING
VERTICAL
FRAMING
HORIZONTAL
FRAMING
NON-COMBUSTIBLE
ZONE
3” ABOVE
VENT 16” NON-COMBUSTIBLE
BOARD HEIGHT - ALL
VISIBLE SIDES
NOTICE: See Figure 9 on page 13 for maximum mantel depth
DQGPLQLPXPKHLJKWDERYH¿UHSODFH
Figure 19
Clearance to Combustibles
Back 0in
Sides Near Face (See Figure 20) 0in
Floor 0in
Top Stand-off 0in
Outer Top to Framing 3in
Above Vent 3in
FINISHED
WALL
NON-COMBUSTIBLE
WALL COVERING
VERTICAL FRAMING:
NOTE ORIENTATION OF
STUD AGAINST THE FIREPLACE
20”
FRAMING
ON FLOOR
NON-COMBUSTIBLE
ZONE
NON-COMBUSTIBLE
ZONE
LEAVE SPACE BETWEEEN
WALL COVERING AND
FIREPLACE OPENING FOR
BEAD OF CAULK
Figure 20
