Empire Comfort Systems DVD32 Quick start guide

Page 1
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
DIRECT-VENT ZERO
CLEARANCE GAS FIREPLACE
HEATER MODELS:
MILLIVOLT (MV)
DVD(32,36,42,48)
FP3(0,1,2,3)(N,P)-2
DVD(32,36,42)
FP35(N,P)-1
DIRECT
IGNITION (DI)
DVD(32,36,42,48)
FP5(0,1,2,3)N-3
INTERMITTENT
PILOT (IP)
DVD(32,36,42,48)
FP7(0,1)(N,P)-1
NOTE: Barrier required, but may be sold separately.
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
WARNING
FIRE OR EXPLOSION HAZARD
If the information in this manual is not
followed exactly, a re or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
If not installed, operated and maintained in
accordance with the manufacturer’s instruc-
tions, this product could expose you to sub-
stances in fuel or from fuel combustion which
can cause death or serious illness.
CARTON CONTENTS
• Accessory Sheet
• Hardware Pack
• AA Battery (4) (IP only)
• Junction Box Cover
• Logs
• Rockwool
• Registration Card
• Power Adaptor (IP only)
• Receptical
• Decorative Rocks

31629-20-0320Page 2
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION ............................................................................................................................................ 3
SAFETY INFORMATION FOR USERS OF PROPANE GAS ........................................................................................................... 4
REQUIREMENTS FOR MASSACHUSETTS ................................................................................................................................... 5
INTRODUCTION .............................................................................................................................................................................. 6
SPECIFICATIONS ............................................................................................................................................................................ 7
VENT SYSTEM IDENTIFICATION ................................................................................................................................................... 8
SPECIAL VENT SYSTEMS .............................................................................................................................................................. 8
FIREPLACE DIMENSIONS .............................................................................................................................................................. 9
CLEARANCES................................................................................................................................................................................ 10
LOCATING FIREPLACE..................................................................................................................................................................11
GAS SUPPLY ................................................................................................................................................................................. 12
INSTALLATION.......................................................................................................................................................................... 13-17
VENTING FIREPLACE - TOP....................................................................................................................................................18-20
EXAMPLES - TOP VENT RUN....................................................................................................................................................... 21
VENTING FIREPLACE - REAR...................................................................................................................................................... 22
EXAMPLES - REAR VENT RUN.................................................................................................................................................... 23
REAR VENT CONVERSION .......................................................................................................................................................... 24
VENT CLEARANCES ..................................................................................................................................................................... 25
FRAMING AND FINISHING....................................................................................................................................................... 26-27
TERMINATION CLEARANCES ...................................................................................................................................................... 28
HORIZONTAL TERMINATION........................................................................................................................................................ 29
VERTICAL TERMINATION ........................................................................................................................................................ 30-31
DVVK-4F FLEX VENT INSTRUCTIONS ........................................................................................................................................ 32
DVVK-4RE VENT KIT INSTALLATION INSTRUCTIONS.......................................................................................................... 33-35
LOG PLACEMENT (5 LOG SET) - DVD(32,36)FP......................................................................................................................... 36
LOG PLACEMENT (7 LOG SET) - DVD(42,48)FP......................................................................................................................... 37
MILLIVOLT OPERATING INSTRUCTIONS (FP3 SERIES)....................................................................................................... 38-39
MILLIVOLT STANDING PILOT WIRING DIAGRAM (FP3 SERIES)............................................................................................... 40
MILLIVOLT STANDING PILOT LIGHTING INSTRUCTIONS (FP3 SERIES) ................................................................................. 41
MILLIVOLT STANDING PILOT TROUBLESHOOTING (FP3 SERIES).......................................................................................... 42
DIRECT IGNITION LIGHTING INSTRUCTIONS (FP5 SERIES) ................................................................................................... 43
DIRECT IGNITION WIRING DIAGRAM (FP5 SERIES) ................................................................................................................. 44
OPTIONAL REMOTE CONTROL................................................................................................................................................... 44
INITIAL START UP GAS LINE PURGE (FP5 SERIES).................................................................................................................. 45
DIRECT IGNITION TROUBLESHOOTING (FP5 SERIES) ............................................................................................................ 45
DIRECT IGNITION PROPANE GAS CONVERSION (FP5 SERIES) ............................................................................................. 46
PROPANE GAS CONVERSION (FP5 SERIES)............................................................................................................................. 47
IPI ELECTRONIC SYSTEM OPERATING INSTRUCTIONS (FP7 SERIES) ................................................................................. 48
IPI ELECTRONIC SYSTEM WIRING DIAGRAM (FP7 SERIES) ................................................................................................... 49
INTERMITTENT PILOT LIGHTING INSTRUCTIONS (FP7 SERIES) ............................................................................................ 50
INTERMITTENT PILOT CONTROL SYSTEM TROUBLESHOOTING (FP7 SERIES).............................................................. 51-53
MAINTENANCE AND SERVICE................................................................................................................................................ 54-55
DVD32FP(3,5,7) PARTS LIST ........................................................................................................................................................ 56
DVD32FP(3,5,7) PARTS VIEW ...................................................................................................................................................... 57
DVD36FP(3,5,7) PARTS LIST ........................................................................................................................................................ 58
DVD36FP(3,5,7) PARTS VIEW ...................................................................................................................................................... 59
DVD42FP(3,5,7) PARTS LIST ........................................................................................................................................................ 60
DVD42FP(3,5,7) PARTS VIEW ...................................................................................................................................................... 61
DVD48FP(3,5,7) PARTS LIST ........................................................................................................................................................ 62
DVD48FP(3,5,7) PARTS VIEW ...................................................................................................................................................... 63
FBB4 OPTIONAL VARIABLE SPEED BLOWER INSTALLATION............................................................................................. 64-65
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS......................................................................................................... 66
OPTIONAL BRICK LINER INSTALLATION INSTRUCTIONS ........................................................................................................ 66
ACCESSORIES.............................................................................................................................................................................. 67
DECORATIVE ACCESSORIES ...................................................................................................................................................... 68
WARRANTY.................................................................................................................................................................................... 69
MASTER PARTS DISTRIBUTOR LIST .......................................................................................................................................... 70
HOW TO ORDER REPAIR PARTS ................................................................................................................................................ 70
APPLIANCE SERVICE HISTORY .................................................................................................................................................. 71
SECTION PAGE

31629-20-0320 Page 3
DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED
Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.
IMPORTANT SAFETY INFORMATION
WARNING
1. “Due to high temperatures, the appliance should be
located out of trafc and away from furniture and
draperies.”
2. “Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.”
3. “Young children should be carefully supervised when they
are in the same room as the appliance. Toddlers, young
children, and others may be susceptible to accidental
contact burns. A physical barrier is recommended if there
are at-risk individuals in the house. To restrict access to a
replace or stove, install an adjustable safety gate to keep
toddlers, young children, and other at-risk individuals out
of the room and away from hot surfaces.”
4. For appliances requiring a barrier, as determined under
Clause 5.15.4: “A barrier designed to reduce the risk of
burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of
children and other at-risk individuals.”
5. “If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance. ”
6. “Clothing or other ammable material should not be
placed on or near the appliance.”
7. “Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance” (see Clause 4.1.6).
8. “Installation and repair should be done by a qualied
service person. The appliance should be inspected
before use and at least annually by a professional service
person. More frequent cleaning might be required due to
excessive lint from carpeting, bedding material, et cetera.
It is imperative that control compartments, burners, and
circulating air passageways of the appliance be kept
clean.”
9. The instructions for an appliance optionally for use
with glass doors (or equivalent) shall state that, “Only
doors certied with the appliance shall be used.”
10. The instructions for an appliance not intended for use
with glass doors (or equivalent) shall emphasize that
the appliance is not for use with glass doors.
11. Where applicable, provide a means by which the
consumer can identify the barrier, (such as graphic
representation, clear description, or reference marking).
WARNING
CARBON MONOXIDE POISONING HAZARD
Failure to follow the steps outlined below for each appliance
connected to the venting system being placed into operation
could result in carbon monoxide poisoning or death.
The following steps shall be followed for each appliance
connected to the venting system being placed into operation,
while all other appliances connected to the venting system
are not in operation:
1. Seal any unused openings in the venting system.
2. Inspect the venting system for proper size and horizontal
pitch, as required in the National Fuel Gas Code ANSI
Z223.1/NFPA 54 or the National Gas and Propane
Installation Code CSA B149.1 and these instructions.
Determine that there is no blockage or restriction,
leakage, corrosion and other deciencies which could
cause an unsafe condition.
3. As far as practical, close all building doors and
windows and all doors between the space in which
the appliance(s) connected to the venting system are
located and other spaces of the building.
4. Close replace dampers.
5. Turn on clothes dryers and any appliance not connected
to the venting system. Turn on any exhaust fans, such
as range hoods and bathroom exhausts, so they are
operating at maximum speed. Do not operate a summer
exhaust fan.
6. Follow the lighting instructions. Place the appliance
being inspected into operation. Adjust the thermostat
so appliance is operating continuously.
7. Test for spillage from draft hood equipped appliances
at the draft hood relief opening after 5 minutes of main
burner operation. Use the ame of a match or candle.
8. If improper venting is observed during any of the
above tests, the venting system must be corrected
in accordance with National Fuel Gas Code, ANSI
Z223.1/NFPA and/or National Gas and Propane
Installation Code, CSA B149.1.
9. After it has been determined that each appliance
connected to the venting system properly vents when
tested as outlined above, return doors, windows,
exhaust fans, replace dampers and any other gas-red
burning appliance to their previous conditions of use.

31629-20-0320Page 4
SAFETY INFORMATION FOR USERS OF PROPANE GAS
Propane is a ammable gas which can cause res and
explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety
precautions which can protect both you and your family
from an accident. Read them carefully now, then review
them point by point with the members of your house-
hold. Someday when there may not be a minute to lose,
everyone’s safety will depend on knowing exactly what
to do. If, after reading the following information, you feel
you still need more information, please contact your gas
supplier.
PROPANE GAS WARNING ODOR
If a gas leak happens, you should be able to smell the
gas because of the odorant put in the Propane Gas.
That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area.
Do that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• Propane Gas is heavier than air and may settle in low areas
such as basements. When you have reason to suspect
a gas leak, keep out of basements and other low areas.
Stay out until reghters declare them to be safe.
• Use your neighbor’s phone and call a trained Propane
Gas service person and the re department. Even though
you may not continue to smell gas, do not turn on the
gas again. Do not re-enter the building, vehicle, trailer,
or area.
• Finally, let the service man and reghters check for
escaped gas. Have them air out the area before you
return. Properly trained Propane Gas service people
should repair the leak, then check and relight the gas
appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot
smell the odor of the chemical put into the gas. You
must nd out if you can smell the odorant in propane.
Smoking can decrease your ability to smell. Being around an
odor for a time can affect your sensitivity or ability to detect
that odor. Sometimes other odors in the area mask the gas
odor. People may not smell the gas odor or their minds are
on something else. Thinking about smelling a gas odor can
make it easier to smell.
The odorant in Propane Gas is colorless, and it can fade
under some circumstances. For example, if there is an
underground leak, the movement of the gas through soil can
lter the odorant. Odorants in Propane Gas also are subject
to oxidation. This fading can occur if there is rust inside the
storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or
into walls, masonry and other materials and fabrics in a room.
That will take some of the odorant out of the gas, reducing
its odor intensity.
Propane Gas may stratify in a closed area, and the odor inten-
sity could vary at different levels. Since it is heavier than air,
there may be more odor at lower levels. Always be sensitive
to the slightest gas odor. If you detect any odor, treat it as a
serious leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of Propane Gas. Your
local Propane Gas Dealer can give you a “Scratch and
Sniff” pamphlet. Use it to nd out what the propane odor
smells like. If you suspect that your Propane Gas has a
weak or abnormal odor, call your Propane Gas Dealer.
• If you are not qualied, do not light pilot lights, perform
service, or make adjustments to appliances on the Pro-
pane Gas system. If you are qualied, consciously think
about the odor of Propane Gas prior to and while lighting
pilot lights or performing service or making adjustments.
•
Sometimes a basement or a closed-up house has a musty
smell that can cover up the Propane Gas odor. Do not try
to light pilot lights, perform service, or make adjustments
in an area where the conditions are such that you may not
detect the odor if there has been a leak of Propane Gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks
or cylinders are placed in service. Odor fade can occur
in new tanks, or reinstalled old tanks, if they are lled
and allowed to set too long before relling. Cylinders
and tanks which have been out of service for a time
may develop internal rust which will cause odor fade. If
such conditions are suspected to exist, a periodic sniff
test of the gas is advisable. If you have any question
about the gas odor, call your Propane Gas Dealer.
Aperiodic sniff test of the Propane Gas is a good
safety measure under any condition.
• If, at any time, you do not smell the Propane Gas odorant
and you think you should, assume you have a leak. Then
take the same immediate action recommended above for
the occasion when you do detect the odorized Propane Gas.
• If you experience a complete “gas out,” (the container
is under no vapor pressure), turn the tank valve off im-
mediately. If the container valve is left on, the container
may draw in some air through openings such as pilot light
orices. If this occurs, some new internal rusting could
occur. If the valve is left open, then treat the container
as a new tank. Always be sure your container is under
vapor pressure by turning it off at the container before
it goes completely empty or having it relled before it is
completely empty.

31629-20-0320 Page 5
REQUIREMENTS FOR MASSACHUSETTS
For all side wall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than seven feet above nished grade in the area of the
venting, including but not limited to decks and porches, the
following requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS.
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gastter shall
observe that a hard wired carbon monoxide detector with an
alarm and battery back-up is installed on the oor level where
the gas equipment is to be installed. In addition, the installing
plumber or gastter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm is
installed on each additional level of the dwelling, building or
structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner
to secure the services of qualied licensed professionals for
the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
oor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty days to comply
with the above requirements; provided, however, that
during said thirty day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each
carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/
UL 2034 listed and IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be
permanently mounted to the exterior of the building at a
minimum height of eight feet above grade directly in line with
the exhaust vent terminal for the horizontally vented gas fueled
heating appliance or equipment. The sign shall read, in print
size no less than on 1/2 inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side
wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a) 1
through 4.
(b) EXEMPTIONS: The following equipment is exempt from
248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does not
provide the parts for venting the ue gases, but identies
“special venting systems”, the following requirements
shall be satised by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for
that system shall include a parts list and detailed
installation instruction.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for
venting instructions, and/or all venting design instructions
shall remain with the appliance or equipment at the
completion of the installation.

31629-20-0320Page 6
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail warranty card supplied
with the replace.
3. Installer should show owner how to start and operate the replace.
This direct vent gas replace heater is designed to operate with
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
Warning: This unit is not for use with solid fuels.
Appliance Certication
This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z21.88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation, to ensure
compliance with local codes-including permits and inspections.
The replace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with the
National Electric Code ANSI/NFPA 70 or Canadian Electric code,
CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performed only by a qualied agency. The term “qualied agency”
means any individual, rm, corporation or company which either in
person or through a representative is engaged in and is responsible for
(a) the installation or replacement of gas piping or (b) the connection,
installation, repair or servicing of equipment, who is experienced in
such work, familiar with all precautions required and has complied
with all the requirements of the authority having jurisdiction.
Commonwealth of Massachusetts: The installation must be
made by a licensed plumber or gas tter in the Commonwealth
of Massachusetts.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1 in
Canada. *Available from the American National Standards Institute,
Inc. 11 West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Warning: ANY CHANGE TO THIS FIREPLACE OR ITS
CONTROLS CAN BE DANGEROUS.
Improper installation or use of the replace can cause
serious injury or death from re, burns, explosions, or carbon
monoxide poisoning.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changing the existing burner orice to a smaller size. Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for proper
orice size identication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the proper
orice for location.
Preparation
This direct vent gas replace and its components are tested and
safe when installed in accordance with this Installation Manual.
Report to your dealer any parts damaged in shipment, specically
check glass condition. Do not install unit with damaged, incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximum benet and safety. Failure to follow them will void your
warranty and may present a re hazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace or vent system component.
• Modication of the replace or direct vent system.
• Installation other than as instructed by Empire Comfort Systems,
Inc.
• Improper positioning of the logs, glass door or decorative rock.
• Installation and/or use of any component part not manufactured
or approved by manufacturer.
INTRODUCTION

31629-20-0320 Page 7
DVD32 DVD36 DVD42 DVD48
Input BTU/Hr Maximum 18000 (NAT, LP) 20,000 (NAT, LP) 25,000 (NAT, LP) 28,000 (NAT, LP)
Input BTU/Hr Minimum (millivolt only) 14,000 (NAT, LP) 14,000 (NAT)
16,500 (LP)
18,000 (NAT)
19,500 (LP)
20,000 (NAT)
22,000 (LP)
KWH (Maximum) 5.3 5.9 7.3 8.2
KWH (Minimum) 4.1 4.1 5.3 5.9
Orice Natural #46 (.081”) P254 2.10mm P288 #42 (.0935”) P286 #39 (.0995”) P285
Orice Propane #56 (.0465”) P287 #55 (.052”) P182 1.45mm P208 #52 P185
Air Shutter Opening Natural 1/16” (1.6mm) 1/16” (1.6mm) 3/16”(4.8mm) 1/8” (3.2mm)
Air Shutter Opening Propane 1/4” (6.3mm) 5/16” (7.9mm) 5/16” (7.9mm) 5/16” (7.9mm)
PROPANE
Height without standoff 32 3/4” (832mm) 32 3/4” (832mm) 34 3/4” (883mm) 34 3/4” (883mm)
Width 34” (864mm) 37” (940mm) 43” (1092mm) 49” (1245mm)
Depth 16 3/8” (416mm) 16 3/8” (416mm) 16 3/8” (416mm) 16 3/8” (416mm)
Gas Inlet Shutoff Valve (Pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT
NOTICE: Air shutter settings are factory minimum settings. Some venting congurations may require minor air shutter adjustments for
optimum performance.
GAS CONVERSION KITS
Models DVD32FP3 DVD32FP7 DVD36FP3 DVD36FP7 DVD42FP3 DVD42FP7 DVD48FP3 DVD48FP7
NAT to LP 18456 32880 18442 32882 18814 31760 18815 31762
LP to NAT 18816 32881 18817 31759 18818 31761 18819 31763
Remote Control Options & Accessories Description Models Used On
FRBC Millivolt Battery Remote ON/OFF DVD(32,36,42,48)FP(3,7)
FRBTC Millivolt Battery Remote Thermostat DVD(32,36,42,48)FP(3,7)
FREC Direct Ignition/Millivolt 120V ON/OFF
Remote DVD(32,36,42,48)FP(3,5)
TMW Millivolt Wireless Wall Thermostat DVD(32,36,42,48)FP(3,7)
TRW Millivolt Reed Switch Wall Thermostat DVD(32,36,42,48)FP(3,7)
FWS-1 Direct Ignition/Millivolt Wall Switch DVD(32,36,42,48)FP(3,5,7)
Venting Options Description
DVVK-4TSP Top vent kit (horizontal) - 4½" to 6" (114.3 mm to 152 mm) wall thickness
DVVK-4TP Top vent kit (horizontal) - 8" to 12" (203 mm to 305 mm) wall thickness
DVVK-4RP Rear vent kit (horizontal) - 5" to 7" (127 mm to 178 mm) wall thickness
DVVK-4VP Vertical vent kit
DVVK-4F Horizontal ex vent kit (4' FLEX)
DVVK-4RE Horizontal round termination (wall thickness up to 13
3
/
4
”)
DV822 Vinyl siding kit for DVVK-4RE
FIREPLACE BARRIER SCREENS
Screen Model Description Fireplace Models Used On
DVFB32SBL Fireplace Barrier Screen, Matte Black DVD32FP
DVFB36SBL Fireplace Barrier Screen, Matte Black DVD36FP
DVFB42TBL Fireplace Barrier Screen, Matte Black DVD42FP
DVFB48TBL Fireplace Barrier Screen, Matte Black DVD48FP
NOTICE: A rescreen is required for operation of the appliance, but are sold separately. Follow the instructions that come with your re-
screen for proper installation.
SPECIFICATIONS

31629-20-0320Page 8
Special Venting Components (Simpson Duravent)
See Empire Comfort Systems Retail Price List for Simpson
Duravent part numbers and pricing.
Special DV Vent Kits
Available from Empire Comfort Systems, Inc. dealers
DVVK-4FV Vertical Flex Vent Kit 4" x 7"
DVVK-4VP Direct-Vent Fireplace Vent Kit - Vertical,
Includes SD-991, SD-953, and SD-943
DVVK-4TP
Direct-Vent Fireplace Vent Kit for Top Vent,
Thru-the-wall, 8 to 11 inch wall thickness,
Includes SD-911, SD-985, SD-990 and SD-942
DVVK-4RP
Direct-Vent Fireplace Vent Kit for Rear Vent, 5
to 7 inch wall thickness, (standard thru-the-wall
venting) Includes SD-908, SD-985 and SD-942
DVVK-4RE
Direct-Vent Fireplace Vent Kit for Rear Vent,
Thru-the wall, 5 to 7 inch wall thickness,
(standard thru-the-wall venting) Includes SD-
908, SD985 and SD-942
DVVK-4TSP
Direct-Vent Fireplace Vent Kit for Top Vent,
Thru-the-wall, 5 to 7 inch wall thickness,
Includes SD-908, SD-985, SD-990 and SD-942
VIB6A Vertical Inlet Bafe Kit for 6 5/8" diameter.
VIB7A Vertical Inlet Bafe Kit for 7" diameter.
VENT SYSTEM IDENTIFICATION
The following vent systems are acceptable for use with the
DVD (32, 36, 42, 48) series replaces:
• Simpson Duravent® GS 4” - 6 ⅝”
• American Metal Products 4” - 6 ⅝”
• Selkirk Direct-Temp® 4” - 6 ⅝”
• MetalFab SureSeal® 4” - 6 ⅝”
SPECIAL VENT SYSTEMS
• Security Secure Vent® 4” - 6 ⅝”
• Excel DV 4” - 6 ⅝”
• Empire Horizontal Round Termination Kit DVVK-4RE, DVVK-
4REVS
Empire Flexvent Kits:
• DVVK-4F, DVVK-4FV, DVVK-4FRE, DVVK-4FREVS

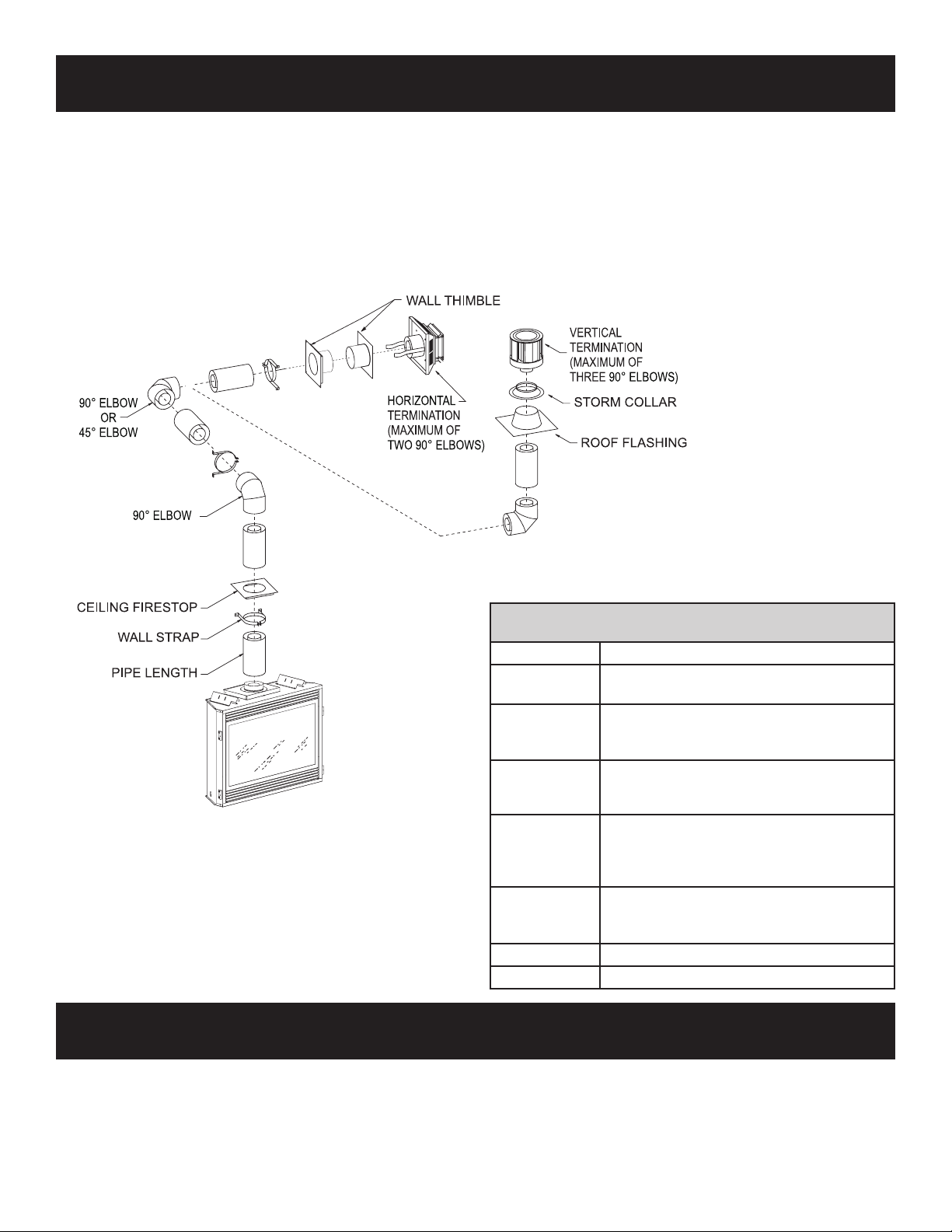

Begin the vent system installation by selecting the type of venting
to be installed and the path that it will take. Verify that clearances
are met throughout the path of the venting system. Determine if the
replace is to be vented out the top or out the rear.
NOTICE: Some replaces cannot be vented out the rear of the replace.
Determine how the vent system will be terminated out the side of
the house or through the roof. Verify clearances for the termination.
When selecting a vent system for use with the replace, refer to the
“Special Vent Systems” section in this manual to determine what
systems are acceptable.
Check all clearances and venting components. Identify if any
problems existing in the vent system. Use Figure 22, page 18 for
top venting or Figure 32, page 22 for rear venting to eliminate issues
after installation. Check pipe diameter on vent system and replace
to verify the size is the same.
NOTICE: All outer connection joints must be sealed with
aluminum tape, screws or silicone sealant rated above
300°F/149°C. The inner ue joints do not require any sealant.
Figure 1

31629-20-0320 Page 9

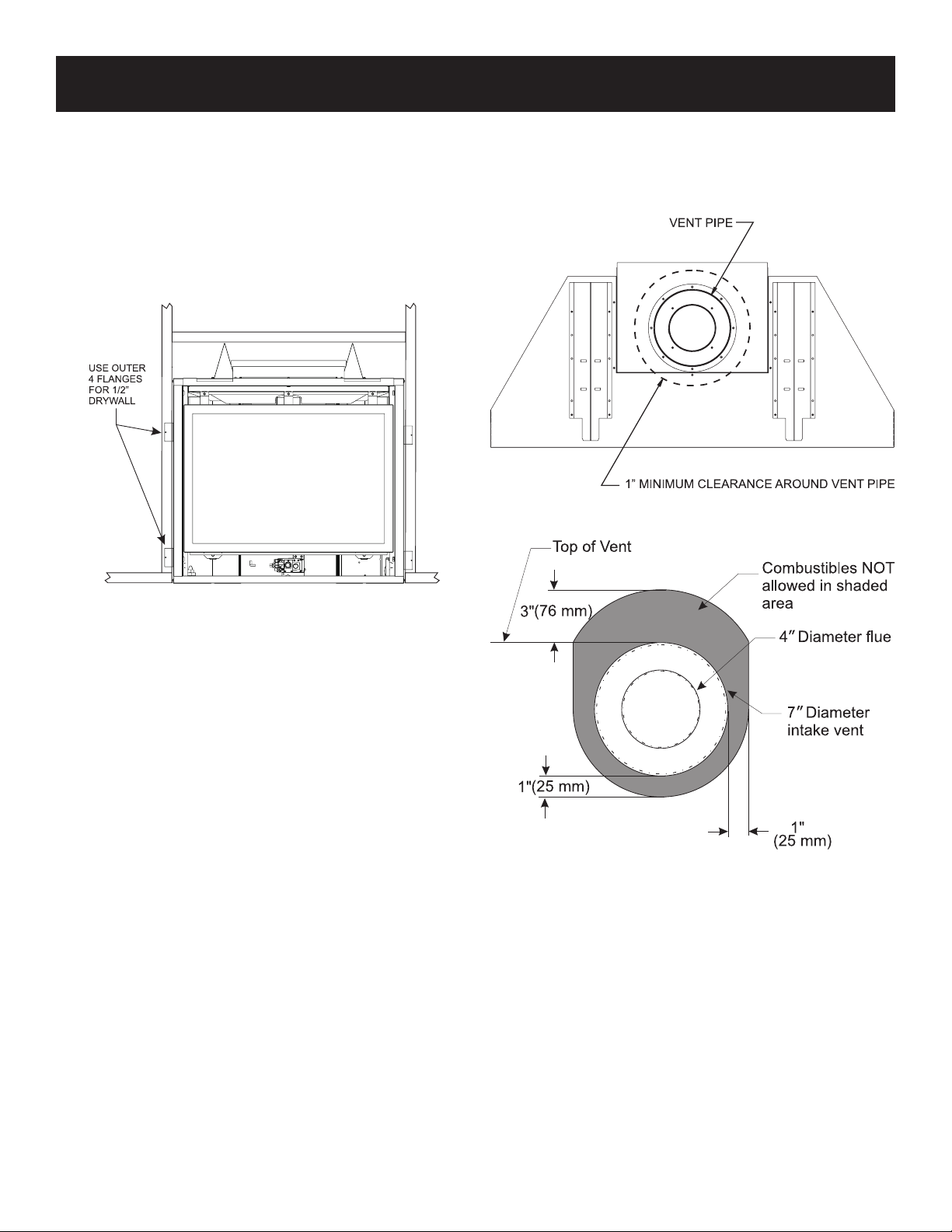

Figure 2
Dim DVD32 DVD36 DVD42 DVD48
A34"
864 mm
37"
940 mm
43"
1092 mm
49"
1245 mm
B31"
787 mm
34"
864 mm
40"
1016 mm
46"
1168 mm
C23 1/16"
585 mm
23 1/16"
585 mm
25 1/16"
636 mm
25 1/16"
636 mm
D35 5/8"
905 mm
35 5/8"
905 mm
37 5/8"
956 mm
37 5/8"
956 mm
E32 3/4"
832 mm
32 3/4"
832 mm
34 3/4"
883 mm
34 3/4"
883 mm
F16 3/8"
416 mm
16 3/8"
416 mm
16 3/8
416 mm
16 3/8"
416 mm
G24 1/2"
622 mm
24 1/2"
622 mm
26 1/2"
673 mm
26 1/2"
673 mm
H7 1/8"
181 mm
7 1/8"
181 mm
7 1/8"
181 mm
7 1/8"
181 mm
I21 1/2"
546 mm
24 1/2"
622 mm
30 1/2"
774 mm
36 1/2"
927 mm
J10 3/4"
273 mm
12 1/4"
311 mm
15 1/4"
387 mm
18 1/4"
464 mm
K9 1/4"
235 mm
9 1/4"
235 mm
9 1/4"
235 mm
9 1/4"
235 mm
FIREPLACE DIMENSIONS

31629-20-0320Page 10

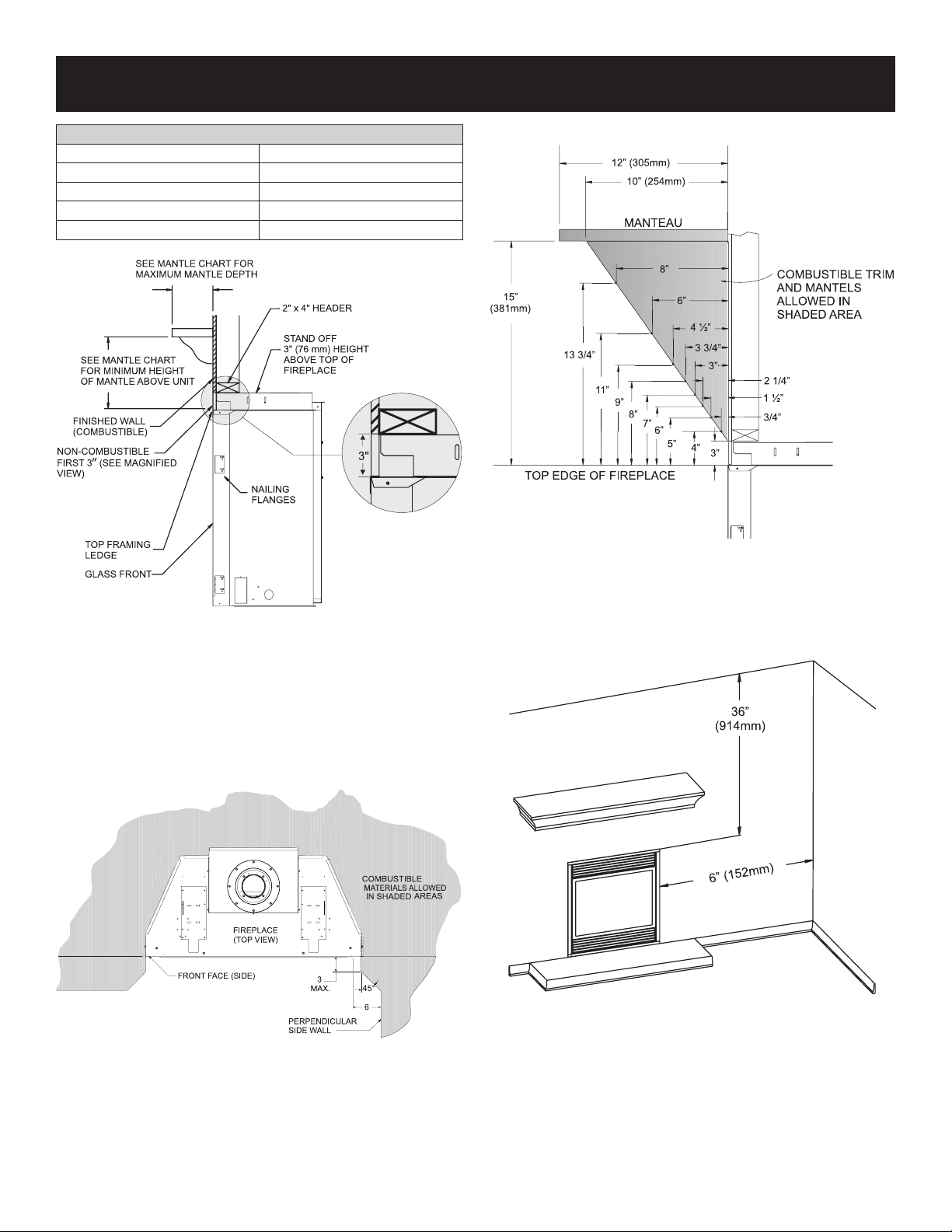

Mantel Chart
Figure 5
Clearances
Clearance from top front edge of replace to ceiling is 36"
Clearance from side of replace to adjacent sidewall is 6".
Figure 6
CLEARANCES
CLEARANCE TO COMBUSTIBLES
Back 0" (0 mm)
Side 0" (0 mm)
Floor 0" (0 mm)
Top Stand-off 0" (0 mm)
Top Framing Edge 3" (76 mm)
Figure 3
Combustible Material
No greeting cards, stockings or ornamentation of any type should
be placed on or attached to the replace. The ow of heat can ignite
combustibles.
NOTICE: When using Empire EMBF, UMC, and UMF Series Full
Mantels with DVD32 and DVD36 Series Fireplaces, combustible
clearance may be reduced to 1” clearance from top edge of re-
place face.
Figure 4

31629-20-0320 Page 11
Figure 7
NOTICE: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet
with a minimum vertical run of 8 feet. See details in Venting Section.
When you install your Direct Vent Fireplace in Room divider or Flat on wall corner positions, a minimum of six inches clearance must be
maintained from the perpendicular wall and the front edge of the appliance.
LOCATING FIREPLACE

31629-20-0320Page 12
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. Consult the current National Fuel Gas Code, ANSI
Z223.1 CAN/CGA-B149 (.1 or .2) installation code.
Recommended Gas Pipe Diameter
Pipe
Length
Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Natural Propane Natural Propane
0-10 feet
0-3 meters
1/2”
12.7 mm
3/8”
9.5 mm
1/2”
12.7 mm
3/8”
9.5 mm
10-40 feet
4-12 meters
1/2”
12.7 mm
1/2”
12.7 mm
5/8”
15.9 mm
1/2”
12.7 mm
40-100 feet
13-30 meters
1/2”
12.7 mm
1/2”
12.7 mm
3/4”
19 mm
1/2”
12.7 mm
100-150 feet
31-46 meters
3/4”
19 mm
1/2”
12.7 mm
7/8”
22.2 mm
3/4”
19 mm
NOTICE: Never use plastic pipe. Check to conrm whether your
local codes allow copper tubing or galvanized.
NOTICE: Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANS Z21.45Assembled FlexibleAppliance Connectors of Other
Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The Commonwealth of Massachusetts requires
that a exible appliance connector cannot exceed three feet in length.
FLEXIBLE GAS LINE CONNECTION
GAS SUPPLY
TEE HANDLE
FLEX TUBING
FLARE FITTING FLARE SHUT
OFF VALVE
Figure 8
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
Propane Gas 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
Propane Gas 10.0"
Installing a New Main Gas Shut-Off
Each appliance should have its own manual gas shut-off. A manual
main gas shut-off should be located in the vicinity of the unit. Where
none exists, or where its size or location is not adequate, contact
your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liqueed petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTICE: The millivolt gas controls are equipped with a captured
screw type pressure test point, therefore it is not necessary to
provide a 1/8” test point up stream of the control.
On direct ignition valves, hex plugs may be replaced with hose ttings
for pressure checks, then reinstalled before operating replace.
When using copper or ex connector use only approved ttings.
The appliance and it’s individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut-off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14” w.c.) (3.5 kPa) on the replace gas valve, it will
result in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural Gas valves have a built-in pressure
regulator in the gas valve. Natural Gas models will have a manifold
pressure of approximately 3.5” w.c. (.871 kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5” w.c.
(1.120 kPa) for the purpose of input adjustment to a maximum of
14.0” w.c. (3.484 kPa). Propane Gas models will have a manifold
pressure approximately 10.0” w.c. (2.49 kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8” w.c.
(2.68 kPa) for the purpose of input adjustment to a maximum of
14.0” w.c. (3.484 kPa).
GAS LINE HOLE
(BOTH SIDES)
2”
10”
FROM FRONT OF
APPLIANCE TO
GAS LINE HOLE
Figure 9

31629-20-0320 Page 13
INSTALLATION
Framing and Finishing
1. Choose unit location.
2. Frame in replace with a header across the top. It is important
to allow for nished face when setting the depth of the frame.
3. Attach replace to frame using adjustable frame. Preset depth
to suit facing material (adjustable to 1/2”, 5/8” or 3/4” depths).
4. Use eight 1/2” hex-head screws supplied in hardware package,
to screw through slotted holes in drywall strip and then screw
into pre-drilled holes on replace side. See Figure 10. Measure
from face of replace to face of drywall strip to determine nal
depth.
Figure 10
Vent Pipe Clearance
NOTICE: Maintain one inch of clearance around vertical vent
pipe. See Figure 11. For horizontal vent, maintain a minimum 1”
clearance to the bottom and sides of the vent, and 3” clearance to
combustibles above the vent pipe. See Figure 12.
Figure 11
Figure 12

31629-20-0320Page 14
NOTICE: For nishing to top of replace, refer to Figure 14.
DVD32 DVD36 DVD42 DVD48
"A" 35 3/4"
(908 mm)
35 3/4"
(908 mm)
37 3/4"
(959 mm)
37 3/4"
(959 mm)
"B" 34 3/8"
(873 mm)
37 3/8"
(949 mm)
43 3/8"
(1102 mm)
49 3/8"
(1254 mm)
"C" 16 3/8"
(416 mm)
16 3/8"
(416 mm)
16 3/8"
(416 mm)
16 3/8"
(416 mm)
Figure 14
Attention: Add 3-3/4" to “A” dimensions when using a ush mantel
base.
Attention: If a base or mantel is not used and the appliance is
installed directly on carpeting, tile or other combustible material other
than wood ooring, it shall be installed on a metal or wood panel
extending the full width and depth of the appliance. The vertical
dimension in Figure 14 must be adjusted when a metal or wood
panel is placed beneath the appliance.
Finishing
Finish the walls with the material of your choice. Figure 5 on page 10
shows the minimum vertical and corresponding maximum horizontal
dimensions of mantels or other combustible projections above the
top front edge of the replace.
Only non-combustible materials may be used to cover the black
replace front.
Warning: When nishing the replace never obstruct
or modify the air inlet/outlet louvers in any manner.
Provide adequate clearances around air openings into the
combustion chamber.
Caution: If the joints between the nished wall and the replace
surround (top and sides) are sealed, a 300°F minimum sealant
material must be used. These joints are not required to be sealed.
Only non-combustible material (using 300°F minimum adhesive if
needed), can be applied as facing to the replace surround.
Flush Mount Mantel Installation
The replace must extend 3/4" beyond nished wall surface when
using a ush mount mantel. Refer to Figure 13 to locate nailing
anges on replace sides. Mark and drill two 1/8" holes into replace
side to mount each nailing ange. Use eight 1/2" hex-head screws
supplied in hardware package to attach nailing anges to replace
sides.
Figure 13
Attention: When replace is installed in optional full cabinet mantel
or corner mantel the four nailing anges shown in Figure 13 will
not be installed on the side of outer casing. The replace will be
attached to the full cabinet mantel or corner mantel with the two
nailing anges located on the top of the outer casing assembly.
Framing
Fireplace framing can be built before or after the replace is set in
place. Framing should be positioned to accommodate wall covering
and replace facing material. The replace framing should be
constructed of 2 x 4 lumber or heavier. The framing headers may
rest on the replace standoffs. Refer to Figure 14 for minimum
framing dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND VERIFY
FRAMING METHODS,AND WALL COVERING DETAILS BEFORE
FRAMING CONSTRUCTION BEGINS.
Framing dimension "A" includes a three inch clearance for
standoffs on rebox. After installing rebox into framing,
the nished wall surface must cover the three inch opening
above the rebox.
INSTALLATION (CONT’D)

31629-20-0320 Page 15
Flush Wall Installation
Figure 15
Combustible Surround Installation
Figure 16
Attention: Cold climate installation recommendation: When
installing this unit against a non-insulated exterior wall, it is
recommended that the outer walls be insulated to conform
to applicable insulation codes.
Vent Runs
In planning the installation for the replace, it is necessary to install
certain components before the appliance is completely positioned
and installed. These include the direct vent system, gas piping for
the appliance and the electrical wiring (If the fan option is used).
The appliance can be mounted on any of the following surfaces:
1. A at, hard combustible (burnable) surface.
2. A raised wooden platform.
3. Four corner supports. (Example: Four concrete masonry blocks.)
These supports must be positioned so they contact all four
perimeter edges on the bottom of the unit.

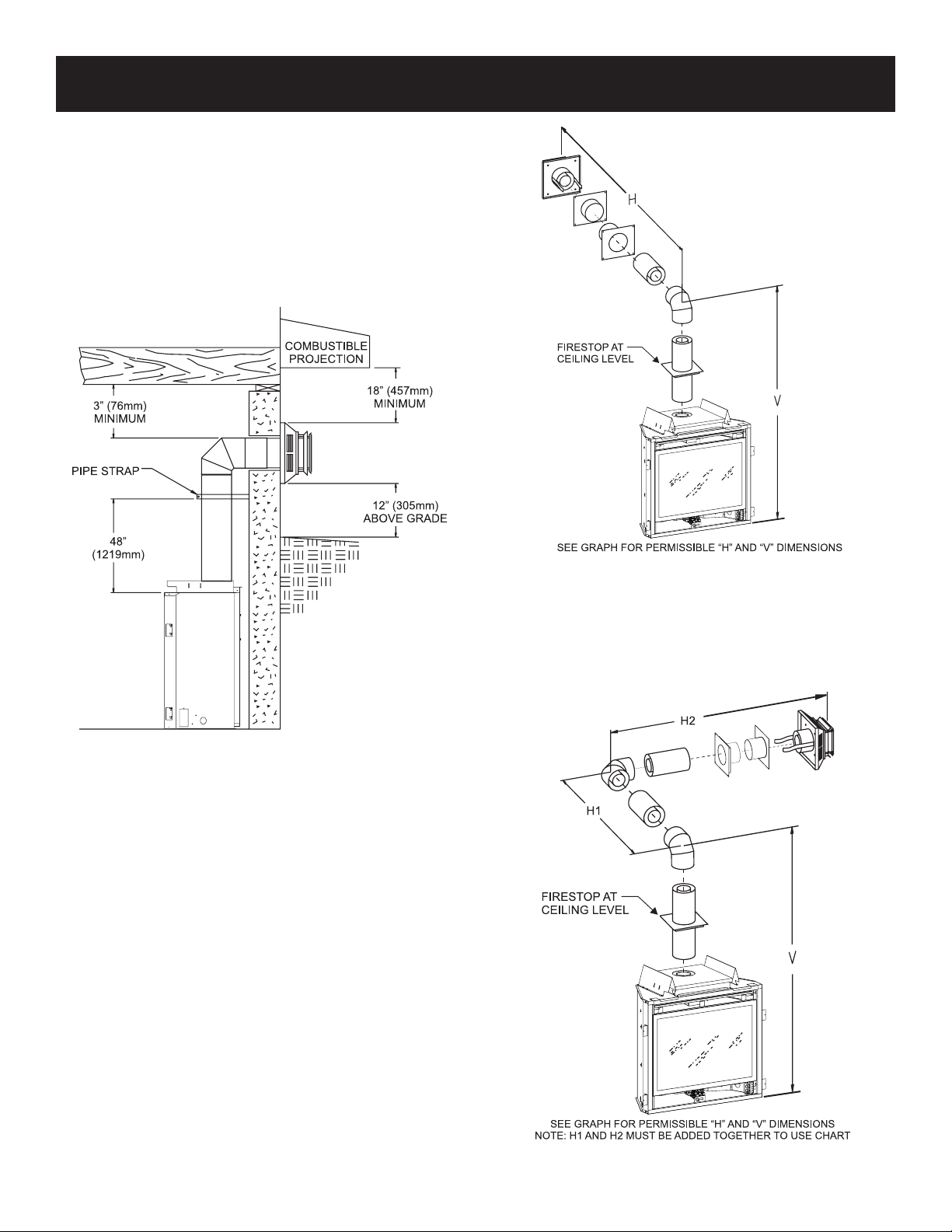

VERTICAL, 90° ELBOW WITH HORIZONTAL TERMINATION
Figure 17
INSTALLATION (CONT’D)

31629-20-0320Page 16
HORIZONTAL ONLY, STRAIGHT OUT THE BACK
Figure 18
VERTICAL, 90° ELBOW TO HORIZONTAL OUT THE WALL
Figure 19
"A" "B" Models
6" 5 1/8" to 6 1/2"
(130 mm to 165 mm) DVD 32,36,42,48
9" 8 1/8" to 9 1/2"
(206 mm to 241 mm) DVD 32,36,42
12" 11 1/8" to 12 1/2"
(283 mm to 317 mm) DVD 32,36,42
"A" "B" "C"
6" 11 1/4" to 12 3/4"
(286 mm to 324 mm)
4 3/4" to 6 1/4"
(121 mm to 159 mm)
9" 14 1/4" to 15 3/4"
(362 mm to 400 mm)
7 3/4" to 9 1/4"
(197 mm to 235 mm)
12" 17 1/4" to 18 3/4"
(438 mm to 476 mm)
10 3/4" to 12 1/4"
(273 mm to 311 mm)
INSTALLATION (CONT’D)

31629-20-0320 Page 17
CORNER INSTALLATION VERTICAL, 90° ELBOW TO HORIZONTAL OUT THE WALL
Figure 20
CORNER INSTALLATION HORIZONTAL, 45° ELBOW TO HORIZONTAL OUT THE WALL
Figure 21
DVD32 DVD36 DVD42 DVD48
"A" "B" "B" "B" "B"
6"
(152 mm)
4" to 5 1/2"
(102 mm to 140 mm)
4" to 5"
(102 mm to 127 mm) n/a n/a
9"
(229 mm)
6" to 7 1/2"
(152 mm to 191 mm)
6" to 7 1/2"
(152 mm to 191 mm)
4" to 5 1/2"
(102 mm to 140 mm) n/a
12"
(305 mm)
9" to 10 1/2"
(229 mm to 267 mm)
9" to 10 1/2"
(229 mm to 267 mm)
9" to 10 1/2"
(229 mm to 267 mm) n/a
Dim. DVD32 DVD36 DVD42 DVD48
A36 1/8"
918 mm
38 3/8"
975 mm
42 1/2"
1080 mm
46 3/4"
1187 mm
B25 1/2"
648 mm
27 1/8"
689 mm
30 1/8"
765 mm
33 1/8"
841 mm
C11 1/2"
292 mm
12 5/8"
321 mm
14 3/4"
375 mm
16 7/8"
429 mm
D51 1/8"
1299 mm
54 1/4"
1378 mm
60 1/8"
1527 mm
66 1/8"
1680 mm
INSTALLATION (CONT’D)

31629-20-0320Page 18
To Use the Vent Graph
1. Determine the height of the center of the horizontal vent
pipe. Using this dimension on the Sidewall Vent Graph,
locate the point it intersects with the slanted graph line.
2. From the point of this intersection, draw a vertical line to
the bottom of the graph.
3. Select the indicated dimension, and position the unit in
accordance with same.
EXAMPLE A:
If the vertical dimension from the oor of the unit is 35 feet,
the horizontal run to the outer wall ange must not exceed
6.5 feet.
EXAMPLE B:
If the vertical dimension from the oor of the unit is 6.5 feet,
the horizontal run to the outer wall ange must not exceed
14.5 feet.
SPECIAL NOTE: For each 45 degree elbow installed in
the horizontal run, the length of the horizontal run MUST
be reduced by 18" (457 mm). This does not apply if the 45
degree elbows are installed on the vertical part of the vent
system. Reduce 3' for every 90° elbow.
Example: According to the chart the maximum horizontal
vent length is 20' and if two 45 degree elbows are required
in the horizontal vent it must be reduced to 17'.
The maximum number of 45 degree elbows permitted per
side wall installation is two. These elbows can be installed
in either the vertical or horizontal run.
NOTICE: On vertical venting the rst elbow does not get counted.
Acceptable vertical and horizontal vent run.
(40' maximum vertical and 20' maximum horizontal)
Unacceptable vertical and horizontal vent run.
Figure 22
Venting Graph (Dimensions in Feet)
VENTING FIREPLACE - TOP

31629-20-0320 Page 19
VENTING FIREPLACE - TOP (CONT’D)
Below Grade Installation
When it is not possible to meet the required vent terminal clearances
of 12” (305 mm) above grade level, a snorkel kit is recommended.
It allows installation depth down to 7” (178 mm) below grade level.
The 7” (178 mm) is measured from the center of the horizontal vent
pipe as it penetrates through the wall.
Ensure the sidewall venting clearances are observed. If venting
system is installed below ground, we recommend a window
well with adequate and proper drainage to be installed around
the termination area.
TYPICAL BASEMENT INSTALLATION
Figure 23
Examples of possible venting systems using one 90° elbow. Eight
feet is listed as minimum vertical vent run with 20 feet of maximum
horizontal vent run. Vertical dimensions are based on centerline to
centerline of pipe. Horizontal dimensions are based on centerline
of pipe to end of termination.
Figure 24
Examples of possible venting systems using two 90° elbows.
V is listed as minimum vertical dimensions and H1 + H2 is listed
as total of maximum horizontal dimensions. The maximum vertical
and horizontal distances for two 90° elbows as shown in Figure 25
is 20 feet (6.1 m).
Attention: Refer to Figure 22 for additional venting requirements.
Figure 25

31629-20-0320Page 20
VENTING FIREPLACE - TOP (CONT’D)
Cutting the Hole
After the replace has been positioned in its permanent location,
the hole through the exterior wall of the house can be cut. This hole
must be 11" (280mm) high x 10" (254mm) wide with its center line
determined by the amount of vertical rise and horizontal run of the
termination. See Figure 26. When locating the hole it must be noted
that the bottom of the cap must be 12" (305mm) above the ground
level, and top of the cap must be no less than 18" (457mm) below a
combustible projection, and no closer than 9" (229mm) to any wall
running parallel to vent termination. See Figure 27.
Figure 27
Figure 28
FIREPLACE
SERIES
HARD ELBOW DIMENSIONS
"A" "B" "C" "D"
DVD32FP 41-1/2"
(1054 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD36FP 41-1/2"
(1054 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD42FP 43-1/2"
(1105 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD48FP 43-1/2"
(1105 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
FIREPLACE
SERIES
FLEX PIPE 90 DEGREE BEND
"A" "B" "C" "D"
DVD32FP 43"
(1092 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD36FP 43"
(1092 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD42FP 45"
(1143 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD48FP 45"
(1143 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
MINIMUM HOLE LOCATION DIMENSIONS FOR THROUGH
THE WALL HORIZONTAL INSTALLATIONS WITH 90 DEGREE
ELBOW OFF TOP OF FIREPLACE
SEE FIGURE 22 ON PAGE 18 FOR PERMISSIBLE “H” AND
“V” DIMENSIONS.
Figure 26
Positioning the Fireplace
Determine the exact position of the appliance so the direct vent
termination will be centered (if possible) between two studs. This
will avoid any extra framing. All vent kit pipes should be assembled
on the unit after the unit is moved into the nal position.
