INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by state or local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer’s
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
LUXURY DIRECT VENT
GAS FIREPLACE
MULTI-FUNCTION REMOTE SERIES
Contemporary
DVLT(36,42)FP92(N,P)-2
DVTT36FP92(N,P)-2
Traditional
DVTT42FP92(N,P)-3
UL FILE NO. MH45034
GAS-FIRED
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be per-
formed by a qualied installer, service
agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Page 1

34829-1-0115Page 2
BEFORE YOU START
1. Read the safety information on Pages 56 - 57.
2. If located in the Commonwealth of Massachusetts, please note the special requirements on page 58.

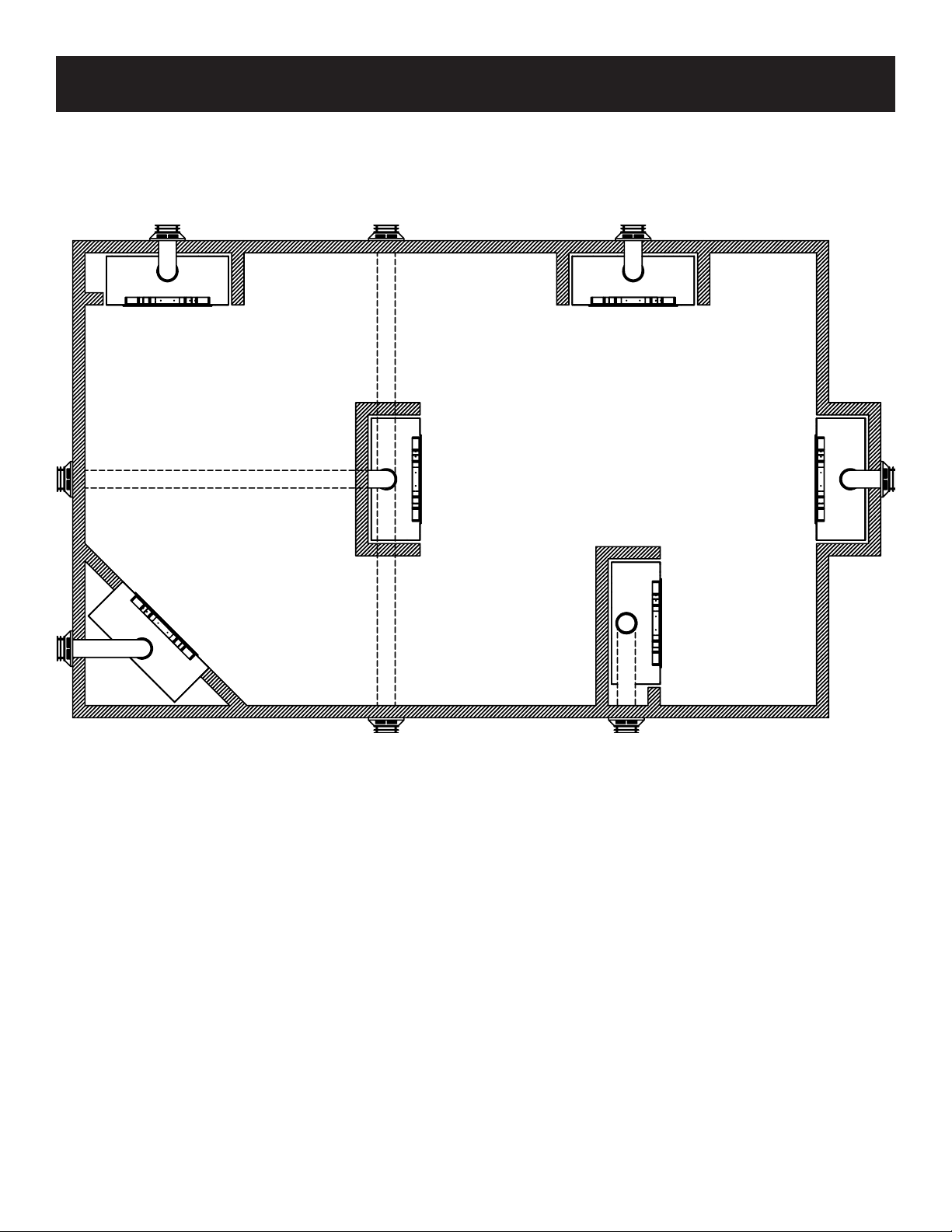

3. Where are you going to install the unit? See page 9.
4. Frame the opening. See page 10.
5. Install the gas lines. See page 8.
6. Install the wiring. See page 42.

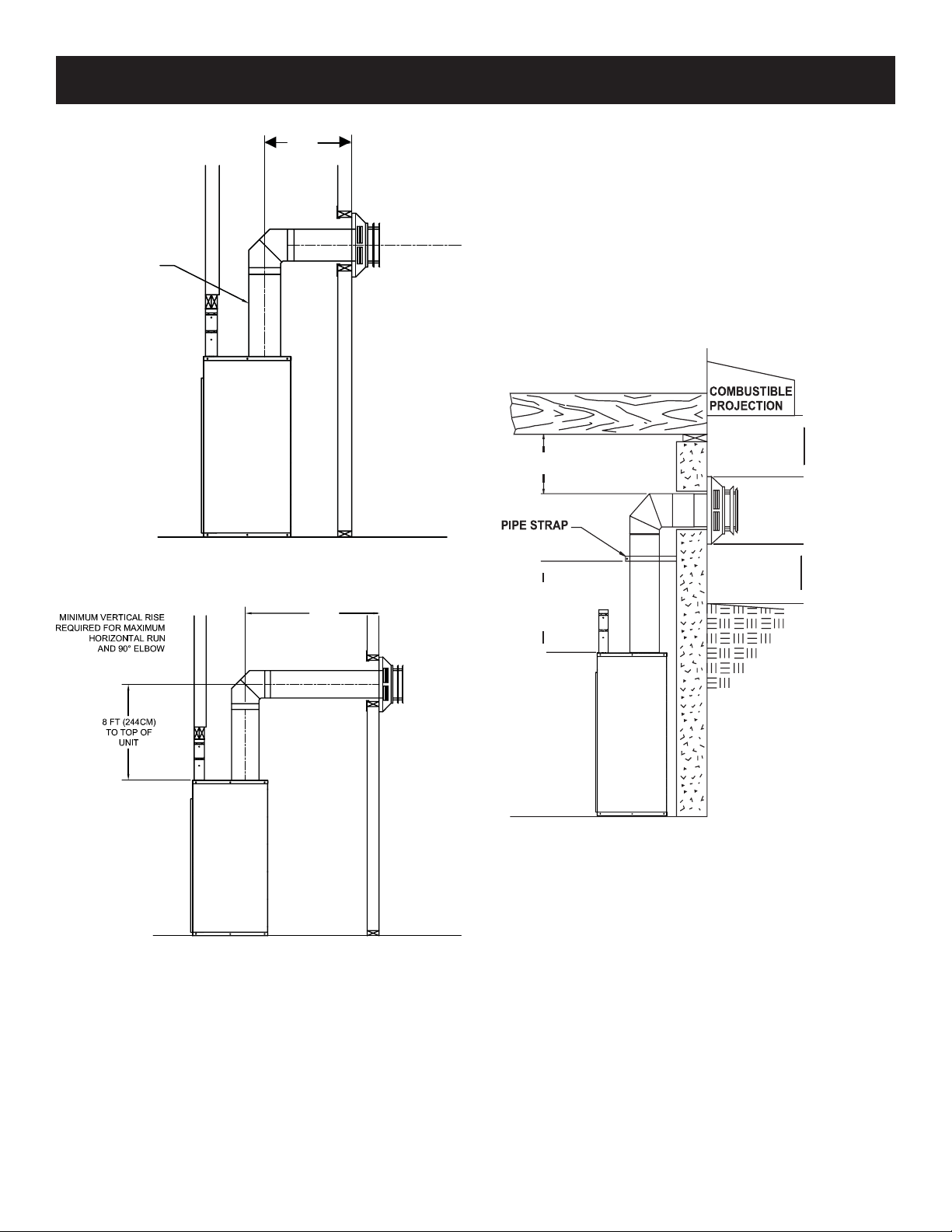

7. Install the venting. See pages 14 - 19.
8. Installthereplace.Seepages10-13.
9. Install the logs. See page 29 - 37.
10. Lightthereplaceandtroubleshoot.Seepages39&41.
11. Showthehomeownerhowtooperatethereplace.
12. Showthehomeownerhowtodothebasicmaintenance.

34829-1-0115 Page 3
TABLE OF CONTENTS
INTRODUCTION ........................................................................................................................... 4
SPECIFICATIONS ......................................................................................................................... 5
FIREPLACE DIMENSIONS ........................................................................................................... 6
CLEARANCES .............................................................................................................................. 7
GAS SUPPLY ................................................................................................................................ 8
LOCATING FIREPLACE................................................................................................................ 9
INSTALLATION.....................................................................................................................10 - 13
VENTING FIREPLACE.........................................................................................................14 - 17
EXAMPLES - VENT RUN.....................................................................................................18 - 19
TERMINATION CLEARANCES................................................................................................... 20
VENT TERMINATION CLEARANCES ........................................................................................ 21
VENT SYSTEM IDENTIFICATION .............................................................................................. 22
VENTING FRAMING AND FINISHING.................................................................................23 - 25
HORIZONTAL TERMINATION..................................................................................................... 26
VERTICAL TERMINATION ...................................................................................................27 - 28
DVTT36 LOG IDENTIFICATION.................................................................................................. 29
DVTT36 LOG PLACEMENT.................................................................................................30 - 32
DVTT42 LOG IDENTIFICATION.................................................................................................. 33
DVTT42 LOG PLACEMENT.................................................................................................34 - 37
DVLT36 AND DVLT42 GLASS MEDIA INSTALLATION .............................................................. 37
BARRIER INSTALLATION........................................................................................................... 38
MULTIFUNCTION REMOTE LIGHTING INSTRUCTIONS ......................................................... 39
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS ..............................................40 - 41
MULTIFUNCTION REMOTE WIRING DIAGRAM ....................................................................... 42
PREMIUM MULTIFUNCTION REMOTE OPERATION INSTRUCTIONS ............................43 - 45
MAINTENANCE AND SERVICE ..........................................................................................46 - 47
ACCESSORIES........................................................................................................................... 47
DVLT(36,42)FP92 REPLACEMENT PARTS LIST....................................................................... 48
DVLT(36,42)FP92 EXPLODED VIEW ......................................................................................... 49
DVTT(36,42)FP92 REPLACEMENT PARTS LIST ...................................................................... 50
DVTT(36,42)FP92 EXPLODED VIEW......................................................................................... 51
MASTER PARTS DISTRIBUTOR LIST ....................................................................................... 52
HOW TO ORDER REPAIR PARTS ............................................................................................. 52
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS...................................................... 53
ACCENT LAMP LIGHT REPLACEMENT.............................................................................53 - 54
WARRANTY TERMS ................................................................................................................... 55
IMPORTANT SAFETY INFORMATION ....................................................................................... 56
SAFETY INFORMATION FOR USERS OF LP-GAS................................................................... 57
REQUIREMENTS FOR MASSACHUSETTS .............................................................................. 58
APPLIANCE SERVICE HISTORY ............................................................................................... 59
SECTION PAGE

34829-1-0115Page 4
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycardsupplied
withthereplace.
3. Installer should show owner how to start and operate the
replace.
Thisdirect ventgasreplace heaterisdesigned tooperatewith
allcombustionairbeingsiphonedfromtheoutsideofthebuilding
andallexhaustgasesexpelledtotheoutsideofthebuilding.The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
WARNING
This unit is not for use with solid fuels.
Appliance Certication
This replace is design certied in accordance with American
NationalStandard/CSAStandardANSIZ21.50/CSA2.22andby
UnderwritersLaboratoriesasaDirectVentGasFireplaceandshall
beinstalledaccordingtotheseinstructions.
Consultyourlocalbuildingcodeagency,priortoinstallation,toensure
compliance with local codes-including permits and inspections.
The replace, when installed, must be electrically grounded in
accordancewithlocalcodesor,inabsenceoflocalcodes,withthe
National Electric Code ANSI/NFPA 70 or Canadian Electric code,
CSA C22.1, if an external electrical source is utilized.
Thesemodelsmaybeinstalledinabedroomorbed-sittingroom
in the U.S.A. and Canada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm“qualiedagency”
meansanyindividual,rm,corporationorcompanywhicheitherin
personorthrougharepresentativeisengagedinandisresponsiblefor
(a)theinstallationorreplacementofgaspipingor(b)theconnection,
installation, repair or servicing of equipment, who is experienced in
such work, familiar with all precautions required and has complied
with all the requirements of the authority having jurisdiction.
StateofMassachusetts:Theinstallationmustbemadeby
alicensedplumberorgastterintheCommonwealthof
Massachusetts.
Theinstallationmustconformwithlocalcodesor,intheabsenceof
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1 in
Canada. *Available from the American National Standards Institute,
Inc. 11 West 42nd St., New York, N.Y. 10036.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
Improperinstallationoruseofthereplacecancauseserious
injuryordeathfromre,burns,explosions,orcarbonmonoxide
poisoning.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
AllcorrespondenceshouldrefertocompleteModelNumber,Serial
Numberandtypeofgas.
High Altitude
Wheninstallingthisunitatanelevation above 2000 feet (in the
UnitedStates)itmaybenecessarytodecreasetheinputratingby
changingtheexisting burner orice to a smallersize.Generally,
inputshouldbereduced4percentforeach1000feetabovesea
level.However,iftheheatingvalueofthegashasbeenreduced,
this general rule may not apply. Check with local gas utility for proper
oricesizeidentication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
Wheninstallingthisunitatanelevationabove4500feet(inCanada),
check with local authorities.
Consult your local gas utility for assistance in determining the proper
oriceforlocation.
Preparation
Thisdirectventgasreplaceanditscomponentsaretestedand
safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
check glass condition. Do not install unit with damaged, incomplete,
orsubstituteparts.Readallinstructionsbeforestartinginstallation
and follow these instructions carefully during installation to insure
maximumbenetandsafety.Failuretofollowthemwillvoidyour
warrantyandmaypresentarehazard.
Thewarrantywillbevoidedby, andthewarranterdisclaimsany
responsibilityforthefollowingactions:
• Installation of any damaged fireplace or vent system
component.
• Modicationofthereplaceordirectventsystem.
• InstallationotherthanasinstructedbyEmpireComfortSystems,
Inc.
• Improperpositioningofthelogs,glassdoorordecorativerock.
• Installationand/oruseofanycomponentpartnotmanufactured
orapprovedbymanufacturer.
INTRODUCTION

34829-1-0115 Page 5
Notice: Airshuttersettingsarefactoryminimumsettings.Someventingcongurationsmayrequireminorairshutteradjustmentsfor
optimum performance.
SPECIFICATIONS
DVLT36 NAT
DVTT36 NAT
DVLT36 LP
DVTT36 LP
DVLT42 NAT
DVTT42NAT
DVLT42 LP
DVTT42LP
Input Btu/hr Maximum 40,000 40,000 50,000 50,000
Input Btu/hr Minimum 23,000 23,000 25,000 26,500
KWH (Maximum) 11.7 11.7 14.70 14.7
KWH (Minimum) 6.7 6.7 7.3 7.8
Orice-Front #43 1.35 mm #39 #53
Orice-Rear #43 #55 #39 #53
Air Shutter Opening - Front DVLT36 - 1/8"
DVTT36 - 3/8"
DVLT36 - 1/4"
DVTT36 - Wide Open
DVLT42 - 1/8"
DVTT42 - 3/8"
DVLT42 - Wide Open
DVTT42 - Wide Open
Air Shutter Opening - Rear DVLT36 - 1/8"
DVTT36 - 3/8"
DVLT36 - 3/8"
DVTT36 - Wide Open
DVLT42 - 1/8"
DVTT42 - 3/8"
DVLT42 - 3/8"
DVTT42 - Wide Open
Height without standoff 39-1/4" (997mm) 39-1/4" (997mm) 45-1/4" (1,149mm) 45-1/4" (1,149mm)
Width 55" (1,397mm) 55" (1,397mm) 61" (1,549mm) 61" (1,549mm)
Depth 22" (559mm) 22" (559mm) 22" (559mm) 22" (559mm)
Gas Inlet Shutoff Valve
(Pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT

34829-1-0115Page 6
FIREPLACE DIMENSIONS
P
C
J
E
A
I
B
H
D
A
TOP VIEW
FRONT VIEW
SIDE VIEW
F
K
L
MQ
R
O
N
INDEX
LETTER DIMENSION DESCRIPTION DVTT36 & DVLT36 DVTT42 & DVLT42
Dimensions in Inches
AThemaximumheightofreboxface(excludingstandoffs) 39-5/16 45-5/16
BThemaximumwidthofthereboxface(excludingnailinganges) 55 61
CThemaximumdepthoftherebox 22 22
DTheheightofthereboxopening 32-/8 38-7/8
EThewidthofthereboxopening 39-7/8 45-7/8
FTheinteriordepthoftherebox(notshown) 18-7/8 18-7/8
HTheheighttothereboxstandoffs 51-5/16 57-5/16
IWidthfromtheleftsideoftheboxtothecenterlineofvent 27-1/2 30-1/2
JDepthfrombackofboxtocenterlineoftopvent 6-7/8 6-7/8
KHeightfromthebottomoftheboxtothegaslineopening 15-1/8 15-1/8
LDepthfromthefrontoftheboxtogaslineopening 5 5
MDepthfromrearofboxtogaslineopening 17 17
N Glass height 31-1/8 37-1/8
O Glass width 37 43
PDepthfromfrontofboxtocenterlineofvent 15-3/16 15-3/16
QDistancefromoortoreplaceopening 2 2
RHeightfromoortoventcollar 38-3/4 44-3/4
N/A-Notapplicableforthisunit.

34829-1-0115 Page 7

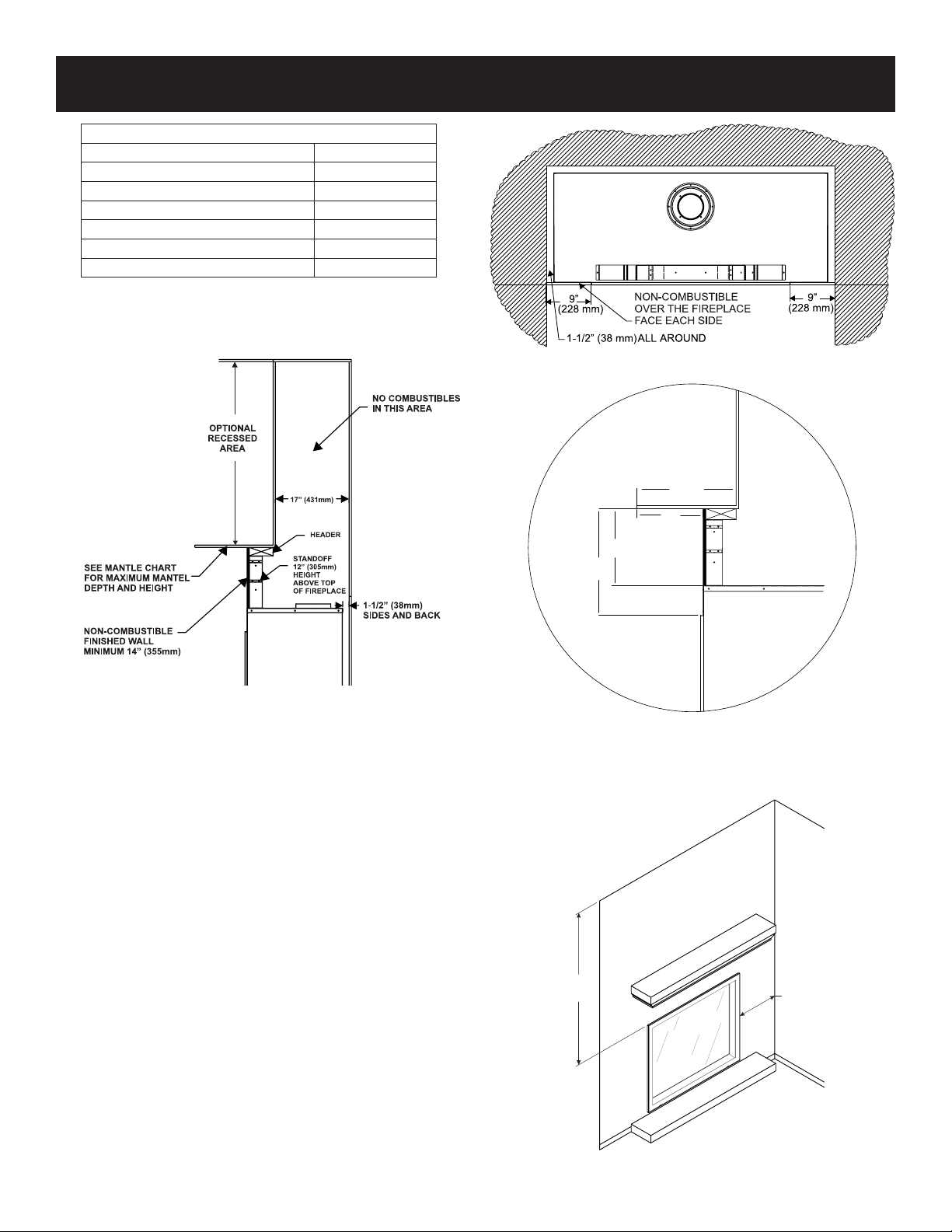

Figure 2
Mantel Chart
TOP EDGE OF FIREPLACE
TOP OF FIREPLACE OPENING
14”
(355 mm)
* 19-3/8”
(492 mm)
12”
(304 mm)
▲►
MANTEL
▲
▼
◄
▼
* IMPORTANT NOTE:
NO COMBUSTIBLES MAY BE PLACED IN THE
AREA BETWEEN THE TOP OF THE FIREPLACE
OPENING TO THE MANTLE
17-1/2”
(444.5mm)
◄ ◄
Figure 3
Ceiling Height and Side Wall Clearances
Minimum ceiling height is 96" (2438 mm)
Clearancefromsideofreplacetoadjacentsidewallis6"(152mm).
15”
(381mm)
56”
(1422mm)
MIN.
Figure 4
CLEARANCES
ClearancetoCombustibles
Back 1-1/2" (38 mm)
Side 1-1/2" (38 mm)
Floor 0" (0 mm)
Top Stand-off 12" (305 mm)
Top Framing Edge 12" (305 mm)
Minimum Height Floor To Ceiling 96" (2439mm)
Vertical Venting 1" (25.4 mm)
Optional Recessed Area
If a recess is desired, a 5-1/2" (127mm) deep (face of nishing
materialtobackofpocket)maybeframed.Use3/4"(19mm)wood
or steel framing. See Figure 1.
Figure 1
Television Considerations
Installingatelevision above a replace has become adesirable
feature;however,thefollowinginformationshouldbeconsidered.
All replaces, whether decorative or heater rated create heat.
Most television manufacturers recommend not placing a television
near a heat source. Because there is a large variety of television
manufactures, styles and sizes, it is impractical to test every potential
installation.Ifyouchoosetoinstallatelevisionaboveornearyour
replace, understand that Empire Comfort Systems accepts no
responsibilityforthisdecisionandanyinjuryordamageduetothis
applicationisthesoleresponsibilityoftheowner.Additionally,itis
highlyrecommendedtoturnoffthereplaceandletitcooldown
before servicing or using the operational buttons located on the
television. In all cases, the television manufacturer’s instructions
andwarningsshouldbefollowed.
Combustible Material
No greeting cards, stockings or ornamentation of any type should
beplacedonorattachedtothereplace.Theowofheatcanignite
combustibles.SeeFigure3.

34829-1-0115Page 8
GAS SUPPLY
The gas pipeline can be brought in through the left side of the
appliance. Consult the current National Fuel Gas Code,ANSI Z223.1
CAN/CGA-B149 (.1 or .2) installation code.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10ft
0-3m
1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40ft
4-12m
1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100ft
13-30m
1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150ft
31-46m
3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
Notice:Neveruseplasticpipe.Checktoconrmwhetheryourlocal
codesallowcoppertubingorgalvanized.
Notice:Since some municipalities have additional local codes, it
isalwaysbesttoconsultyourlocalauthorityandinstallationcode.
The use of the following gas connectors is recommended:
— ANSIZ21.24ApplianceConnectorsofCorrugatedMetalTubing
and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
Theaboveconnectorsmaybeusedifacceptablebytheauthority
having jurisdiction. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
▲
►
▼
◄
◄
Figure 5
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 5.0" 7.0" *14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0"
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
Amanualmaingascockshouldbelocatedinthevicinityoftheunit.
Where none exists, or where its size or location is not adequate,
contact your local authorized installer for installation or relocation.
Compoundsusedonthreadedjointsofgaspipingshallberesistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checkedforleaksbytheinstaller.Thisshouldbedonewithasoap
solutionwatchingforbubblesonallexposedconnections,andif
unexposed,apressuretestshouldbemade.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
Notice:The gas controls are equipped with a captured screw type
pressure test point, therefore it is not necessary to provide a 1/8"
test point up stream of the control.
Whenusingcopperorexconnectoruseonlyapprovedttings.
Theapplianceandit’sindividualshutoffvalvemustbedisconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
Theappliancemustbeisolatedfromthegassupplypipingsystem
byclosingitsindividualmanualshutoffvalveduringanypressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess of
1/2psig(14"w.c.)(3.5kPa)onthereplacegasvalve,itwillresult
in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 5.0" w.c.
(1.245kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8" w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa).
5”
(127mm)
DV(LT/TT)
36 and 42
14-1/4”
(361mm)
FRONT OF APPLIANCE TO
GAS LINE HOLE
▲
►
▼
◄
Figure 6

34829-1-0115 Page 9
Figure 7
Notice: IslandandRoomDividerinstallationispossibleaslong
as the horizontal portion of the vent system does not exceed 20
feet (6,096mm) with a minimum vertical run of 8 feet (2,438mm).
See details in Venting Section. See Figure 7.
CORNER INSTALLATION
ANGLED CORNER
INSTALLATION
ISLAND
INSTALLATION
ROOM DIVIDER
INSTALLATION
FLUSH WALL
INSTALLATION
CABINET
INSTALLATION
LOCATING FIREPLACE

34829-1-0115Page 10
INSTALLATION

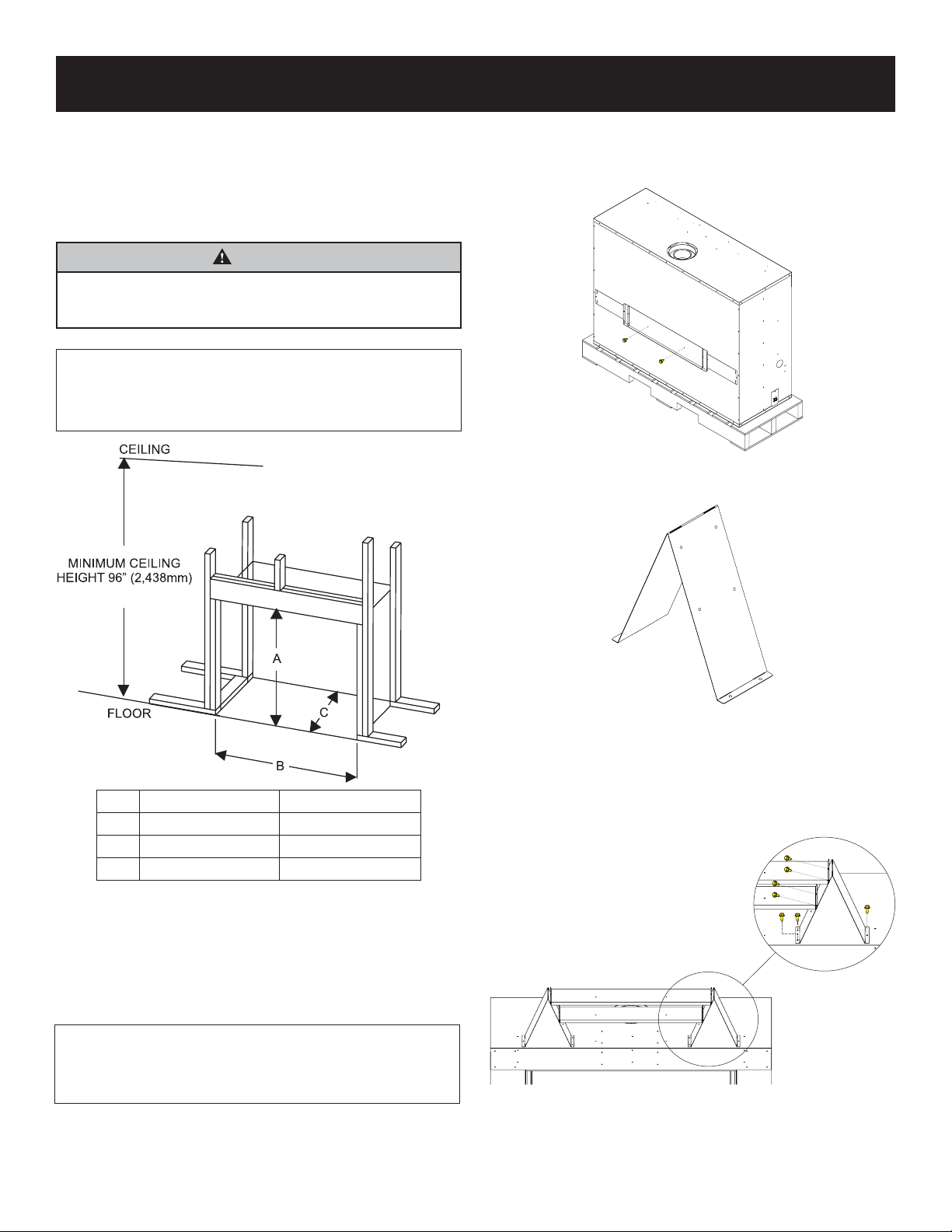

Framing
Fireplaceframingcanbebuiltbeforeorafterthereplaceis set
in place. Framing should be positioned to accommodate wall
coveringandreplacefacingmaterial.Thereplaceframingshould
beconstructed of 2x4 lumber orheavier.Theframing headers
mayrestonthereplacestandoffs.RefertoFigure8forminimum
framing dimensions.
CAUTION
MEASURE FIREPLACE DIMENSIONSAND VERIFY FRAMING
METHODS, AND WALL COVERING DETAILS BEFORE
FRAMING CONSTRUCTION BEGINS.
Framing dimension "A" includes a 12" (304 mm) clearance
for standoffs on rebox. After installing rebox into framing,
the nished wall surface must cover the 12" (304mm)
opening above the rebox. Board provided with replace.
DVLT/DVTT36 DVLT/DVTT42
A 51-1/2" (1,308mm) 57-1/2" (1,460mm)
B 58" (1,473mm) 64" (1,625mm)
C 23-1/2" (597mm) 23-1/2" (597mm)
Figure 8
Attention: If a base or mantel is not used and the appliance is
installed directly on carpeting, tile or other combustible material
otherthanwoodooring,itshallbeinstalledonametalorwood
panel extending the full width and depth of the appliance. The
verticaldimensioninFigure8mustbeadjustedwhenametalor
woodpanelisplacedbeneaththeappliance.
Attention: Cold climate installation recommendation:
When installing this unit against a non-insulated exterior
wall, it is recommended that the outer walls be insulated to
conform to applicable insulation codes.
Firebox Standoff Installation
1. Removethetwo#10x1/2"screws,twosupportbracesand
twostandoffsfromreboxrearasshowninFigure9.Donot
discard any of the hardware.
Figure 9
2. Bend the standoffs as shown in Figure 10.
Figure 10
3. Use the two #10 x 1/2" screws removed in Step 1 and four
#10 x 1/2" screws provided in the hardware package to secure
thestandoffstothereboxtop(3eachside.See Figure 11.
4. Secure the short and long supports to the standoffs using eight
10 x 1/2" screws (4 each support, 2 each side). See Figure 11.
Figure 11

34829-1-0115 Page 11
INSTALLATION (continued)

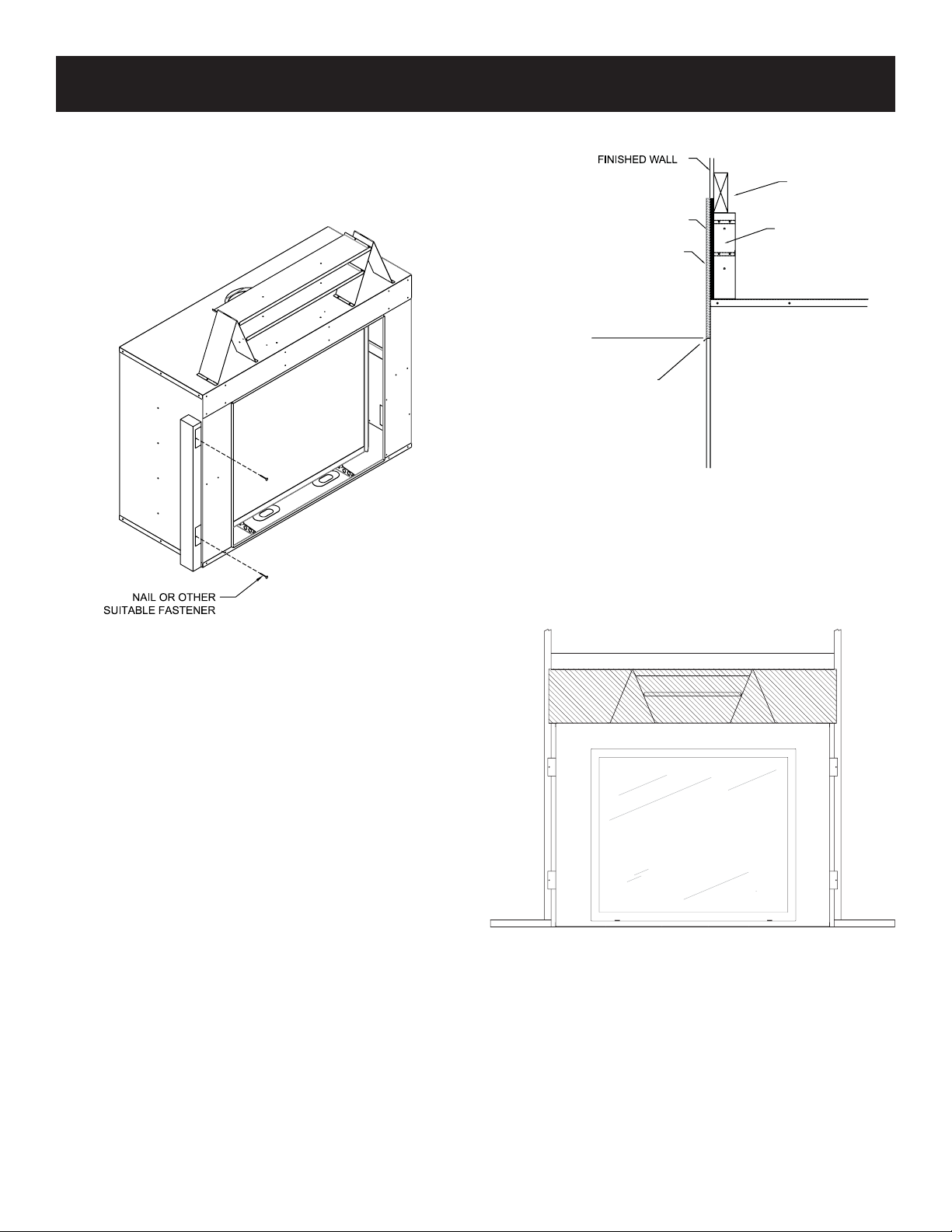

Flush Mount Installation
Thereplacemustextend3/4”(19mm)beyondnishedwallsurface
whenusingaushmount.RefertoFigure12tolocatenailinganges
onreplacesides.Markanddrilltwo1/8”holesintoreplacesideto
mounteachnailingange.Useeight1/2”hex-headscrewssupplied
inhardwarepackagetoattachnailingangestoreplacesides.
▲
Figure 12
Flush Wall Installation
1/2” (12 mm) NON- COMBUSTIBLE
NON- COMBUSTIBLE FINISHED W
ALL
ALL FIREPLACE METAL MUST BE
COVERED WITH NON-COMBUSTIBLE
MATERIAL ONLY
TOP OF FIREPLACE OPENING
IMPORTANT: NO FINISHING
MATERIAL OF ANY TYPE MAY
EVER OVERLAP THE OPENING
OF THE SIDES OR TOP.
GLASS WILL NOT FIT
IF IT DOES.
STANDOFF
2 X 4 OR 2 X 6
SHOWN VERTICAL
MAY BE HORIZONTAL
AND/OR DOUBLED UP
◄
▼
◄
◄
▼
▼
Figure 13
Framing and Finishing
1. Choose unit location.
2. Frameinreplacewithaheaderacrossthetop.Itisimportant
toallowfornishedfacewhensettingthedepthoftheframe.
3. Attachreplacetoframe.See Figure 14.
Figure 14

34829-1-0115Page 12
INSTALLATION (continued)
Vent Pipe Clearance
Note: Maintain one inch of clearance around vertical vent pipe (after
therst96”framing).See Figure 15.
▼
▲
Figure 15
Forhorizontalvent,maintainaminimum1”clearancetothebottom
andsidesofthevent,and3”clearancetocombustiblesabovethe
vent pipe. See Figure 16.
▲
►
▼
◄
▼
▲
◄
▼
Figure 16
Combustible Surround Installation
▲
▲
▲
▲
▲
▲
▲
14”OF NON-COMUBSTIBLE
MATERIALSUPPLIED WITH
THE FIREPLACE
1/2” LIP AT TOPOF
FIREPLACE OPENING
NON-COMBUSTIBLE
MATERIAL
STANDOFFS
2 X 4 HEADERS
FINISH WALL
COMBUSTIBLE
SURROUND
Figure 17
Finishing
Finish the walls with the material of your choice. Figure 3 on page 7
shows the minimum vertical and corresponding maximum horizontal
dimensionsofmantelsorothercombustibleprojectionsabovethe
topfrontedgeofthereplace.
Onlynon-combustiblematerialsmaybeusedtocoverthemetal
replaceface.SeeFigure2,Page7.
WARNING
Ifthejointsbetweenthenishedwallandthereplacesurround
(top and sides) are sealed, a 300°F minimum sealant material
mustbeused.Thesejointsarenotrequiredtobesealed.Only
non-combustible material (using 300°F minimum adhesive if
needed),canbeappliedasfacingtothereplacesurround.
Vent Runs
Inplanningtheinstallationforthereplace,itisnecessarytoinstall
certaincomponentsbeforetheapplianceiscompletelypositioned
and installed. These include the direct vent system, gas piping for
the appliance and the electrical wiring.
Theappliancecanbemountedonanyofthefollowingsurfaces:
1. Aat,hardcombustiblesurface.
2. A raised wooden platform.
3. Sixsupports.(Example:Sixconcretemasonryblocks.)These
supportsmustbepositionedsotheycontactallfourperimeter
edgesonthebottomoftheunitandunderthecenterlegsupports,
ifallowedbycode.
VERTICAL, 90° ELBOW WITH HORIZONTAL TERMINATION
80-1/4” (2038 mm) DV(L
T,TT) 42
62-1/4” (1581 mm) DV(L
T,TT) 36
MINIMUM FROM BOTTOM
OF FIREPLACE
◄
3” (76 mm)
MINIMUM
CLEARANCE TO
COMBUSTIBLES
▲
▼
▲
▼
◄
VENT CAP/
THIMBLE
WALL FIRESTOP
Figure 18

34829-1-0115 Page 13
INSTALLATION (continued)
VERTICAL, 90° ELBOW TO
HORIZONTAL OUT THE WALL
►
▼
◄►◄
▲
▲
►
◄
A
A B C
6 INCH 11-3/4" TO 12-3/4"
(298mm TO 323mm)
4-3/4" TO 6-1/4"
(121mm TO 159mm)
9 INCH 14-1/4" TO 15-3/4"
(362mm TO 400mm)
7-3/4" TO 9-1/4"
(197mm TO 235mm)
12 INCH 17-1/4" TO 18-3/4"
(438mm TO 476mm)
10-3/4" TO 12-1/4"
(273mm TO 311mm)
Figure 19
CORNER INSTALLATION VERTICAL, 90° ELBOW TO
HORIZONTAL OUT THE WALL
▲
▼
◄
▼
▼
◄
◄
▼
▲
B
A
D
C
►
►
E
VENT CAP/
THIMBLE
WALL
FIRESTOP
DVLT/DVTT36 DVLT/DVTT42
A72-11/16"
(1853 mm)
77-1/4"
(1962 mm)
B51-9/16"
(1310 mm)
54-5/8"
(1387 mm)
C25-11/16"
(652 mm)
27-7/8"
(708 mm)
D103-1/8"
(2620 mm)
109-1/4"
(2775 mm)
E19-11/16"
(500 mm)
21-7/8"
(555 mm)
Figure 20
Corner installation may require more vertical than just the
minimum required depending on wall thickness and horizontal
dimension.
IMPORTANT:
MINIMUM HEIGHT OFF THE TOP REQUIREMENTS
DVLT36FP&DVTT36FP-MUSTUSEa1FT(305mm)vent
pipeastherstsectionBEFOREinstallingtheelbow.
DVLT42FP&DVTT42FP-MUSTUSEa2FT(610mm)vent
pipeastherstsectionBEFOREinstallingtheelbow.

34829-1-0115Page 14
 Acceptableverticalandhorizontalventrun.
(40' maximum vertical and 20' maximum horizontal)
 Unacceptableverticalandhorizontalventrun.
EXAMPLE A:
If the vertical dimension from the top of the unit is 35', the horizontal
runtotheouterwallangemustnotexceed5'.
EXAMPLE B:
DV(LT,TT)36: If the vertical dimension from the top of the unit is
4.5',thehorizontalruntotheouterwallangemustnotexceed11'.
DV(LT,TT)42: If the vertical dimension from the top of the unit is
5',thehorizontalruntotheouterwallangemustnotexceed11'.
VENTING FIREPLACE
To Use the Vent Graph
1. Determine the height of the center of the horizontal vent pipe. Using this dimension on the Sidewall Vent Graph, locate the point it
intersects with the slanted graph line.
2. Fromthepointofthisintersection,drawaverticallinetothebottomofthegraph.
3. Select the indicated dimension, and position the unit in accordance with same.
Special Note: Foreach45degreeelbowinstalledinthehorizontal
run,thelengthofthehorizontalrunMUSTbereducedby18"(45cm).
Thisdoesnotapplyifthe45degreeelbowsareinstalledonthe
verticalpartoftheventsystem.Reduce3'forevery90°elbow.
Example:According to the chart the maximum horizontal vent length
is20'andiftwo45degreeelbowsarerequiredinthehorizontal
ventitmustbereducedto17'.
Themaximumnumberof45degreeelbowspermittedpersidewall
installationistwo(2).Theseelbowscanbeinstalledineitherthe
vertical or horizontal run.
NOTE:Therstelbowdoesnotgetcounted.
Figure 21 (DVLT36 and DVTT36) Figure 22 (DVLT42 and DVTT42)

34829-1-0115 Page 15
VENTING FIREPLACE
Maximum horizontal run for a minimum vertical rise
▼
20”
(508mm)
MAXIMUM HORIZONT
AL RUN
WITH MINIMUM VER
TICAL
RISE
AND 90 ELBOW
o
12” SECTION
(DV(LT,TT)36)
24” SECTION
(DV(LT,TT)42)
Figure 23
Minimum vertical rise for maximum horizontal run
19’- 5”
(5.9M)
▲
►
▼
◄
Figure 24
Below Grade Installation
Whenitisnotpossibletomeettherequiredventterminalclearances
of12"(305mm)abovegradelevel,asnorkelkitisrecommended.
Itallowsinstallationdepthdownto7"(178mm)belowgradelevel.
The 7" (178mm) is measured from the center of the horizontal vent
pipe as it penetrates through the wall.
Ensure the sidewall venting clearances are observed. If venting
system is installed below ground, we recommend a window
well with adequate and proper drainage to be installed around
the termination area.
Typical Basement Installation
►
▼
▼
▲
▲
3” (76 mm) MINIMUM
▲
▼
18”
(457 mm)
MINIMUM
▲
▼
12”
(305 mm)
ABOVE
GRADE
48”
(1219 mm)
Figure 25

34829-1-0115Page 16
Examples of possible venting systems using one 90° elbow
Eight feet is listed as minimum vertical vent run with a maximum
of20 feet horizontal vent run.Vertical dimensions are basedon
centerlinetocenterlineofpipe.Horizontaldimensionsarebased
on centerline of pipe to end of termination.
▲
▼
▲
▲
▲
FIRESTOP AT
CEILING LEVEL
SEE GRAPH FOR PERMISSIBLE
“H” AND “V” DIMENSIONS
Figure 26
Attention: Refer to Figures 21 and 22 for additional venting
requirements.
VENTING FIREPLACE
Examples of possible venting systems using two 90° elbows
V is listed as minimum vertical dimensions and H1 + H2 is listed
as total of maximum horizontal dimensions. The maximum vertical
andhorizontaldistancesfortwo90°elbowsasshowninFigure
27 is 37 feet.
FIRESTOP AT
CEILING LEVEL
▲
▲
▲
▲
▲
▲
SEE GRAPH FOR PERMISSIBLE “H” AND “V” DIMENSIONS
NOTE: H1 AND H2 MUST BE ADDED TOGETHER TO USE GRAPH
▲
Figure 27

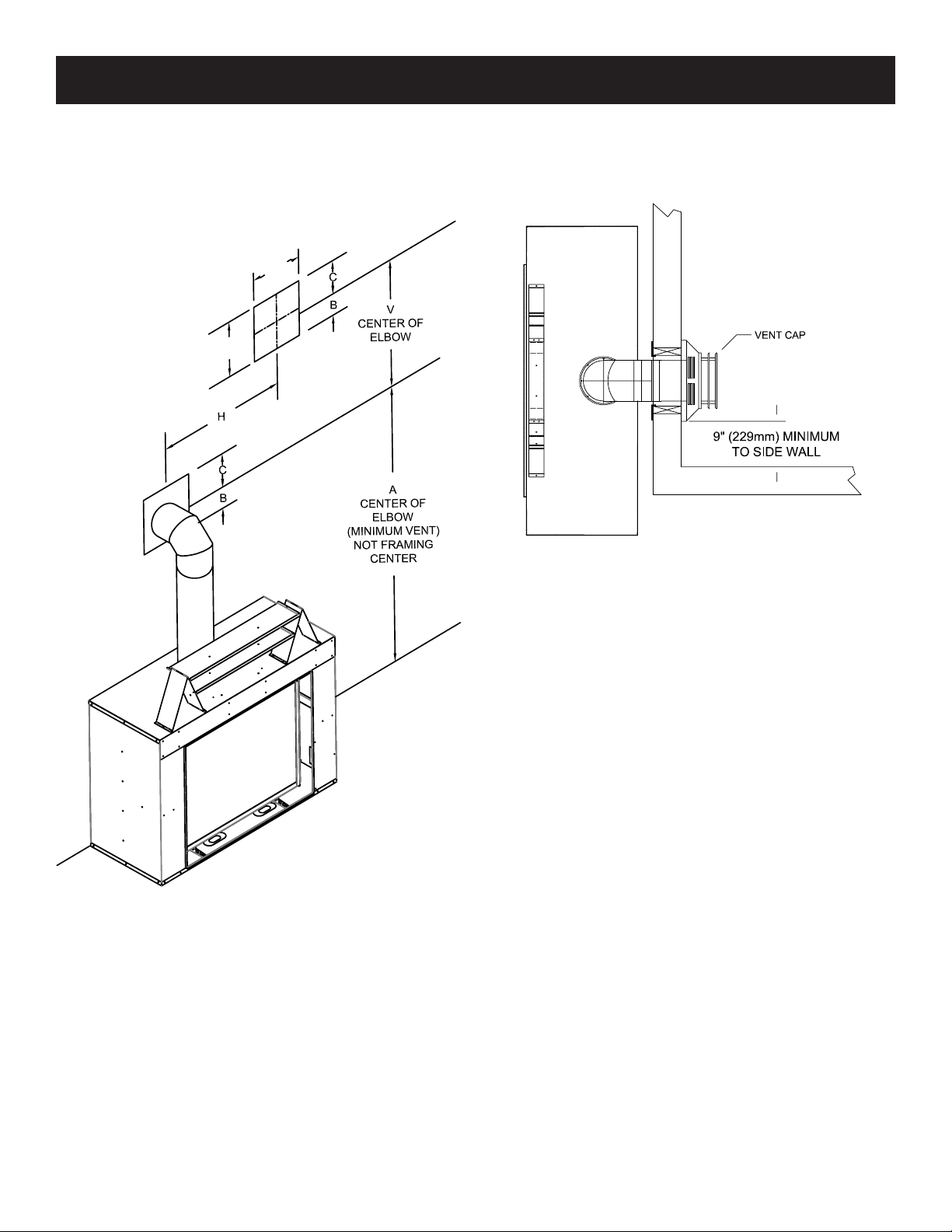

MINIMUM HOLE LOCATION DIMENSIONS FOR THROUGH
THE WALL HORIZONTAL INSTALLATIONS WITH 90 DEGREE
ELBOW OFF TOP OF FIREPLACE
Positioning the Fireplace
Determine the exact position of the appliance so the direct vent
terminationwillbecentered(ifpossible)betweentwostuds.This
willavoidanyextraframing.Allventkitpipesshouldbeassembled
ontheunitaftertheunitismovedintothenalposition.
FIREPLACE
SERIES
HARD ELBOW DIMENSIONS
A B C
DVLT/DVTT36 55-1/4"
(1403 mm)
5"
(127 mm)
7"
(178 mm)
DVLT/DVTT42 73-1/4"
(1861 mm)
5"
(127 mm)
7"
(178 mm)

34829-1-0115 Page 17
VENTING FIREPLACE
Cutting the Hole
Afterthereplacehasbeenpositionedinitspermanentlocation,
theholethroughtheexteriorwallofthehousecanbecut.Thishole
mustbe12"(305mm)highx10"(254mm)widewithitscenterline
determinedbytheamountofverticalriseandhorizontalrunofthe
termination. See Figure 28.
▲
►
▼
◄
▲
▲
▼
▲
▼
▲
▲
▼
◄
►
▲
▼
10-3/8”
(263.5mm)
12-3/8”
(314.3mm)
Figure 28
Whenlocatingtheholeitmustbenotedthatthebottomofthecap
mustbe12"(305mm)abovethegroundlevel,andtopofthecap
mustbenolessthan18"(457mm)belowacombustibleprojection,
and no closer than 9" (229mm) to any wall running parallel to vent
termination. See Figure 29.
▲
▼
◄
Figure 29

34829-1-0115Page 18

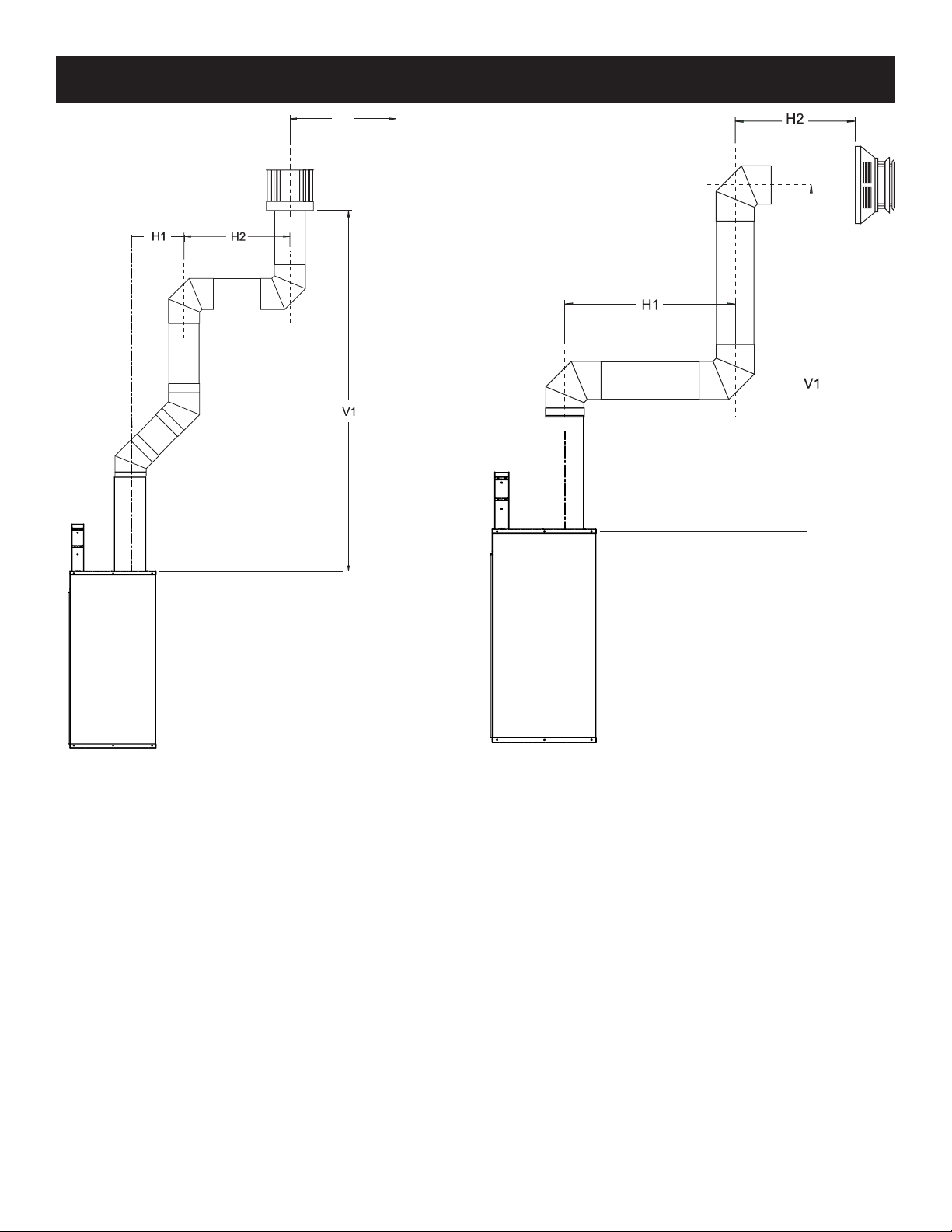

EXAMPLES - VENT RUN
24”MINIMUM
CLEARANCE TO
COMBUSTIBLES
24” ►
▲
◄
►
◄►
▼
◄
EXAMPLE
Iftotalhorizontalneedstobe8',thentheminimumrequired
vertical is 6'.
H=8' (45° + 90° + 90°) = 14' (equivalent horizontal)
From the graph the required vertical is 6'.
Figure 30 - (DV(LT,TT)42)
►
▼
◄
▲
◄►
EXAMPLE
Iftotalhorizontalneedstobe10',thentheminimumrequired
vertical is 6'.
H=10' (90° + 90°) = 16' (equivalent horizontal)
From the graph the required vertical is 7'.
Figure 31- (DV(LT,TT)42)

34829-1-0115 Page 19

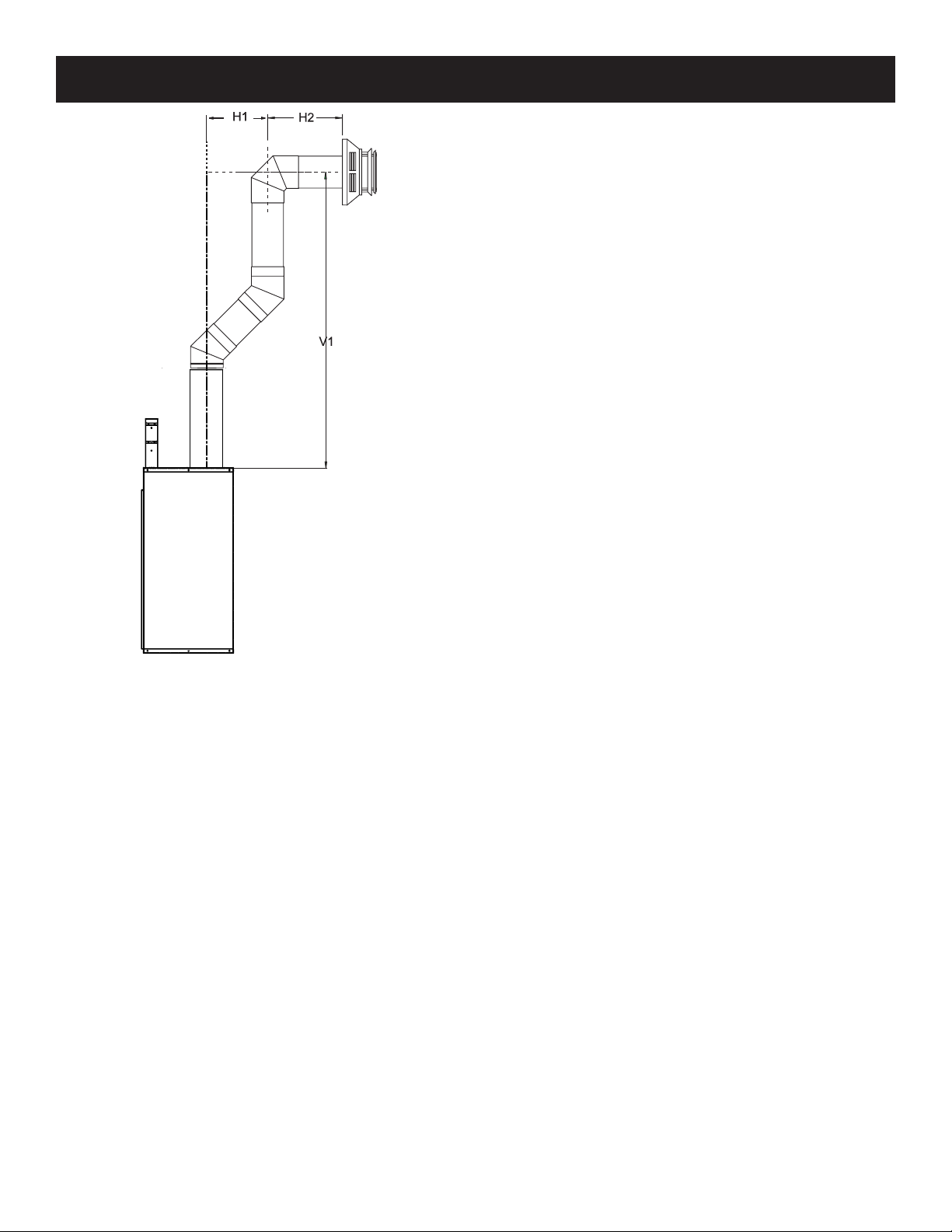

EXAMPLES - VENT RUN
►
▼
◄
▲
◄
►
EXAMPLE
Iftotalverticalistobe9',thenthemaximumrequiredhorizontal
runcanbe14'
H=20' - (45° + 45°) = 14' (equivalent horizontal)
From the graph the required vertical is 14'.
Figure 32 - (DV(LT,TT)42)

34829-1-0115Page 20
Terminationclearanceforbuildingswithcombustibleandnoncombustibleexteriors.
Figure 33
RECESSED LOCATION
OUTSIDECORNER
INSIDE CORNER
A=COMBUSTIBLE9” (229mm)
=NONCOMBUSTIBLE2” (51mm)
F=COMBUSTIBLE6” (152mm)
=NONCOMBUSTIBLE6” (152mm)
BALCONY
WITHPERPENDICULAR SIDE WALL
BALCONY
WITHNO SIDE WALL
C=CLEARANCE FROM CORNER
IN RECESSED LOCATION
COMBUSTIBLE 9” (229mm)
NONCOMBUSTIBLE 2” (51mm)
D=MINIMUM WIDTHFOR BACK WALL
OF ARECESSEDLOCATION
COMBUSTIBLE 38” (965mm)
NONCOMBUSTIBLE 24” (610mm)
E=MAXIMUM DEPTHOF 48” (1219mm)
FORRECESSED LOCATION
G =COMBUSTIBLE9” (229mm)
=NONCOMBUSTIBLE2” (51mm)
H=COMBUSTIBLE 18” (457mm)
=NONCOMBUSTIBLE 12” (305mm)
I=COMBUSTIBLE 18” (457mm)
=NONCOMBUSTIBLE 12” (305mm)
▼
◄
◄
◄
◄
◄
◄◄
◄
▼
▼
▼
►
▲
▲
▲
▲
►
TERMINATION CLEARANCES
Vertical Sidewall Installations
Important!Minimumclearancebetweenventpipesandcombustible
materials is 3 inch (76 mm) on top, and 1 inch(25mm)onbottom
and sides.
Important! When vent termination exits through foundation less
than20inch(508mm)belowsidingoutcrop,theventpipemust
extend outward so that the horizontal vent termination is located
ushto,orbeyondtheoutcropsiding.
Information on Various Venting Routes and Components
Important:Itisalwaysbesttolocatethereplaceinsuchaway
thatminimizesthenumberofoffsetsandhorizontalventlength.
Sinceitisveryimportantthattheventingsystemmaintainitsbalance
betweenthecombustionairintakeandtheuegasexhaust,certain
limitations as to vent congurations apply and must be strictly
adhered to.
Thegraphshowingtherelationshipbetweenverticalandhorizontal
side wall venting will help to determine the various vent lengths
allowable.
The horizontal vent run refers to the total length of vent pipe from
theuecollarofthereplacetothefaceoftheouterwall.
Ventingterminationshallnotberecessedintowallorsiding.
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This
doesnotincludevinyl.EmpireComfortSystemsInc.willnotbeheld
responsibleforheatdamagecausedfromterminatingundervinyl
overhangs,vinylceilingsorvinylventilated/unventilatedsofts.
