Page 1
DIRECT VENT
GAS FIREPLACE
HEATER FIREPLACE
INSERT MODELS
DVCT(30,35)CBN95(N,P)-1
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
This replace is design
certied in accordance
with American National
Standard/CSA Stan-
dard ANSI Z21.88/CSA
2.33 and by Underwrit-
ers Laboratories as a
Direct-Vent Gas Fire-
place Heater and shall
be installed according
to these instructions.
GAS-FIRED
UL FILE NO. MH30033
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
DANGER
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
This appliance may be installed into a listed
wood-burning replace in an aftermarket,
permanently located, manufactured home
(USA only) or mobile home, where not
prohibited by state or local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
INSTALLATION INSTRUCTIONS

38102-4-0319Page 2
TABLE OF CONTENTS
Attention Installer ........................................................................................................................................ 3
Before You Start ......................................................................................................................................... 4
Carton Contents & Hardware Pack ............................................................................................................ 5
Specications ............................................................................................................................................. 6
Accessories ................................................................................................................................................ 7
Venting Accessories ................................................................................................................................... 7
Introduction .............................................................................................................................................. 8-9
Fireplace Insert Dimensions ..................................................................................................................... 10

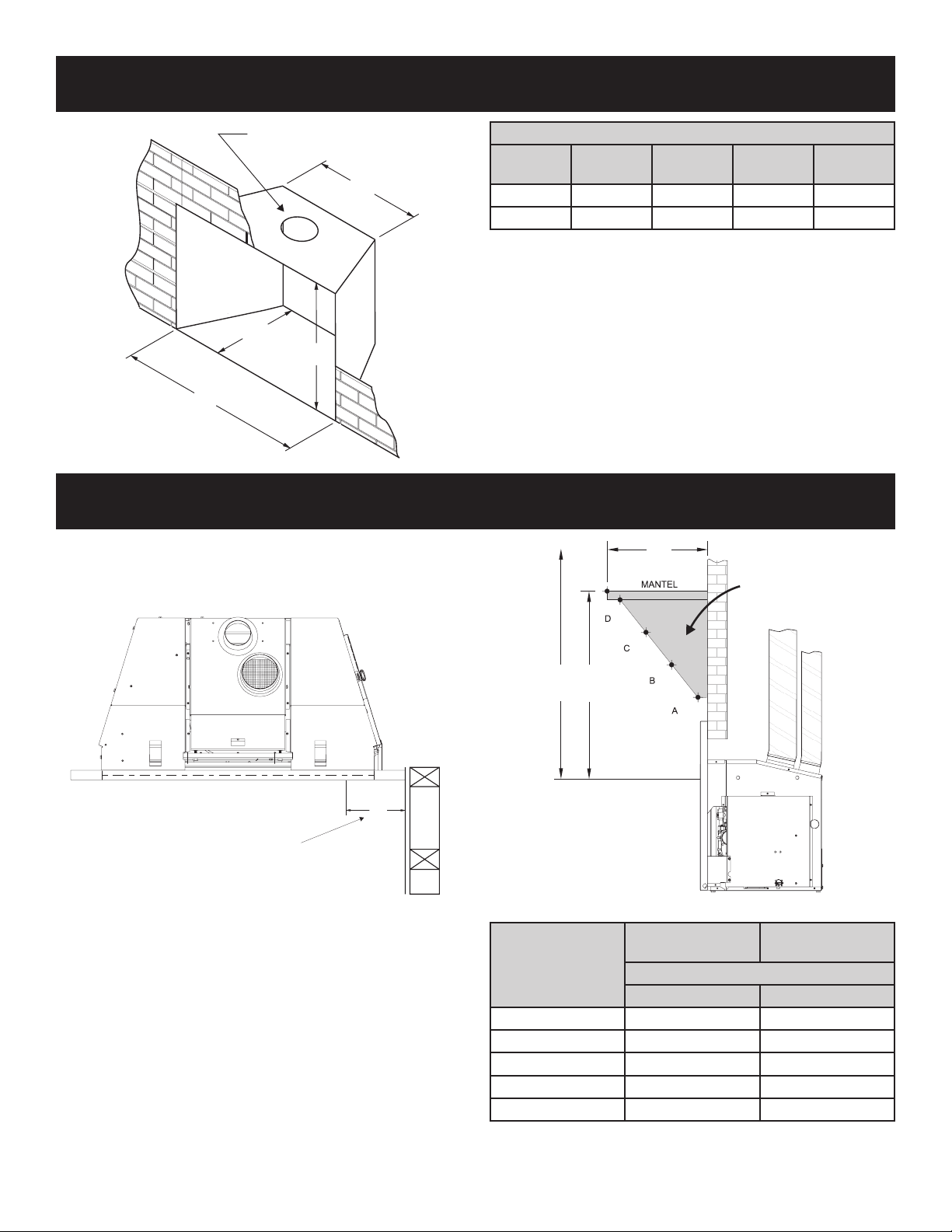

Minimum Fireplace Opening Dimensions ..................................................................................................11
Mantel and Trim Clearances ......................................................................................................................11
Gas Supply .......................................................................................................................................... 12-13
Electrical Considerations .......................................................................................................................... 13
Fireplace Preparation ............................................................................................................................... 14

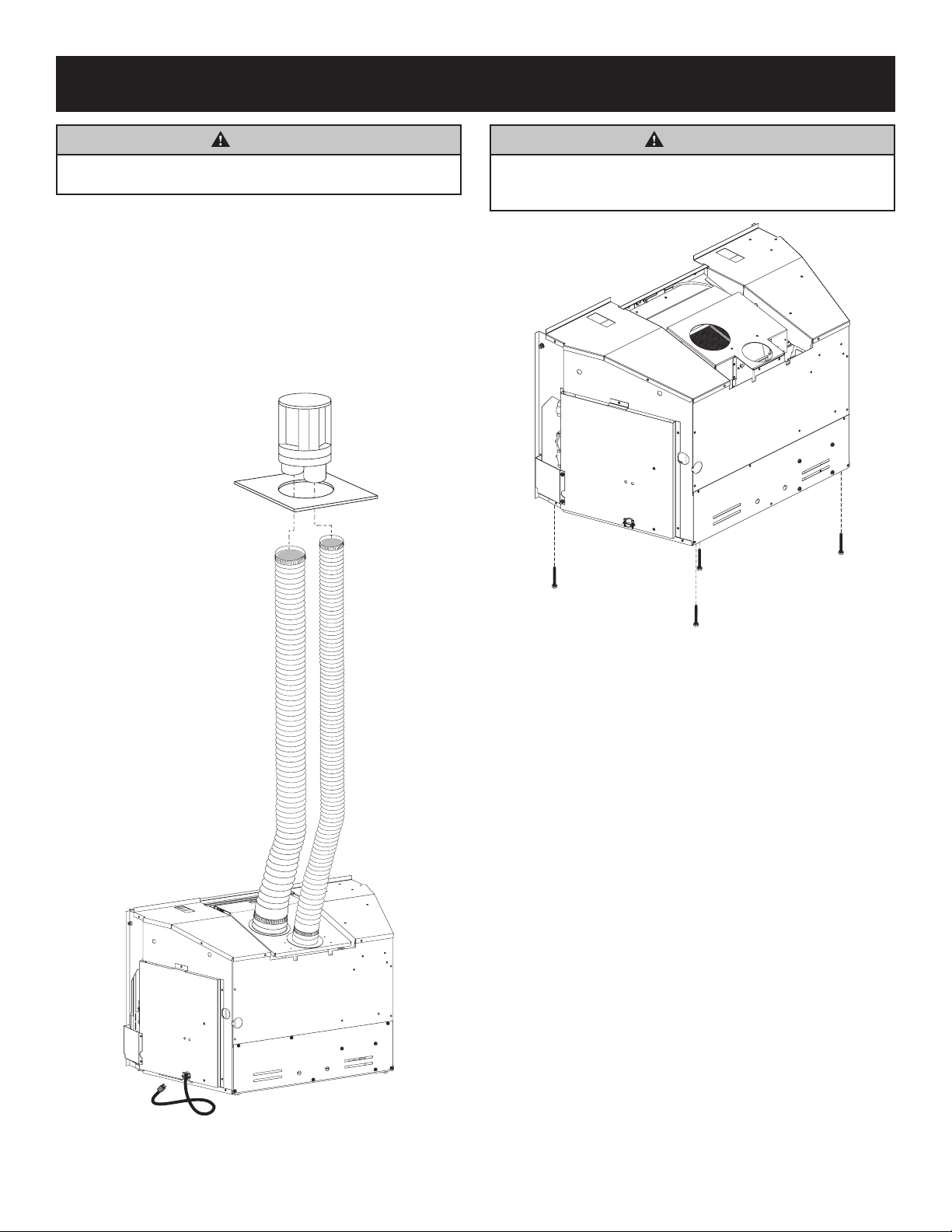

Venting ...................................................................................................................................................... 15

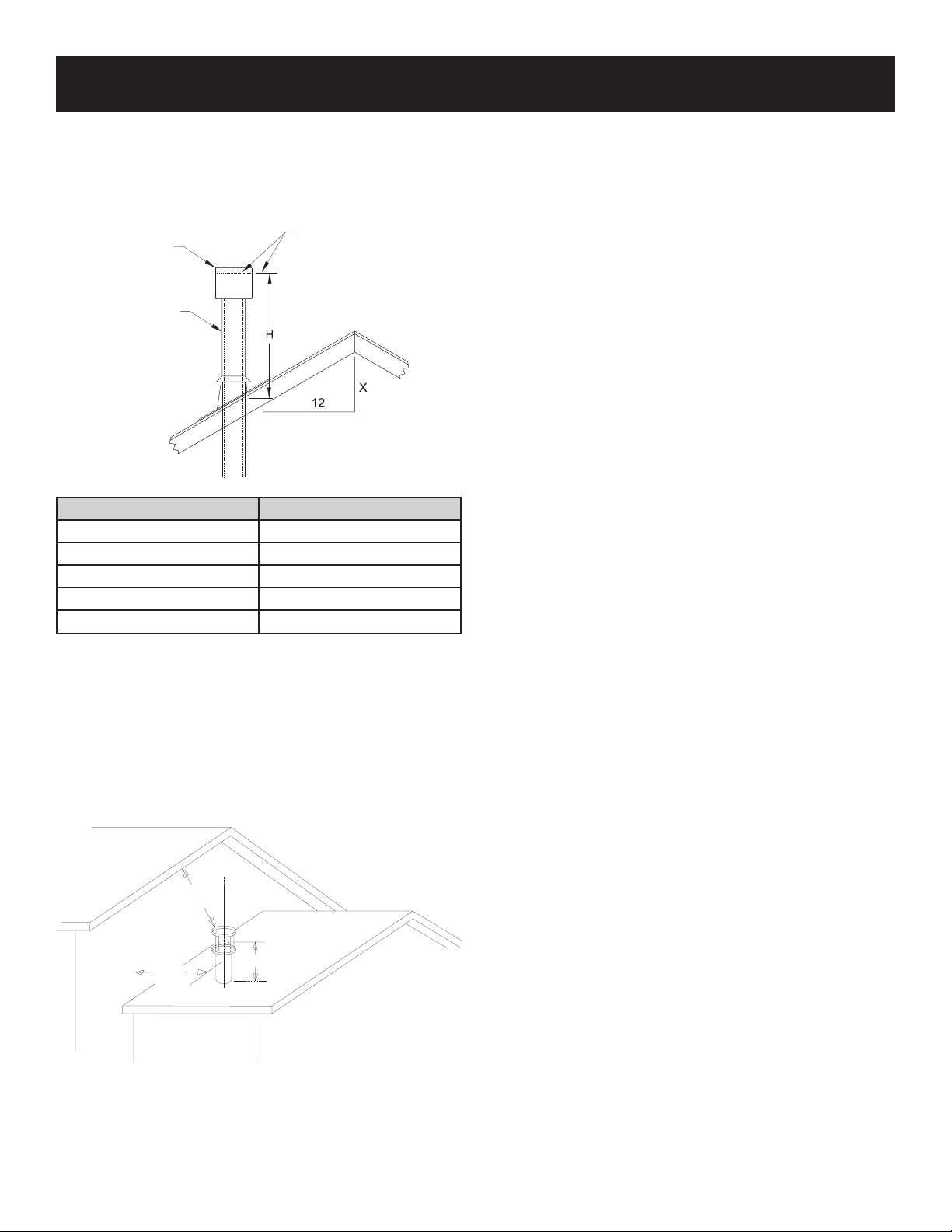

Vertical Termination .................................................................................................................................. 16
Installation ........................................................................................................................................... 17-21
IPI System Electronic System Wiring Diagram ......................................................................................... 22
Intermittent Pilot Lighting Instructions ....................................................................................................... 23
Safety Information for Users of Propane .................................................................................................. 24
Intermittent Control System Troubleshooting ...................................................................................... 25-27
Insert Parts List .................................................................................................................................... 28-29
Insert Parts View ...................................................................................................................................... 29
Master Parts Distributor List ..................................................................................................................... 30
How To Order Repair Parts ...................................................................................................................... 30
Important Safety Information .................................................................................................................... 31
Warranty ................................................................................................................................................... 32
SECTION PAGE

38102-4-0319 Page 3
ATTENTION INSTALLER:
Fireplace Installation Checklist
Use this checklist in conjunction with the instructions in this manual.
FIREPLACE INSTALLATION COMMENTS
Veried clearances to combustibles (pg. 11)........................................................................ o____________________
Fireplace is leveled and secured .......................................................................................... o____________________
VENTING/CHIMNEY/PowerFlow™ HEAT DISTRIBUTION
Venting conguration complies to vent diagrams (pgs. 15 - 18) .......................................... o____________________
Venting installed, locked, secured in place with correct clearance ....................................... o____________________
Firestops installed................................................................................................................. o____________________
Exterior wall/roof ashing installed and sealed..................................................................... o____________________
Terminations installed and sealed (pg. 16)........................................................................... o____________________
Light unit and test venting before enclosing the replace .................................................... o____________________
ELECTRICAL (pgs. 13 and 22)
Unswitched power (110-120 VAC) provided to the replace ................................................ o____________________
GAS (pgs. 12 - 13)
Proper appliance for fuel type............................................................................................... o____________________
Was a conversion performed? .............................................................................................. oYes oNo
Leak check performed and inlet pressure veried ................................................................ o____________________
FINISHING
Veried all clearances meet installation manual requirements ............................................. o____________________
Mantels and wall projections meet requirements (pg. 11) .................................................... o____________________
Granite or Clean Face nishing complies with clearance requirements screen ................... o____________________
Barrier for glass front properly installed ................................................................................ o____________________
FIREPLACE SETUP
All packaging and protective materials removed (inside & outside of replace) .................. o____________________
Media installed correctly ....................................................................................................... o____________________
Firebox glass door cleaned, installed, and secured ............................................................. o____________________
Accessories installed properly .............................................................................................. o____________________
Started Fireplace and checked for gas leaks ....................................................................... o____________________
Manual envelope and all contents removed from the replace and given homeowner ........ o____________________
Empire recommends the following:
• Keep this checklist visible on the replace until the installation is complete.
• Photograph the installation and copy this completed checklist for your le.
Comments: Further description of any issues, who is responsible (Installer/Builder/Other, etc) and corrective action needed:
___________________________________________________________________________________________________________
Comments communicated to responsible party _____________________by_____________________ on ______________________
Customer: _____________________________________
Lot/Address: ___________________________________
_______________________________________________
Model: ________________________________________
Serial #:________________________________________
Date Installed: __________________________________
Fireplace Location: ______________________________
Installer: _______________________________________
Dealer Phone #: _________________________________
_______________________________________________

38102-4-0319Page 4
WARNING
Read and follow these safety precautions prior to operating
this appliance. Failure to follow these precautions may
result in death, injury, or property damage.
Sample Warnings and Denitions:
DANGER
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
Read all instructions before starting installation and follow them
carefully to insure safety. Failure to follow the instructions will
void the warranty and may cause a re hazard.
NOTICE: If the replace insert is installed into a modied wood-
burning, factory-built replace, the replace cannot be returned
to a wood-burning replace. See page 14 for additional details
regarding the allowed modications to a factory-built replace.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace insert or vent system
component.
• Modication of the replace insert or direct vent system.
• Installation other than as instructed by Empire Comfort
Systems Inc.
• Improper positioning of logs, glass door, barrier screen, or
decorative accessories.
• Installation and/or use of any component not manufactured
or approved by the manufacturer.
All correspondence should refer to complete Model Number,
Serial Number and type of gas. Fill out the Homeowner
Reference Section in Homeowner's manual on page 2.
Unpacking the replace insert
1. Cut the binding straps.
2. Remove the top carton.
3. Carefully remove the carton contents.
4. Use the Carton Contents and Hardware Pack lists on page 5
to verify all components are present.
5. Verify that the replace insert and components have not
been damaged during shipping.
6. Set the replace insert near installation location.
BEFORE YOU START
Preparation
This replace insert and its components are safe when installed
in accordance with this Installation Manual. Report any parts
damaged in shipment to your dealer. Do not install the replace
insert with damaged, incomplete or substitute parts.
Installation Considerations
• The rebox must be in good working order and sized
according to pages 11 and 14.
• Gas supply piping – right or left side entrance
• Electrical supply and connections – for blower
• 120V, 60Hz, 1 Amp
• Right side entrance
• Surround Requirements - See Fireplace Insert Dimensions,
page 10 and Accessories, page 7.
• Surround Bottom Cover - For elevated insert installations.
See dealer for custom surrounds.
• Leveling the Insert - Four leveling bolts are included in the
Hardware Pack. See page 17 for installation and use.
Planning The Installation
1. Read the safety information on pages 24 and 31.
2. Place the sticker located in the instruction envelope onto
the “Homeowner Reference Information” in Homeowner's
manual on page 2.
3. Show the homeowner where the rating plate and lighting
instruction plate are located.
4. Install the venting. See pages 15 - 18.
5. Install and connect the gas lines. See pages 12 and 13.
6. Install the wiring. See page 22.
7. Install the replace insert. See pages 17 - 21.
8. Remove the barrier and door assemblies.
9. Install the liners, log set, and rock wool. See their manuals.
10. Sync the remote. See page 19.
11. Install the surround. See page 20.
12. Reinstall the door assembly. See page 21.
13. Light the replace insert. See page 23.
14.
Adjust the damper, air shutters, and rock wool for perfect burn.
15. Troubleshoot any issues. See pages 24 - 26.
16. Reinstall the barrier assembly.
17. Install the decorative front. See their manuals.
18. Show the homeowner how to operate the replace insert.
19. Show the homeowner how do the basic maintenance.
20. Instruct the homeowner to never attempt to adjust the air
shutters or damper.
TrueFlame Technology
This replace is equipped with TrueFlame Technology for
maximum ames and ember glow with minimum emissions. The
system includes independently controlled front and rear burners
set into a large ember bed plus a ceramic catalyst and externally
adjustable bafe mounted at the top. Once adjusted by the
dealer/technician at installation, the TrueFlame system requires
no further adjustment.

38102-4-0319 Page 5

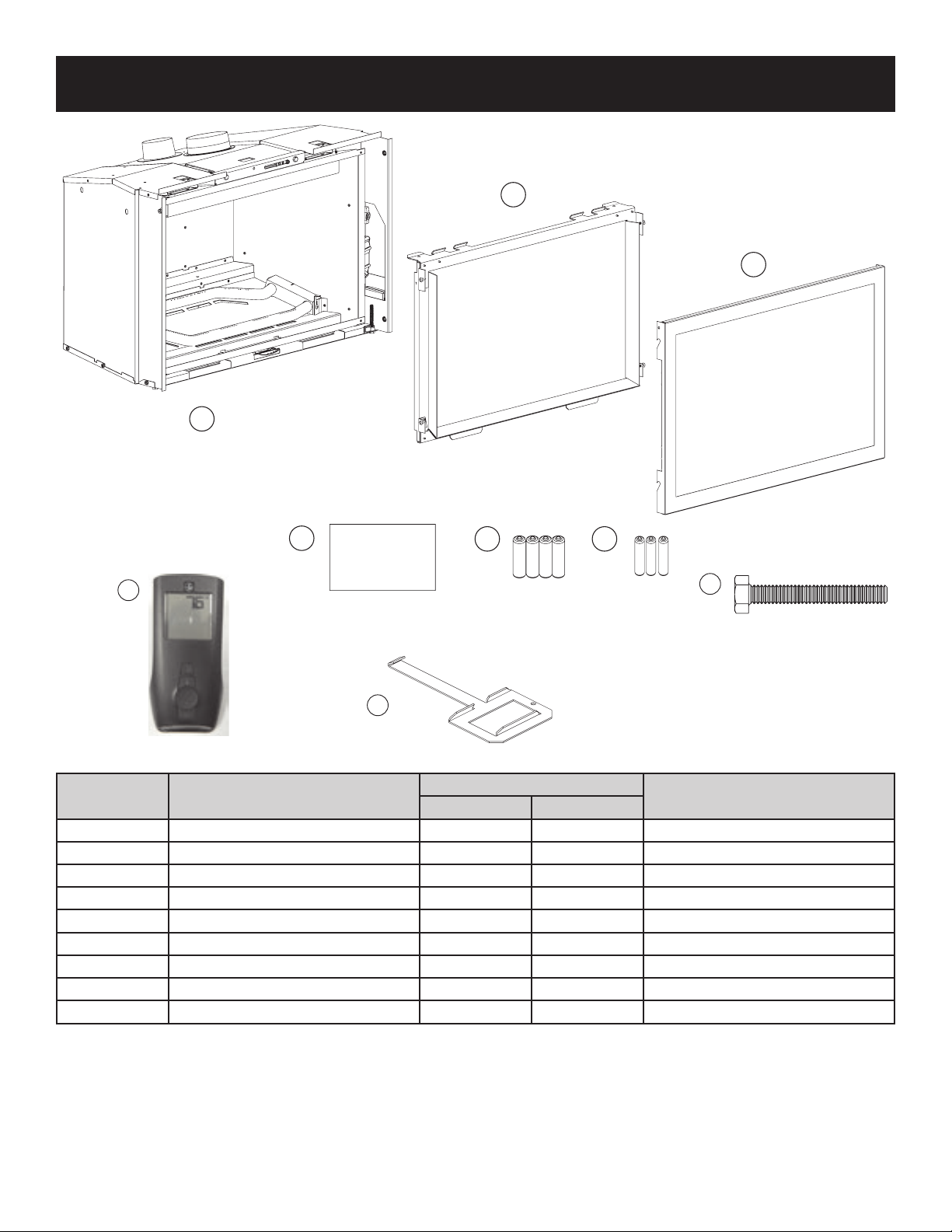

CARTON CONTENTS & HARDWARE PACK
INDEX
NUMBER DESCRIPTION QUANTITY SUPPLIED LOCATION
DVCT30 DVCT35
1Fireplace Insert 1 1 In Carton
2 Glass Door Assembly 1 1 Front of Insert
3 Barrier Screen Assembly 1 1 Front of Insert
4Rockwool Embers 1 1 In Envelope
5AA Batteries 4 4 In Envelope
6AAA Batteries 3 3 In Envelope
7Remote 1 1 In Bag Inside Insert
8 5/16-18 x 2-1/2” Hex Head Bolt 4 4 In Envelope
9 Latch 1 1 Left Side Of Insert
1
2
3
Rockwool
4
8
7
56
9

38102-4-0319Page 6
SPECIFICATIONS
DVCT30CBN95(N,P)-1 DVCT35CBN95(N,P)-1
Propane Natural Propane Natural
Input BTU/Hr Maximum (Both Burners High) 28,500 30,000 35,000 39,000
Input BTU/Hr Minimum (Both Burners Low) 22,000 19,500 28,500 25,500
Input BTU/Hr Minimum (Only Front Burner Low) 10,000 8,500 11,000 10,000
KWH (Maximum) 8.34 8.78 10.2 11.4
KWH (Minimum) (Front Burner Only) 2.93 2.49 3.2 2.9
Orice (Rear) 1.20mm #47 1.40mm 2.40mm
Orice (Front) #59 #52 #57 #50
Air Shutter Opening (Rear) Fully Open Fully Closed Fully Open Fully Closed
Air Shutter Opening (Front) Fully Open Fully Closed Fully Open Fully Closed
Gas Inlet Shutoff Valve (Pipe) 3/8 MIF 3/8 MIF 3/8 MIF 3/8 MIF
NOTICE: Air shutter settings are factory minimum settings. Some venting congurations may require minor air shutter adjustments for
optimum performance.
GAS SUPPLY PRESSURES
Gas Type Maximum Minimum Manifold
Natural 14 4.5 3.5
Propane 14 10.8 10

38102-4-0319 Page 7
ACCESSORIES
DVCT30 DVCT35
SURROUNDS (REQUIRED) SURROUNDS (REQUIRED)
Description
(Black)
Model
Number
Description
(Black)
Model
Number
36 x 24 x 1 DS30631BL 40 x 29 x 1 DS35631BL
40 x 27 x 1 DS30961BL 44 x 31 x 1 DS35961BL
42 x 29 x 1 DS301071BL 48 x 33 x 1 DS351071BL
44 x 31 x 1 DS301271BL 52 x 36 x 1 DS351271BL
36 x 24 Flush DS3063BL 40 x 29 Flush DS3563BL
42 x 29 Flush DS30107BL 48 x 33 Flush DS35107BL
LOG SET (REQUIRED)
Description DVCT30 DVCT35
Traditional Charred LS30TINF LS35TINF
Driftwood LS30DINF LS35DINF
DVCT30 LINER (REQUIRED)
Description DVCT30 DVCT35
Black Glass DVP30CPKR DVP35CPKR
Rustic Brick DVP30CPMB DVP35CPMB
Cottage Brick DVP30CPTB DVP35CPTB
Traditional Stone DVP30CPTS DVP35CPTS
Old World Stone DVP30CPWS DVP35CPWS
DVCT30 DECORATIVE FRONT (OPTIONAL)
Description DVCT30 DVCT35
Forged Iron Window Frame DFF30FPD DFF35FPD
DVCT30 DECORATIVE FRONT INSETS
(REQUIRES DECORATIVE FRONT DFF(30,35)FPD)
Description DVCT30 DVCT35
Arch Forged Iron Inset DFF30RPD DFF35RPD
Rectangle Forged Iron Inset DFF30CPD DFF35CPD
VENTING ACCESSORIES
VENTING KITS DESCRIPTION CONTENTS
SD46DVACL34 Vertical Vent Kit
(3-inch x 4-inch)
High-wind round cap, ashing, 35 feet of 3-inch diameter pipe, 35
feet of 4-inch diameter pipe, and clamps. Recommended when
installing to an existing round replace chimney pipe.
SD3DFA35 Flexliner, 3-inch x 35 feet 35 feet of 3-inch Diameter Pipe With 2 Clamps
SD4DFA35 Flexliner, 4-inch x 35 feet 35 feet of 4-inch Diameter Pipe With 2 Clamps
DVIC3 3-inch Connector Kit 3-inch Connector With 2 Clamps
DVIC4 4-inch Connector Kit 4-inch Connector With 2 Clamps
NOTICE: When installing vent caps, special locally made ashings may be required to properly seal the vent system to the existing
chimney termination.
GAS CONVERSION KITS
Kit Number Conversion Type Used On Valve Type
38289 Natural to Propane DVCT30CBN95N IP
38290 Propane to Natural DVCT30CBN95P IP
38499 Natural to Propane DVCT35CBN95N IP
38500 Propane to Natural DVCT35CBN95P IP

38102-4-0319Page 8
Instructions to Installer
1. Leave this manual with the homeowner.
2. Have the homeowner ll out and mail the Product
Registration Card supplied with the replace insert or online
at www.empirecomfort.com.
3.
Show the homeowner how to start and operate the
replace insert.
4. Attach the warning label plate supplied with the insert to
the inside of the rebox of the replace into which the gas
replace insert is installed.
5.
Run replace insert for a minimum 30 to 35 minutes to burn
off oils from manufacturing. Failure to perform this initial
burn-off can cause pilot problems. After burn-off, clean ame
sensor on IP pilot assembly. See page 39 for sensor location.
Important
Refer to complete Model Number, Serial Number and gas type
in all correspondence.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed by a qualied agency. The term “qualied
agency” means any individual, rm, corporation or company
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
Commonwealth of Massachusetts: The installation must be
made by a licensed plumber or gas tter in the Commonwealth
of Massachusetts.
Installation and repair should be done by a qualied service
person. The appliance should be inspected before use and at least
annually by a qualied service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compartments, burners
and circulating air passageways of the appliance be kept clean.
High Altitude
When installing this unit at an elevation above 2000 feet (in
the United States) it may be necessary to decrease the input
rating by changing the existing burner orice to a smaller size.
Generally, input should be reduced 4 percent for each 1000 feet
above sea level. However, if the heating value of the gas has
been reduced, this general rule may not apply. Conrm orice
size with Empire Comfort Systems.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in
Canada), check with local authorities.
Consult your local gas utility for assistance in determining the
proper orice for location.
Well Head Gas Installations
Some Natural Gas utilities use “well head” gas. This may affect
the Btu output of the unit and promote sooting. Units shall not be
converted to use well head gas.
Building Codes
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
• The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code
ANSI Z223.1/NFPA 54* Natural Gas and Propane Installation
Code, or CSA B149.1 in Canada. *Available from the
American National Standards Institute, Inc. 11 West 42nd
St., New York, N.Y. 10036.
• The replace insert, when installed, must be electrically
grounded in accordance with local codes or, in absence of
local codes, with the National Electric Code ANSI/NFPA
70 or Canadian Electric code, CSA C22.1, if an external
electrical source is utilized.
Preparation
This direct-vent gas replace insert and its components are
tested and safe when installed in accordance with this installation
manual. The replace insert must be installed into a wood-burning
replace. Report any parts damaged in shipment; specically
check glass condition. Do not install this unit with damaged,
incomplete, or substitute parts. Read all instructions before
starting installation and follow these instructions carefully during
installation to ensure maximum benet and safety. Failure to
follow them will void the warranty and may present a re hazard.
This direct-vent gas replace insert is designed to operate with
combustion air siphoned from and all exhaust gases expelled
to the outside of the building. The information contained in this
manual pertains to all models and gas control systems listed on
the front page unless otherwise noted.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
WARNING
Any change to this replace insert or its controls can be
dangerous. Improper installation or use of the replace
insert can cause serious injury or death from re, burns,
explosions, or carbon monoxide poisoning.
Before enclosing the vent pipe assembly, operate the
appliance to ensure it is venting properly.
Do not operate this appliance without the glass door installed.
• Due to high temperatures, the appliance must be located out
of trafc and away from furniture and draperies.
• Only surrounds supplied by the manufacturer shall be used
in the installation of this appliance.
• A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
• If the barrier or glass front is removed during servicing or
cleaning, it must be installed prior to operating the appliance.
• If the barrier becomes damaged, it must be replaced with the
manufacturer’s barrier for this appliance.
• Only doors certied with the appliance shall be used.
INTRODUCTION

38102-4-0319 Page 9
INTRODUCTION (CONT’D)
• This appliance comes standard with a 120 VAC cord
assembly to accommodate the blower accessory. A junction
box may be installed in a bottom back corner of the existing
solid fuel masonry or factory built replace to connect the
cord assembly, or the supplied power cord may be routed
out onto the hearth to a nearby outlet.
• A 120 VAC circuit for this product must be protected with
ground-fault circuit-interrupter protection, in compliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.
• Low voltage and 120 VAC cannot be shared within the same
wall box.
• Once the appliance is installed check that the control
compartment wiring is secured so as to not interfere with the
blower, door latches, valve controls, or the barrier assembly.
Warranty Requirements
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and
company making the change.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace insert or vent system
component.
• Modication of the replace insert or direct vent system.
• Installation other than as instructed by Empire Comfort
Systems, Inc.
• Improper positioning of the logs or glass door assembly.
• Installation and/or use of any component part not
manufactured or approved by manufacturer.

38102-4-0319Page 10
FIREPLACE INSERT DIMENSIONS
INDEX
LETTER DIMENSION DESCRIPTION DVCT30 DVCT35
DIMENSIONS IN INCHES
A The maximum height of replace face 19 24
BThe maximum width of replace face 30-11/16 34-3/4
C The maximum depth of replace 17-9/16 18-9/16
DThe height of the replace opening (not shown) 15-3/4 20-3/4
EThe width of the replace opening (not shown) 25-5/16 29-3/8
F The interior depth of the replace (not shown) 12-3/8 13-3/8
G The rear exterior width of the replace 21-11/16 25-1/8
I Width from the left side of the replace to the centerline of the intake 15-1/8 17-1/8
JDepth from back of replace to centerline of top ue 5-7/8 6-15/16
KHeight from the bottom of the replace to the gas line opening 9-3/4 9-1/4
L Depth from the front of the replace to the gas line opening 16-7/16 16-13/16
MDepth from the rear of replace to gas line opening 1-1/8 1-13/16
N Viewing area height 14-7/8 19-7/8
O Viewing area width 25-1/4 29-1/4
PDepth from front of replace to centerline of ue 11-5/8 11-5/8
QDistance from oor to bottom replace opening 1-3/4 1-3/4
R Distance from oor to top replace opening 17 22
I
C
N
O
G
A
Q
K
B
J
2.375”
INTAKE
3" DIA
FLUE
4" DIA
P
R
M
L

38102-4-0319 Page 11
DIMENSIONS (in inches)
Model
No.
Height
A
Front
Width B
Depth
C
Rear
Width D
DVCT30 19-1/2 31-1/4 18* 22
DVCT35 24-1/2 35-1/4 19* 25-3/4
*Subtract surround depth from dimension C.
A
D
C
B
8” MIN. DIA. FLUE
REQUIRED
MINIMUM FIREPLACE OPENING DIMENSIONS
MANTEL AND TRIM CLEARANCES
Combustible Material
No greeting cards, stockings or ornamentation of any type should
be placed on or attached to the replace. The ow of heat can
ignite combustibles.
8”
MINIMUM CLEARANCE TO PERPENDICULAR
COMBUSTIBLE SIDE-WALL
(FROM SIDE OF THE OPENING)
Figure 1
Television Considerations
Installing a television above a replace has become increasingly
popular; however, the area above any replace gets hot and most
TV manufacturers recommend against placing their products
near a heat source.
If you install a television above this replace insert, Empire
Comfort Systems accepts no responsibility for damage or
injuries. Follow the television manufacturer’s installation
instructions, including any recommendations regarding proximity
to heat sources.
If you have a TV above your replace, turn off the replace and
let it cool completely before servicing or touching any buttons on
the TV.
TOP OF OPENING
12”
MAX
21”
MIN
COMBUSTIBLE TRIM
AND MANTELS
ALLOWED IN
SHADED AREA
CEILING
36”
MIN
E
NOTICE: Zero clearance allowable for Hearth below insert.
INDEX
LETTER
DISTANCE FROM
FIREPLACE FACE
DISTANCE FROM
TOP OF OPENING
(Dimensions in inches)
Maximum Minimum
A 1-3/4 12
B4-1/2 16
C 7-1/4 17
D9-1/4 20
E12 21
Figure 2
NOTICE: Mantel must be placed above the surround.

38102-4-0319Page 12
GAS SUPPLY
If the replace where you are installing the insert has no gas line
access hole, drill an access hole of 1.5 inch (37.5 mm) or less
through the lower sides or bottom of the rebox. After the running
the gas line, use non-combustible insulation to block the opening
around the pipe.
The gas pipeline can be brought in through the right or left side of
the appliance. The insert has a Flexline with shutoff valve located
on the right side when facing the unit. See Figure 3.
Consult the current National Fuel Gas Code, ANSI Z223.1 CAN/
CGA-B149 (.1 or .2) installation code.
NOTICE: Once the gas access hole is drilled, the replace
cannot be converted back to burning a solid-fuel.
Figure 3
NOTICE: Never use plastic pipe for gas line. Check local codes
before using copper tubing or galvanized.
NOTICE: Some municipalities have additional codes. Consult
your local authority and installation code.
Use the following gas connectors:
— ANSI Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The Commonwealth of Massachusetts
requires that a exible appliance connector cannot exceed three
feet in length.
NIPPLE
Figure 4
Install a gas valve and ground joint union in the gas line upstream
of the gas control to aid in servicing. The National Fuel Gas
Code requires installing a drip leg near the gas inlet. The drip leg
consists of a vertical length of capped pipe installed before the gas
inlet to collect condensation and foreign particles. See Figure 5.
GAS SUPPLY PLUMBING
MANUAL
SHUT-OFF VALVE
GAS SUPPL
Y
INLET
1/8 NPT PLUGGED
HOLE FOR
TEST GAGE
3”
MINIMUM
TO
CONTROL
VALVE
Figure 5

38102-4-0319 Page 13
Checking Manifold Pressures
Both Propane and Natural Gas valves have a built-in pressure
regulator.
Natural Gas models will have a manifold pressure of
approximately 3.5-inch w.c. (.871kPa) at the valve outlet with
the inlet pressure to the valve from a minimum of 4.5-inch w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0-inch w.c. (3.484kPa).
Propane models will have a manifold pressure of approximately
10.0-inch w.c. (2.49kPa) at the valve outlet with the inlet pressure
to the valve from a minimum of 10.8-inch w.c. (2.68kPa) for the
purpose of input adjustment to a maximum of 14.0-inch w.c.
(3.484kPa).
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5 7.0 14.0
Propane Gas 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5
Propane Gas 10.0
OUTLET
PRESSURE
TAP
INLET
PRESSURE
TAP
Figure 6 - IP Valve
Installing a New Main Gas Shut-Off Valve
Each appliance must have its own manual gas shut-off valve
located in close proximity. Where none exists, or where its size
or location is not adequate, contact your local authorized installer
for replacement or relocation.
Test For Leaks On Exposed Connections
DANGER
Never use an exposed ame to check for leaks.
Turn Off the Fireplace. Compounds used on threaded joints of
gas piping must be resistant to the action of liqueed petroleum
gases. Check all gas connections for leaks with a leak test
solution or soap solution. Rinse off all of the solution after testing.
DO NOT get solution on electronic controls.
Test For Leaks On Unexposed Connections
Perform a pressure test on all unexposed connections.
Never pressure test with replace connected; control valve will
sustain damage. Disconnect the replace from piping at the
control valve inlet and cap the pipe before pressure testing.
NOTICE: The IP valve is equipped with a captured screw type
pressure test port, therefore it is not necessary to provide a test
point upstream.
Disconnect the appliance and its individual shut-off valve from
the gas supply piping system before any pressure testing of that
system at test pressures in excess of 1/2 psig (3.5kPa).
Isolate the appliance from the gas supply piping system by
closing its manual shut off valve during any pressure testing of
the gas supply piping system at test pressures equal to or less
than 1/2 psig (3.5kPa).
WARNING
If one of the procedures results in pressures in excess of
1/2 psig (14-inch w.c.) (3.5 kPa) on the replace gas valve, it
will result in a hazardous condition.
GAS SUPPLY (CONT’D)
ELECTRICAL CONSIDERATIONS
CAUTION
All wiring should be done by a qualied electrician and shall be in compliance with all local, city and state building codes.
Before making the electrical connection make sure the main power supply is disconnected. The appliance, when installed,
must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical
Code ANSI/NFPA70 (Latest Edition).

38102-4-0319Page 14
FIREPLACE PREPARATION
Before You Start
Before installing, read these instructions and the Vent Kit
Instructions to ensure proper installation. Consult local Building
Codes before beginning the Installation.
NOTICE: Cutting the sheet metal parts of an existing replace to
install the replace insert is prohibited unless mentioned below.
1. The replace and replace chimney must be cleaned and
inspected to insure it is in good working order. The venting
for the replace insert must run through the chimney for the
replace or masonry chimney and meet criteria on NFPA211.
WARNING
Do not handle barrier screen or door assembly with your
bare hands! (Always Wear Gloves)
2. Remove the barrier screen, glass door and log package from
the replace insert. Check for damage to the replace insert
or its components.
3. Plan out the gas, venting and electrical route. Start with the
gas line, followed by the chimney preparation and electrical
supply requirements.
4. Make sure that all chimney cleanouts t properly so air
cannot leak into the chimney.
5. Remove or lock the replace ue damper in the fully open
position.
6. The minimum replace opening requirements are shown in
page 11 of this installation manual. The rebrick (refractory),
glass doors, screen rails, screen mesh and log grates can
be removed from a factory built replace to increase the
opening size. See Figure 7.
7. The replace insert does not require any additional hearth
extension, however, the original hearth materials installed
with the replace must be retained. If the original materials
have been damaged or removed, a new one must be
installed. Hearth materials must consist of a non-combustible
material such as brick, tile, slate or marble extending the
width of the replace and out a minimum of 16 inches in
front. Wood ooring, vinyl, or carpet are not allowed directly
in front of the replace insert.
NOTICE: The original replace cannot be returned to
solid fuel use without returning the hearth extension to the
specication required for a solid fuel replace.
8. The metal oor of the solid fuel rebox may be removed to
install the insert. If the rebox oor is removed, the insert
must be raised off the oor of the replace at least 1/4 inch
to protect the combustible surface under the original
replace. Clearance to combustible material under the insert
is 1/4-inch. Combustible material must not be placed inside
the original area. The side walls and top structure of the
rebox may not be altered with the exception of removable
bafes and dampers. The original replace cannot be
returned to solid fuel in this condition. See Figure 7.
FIREPLACE FLOOR
CAN NOT BE REMOVED
FIREBOX FLOOR
CAN BE REMOVED
INTERIOR BAFFLES,
SMOKE SHIELDS, AND
SHELVES MAYBE
REMOVED IF ATT
ACHED
WITH MECHANICAL
FASTENERS
FIREBOX FLOOR
CAN BE REMOVED
8” DIAMETER FLUE (MIN.)
GENERIC F
ACTORY-BUILT WOODBURNING FIREPLACE SHOWN
Figure 7
NOTICE: The following statement is also provided on a separate
warning label plate in the instruction packet. Prior to installation
of the replace insert, the installer must mechanically secure
this warning label plate to the inside of the replace for future
reference as required.
WARNING
This solid fuel replace has been converted for use with gas
only and cannot be used for burning wood or solid fuels
unless all original parts have been replaced and the replace
has been reapproved by the authority having jurisdiction.
Clearances
• Maintain the original specied exterior clearances of the
factory-built replace and vent system.
• Maintain the mantel and trim clearances on a masonry
replace at 12 inches above the opening for combustible
projections over 1-1/2 inches.
• Clearances for combustible projections under 1-1/2 inches
must be maintained at 6 inches above the opening per
NFPA211. Plan the surround size accordingly. A surround
must be used with the insert. No combustible material be
placed behind the surround or behind the insert!

38102-4-0319 Page 15
VENTING
Vent System Installation Precautions
Before installing vent kits, read these instructions and the vent kit
Instructions. Consult local Building Codes before beginning the
Installation.
To ensure top performance, safety and efciency, inserts must be
installed with an approved ue liner as per CAN/CGA B-149 or
National Fuel Code ANSI Z223 and these instructions.
WARNING
This gas insert and vent assembly must be vented directly to
the outside and must never be attached to a chimney serving
a separate solid-fuel burning or gas-venting appliance.
Vent System Approvals
Figure 11 shows the vent termination cap and system approved
for use with these models. Approved vent system terminations
are labeled for identication. Use 3-inch diameter, exible
aluminum or stainless steel gas venting for the incoming
combustion air. Use 4-inch diameter exible aluminum or
stainless steel gas venting for exhaust vent pipe. No other
venting systems or components may be used. Detailed
installation instructions are included with each vent termination kit
and should be installed in conjunction with this manual.
Horizontal Venting
The vent system on this model CANNOT be terminated
horizontally.
Vertical Venting
The inlet and exhaust vent pipes MUST be connected to the
proper collars on the unit AND to the termination cap or the unit
will not operate.
WARNING
Major U.S. building codes specify minimum chimney and/or
vent height above the roof top. These minimum heights are
necessary in the interest of safety. See Figures 8 and 9 for
minimum heights, provided the termination cap is at least 2
feet from a vertical wall and 2 feet below a horizontal overhang.
NOTICE: The above warning also pertains to vertical vent
systems installed on the outside of the building.
WARNING
The exhaust pipe must only be connected to the exhaust
starting collar of the unit and to the exhaust collar of the
termination cap.
The inlet air pipe must only be connected to the inlet air
starting collar of the unit and to the inlet air collar of the
termination cap. Both the inlet vent and the ue vent must
be connected from the insert to the vent termination cap.
NOTICE: The minimum vertical vent rise is 10 feet and the
maximum vertical vent rise is 40 feet. These dimensions are
measured from the starting collars of the unit to the end of the
last section of vent pipe. See Figure 11, page 17.
NOTICE: The vent cap must be in open, free air. It cannot be
installed under an existing cap shared by other ues.

38102-4-0319Page 16
VERTICAL TERMINATION
Determining Minimum Vent Height Above the Roof.
NOTICE: Major U.S. building codes specify minimum chimney
height above the roof top. These specications are summarized
in Figure 8.
VENTCAP
WOOD BURNING
CHIMNEY
LOWEST
DISCHARGE
OPENING
ROOF PITCH X/12
H (Min.) Minimum height from
roof to lowest discharge opening
ROOF PITCH H (Min.) (in inches)
Flat to 6/12 12
6/12 to 7/12 15
Over 7/12 to 8/12 18
Over 8/12 to 16/12 24
Over 16/12 to 21/12 36
Figure 8
NOTICE: Increase the vent height for steep roof pitches. In
high-wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft,
or down-drafting. In these cases, increasing the vent height may
solve this problem.
When terminating the vent cap near an exterior wall or overhang,
maintain minimum clearances as shown in Figure 9.
C
L
24”
61CM
MIN.
24”
61CM
MIN.
12”
30.5CM
MIN.
Figure 9
Vertical Applications
The Gas Fireplace Insert has been approved for vertical
installations up to 40 feet in height (starting of collars to end
of vent pipe).
General Maintenance
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect are as follows:
1. Check areas of the venting system which are exposed to
the elements for corrosion. These will appear as rust spots
or streaks and, in extreme cases, holes. These components
should immediately be replaced.
2. Remove the cap and shine a ashlight down the vent.
Remove any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
droplets forming in the ex venting and subsequently dripping
out at joints or seams. Condensate can cause corrosion of
caps, pipe and ttings. It may be caused by having excessive
runs, or having exterior portions of the system exposed to
cold weather.
4. Inspect joints to verify that no pipe sections or ttings
have been disturbed and, consequently, loosened. Check
mechanical supports.

38102-4-0319 Page 17
INSTALLATION
CAUTION
The vent cap and vent tubing have sharp edges. Wear
gloves when unpacking and installing.
Connect the Vent Pipe and Install the Fireplace Insert
For replace vent pipe and insert installation refer to
information 1 through 6 below. See Figure 10.
1. Measure chimney height.
2. Stretch liners out completely.
3. Trim liners to chimney height to allow 2 to 3 feet extra.
4. Attach liners to cap and ashing with clamps and sealant.
5. Verify chimney is clear of blockage and damper is open.
6. Install the vent tubing down the chimney.
7. Install leveling legs. See Figure 11.
Figure 10
CAUTION
Seal off the area between the termination cap and the top
of the solid-fuel chimney opening into which the vent cap
is installed to avoid downdrafts and/or cold air problems.
Figure 11

38102-4-0319Page 18
INSTALLATION (CONT’D)
8. Set insert in front of replace opening.
9. If necessary, remove the 2 hex screws from the vent slide
plate assembly. Remove the slide plate from the top of the
insert. See Figure 12.
EXHAUST
STARTING COLLAR
INLET AIR
STARTING COLLAR
VENT SLIDE PLATE
ASSEMBLY
1
2
3
Figure 12
10. Trim off excess venting then attach and secure the bottom
ends of the ex pipes to the collars with the adjustable band
clamps provided.
11. Make all gas and electrical connections.
12.
Slide the gas insert in front of replace. Do not leave an
excess of pipe that could cause a restriction in the intake or
exhaust system.
13. If removed, align the vent slide plate assembly with the
guides located on top of the insert.
Figure 13
14. Work the insert into the replace cavity as you pull forward
on the vent slide plate. Do not use excessive force on the
vent slide plate.
NOTICE: The front anges of the insert should be set at
approximately 1-inch in front of the face of the replace.
15. Level the insert from side to side and front to back by turning
the adjusting legs.
NOTICE: If desired, attach metal strapping or brackets (not
provided) from the replace cavity to the insert outer jacket to
secure the replace insert to the replace hearth or opening.
Figure 14
16. Once the replace insert is level and the vent slide plate
is close to seating, install the two black head 1/4 -20 x 2-inch
long bolts through the holes of the insert top bracket, and
into the vent slide plate nuts.
Figure 15
17. Tighten the bolts with manual socket wrench by alternating
between the bolts. Leave 7/8 inch gap between slide plate
and front damper control bracket.

38102-4-0319 Page 19
INSTALLATION (CONT’D)
18. Remove barrier screen assembly by lifting the screen
assembly and pulling it toward you. See Figure 16.
CAUTION
Do not handle barrier screen or door assembly with your
bare hands! (ALWAYS WEAR GLOVES)
Figure 16
19. Remove glass door assembly: Using the glass door latch
tool provided, hook onto the latches on the top of the insert
and pry it over the glass door assembly anges. The top of
the glass door assembly will angle toward you. Simply lift to
remove the glass door assembly. See Figure 17.
Figure 17
20. Sync Remote.
Push the sync button to the right of the insert. See Figure 18.
With the batteries already installed in the transmitter, push the
ON button. The receiver will “beep” four times to indicate the
transmitter’s command is accepted and sets to the particular
code of that transmitter. The system is now initialized.
Figure 18
• Install liners, logs, and rock wool. See liner and log set
instructions for the proper placement. Placement of the
glowing embers is for a glowing effect based on the look
you desire. Embers look best when placed in layers. Do
not place glowing embers around the pilot assembly.
Place pebbles across the front. Avoid blocking the large
rectangular holes.
SYNC
BUTTON

38102-4-0319Page 20
INSTALLATION (CONT’D)
21. Reinstall door assembly removed in step 19.
22. Adjust damper and air shutter for perfect burn. Allow about
15 minutes for ame to stabilize. See Figures 19-21 and the
following two tables.
FULLY CLOSED
FULLY OPEN
3/4 CLOSED
HALF CLOSED
1/4 CLOSED
DAMPER SLIDER
RETAINING SCREW
INDICATOR
3/4 CLOSED
FULLY CLOSED HALF CLOSED
1/4 CLOSED
Figure 19
DAMPER ADJUSTMENT GUIDELINES
VENT
LENGTH
DVCT30 DVCT35
Propane Natural Propane Natural
10 ft 1/2
Closed
1/2
Closed
1/2
Closed
1/4
Closed
20 ft 1/2 - 3/4
Closed
3/4
Closed
1/2
Closed
1/2
Closed
30 ft 1/2 - 3/4
Closed
3/4
Closed
3/4
Closed
1/2
Closed
40 ft 3/4
Closed
Fully
Closed
Fully
Closed
3/4
Closed
This Unit Is Equipped With Two Adjustable Air Shutters.
The installer will adjust the rear air shuttter while unit is burning.
The unit is sent out with the recommended setting, but may need
to be ne tuned by installer. The homeowner should NOT attempt
to adjust these shutters.
NOTICE: Fireplace must be turned off and cool to the touch before
proceeding.
OPEN
CLOSED
Rear Air Shutter Adjustment
Figure 20
CLOSED
OPEN
Front Air Shutter Adjustment
Figure 21
