LOFT FIREPLACE INSERT
INSTALLATION INSTRUCTIONS
AND
OWNER’S MANUAL
EMPIRE
EMPIRE
Comfort Systems
DIRECT VENT
GAS FIREPLACE HEATER
MODEL SERIES:
DVL25IN33(N,P)-1
DVL33IN33(N,P)-1
DVL25IN73(N,P)-2
DVL33IN73(N,P)-2
GAS-FIRED
UL FILE NO. MH30033
WARNING: If not installed, operated and maintained
in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certied
kit is used.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instruc-
tions are not followed exactly, a re or explosion
may result causing property damage, personal in-
jury or loss of life.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
— Installation and service must be performed by a
qualied installer, service agency or the gas sup-
plier.

30368-8-1113Page 2
IMPORTANT SAFETY INFORMATION....................................................................3
SAFETY INFORMATION FOR USERS OF LP GAS ...............................................4
INTRODUCTION......................................................................................................5
SPECIFICATIONS ...................................................................................................6
FIREPLACE INSERT DIMENSIONS .......................................................................7
MANTLE AND TRIM CLEARANCES .......................................................................8
GAS SUPPLY...........................................................................................................9
VENTING AND INSTALLATION........................................................................10-12
VERTICAL TERMINATION ...............................................................................13-14
ALTERNATE ON/OFF SWITCH INSTALLATION...................................................15
SURROUND PANEL INSTALLATION....................................................................16
BLOWER ACCESSORY INFORMATION ..............................................................17
OPTIONAL DECORATIVE GLASS PLACEMENT .................................................18
MILLIVOLT OPERATING INSTRUCTIONS ...........................................................19
STANDING PILOT LIGHTING INSTRUCTIONS....................................................20
STANDING PILOT WIRING ...................................................................................21
STANDING PILOT TROUBLESHOOTING ............................................................22
IPI ELECTRONIC SYSTEM OPERATING INSTRUCTIONS.................................23
IPI ELECTRONIC SYSTEM WIRING DIAGRAM...................................................24
INTERMITTENT PILOT LIGHTING INSTRUCTIONS............................................25
INTERMITTENT PILOT CONTROL SYSTEM TROUBLESHOOTING .............26-28
INSERT MAINTENANCE AND SERVICE..............................................................29
DECORATIVE ACCESSORIES ........................................................................30-31
INSERT PARTS VIEW ...........................................................................................32
INSERT PARTS LIST........................................................................................32-33
MASTER PARTS DISTRIBUTOR LIST..................................................................34
HOW TO ORDER REPAIR PARTS........................................................................34
WARRANTY TERMS .............................................................................................35
SECTION PAGE
TABLE OF CONTENTS

30368-8-1113 Page 3
• Due to high temperatures the appliance should be
located out of trafc and away from furniture and
draperies.
• The glass front or any part removed for servicing
the appliance must be replaced prior to operating
the appliance. Work should be done by a qualied
service person.
• Keep burner and control compartment clean.
• Vent cap is hot while replace is in operation.
• Installation and repair should be done by a
QUALIFIED SERVICE PERSON. The appliance
should be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating
air passageways of the appliance be kept clean.
• DO NOT put anything around the replace insert
that will obstruct the ow of ventilation air.
• Maintain clearances in accordance with local
installation codes and the requirements of the gas
supplier.
• DO keep the appliance area clear and free from
combustible material, gasoline and other ammable
vapors and liquids.
• DO examine venting system periodically and replace
damaged parts.
• DO make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
• CAUTION: The glass used in your replace insert
is ceramic glass. If the glass is cracked or damaged
in any way, it should be replaced only with a complete
glass frame assembly from Empire. See parts list
on Pages 32-33 for ordering.
• DO NOT use this replace insert if any part has been
under water. Immediately call a qualied service
technician to inspect the heater and to replace any
part of the control system and any gas control which
has been under water.
• Any safety screen or guard removed for servicing
an appliance must be replaced prior to operating
the appliance.
DANGER: Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE:Addresses practices not related to personal injury.
• Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance.
• Clothing or other ammable material should not be
placed on or near the appliance.
• Adequate accessibility clearances for servicing and
proper operation should be maintained.
• Under no circumstances should any solid fuels
(wood, coal, paper or cardboard etc.) be used in
this appliance.
• Keep the area around your appliance clear of
combustible materials, gasoline and other ammable
vapor and liquids.
• This appliance must not share or be connected to a
ue serving a separate solid-fuel burning appliance.
• The ow of combustion and ventilation air must not
be obstructed in any way.
• The replace insert must be installed in either a
masonry or factory-built wood burning replace.
See Page 7 for replace opening size requirements.
DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED
Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.
IMPORTANT SAFETY INFORMATION

30368-8-1113Page 4
SAFETY INFORMATION FOR USERS OF LP GAS
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
by point with the members of your household. Someday
when there may not be a minute to lose, everyone’s safety
will depend on knowing exactly what to do. If, after read-
ing the following information, you feel you still need more
information, please contact your gas supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your phone.
Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such as
basements. When you have reason to suspect a gas leak, keep
out of basements and other low areas. Stay out until reghters
declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas service
person and the re department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and reghters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must nd out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-Gas is colorless, and it can fade under
some circumstances. For example, if there is an underground
leak, the movement of the gas through soil can lter the odorant.
Odorants in LP-Gas also are subject to oxidation. This fading can
occur if there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That will
take some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-Gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it to
nd out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualied, do not light pilot lights, perform service,
or make adjustments to appliances on the LP-Gas system. If
you are qualied, consciously think about the odor of LP-Gas
prior to and while lighting pilot lights or performing service or
making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the odor
if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalled old tanks, if they are lled and allowed to set too
long before relling. Cylinders and tanks which have been out
of service for a time may develop internal rust which will cause
odor fade. If such conditions are suspected to exist, a periodic
sniff test of the gas is advisable. If you have any question
about the gas odor, call your LP-Gas dealer. Aperiodic
sniff test of the LP-Gas is a good safety measure under
any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container is under
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air
through openings such as pilot light orices. If this occurs, some
new internal rusting could occur. If the valve is left open, then
treat the container as a new tank. Always be sure your con-
tainer is under vapor pressure by turning it off at the container
before it goes completely empty or having it relled before it is
completely empty.

30368-8-1113 Page 5
Instructions to Installer
1. Leave instruction manual with owner after installation.
2. Have owner ll out and mail registration card supplied with the
replace.
3. Show owner how to start and operate the replace.
This direct-vent gas replace heater is designed to operate with
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
WARNING
This unit is not for use with solid fuels
Appliance Certication
This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation, to ensure
compliance with local codes-including permits and inspections.
The replace insert, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with the
National Electric Code ANSI/NFPA 70 or Canadian Electric code,
CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performed only by a qualied agency. The term “qualied agency”
means any individual, rm, corporation or company which either in
person or through a representative is engaged in and is responsible for
(a) the installation or replacement of gas piping or (b) the connection,
installation, repair or servicing of equipment, who is experienced in
such work, familiar with all precautions required and has complied
with all the requirements of the authority having jurisdiction.
State of Massachusetts: The installation must be made by
a licensed plumber or gas tter in the Commonwealth of
Massachusetts.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1 in
Canada. *Available from the American National Standards Institute,
Inc. 11 West 42nd St., New York, N.Y. 10036.
NOTICE: Prior to operating this unit, be sure to clean the
interior porcelain coated liner panels and glass door with a
soft clean cloth. Due to normal manufacturing processes,
ngerprints and excess sealing materials may be present and
should be removed. When cleaning, do not use abrasives.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changing the existing burner orice to a smaller size. Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for proper
orice size identication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the proper
orice for location.
Preparation
This direct vent gas replace insert and its components are tested
and safe when installed in accordance with this Installation Manual.
Report to your dealer any parts damaged in shipment, specically
check glass condition. Do not install unit with damaged, incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximum benet and safety. Failure to follow them will void your
warranty and may present a re hazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace insert or vent system
component.
• Modication of the replace insert or direct vent system.
• Installation other than as instructed by Empire Comfort Systems,
Inc.
• Improper positioning of the optional decorative glass or glass
door assembly.
• Installation and/or use of any component part not manufactured
or approved by manufacturer.
• This appliance comes standard with a 120 VAC cord assembly
to accommodate control options and the blower accessory. An
outlet box may be installed in a bottom back corner of the existing
solid fuel masonry or factory built replace to plug in the cord
assembly, or the supplied power cord may be routed out onto
the hearth to a nearby outlet.
• A 120 VAC circuit for this product must be protected with
ground-fault circuit-interrupter protection, in compliance with the
applicable electrical codes, when it is installed in locations such
as in bathrooms nor near sinks.
• Low voltage and 120 VAC voltage cannot be shared within the
same wall box.
• Once the appliance installation is completed, the installer should
check that control compartment wiring is secured in a manner
as to not interfere with door latches, valve controls, or the louver
assembly.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
Improper installation or use of the replace can cause
serious injury or death from re, burns, explosions, or
carbon monoxide poisoning
INTRODUCTION

30368-8-1113Page 6
SPECIFICATIONS
DVL25IN(3,7)3L MODELS LP Nat
Input Btu/hr Maximum 20,000 20,000
Btu/hr Minimum 16,000 14,000
KWH (Maximum) 5.9 5.9
(Minimum) 4.4 4.4
Orice 1.35mm 2.20mm
Air Shutter Opening 5/16” CLOSED
DVL33IN(3,7)3L MODELS LP Nat
Input Btu/hr Maximum 27,000 27,000
Btu/hr Minimum 22,000 19,000
KWH (Maximum) 7.83 7.83
(Minimum) 6.5 5.51
Orice 1.55mm #39 (.0995)
Air Shutter Opening 5/16” 3/32”
Remote Control
Accessories
Description
FRBC Millivolt Battery Remote ON/OFF
FRBTC Millivolt Battery Remote Thermostat
TRW Millivolt WIRELESS Wall Thermostat
TMV Millivolt Reed Switch Wall Thermostat
FWS-1 Millivolt Wall Switch
Surround Kits Description
4 Sided Contemporary - Stainless Steel Top & Bottom,
Black Sides
S2562BLSS Stainless Steel, Black, for use on DVL25IN
models
S3362BLSS Stainless Steel, Black for use on DVL33IN
models
4 Sided Traditional Black
S2562BL Black for use on DVL25IN models
S3362BL Black for use on DVL33IN models
3 Sided Black Surrounds
DS25661BL For use on DVL25IN
6 x 6 inch - Required to use any Decorative
Doors, Fronts or Contemporary Frames
DS33661BL For use on DVL33IN
6 x 6 inch - Required to use any Decorative
Doors, Fronts or Contemporary Frames
Traditional Cast Iron Surrounds
SC256BL For use on DVL25IN
6 x 6 inch
SC336BL For use on DVL33IN
6 x 6 inch
SH-1-BL Shroud (For replace openings up to 48” x 36” -
Requires surround.)
Venting Kits Description Contents
DVKI Vertical Vent Kit - 17 1/2’ One piece of 35’ FlexVent (split for 17 1/2’ vent run), Round Cap, Flashing, connectors,
and clamps.
Recommended when installing to an existing round replace chimney pipe.
DVVK3FV Vertical Vent Kit - 25’ Two pieces of 25’ FlexVent, Rectangle Cap, Flashing, connectors, and clamps
Recommended when installing to a square or rectangular clay ue.
DVK35 Vent Extension Kit 35’ ex vent extension section with 2 connectors and 4 clamps
NOTICE: When installing vent caps, special locally made ashings may be required to properly seal the vent system to the existing
chimney termination.
Firescreen Description
DVFS25SBL Firescreen accessory for DVL25IN series
DVFS33SBL Firescreen accessory for DVL33IN series
DVFS35SBL Firescreen accessory for DVL35IN series
For additional information on decorative accessories, refer to
pages 30 to 31.

30368-8-1113 Page 7
3 3/4”
3”
3”
K
2 3/8”
L
I
G
F
J
6”
INTAKE
3” DIA. FLUE
3” DIA.
B
A
N
E
D
M
F
1 5/8”
H
C
2 3/8”
O
Figure 1
A
D
C
B
Figure 2
FIREPLACE INSERT DIMENSIONS
When planning a replace insert installation, it’s necessary to
determine:
• The vent system conguration to be used.
• Gas supply piping.
• Whether optional accessories - devices such as a wall switch
or remote control - are desired.
• Electrical supply requirements for blower.
• Proper opening size of replace required for installation of
the replace insert.
DV FIREPLACE INSERT DIMENSIONS (all dimensions in inches)
MODEL A B C D E F G H I J K L M N O
DVL25IN 28 16-1/2 15 10-1/2 25-1/4 12-3/4 17 18-5/16 27 6-7/8 9-1/4 20 22-1/4 40 22-1/2
DVL33IN 31 19-1/2 16-1/2 13-1/2 28-1/4 14-1/4 18-3/4 21-5/16 30 8-3/8 10-3/4 21-1/2 25-1/4 43 25-1/2
Fireplace Opening Dimensional Information/Sizing
MINIMUM FIREPLACE OPENING DIMENSIONS (inches)
MODEL
NO.
HEIGHT
A*
FRONT
WIDTH
B
DEPTH
C
REAR
WIDTH
D
DVL25IN 18-3/8 27-1/2 12-3/4 17-1/4
DVL33IN 21-3/8 30-1/2 14-1/4 19
*NOTICE: If the replace lintel is wider than 8” (203mm), the
height of the replace opening must be increased a few inches to
allow for a gradual offset in the exhaust and/or intake vent pipes.

30368-8-1113Page 8
COMBUSTIBLE
MANTEL/TRIM
AREA
ZYXW
VUTSRQPO
B
12”
TOPOF INSERT
D
E
F
G
H
I
J
K
L
C
M
N
SURROUND PANELS
A
Figure 4
8”
MINIMUM CLEARANCE TO PERPENDICULAR
COMBUSTIBLE SIDE-WALL
(FROM EDGE OF DOOR FRAME)
Figure 3
MANTLE AND TRIM CLEARANCES
Distance from
Face of Fireplace
Height Above Top of Insert
A 10” N 23”
B 9-1/4” O 22”
C 8-3/4” P 21”
D 8” Q 20”
E 7-1/4” R 19”
F 6-1/2” S 18”
G 6” T 17”
H 5-1/4” U 16”
I 4-1/2” V 15”
J 3-3/4” W 14”
K 3” X 13”
L 2-1/2” Y 12”
M 1-3/4” Z 11”
Combustible Material
No greeting cards, stockings or ornamentation of any type should
be placed on or attached to the replace. The ow of heat can
ignite combustibles.

30368-8-1113 Page 9
Figure 5
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0"
NOTICE: Never use plastic pipe. Check to conrm whether your
local codes allow copper tubing or galvanized.
NOTICE:Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANS Z21.45Assembled FlexibleAppliance Connectors of Other
Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exible appliance connector cannot exceed three feet in length.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10ft
0-3m
1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40ft
4-12m
1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100ft
13-30m
1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150ft
31-46m
3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
GAS FLEX LINE WITH
SHUTOFF VALVE
(PROVIDED)
FRONT
OF
INSERT
RIGHT SIDE OF INSERT

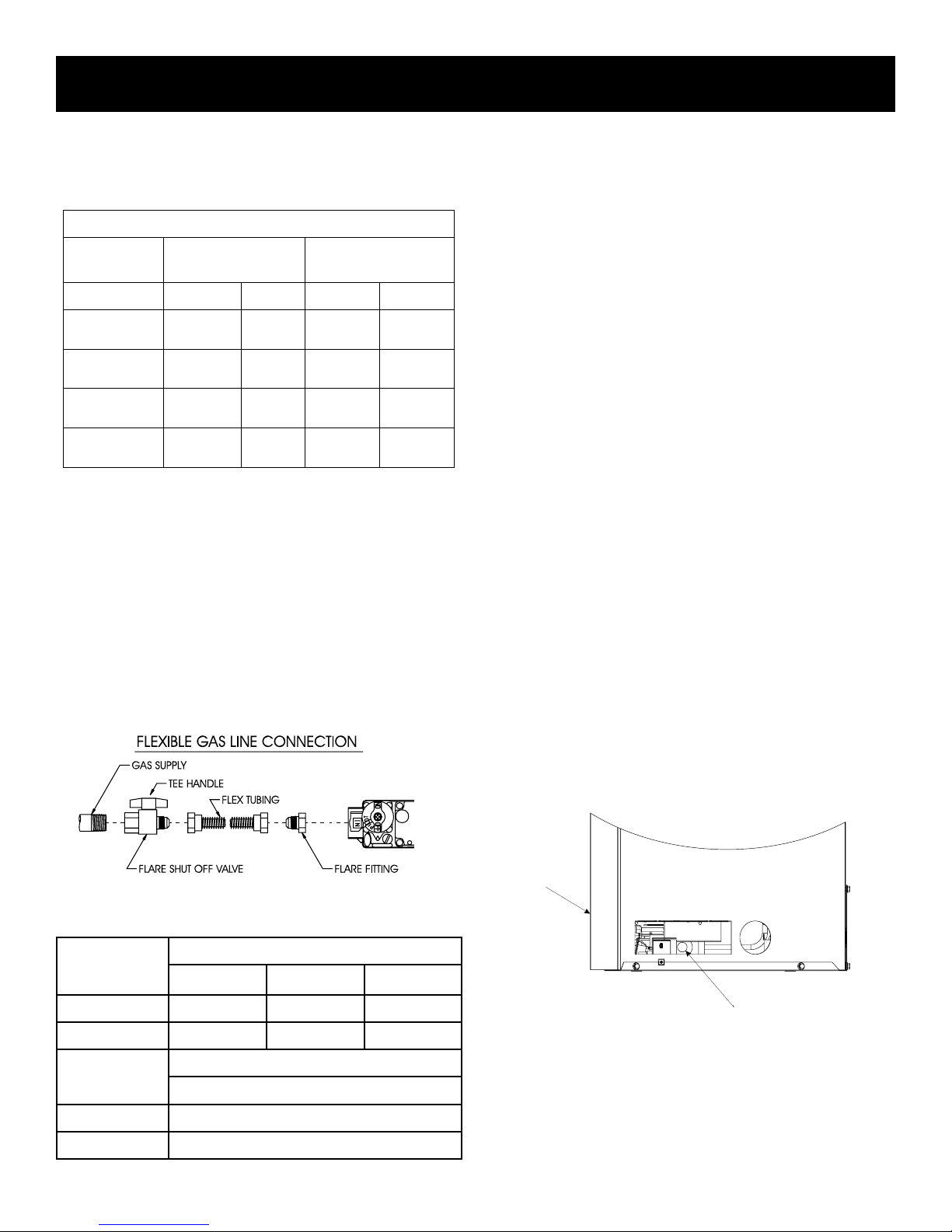

Figure 6
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. The insert has a Flexline with shutoff valve located on
the right side when facing the unit. See Figures 5 and 6. Consult
the current National Fuel Gas Code, ANSI Z223.1 CAN/CGA-B149
(.1 or .2) installation code.
Installing the Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the unit.
Where none exists, or where its size or location is not adequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liqueed petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTICE: The millivolt gas controls are equipped with a captured
screw type pressure test point, therefore it is not necessary to
provide a 1/8" test point up stream of the control.
When using copper or ex connector use only approved ttings.
The appliance and it’s individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess of
1/2 psig (14" w.c.) (3.5 kPa) on the replace gas valve, it will result
in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5" w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8" w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa).

30368-8-1113Page 10
VENTING AND INSTALLATION
1. To begin, remove the glass door from the unit. Note: The
glass door assembly is secured to the rebox with two (2) spring
clamps at the top of the door, and two (2) spring clamps at the
bottom of the door. Check to make sure there is no hidden dam-
age to the unit. Take a minute and plan out the gas, venting and
electrical route. It is best to start with the gas line rst, followed by
the chimney liner and electrical supply requirements.
2. Minimum replace opening requirements are shown in
Figure 2 of this installation manual. The rebrick (refractory),
glass doors, screen rails, screen mesh and log grates can be
removed from a factory built replace in order to gain mini-
mum gas insert opening requirements prior to installing the
gas replace insert.
3. This insert requires no hearth extensions. Combustible ma-
terial on the oor may be installed up to the insert. Do not
obstruct the lower louver of the insert. The original replace
cannot be returned to solid fuel in this condition.
4. The metal oor of the solid fuel rebox may be removed to
facilitate the installation of the insert. CLEARANCE TO COM-
BUSTIBLE MATERIAL UNDER THE INSERT IS 1/4”. YOU
MUST USE THE LEVELING LEGS TO RAISE THE INSERT
A MINIMUM OF 1/4” IF THE INSERT IS TO SIT ON COM-
BUSTIBLE MATERIAL. The side walls and top structure of the
rebox may not be altered with the exception of removable
bafes and dampers. Smoke shields, shelves and bafes may
be removed if attached with mechanical fasteners. The origi-
nal replace cannot be returned to solid fuel in this condition.
5. The original specied clearances of a factory-built re-
place must be maintained, with the exception of the hearth.
Clearances on a masonry replace must be maintained
at 12” from the opening for combustible projections over
1 1/2”. Clearances for combustible projections under
1 1/2” must be maintained at 6” from the opening per NFPA211.
Plan the surround size accordingly. A surround must be used
with the insert.
WARNING
Under no circumstance can combustible material be placed
behind the surround.
6. The insert surround is tested and approved with this gas in-
sert and may cover existing air circulation vents or grills on the
solid fuel replace it is installed into. If the surround does not
cover the entire ventilation grill surface, the exposed grill area
should be left open.
NOTICE: Surround panel kits have been tested and approved
to cover existing air circulation vents or grills.
NOTICE: Cutting of sheet metal parts of a replace in order to
install the replace insert is prohibited.
WARNING
Only the surround as supplied may be used to cover inte-
gral grills on the solid fuel-burning replace. No other com-
ponents such as shrouds, sheet metal plates, etc. may be
used to seal off vents.
7. To assure top performance, safety and efciency, inserts
must be installed with an approved ue liner as per CAN/CGA
B-149 or National Fuel Code ANSI Z223 and these instruc-
tions.
NOTICE: The following statement is also provided on a sepa-
rate label plate in the instruction packet. Prior to installation
of the replace insert, the installer must mechanically secure
this warning plate to the inside of the replace for future ref-
erence as required.
WARNING
The solid fuel replace has been converted for use with gas
only and cannot be used for burning wood or solid fuels un-
less all original parts have been replaced and the replace
has been reapproved by the authority having jurisdiction.
8. The solid fuel replace’s ue damper must be fully locked in
the open position or removed for installation of the gas re-
place insert.
9. The replace and replace chimney must be cleaned and in
good working order and constructed of noncombustible mate-
rials.
10. Make sure that all chimney cleanouts t properly so air cannot
leak into the chimney.
11. Install the insert without the surround panels attached and
make all gas, venting, and electrical connections.
12. To complete the installation reinstall the glass door assembly,
then install the surround panel assembly. Please refer to in-
structions included with the surround panel kit.
WARNING
The glass door assembly must be secured with all four (4)
spring latches for proper operation of the replace insert.
Do NOT operate without the glass door installed.
CAUTION
Ensure there are no obstructions to side air passages of
decorative trim once installed on insert.
INSTALLING THE VENT SYSTEM
Vent System Installation Precautions
Before starting installation of vent kits, the installer should read
these instructions and the Vent Kit Instructions to ensure that a
proper vent installation is completed. Consult your local Building
Codes before beginning the Installation.
WARNING
THIS GAS INSERT AND VENT ASSEMBLY MUST BE
VENTED DIRECTLY TO THE OUTSIDE AND MUST NEVER BE
ATTACHED TO A CHIMNEY SERVING A SEPARATE SOLID
FUEL BURNING APPLIANCE. EACH GAS APPLIANCE
MUST USE A SEPARATE VENT SYSTEM. COMMON VENT
SYSTEMS ARE PROHIBITED.

30368-8-1113 Page 11
VENTING AND INSTALLATION
Vent System Approvals
Figure 8 shows the vent termination caps and systems approved
for use with these models. Approved vent system terminations are
labeled for identication. 3-inch diameter listed exible aluminum
or stainless steel gas vent is used for both the incoming combustion
air and exhaust vent pipes. NO OTHER VENTING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation instructions
are included with each vent termination kit and should be used in
conjunction with this manual.
Horizontal Venting
The vent system on this model CANNOT be terminated horizontally.

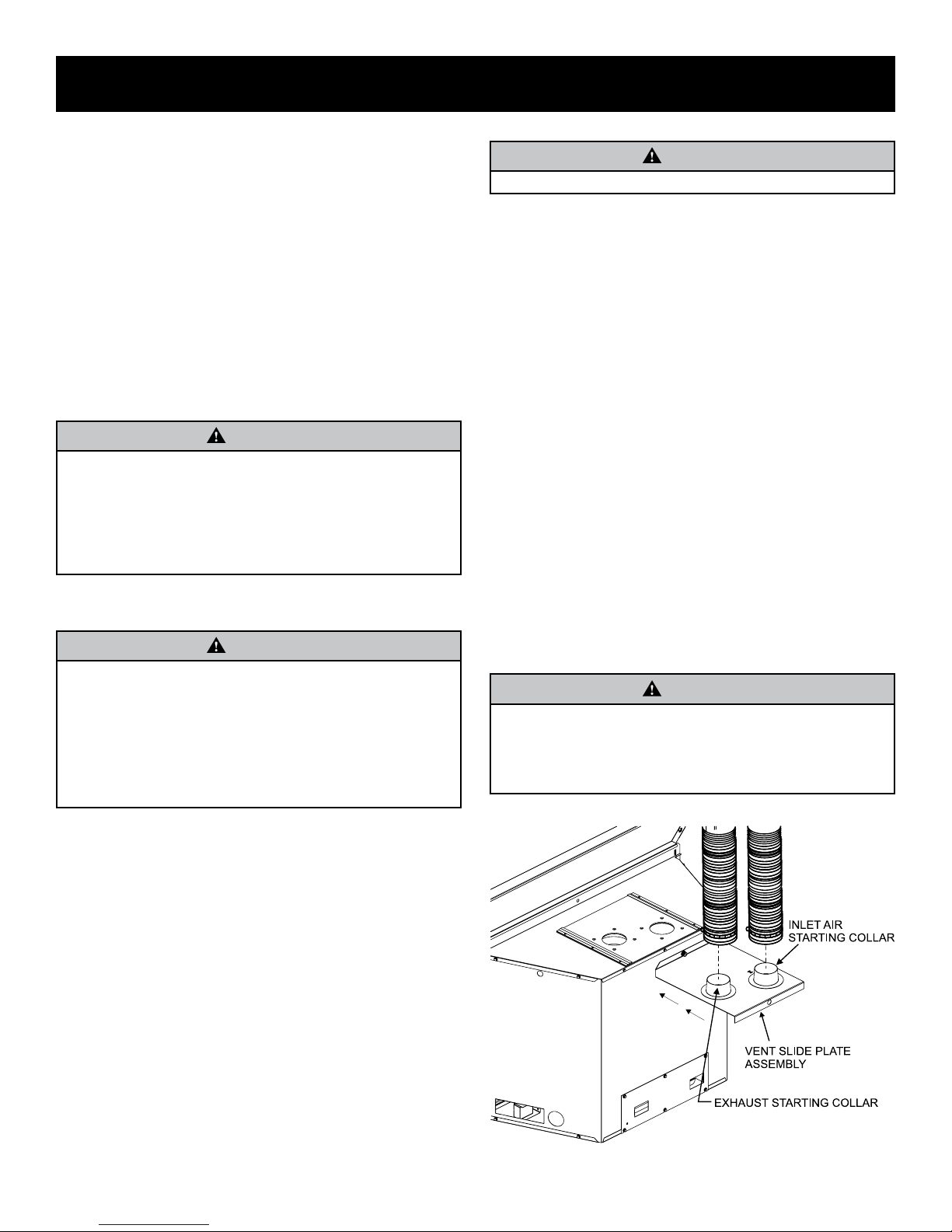

Vertical Venting
The inlet and exhaust vent pipes MUST be connected to the proper
collars on the unit AND to the termination cap or the unit will not
operate. The intake vent collar is identied by a stamped “I” on the
top collar sliding vent plate assembly.
WARNING

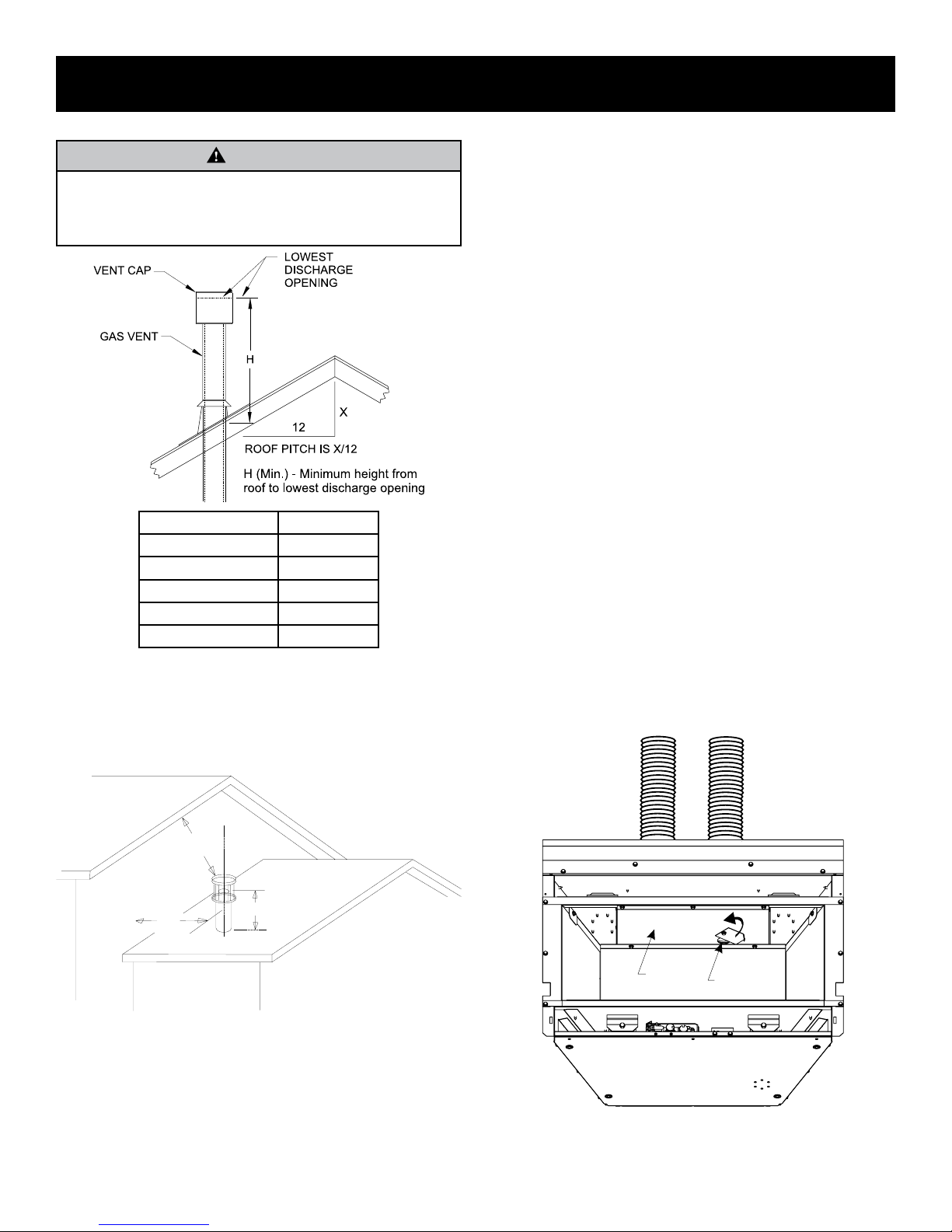

MAJOR U.S. BUILDING CODES SPECIFY MINIMUM
CHIMNEY AND/OR VENT HEIGHT ABOVE THE ROOF TOP.
THESE MINIMUM HEIGHTS ARE NECESSARY IN THE
INTEREST OF SAFETY. SEE FIGURES 8 THROUGH 10 FOR
MINIMUM HEIGHTS, PROVIDED THE TERMINATION CAP IS
AT LEAST 2-FEET FROM A VERTICAL WALL AND 2-FEET
BELOW A HORIZONTAL OVERHANG.
Note: This also pertains to vertical vent systems installed on the
outside of the building.
WARNING
THE EXHAUST PIPE MUST ONLY BE CONNECTED TO THE
EXHAUST STARTING COLLAR OF THE UNIT AND TO THE
EXHAUST COLLAR OF THE TERMINATION CAP.
THE INLET AIR PIPE MUST ONLY BE CONNECTED TO THE
INLET AIR STARTING COLLAR OF THE UNIT AND TO THE
INLET AIR COLLAR OF THE TERMINATION CAP. BOTH THE
INLET VENT AND THE FLUE VENT MUST BE CONNECTED
FROM THE INSERT TO THE VENT TERMINATION CAP.
NOTICE: The minimum vertical vent rise is 10 feet and the
maximum vertical vent rise is 35 feet. These dimensions are
measured from the starting collars of the unit to the end of the last
section of vent pipe. See Figure 8.
NOTICE: The damper of the masonry chimney may need to be
removed to allow installation of the exible-vent pipe.
When installing into a zero clearance, factory built wood-burning
replace, the use of the DVKI Round Vertical Termination Kit should
allow you to mount the vent adaptor and cap to the exposed round
chimney pipe easily.
Connecting the Vent Pipe
CAUTION
Sharp edges. Always use gloves when installing.
Install the 3-inch exible vent pipes down through the chimney.
Attach the pipe-to-cap adaptor to the termination cap and the top of
the exible vent pipe, then install the cap to the top of the chimney.
Remove the vent slide plate assembly from the top of the insert.
See Figure 7. Trim off excess venting then attach and secure
the bottom ends of the ex pipes to the starting collars with the
adjustable band clamps provided. Slide the gas insert into place,
and position any excess ex vent pipe back up into the chimney.
Begin installation of the insert into the replace opening. Align the
vent slide plate assembly with the guides located on top of the
insert. Work the insert inch by inch into the replace cavity as you
pull forward on the vent slide plate assembly. Do not use excessive
force on the vent slide plate. Once the vent slide plate is close to
seating, install the black button head 5/16-18 x 2 1/2” long bolt
through the center hole of the insert top ange, and into the vent
slide plate nut. Using the hex key wrench provided, tighten the bolt
until the vent slide plate is seated forward completely.
Positioning, Leveling, and Securing Insert
1. Place the insert into position.
NOTICE: The front anges of the insert (without surround panels)
should be set at approximately 1”(inch) in front of the face of the
replace.
2. Level the insert from side to side and front to back.
3. If necessary, use the leveling bolts included in the instruction
pack. Screw the legs into the nuts installed in the bottom of
the insert. Turn legs in until insert is level.
CAUTION
TO AVOID DOWNDRAFTS AND/OR COLD AIR PROBLEMS,
IT IS RECOMMENDED TO SEAL OFF THE AREA BETWEEN
THE TERMINATION CAP AND THE TOP OF THE SOLID-
FUEL CHIMNEY OPENING INTO WHICH THE VENT CAP
HAS BEEN INSTALLED.
Figure 7

30368-8-1113Page 12
Figure 8

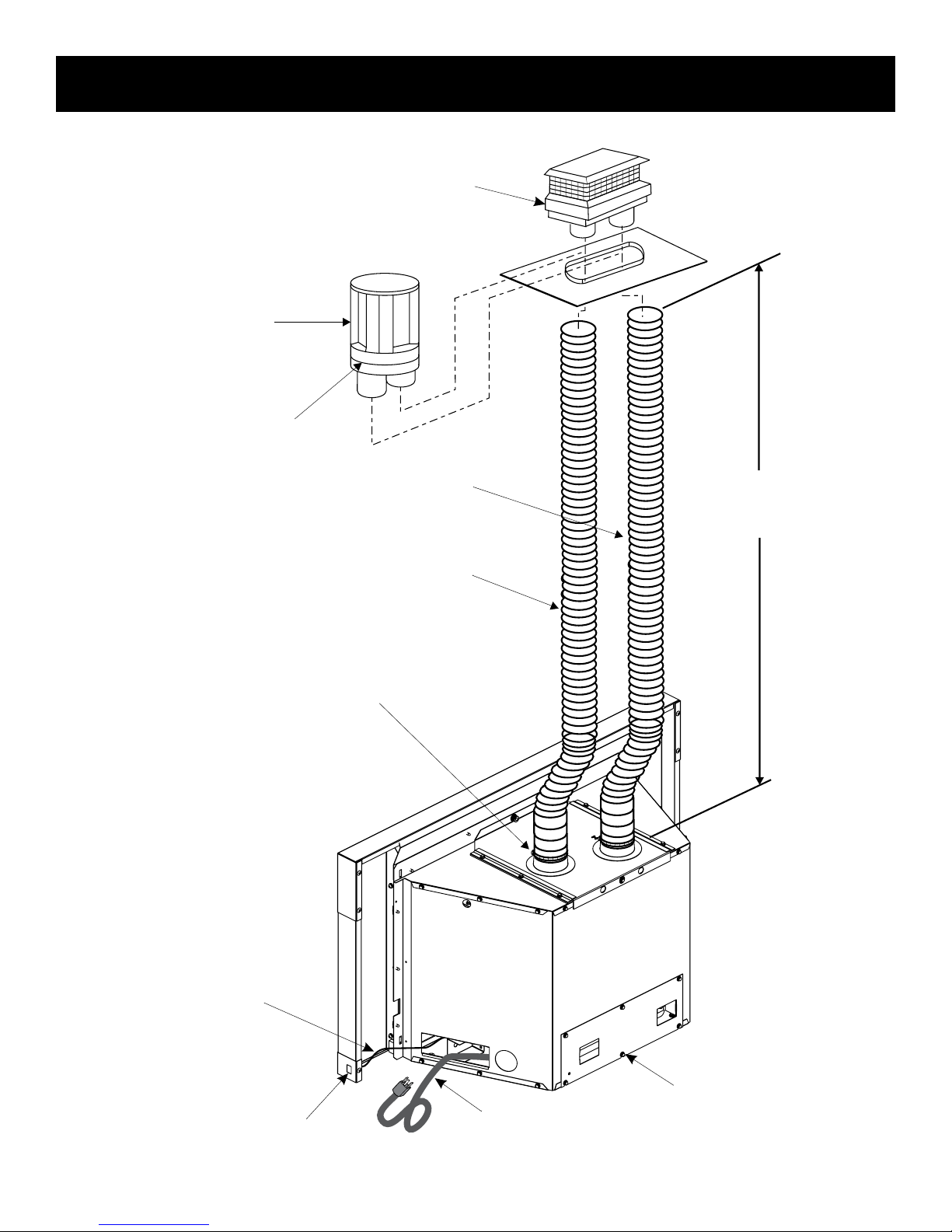

BLOWER ACCESS
COVER PLATE
BLOWER
POWER CORD
OPTIONAL ON/OFF
SWITCH LOCATION
VENT CLAMPS
RECTANGULAR
TERMINATION CAP
(DVVK3FV KIT)
ROUND
TERMINATION CAP
(DVKI KIT)
ROUND CO-LINEARTO
CO-AXIAL ADAPTOR
10’MINIMUM
35’MAXIMUM
OPTIONAL
LOW VOLTAGE
WIRES
INTAKE VENT
FLUE EXHAUST VENT
VENTING AND INSTALLATION

30368-8-1113 Page 13
Vertical Through the Roof Applications
The Gas Fireplace Insert has been approved for:
a) Vertical installations up to 35 feet in height (top of insert to cap).
b) Two sets of 45 degree elbow offsets (bends in exvent) within
the vertical installation. From 0 to a maximum of 8 ft. of vent
pipe can be used between elbows.
c) Wall straps must be used to support offset pipe every 4'.
This application will require that you rst determine the roof pitch
and use the appropriate venting components.
General Maintenance
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect are as follows:
1. Check areas of the venting system which are exposed to the
elements for corrosion. These will appear as rust spots or
streaks and, in extreme cases, holes. These components should
immediately be replaced.
2. Remove the cap and shine a ashlight down the vent. Remove
any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
droplets forming in the ex venting and subsequently dripping
out at joints or seams. Condensate can cause corrosion of caps,
pipe and ttings. It may be caused by having excessive lateral
runs, or having exterior portions of the system exposed to cold
weather.
4. Inspect joints to verify that no pipe sections or ttings have been
disturbed and, consequently, loosened. Also, check mechanical
supports, such as wall straps or plumbers’ tape for rigidity.
Tall Vent Heights
In some circumstances when venting vertically (20 to 30 feet), it
may require that the ue bafe vent door be opened to improve
performance. It is especially important during initial cold start-ups.
To adjust, rotate the vent door enough to encourage better draft for
improved combustion.
FIREBOX
BAFFLE
FLUE
BAFFLE
VENT
Figure 11
Determining Minimum Vent Height Above the Roof.
WARNING
Major U.S. building codes specify minimum chimney and/or
vent height above the roof top. These minimum heights are
necessary in the interest of safety. These specications are
summarized in Figure 9.
ROOF PITCH H (Min.)
Flat to 6/12 12" (305 mm)
6/12 to 7/12 15" (381 mm)
Over 7/12 to 8/12 18" (457 mm)
Over 8/12 to 16/12 24" (610 mm)
Over 16/12 to 21/12 36" (914 mm)
Figure 9
Note that for steep roof pitches, the vent height must be increased.
In high wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft, or
down-drafting. In these cases, increasing the vent height may solve
this problem.
When terminating the vent cap near an exterior wall or overhang,
maintain minimum clearances as shown in Figure 10.
Figure 10
MIN.
12" MIN.
24"
24"
MIN.
C
L
VERTICAL TERMINATION

30368-8-1113Page 14
VERTICAL TERMINATION
Optional Inlet Air Restrictor Plate Installation
Note: For certain installations wtih 20 to 35 feet vertical vent-
ing, or in high wind areas, the installation of the inlet air
restrictor plate may be required. The optional restrictor
plate is included in the instruction packet.

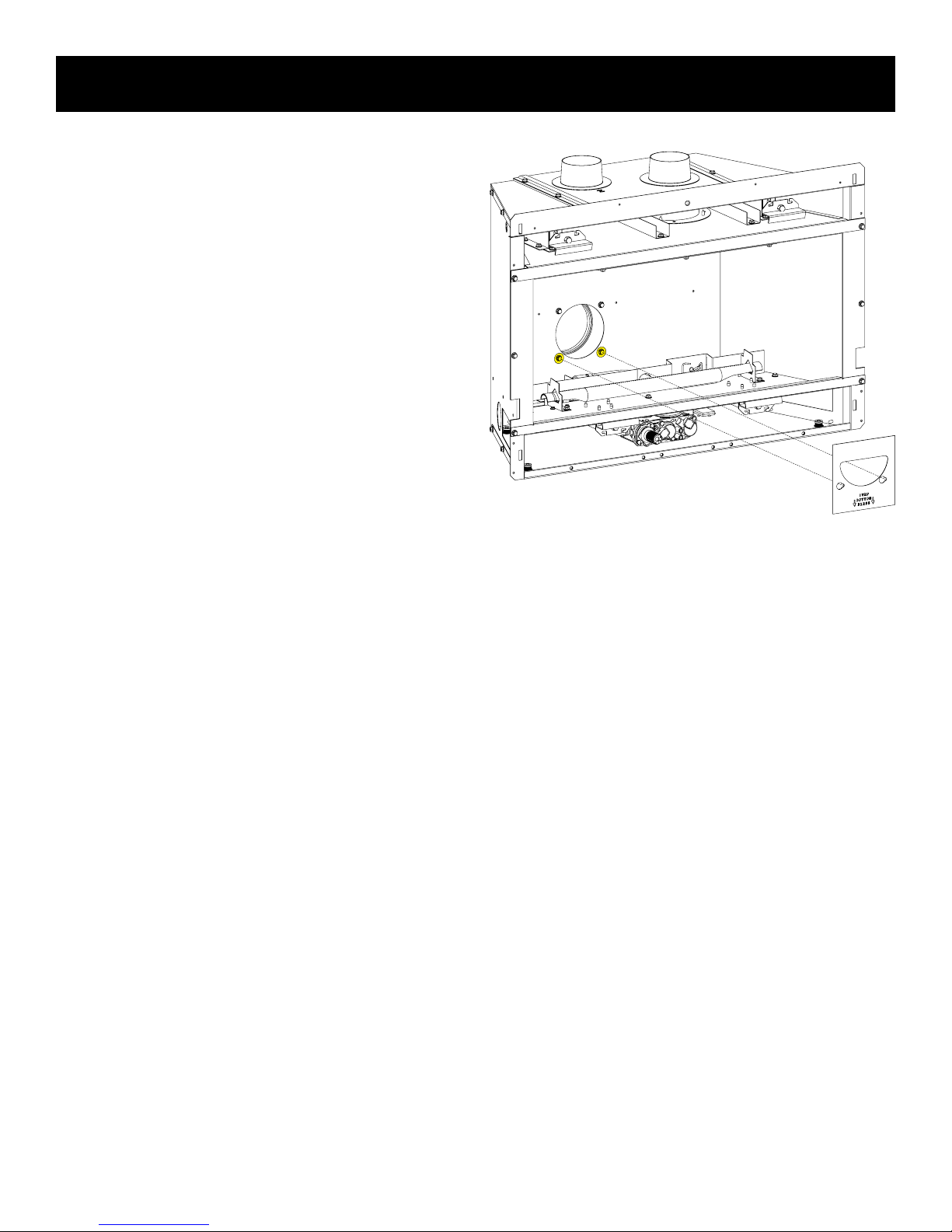

1. If applicable, remove glass door, rear liner panel, burner
cover and side liner panels.
2. Remove log shelf bracket by removing the three screws
securing it to the back of the rebox.
3. Locate the inlet air duct opening.
4. Loosen the two bottom screws that secure the inlet air duct
collar at the rear of the rebox. See Figure 12.
5. Place the restrictor plate over the intake opening, align the
plate with the loosened screws, shift the plate on the keyhole
slots, then re-tighten the two screws. See Figure 12 for locat-
ing the Inlet Air Duct opening.
6. Reinstall the log support bracket using the three screws
removed in step 2.
7. Reinstall the side liner panels, burner cover, rear liner panel
and glass door.
Figure 12

30368-8-1113 Page 15
ALTERNATE ON/OFF SWITCH INSTALLATION
WIRING THE INSERT
NOTICE: Electrical wiring must be installed by a licensed
electrician.
CAUTION
DISCONNECT REMOTE CONTROLS IF YOU ARE ABSENT
FOR EXTENDED TIME PERIODS. THIS WILL PREVENT AC-
CIDENTAL FIREPLACE OPERATION.
Installation of Alternate Surround Panel ON/OFF Switch
An ON/OFF switch and wire assembly are provided. They are in-
cluded in the instruction packet.
Do not cut wire or insulation on metal edges.
NOTICE: Refer to surround panel installation section on page
16 for additional information on attachment.
Contemporary Surrounds

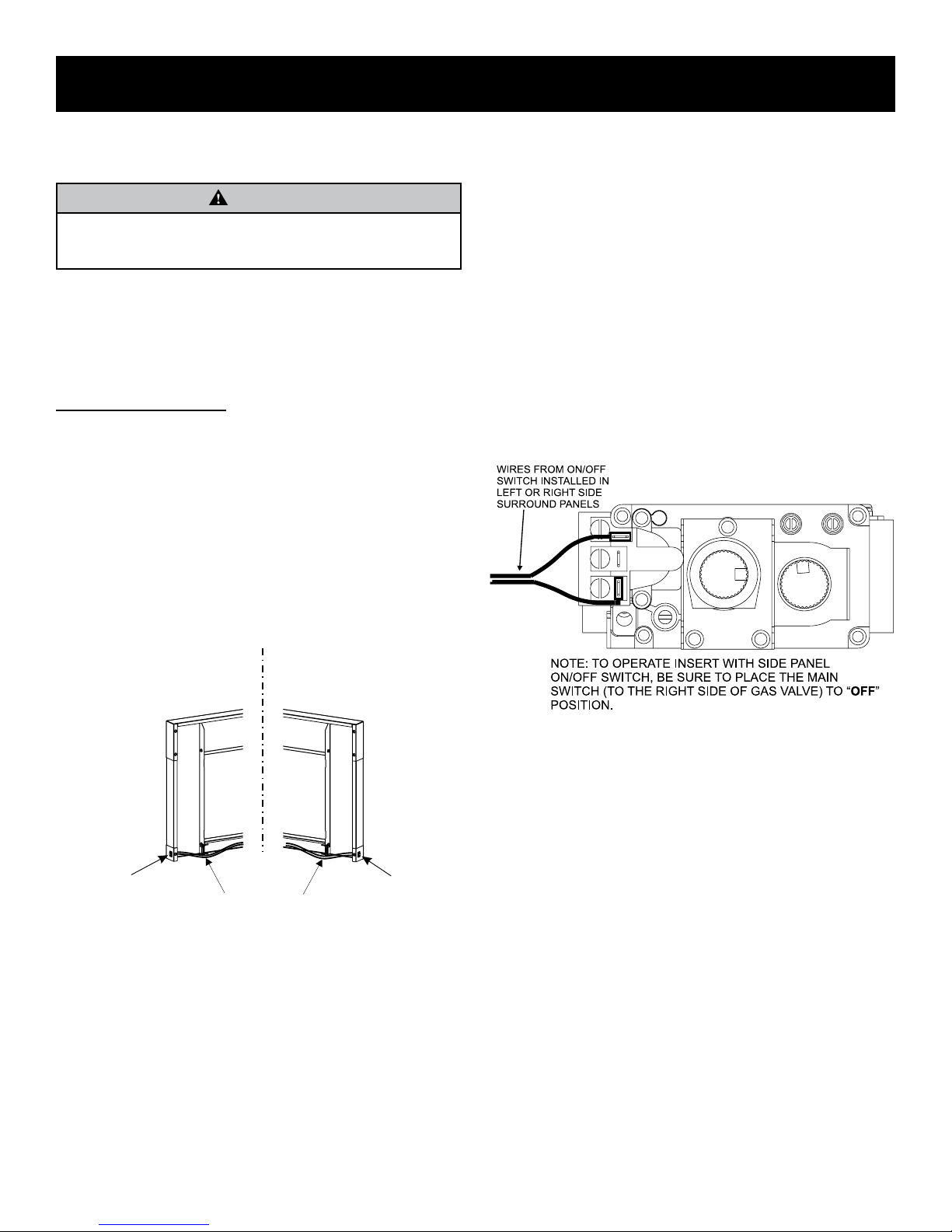

1. Find the coiled low voltage wire assembly and ON/OFF switch
located in the instruction packet.
2a. Millivolt Units: Attach the ag terminal ends to the “TH/TP”
and “TH” terminals on the front terminal block of the gas valve.
See Figure 14.
2b. IP Units: Disconnect the (2) black wires from the green and
white wire connectors. Connect alternate On/Off switch wires
to the green and white wires. Note: This bypasses the On/Off
switch located on the front of the control module tray.
3. Run the low voltage alternate switch wires over to the right
or left surround panel. Then secure the wires with wire clips
provided. See Figure 13.
Right Side Installation Left Side Installation
ON/OFF
SWITCH
ASSEMBLY
ON/OFF
SWITCH
ASSEMBLY
WIRING FROM
MILLIVOLTGAS
VALVE
Figure 13
Insert ON/OFF switch into side panel then attach wire assem-
bly from valve terminals on millivolt units, or from the green
and white wire connectors on IP units.
4. Remove the switch knockout on the side surround panel, then
install the ON/OFF switch. See Figure 13.
5. Connect the low voltage wires from the gas valve to the
ON/OFF switch.
6. Attach the surround panel assembly to the insert. Hang
the surround panel assembly on the face of the insert
and center left to right.
For S(25,33)62 (BL,BLSS) Surrounds: Swing the surround
panel assembly inward until the bottom magnets contact the
insert body side anges.
For DS(25,33)66BL Surrounds: Switn the surround assem-
bly inward, then lift each leg slightly to engage the retainer
hooks into the side ange notches of the insert.
This secures the surround panel assembly to the insert with-
out screws.
Figure 14

30368-8-1113Page 16
SURROUND PANEL INSTALLATION
SURROUND ASSEMBLY
ENGAGE SIDE PANEL
MAGNETS TO SIDE
FLANGES ON INSERT
(BACK SIDE)
NOTE: INSTALL SURROUND ASSEMBLY
SO THAT THE TOPPANEL FLANGE
SLIDE’S OVER THE TOP SHIELD
SURROUND ON THE INSERT
CENTER SURROUND LEFT TO RIGHT
1” Ref.
Figure 16
Figure 15
INSTALLING THE TRIM SURROUNDS
Combustible materials MUST NEVER overlap onto the front face.
WARNING
WHEN FINISHING THE FIREPLACE INSERT, NEVER OB-
STRUCT OR MODIFY THE AIR INLET/OUTLET LOUVERS
ON THE FIREPLACE INSERT IN ANY MANNER.

30368-8-1113 Page 17
The appliance, when installed must be electrically con-
nected and grounded in accordance with local codes or,
in the absence of local codes, with the current CSA C22.1
Canadian Electrical Code.
U.S. Installations, follow local codes and the National
Electrical Code, ANSI/NFPA No. 70.

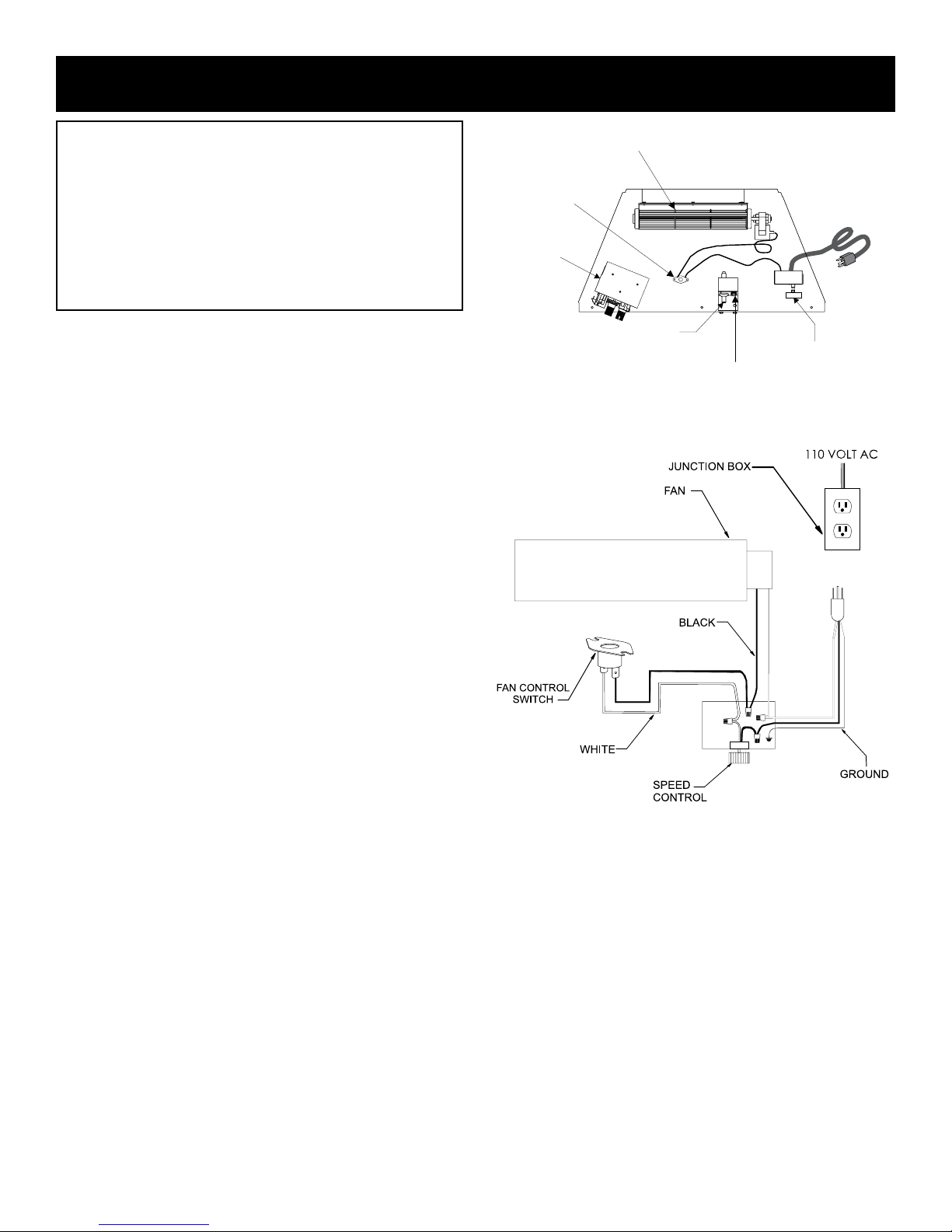

Should this blower require servicing, the power supply
must be disconnected. For rewiring of any replacement
components, refer to Figures 17 and 18 and the parts list
on pages 32-33.
BLOWER ACCESSORY
Operation
The replace insert is equipped with a factory installed blower
accessory that includes a fan control switch, plus a rheostat
(speed control).
The speed control knob is located in the lower compartment at the
right side of the insert.
From a cold start, the temperature activated fan control switch will
normally take 5-10 minutes to heat up and energize the blower.
Once the blower is energized, adjust the blower speed control as
desired.
When the insert is shut off, it may take 30-40 minutes for the
heated unit to dissipate (cool down) enough for the blower to shut
off automatically. NOTICE: The blower shut off times will vary on
blower speed and BTU input level setting control by adjustment of
the HI/LO knob located on the gas valve.
Blower removal instructions
Servicing or removal of the blower system must be performed by
a qualied service person.
If the blower assembly must be replaced, the following steps are
recommended for removal:
1. Turn off gas and disconnect the electrical supply.
2. Remove the front surround panel assembly by pulling bottom
forward, then upward to detach.
3. Release the two (2) spring latches at the top and two (2) spring
latches at the bottom to remove the glass door assembly.
4. Remove decorative glass from burner cover if used.
5. Remove the 5/16” x 2-1/2” center bolt that retains the Vent
Slide plate assembly.
6. Remove the insert from the replace cavity by pulling forward
on the insert, and at the same time, sliding the vent plate
rearward until disengaged.
7. As the insert is moved outward, the gas line may need to be
disconnected at the insert shut off valve. If so, make sure the
main gas line is shut off that supplies gas to the insert.
8. Once the insert is pulled out, the blower assembly can be
removed by locating the (6) screws on the lower back of the
insert that retains the blower base plate.
9. When the screws are removed, gently pull the blower
assembly outward.
10. Disconnect the two ¼” wire terminals from the motor.
11. Remove the (4) screws that retain the blower assembly to the
base plate, and set blower aside.
12. Install the replacement blower, and re-install the insert by
reversing above steps.
Figure 17
Figure 18
BLOWER ASSEMBLY
MILLIVOLT
VA
LVE SHOWN
PIEZO IGNITOR
(MILLIVOLT ONLY)
REMOTE/OFF/ON SWITCH
(MILLIVOLT ONLY)
F
AN SPEED CONTROL
FAN CONTROL
SWITCH
BLOWER ACCESSORY INFORMATION

30368-8-1113Page 18
WARNING: Failure to position the parts in accordance with
the diagrams and instructions below or failure
to use only parts specically approved for use
with this heater may result in property damage
or personal injury.
NOTE: The DVL Fireplace Insert may be operated with or
without the Decorative glass accessory options. Fol-
low the directions below should you choose to en-
hance your Loft Fireplace Insert with any one of the
available decorative glass options.
DECORATIVE GLASS ACCESSORY PLACEMENT
The Decorative Glass options are available in various colors and
package sizes. Choose the proper size kit for use with your par-
ticular Loft Fireplace Insert. See Page 31.
CAUTION: Use of gloves and eye protection is required while
applying the decorative glass.
INSTALLATION
1. Application of the Decorative Glass should only be
performed after the DVL Fireplace Insert has been fully
installed, secured and tested for leaks. If operating the burner
with a Remote Control, make sure all batteries are installed
and that the burner operates with the remote correctly.
2. To install the Decorative Glass, cut off a corner of the plastic
bag and proceed to apply the glass to the rear shelf on the
Loft burner (area behind the burner). Apply only enough glass
to the Top Cover to cover the black metal surfaces. Do not
allow the glass to fall around the burner tube. See Figure 19.
Apply the remaining decorative glass to the front sloped
surface of the Top Cover. Start by placing the glass along the
front edge of the top cover, then gradually place the glass
up the sloped top until completely covered. Do not allow the
glass to fall around the burner tube. See Figure 20.
CAUTION: Glass must not be placed on the burner.
GLASS MUST NOT BE PLACED ON TOP OF OR
NEXT TO BURNER. GLASS TO BE PLACED ONLY
TO THE OUTSIDE OF THE FLANGED OPENING.
DECORATIVE GLASS
Figure 19
Figure 20
Figure 21
OPTIONAL DECORATIVE GLASS PLACEMENT

30368-8-1113 Page 19
MILLIVOLT OPERATING INSTRUCTIONS
The OWNER should carefully read and follow these operating
instructions at all times. Lower the door assembly to view the gas
controls for the replace.
Initial Lighting
Upon completing the gas line or turning the gas valve on after it has
been in the “OFF” position, a small amount of air will be in the lines.
When rst lighting the replace, it will take a few minutes for the
lines to purge themselves of this air. Once the purging is complete,
the replace will light and operate satisfactorily.
Subsequent lightings of the appliance will not require such purging
if the gas valve is not turned to “OFF.”
Pilot Flame
The thermopile/thermocouple (standing pilot) tips should be covered
with ame.
Figure 23
NOTICE:During initial cold start-ups, it is recommended that the
pilot be operated only for a period of 3 to 5 minutes (burner off)
in order to encourage proper draft in the ue vent. Refer to the
“Tall Vent Height” section on page 13 for additional information on
adjustment of the ue bafe vent door in order ro imporve cold
start-up conditions.
NOTICE:On Propane (LP) gas models, when the burner shuts off, a
small secondary ash may occur as the burner ame is extinguished.
This is a normal occurence with LP gas and does not affect the
performance or safety of the appliance.
750 Millivolt System
The standing pilot (750 millivolt system) is a continuous burning
pilot. The pilot remains ON even when the main burner is OFF.
When you ignite the pilot, the thermopile produces millivolts (electrical
current) which energizes the magnet in the gas valve. After 30
seconds to 1 minute time period you can release the gas control
knob and the pilot will stay ON. Allow your pilot ame to operate an
additional one (1) to two (2) minutes before you turn the gas control
knob from the PILOT position to the ON position. This time period
allows the millivolts (electrical current) to build-up to a sufcient
level allowing the gas control to operate properly.
1. Follow the SAFETY and LIGHTING INSTRUCTIONS for standing
pilot controls found in this manual and on labels found in control
compartment behind the door assembly.
WARNING
During the initial purging and subsequent lightings, never
allow the gas valve control knob to remain depressed in the
“pilot” position without pushing the piezo ignitor button at
least once every second.
2. During the operating season, leave the control valve knob in the
“ON” position. This will allow the pilot ame to remain lit. Turn
the burner ame on or off with the replace REMOTE/OFF/ON
switch, wall switch or remote controls.
NOTICE:The gas control valve allows you to increase or decrease
the height of the main burner ame. The control valve has a pressure
regulator with a knob as shown in Figure 22. Rotate the knob
clockwise to “HI” to increase the ame height and counterclockwise
to “LO” to decrease the ame height.
3. When the operating season is over, turn the REMOTE/OFF/ON
switch to “OFF” and the control valve to “OFF”. The system,
including the pilot light, will be shut down.
Figure 22

30368-8-1113Page 20
LIGHTING INSTRUCTIONS
1. Set REMOTE/OFF/ON switch to OFF.
2. Turn off all electric power to the appliance if service is to be
performed (if applicable).
3. Lower bottom louver assembly.
4. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
5. Close bottom louver assembly.

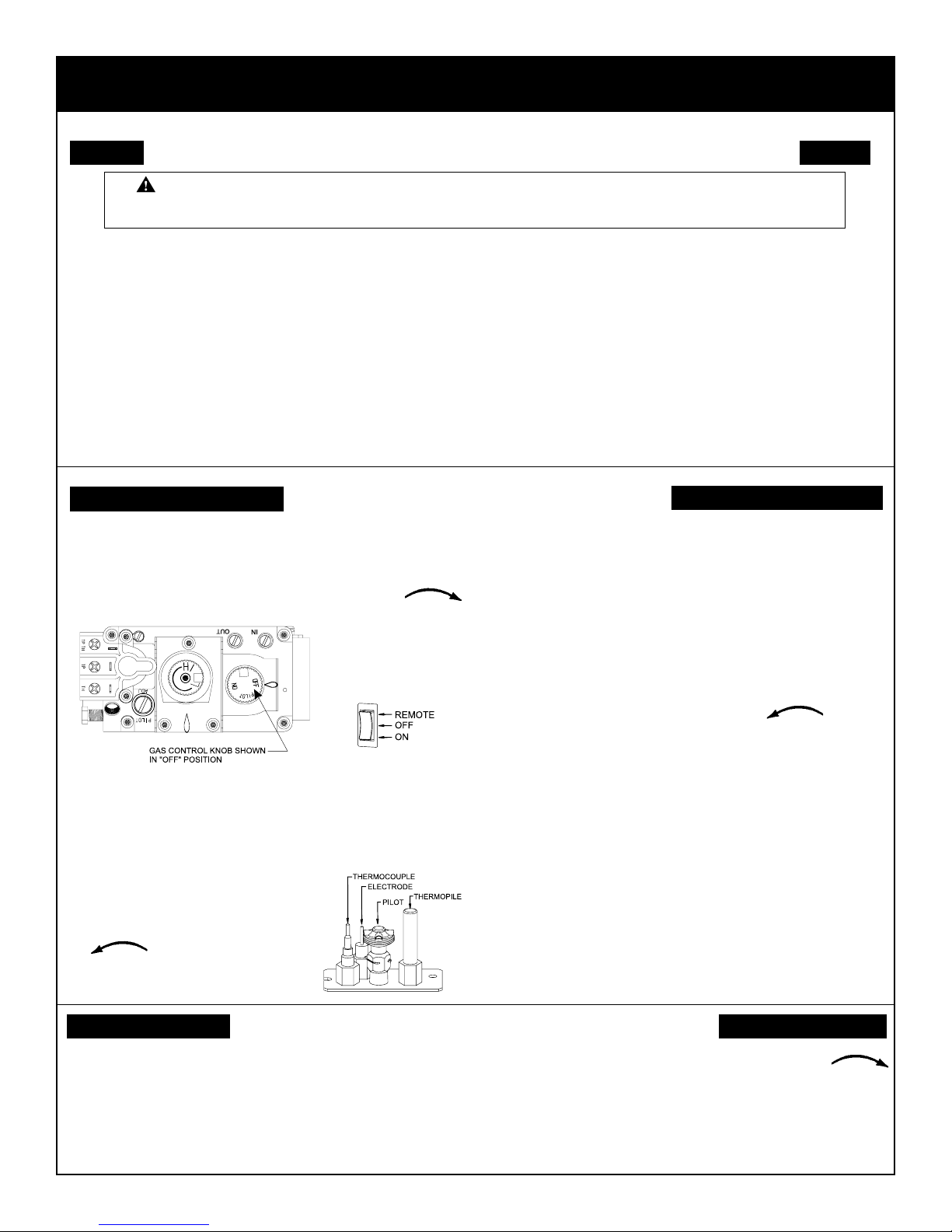

STANDING PILOT LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When
lighting the pilot, follow these instructions exactly.
B. Before lighting smell all around the appliance area for gas. Be
sure to smell next to the oor because some gas is heavier
than air and will settle on the oor.
What To Do If You Smell Gas
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re depart-
ment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
don't try to repair it; call a qualied service technician. Force
or attempted repair may result in a re or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
1. Stop! Read the safety information above.
2. Set REMOTE/OFF/ON switch to OFF.
3. Turn off all electric power to the appliance (if applicable).
4. Lower bottom louver assembly.
5. Push in gas control knob slightly and turn clockwise
to "OFF."
Note:Knob cannot be turned from "PILOT" to "OFF" unless
knob is pushed in slightly. Do not force.
6. Wait ten (10) minutes to clear out any gas. Then smell for gas,
including near the oor. If you then smell gas, STOP! Follow
"B" in the safety information above. If you do not smell gas,
go to the next step.
7. Find pilot - Follow metal tube from gas
control. The pilot is behind the burner
on the right side.
8. Turn gas control knob counterclockwise
to "PILOT."
9. Push in control knob all the way and hold in. Repeatedly push
the piezo ignitor button until the pilot is lit. Continue to hold the
control knob in the for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
• If the control knob does not pop up when released, STOP
and IMMEDIATELY call a qualied service technician or
gas supplier.
• If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician or
gas supplier.
10. Turn gas control knob counterclockwise to "ON."
11. Close bottom louver assembly.
12. Turn on all electric power to the appliance (if applicable).
13. Set REMOTE/OFF/ON switch to desired setting.
TO TURN OFF GAS TO FIREPLACE
