DIRECT-VENT ZERO
CLEARANCE GAS FIREPLACE
HEATER MODEL SERIES:
MULTIFUNCTION
REMOTE (MF)
DVLL60BP90K(N,P)-2
UL FILE NO. MH30033
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of
gas indicated on the rating plate.
This appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING
If not installed, operated and maintained
in accordance with the manufacturer’s
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
NOTE: Barrier required, may be sold separately.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
GAS-FIRED
INSTALLATION INSTRUCTIONS
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.

41368-0-0120Page 2
BEFORE YOU START
SAMPLE WARNINGS AND DEFINITIONS:
DANGER
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
1. Read the safety information on pages 57 - 58.
2. If located in the Commonwealth of Massachusetts, please
note the special requirements on page 59.
3. Areyougoingtoinstallablowerintothereplace?See
pages 8 - 10.
4. Whereareyougoingtoinstallthereplace?Seepage13.
5. Frametheopening.Seepage20.
6. Installthegaslines.Seepages16-17.
7. Installthewiring.Seepages18-19.
8. Installtheventing.Seepages24-33.
9. Installthereplace.Seepages20-23.
10. Installtheremotesystem.Seepages38-45.
11. Linerrequirements.Seepage36.
12. Installtheglassmedia.Seepage37.
13. Lightthereplaceandtroubleshoot.Seepages46-48.
14. Showthehomeownerhowtooperatethereplace.
15. Showthehomeownerhowtodothebasicmaintenance.
UNPACKING THE FIREPLACE
1. Remove crate boards as needed using a screw gun to
remove wood screws.
2. Remove top hand-bent top brackets (2) securing the long 2 x
4 board. Remove the 2 x 4 board and corner posts.
3. Remove non-combustible boards and heatshield from pallet
and set aside.
4. Liftreplaceoffofthepallet.
5. Verifythatthereplaceandcomponentshavenotbeen
damaged during shipping.
6. Setreplaceinalocationneartoitsnalinstallationlocation.
INSTALLATION CONSIDERATIONS - FIREPLACE
INSTALLATION GUIDELINES
Whenplanningareplaceinstallation,it’snecessarytodetermine:
• Gas supply piping (right side entrance).
• Electrical supply requirements
(120V, 60Hz, 1 Amp) (right side entrance)
• DVLL60BP models include the factory installed Accent Light
assembly.
• Proper opening size of framing required for installation of
thereplace.Theframingofthereplacewilldeterminehow
thereplacenishingmaterialswillbeapplied.Refertothe
installation information pages 20 to 23.
•
Theblowerkitiseasiertoinstallatthetimeofreplace
installations.Seeblowerinstallationsectiononpages8to10.
Inplanningtheinstallationforthereplace,determinewherethe
replaceistobeinstalledandwhetheroptionalaccessoriesare
desired. Gas supply piping should also be planned at this time.
Thereplacecanbemountedonanyofthesesurfaces:
1. Aathardcombustibleornon-combustiblesurface.
2. A raised platform of combustible or non-combustible material.
Ifthereplaceisinstalleddirectlyoncarpeting,tileorother
combustiblematerialotherthanwoodooring,itshouldbe
installed on a metal or wood panel extending the full width and
depthofthereplace.
Thereplaceisdesignedtobeinstalledinazero-clearance
enclosure.Thismeansthatcombustiblematerialsmustbe
locatedatclearancesspeciedorprovidedbystandoffsor
spacersattachedtothereplace.
Combustible materials can come in contact with the nailing
angesprovided.
HOMEOWNER REFERENCE INFORMATION
Recordthefollowinginformationaboutyourreplace.
Model:____________________________________  Datepurchased/installed: _________________
SerialNumber: _____________________________  Locationonreplace: ____________________
Dealership: ________________________________  DealerPhone: _________________________
Notes: ______________________________________________________________________________
____________________________________________________________________________________

41368-0-0120 Page 3

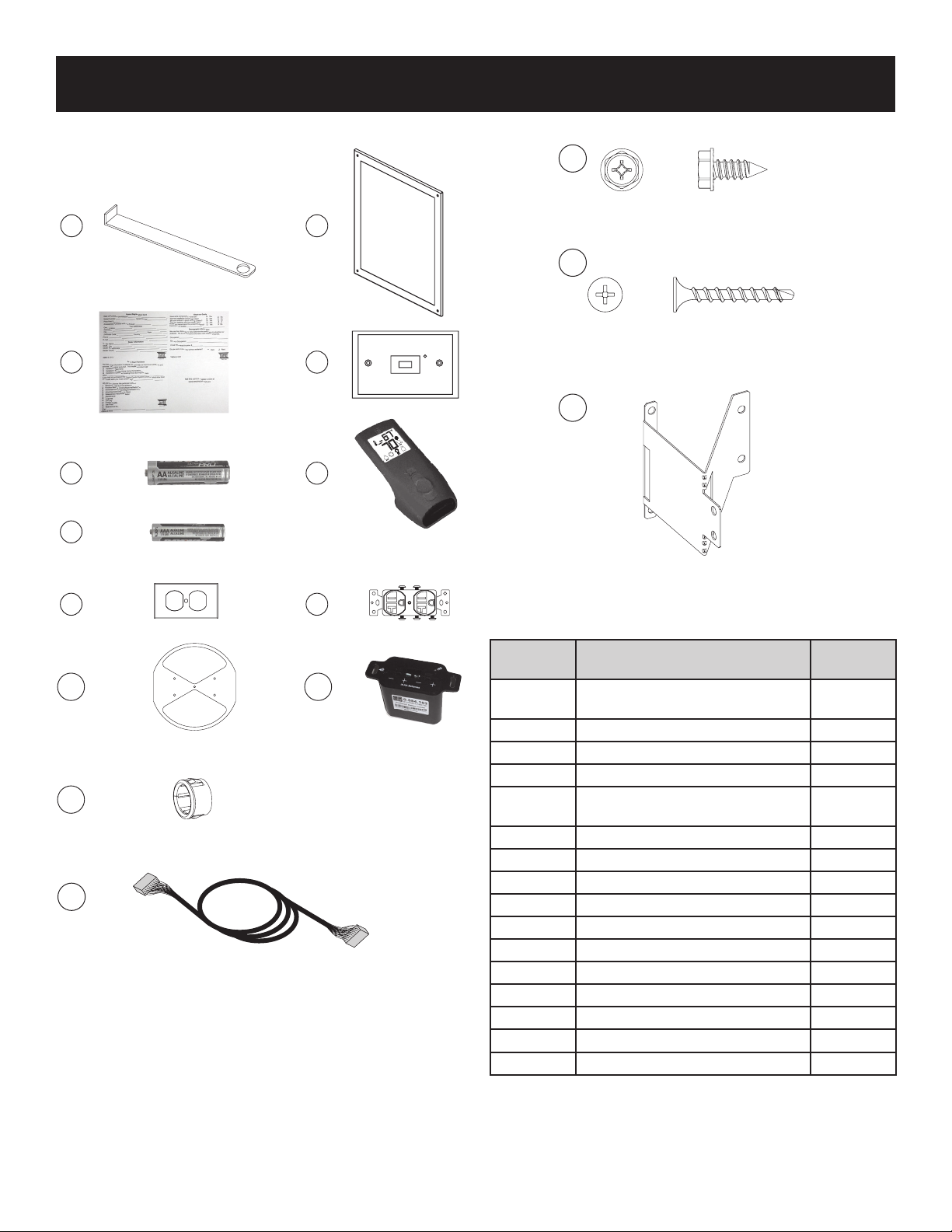

CARTON CONTENTS & HARDWARE PACK
1
2
3
6
5
7
4
8
10
9
11
12
Items not shown to scale.
INDEX
NUMBER DESCRIPTION QUANTITY SUPPLIED
1DoorRemovalTool
(attachedtoreplace) 1
2 Product Registration Card 1
3 AA Battery 4
4 AAA Battery 3
5WallThimbleSpacer
(attachedtoreplace) 1
6 Cover Plate, Battery Box 1
7 Remote 1
8 Junction Box Cover 1
9 Duplex Receptacle 1
10 Flue Restrictor Assembly 1
11 Battery Box 1
12 Grommet, 5/8 DIA 1
13 Wire Assembly, Module to Interface 2
A#10x1/2Screw 22
B#8x1Self-DrillingScrew* 15
CNailingFlange 4
*Foruseinmountingnon-combustibleboardtostandoffs.
SeePartsListsonpages50fororderingreplacementparts.Donot
orderbatteries,bolts,screws,washersornuts.Theyarestandard
hardware items and can be purchased at any local hardware store.
13
1” PHILLIPS SELF DRILLING SCREW
#10 X ½” HEX HEAD SCREW
NAILING FLANGES
A
B
C

41368-0-0120Page 4
TABLE OF CONTENTS
Introduction....................................................................................................................................5
Specications.................................................................................................................................6
Accessories ...................................................................................................................................7
FBB20 Blower Installation...................................................................................................... 8 - 10
Fireplace Dimensions ..................................................................................................................11
Clearances...................................................................................................................................12
Locating Fireplace .......................................................................................................................13
VentTerminationClearances............................................................................................... 14 - 15
GasSupply .......................................................................................................................... 16 - 17
Electrical Connections ......................................................................................................... 18 - 19
Installation............................................................................................................................ 20 - 23
VentSystemIdentication ...........................................................................................................24
VentSystems...............................................................................................................................24
VentingFireplace-Top ........................................................................................................ 25 - 27
TopVent-HorizontalTermination................................................................................................28
TopVent-VerticalTermination ....................................................................................................29
VerticalTermination ............................................................................................................. 30 - 31
DVVK-5F Flex Vent Instructions .......................................................................................... 32 - 33
Framing And Finishing......................................................................................................... 34 - 35
Liner Installation...........................................................................................................................36
Glass Placement..........................................................................................................................37
Multifunction Remote Operating Instructions....................................................................... 38 - 45
ControlSystemTroubleshooting.......................................................................................... 46 - 47
Lighting Instructions.....................................................................................................................48
Parts View....................................................................................................................................50
Parts List......................................................................................................................................51
Component Wiring Diagram ........................................................................................................52
MaintenanceAndService.................................................................................................... 53 - 57
ImportantSafetyInformation .......................................................................................................58
SafetyInformationForUsersOfPropaneGas............................................................................59
Requirements For Massachusetts...............................................................................................60
Master Parts Distributor List ........................................................................................................61
HowToOrderRepairParts..........................................................................................................61
FireplaceServiceHistory.............................................................................................................62
Warranty ......................................................................................................................................63
SECTION PAGE

41368-0-0120 Page 5
Instructions to Installer
1. Leave instruction manual with owner.
2. HaveownerlloutandmailProductRegistrationCard
suppliedwiththereplace.
3. Showownerhowtostartandoperatethereplace.
Thisdirect-ventgasreplaceheaterisdesignedtooperatewith
all combustion air being siphoned from the outside of the building
andallexhaustgasesexpelledtotheoutsideofthebuilding.The
information contained in this manual pertains to all models and
gas control systems unless otherwise noted.
Appliance Certication
WARNING
This replace is not for use with solid fuels. Solid fuels
could cause personal injury or property damage.
ThisreplaceisdesigncertiedinaccordancewithAmerican
NationalStandard/CSAStandardANSIZ21.88/CSA2.33andby
UnderwritersLaboratoriesasaDirectVentGasFireplaceHeater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
Thereplace,wheninstalled,mustbeelectricallygroundedin
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 or Canadian Electric
code,CSAC22.1,ifanexternalelectricalsourceisutilized.
Thesemodelsmaybeinstalledinabedroomorbed-sittingroom
intheU.S.A.andCanada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shallbeperformedonlybyaqualiedagency.Theterm“qualied
agency”meansanyindividual,rm,corporationorcompany
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
Commonwealth of Massachusetts: Theinstallationmustbe
madebyalicensedplumberorgastterintheCommonwealth
of Massachusetts.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
Improper installation or use of the replace can cause
serious injury or death from re, burns, explosions, or
carbon monoxide poisoning.
Theinstallationmustconformwithlocalcodesor,intheabsence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, or CSA
B149.1 in Canada. *Available from the American National
Standards Institute, Inc. 11 West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
AllcorrespondenceshouldrefertocompleteModelNumber,
SerialNumberandtypeofgas.
High Altitude
Wheninstallingthisreplaceatanelevationabove2000feet
(intheUnitedStates)itmaybenecessarytodecreasetheinput
ratingbychangingtheexistingburneroricetoasmallersize.
Generally, input should be reduced 4 percent for each 1000
feet above sea level. However, if the heating value of the gas
has been reduced, this general rule may not apply. Check with
EmpireComfortSystemsforproperoricesizeidentication.
Canadian High Altitude
Altitude:0-4500feet(0-1370m)
Wheninstallingthisreplaceatanelevationabove4500feet(in
Canada),checkwithEmpireComfortSystemsforassistancein
determiningtheproperoriceforlocation.
Preparation
Thisdirectventgasreplaceanditscomponentsaretestedand
safe when installed in accordance with this installation manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
checkglasscondition.Donotinstallreplacewithdamaged,
incomplete, or substitute parts. Read all instructions before
starting installation and follow these instructions carefully during
installationtoinsuremaximumbenetandsafety.Failureto
followthemwillvoidyourwarrantyandmaypresentarehazard.
Thewarrantywillbevoidedby,andthewarranterdisclaimsany
responsibilityforthefollowingactions:
• Installationofanydamagedreplaceorventsystem
component.
• Modicationofthereplaceordirectventsystem.
• Installation other than as instructed by Empire Comfort
SystemsInc.
• Improper positioning of the glass door, or decorative
accessories including logs, rocks, crushed glass or other
approved media.
• Installation and/or use of any component part not
manufactured or approved by manufacturer.
INTRODUCTION

41368-0-0120Page 6
SPECIFICATIONS
DVLL60BP
Natural Propane
InputBTU/HrMaximum 46,000 42,500
InputBTU/HrMinimum 31,000 32,500
KWH (Maximum) 13.34 12.33
KWH (Minimum) 9.00 9.43
Orice #29 (P280) #48 (P300)
AirShutterOpening 1/16-in Fully Open
Height without standoff 36-5/16-in 36-5/16-in
Width 73-in 73-in
Depth 18-5/8-in 18-5/8-in
GasInletShut-off
Valve (pipe) 1/2-inNPT 1/2-inNPT
VentSize 5 x 8 5 x 8
NOTICE: Airshuttersettingsarefactoryminimumsettings.Someventingcongurationsmayrequireminorairshutteradjustmentsfor
optimum performance.
GAS SUPPLY PRESSURES (Dimensions In Inches Water Column - W.C.)
GAS TYPE MAXIMUM MINIMUM MANIFOLD
Natural 14 4.5 3.5
Propane 14 11 10

41368-0-0120 Page 7
ACCESSORIES
Description Color
Fireplace Models DVLL60BP
RidgebackLiner* DVP60LPZ Bronze
PorcelainLiner* DVP60LKR Gloss Black
TrimKit-Beveled DF60BL Black
TrimKit-Beveled DF60HP Hammered Pewter
Beveled Window Frame - 2 inches DF602NB NickelBrushed
Decorative Front, Forged Iron DFF60FPD Distressed Pewter
RusticContemporaryLogs&Stones LS60THF N/A
Accent Light Kit N/A N/A
Dual Blower Kit FBB20 N/A
CONVERSION KITS
ConversionKit-PropanetoNatural 35470 N/A
ConversionKit-NaturaltoPropane 35469 N/A
*DVLL60BPmodelsrequireeitheraRidgebackLineroraPorcelainLiner.Thereplacemusthavealinerinstalledpriortooperation.
**NOTICE:Iftheoptionalblowerkitisdesired,installationintothereplacethroughtherearaccesspaneliseasier,priortoplacingthe
replaceintotheframedoutlocation.
Forapplicationandtheamountofcrushedglasstouse,refertothe“GlassPlacement”sectiononpage37.
ThefollowingaccessorypartscanbeobtainedfromyourEmpireComfortSystemsdealer.ContactyourEmpireDealerformore
accessoryoptions.Ifyouneedadditionalinformationbeyondwhatyourdealercanfurnish,contactEmpireComfortSystemsInc.,918
Freeburg Ave., Belleville, Illinois 62220-2623.
ACCESSORIES

41368-0-0120Page 8
FBB20 BLOWER INSTALLATION
1
1
2
BLOWER ASSEMBLY PARTS LIST
INDEX
NO.
PART
NO. DESCRIPTION QTY.
1 35727 BlowerAssembly-Single 2
2 R12390 Wire Harness 1
TOOLS NEEDED:
• 5/16inNutdriverorscrewgun
CAUTION
Sharp edges. Use gloves when installing these blowers.
Installation - Prior to Setting Fireplace Into Final Position

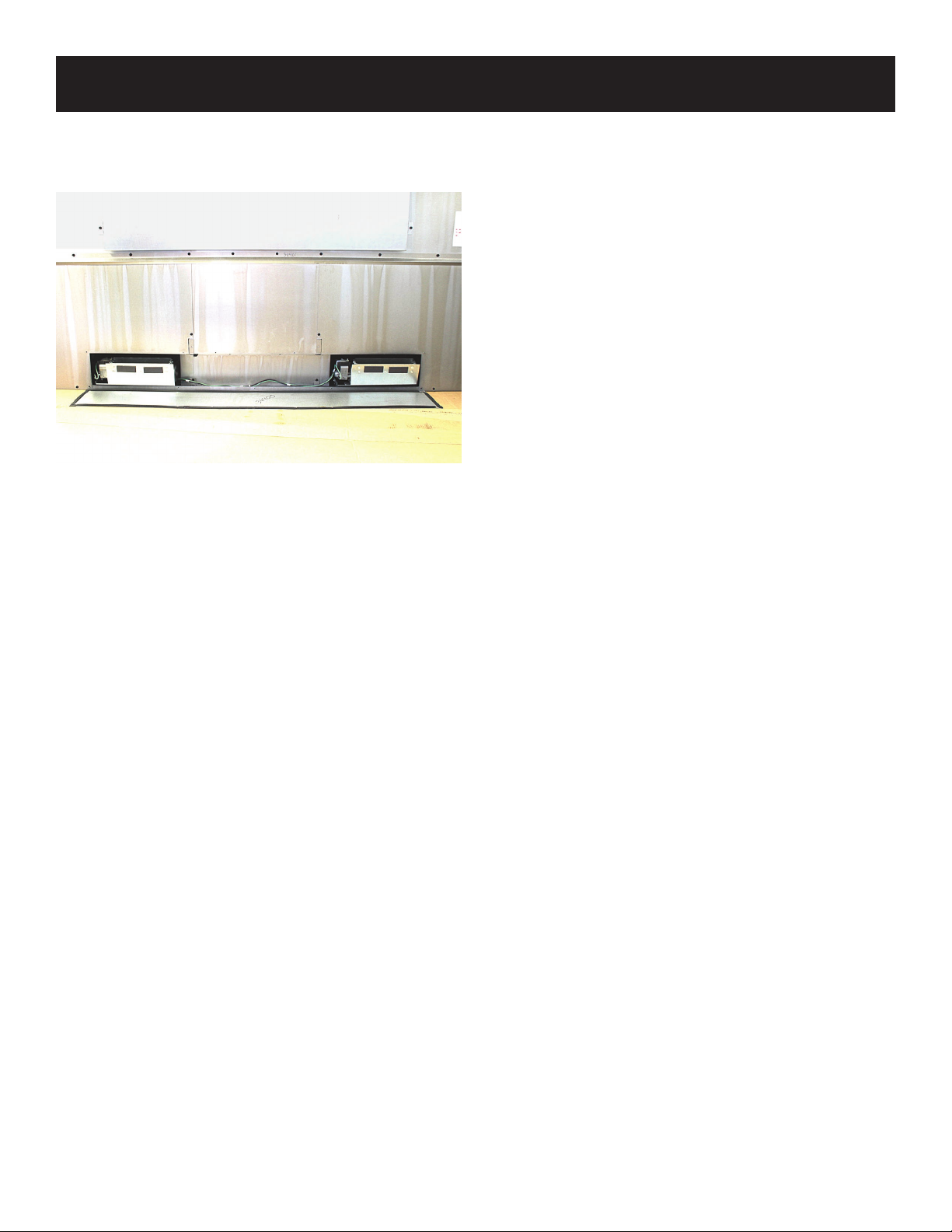

1. UnpacktheFBB20Blowerassembly.
2. Usinga5/16inhexdrive,removethe11screwsholdingrear
blower access cover plate, then lay the access plate on the
oor.See Figure 1.
Figure 1
3.
Usearagtowipetheinsidebottomofthereplace(wherethe
blowers will be placed) to remove dirt or construction dust.
4. Placeblowersontheoorbehindthereplace.Position
the blowers with the two black connecting wires and green
ground wire towards the left hand side when facing the back
ofthereplace.See Figure 2.
Figure 2
5.
Locate the blower wire terminals inside the bottom of the
replaceandmakethethreeconnectionsasshownin
Figure 3.
Figure 3

41368-0-0120 Page 9
FBB20 BLOWER INSTALLATION (CONT’D)
6. Begin installing the left blower assembly into the bottom of
thereplace.Oncetheblowerisabouthalfwayin,secure
wiring within the white plastic wire retention clips provided in
thereplace.See Figure 4.
Figure 4
7. Finish installing the left blower so that the left edge of the
blower base bracket is about even with the left edge of the
access opening. Route the wiring away from the blower
wheel. See Figure 5.
Figure 5
8. Next,installtherighthandblowerassemblytowardsthe
rightsideoftheaccessopening.Therighthandedgeofthe
blower base bracket should be about even with the right
edge of the access opening. Route wiring away from the
blower wheel. See Figure 6.
Figure 6
9.
Snapthewireharnessintothewhiteplasticwireretentionclip
locatedatthecenterbottomofthereplace.See Figure 7.
Figure 7

41368-0-0120Page 10
FBB20 BLOWER INSTALLATION (CONT’D)
10. Make sure the blower base brackets are pulled rearward
againstthebottomangeofthereplace.Themagnetson
the blower base bracket will keep the blowers in place. See
Figure 8.
Figure 8
11. Re-attach the Blower Access Panel with the 11 screws
removed in step 2. See Figure 1.
12. Blower installation is complete.

41368-0-0120 Page 11

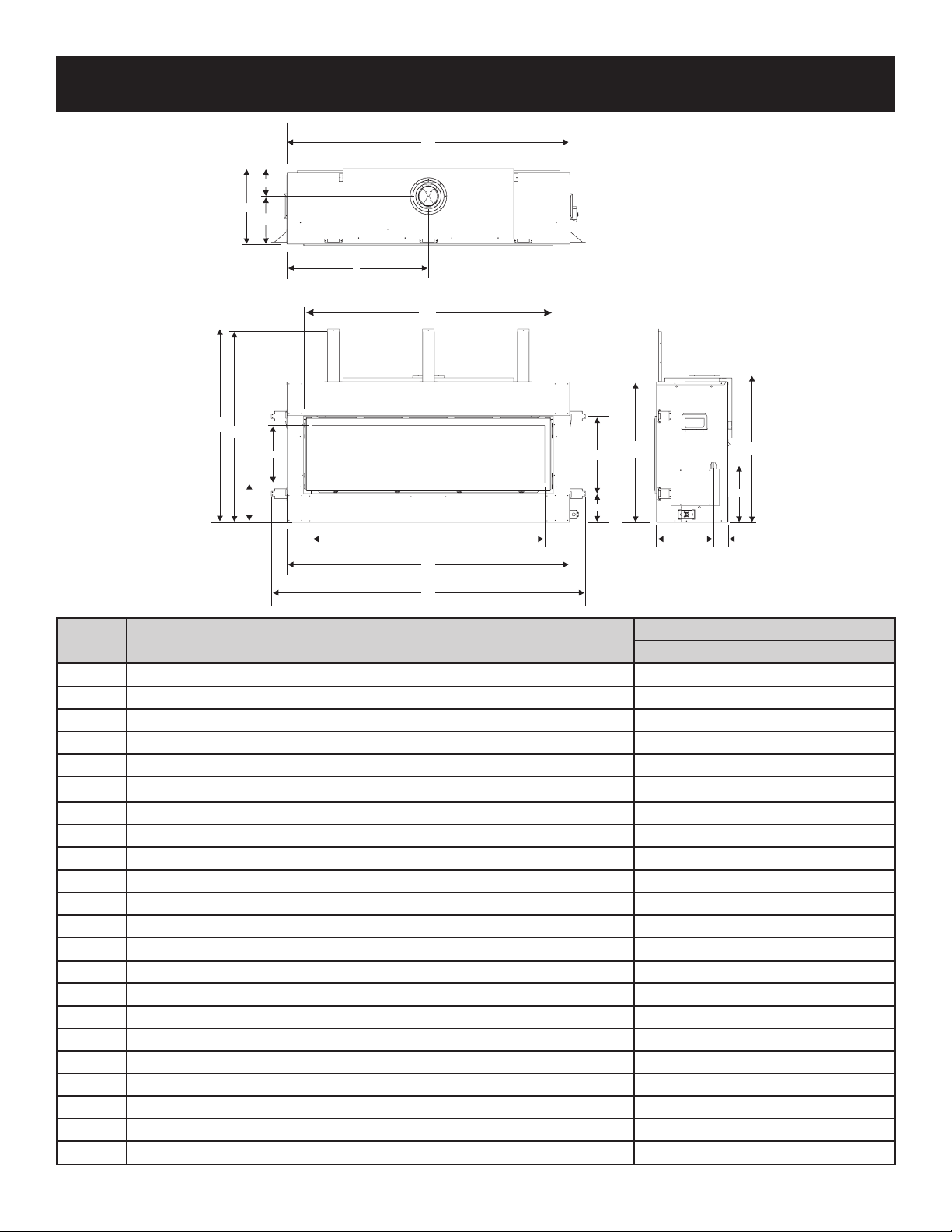

FIREPLACE DIMENSIONS
INDEX
LETTER DIMENSION DESCRIPTION DVLL60BP90
Dimensions in Inches
AThemaximumheightofreboxface(excludingstandoffs) 36-1/4
BThemaximumwidthofthereboxface(excludingnailinganges) 73
CThemaximumdepthoftherebox 19-1/2
DTheheightofthereboxopening 20
EThewidthofthereboxopening 64-1/4
FTheinteriordepthoftherebox(notshown) 13
GTherearexteriorwidthoftherebox 73
HTheheighttothereboxstandoffs 49-1/4
I Width from the left side of the box to the centerline of vent 36-9/16
J Depth from back of box to centerline of top vent 7-1/8
K Height from the bottom of the box to the gas line opening 14-3/4
L Depth from the front of the box to gas line opening 14-11/16
M Depth from rear of box to gas line opening 3-3/4
NGlass height 15
O Glass width 60
P Depth from front of box to centerline of vent 12-3/8
QDistancefromoortoreplaceopening 7-3/8
RHeightfromoortoventcollar 37-15/16
SOverall height to header 49-3/8
TDistance between framing bracket ends 81-1/16
U Interiorrearwidthofrebox(notshown) 57
VBottomofreplacetoscreenopening 10-1/8
O
O
B
B
N
N
I
I
C
C
J
J
P
P
E
E
D
D
R
R
L
L
M
M
K
K
A
A
G
G
Q
Q
T
T
H
H
S
S
V
V

41368-0-0120Page 12
CLEARANCES
CLEARANCE TO COMBUSTIBLES
Back See Fig. 10
Side 3-in
Floor 0-in
TopStand-offBracket 0-in
TopFramingEdge 13-in
SEE MANTEL CHART FOR
MAXIMUM MANTEL DEPTH
13” MIN.
2” X 4” HEADER
STAND-OFF
13” (76mm) HEIGHT
ABOVE TOP OF FIREPLACE
FINISHED WALL
(COMBUSTIBLE)
NON-COMBUSTIBLE
BOARD
TOP FRAMING LEDGE
SEE MANTEL CHART
FOR MINIMUM HEIGHT
OF MANTEL ABOVE
UNIT OPENING
BARRIER
SCREEN/GLASS
FRONT
NOTE A: See Figure 12 for maximum mantel depth and
minimumheightabovereplace.
Figure 9
8”
3”
3” 2”
NOTE: COMBUSTIBLE MATERIALS ALLOWED IN SHADED AREA
3”
Figure 10
Theminimumclearancefrombottomofthereplacetoceilingis65-in.
The minimum clearance from side of the replace opening to
adjacent sidewall is 8-in.
8” MIN.
(20cm)
TO BOTTOM
OF CABINET
CEILING
TO BOTTOM OF
VENTED OPENING
57 5/8” MIN
(146cm)
65” MIN
(165cm)
Figure 11
MANTEL CHART
TOP EDGE OF
FIREPLACE OPENING
H
22”
34”
12”
A
3”
MINIMUM
NON-COMBUSTIBLE MATERIAL ZONE
INDEX
LETTER
DISTANCE FROM
FIREPLACE OPENING
(in inches)
DISTANCE FROM
FINISHED WALL
(in inches)
A 34 12
B 34 10
C 32 8-3/8
D 30 6-5/8
E 28 5
F 26 3-3/8
G 24 1-3/4
H 22 0
Figure 12
Television Considerations
Installingatelevisionaboveareplacehasbecomeincreasingly
popular;however,theareaaboveanyreplacegetshotandmost
TVmanufacturersrecommendagainstplacingtheirproducts
near a heat source.
Ifyouinstallatelevisionabovethisreplace,EmpireComfort
Systemsacceptsnoresponsibilityfordamageorinjuries.Follow
thetelevisionmanufacturer’sinstallationinstructions,including
any recommendations regarding proximity to heat sources.
IfyouhaveaTVaboveyourreplace,turnoffthereplaceand
let it cool completely before servicing or touching any buttons on
theTV.

41368-0-0120 Page 13
Figure 13
NOTE: Island and Room Divider installation is possible as long as
the horizontal portion of the vent system does not exceed 20 feet
withaminimumverticalrunof8feet.SeedetailsinVentingSection.
NOTE:Wheninstallingthisreplaceagainstanexteriorwall,insulate
to applicable insulation codes.
When you install your Direct Vent Fireplace in Room divider or Flat
on wall corner positions, a minimum of 8 inches clearance must
be maintained from the perpendicular wall and the front opening
ofthereplace.

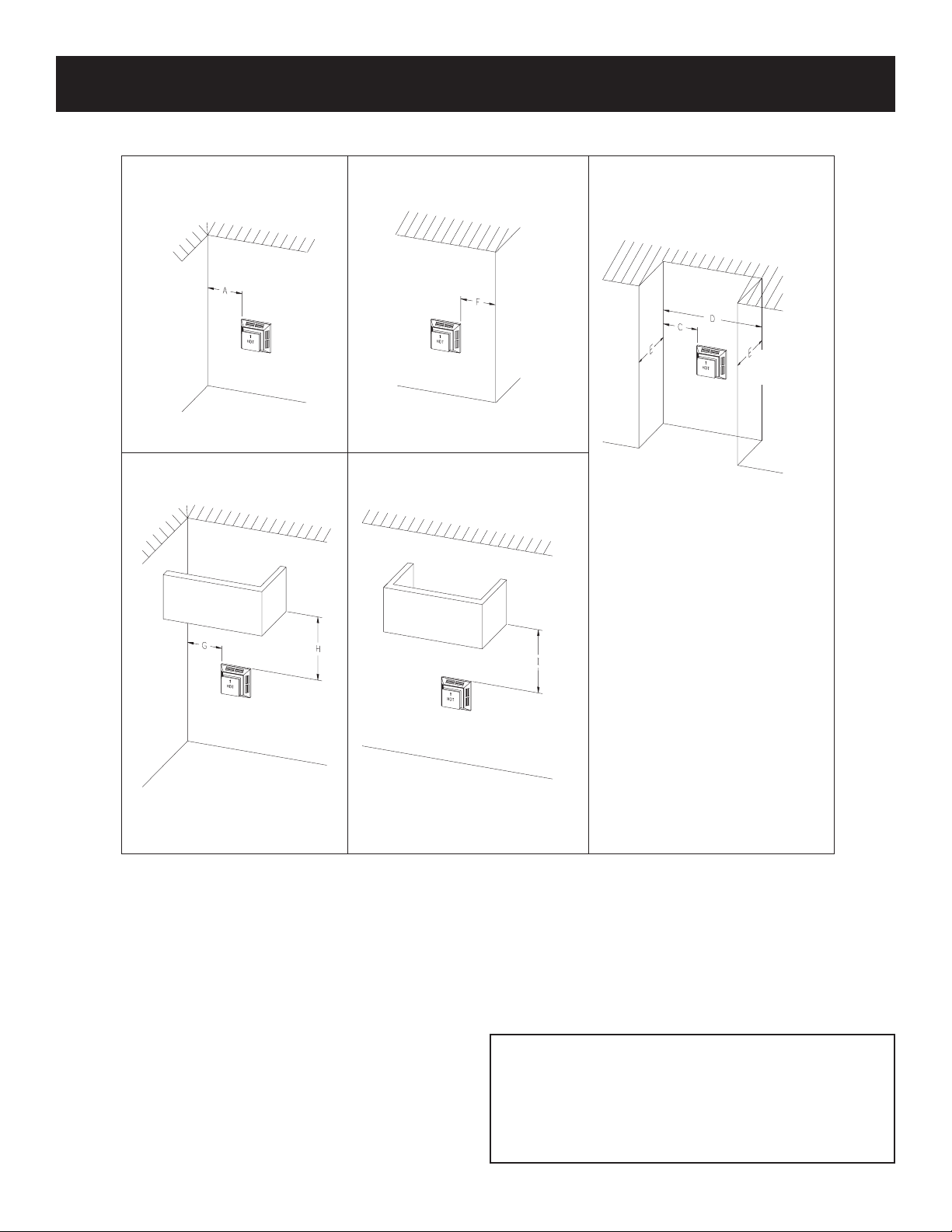

LOCATING FIREPLACE
ROOM DIVIDER
INSTALLATION
FLUSH WALL
INSTALLATION
ISLAND
INSTALLATION
CABINET
INSTALLATION
CORNER
INSTALLATION
ANGLED CORNER
INSTALLATION

41368-0-0120Page 14

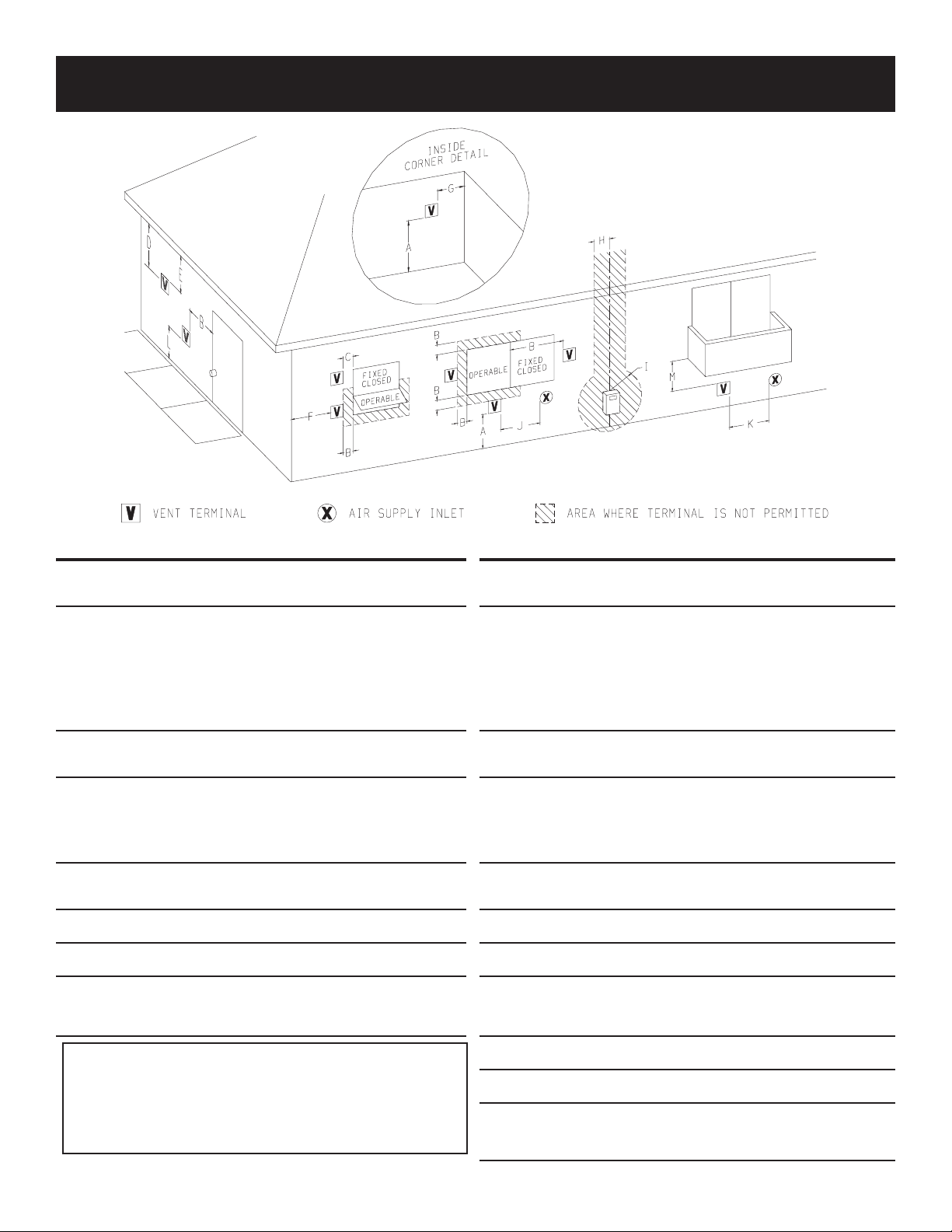

Terminationclearanceforbuildingswithcombustibleandnoncombustibleexteriors.
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and
combustible materials is 3 inch (76 mm) on top, and 1
inch(25 mm) on bottom and sides.
Important! When vent termination exits through foundation less
than 20 inch (508 mm) below siding outcrop, the vent pipe must
extend outward so that the horizontal vent termination is located
ushto,orbeyondtheoutcropsiding.
Information on Various Venting Routes and Components
Important:Itisalwaysbesttolocatethereplaceinsuchaway
that minimizes the number of offsets and horizontal vent length.
Sinceitisveryimportantthattheventingsystemmaintainits
balancebetweenthecombustionairintakeandtheuegas
exhaust,certainlimitationsastoventcongurationsapplyand
must be strictly adhered to.
Figure 14
VENT TERMINATION CLEARANCES
Thegraphshowingtherelationshipbetweenverticaland
horizontal side wall venting will help to determine the various vent
lengths allowable.
Thehorizontalventrunreferstothetotallengthofventpipefrom
theuecollarofthereplacetothefaceoftheouterwall.
Venting termination shall not be recessed into wall or siding.
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal).
Thisdoesnotincludevinyl.EmpireComfortSystemsInc.
will not be held responsible for heat damage caused from
terminating under vinyl overhangs, vinyl ceilings or vinyl
ventilated/unventilatedsofts.
RECESSED LOCATION
OUTSIDE CORNER
INSIDE CORNER
“A”=COMBUSTIBLE 9” (229mm)
= NONCOMBUSTIBLE 2” (51mm)
“F”=COMBUSTIBLE 6” (152mm)
= NONCOMBUSTIBLE 6” (152mm)
BALCONY
WITH PERPENDICULAR SIDE WALL
BALCONY
WITH NO SIDE WALL
“C”=CLEARANCE FROM CORNER
IN RECESSED LOCATION
COMBUSTIBLE 9” (229mm)
NONCOMBUSTIBLE 2” (51mm)
“D”=MINIMUM WIDTH FOR BACK WALL
OF A RECESSED LOCATION
COMBUSTIBLE 38” (965mm)
NONCOMBUSTIBLE 24” (610mm)
“E”=MAXIMUM DEPTH OF 48” (1219mm)
FOR RECESSED LOCATION
“G”=COMBUSTIBLE 9” (229mm)
= NONCOMBUSTIBLE 2” (51mm)
“H”=COMBUSTIBLE 18” (457mm)
= NONCOMBUSTIBLE 12” (305mm)
“I” = COMBUSTIBLE 12” (457mm)
= NONCOMBUSTIBLE 12” (305mm)

41368-0-0120 Page 15
VENT TERMINATION CLEARANCES (CONT’D)
Canadian Installations1 USInstallations2 Canadian Installations1 USInstallations2
A= Clearance above grade,
veranda, porch, deck, or
balcony
12 in (30 cm) 12 in (30cm)
I= Clearance to service
regulator vent outlet 3 ft (91 cm) 6 ft
B= Clearance to window or
door that may be open
6 in (15 cm) for appli-
ances≤10,000Btuh
(3 kW), 12 in (30 cm)
for appliances > 10,000
Btuh(3kW)and≤
100,000 Btuh (30 kW),
36 in (91 cm) for appli-
ances > 100,000 Btuh
(30 kW)
6 in (15 cm) for appli-
ances≤10,000Btuh(3
kW), 9 in (23 cm) for ap-
pliances > 10,000 Btuh
(3kW)and≤50,000
Btuh (15 kW), 12 in
(30 cm) for appliances >
50,000 Btuh (15 kW)
J= Clearance to nonme-
chanical air supply
inlet to building or the
combustion air inlet to
any other appliance
6 in (15 cm) for appli-
ances≤10,000Btuh(3
kW), 12 in (30 cm) for
appliances > 10,000
Btuh(3kW)and≤
100,000 Btuh (30 kW),
36 in (91 cm) for appli-
ances > 100,000 Btuh
(30 kW)
6 in (15 cm) for appli-
ances≤10,000Btuh
(3 kW), 9 in (23 cm) for
appliances > 10,000 Btuh
(3kW)and≤50,000Btuh
(15 kW), 12 in (30 cm) for
appliances > 50,000 Btuh
(15 kW)
C= Clearance to
permanently
closed window
12 in (30 cm) 12 in (30 cm)
K= Clearance to a mechani-
cal air supply inlet 6 ft (1.83 m)
3 ft (91 cm) above if
within 10 ft (3 m) hori-
zontally
D= Vertical clearance
ventilatedsoftlocated
above the terminal within
a horizontal distance of 2
feet (61 cm) from the
center line of the terminal
24 in (61 cm) 24 in (61 cm)
L= Clearance above paved
sidewalk or paved drive-
way located on public
property 7 ft (2.13 m) † 7 ft (2.13 m) †
E= Clearance to
unventilatedsoft 12 in (30 cm) 12 in (30 cm)
M= Clearance under
veranda, porch deck,
or balcony
12 in (30 cm) ‡ 12 in (30 cm) ‡
F= Clearance to outside
corner 6 in (15 cm) 6 in (15 cm) 1InaccordancewiththecurrentCSAB149.1,NaturalGasandPropaneInstal- lation Code
G= Clearance inside corner 9 in (23 cm) 9 in (23 cm) 2InAccordancewiththecurrentANSIZ223.1/NFPA54,NationalFuelGas
Code
H= Clearance to each side
of center line extended
above meter/regulator
assembly
3 ft (91 cm) within a
height 15 ft (4.5 m)
above the meter/regula-
tor assembly
3 ft (91 cm)
† A vent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearancesaretoheatresistantmaterial(i.e.wood,metal).This
doesnotincludevinyl.EmpireComfortSystemsInc.willnotbeheld
responsible for heat damage caused from terminating under vinyl
overhangs,vinylceilingsorvinylventilated/unventilatedsofts.
‡Permitted only if veranda,, porch, deck, or balcony is fully open on a minimum
oftwosidesbeneaththeoor.
* ForclearancesnotspeciedinANSIZ223.1/NFPA54orCSAB149.1,oneof
thefollowingshallbeindicated:
Clearance in accordance with local installation codes and the requirements of the
gas supplier.

41368-0-0120Page 16

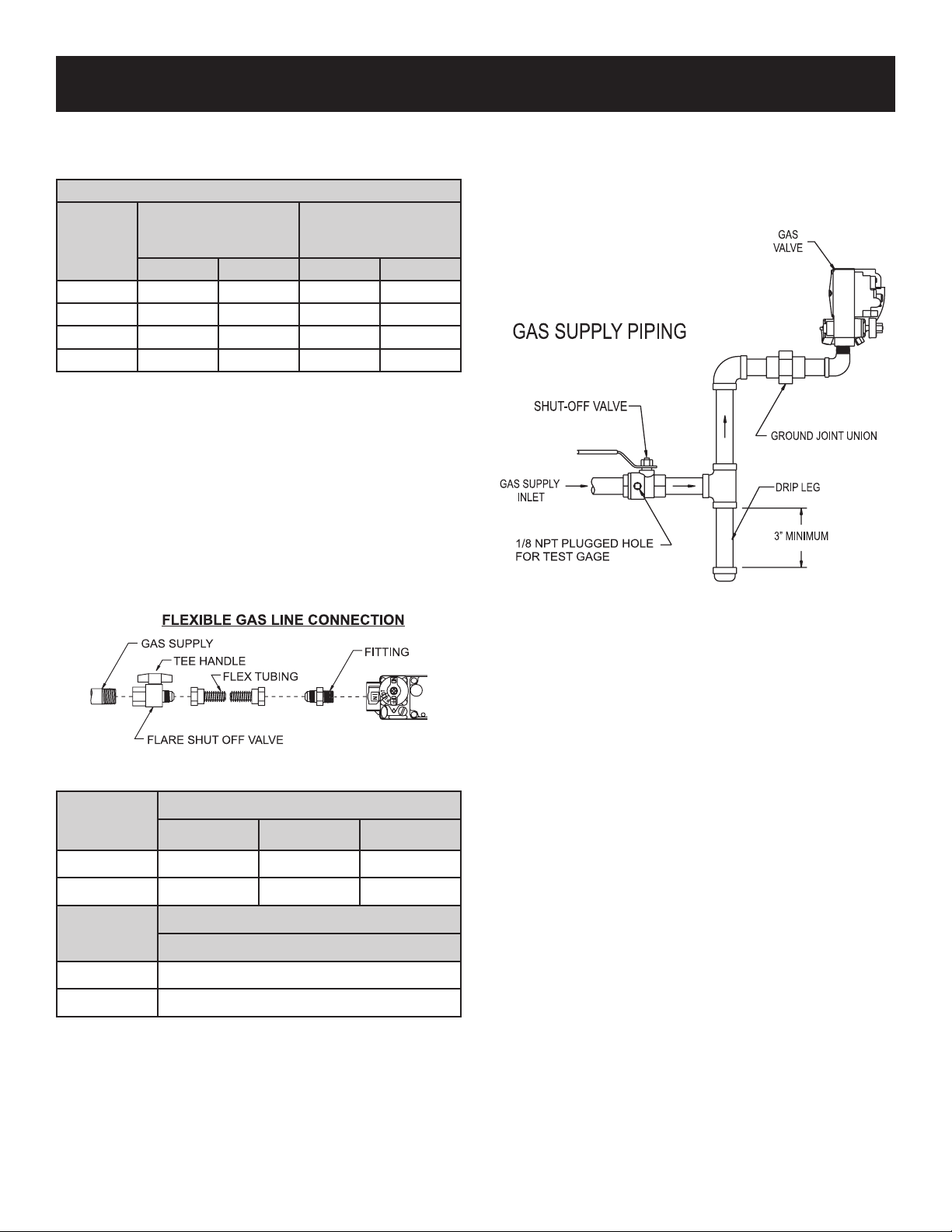

GAS SUPPLY
Thegaspipelinecanbebroughtinthroughtherightsideofthe
replace.ConsultthecurrentNationalFuelGasCode,ANSI
Z223.1CAN/CGA-B149(.1or.2)installationcode.
RECOMMENDED GAS PIPE DIAMETER
Pipe
Length
(in feet)
Schedule 40 Pipe
Inside Diameter
(in inches)
Tubing, Type L
Outside Diameter
(in inches)
Natural Propane Natural Propane
0-10 1/2 3/8 1/2 3/8
10-40 1/2 1/2 5/8 1/2
40-100 1/2 1/2 3/4 1/2
100-150 3/4 1/2 7/8 3/4
NOTICE:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
NOTICE: Sincesomemunicipalitieshaveadditionallocalcodes,it
is always best to consult your local authority and installation code.
Theuseofthefollowinggasconnectorsisrecommended:
— ANSIZ21.24ApplianceConnectorsofCorrugatedMetal
TubingandFittings.
— ANSIZ21.45AssembledFlexibleApplianceConnectorsof
OtherThanAll-MetalConstruction
Theaboveconnectorsmaybeusedifacceptablebytheauthority
havingjurisdiction.TheCommonwealthofMassachusetts
requiresthataexibleapplianceconnectorcannotexceedthree
feet in length.
Figure 15
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
NaturalGas 4.5 7.0 14.0
Propane Gas 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
NaturalGas 3.5
Propane Gas 10.0
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
bytheNationalFuelGasCodethatadriplegbeinstallednearthe
gas inlet. See Figure 16. Thisshouldconsistofaverticallengthof
pipe tee connected into the gas line that is capped on the bottom
in which condensation and foreign particles may collect.
Figure 16
Installing a New Main Gas Shut-Off Valve (Check Local Code)
Eachreplaceshouldhaveitsownmanualgasshut-offvalve.
A manual main gas shut-off valve should be located in the vicinity
ofthereplace.Wherenoneexists,orwhereitssizeorlocation
is not adequate, contact your local authorized installer for
installation or relocation.
Compounds used on threaded joints of gas piping shall be
resistanttotheactionofliqueedpetroleumgases.Thegas
linesmustbecheckedforleaksbytheinstaller.Thisshouldbe
done with a soap solution watching for bubbles on all exposed
connections, and if unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Fireplace
must be disconnected from piping at inlet of control valve
and pipe capped or plugged for pressure test. Never
pressure test with replace connected; control valve will
sustain damage!
NOTICE: Thegascontrolisequippedwithacapturedscrewtype
pressure test point, therefore it is not necessary to provide a 1/8
inch test point up stream of the control. See Figure 17.
Whenusingcopperorexconnectoruseonlyapprovedttings.
Thereplaceandit’sindividualshut-offvalvemustbedisconnected
from supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psig (3.5 kPa).
Thereplacemustbeisolatedfromthegassupplypiping
system by closing its individual manual shut-off valve during any
pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of1/2psig(14inw.c.)(3.5kPa)onthereplacegasvalve,itwill
result in a hazardous condition.

41368-0-0120 Page 17
GAS SUPPLY (CONT’D)

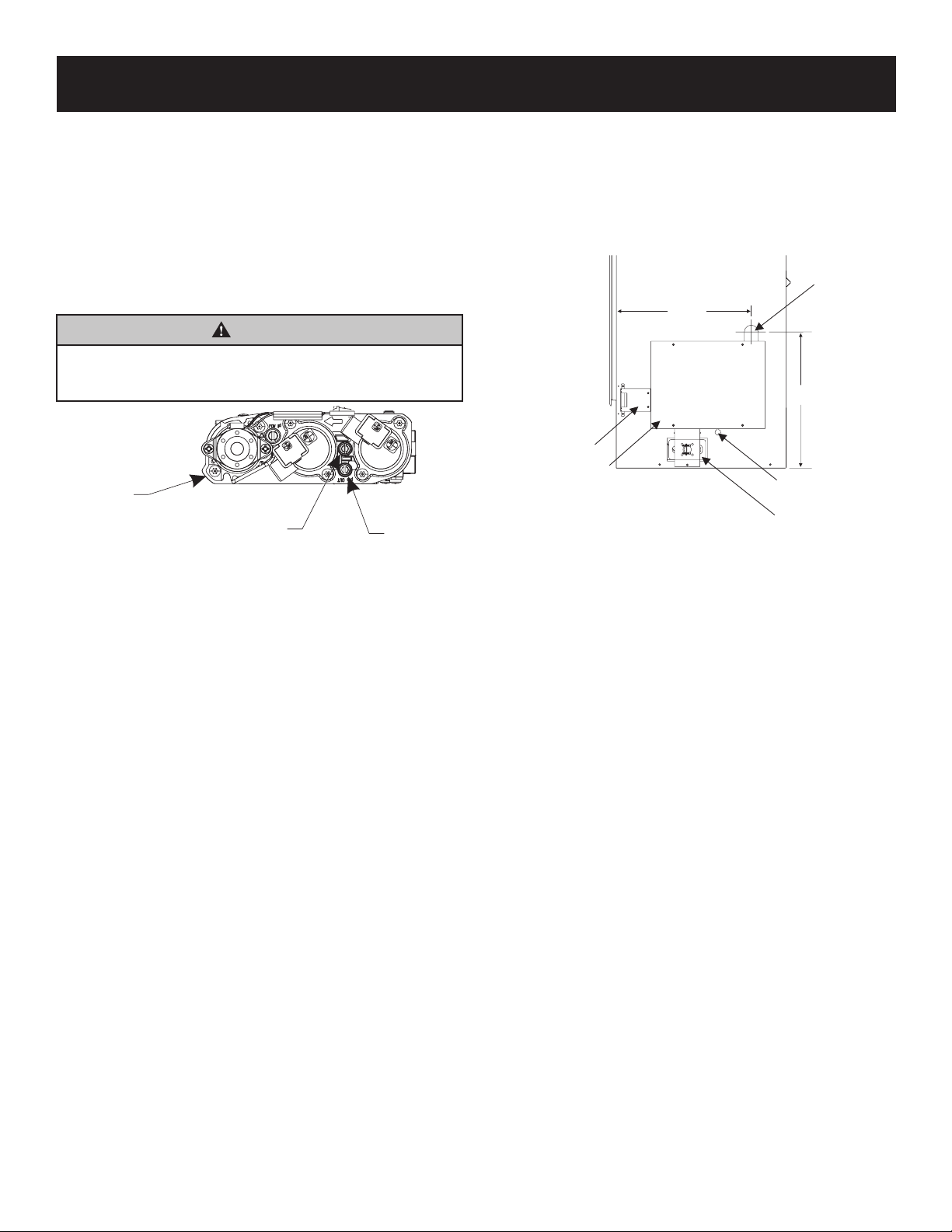

Checking Manifold Pressures
BothPropaneandNaturalGasvalveshaveabuilt-inpressure
regulatorinthegasvalve.NaturalGasmodelswillhavea
manifold pressure of approximately 3.5-in w.c. (.871 kPa) at the
valve outlet with the inlet pressure to the valve from a minimum
of 4.5-in w.c. (1.120 kPa) for the purpose of input adjustment to
a maximum of 14.0-in w.c. (3.484 kPa). Propane Gas models will
have a manifold pressure approximately 10.0-in w.c. (2.49 kPa)
at the valve outlet with the inlet pressure to the valve from a
minimum of 10.8-in w.c. (2.68 kPa) for the purpose of input
adjustment to a maximum of 14.0-in w.c. (3.484 kPa).
CAUTION
If one of the procedures results in pressures in excess of
1/2 psig (14-in w.c.) (3.5 kPa) on the replace gas valve, it
will result in a hazardous condition.
GAS VALV E
OUTLET
PRESSURE
TAP
INLET
PRESSURE
TAP
Figure 17

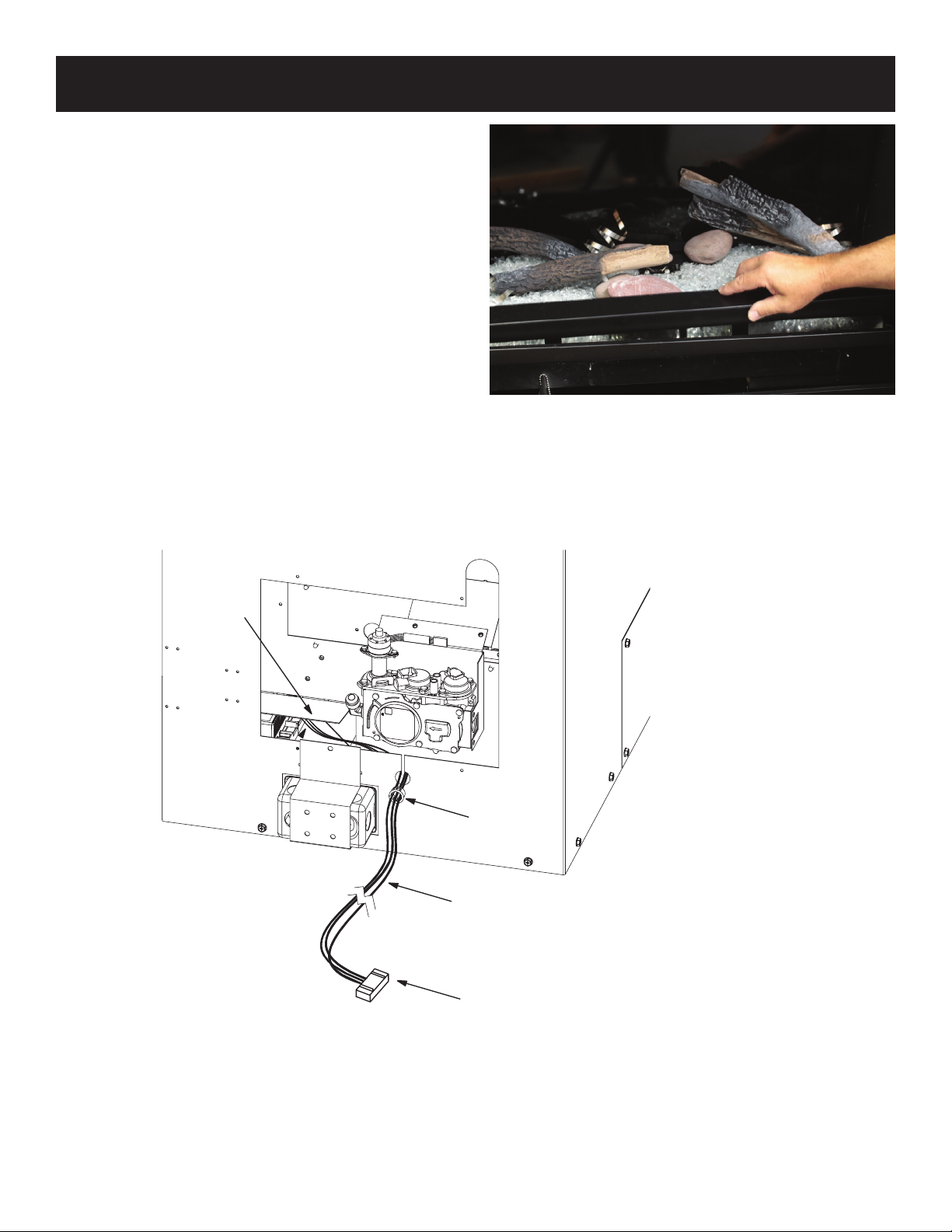

Gas Line Connection
Removetheaccesspanelfromtherightsideofthereplace
shown in Figure 18toaccessthegasvalve,gasexline,
junction box, and system wiring.
Attachthegasexlinetothepre-installedgasline.Refertothe
GasSupplysectioninthismanualfordetailsontheinstallation
requirements for the gas supply line.
14”
14 5/8
ACCESS PANEL
NAILING FLANGE
JUNCTION BOX
REMOTE WALL
BOX
WIRING EXIT
POINT
GAS LINE
ACCESS
Figure 18

41368-0-0120Page 18
ELECTRICAL CONNECTIONS
CAUTION
All wiring should be done by a qualied electrician and
shall be in compliance with all local, city and state building
codes. Before making the electrical connection, make sure
that the main power supply is disconnected. The replace,
when installed, must be electrically grounded in accordance
with local codes, or in the absence of local codes, with the
National Electrical Code ANSI/NFPA 70 (Latest Edition).

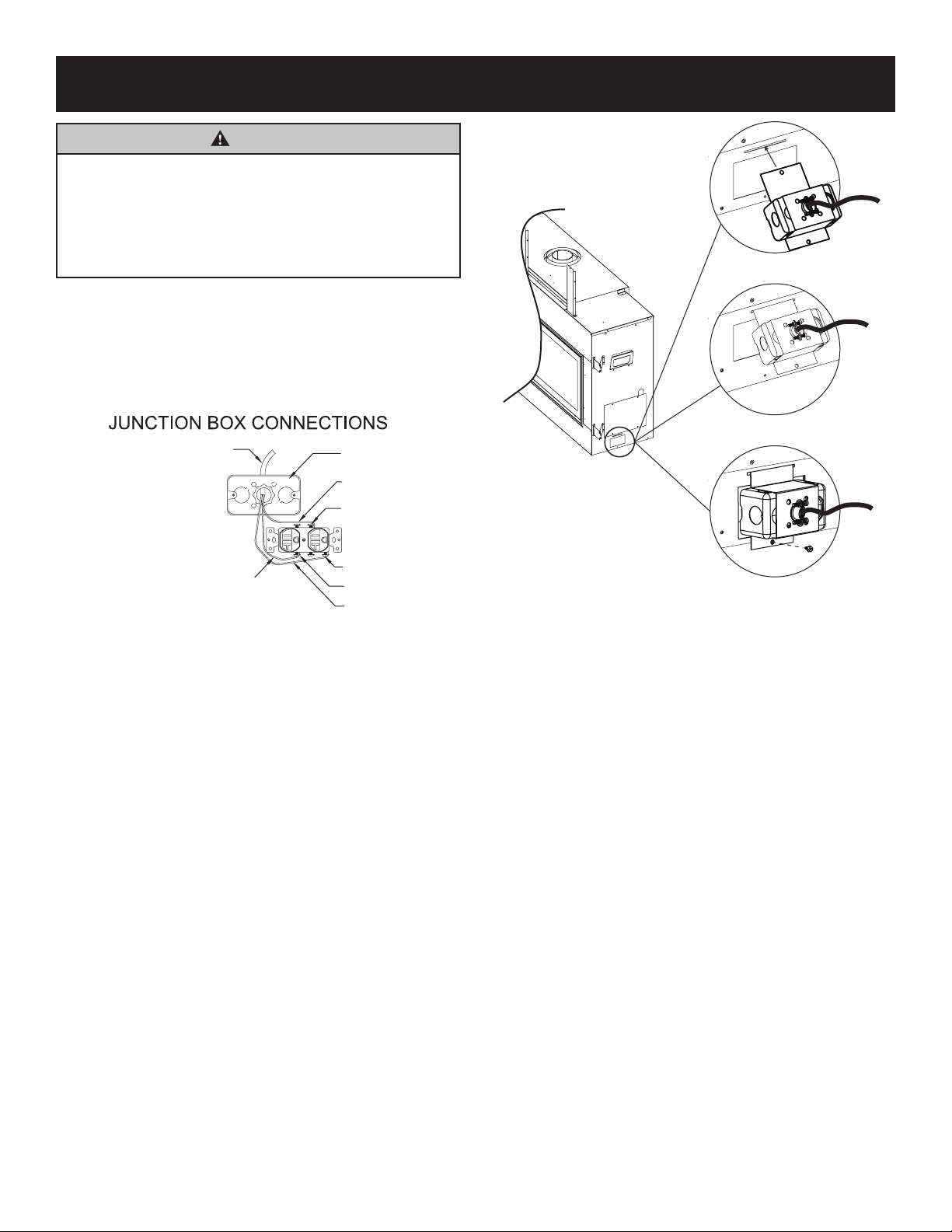

A factory installed junction box is located on the lower right
sideofthereplace.Wiringmustbefedtothejunctionboxand
attached to the receptacle that is provided. Leave approximately
6in of wire in the junction box for connection.
Attach black wire to one side of the receptacle and white wire to
oppositesideofreceptacle.Thegroundwireshouldbeattached
to the green (ground) screw. See Figure 19.
BLACK (HOT)
BRASS SCREWS
JUNCTION BOX
GROUND
SILVER SCREWS
GREEN SCREW
WHITE
(NEUTRAL)
120 VOLT POWER SUPPLY
Figure 19
Install the receptacle into the junction box. Attach cover plate.
After the wiring is completed to the junction box and receptacle,
installthejunctionboxtothelowerrightsideofthereplaceas
shown in Figure 20.Insertthetopangeoftheretainerbracket
intotheslotonthereplace.Rotatethejunctionboxassembly
downward, and secure with a screw below the junction box.
See Figure 20.
Control Module Access:
Toaccessthecontrolmoduleforservicing,removethebarrier
screenandglassdoorassemblies.Thecontrolmoduleislocated
in the bottom right side opening. Remove (1) #10 x 1/2 hex
head.Screwsthatsecuresthecontrolcover,thenshiftthecover
totheleftandupwardtoremove.Thecontrolmoduleislocated
tothereplacebottomwithVelcro®,adncanbeliftedupto
access the module wiring connections.
Figure 20

41368-0-0120 Page 19
Once the Junction box has been installed with the receptacle
outletsfacinginwardtowardsthereplace,locatethe3-prong
power cord from the control module and plug into the receptical.
ThereplaceissuppliedwithaUserInterfacewallboxthatmust
be installed in a standard plastic outlet box (not provided). A low
voltageorangeorblueboxisrecommended.Theuserinterface
wall box must be placed in the wall within ten feet from the right
sideofthereplace.A10ft.batteryanduserinterfaceextension
wire harness is supplied.
Theredandblackbatteryextensionharnessisconnectedto
the red and black mating connector pre-installed on the control
module.Thematingconnectorcanbelocatedinsidethereplace
near the gas valve. See Figure 22.
Locate and install the 5/8in diameter plastic snap-in grommet
over the low-voltage battery and interface extension harnesses at
therightsideofthereplace.Snapthegrommetintotheholein
thesideofthereplacejustundertheaccesspanelopening.See
Figure 22.
Run the extension wiring to the user interface wall box and
connect the white connector to the remote receiver battery box.
Install the battery box into the wall outlet box, then install the
white remote cover supplied with the provided screws.
Figure 21
HAND BENT
FLANGE
WIRE
GROMMET
USER INTERFACE HARNESS
& BATTERY EXTENSION
HARNESS
CONNECT TO THE USER INTERFACE/BATTERY
HOLDER. MUST BE INSTALLED IN AWALL
JUNCTION BOX (ORANGE LOW VOLTAGE OR
BLUE BOX RECOMMENDED)
NOTE: OUTER ACCESS DOOR REMOVED. REPLACE AFTER ALL
WIRE AND GAS CONNECTIONS HAVE BEEN MADE
Figure 22
ELECTRICAL CONNECTIONS (CONT’D)

41368-0-0120Page 20

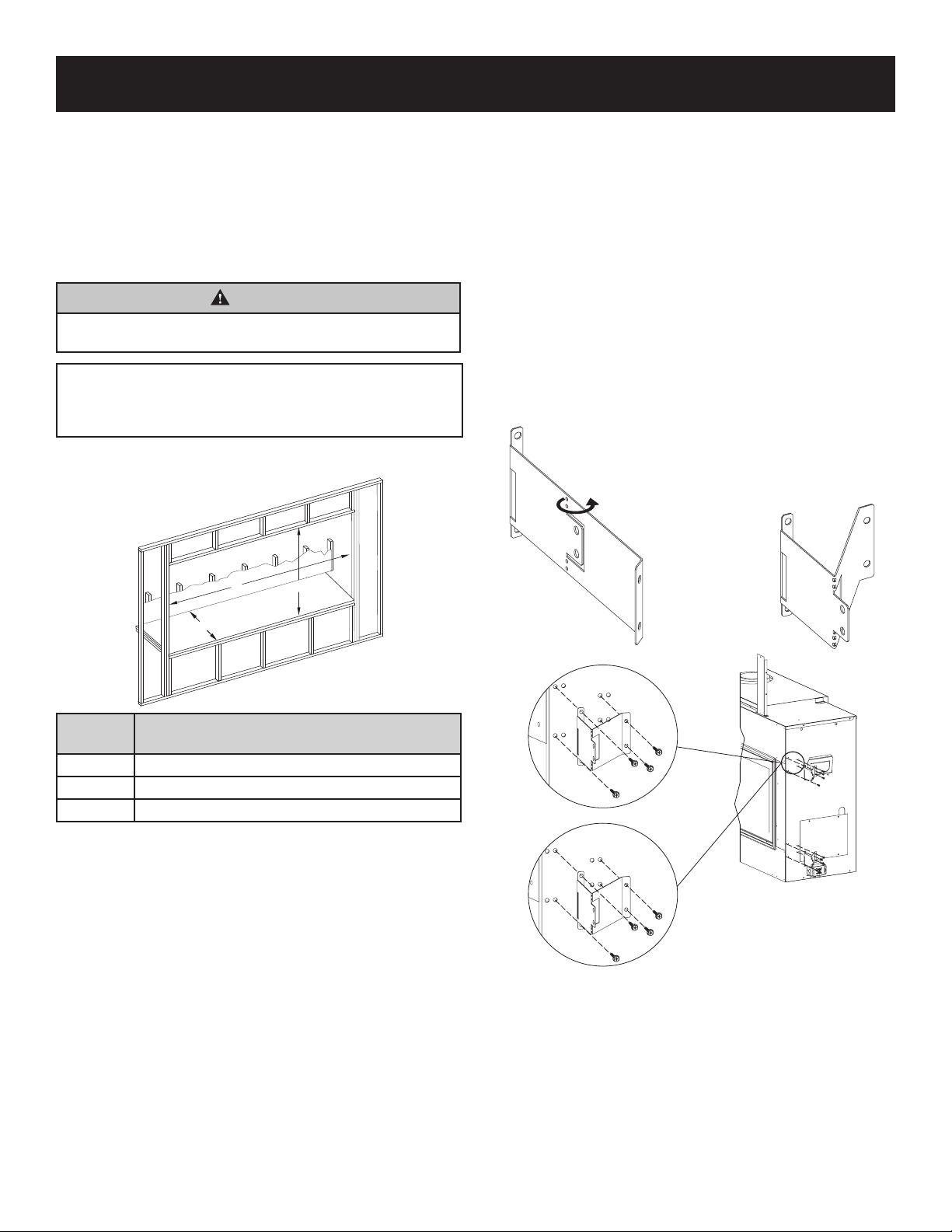

INSTALLATION
Framing
This replace can be elevated off the oor provided that the
replace is properly supported by framing materials and the
ceiling clearances are maintained.
Fireplaceframingcanbebuiltbeforeorafterthereplaceisset
in place. Framing should be positioned to accommodate wall
coveringandreplacefacingmaterial.Thereplaceframing
should be constructed of 2 x 4 lumber. Refer to Figure 23 for
minimum framing dimensions.
CAUTION
Measure replace dimensions and verify framing methods,
and wall covering details before framing construction begins.
Framing dimension A includes a 13-inch clearance for
framing standoffs on replace. After installing replace
into framing, the non-combustible board must cover the
13-inch opening above the replace.
NOTICE:Fornishingtotopofreplace,refertoFigures 28
and 30.
B
C
A
C
INDEX
NUMBER DVLL60
A 49-3/8in
B 79-5/8in
C 21-1/2in
Figure 23
Construction of a Fireplace Chase
A chase is a vertical box-like structure built to enclose the gas
replaceand/oritsventsystem.Incoolerclimatesthevent
should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield restops
and construction of the chase may vary with the type of building.
These instructions are not substitutes for the requirements of
local building codes. Therefore, you MUST check local building
codes to determine the requirements to these steps.
A chase should be constructed in the manner of all outside walls
ofthehometopreventcoldairdraftingproblems.Thechase
should not break the outside building envelope in any manner.
Walls,ceiling,baseplateandcantileveroorofthechaseshould
beinsulated.Vaporandairinltrationbarriersshouldbeinstalled
in the chase as per regional codes for the rest of the home.
Additionally,inregionswherecoldairinltrationmaybean
issue, the inside surfaces may be sheet rocked and taped (or an
equivalent method may be used) to achieve maximum air tightness.
Tofurtherpreventdrafts,thewallshieldandceilingrestops
should be caulked with caulk rated for a minimum of 300°F
continuous exposure rating to seal gaps. Gas line holes and
other openings should be caulked or stuffed with unfaced
insulation.Ifthereplaceisbeinginstalledonacementsurface,
a layer of plywood may be placed underneath to prevent
conducting cold up into the room.
Framing and Finishing
1. Choosereplacelocation.Seepages14-15.
2. Frameinreplacewithaheaderacrossthetop.Itis
importanttoallowfornishedfacewhensettingthedepthof
thereplace.
3. Securethefourframingbracketsandhandbendthemintoa
V shape as shown in Figure 24.Securewith#10x1/2-inch
hex-head screws.
4. Locatethenailingangesonthesidesofthereplace(two
each side). See Figure 24.
Figure 24
