Empire Comfort Systems DVCT36CBP95N-1 Planning guide

INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
DIRECT VENT ZERO CLEARANCE
GAS FIREPLACE HEATER SERIES:
DVCT36CBP95N-1 DVCT40CBP95N-1
DVCT36CBP95P-1 DVCT40CBP95P-1
This replace is design
certied in accordance
with American National
Standard/CSA Standard
ANSI Z21.88/CSA 2.33
and by Underwriters
Laboratories as a Direct
Vent Gas Fireplace
Heater and shall be
installed according to
these instructions.
GAS-FIRED
UL FILE NO. MH30033
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
HOMEOWNER’S MANUAL

38746-0-0118Page 2
WARNING
Do not attach combustible material above your replace.
This is a re hazard. No greeting card, stockings or
ornamentation of any type should be placed on or
attached to the replace. This is a heating appliance. The
ow of heat can ignite combustibles.
Figure 1
GENERIC MODEL SHOWN
COMBUSTIBLE MATERIAL
TABLE OF CONTENTS
SECTION PAGE
Multifunction Remote Operating Instructions.......................................................................................................................3-9
Lighting Instructions..............................................................................................................................................................10
Maintenance And Service ................................................................................................................................................11-12
Important Safety Information ................................................................................................................................................13
Safety Information For Users Of Propane Gas.....................................................................................................................14
Requirements For Massachusetts ........................................................................................................................................15
Warranty ................................................................................................................................................................Back Cover

38746-0-0118 Page 3

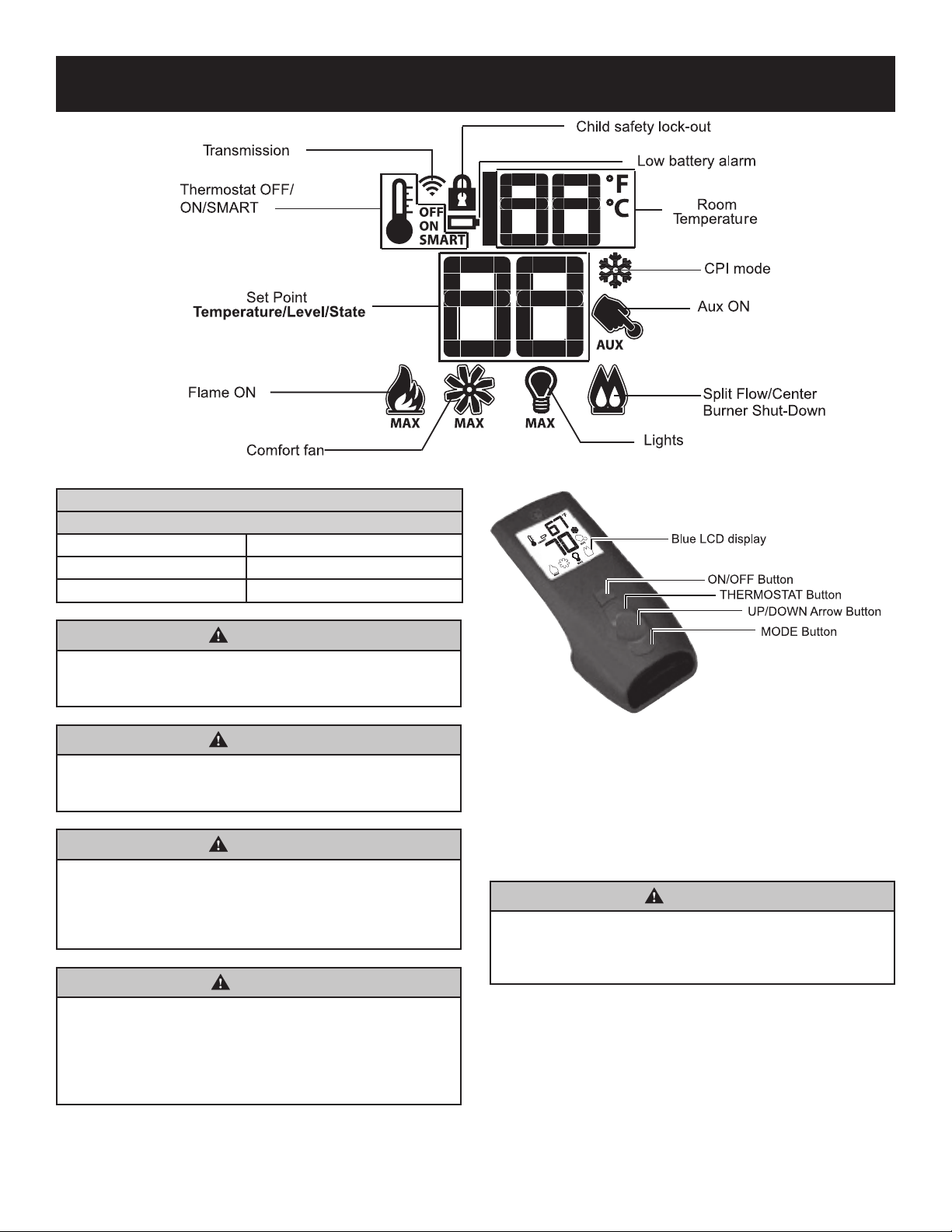

MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
TECHNICAL DATA
Remote Control
Supply voltage 4.5 V (three 1.5 V AAA batteries)
Ambient temperature ratings 0-50°C (32 - 122°F)
Radio frequency 315 MHz
WARNING
The transmitter and receiver are radio frequency devices.
Placing the receiver in or near metal may severely reduce
the signal range.
WARNING
Turn “off” the main gas supply and electrical supply to the
appliance during installation and/or maintenance of the
receiver device.
WARNING
FIRE HAZARD. CAN CAUSE SEVERE INJURY OR DEATH.
The Receiver causes ignition of the appliance. The appliance
can turn on suddenly. Keep away from the appliance burner
when operating the remote system or activating manual
bypass of the remote system.
CAUTION
PROPERTY DAMAGE HAZARD.
EXCESSIVE HEAT CAN CAUSE PROPERTY DAMAGE.
The appliance can stay lit for many hours. Turn off the
appliance if it is not going to be attended for any length of
time. Always place the Transmitter where children can not
reach it.
Figure 2
Figure 3
NOTE: This control system includes a Battery Back-up pack that
allows the Fireplace to operate in the event of a power outage.
NOTE: The Accent Light and/or Blower features will not operate
during a power outage.
NOTE: Replace all Batteries at least once each year, preferably
before at the beginning of the season.
CAUTION
FIRE OR EXPLOSION HAZARD.
Can cause property damage, sever injury or death. Do not
attempt to take apart the gas control or to clean it. Improper
assembly and cleaning can cause unreliable operation.

38746-0-0118Page 4
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
Initializing the System for the First Time

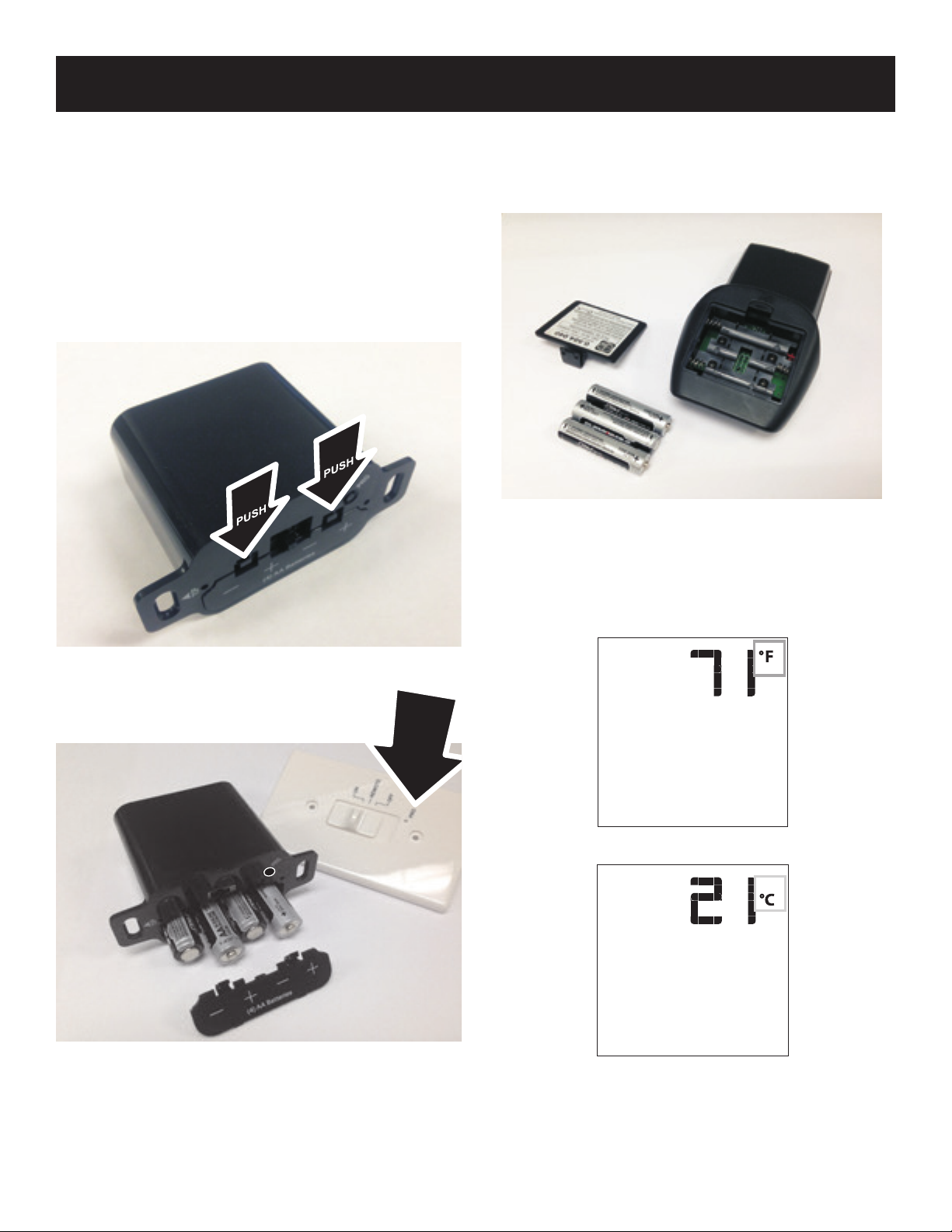

1. Remove the wall cover. Remove cover on the wall mounted
battery back-up holder. See Figure 4. Install the four AA
batteries into the wall mounted battery back-up holder then
reinstall the cover. See Figure 5.
2. Install three AAA batteries into the battery bay located on the
base of the transmitter. See Figure 6.
3. Set the wall remote slide switch to the “REMOTE” position.
See Figure 5.
4. Press and release the SWI button on the wall control with
a paper clip and the IFC module will beep three times to
indicate the IFC module is ready to synchronize with the
transmitter within ten seconds. See Figure 5.
Figure 4
SWI
BUTTON
Figure 5
5. With the batteries already installed in the Transmitter, push
the On button. The Receiver will “beep” four times to indicate
the Transmitter’s command is accepted and sets to the par-
ticular code of that Transmitter. The system is now initialized.
Figure 6
Temperature Indication Display °C or °F
With the system in the “OFF” position, press the Thermostat
Button and the Mode Button at the same time. Look at the LCD
screen on the Transmitter to verify that a °C or °F is visible to the
right of the Room Temperature display. See Figures 7 and 8.
Figure 7
Figure 8

38746-0-0118 Page 5
Turn On the Appliance
With the system OFF, press the ON/OFF Button on the Transmit-
ter. The Transmitter display will show some other active Icons on
the screen. At the same time the Receiver will activate the appli-
ance. A single “beep” from the Receiver will conrm reception of
the command.
Turn OFF the Appliance
With the system ON, press the ON/OFF Button on the Trans-
mitter. The Transmitter LCD display will only show the room
temperature. See Figure 9. At the same time the Receiver will
turn off the appliance. A single “beep” from the Receiver conrms
reception of the command.
Remote Control Display - Figure 9
Remote Flame Control
The Proame has six ame levels. With the system on, and the
ame level at the maximum in the appliance, pressing the Down
Arrow Button once will reduce the ame height by one step until
the ame is turned off.
The Up Arrow Button will increase the ame height each time it
is pressed. If the Up Arrow Button is pressed while the system is
on but the ame is off, the ame will come on in the high position.
See Figures 10 through 13. A single “beep” will conrm recep-
tion of the command.
OFF
Flame Off - Figure 10
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
OFF
Flame Level 1 - Figure 11
OFF
Flame Level 5 - Figure 12
OFF
Flame Level Maximum - Figure 13

38746-0-0118Page 6
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
The Thermostat Feature may be disabled if desired.
With all three AAA type batteries installed:
1. Take out one AAA battery.
2. While re-inserting the AAA battery, Push and hold down the
thermostat button. This will disable the thermostat feature on
the transmitter.

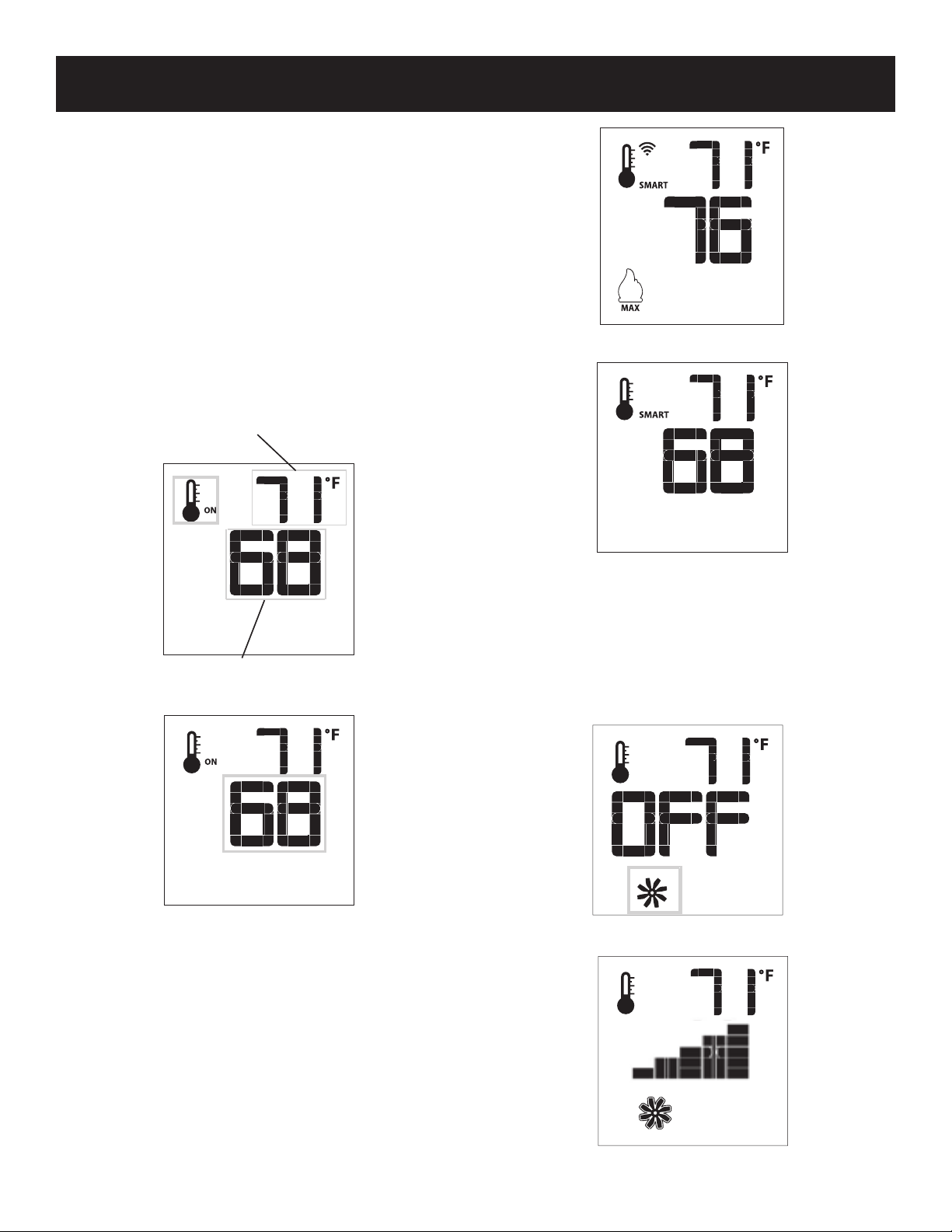

Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the
comfort level in a room. To activate this function, press the Ther-
mostat Button. See Figure 3. The LCD display on the Transmitter
will change to show that the room thermostat is “ON” and the
set temperature is now displayed. See Figure 14. To adjust the
set temperature, press the Up or Down Arrow Buttons until the
desired set temperature is displayed on the LCD screen of the
Transmitter. See Figure 15.
SET TEMPERATURE
ROOM TEMPER ATURE
Figure 14
Figure 15
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in
accordance to the difference between the set point temperature
and the actual room temperatures. As the room temperature gets
closer to the set point the Smart Function will modulate the ame
down. To activate this function, press the Thermostat Button until
the word “SMART” appears to the right of the temperature bulb
graphic. See Figure 16. To adjust the set temperature, press the
Up or Down Arrow Buttons until the desired set temperature is
displayed on the LCD screen of the Transmitter. See Figure 17.
NOTE: When Smart Thermostat is activated, manual ame
height adjustment is disabled.
Figure 16
Figure 17
Blower Control (Fan)
If the appliance is equipped with a hot air circulating fan, the
speed of the fan can be controlled by the Proame system. The
fan speed can be adjusted through six speeds. To activate this
function, use the Mode Button Figure 3 to index the fan control
icon. See Figure 18. Use the Up/Down Arrow Buttons Figure
56 to turn on off or adjust the fan speed. See Figure 19. A single
“beep” will conrm reception of the command.
OFF
Figure 18
OFF
Figure 19

38746-0-0118 Page 7

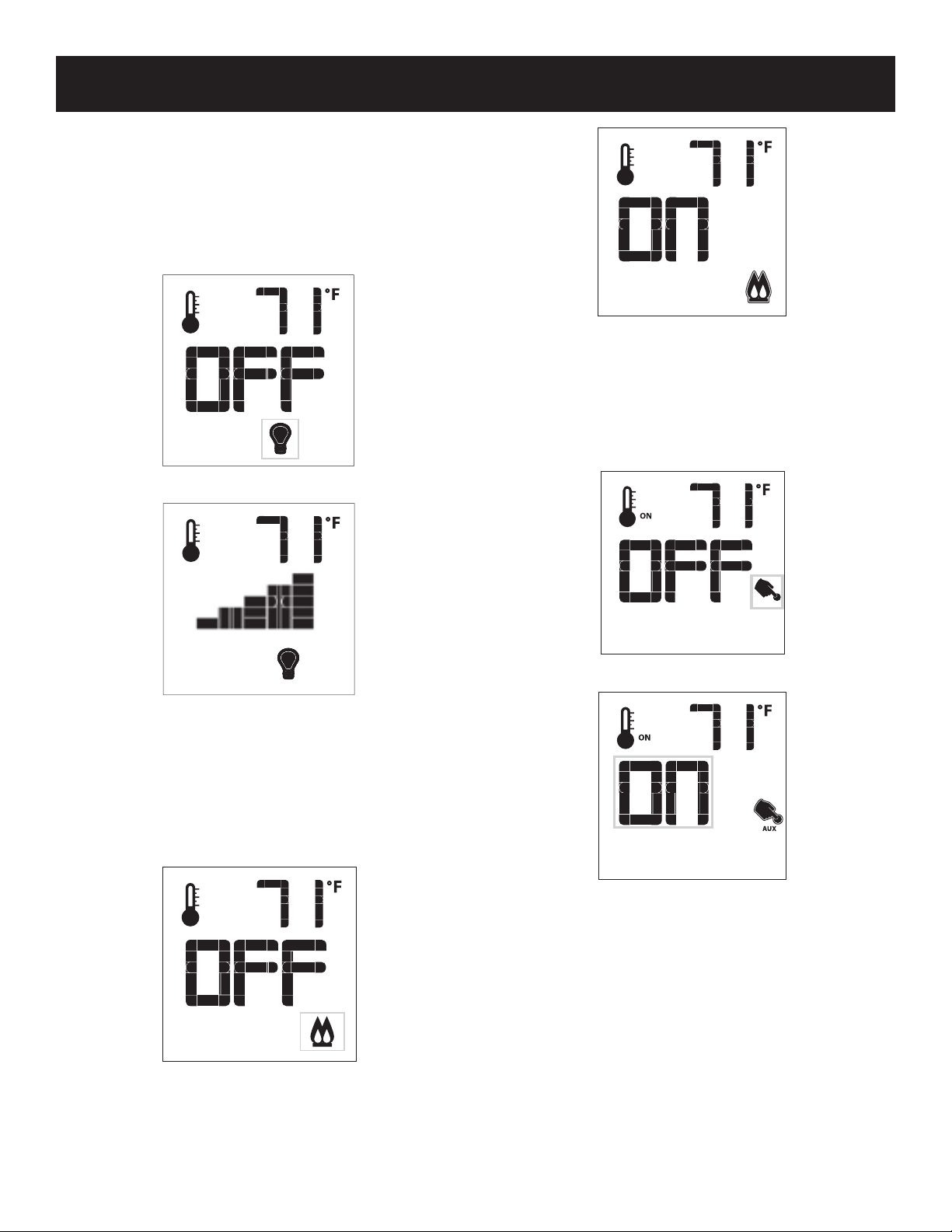

Remote Dimmer Control (Light)
The auxiliary function controls the AUX power outlet by the dim-
mable light control. To activate this function, use the Mode Button
Figure 3 to index to the AUX icon. See Figures 20 and 21.
The intensity of the output can be adjusted through six levels. Use
the Up/Down Arrow Buttons Figure 3 to adjust the output level. A
single “beep” will conrm reception of the command.
NOTE: This function is available only with the IFC control Module.
OFF
Figure 20
OFF
Figure 21
Split Flow Control
The secondary burner is controlled by the split Flow. To activate
this function use the Mode Button Figure 3 to index to the SPLIT
FLOW mode icon. See Figures 22 and 23.
Pressing the Up Arrow Button will activate the secondary burner.
Pressing the Down Arrow Button will turn the secondary burner
off. A single “beep” will conrm the reception of the command.
OFF
Figure 22
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
OFF
Figure 23
Remote Auxiliary Relay Control (optional with this replace)
The auxiliary function controls the AUX relay outlet. To activate
this function use the Mode Button Figure 3 to index to the AUX
icon Figures 24 & 25. Pressing the Up Arrow Button will activate
the outlet. Pressing the Down Arrow Button will turn the outlet off.
A single “beep” will conrm the reception of the command.
Figure 24
Figure 25

38746-0-0118Page 8
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
Continuous Pilot/Intermittent Pilot (CPI/IPI) Selection
With the system in “OFF” position press the Mode Button
Figure 3 to index to the CPI mode icon. See Figures 26
and 27. Pressing the Up Arrow Button will activate the CPI.
Pressing the Down Arrow Button will return to IPI. A single “beep”
will conrm the reception of the command.
OFF
Figure 26
OFF
Figure 27
Button Lock
T his function will lock the Buttons to avoid unsupervised operation.
To ac tivate this function, press the MODE and UP Buttons at the
same time. See Figure 28.
To deactivate this function, press the MODE and UP Buttons at
the same time.
OFF
Figure 28
Low Battery Power Detection - Transmitter
The life span of the remote control batteries depends on various
factors: quality of the batteries used, the number of ignitions of
the appliance, the number of changes to the room thermostat set
point, etc.
When the transmitter batteries are low, an Icon will appear on the
LCD display of the transmitter See Figure 29 before all battery pow-
er is lost. When the batteries are replaced this Icon will disappear.
OFF
Figure 29

38746-0-0118 Page 9
Lockout State Denition
A lockout state is reached when an ignition error occurs. The
lockout state will remain set in memory as long as the power
supplies are applied.
This could mean both an irregular ame detection and/or too
many unsuccessful ignition attempts.
This state is a safe condition for the appliance and is entered
automatically by the IFC board.
When the IFC board gets into lockout state:
1. both the Pilot and the Main Burner solenoids in the gas valve
are de-energized;
2. a diagnostic code is sent through the diagnostic red LED.
3. the IFC board will ignore any burner ignition command and
remain in the OFF state unless the unlock command se-
quence is met.
The causes of lockout must be investigated under safe conditions
by the user and/or the service personnel.
To reset the IFC from a lockout state, perform the following pro-
cedure:
Turning the system power supplies (to the wall control or
remote control) OFF for two or three seconds and then
restoring a power supply back on.
The return of the system to normal operation must be checked
under safe conditions by the user and/or service personnel.
Using the Fireplace without a Remote Control
The replace can be turned ON (HI only) and OFF with the wall
switch. The replace ame ON/OFF is the only function that will
operate; no ame adjustment, light or blower will work when us-
ing the wall switch. The wall control switch should be turned OFF
when the replace is not being used for extended periods of time.
Battery Backup Operation
Install batteries (See initialization sequence on page 44). In case
of power loss, the replace will switch to battery mode automat-
ically. The replace will operate normally without the fan or light
control when in battery mode.
Low Battery Detection
When the backup batteries are low, a double-beep will be emitted
when the module receives an on/off command. No commands
will be accepted until the batteries are replaced or the A/C power
is restored.
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS

38746-0-0118Page 10

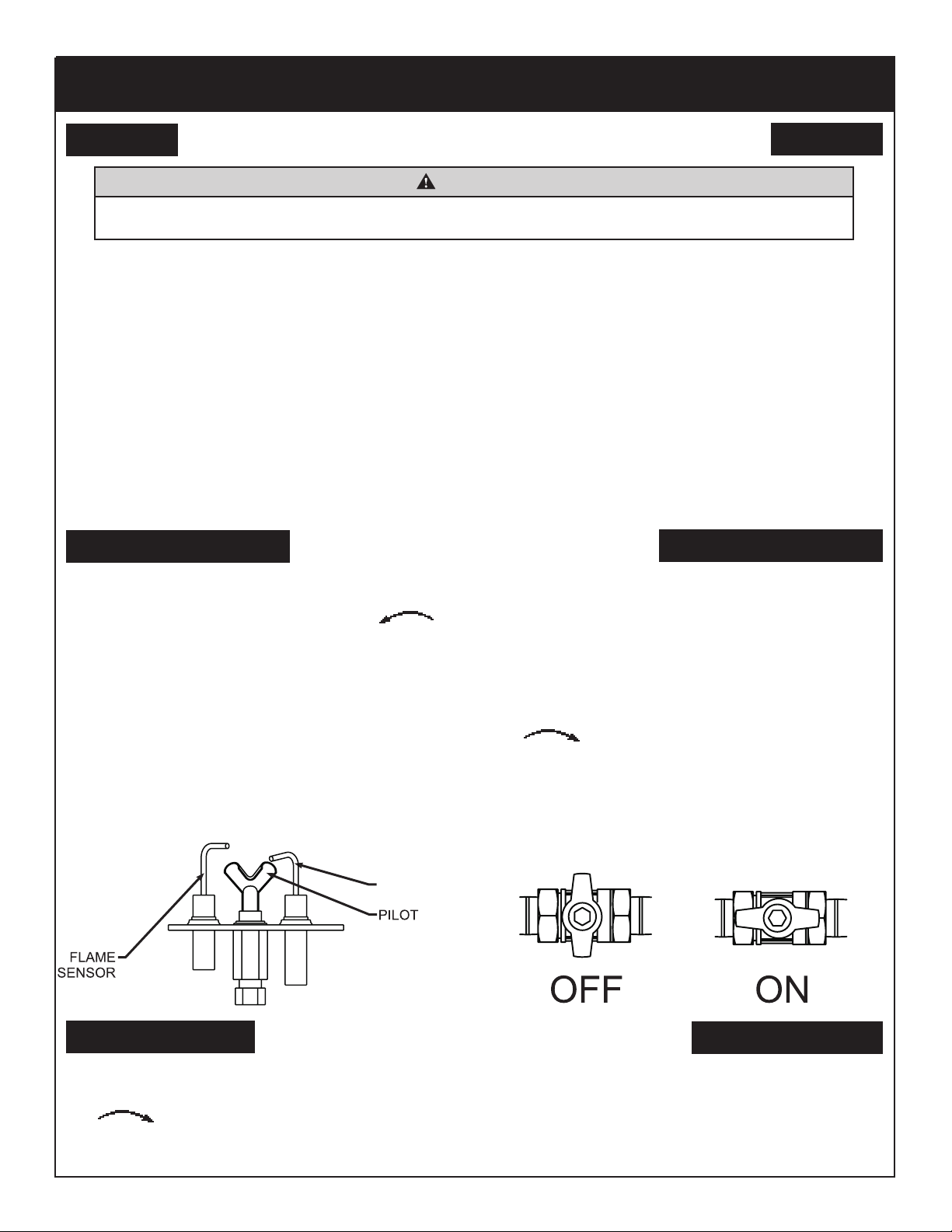

FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance must be lighted with the remote control.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING, smell around the appliance area for
gas. Be sure to smell next to the oor because some
gases are heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions. If you can not reach your gas
supplier, call the re department.
C. Use only the remote control to operate the valve. Never
use tools. If valve does not operate, don't try to repair it,
call a qualied service technician. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has been underwater.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been underwater.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Turn off all electric power to the appliance if service is to
be performed (if applicable).
2. Locate On/Off gas shutoff knob and turn clockwise to
"OFF." Do not force.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Turn OFF electric power to the appliance.
3. Turn gas shutoff knob counterclockwise to
"ON" position.
4. Wait ten minutes to clear out any gas. Then smell for gas,
including near the oor. If you smell gas, STOP! Follow
"B" in the safety information above on this label. If you
do not smell gas, go to the next step.
5. Turn ON electric power to the appliance.
6. Using the remote control, turn main ame to "ON." Refer
to the Multifunction Remote Operating Instructions for
more information. If the pilot does not light within 60
seconds, stop and go back to Step 4.
7. Refer to remote control instructions for detailed
information, control features, and operation. Note:
Refer to Multifunction Remote operating instructions
for selection of continuous standing pilot mode or
intermittent pilot mode. If the pilot or burner does not stay
lit (in the standing pilot mode), stop and immediately call
a qualied service technician or gas supplier.
8. If the burner or pilot does not operate properly after
several tries, turn the gas shutoff knob clockwise
to "OFF" and call your service technician or
gas supplier.
9. Operation of the gas valve, blower, and/or optional light
must be controlled by using the hand held remote control.
Refer to remote instructions for detailed operation
information.
IGNITOR
WARNING
If you do not follow these instructions exactly, a re or explosion may result causing property damage,
personal injury or loss of life.

38746-0-0118 Page 11
NOTE: It is normal for steel appliances to make expansion
and/or contraction noise as they heat up or cool-down.
Similar noises are found with your furnace heat exchanger
or car engine.
It is normal for your gas replace to give off some odor the
rst time it is burned. This is due to the curing of the paint
and any oil from the manufacturing process.
If odor becomes offensive, open windows.
Burn the replace for at least six hours the rst time you use it.
If the optional fan kit has been installed, place fan in the “OFF”
position during this time.
IMPORTANT: Turn off the gas before servicing appliance. Have a
qualied service person perform these check-ups at the beginning
of each heating season.
• Clean Burner and Control Compartment
Keep the control compartment, logs, and burner areas surrounding
the logs clean by vacuuming or brushing at least twice a year.
Cleaning Procedure
1. Turn off pilot light using your remote. Allow the replace to cool
completely.
2. Remove glass front and barrier screen. (See glass and barrier
screen removal.)
3. Vacuum burner compartment.
4. Re-install glass front and barrier screen.
5. Ignite pilot. (See Lighting Instructions)
6. Operate the pilot burner. If it appears abnormal contact your
dealer for service.
• Check Vent System
Inspect the replace and venting system before initial use and at
least annually. Inspect the external vent cap on a regular basis
to make sure no debris is interferes with the air ow.
Cleaning the Glass
Clean the glass periodically. We recommend gas replace glass
cleaner. During start-up, condensation forms on the inside of the
glass causing lint, dust and other airborne particles to cling to the
glass. Also initial paint curing may deposit a lm on the glass. Allow
the replace to cool and then clean the glass two or three times with
gas replace glass cleaner or a non-abrasive household cleaner
and warm water. After that, clean the glass two or three times during
each heating season or more often if necessary.
WARNING
Clean glass with cleaner designed for replaces.
Do not use Ammonia based or abrasive cleaners on glass.
Do not attempt to clean glass when glass is hot.
Wiring
If any of the original wire supplied with this unit must be replaced,
order through parts department.
Glass - General Information
WARNING
Do not operate appliance with the glass front removed,
cracked, or broken.
Use only glass approved for use by the replace manufacturer for
replacement. Glass replacement should be done by a licensed or
qualied service person.
WARNING
1. The use of substitute glass will void all product warranties.
2. Avoid breaking the glass.
3. Do not operate this appliance without the glass front
or with a broken glass front. Have a qualied service
person replace damaged glass and gasket using materials
specied by Empire Comfort Systems.
4. Do not abuse or strike the glass.
MAINTENANCE AND SERVICE

38746-0-0118Page 12
MAINTENANCE AND SERVICE

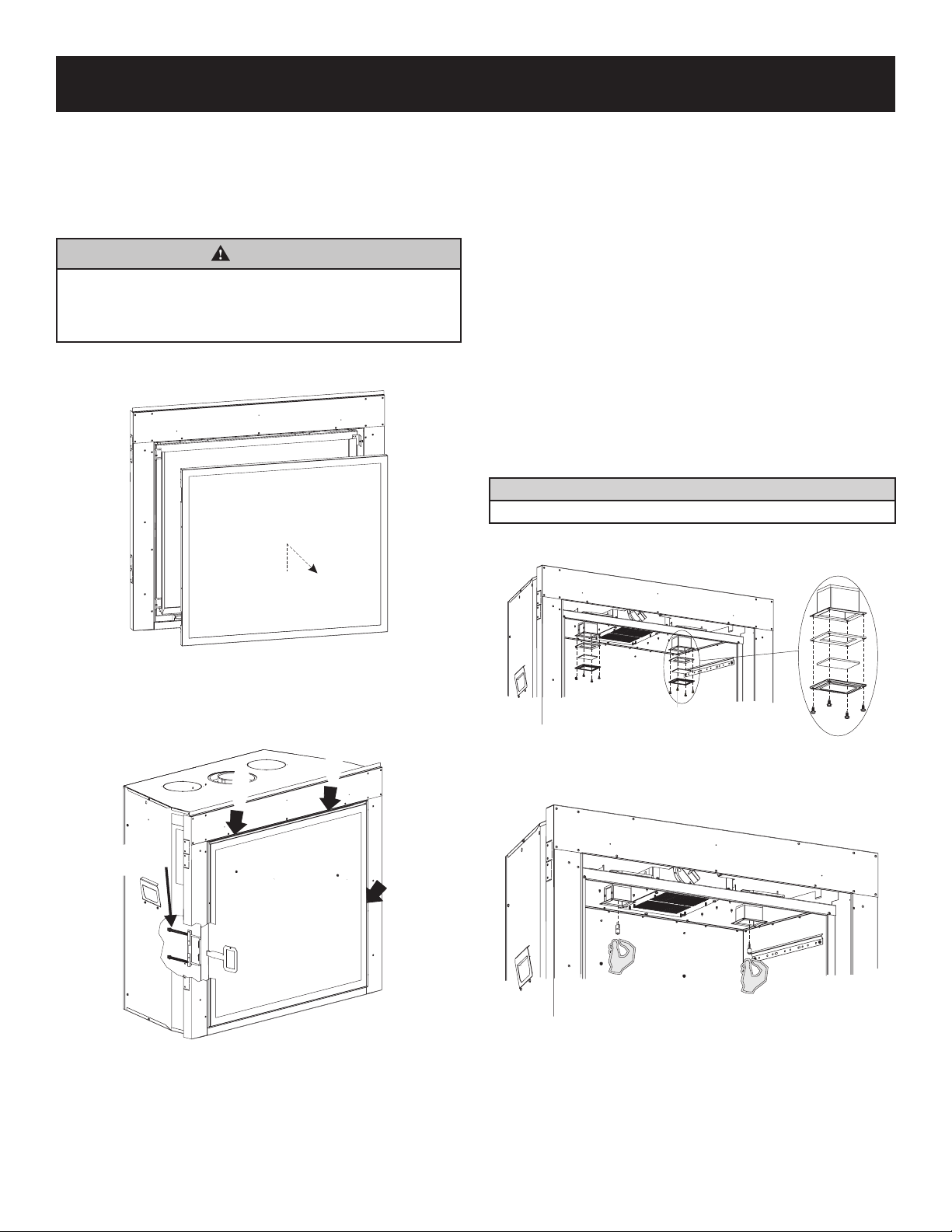

Barrier & Glass Removal
1. Lift barrier screen and pull towards you.
2. Use the Glass Latch Tool to grip the latch bar and pry it over
the Glass Frame hook anges. Tilt the Glass Frame towards you
and pull upwards to remove it from the unit.
See Figures 30 and 31.
CAUTION
Ensure that the latch tool is completely hooked around the
latch before trying to disengage the clips. Glass clips are
tightly sprung. If the latch tool slips off of the latch while
pulling, injury may occur.
Figure 30
GLASS
LATCH
TOOL
GLASS
LATCH
(4 PLACES)
LATCH
LATCH
LATCH
Figure 31
Light Bulb(s) Replacement
1. Remove the following items:
• barrier screen
• glass frame assembly
This unit comes standard with two lights that are attached to the
roof of the replace. To access the light bulb you will remove the
following items by removing four screws per light, See Figure 32.
• metal bezel
• glass
• gasket
NOTE: Use gloves when handling light bulb, oils on your
hand will diminish the life span of the light bulb.
2. Remove old light bulb and replace with a new one.
See Figure 33.
NOTE: You may order light bulbs from your local Empire dealer
or purchase them from your local hardware store.
LIGHT BULB SPECIFICATIONS
35w Clear Halogen, Bi-Pin 6.35mm base,120vac, UL
Figure 32
Figure 33

38746-0-0118 Page 13
IMPORTANT SAFETY INFORMATION
For the Homeowner
• This replace must be installed and serviced by your dealer
or a qualied service technician. Other than cleaning the
glass and replacing the light bulbs, there are no user-
serviceable components.
• Keep the area around the replace clean and free of debris.
This replace requires an unimpeded ow of air to circulate
warm air. Do not place objects on or around the replace that
may restrict air ow.
• Keep the area around the replace free of combustible
materials – including drapery, upholstered furniture, paper,
boxes, and clothing. Never hang stockings or cards above
the replace.
• Never operate the replace with the glass front removed or
damaged. Any part removed for cleaning or servicing must
be replaced prior to operating the replace.
• The replace gets hot during operation and may remain hot
for an hour after use. When operated by thermostat, the
replace will turn on and off automatically.
• This replace may become hot enough to burn skin and
ignite clothing after prolonged contact. To prevent injury, alert
people in your home – especially children – to the hazards of
high surface temperatures and warn them to stay away from
the replace.
• Supervise children whenever the replace is hot. Young
children and others may be susceptible to accidental
contract burns. Have your dealer install a physical barrier if
there are at-risk individuals in your home. To restrict access
to a replace or stove, install an adjustable safety gate to
keep toddlers, young children, and other at-risk individuals
out of the room and away from hot surfaces.
• The vent cap, located on the outside of your home, will also
become very hot. Alert everyone, adults and children, to stay
clear and avoid touching the vent cap. Keep the area around
the vent cap clear of combustibles, including shrubs and trees.
• Do not use this replace if any part has been underwater.
Have a qualied technician inspect the replace and replace
any part that has been underwater. In the event of a natural
disaster (tornado, earthquake, re, etc.) have a qualied
technician inspect the replace for damage or potential gas
leaks. Repair or replace any damaged components before
operating this replace.
• Never burn solid fuels such as wood, coal, paper or
cardboard in this replace.
Annual Inspection
• Have the replace inspected annually before use.
• More frequent inspection and cleaning may be required if the
replace is installed in an area exposed to pet hair or dust,
or to excessive lint from new carpeting or bedding materials.
• During the annual checkup, the technician will
□ Inspect the pilot and burner system for proper operation
and replace any damaged parts
□ Check the glass and gasket for proper seal
□ Check the barrier screen for t and structural integrity
□ Check all latches for proper operation and tension
□ Inspect the log set or decorative media for debris
or damage
□ Freshen the glowing embers if necessary
□ Replace batteries in the transmitter and receiver
□ Inspect the venting for damage or corrosion
□ Inspect the vent cap for damage or obstruction
• Also perform cleaning and inspection following any
remodeling work in your home.

38746-0-0118Page 14
SAFETY INFORMATION FOR USERS OF PROPANE GAS
Propane (Propane-Gas) is a ammable gas which can
cause res and explosions. In its natural state, propane is
odorless and colorless. You may not know all the following
safety precautions which can protect both you and your
family from an accident. Read them carefully now, then
review them point by point with the members of your
household. Someday when there may not be a minute to
lose, everyone’s safety will depend on knowing exactly
what to do. If, after reading the following information,
you feel you still need more information, please contact
your gas supplier.
PROPANE GAS WARNING ODOR
If a gas leak happens, you should be able to smell the
gas because of the odorant put in the Propane Gas.
That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area.
Do that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• Propane Gas is heavier than air and may settle in low
areas such as basements. When you have reason to
suspect a gas leak, keep out of basements and other
low areas. Stay out until reghters declare them to be
safe.
• Use your neighbor’s phone and call a trained Propane
Gas service person and the re department. Even though
you may not continue to smell gas, do not turn on the
gas again. Do not re-enter the building, vehicle, trailer,
or area.
•Finally, let the service man and reghters check for
escaped gas. Have them air out the area before you
return. Properly trained Propane Gas service people
should repair the leak, then check and relight the gas
appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot
smell the odor of the chemical put into the gas. You
must nd out if you can smell the odorant in propane.
Smoking can decrease your ability to smell. Being around an
odor for a time can affect your sensitivity or ability to detect
that odor. Sometimes other odors in the area mask the gas
odor. People may not smell the gas odor or their minds are
on something else. Thinking about smelling a gas odor can
make it easier to smell.
The odorant in Propane Gas is colorless, and it can fade
under some circumstances. For example, if there is an
underground leak, the movement of the gas through soil can
lter the odorant. Odorants in Propane Gas also are subject
to oxidation. This fading can occur if there is rust inside the
storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or
into walls, masonry and other materials and fabrics in a room.
That will take some of the odorant out of the gas, reducing
its odor intensity.
Propane Gas may stratify in a closed area, and the odor
intensity could vary at different levels. Since it is heavier than
air, there may be more odor at lower levels. Always be sensitive
to the slightest gas odor. If you detect any odor, treat it as a
serious leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
•Learn to recognize the odor of Propane Gas. Your
local Propane Gas Dealer can give you a “Scratch and
Sniff” pamphlet. Use it to nd out what the propane odor
smells like. If you suspect that your Propane Gas has a
weak or abnormal odor, call your Propane Gas Dealer.
• If you are not qualied, do not light pilot lights, perform
service, or make adjustments to appliances on the
Propane Gas system. If you are qualied, consciously think
about the odor of Propane Gas prior to and while lighting
pilot lights or performing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the Propane Gas odor. Do not try
to light pilot lights, perform service, or make adjustments
in an area where the conditions are such that you may
not detect the odor if there has been a leak of Propane
Gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks
or cylinders are placed in service. Odor fade can occur
in new tanks, or reinstalled old tanks, if they are lled
and allowed to set too long before relling. Cylinders
and tanks which have been out of service for a time
may develop internal rust which will cause odor fade. If
such conditions are suspected to exist, a periodic sniff
test of the gas is advisable. If you have any question
about the gas odor, call your Propane Gas dealer.
Aperiodic sniff test of the Propane Gas is a good
safety measure under any condition.
• If, at any time, you do not smell the Propane Gas odorant
and you think you should, assume you have a leak. Then
take the same immediate action recommended above for
the occasion when you do detect the odorized Propane
Gas.
• If you experience a complete “gas out,” (the container
is under no vapor pressure), turn the tank valve off
immediately. If the container valve is left on, the container
may draw in some air through openings such as pilot light
orices. If this occurs, some new internal rusting could
occur. If the valve is left open, then treat the container
as a new tank. Always be sure your container is under
vapor pressure by turning it off at the container before
it goes completely empty or having it relled before it is
completely empty.

38746-0-0118 Page 15
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven feet
above nished grade in the area of the venting, including
but not limited to decks and porches, the following
requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side
wall horizontal vented gas fueled equipment, the
installing plumber or gastter shall observe that a hard
wired carbon monoxide detector with an alarm and
battery back-up is installed on the oor level where
the gas equipment is to be installed. In addition,
the installing plumber or gastter shall observe that
a battery operated or hard wired carbon monoxide
detector with an alarm is installed on each additional
level of the dwelling, building or structure served by
the side wall horizontal vented gas fueled equipment.
It shall be the responsibility of the property owner to
secure the services of qualied licensed professionals
for the installation of hard wired carbon monoxide
detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space
or an attic, the hard wired carbon monoxide
detector with alarm and battery back-up may be
installed on the next adjacent oor level.
b. In the event that the requirements of this
subdivision can not be met at the time of
completion of installation, the owner shall have
a period of thirty days to comply with the above
requirements; provided, however, that during
said thirty day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and be ANSI/UL 2034 listed and IAS
certied.
3. SIGNAGE. A metal or plastic identication plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight feet above grade
directly in line with the exhaust vent terminal for the
horizontally vented gas fueled heating replace or
equipment. The sign shall read, in print size no less
than 1/2 inch in size, “GAS VENT DIRECTLY BELOW.
KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a) 1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or
structure separate from the dwelling, building
or structure used in whole or in part for
residential purposes.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT
PROVIDED. When the manufacturer of a Product
Approved side wall horizontally vented gas fueled
equipment does not provide the parts for venting
the ue gases, but identies “special venting
systems”, the following requirements shall be
satised by the manufacturer:
1. The referenced “special venting system”
instructions shall be included with the replace
or equipment installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions
for that system shall include a parts list and
detailed installation instruction.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the replace or
equipment at the completion of the installation.
REQUIREMENTS FOR MASSACHUSETTS

38746-0-0118Page 16
WARRANTY
Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods speci-
ed below. Hearth products must be installed by a qualied technician and must be maintained and operated safely, in accordance with
the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs
must be accomplished by a qualied gas appliance technician.
Limited Lifetime Parts Warranty – Combustion Chamber, Heat Exchanger, and Factory-Installed Glass
If the combustion chamber, heat exchanger (see parts list) or factory-installed glass fails because of defective
workmanship or material, Empire will repair or replace at Empire’s option.
Limited Three-Year Parts Warranty – All Other Components
(Except Remote Controls, Thermostats, Accessories and Replacement Parts)
Should any part fail because of defective workmanship or material within three years from the date of purchase,
Empire will repair or replace at Empire’s option..
Limited One-Year Parts Warranty – Remote Controls, Thermostats, Lighting System, Accessories, and Parts
Should any remote control, thermostat, lighting system, accessory, or other part fail because of defective workmanship
within one year from the date of purchase, Empire will repair or replace at Empire’s option.
Duties of the Owner
The appliance must be installed by a qualied installer and operated in accordance with the instructions furnished
with the appliance.
A bill of sale, canceled check, or payment record should be kept to verify purchase date and establish warranty period.
Ready access to the appliance for service.
What Is Not Covered
Damages that might result from the use, misuse, or improper installation of this appliance.
Travel, diagnostic costs and freight charges on warranted parts to and from the factory.
Claims that do not involve defective workmanship or materials.
Unauthorized service or parts replacements.
Removal and reinstallation cost.
Inoperable due to improper or lack of maintenance.
How To Get Service
To make a claim under this warranty, please have your receipt available and contact your installing dealer. Provide the dealer
with the model number, serial number, type of gas, and purchase verication. The installing dealer is responsible for providing
service and will contact the factory to initiate any warranted parts replacements. Empire will make replacement parts available
at the factory. Shipping expenses are not covered.
If, after contacting your Empire dealer, service received has not been satisfactory, contact: Consumer Relations Department,
Empire Comfort Systems Inc., PO Box 529, Belleville, Illinois 62222, or send an e-mail to [email protected] with
“Consumer Relations” in the subject line.
Your Rights Under State Law
This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state.
www.empirecomfort.com
Empire Comfort Systems Inc.
Belleville, IL
If you have a general question
about our products, please e-mail
us at [email protected].
If you have a service or repair
question, please contact your dealer.
