DIRECT VENT ZERO CLEARANCE GAS
FIREPLACE HEATER SERIES
MILLIVOLT (MV)
DVCP(32,36,42)BP3(0,2)(N,P)-2
INTERMITTENT PILOT (IP)
DVCP(32,36,42)BP7(0,2)(N,P)-2
GAS-FIRED
UL FILE NO. MH30033
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by state or
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be per-
formed by a qualied installer, service
agency or the gas supplier.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
WARNING
If not installed, operated and maintained
in accordance with the manufacturer’s
instructions, this product could expose
you to substances in fuel or from fuel
combustion which can cause death or
serious illness.

35919-4-1015Page 2
BEFORE YOU START
Samples and Denitions:
DANGER
Indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
1. Read the safety information on Pages 52 - 54.
2. If located in the Commonwealth of Massachusetts, please
note the special requirements on page 55.
3. Areyougoingtoinstallablowerintothereplace?See
pages 8 - 10.
4. Whereareyougoingtoinstallthereplace?Seepage14.
5. Frametheopening.Seepages17-18.
6. Installingandconnectingthegaslines.Seepages15-16.
7. Installthewiring.Seepage35.
8. Installtheventing.Seepages21-25.
9. Installthereplace.Seepages17-20.
10. Connecttheventingsystem.Seepage32-33.
11. Lightthereplaceandtroubleshoot.Seepages36-37and
40 - 43.
12. Showthehomeownerhowtooperatethereplace.
13. Showthehomeownerhowtodothebasicmaintenance.
Unpacking the replace
1. Cut binding straps and shrink wrap.
2. Remove top of carton.
3. Remove glass cartons from back of unit and set aside.
4. Remove non-combustible boards and set aside.
5. Remove remaining carton.
6. Verifythatthereplaceandcomponentshavenotbeendam-
aged during shipping.
7. Setreplaceinalocationneartoitsnalinstallationlocation.
Installation Considerations - Fireplace Installation Guide-
lines
Whenplanningareplaceinsertinstallation,it’snecessaryto
determine:
• Gas supply piping (left side entrance).
• Electrical connections - for optional light kit
• Electrical supply requirements for optional light.
(120V, 60Hz, 1 Amp) (right side entrance)
• Properopeningsizeofreplacerequiredforinstallationof
thereplaceinsert.
Inplanningtheinstallationforthereplace,determinewhere
the unit is to be installed and whether optional accessories are
desired. Gas supply piping should also be planned at this time.
Thereplacecanbemountedonanyofthesesurfaces:
1. Aathardcombustibleornon-combustiblesurface.
2. A raised platform of combustible or non-combustible
material.
3. Fourcornersofthereplacesocontactismadeonallfour
perimeter edges on the bottom of the unit.
Ifthereplaceisinstalleddirectlyoncarpeting,tileorother
combustiblematerialotherthanwoodooring,itshouldbe
installed on a metal or wood panel extending the full width and
depth of the unit.
This unit is designed to be installed in a zero-clearance
enclosure. This means the combustible material can come in
contact with the top and side standoff spacers, and secured to
combustible framing using the framing brackets provided.

35919-4-1015 Page 3

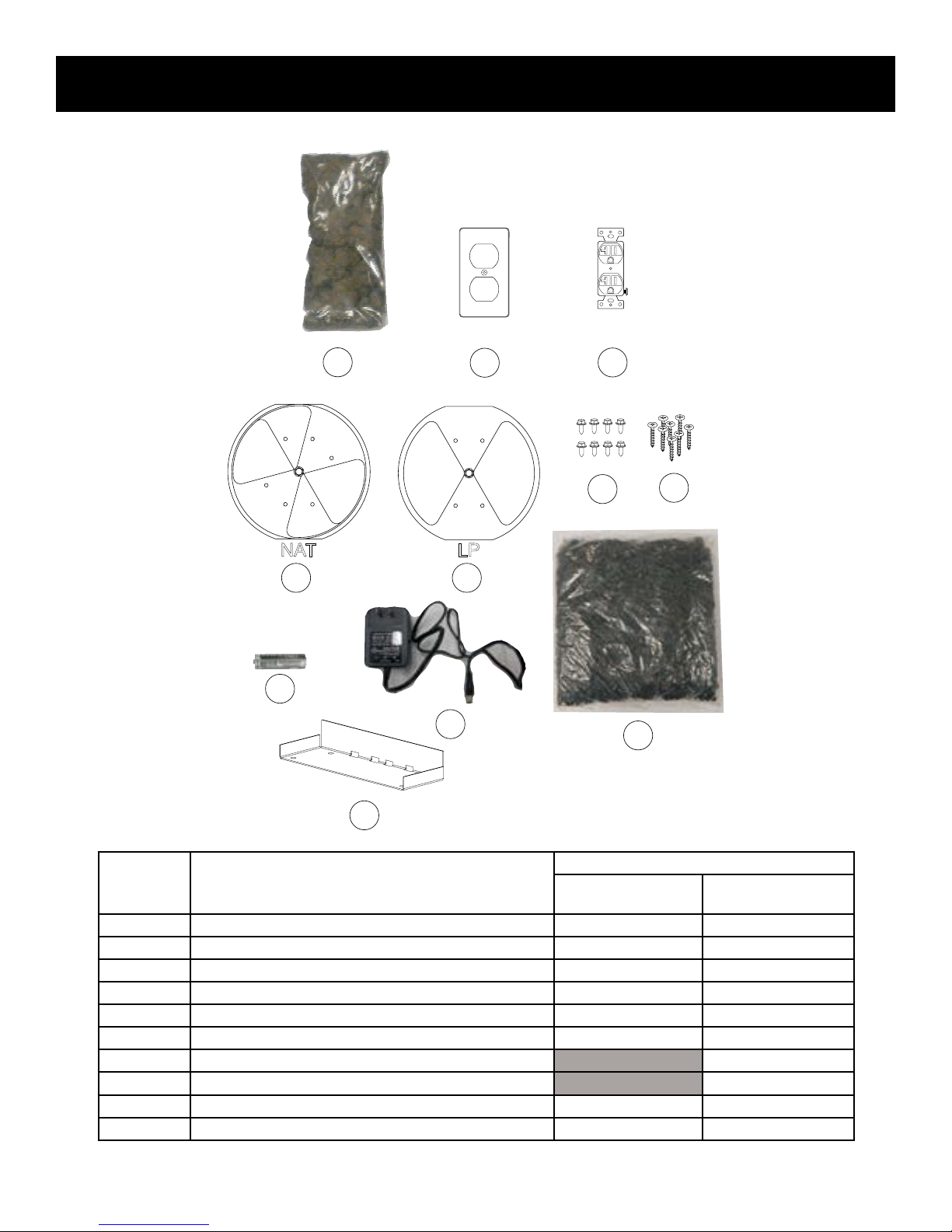

CARTON CONTENTS
12
7
3
4
NAT
4
LP
9
8
56
10
INDEX
NUMBER DESCRIPTION
QUANTITY SUPPLIED
DVCP(32,36,42)BP3
SERIES
DVCP(32,36,42)BP7
SERIES
1 ROCK WOOL 1 1
2 RECEPTACLE COVER 1 2
3 RECEPTACLE 1 2
4FLUERESTRICTORASSEMBLY-NATORLP 1 1
5NO.10X1/2PHILLIPSSCREW 8 8
6#8X1SELF-DRILLINGDRYWALLSCREW 8 8
7AABATTERY 0 4
8AC ADAPTOR 0 1
9 DECORATIVE ROCK 2 2
10 BACKERSTUD 4 4
SeePartsListsonpages48-51fororderingreplacementparts.Donotorderbatteries,bolts,screws,washersornuts.Theyarestan-
dard hardware items and can be purchased at any local hardware store.
Note: Items not shown to scale.

35919-4-1015Page 4
TABLE OF CONTENTS
SECTION PAGE
INTRODUCTION ........................................................................................................................... 5
SPECIFICATIONS ......................................................................................................................... 6
ACCESSORIES............................................................................................................................. 7
FBB10BLOWERKITINSTALLATION(OPTIONAL) ..............................................................8 - 10
VENTSYSTEMIDENTIFICATION .............................................................................................. 11
SPECIALVENTSYSTEMS ......................................................................................................... 11
FIREPLACEDIMENSIONS ......................................................................................................... 12
CLEARANCES .....................................................................................................................13 - 14
LOCATING FIREPLACE.............................................................................................................. 14
GASSUPPLY .......................................................................................................................15 - 16
INSTALLATION.....................................................................................................................17 - 20
VENTING FIREPLACE - TOP ..............................................................................................21 - 24
EXAMPLES-TOPVENTRUN.................................................................................................... 25
VENTTERMINALCLEARANCES............................................................................................... 26
FRAMINGANDFINISHING..................................................................................................27 - 28
TERMINATIONCLEARANCES................................................................................................... 29
VERTICAL TERMINATION ...................................................................................................30 - 31
DVVK-4FFLEXVENTINSTRUCTIONS ..............................................................................32 - 33
MILLIVOLTOPERATINGINSTRUCTIONS................................................................................. 34
MILLIVOLTSTANDINGPILOTWIRINGDIAGRAM.................................................................... 35
MILLIVOLTSTANDINGPILOTLIGHTINGINSTRUCTIONS ...................................................... 36
MILLIVOLTSTANDINGPILOTTROUBLESHOOTING ............................................................... 37
IPIELECTRONICSYSTEMOPERATINGINSTRUCTIONS....................................................... 38
IPIELECTRONICSYSTEMWIRINGDIAGRAM ........................................................................ 39
INTERMITTENTPILOTLIGHTINGINSTRUCTIONS ................................................................. 40
INTERMITTENTPILOTCONTROLSYSTEMTROUBLESHOOTING.................................41 - 43
MAINTENANCEANDSERVICE ..........................................................................................44 - 45
JUNCTIONBOXWIRINGINSTALLATIONINSTRUCTIONS...................................................... 46
MASTERPARTSDISTRIBUTORLIST ....................................................................................... 47
HOWTOORDERREPAIRPARTS ............................................................................................. 47
MILLIVOLTPARTSLIST-DVCP(32,36,42)BP3 ......................................................................... 48
MILLIVOLTPARTSVIEW-DVCP(32,36,42)BP3 ....................................................................... 49
IPPARTSLIST-DVCP(32,36,42)BP7........................................................................................ 50
IPPARTSVIEW-DVCP(32,36,42)BP7 ...................................................................................... 51
IMPORTANTSAFETYINFORMATION ................................................................................52 - 53
SAFETYINFORMATIONFORUSERSOFLPGAS ................................................................... 54
REQUIREMENTSFORMASSACHUSETTS .............................................................................. 55
WARRANTY ................................................................................................................................ 56

35919-4-1015 Page 5
Instructions to Installer
1. Leave the instruction manual with owner after installation.
2. Haveownerlloutandmailtheproductregistrationcard
suppliedwiththereplaceorregisteronline.
3. Showownerhowtostartandoperatethereplace.
Thisdirectventgasreplaceheaterisdesignedtooperatewith
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and
gas control systems unless otherwise noted.
Appliance Certication
WARNING
Donotusethisreplacewithsolidfuels.
ThisreplaceisdesigncertiedinaccordancewithAmerican
NationalStandard/CSAStandardANSIZ21.88/CSA2.33andby
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
Thereplace,wheninstalled,mustbeelectricallygroundedin
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 or Canadian Electric
code,CSAC22.1,ifanexternalelectricalsourceisutilized.
These models may be installed in a bedroom or bed-sitting room
intheU.S.A.andCanada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shallbeperformedonlybyaqualiedagency.Theterm“qualied
agency”meansanyindividual,rm,corporationorcompany
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
State of Massachusetts: The installation must be made
byalicensedplumberorgastterintheCommonwealth
of Massachusetts.
WARNING
ANYCHANGETOTHISFIREPLACEORITS
CONTROLSCANBEDANGEROUS.
Improperinstallationoruseofthereplacecancause
seriousinjuryordeathfromre,burns,explosions,or
carbon monoxide poisoning.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, or CSA
B149.1 in Canada. *Available from the American National
Standards Institute, Inc. 11 West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number,
SerialNumberandtypeofgas.
High Altitude
When installing this unit at an elevation above 2000 feet (in
theUnitedStates)itmaybenecessarytodecreasetheinput
ratingbychangingtheexistingburneroricetoasmallersize.
Generally, input should be reduced 4 percent for each 1000
feet above sea level. However, if the heating value of the gas
has been reduced, this general rule may not apply. Check with
EmpireComfortSystemsforproperoricesizeidentication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in
Canada),checkwithEmpireComfortSystems.
ConsultyourEmpireComfortSystemsforassistancein
determiningtheproperoriceforlocation.
Preparation
Thisdirectventgasreplaceanditscomponentsaretestedand
safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
check glass condition. Do not install unit with damaged,
incomplete, or substitute parts. Read all instructions before
starting installation and follow these instructions carefully during
installationtoinsuremaximumbenetandsafety.Failureto
followthemwillvoidyourwarrantyandmaypresentarehazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installationofanydamagedreplaceorventsystem
component.
• Modicationofthereplaceordirectventsystem.
• Installation other than as instructed by Empire Comfort
Systems,Inc.
• Improper positioning of the logs, glass door or decorative
rock.
• Installation and/or use of any component part not
manufactured or approved by manufacturer.
INTRODUCTION

35919-4-1015Page 6
SPECIFICATIONS
DVCP32NAT DVCP32LP DVCP36NAT DVCP36LP DVCP42NAT DVCP42LP
Input BTU/Hr Maximum 24,000 22,000 24,000 24,000 28,500 26,500
Input BTU/Hr Minimum (millivolt only) 18,000 18,000 18,000 19,000 21,000 22,000
KWH (Maximum) 7.03 6.45 7.03 7.03 8.35 7.77
KWH (Minimum) 5.27 5.27 5.28 5.57 6.15 6.3
Orice 42 54 42 1.45mm 39 1.55mm
AirShutterOpening 1/4-in Full Open 1/4-in Full Open 1/8-in Full Open
GasInletShutoffValve(Pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT
NOTE: Airshuttersettings are factory minimum settings. Some venting congurations may requireminorairshutter adjustments for
optimum performance.
GAS SUPPLY PRESSURES
GAS TYPE MAXIMUM MINIMUM MANIFOLD
NAT 14.0-in 4.5-in 3.5-in
LP 14.0-in 10.8-in 10.0-in
Remote Control Options
& Accessories Description Models Used On
FRBC Millivolt Battery Remote ON/OFF DVCP(32,36,42)BP(3,7)
FRBTC Millivolt Battery Remote Thermostat DVCP(32,36,42)BP(3,7)
TMW Millivolt Wireless Wall Thermostat DVCP(32,36,42)BP(3,7)
TRW MillivoltReedSwitchWallThermostat DVCP(32,36,42)BP(3,7)
FWS-1 DirectIgnition/MillivoltWallSwitch DVCP(32,36,42)BP(3,7)
FRBTP Battery Operated Remote Control with Programmable Thermostat DVCP(32,36,42)BP(3,7)
RVKN-1 RemoteKit,NAT(StepperMotor) DVCP(32,36,42)BP7N
RVKP-1 RemoteKit,LP(StepperMotor) DVCP(32,36,42)BP7P
Venting Options Description
DVVK-4TSP Top vent kit (horizontal) - 4-½-in to 6-in (114.3 mm to 152 mm) wall thickness
DVVK-4TP Top vent kit (horizontal) - 8-in to 12-in (203 mm to 305 mm) wall thickness
DVVK-4VP Vertical vent kit
DVVK-4F Horizontalexventkit(4-ftFLEX)
SD46DVA-FCFX7 FlexAdaptorCollar(mustbeusedwithexkits)
Conversion Kits Description Used On
31768 Conversion Kit, DV (Natural to Propane) DVCP32BP30
31769 Conversion Kit, DV (Propane to Natural) DVCP302BP30
31770 Conversion Kit, DV (Natural to Propane) DVCP306BP30
31771 Conversion Kit, DV (Propane to Natural) DVCP306BP30
31772 Conversion Kit, DV (Natural to Propane) DVCP42BP30
31773 Conversion Kit, DV (Propane to Natural) DVCP42BP30
32874 Conversion Kit, DV (Natural to Propane) DVCP702BP70
32875 Conversion Kit, DV (Propane to Natural) DVCP702BP70
32876 Conversion Kit, DV (Natural to Propane) DVCP706BP70
32877 Conversion Kit, DV (Propane to Natural) DVCP706BP70
32878 Conversion Kit, DV (Natural to Propane) DVCP42BP70
32879 Conversion Kit, DV (Propane to Natural) DVCP42BP70

35919-4-1015 Page 7
Model Number Description
DVP32TAB Liner, Aged Brick, Ceramic Fiber
DVP32TCB Liner, Cottage Brick, Ceramic Fiber
DVP32TKR Liner,BlackReective
DVP32TRB Liner, Rustic Brick, Ceramic Fiber
DVP36TAB Liner, Aged Brick, Ceramic Fiber
DVP36TCB Liner, Cottage Brick, Ceramic Fiber
DVP36TKR Liner,BlackReective
DVP36TRB Liner, Rustic Brick, Ceramic Fiber
DVP42TAB Liner, Aged Brick, Ceramic Fiber
DVP42TCB Liner, Cottage Brick, Ceramic Fiber
DVP42TKR Liner,BlackReective
DVP42TRB Liner, Rustic Brick, Ceramic Fiber
FBB10 Blower,AutoVariable-Speed
LK6 Lighting Kit, 120 V
Attention: This unit requires Ceramic Fiber Logs to complete the replace interior. Contact your Empire Comfort
Systems Dealer (see Page 47) for further information. Do not operate the replace without the Ceramic Fiber Log
accessory installed.
ThefollowingaccessorypartscanbeobtainedfromyourEmpireComfortSystemsdealer.Ifyouneedadditionalinformation
beyondwhatyourdealercanfurnish,contactEmpireComfortSystemsInc.,918FreeburgAve.,Belleville,Illinois62220-
2623.
OPTIONAL ACCESSORIES

35919-4-1015Page 8
FBB10 BLOWER KIT INSTALLATION (OPTIONAL)
BENCH INSTALLATION (BEFORE INSTALLED IN WALL)
1. With Power completely turned off, remove plate and four
screws from left panel. See Figure 1.
Figure 1
2. Install the blower onto the pre-bent brackets on the blower
plate. Ensure the Velcro connects to secure the blower in
place. See Figure 2.
Back side of Blower
showing Velcro
Figure 2
3. RoutewiringthroughopeningcreatedinStep1.
4. Secureblowerassemblyintoplaceperstep2withvelcro.
5. Install thermo disc by snapping into valve bracket burner
assembly. See Figure 3.
Figure 3
6. Connect Power source into outlet on the bottom right side of
the appliance.
BLOWER INSTALLATION (AFTER INSTALLED IN WALL)
1. Make sure power is turned off prior to any removal. Lift
screen and pull away from the unit. See Figure 4.
Figure 4
2. Undotwolatchesatbottomofreboxassembly.See Figure
5.
Figure 5

35919-4-1015 Page 9
FBB10 BLOWER KIT INSTALLATION (OPTIONAL)

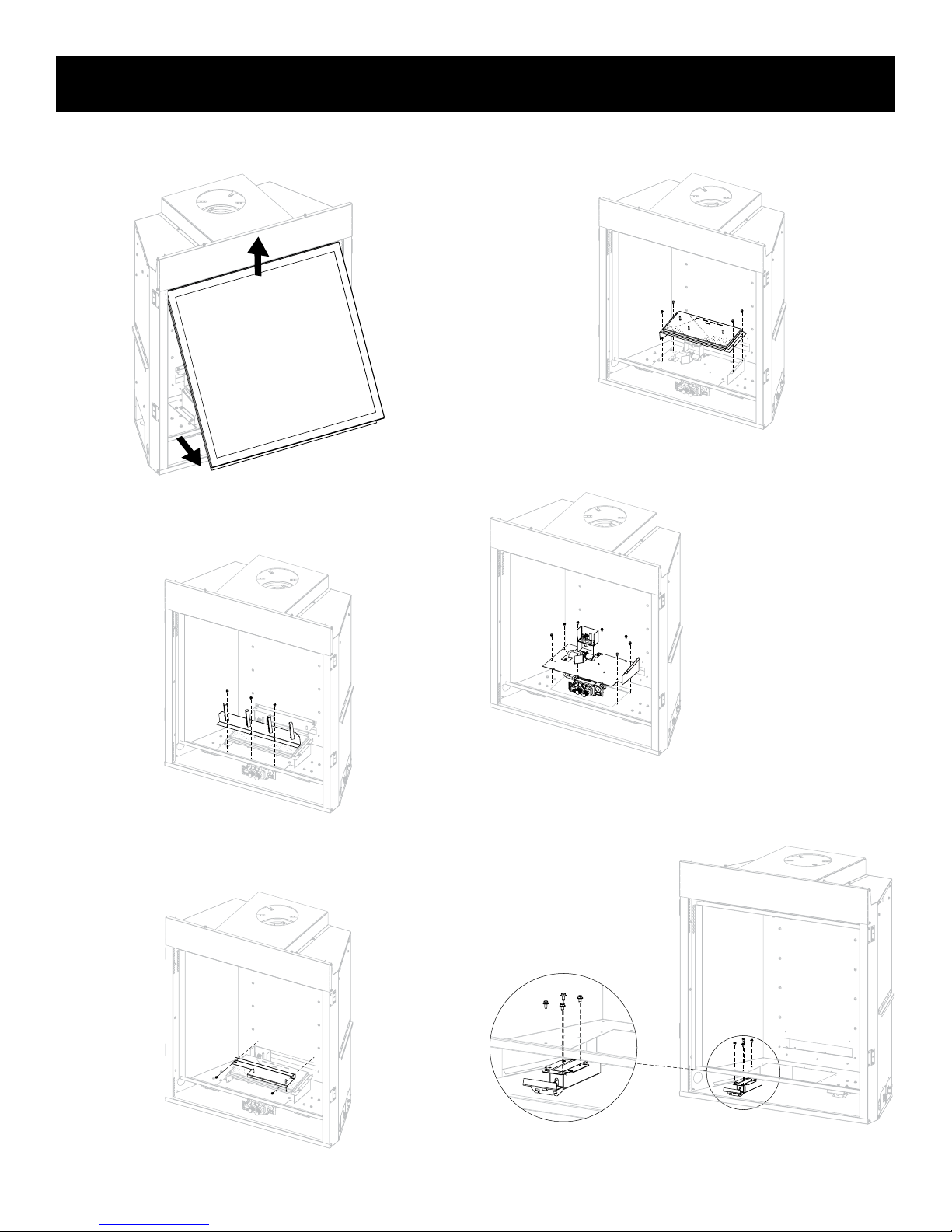

3. Disengage Glass Frame by pulling in upward swinging
position. Place Glass Frame aside in a safe and out of the
way location. See Figure 6.
Figure 6
4. Remove grate by disassembling and removing the
three screws on top panel. Retain grate and screws for
reassembly. See Figure 7.
Figure 7
5. Remove log support by removing the two screws securing
the metal plate to log support. Retain log support and screws
for reassembly. See Figure 8.
Figure 8
6. Remove the four screws securing burner and slide to right
then lift burner off. Retain burner and screws for reassembly.
See Figure 9.
Figure 9
7. Remove seven screws and lift burner assembly. Retain
screws and burner assembly for reassembly. See Figure 10.
Figure 10
8. Remove the four #10 x 1/2 screws securing the latch
assemblytotheundersideoftherebox.Retainscrewsand
latch assembly for reassembly. See Figure 11.
Figure 11

35919-4-1015Page 10

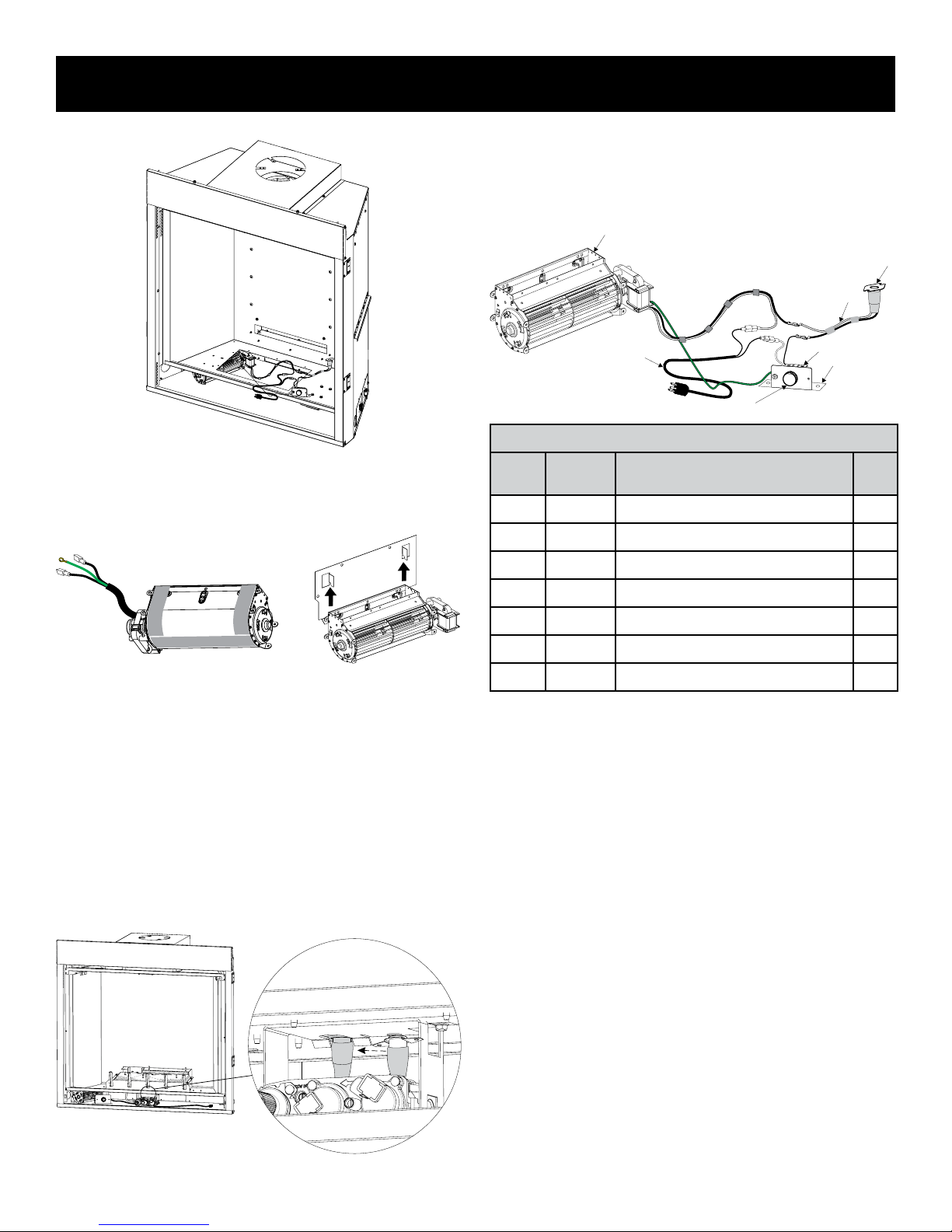

9. Installblowerthroughreboxcutout.See Figure 12.
Figure 12
10. Install the blower onto the prebent brackets on the blower
plate. Ensure the Velcro connects to secure the blower in
place. See Figure 13.
Back side of Blower
showing Velcro
Figure 13
11. Reinstall the latch assembly removed in step 8. See Figure
11.
12. Reinstall the burner assembly and seven screws removed in
step 7. See Figure 10.
13. Reinstall the burner and four screws removed in step 6. See
Figure 9.
14. Reinstall the log support and secure it with the metal plate and
two screws removed in step 5. See Figure 8.
15. Reinstall the grate three screws removed in step 4. See
Figure 7.
16. Install thermo disc by snapping into valve bracket burner
assembly. See Figure 14.
Figure 14
FBB10 BLOWER KIT INSTALLATION (OPTIONAL)
17. Connect Power source into outlet.
18. Reinstall the glass frame removed in step 3. See Figure 6.
19. Reconnectthelatchesatthebottomofthereboxassembly.
See Figure 5.
20. Replace barrier screen removed in step 1. See Figure 4.
6
2
3
4
1
5
7
BLOWER ASSEMBLY PARTS LIST
INDEX
NO.
PART
NO
DESCRIPTION QTY
1 R2804 BLOWERASSEMBLY 1
2 R7649 FAN, CONTROL L120-20 1
3 R2099 CORDSET,30INCHES 1
4 R4192 RHEOSTAT,KNOB 1
5 R4186 RHEOSTAT,3.0AMP115VAC 1
6 10088 RHEOSTATBOXBRACKET 1
7 R11768 WIREHARNESS,FANCONTROL 1

35919-4-1015 Page 11
PIPE LENGTH
WALL STRAP
CEILING FIRE STOP
90° ELBOW
90° ELBOW
OR
45° ELBOW
WALL THIMBLE
HORIZONTAL
TERMINATION
(MAXIMUM OF
THREE 90 ELBOWS
VERTICAL
TERMINATION
(MAXIMUM OF
THREE 90 ELBOWS)
STORM COLLAR
ROOF FLASHING
Figure 15
Special Venting Components (Simpson Duravent)
SeeEmpireComfortSystemsRetailPriceListforSimpsonDuraventpartnumbers
and pricing.
SpecialDVVentKits
AvailablefromEmpireComfortSystems,Inc.dealers
DVVK-4FV Vertical Flex Vent Kit 4-in x 7-in
DVVK-4VP Direct-Vent Fireplace Vent Kit - Vertical.
DVVK-4TP
Direct-Vent Fireplace Vent Kit for Top Vent, Thru-the-wall, 8 to
11inchwallthickness,IncludesSD-911,SD-985,SD-990and
SD-942
DVVK-4TSP
Direct-Vent Fireplace Vent Kit for Top Vent, Thru-the-wall, 5 to
7inchwallthickness,IncludesSD-908,SD-985,SD-990and
SD-942
VENT SYSTEM IDENTIFICATION
Use one of the following 4 x 6-5/8 vent systems:
SimpsonDuravent®DVA-H2
SimpsonDuravent®GS
American Metal Products
SelkirkDirect-Temp®
SecuritySecureVent®
Empire Flexvent Kit DVVK-4F, refer to page 32 - 33.
Or the following 4 x 6-1/2 vent system:
MetalFabSureSeal®(Note:StarterAdaptorPiperequired)
SPECIAL VENT SYSTEMS
Begin the vent system installation by selecting the type of venting
to be installed and the path that it will take. Verify that clearances
are met throughout the path of the venting system. Determine if the
replaceistobeventedverticallyorhorizontally.
NOTE: Unit requires 12 inches of rise before elbow, as well
as 2 inches of clearance around rst 12 inches of pipe.

35919-4-1015Page 12 Figure 16
FIREPLACE DIMENSIONS
INDEX
LETTER DIMENSION DESCRIPTION DVCP32 DVCP36 DVCP42
Dimensions in Inches
AThemaximumheightofreplaceface(excludingstandoffs) 38-1/8 38-1/8 40-1/8
BThemaximumwidthofthereplaceface(excludingnailinganges) 34 37 43
CThemaximumdepthofthereplace 17-1/2 17-1/2 17-1/2
DTheheightofthereplaceopening 31-3/8 31-3/8 33-3/8
EThewidthofthereplaceopening 31 34 40
FTheinteriordepthofthereplace(notshown) 11-1/2 11-1/2 11-1/2
GTherearexteriorwidthofthereplace 23-15/16 26-15/16 32-15/16
IWidthfromtheleftsideofthereplacetothecenterlineofvent 12 13-1/2 16-1/2
JDepthfrombackofreplacetocenterlineoftopvent 6-3/4 6-3/4 6-3/4
KHeightfromthebottomofthereplacetotheleftgaslineopening 2 2 2
LDepthfromthefrontofthereplacetotheleftgaslineopening 4-5/8 4-5/8 4-5/8
MDepthfromrearofreplacetogaslineopening 11-13/16 11-13/16 11-13/16
N Viewing area height 24-7/8 24-7/8 26-7/8
O Viewing area width 27-1/2 30-1/2 36-1/2
PDepthfromfrontofreplacetocenterlineofvent 10-3/4 10-3/4 10-3/4
QDistancefromoortobottomreplaceopening 7/8 7/8 7/8
RDistancefromoortotopreplaceopening 32-1/4 32-1/4 34-1/4
G
I
J
C
GAS LINE
ACCESS
R
B
E
D
Q
VENT COLLAR
NAILING
FLANGES
SIDE SPACER
BARRIER SCREEN ASSEMBLY
&
GLASS FRAME ASSEMBLY
GAS LINE
ACCESS
RATING PLATE AND
LABELS INSIDE
GAS CONTROL AND
SWITCHES INSIDE
A
K
L
LEFT VIEW
FRONT VIEW
TOP VIEW
RIGHT VIEW
P
M
GAS LINE
ACCESS
N
O

35919-4-1015 Page 13
CLEARANCES
Clearance to Combustibles
(Dimensions in inches)
Back 0
Side 0
Floor 0
Top Framing Edge SeeBelow
SEE MANTLE CHART FOR
MAXIMUM MANTEL DEPTH
GLASS FRONT
TOPFRAMING
LEDGE
FINISHED WALL
(NON-COMBUSTIBLE)
SEE MANTEL CHART
FOR MINIMUM HEIGHT
OF MANTLE ABOVE UNIT
2" x 4" HEADER
NAILING
FLANGES
MINIMUM TO
CHASE TOP
24”
FINISHED WALL
(COMBUSTIBLE)
9”
Figure 17
Combustible Material
No greeting cards, stockings or ornamentation of any type should
be placed on or attached to the replace. The ow of heat can
ignite combustibles.
FIREPLACE
(TOP VIEW)
PERPENDICULAR
SIDE WALL
45°
6
3
MAX.
FRONT FACE (SIDE)
COMBUSTIBLE
MATERIALS ALLOWED
IN SHADED AREAS
Figure 18
Mantel Chart
FIREPLACE OPENING
INDEX
LETTER
DISTANCE FROM TOP
EDGE OF FIREPLACE
(VERTICAL)
DISTANCE FROM
FIREPLACE FRONT
(HORIZONTAL)
(Dimensions in inches)
A 18 12
B 18 10
C 16-3/4 8
D 14 6
E11 3-3/4
F 9 2-1/4
G 6 0
Figure 19

35919-4-1015Page 14
Figure 21
Note: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet with a
minimumverticalrunof8feet.SeedetailsinVentingSection.
When you install your Direct Vent Fireplace in Room divider or Flat on wall corner positions, a minimum of 6 inches clearance must be
maintained from the perpendicular wall and the front edge of the appliance.
LOCATING FIREPLACE
CLEARANCES
Clearances
Clearancefrombottomedgeofreplacetoceilingis72-in
Clearancefromsideofreplacetoadjacentsidewallis6-in.
Refer to framing dimensions on page 18.
Note: 72-in minimum applies when unit is installed in wall above
oorlevel.
72”
(183cm)
6” (152mm)
Figure 20
Television Considerations
Installing a television above an appliance has become increas-
ingly popular; however, the area above any appliance gets hot and
most TV manufacturers recommend against placing their products
near a heat source.
If you install a television above this appliance, Empire Comfort
Systemsacceptsnoresponsibilityfordamageorinjuries.Follow
the television manufacturer’s installation instructions, including
any recommendations regarding proximity to heat sources.
If you have a TV above your appliance, turn off the appliance and
let it cool completely before servicing or touching any buttons on
the TV.

35919-4-1015 Page 15
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
theappliance.ConsultthecurrentNationalFuelGasCode,ANSI
Z223.1CAN/CGA-B149(.1or.2)installationcode.
2”
4 5/8”
SIDE OF FIREBOX
Figure 22
Figure 23
Recommended Gas Pipe Diameter
Pipe Length
Schedule40Pipe
Inside Diameter
(in inches)
Tubing, Type L
Outside Diameter
(in inches)
Nat. L.P. Nat. L.P.
0-10 feet 1/2 3/8 1/2 3/8
10-40 feet 1/2 1/2 5/8 1/2
40-100 feet 1/2 1/2 3/4 1/2
100-150 feet 3/4 1/2 7/8 3/4
Note:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
Note: Sincesomemunicipalitieshaveadditionallocalcodes,itis
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSIZ21.24ApplianceConnectorsofCorrugatedMetalTubing
and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip leg be installed near
the gas inlet. See Figure 24. This should consist of a vertical
length of pipe tee connected into the gas line that is capped
on the bottom in which condensation and foreign particles may
collect.
Figure 24
Installing a New Main Gas Supply Knob (Check Local Code)
Each appliance should have its own manual gas supply knob.
A manual main gas supply knob should be located in the vicinity
of the unit. Where none exists, or where its size or location is not
adequate, contact your local authorized installer for installation or
relocation.
Compounds used on threaded joints of gas piping shall be resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: The millivolt gas controls are equipped with a captured screw
type pressure test point, therefore it is not necessary to provide a
1/8 inch test point up stream of the control.
Ondirectignitionvalves,hexplugsmaybereplacedwithhosettings
forpressurechecks,thenreinstalledbeforeoperatingreplace.
Whenusingcopperorexconnectoruseonlyapprovedttings.
The appliance and its individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of1/2psig(14-inw.c.)(3.5kPa)onthereplacegasvalve,itwill
result in a hazardous condition.

35919-4-1015Page 16
GAS SUPPLY
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5-in w.c. (.871 kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5-in w.c.
(1.120 kPa) for the purpose of input adjustment to a maximum of
14.0-in w.c. (3.484 kPa). Propane gas models will have a manifold
pressure approximately 10.0-in w.c. (2.49 kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8-in w.c.
(2.68 kPa) for the purpose of input adjustment to a maximum of
14.0-in w.c. (3.484 kPa).
GasSupplyPressure(inchesw.c.)
Minimum Normal Maximum
Natural Gas 4.5 7.0 14.0
LP (Propane) 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5
LP (Propane) 10.0

35919-4-1015 Page 17

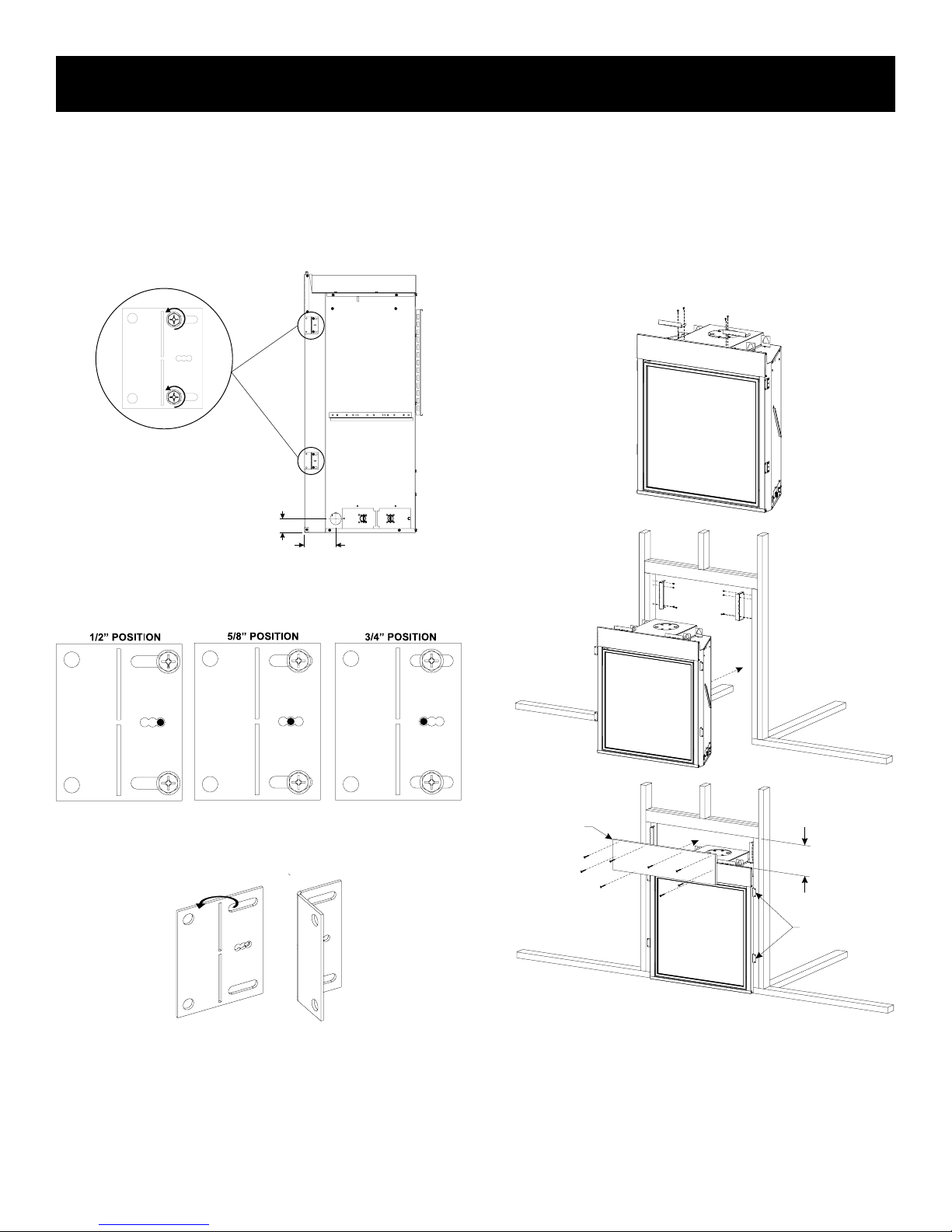

INSTALLATION
Framing the Fireplace
1. Choosereplacelocation.
2. Frameinreplacewithaheaderacrossthetop.Itisimportant
toallowfornishedfacewhensettingthedepthoftheframe.
3. Attachreplacetoframeusingadjustableframe.Presetdepth
to suit facing material (adjustable to 1/2-in, 5/8-in or 3/4-in
depths).
4. Loosen but do not remove the eight screws securing the nailing
angestotherebox.See Figure 25.
2”
4 5/8”
Figure 25
5. Measurefromfaceofreplacetofaceofdrywallstriptodetermine
naldepthandadjustnailingangesasshowninFigure 26.
Figure 26
6. Tighten the eight screws loosened in step 5.
7. Bendthenailinganges90degreeasshowninFigure 27.
Figure 27
8. Attach the two backer studs to the firebox with four
#10 x 1/2 Phillips screws (provided) as shown in Figure 28.
9. Attach the two backer studs to the vertical studs with four screws
appropriate for installation (not provided) as shown Figure 28.
10. Slideunitintopositionandsecuretowallwithnailinganges.
111. Mark non-combustible board for backer stud locations. Place
non-combustible board in place and secure with four #8 x 1 self-
drilling drywall screws (provided) and three screws appropriate
for installation(not provided) as shown in Figure 28. To avoid
damage to the non-combustible board, do not use more screws.
9”
NAILING FLANGES
SECURED IN PLACE
NON-COMBUSTIBLE
BOARD
Figure 28

35919-4-1015Page 18
INSTALLATION (continued)
Vent Pipe Clearance
For horizontal vent, maintain a minimum 2-in clearance to the bottom
and sides of the vent, and 3-in clearance to combustibles above
the vent pipe. See Figure 30.
VENT PIPE
2” MINIMUM CLEARANCE AROUND VENT PIPE
Figure 29
Top of
Vent
3” (75mm)
2” (50mm)
2” (50mm)
7” Diameter
intake vent
4” Diameter flue
Combustibles NOT
allowed in shaded
area
Figure 30
Framing - In the Wall
Fireplaceframingcanbebuiltbeforeorafterthereplaceisset
in place. Framing should be positioned to accommodate wall
coveringandreplacefacingmaterial.Thereplaceframingshould
be constructed of 2 x 4 lumber. Refer to Figure 31 for minimum
framing dimensions.
CAUTION
CAUTION: MEASURE FIREPLACE DIMENSIONSAND VERIFY
FRAMING METHODS, AND WALL COVERING DETAILS
BEFORE FRAMING CONSTRUCTION BEGINS.
Note:Fornishingtotopofreplace,refertoFigure 32.
Note: Minimum chase top to top of framing edge is 24-in.
DVCP32 DVCP36 DVCP42
(Dimensions in inches)
A 47-1/4 47-1/4 49-1/4
B 34-3/4 37-3/4 43-3/4
C 17-1/4 17-1/4 17-1/4
Figure 31
Finishing
Finish the walls with the material of your choice. Figure 19 on
page 13 shows the minimum vertical and corresponding maximum
horizontal dimensions of mantels or other combustible projections
abovethetopfrontedgeofthereplace.
Only non-combustible materials may be used to cover the black
replacefront.
WARNING
Whennishingthereplaceneverobstructormodifytheair
inlet/outlet in any manner. Provide adequate clearances around
air openings into the combustion chamber.
CAUTION
Ifthejointsbetweenthenishedwallandthereplacesurround
(top and sides) are sealed, a 300 Degree F minimum sealant mate-
rial must be used. These joints are not required to be sealed. Only
non-combustible material (using 300 Degree F minimum adhesive
ifneeded),canbeappliedasfacingtothereplacesurround.

35919-4-1015 Page 19

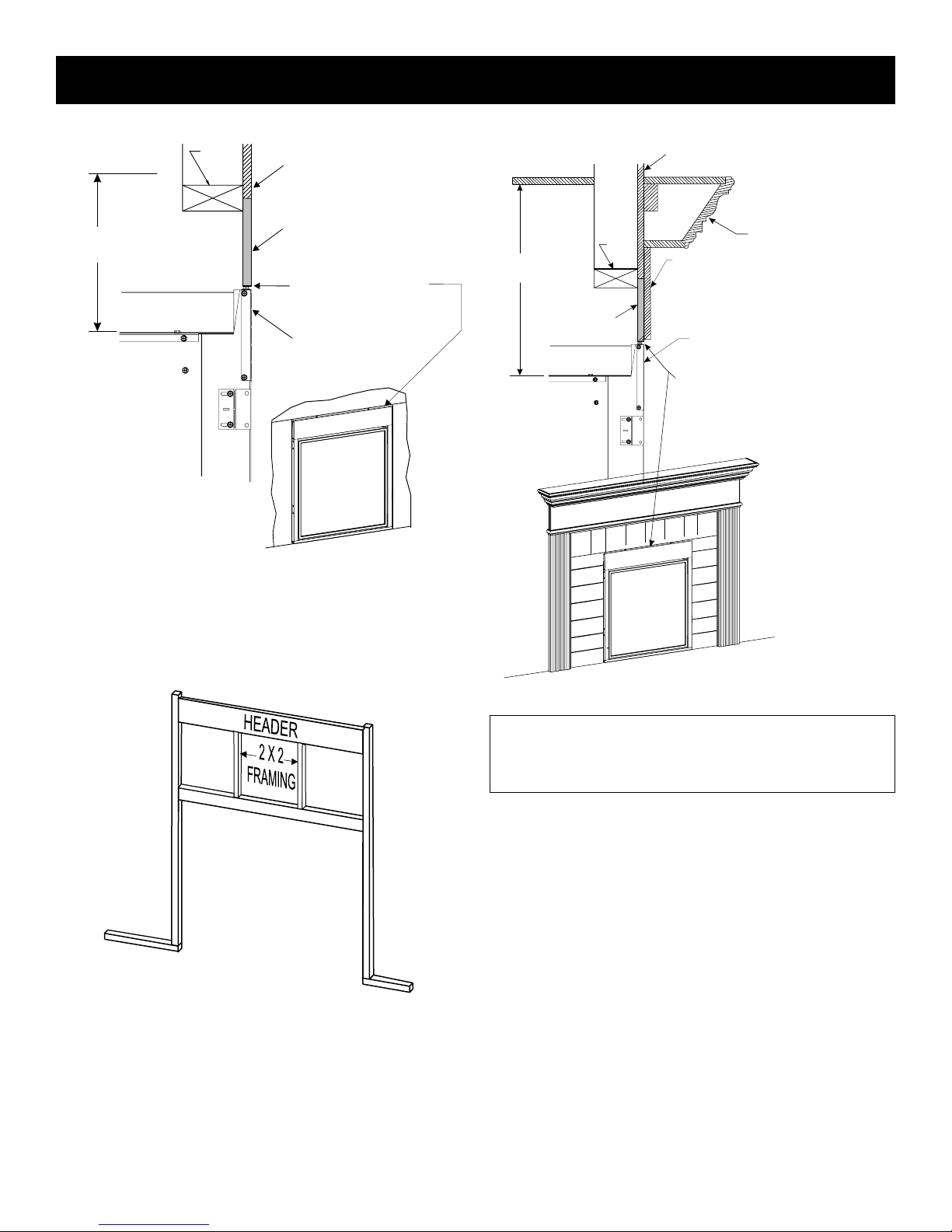

INSTALLATION (continued)
Flush Wall Installation
FRONT TRIM OR
NON-COMBUSTIBLE MATERIAL
(INSTALLATION IS OPTIONAL)
JOINT BETWEEN FINISHED
WALL AND UNIT SEALED
WITH 300° F, 149° C SEALANT
MATERIAL (SEALANT IS OPTIONAL)
24”
TO TOP OF CHASE
2 X 4
HEADER FINISHED WALL
(COMBUSTIBLE)
FINISHED WALL
(NON-COMBUSTIBLE)
Note: If interior of chase requires drywall per local code, 2 x 4 Header
must be reduced to 2 x 2.
Figure 32
NOTE: If the Interior of the chase is required by local code to
be dry walled the face wall above the replace must be built
with 2 x 2 lumber to meet clearances.
Figure 33
Combustible Surround Installation
24”
TO
TOP OF CHASE
JOINT BETWEEN FINISHED WALL AND
UNIT SEALED WITH 300° F 149
MATERIAL (SEALANT IS OPTIONAL)
° C
SEALANT
COMBUSTIBLE SURROUND
MANTELSHELF
2 X 4
HEADER
FINISHED WALL
(COMBUSTIBLE)
FINISHED WALL
(NON-COMBUSTIBLE)
FRONT RIM OR NON-COMBUSTIBLE
MATERIAL (INSTALLATION IS OPTIONAL)
Figure 34
Attention: Cold climate installation recommendation: When
installing this unit against a non-insulated exterior wall, it is
recommended that the outer walls be insulated to conform to
applicable insulation codes.
Vent Runs
Inplanningtheinstallationforthereplace,itisnecessarytoinstall
certain components before the appliance is completely positioned
and installed. These include the direct vent system, gas piping for
the appliance and the electrical wiring. (If the fan option is used.)
The appliance can be mounted on any of the following surfaces:
1. Aat,hardcombustible(burnable)surface.
2. A raised wooden platform.
3. Four corner supports. (Example: Four concrete masonry blocks.)
These supports must be positioned so they contact all four
perimeter edges on the bottom of the unit.

35919-4-1015Page 20
INSTALLATION (continued)
VERTICAL, 90 DEGREE ELBOW WITH HORIZONTAL
TERMINATION
24”
TO TOP OF CHASE
“A”
DISTANCE
TO BOTTOM
OF UNIT
3” (76mm)
MINIMUM CLEARANCE
TO COMBUSTIBLES
VENT CAP/
THIMBLE
WALL FIRESTOP
12”Rise
Required
FINISHED WALL
(NON-COMBUSTIBLE)
FINISHED WALL
(COMBUSTIBLE)
9”
BOTTOM
OF FRAMING
A DIMENSION
(Dimensions in inches)
DVCP32 57-1/2
DVCP36 57-1/2
DVCP42 59-1/8
Figure 35
VERTICAL, 90 DEGREE ELBOW TO HORIZONTAL OUT THE
WALL (12-in minimum rise before elbow)
90° ELBOW “A”
PIPE
LENGTH
VENT CAP
WALL FIRESTOP/
THIMBLE
“B”
“C”
A B C
(Dimensions in inches)
6 11-1/4 to 12-3/4 4-3/4 to 6-1/4
9 14-1/4 to 15-3/4 7-3/4 to 9-1/4
12 17-1/4 to 18-3/4 10-3/4 to 12-1/4
Figure 36
CORNER INSTALLATION - VERTICAL, 90 DEGREE ELBOW
TO HORIZONTAL OUT THE WALL(12-in minimum rise before
elbow)
WALL FIRESTOP/
THIMBLE
VENT
CAP
6” (152 mm)
MINIMUM
9” (229 mm)
MINIMUM
Dim. DVCP32 DVCP36 DVCP42
(Dimensions in inches)
A 37-3/4 39-7/8 44-1/8
B 26-3/4 28-3/16 31-3/16
C 12-3/4 13-3/4 15-15/16
D 53-3/8 56-3/8 62-3/8
Figure 37
