UNIVERSAL FIREBOX FOR
ALL VENT-FREE LOG SETS
MODELS
VFD32FB0L-3 VFD36FB0L-3 VFD42FB0L-3
VFD32FB2ML-5 VFD36FB2ML-5 VFD42FB2ML-5
VFD32FB0F-3 VFD36FB0F-3 VFD42FB0F-3
VFD32FB2MF-5 VFD36FB2MF-5 VFD42FB2MF-5
VFD32FB2AL-3 VFD36FB2AL-3 VFD42FB2AL-3
VFD32FB2AF-3 VFD36FB2AF-3 VFD42FB2AF-3
VFD32FB3MF-5 VFD36FB3MF-5 VFD42FB3MF-5
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
Deluxe Vent-Free Universal Fireboxes
GAS-FIRED
EMPIRE
EMPIRE
Comfort Systems
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
FOR USE ONLY WITH A LISTED GAS-FIRED
UNVENTED DECORATIVE ROOM HEATER NOT TO EX-
CEED 40,000 BTU/H.
DO NOT BUILD A WOOD FIRE.
WARNING: Improper installation, adjustment, altera-
tion, service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional
information, consult a qualied installer, service agency or
the gas supplier.
Carefully review the instructions supplied with the decora-
tive type unvented room heater for the minimum replace
size requirement.
DO NOT INSTALL A VENT-FREE LOG SET IN THIS FIREBOX,
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMENSIONS
REQUIRED FOR THE INSTALLATION.
ANSI Z21.91 Ventless Fireplace Enclosures for Gas Fired
Decorative Type Unvented Room Heaters
WARNING: If the information in these instructions are not
followed exactly, a re or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other ammable vapors
and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
DO NOT ATTEMPT TO MODIFY OR ALTER THE CONSTRUC-
TION OF THE FIREBOX OR ITS COMPONENTS. ANY MODI-
FICATION OR ALTERATION OF CONSTRUCTION MAY VOID
THE WARRANTY OF THIS FIREBOX.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IG-
NITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE FIREBOX.

33637-0-0314Page 2
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION ............................................................................ 3
INTRODUCTION .............................................................................................................. 3
CLEARANCES............................................................................................................. 4 - 5
FIREBOX INSTALLATION INSTRUCTIONS ............................................................... 6 - 8
INSTALLING HOOD..................................................................................................... 8 - 9
GAS LINE CONNECTION ................................................................................................ 9
OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS .............................. 10 - 12
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS... 13 - 15
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS......................................... 16
MAINTENANCE.............................................................................................................. 16
MASTER PARTS DISTRIBUTOR LIST........................................................................... 17
HOW TO ORDER REPAIR PARTS................................................................................. 17
PARTS LIST.................................................................................................................... 18
PARTS VIEW .................................................................................................................. 19
ACCESSORIES ....................................................................................................... 20 - 21
WARRANTY.................................................................................................................... 22
APPLIANCE SERVICE HISTORY .................................................................................. 23
SECTION PAGE

33637-0-0314 Page 3
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTE: Installation and repair should be done by a quali-
ed service person. The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc.
It is imperative that control compartment, burners and
circulating air passageways of the appliance be kept
clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the appli-
ance. Provide adequate combustion and ventilation air.
The ow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems, Inc. rebox and its
components have been tested and will operate safely
when installed in accordance with this installation
manual. Read all instructions before starting installation,
then follow these instructions carefully during
installation to maximize rebox benet and safety.
Report to your dealer any parts damaged in shipment.
The Empire Comfort Systems, Inc. warranty will be
voided by, and Empire Comfort Systems, Inc. disclaims
any responsibility for the following actions:
- Installation of any damaged rebox.
- Modication of the rebox or any of the components
parts thereof.
- Installation other than as instructed by Empire
Comfort Systems, Inc.
- Installation and/or use of any component part
or accessory not approved by Empire Comfort
Systems, Inc. in combination or assembly with
a Empire Comfort Systems, Inc. firebox, not
withstanding any independent testing laboratory
or other third party approval of such component
part or accessory.
Any such action may create a possible re hazard.
Consult your local building codes.
Firebox Screen.
The rebox screen must be in place when the rebox
is operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycard
suppliedwithrebox.
3. Installershouldshowownerhowtostartandoperate
logsetthatisinstalledintorebox.
Important
AllcorrespondenceshouldrefertocompleteModelNumber,
Serial Number.
Notice: During initial ring of this rebox with a log set
installed,itspaintwillbakeout,andsmokewilloccur.To
preventtriggeringofsmokealarms,ventilatetheroomin
whichtheunitisinstalled.
Qualied Installing Agency
Installationandreplacementofgaspiping,gasutilization
equipment or accessories and repair and servicing of
equipmentshallbeperformedonlybyaqualiedagency.
The term "qualied agency" means any individual, rm,
corporationorcompanywhicheitherinpersonorthrough
arepresentativeisengaged in and is responsiblefor(a)
the installation or replacement of gas piping or (b) the
connection,installation, repair or servicing of equipment,
whoisexperiencedinsuchwork,familiarwithallprecautions
requiredandhascompliedwithalltherequirementsofthe
authorityhavingjurisdiction.
StateofMassachusetts:Theinstallationmustbemade
byalicensedplumberorgastterintheCommonwealth
of Massachusetts. The state of Massachusetts requires
thataexibleapplianceconnectorcannotexceedthree
feet in length.
Sellers of unvented propane or natural gas-fired
supplemental room heaters shall provide to each
purchaseracopyof527CMR30uponsaleoftheunit.
IntheStateofMassachusetts,unventedpropaneand
natural gas-red space heaters shall be prohibited in
bedroomsandbathrooms.
The installation must conform with local codes or, in the
absenceoflocalcodes,withtheNationalFuelGasCode,
ANSI Z223.1/NFPA 54.*
*AvailablefromtheAmericanNationalStandardsInstitute,
Inc.,11West42ndSt.,NewYork,N.Y.10036.
IMPORTANT SAFETY INFORMATION
INTRODUCTION

33637-0-0314Page 4
2 X 4
HEADER
COMBUSTIBLE
FINISHED WALL
OR MANTEL
FINISHED WITH
TRIM KITOR
NON-COMBUSTIBLE
MATERIAL

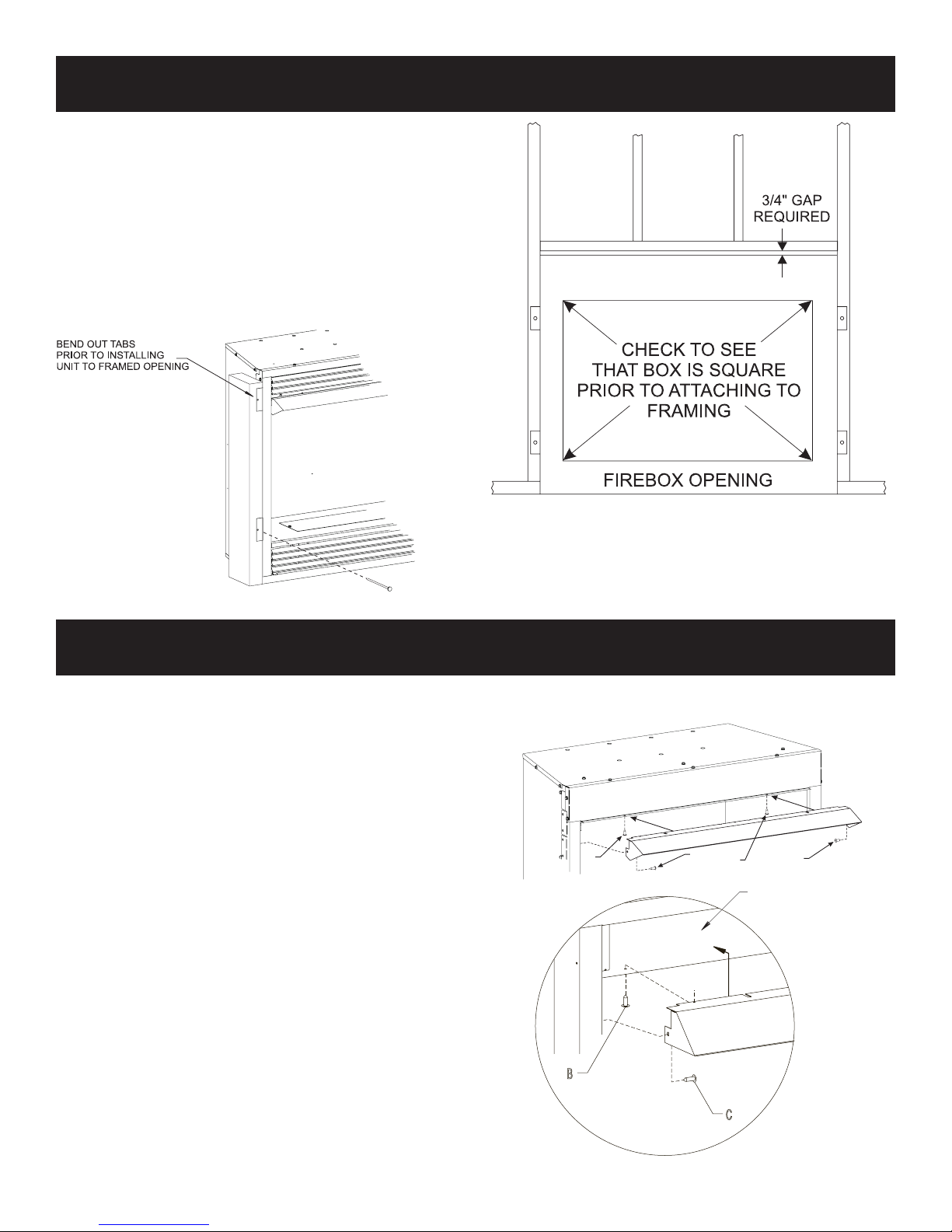

3/4" GAP REQUIRED
2 X 4
HEADER
COMBUSTIBLE
FINISHED WALL
OR MANTEL
3/4" GAP
REQUIRED
Sidewall Clearances:Theclearancefromtheinsideoftherebox
toperpendicularcombustiblesidewallshouldnotbelessthan
6 inches. See Figure 1.
Firebox Side and Back Clearances:Thereboxoutercasingside
andbackangesarezeroclearancetocombustibles.
Top Framing and Finishing: Combustible nishing materials
requires 3/4 inch to top of unit. See Figure 2.
CLEARANCES
45°
6"
3"
MAX.
PERPENDICULAR
SIDE WALL
FRONT FACE (SIDE)
FIREBOX
(TOP VIEW)
COMBUSTIBLE
MATERIALS ALLOWED
IN SHADED AREAS
Figure 1
Figure 2a - Louvered Models
Figure 2b - Flush Models

33637-0-0314 Page 5
Ceiling Clearances: The ceiling height should not be less than
42inchesfromthetopofthehood.See Figure 3.
Mantel Clearances: Ventfreereboxmodelsmustusethehood
suppliedwiththerebox,oroneoftheoptionalhoodkitsavailable
foreachmodel.Ifacombustiblemantelisinstalled,itmustmeet
theclearancerequirementsdetailedbelow.
Grate Clearance: The minimum clearance between the front legs
ofthegrateandfrontedgeofthereboxis2inches.
Leaveatleast36inchesclearancefromthefrontoftherebox.
Figure 3 - Clearances to Combustibles
CLEARANCES
MANTEL
HOOD
13”
10”
12”
MAX
8”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/4” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOPEDGE
OF FIREBOX
T
10”
18 1/2”
8”
16 1/2”
6 ½”
14 1/2”
5”
12 1/2”
3 ½”
10 1/2”
2”
9”
3/4”
21”

33637-0-0314Page 6
Deluxe Vent-Free Firebox Framing Dimensions (in inches)
ABC
Model Framing Height FramingWidth Framing Depth
VFD32FB 33 3/4 35 1/2 16 1/4
VFD36FB 35 3/4 40 1/2 18 3/4
VFD42FB 35 3/4 44 1/2 18 3/4
Attention:Add3-3/4inchesto"A"Dimensionwhenusingushmantelbase.
Anyvent-freeGasLogHeatermustbe“ForusewithapprovedANSI
Z21.11.2unventedroomheater.”
Followandcompletetheinstallationinstructionsofthegaslogset
andtherequirementsofthisrebox.
Checkallttingsforleaksbeforelightingthegaslogset.
Inplanningtheinstallationfortherebox,itisnecessarytodetermine
wheretheunitistobeinstalledandwhetheroptionalaccessories
aredesired.Gassupplypipingshouldalsobeplannedatthistime.
A gas shut off must be in this line.
Thereboxcanbemountedonanyofthesesurfaces:
1. Aathardcombustibleornon-combustiblesurface.
2. Araisedplatformofcombustibleornon-combustiblematerial.
3. Recessedintotheoorasillustratedby Figure 4(ushface),
andFigure 5(louveredmodels).
4. Supportedunderallfourcornersofthereboxsothatcontact
ismadeonallfourperimeteredgesonthebottomoftheunit
(Example:Fourconcretemasonryblocks).
Ifthereboxisinstalleddirectlyoncarpeting,tileorothercombustible
materialotherthanwoodooring,itshouldbeinstalledonametal
orwoodpanelextendingthefullwidthanddepthoftheunit.
Atthispoint,youshouldhavedecidedwhatcomponentstoinclude
inyourinstallation,andwherethereboxistobelocated.Ifthis
hasnotbeen done, stop andconsult your dealer forassistance
with this planning.
Planning Your Installation
PleasenotethattheoptionalVFA2FreshAirkitavailableforuse
withtheVentFreeFireboxmustbeinstalledatthetimeoftheinitial
installation.Refertopages10,11and12fordetailedinstructions
fortheairkit.
AccessorykitssuchastheFBB5Blowerkit,Trimkits,Mantels,Full
Cabinet Mantels, plus other Decorative Frame, Hood, and Door
accessorykitsmaybeinstalledafterthereboxissecuredtothe
framedopening.
Refertotheinstructionsprovidedwitheachoftheoptionalaccessory
kitsforproperinstallationandoperation.
Firebox Framing
Fireboxframingcanbebuiltbeforeorafterthereboxissetinplace.
Framingshouldbepositionedtoaccommodatewallcoveringand
reboxfacingmaterial.Thereboxframingshouldbeconstructed
of2x4lumberorheavier.Theframingheadersmayrestonthe
topofthereboxstandoffs.RefertoFigures 6 and 7forrebox
framingdimensions.
Figure 4
Figure 5
Figure 6
FIREBOX INSTALLATION INSTRUCTIONS
LOUVERED
FIREBOX
MODELS
COMBUSTIBLE MATERIALS ALLOWED

33637-0-0314 Page 7
Figure 7
Firebox Dimensions
FIREBOX INSTALLATION INSTRUCTIONS
D
L
M
GIA
H
F
B
GIA
H
F
B
K
N
C
J
OUTER FIREBOX DIMENSIONS
INNER FIREBOX DIMENSIONS
E
B
A
C
D
TOP VIEW SIDE VIEW
DELUXE
FLUSH
N
J
K
DELUXE
LOUVERED
OUTER FIREBOX DIMENSIONS (in inches)
INDEX
LETTER
LOUVERED FLUSH
VFD32 VFD36 VFD42 VFD32 VFD36 VFD42
A 33 35 35 33 35 35
B 35 40 44 35 40 44
C 16 1/2 19 19 16 1/2 19 19
D 27 7/8 31 7/8 35 7/8 27 7/8 31 7/8 35 7/8
F 31 36 40 31 36 40
G 22 1/4 24 1/4 24 1/4 22 1/4 24 1/4 24 1/4
H 6 1/8 6 1/8 6 1/8 1 3/16 1 3/16 1 3/16
I 28 3/8 30 3/8 30 3/8 28 3/8 30 3/8 30 3/8
J 8 5/16 8 5/16 8 5/16 8 5/16 8 5/16 8 5/16
K 4 3/4 4 3/4 4 3/4 4 3/4 4 3/4 4 3/4
L 35 39 3/8 41 3/8 35 39 3/8 41 3/8
M 60 1/16 68 13/16 72 13/16 60 1/16 68 13/16 72 13/16
N 2 11/16 2 11/16 2 11/16 2 11/16 2 11/16 2 11/16
INNER FIREBOX DIMENSIONS (in inches)
INDEX
LETTER VFD32 VFD36 VFD42
WITHOUT BRICK
A 31 36 40
B 25 3/16 29 3/16 33 3/16
C 14 1/8 16 1/2 16 1/2
D 18 11/16 20 20
E 22 24 24
WITH BRICK
A 29 5/16 34 5/16 38 5/16
B 24 28 32
C 13 5/16 15 3/4 15 3/4
D 18 11/16 20 20
E 22 24 24

33637-0-0314Page 8
Locating Firebox
Placereboxinframingopening.Usethetabsonthesideofthe
reboxtoattachreboxtoframing.Differenttablocationscanbe
usedfornishingmaterialswiththicknessesof1/2inchand5/8inch.
See Figure 8.
Framingtabsshould t directly againstframingmaterial. Use at
leastonenailperbrackettosecureinplace.
Checksquarenessofthereboxpriortosecuringtoframedopening.
See Figure 9.
Figure 8
Ablackhoodthatisfurnishedwitheachrebox(oroptionalhood)
MUST be installed before the rebox is used. Failure to do so
may create a possible re hazard. The hood is located behind
upper louver, or inside the rebox on ush face units. If brass,
stainlesssteel,orhammeredpewterhoodsaredesired,theycan
bepurchasedasanoption.Attachmentisthesameasthestandard
blackhood.
Flush Face Models
1. Onushfacemodels,loosenthetwoscrews(A)holdingrebox
toptofacepanel,thenslidethehoodangebetweentherebox
topandfacepanelandre-tightenthescrews.
2. Installonescrewateachendofthehoodasshown(C).
Louvered Models
1. Ifyouhavealouveredmodel,removeupperlouver.
2. Placethetophoodangeontopoftherebox,theninstallthree
screwsthroughthereboxtopfrombelowandscrewintothe
pilotholesinthehoodange(B).
3. Installonescrewateachendofthehoodasshown(C).
4. Re-install louver.
Caution:Thehoodmustbeinstalledpriortooperationofappliance.
See Figure 10
Flush Face Models
Figure 10
Figure 9
FIREBOX INSTALLATION INSTRUCTIONS
INSTALLING HOOD
B
C
INNER FIREBOX TOP
Louvered Models
ACAC

33637-0-0314 Page 9
Thereboxisdesignedtoaccepta3/8-inchgaslineforanapproved
vent-freegaslogset.Havethelineinstalledbyaqualiedservice
personinaccordancewithallbuildingcodes.Consultlocalbuilding
codestoproperlysizethegassupplylineleadingtothe3/8-inch
hook-up at the unit. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Gasaccessholesareprovidedonbothsidesoftherebox.See
Figure 11. On  models with refractory brick panels installed,
carefullyremovetheknockoutintherefractorybrickpanelusinga
largestandardscrewdriverandhammer.First,placescrewdriverin
groovenexttoplugandprysidewaystopopoutmainplug.Then
remove the remaining concrete in hole with gentle tapping with ball
peenhammerand/orscrewdriver.Amasonrydrillandbitmayalso
beused tocreateacleanhole forthe gasline topassthrough.
See Figure 12.
When installing optional ceramic ber side panels into rebox,
laypanelonaatsurface.Removethegaslineknockout(round
depression)intheappropriatesidepanelusingadrillorutilityknife.
Afterthebrickpanelknockoutisremoved,thereboxwrapmay
havearoundmetalknockoutthatmustberemovedalso.Usea
screwdrivertopunchoutthemetalknockout.
Checkgastype.Useonlythegastypeindicatedonthegaslog
setratingplate.Ifthegaslistedontheplateisnotyourtypeofgas
supply,DONOTINSTALL.Contactyourdealerforpropermodel.
AlwaysuseanexternalregulatorforallLPreboxestoreducethe
supplytankpressuretoamaximumof14inchw.c.Thisisinaddition
totheregulatorttedtothelogset.
WARNING: CONNECTION DIRECTLY TO AN UNREGULATED
L.P. TANK CAN CAUSE EXPLOSION.
InstallonlyaANSIZ21.11.2vent-freelogsetintothisrebox.
Figure 11
Extended Hoods
Ifyournon-combustiblefacingmaterialisover1"inthicknessthatwillbeusedtonishthisrebox,anextendedhoodisavailablethatwill
extendout2"fartheroutintotheroom.Contactyourlocaldealerfordetails.
Finishing
Alljoints(top,bottomandsides),wherethewallordecorativefacingmaterialmeetsthereboxsurroundshouldbesealedwithanon-
combustible material.
Hearthextensionsarerecommended,butnotrequiredforthesereboxes.
VB4H32BL StandardBlack VB4H36BL StandardBlack VB4H42BL StandardBlack
VB4H32BR PolishedBrass VB4H36BR PolishedBrass VB4H42BR PolishedBrass
VB4H32SS Stainless Steel VB4H36SS Stainless Steel VB4H42SS Stainless Steel
VB4H32HP HammeredPewter VB4H36HP HammeredPewter VB4H42HP HammeredPewter
INSTALLING HOOD
GAS LINE CONNECTION
Brick Panel
Figure 12
GAS ACCESS HOLES

33637-0-0314Page 10
OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS
Figure 15
Figure 16
4. Fasten the Handle Retainer to the rebox side with two
10x1/2PhillipsTrussHeadScrewsasshowninFigure 16.
TheoptionalFreshAirKitisdesignedtointroduceoutsideairto
thereboxasdesired.
Itmustbeinstalledpriorto,oratthetimeofreboxinstallationto
framing.
TheFreshAirkitmustbeinstalledpriortotheinstallationofwall-
boardorothernishingmaterialsaroundtheunit.
Hardware needed (not provided): 4 inchAluminum Flex Duct,
2BandClamps
Tools needed: Gloves,Metalsnips,5/16inchNutDriver,
PhillipsScrewdriver
Caution: Sharp edges
SlideAssemblyInstallation
1. Beginbyremovingtherectangularcutoutlocatedontheleft
sideoftheunit.Useglovesandsheetmetalsnipstocreate
theopeningfortheAirDoorassemblytoinstallinto.SeeFig-
ure 13.
Figure 13
2. Bendthetaboutoftheway. See Figure 14.
Figure 14
3. InsertSlideAssemblythroughthecut-outasshowninFigure
15.Beforeyoufastenensurethatthehandlepenetratesthe
innerreboxwall.See Figure 16.FastentheSlideAssembly
withthefour10x1/2HexHeadScrewsprovided.

33637-0-0314 Page 11
OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS
Figure 18
CaulkandInstallDuctTermination
5. PushthehandleforOpenpositionandpullthehandleforthe
Closedposition.SeeFigure17.
OPENCLOSED
Figure 17
Completion of Air Kit installation
1. Determinethelengthof4inchdiameterrigidorexductcon-
nector(installersupplied)youwillneedfromtherebox/re-
placetotheexteriorsurfaceoftheoutsidewall,wheretheair
kithoodwillbeinstalled.Addafewextrainchestothelength
toallowforeasierattachmentoftheoutsideductconnection
priortosecuringtheoutsideraincaphoodtothebuilding.
2. Securethe4inchdiameterducttotheSlideAssemblycollar
onthereboxwithbandclampsorscrews(installersupplied).
3. Runtheotherendoftheductthroughtheexteriorwallcutout.
4. Fromtheoutsideofthebuilding,connecttheducttothecollar
ontheoutsideairventassemblywithbandclamporscrews
tosecure(installersupplied).
5. SecuretheOutsideAirVentAssemblytotheoutsidewallwith
thefour10x11/2HexHeadSlottedScrewsprovided.Seal
withcaulkasnecessary.See Figure 18.
6. Figure 19 illustrates the various options for installation of the
airductrunpossibilities.
Note: In installations where the ex duct would normally be
straight(withoutturns),itisrecommendedaturnordip
beaddedintheruntoreduceairvelocity.
Figure 19
OUTSIDE
AIR VENT ASSY
CAULKING
WALL

33637-0-0314Page 12
OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS
1
2
3
PARTS LIST
INDEX NO. PART NO. DESCRIPTION
1 29259 OutsideAirVentAssembly
2 29257 SlideAssembly
3 29263 HandleRetainer
Hardware Pack

33637-0-0314 Page 13
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
Attention: Installblowerassemblybeforeconnectinggasinlet
supplyline.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an external
electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. Foranungroundedreceptacle,
anadapter,whichhastwoprongsandawireforgrounding,canbe
purchased,plugged intothe ungroundedreceptacleanditswire
connectedtothereceptaclemountingscrew.Withthiswirecom-
pletingtheground,theappliancecordplugcanbepluggedintothe
adapterandbeelectricallygrounded.
Caution: Labelallwirespriortodisconnectionwhenservic-
ingcontrols.Wiringerrorscancauseimproperanddangerous
operation.Verifyproperoperationafterservicing.
Note: Junctionboxonrightsideofreboxmustbepre-wiredat
timeofreboxinstallationforusewithblowerassembly.A
standardwall ON/OFFwall switchoroptional SCV1Vari-
ableSpeedControlKitshouldbeinstalledtoactivatepow-
er to the Firebox, and control the operation of the FBB5
Blowerassembly.Itisrecommendedthatinstallationofthe
wiringbeperformedbyaqualiedelectrician.See Figure
20.
1. Ifinstalled,turnOFFgassupplytorebox/gaslog.
2. Ifapplicable,turnOFFelectricsupplytorebox.
CAUTION: ALL WIRING SHOULD BE DONE BY A QUALI-
FIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
ALLLOCAL,CITYANDSTATEBUILDINGCODES.BEFORE
MAKING THE ELECTRICAL CONNECTION, MAKE SURE
THAT MAIN POWER SUPPLY IS DISCONNECTED. THE
APPLIANCE,WHENINSTALLED,MUSTBEELECTRICAL-
LYGROUNDED INACCORDANCEWITH LOCALCODES,
WITH THE NATIONAL ELECTRICAL CODE ANSI/NFPA 70
(LATESTEDITION).
A factoryinstalledjunction boxis located onthe lower right
sideoftherebox.Wiringmustbefedtothejunctionboxand
attachedtothereceptaclethatisprovided.Fromrightsideof
therebox,removethescrewsecuringthejunctionboxas-
sembly.Leaveapproximately6inchesofwireinthejunction
box for connection.
Attachblackwiretoonesideofthereceptacleandwhitewire
tooppositesideofreceptacle.Thegroundwireshouldbeat-
tachedtothegreen(ground)screw.
Installthereceptacleintothejunctionbox.Attachcoverplate.
Attention: If installed, do not damage gas inlet supply line
whenblowerassemblyisinsertedintorebox.Insomecases,
removalthegasinletsupplylinemaybenecessary.
3. Determinewhichtypeofreboxyouhavepriortoinstallation.
See Figures 21 and 22.
Figure 20
Figure 21
Figure 22
DeluxeLouvered
Models
Deluxe Flush Face
Models

33637-0-0314Page 14
4. Insertblowerassembly intointerior,bottomofrebox.Posi-
tionblowerassemblysothatyoualignthenotchonbackof
blowerassemblywiththecenterscrewonreboxback,then
pushtheblowerassemblyagainstreboxback.Theblower
wheelmustbecenteredwiththebackwalloftherebox.The
magnetsonthebackandbottomofblowerassemblywillsuf-
cientlyholdblowerassemblyinplace.
5. Pushtabawaywithstandardscrewdriveronupperrightre-
box .
6. Next,ndthefancontrolswitchandwireassembly.Feedthe
wiresthroughtheholeatthetopoftherebox,andsecurethe
fancontrolswitchwith two#6screwsprovided.See Figure
23.
FAN CONTROL
SWITCH LOCATION
FAN CONTROL WIRES
Figure 23
7. Thefancontrolwireswillslidedownbetweenthereboxand
outerwrapneartheblowerassembly.See Figure 23.
8. One fan control wire will have a 1/4 inch female terminal that
mustbeattachedtotheopenterminalontheblowermotor.
See Figure 26, Connection A.
9. The other fan control wire has a 1/4 inch male terminal. Attach
thisterminaltotheopenterminalontheblowerpowercord.
See Figure 26, Connection B.
10. Routethewiresawayfrommovingpartsoftheblowerassem-
blyandretainwirestogetherneartheblowermotorusingthe
plasticpurseclipprovided.
11. Tocompletetheinstallation,plugthepowercordintothejunc-
tionboxreceptacleattherightrearcornerofthereboxouter
wrap. See Figure 24.
12. Ifroompermits,thepowercordcanbelocatedfromtheout-
sideoftheunitlookingthroughthejunctionboxaccesshole
(withthejunctionboxremoved),thenplugupthepowercord
beforereinstallingthepre-wiredjunctionbox.
13. Onceallconnectionsaremadeelectrically,itisrecommended
that you test the blower fan control operation by turning on
powertotheblower(Caution:110 Volt).Thenapply heatto
thefancontrolswitchinsidethereboxwithalighterormatch
untilblowerisactivated.Onceblowerisactivated,checkfor
properoperation.Donotplacehandsnearblowerassembly
or other wiring while power is on.
14. Replace blower access plate and/or reinstall the brick liner
panelsifprovided.
15. ThiscompletestheinstallationoftheoptionalFBB5Blowerkit
accessory.
Note: This blower is equipped with a heat activated fan control
switch.Blowerwilloperatewhenthereboxwarmsup,and
willturnoffautomaticallywhenthereboxcoolsdown.
BLOWER POWER CORD
Figure 24
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS

33637-0-0314 Page 15
Blower Motor
Theblowermotordoesnothaveoilingholes.Donotattempttooil
the blower motor.
Blower Wheels
Theblowerwheelswillcollectlintandcouldrequireperiodicclean-
ing.Iftheairoutputdecreasesorthenoiselevelincreases,itindi-
catesadirtyblowerwheel.Removefanandcleanblowerwheels.
Warning: Unplugging of blower accessory will not stop the
heater from cycling. To turn off gas to the heater (millivolt
model):pushingascontrolknobslightlyandturnclockwise
toOFF.Donotforce.Toturnoffgasondirectignitionmodel,
turn gas line valve to OFF.
1 R7731 BLOWER ASSEMBLY
2 R8199 FAN CONTROL SWITCH
3 R8147 WIRE ASSEMBLY
4 R7615 CORDSET
110 VOLT AC
JUNCTION BOX
WHITE
FAN
SWITCH
BLACK
FAN/MOTOR
ASSEMBLY
Figure 25
Figure 26
OPTIONAL FBB5 SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS

33637-0-0314Page 16
CAUTION: ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH ALL LOCAL,
CITY AND STATE BUILDING CODES. BEFORE MAKING THE ELECTRICAL CONNECTION, MAKE SURE THAT MAIN POWER SUPPLY
IS DISCONNECTED. THE APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL
CODES OR, IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LATEST EDITION)
Afactoryinstalledjunctionboxislocatedonthelowerrighthand
sideoftherebox.Wiringmustbefedtothejunctionboxand
attachedtothereceptaclethatisprovided.Removetheknockout
intheinstalledjunctionboxtoacceptwiringintothejunctionbox.
Install a UL listed cable clamp (not supplied) in the knockout
hole.Leaveapproximately6inchesofwireinthejunctionbox
for connection.
Attachblackwiretoonesideofthereceptacleandwhitewireto
oppositesideofreceptacle.Thegroundwireshouldbeattached
tothegreen(neutral)screw.
Installthereceptacleintothejunctionbox.Attachcoverplate.
Keepthecontrolcompartment,logsandburnerareasurrounding
thelogscleanbyvacuumingorbrushingareaatleasttwiceayear.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN COOL.
Alwaysturnoffgastothepilotbeforecleaning.Forrelighting,refer
tolightinginstructionslocatedonthelogset.
Neverobstructtheowofthecombustionandventilationair.Keep
thefrontofthereboxclearofallobstaclesandmaterials.
Screensmustbeclosedduringoperation.
Figure 27
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS
MAINTENANCE

33637-0-0314 Page 17
ToOrderPartsUnderWarranty,pleasecontactyourlocalEmpiredealer.Seethedealerlocatoratwww.empirecomfort.
com.Toprovidewarrantyservice,yourdealerwillneedyournameandaddress,purchasedateandserialnumber,andthe
nature of the problem with the unit.
ToOrderPartsAftertheWarrantyPeriod,pleasecontactyourdealeroroneoftheMasterPartsDistributorslistedbelow.
Thislistchangesfromtimetotime.Forthecurrentlist,pleaseclickontheMasterPartsbuttonatwww.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original
EquipmentrepairpartsforHeaters,Grills,andFireplacesmanufacturedbyEmpireComfortSystemsInc.
MASTER PARTS DISTRIBUTOR LIST
Parts Not Under Warranty
PartscanbeorderedthroughyourServicePerson,Dealer,oraMasterPartsDistributor.SeethispagefortheMasterPartsDistribu-
torslist.Forbestresults,theservice person or dealershouldorderpartsthroughthedistributor.Partscanbeshippeddirectlytothe
service person/dealer.
Warranty Parts
WarrantypartswillneedaproofofpurchaseandcanbeorderedbyyourServicePersonorDealer.Proofofpurchaseisrequired for
warrantyparts.
AllpartslistedinthePartsListhaveaPartNumber.Whenorderingparts,rstobtaintheModelNumberandSerialNumberfromthe
nameplateonyourequipment.ThendeterminethePartNumber(nottheIndexNumber)andtheDescriptionofeachpartfromthefol-
lowingillustrationandpartlist.Besuretogiveallthisinformation...
ApplianceModelNumber Part Description
Appliance Serial Number Part Number
TypeofGas(PropaneorNatural)
Donotorderbolts,screws,washersornuts.Theyarestandardhardwareitemsandcanbepurchasedatanylocalhardwarestore.
Shipmentscontingentuponstrikes,resandallcausesbeyondourcontrol.
HOW TO ORDER REPAIR PARTS
Dey Distributing
1401WillowLakeBoulevard
VadnaisHeights,MN55101
Phone: [phone]
Toll Free: 800-397-1339
Website:www.deydistributing.com
Parts: Heater, Hearth and Grills
Victor Division of F. W. Webb Company
200 Locust Street
Hartford,CT06114
Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater, Hearth and Grills
East Coast Energy Products
10 East Route 36
WestLongBranch,NJ07764
Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater, Hearth and Grills
Able Distributors
2501 North Central Avenue
Chicago,IL60639
Phone: [phone]
Toll Free: 800-880-2253
Fax: [phone]
Website: www. abledistributors.com
Parts: Heater

33637-0-0314Page 18
PARTS LIST
INDEX
NO.
PART NO. DESCRIPTION
VFD32 VFD36 VFD42
1 17169 18807 17187 UPPER LOUVER
2 17170 18808 17188 LOWER LOUVER
3 17162 17162 17162 JUNCTION BOX ASSEMBLY
4 R3492 R3492 R3492 RECEPTACLE
5 R3491 R3491 R3491 COVER,JUNCTIONBOX
6 27338 27338 27338 BRACKET,TOPBRICKRETAINER(QUANTITY2)
7 19401 19401 19401 BRACKET,BOTTOMBRICKRETAINER(QUANTITY2)
8 R10388 R10392 R10392 BRICK PANEL RIGHT - REFRACTORY BRICK
8 31675 31678 31678 BRICK PANEL RIGHT - FIBER BRICK
9 R10386 R10390 R10394 BRICK PANEL BACK - REFRACTORY BRICK
9 31676 31679 31680 BRICK PANEL BACK - FIBER BRICK
10 R10387 R10391 R10391 BRICK PANEL LEFT - REFRACTORY BRICK
10 31674 31677 31677 BRICK PANEL LEFT - FIBER BRICK
11 20486 21087 33607 HOOD
12 R7051 R7052 R7053 ROD,SCREEN(QUANTITY2)
13 R8137 R8148 R8148 SCREENCURTAIN(QUANTITY2)
14 30497 30523 30547 FACEWELDMENT,L32
15 30479 30505 30531 FACEASSEMBLY,F32
16 25447 25447 25447 BLOWER COVER PLATE

33637-0-0314 Page 19
PARTS VIEW
1
2
54
3
6
10 98
7
12
12
16
11
13
14
15

33637-0-0314Page 20
Accessory Description Model Numbers
Fan Kit
Designedtoprovideforcedairow. FBB5
Variable Speed Control Kit
Wall mounted variable speed control for use
with FBB5 blower SCV-1
Brick Liners
Deluxe Firebox Contactdealerforallavailable
optionallinerkits
Fresh Air Kit
1
2
3
DeluxeandPremiumFireboxes VFA2
Frame Kits
3-Piece Frame Kits
Black,StainlessSteelorHammeredPewter
Contactdealerforallavailable
optionalframekits
StandardHood Brasshood=BR
StainlessSteel=SS
HammeredPewter=HP
Contactdealerforallavailable
optionalhoodaccessories
ACCESSORIES
