ENAR QP User manual
ENARCO, S.A.
es
en
f
r
de
Manual de instrucciones
Instruction manual
Manuel d'instructions
Gebrauchsanweisungen
MX-460-1406

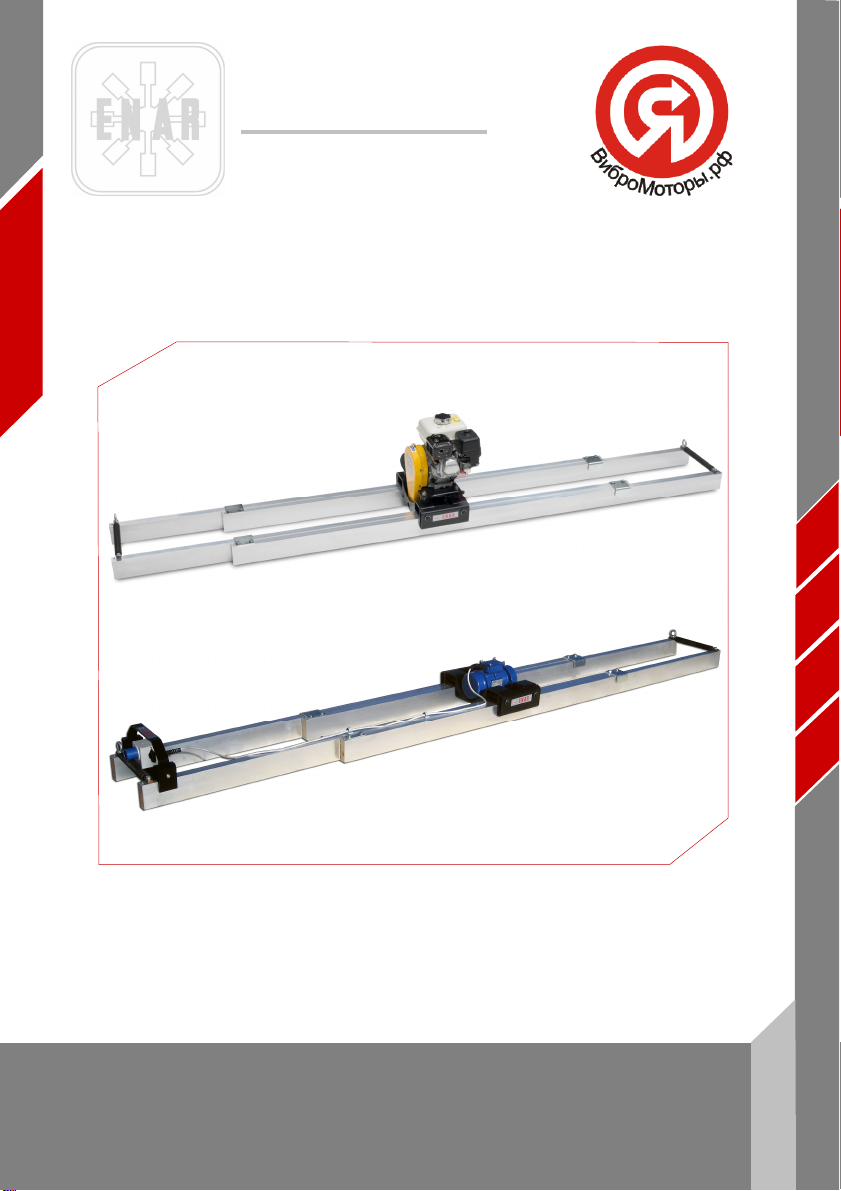

REGLAS VIBRANTES FIJAS Y EXTENSIBLES
FIXED AND EXTENSIBLE VIBRATING SCREEDS
REGLES VIBRANTES FIXES ET EXTENSIBLES
AUSDEHNBARE DOPPEL ABZIEHBOHLEN
QP / QPM / QGH / QG
R
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
1
en
1
INDEX
1INTRODUCTION 2
2CHARACTERISTICS 3
3USAGE CONDITIONS 5
4OPERATION AND MAINTENANCE 7
4.1 GETTING STARTED 7
4.2 EXTENSION CABLES 7
4.3 PERIODIC MAINTENANCE 8
4.4 STORAGE 9
4.5 TRANSPORTATION 9
5ELECTRIC SCHEME (QP,QPM) 9
6LOCATING MALFUNCTIONS 10
7INSTRUCTIONS TO ORDER SPARE PARTS 10
7.1 INSTRUCTIONS TO ORDER SPARE 10
7.2 INSTRUCTIONS TO REQUEST WARRANTIES 10
8RECOMENDATIONS OF USE 11
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
en
2
1 INTRODUCTION
Thank you for trusting the ENAR brand.
For the maximum performance of the equipment, we recommend to read carefully the safety
recommendations, maintenance, and usage listed in this manual.
Defective parts should be replaced immediately to avoid major problems.
The effective longevity of the equipment will increase if the manual instructions are followed.
We will be glad to help you with any comments or suggestions in reference to our equipment.
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
3
en
3
2 CHARACTERISTICS
The vibrating screeds are used for the vibrating and the finishing of the floors in the construction industry
and for the finishing of parts in the pre-cas industry. The double beam screed depth-effect is from 15 to 25
cm. For very thick concrete layers, we recommend to use pokers at the same time in order to obtain the
right compaction and consistence of the concrete mass as well as its finishing.
The vibrations come from the vibrating group that consists on an exciter powered by a petrol engine or an
electric motor.
Double beam screed consists on a set of aluminium or steel beams (sold separately) able to extend from
2,7 or 3,5 meters to 4,5 or 6 meters length. To increase the length it is necessary to free the vibrating group
clamps and to pull the beams to get the required length. Then, fix the vibrating group clamps again.
The vibrating group fit in the beams and is fixed to them with two clamps (one on each side).
It is possible to choose a vibrating group powered by an electric vibrator or a petrol engine. In the case of
the petrol engine, vibration is produced by an eccentric weight, assembled with bearings, inside a steel
housing. This housing also works as an oil tank for lubricating the bearings. A belt transmits the movement
from the engine (assembled on four silent-blocks to isolate it from vibrations) to the pulley of the eccentric
weight to produce the vibration.
There is a hook on each edge of the beam where the pulling handle must be inserted for pulling the screed
while working.

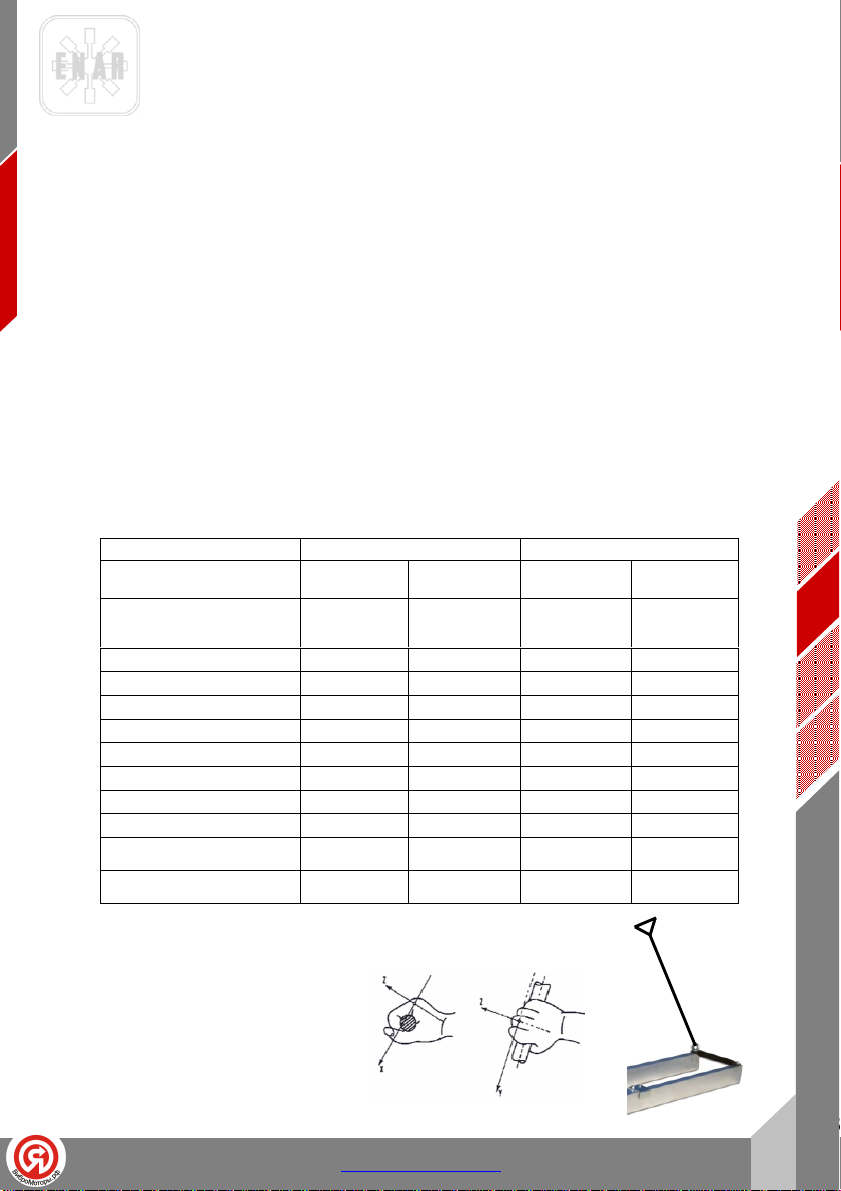

***S/L=no time limitation, taking as a reference a working period of 8 hours a day.
ELECTRIC SCREED PETROL SCREED
Model ►
▼ characteristics QP QPM QGH QGR
Motor EXTERNAL
VIBRATOR
BM300
EXTERNAL
VIBRATOR
BM300/M
HONDA GX160
UT1 QX4 ROBIN EX17
Frequency (rpm) 3000 3000 7000 7000
Beam length (m) 2,5-4,5 / 3,5-6 2,5-4,5 / 3,5-6 2,5-4,5 / 3,5-6 2,5-4,5 / 3,5-6
Vibrating group weight (kg) 29,8 30 47,2 47,5
Centrifugal force (kp) 310 310 300 300
Acoustic pressure Lpa (dB)* <70 <70 115 115
Acoustic power Lpa (dB)* - - 122 122
Hand-arm vibration (m/s
2
)** 9,4 9,4 1,97 1,97
Uncertainly K (m/s
2
) 1,35 1,35 1 1
Time from which
precautions
must be taken (hours) 0,56 0,56 S/L*** S/L***
Time limit of continued use
(hours) 2,26 2,26 S/L*** S/L***
*Noise
values measured
at t
he
workstation: 1,6m over the floor
and 0,2m by the ear of the user.
**Vibration measured in the handle
of the vibrating unit (as shown in
the picture).
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
en
4

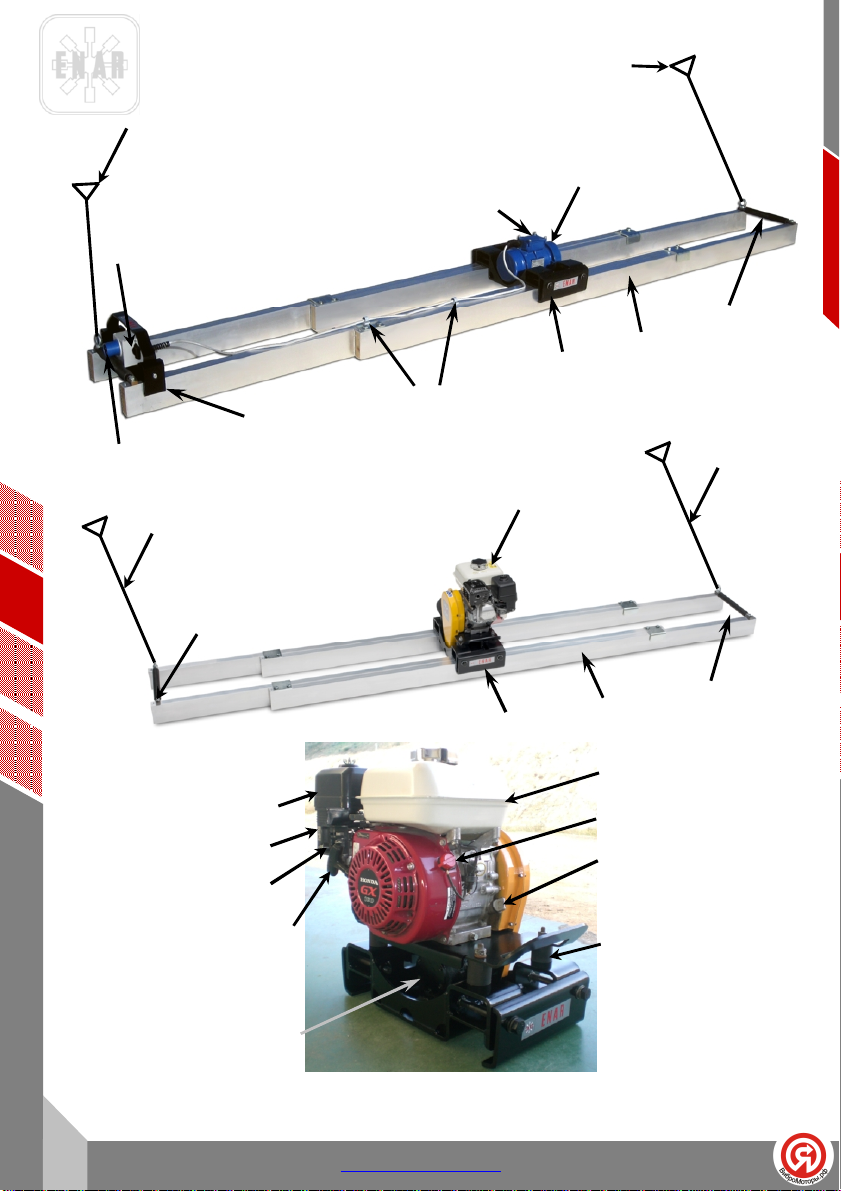

Characteristics plate
Current plug
ON-OFF switch
External vibrator
Cable fastener
Clamp Beam
Transport handle
Switch support clamp
Pulling
handle
Pulling handle
Clamp Beam Transport handle
Pulling handle
Pulling handle
Transport handle
Engine
Fuel tank
Oil filler cap
Stop button
Silent-blocks
Starter
Air filter
Fuel tap
Characteristics plate
Accelerator
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
5
en
5
3 USAGE CONDITIONS
WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS.
WORKING AREA
KEEP your work area clean and well lit. Cluttered benches and dark areas invite accidents.
DO NOT OPERATE power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
KEEP standers, children, and visitors away while operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
GROUNDED TOOLS MUST BE PLUGGED INTO an outlet properly installed and grounded in
accordance with all codes and ordinances.
NEVER REMOVE the grounding prong or modify the plug in any away.
DO NOT USE any adaptor plugs.
CHECK with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
AVOID bodycontact with grounded surfaces such as pipes, radiators, ranges and refrigerators.
DON’T EXPOSE power tools to rain or wet conditions.
DO NOT ABUSE the cord. NEVER USE the cord to carry the tools or the plug from an outlet. KEEP
cord away from heat, oil, sharp edges or moving parts.
REPLACE damaged cords immediately. Damaged cords increase the risk of electric shock.
WHEN OPERATING a power tool outside, use an outdoor extension cord marked “W-A”, “W” or
"H07RN-F".
PERSONAL SAFETY
STAY ALERT, watch what you are doing and use common sense when operating a power tool.
DO NOT USE TOOL while tired or under the influence of drugs, alcohol, or medication.
DRESS properly.
DO NOT WEAR loose clothing or jewellery.
CONTAIN long hair.
KEEP your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery, or long hair
can be caught in moving parts.
AVOID accidental starting.
BE SURE switch is off before plugging in. Carrying tools with your finger on the switch or plugging in
tools that have the switch on invites accidents.
REMOVE adjusting keys or switches before turning the tool on.
DO NOT overreach.
KEEP proper footing and balance at all times.
USE safety equipment.
Always WEAR eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must
be used for appropriate conditions.
TOOL USE AND CARE
USE clamps or other practical way to secure and support the workpiece to a stable platform.
DO NOT FORCE tool.
USE the correct tool for your application. The correct tool will do the job better and safer at the rate for
which it is designed.
DO NOT USE tool if switch does not turn it on or off.
DISCONNECT the plug from the power source before making any adjustments, changing accessories,
or storing the tool.
STORE idle tools out of reach of children and other untrained persons.
MAINTAIN tool with care. KEEP cutting tools sharp and clean.
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
en
6
CHECK for misalignment or binding of moving parts, breakage of parts, and any other condition that
may affect the tools operation. If damaged, have the tool serviced before using.
USE only accessories that are recommended by the manufacturer for your model.
SERVICE
Tool service MUST BE PERFORMED only by qualified repair personnel.
When servicing a tool, USE only identical replacement parts.
FOLLOW instructions in the maintenance section of this manual.
SPECIFIC SAFETY RULES
1.- For the proper use of this device, please assure that the operator has been correctly informed of
the content of this manual before using it.
2.- This screed can be used only under the applications for which it has been designed and according
to these safety instructions.
3.- Do not touch any part of the vibrating group when the motor is running.
4.- Do not work in an area exposed to flammable liquids or gases.
5.- Do not allow inexperienced or not trained personal to use the poker alone.
6.- Always keep the vibrating screed clean and dry.
7.- Please secure all the threads and bolts before working.
8.- Do not stop the screed until the concrete mass is fully vibrated.
9.- Do not work with the screed if any type of dysfunction, even small, has been observed until repair.
10.- When working with a petrol screed:
- Read the motor manufacturer's manual before working.
- Do not work in closed rooms, the exhaust fumes may be toxic.
- Wait 2 minutes for the petrol refill until the motor gets colder.
11.- When working with an electric screed:
- Before connecting the motor to the power source, check that the Voltage and Frequency match the
specifications appearing in the plate.
- Make sure that the cables are of the correct section and are in good condition.
- If the screed is connected to a generator, please make sure the Output and voltage specifications
are the convenient ones for the model as showed in the specifications plate. The voltage must not vary
more than 5%.

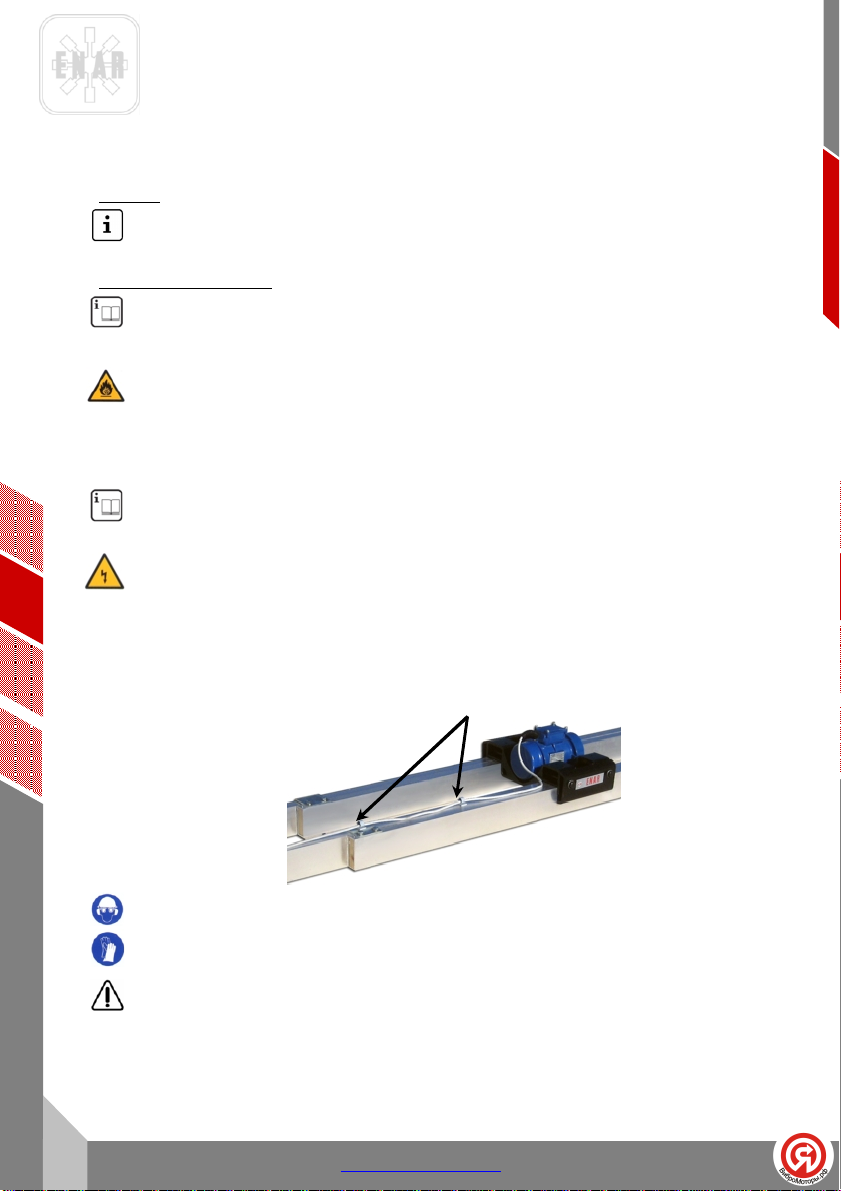

- Install the cable fasteners supplied to avoid the cable is in the ground while working. These parts
are self-adhesive and must be placed as shown in the picture:
12.- The acoustic power level of this machine could be a risk for health (see table of characteristics at
point 2). Proper protective equipment must be used.
13.- Hand-arm vibration caused by machinery is a risk for health. The machine must always be
handled using isolated gloves and all the necessary safety equipment. Besides, the user must rest
each hour of effective work. Vibration levels for each type of double beam screed are shown in the
characteristics table of the point 2. The parts that isolate from vibrations must be always in good
condition. When they get damaged, replace them immediately.
FUTHERMORE, THE OPERATOR IS COMPELLED TO RESPECT ADDITIONAL REGULATIONS ENFORCED
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
7
en
7
4 OPERATION AND MAINTENANCE
4.1 GETTING STARTED
1.- Before working, make sure that all the security devices are operating under normal conditions.
2.- WITH PETROL ENGINE:
- Read the motor manufacturer’s manual.
- Do not work in rooms with scarce ventilation.
- Make sure there is no flammable substance near to the exhaust.
Check the petrol level in the fuel tank (unleaded gas only).
Check the oil reservoir of the motor is full (see engine’s manual) in the 4 stroke engine
(SAE10W40).
3.- WITH ELECTRIC MOTOR:
Before working, switch the motor off with the handle switch.
Check the Current specifications of the power source.
Make sure the cables are in good condition.
Secure the power source is ground connected.
In the case of using extension cables, read the section 4.2.
4.- Check all the bolts are well tighten. The
bolts that fix the clamps to the beam must be
strongly tightened up with a n
er
22 wrench:
5.- Start the motor, regulate the speed with
the accelerator (Petrol) until it reaches a
good vibration.
6.- Vibrate the floor by pulling the screed
from the pulling handles.
7.- When the work is finished, always
remove the fresh concrete that has been
settling on the beams and the motor before it
gets dry.
8.- When a defect or a malfunction has been detected, endangering the use of this machine or not,
stop the work and make the correspondent maintenance to avoid any danger or bigger damage.
4.2 EXTENSION CABLES
In order to protect the operator from an electric shock, please make sure that the screed is ground
connected.
The motors are fitted out with 3 ways cables (2 Phases + Earth) and the correspondent plug. The
convenient socket must be used.
Do not use damaged cables.
Avoid heavy loads on cables
To determine the transversal section, follow the following procedure:
Procedure to determine the necessary transversal section in cable extensions:
Do the following verifications and take the highest section of cable:
1.- The ohmic resistance and inductive resistance of the cable with the permitted loss of voltage of
2%,
cos
= 0.8 through the frequency and voltage curve.
I.e.: Nominal voltage:………………… 1- 230 V 50 Hz
Nominal current:…………………...10 A
Cable length:……………………….100 m
Entering the curve with the product: Intensity x Length = 10 x 100 = 1000 A m.
We obtain a 4 mm2section.
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
en
8
2.- The permitted heating of the cable according to VDEstandard(minimum transversal section table required).
I.e.: For 10 A, according to table for 15 A or less, the section is of 1 mm
2
.
Therefore, the section chosen is equal to 4 mm
2
, always chose the highest transversal section of the
two verifications.
4.3 PERIODIC MAINTENANCE
MAINTENANCE WITH PETROL ENGINE
1.- Daily (8 hours).
Clean the motor and the beams, check the bolts & nuts, check and fill the motor’s reservoir with oil.
2.- Weekly (50 hours).
Change the motor oil (first 20 hours), clean the sparking plugs and the air filter.
3.- Monthly (200 hours).
Clean the oil filter, clean and adjust the sparks plugs.
4.- Every 500 hours.
Clean and set the carburettor, clean the cylinder’s head, set the valves.
5.- Always use original parts by every maintenance operation.
6.- The safety fittings have to be checked after every maintenance.
7.- Every 12 months or more frequently, the screed has to be sent to an authorized workshop for
service according to the intensity of the usage.
8.- Do not fill the fuel tank while smoking or near any other potential source of danger.
Lock the petrol admission key when filling, use unleaded gas, clean the gas spelt.
9.- Idle speed of the motor must not exceed 3.000 rpm (standard set).
By every maintenance operation, the idle speed of the engine has to be checked and adjusted at
3.000 rpm. See the engine’s manual to set the engine speed, starting and stopping.
10.- Check the oil level in the exciter reservoir every 100 hours (10W 40 non foaming).
MAINTENANCE WITH ELECTRIC MOTOR
1.- The operating of the electric parts must be done bya specialist.
2.- During the maintenance, make sure that the device is disconnected from the power source.
3.- Always use original parts by every maintenance operation.
4.- The bearings of the motor do not need a periodic maintenance.
5.- Inspect the plug, the socket as well as the cables every 100 Hours.
6.- Periodically clean the housing of the motor to prevent an overheating.
7.- The safetyfittings have to be checked after every maintenance.
8.- Every 12 months or more frequently the screed has to be sent to an authorized workshop for
service according to the intensity of the usage.
9.- Re-screw the nuts and bolts daily.
Line (mm
2
)Maximum (A) Max fuse (A)
115 10
1, 5 18 10/3-16/1-
2, 5 26 20
434 25
644 35
10 61 50
16 82 63
25 108 80
Minimun section according VDErules
NOMINAL INTENSITY X LINE LENGTH (A m)
SECTIONLINE mm
2
2,5
1,5
10
4
6
25
16
60003000100002000 4000 5000
115 V 230 V 380 V
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
9
en
9
4.4 STORAGE
Always stock the screed in a clean and dry area when not used for a long period of time.
4.5 TRANSPORTATION
Make sure the screed won’t suffer any ripping or shock that could cause any damage.
5 ELECTRIC SCHEME (QP,QPM)
CABLE SCHEME FOR ONE PHASE MOTOR CONNECTED AT 220 V (QPM)
1.- PLUG 2P+Earth 2.-CABLE TO SWITCH SECTION 1,5 mm2
3.-EARTH CABLE (green-yellow) 1,5mm2 4.-EARTH CONNECTION POINT
5.-SWITCH BOX 6.-SWITCH
7.-CABLE FROM SWITCH TO MOTOR SECTION 1,5 mm2 8.-TERMINAL BOX
9.-CONDENSATOR 15F/450V 10.- MOTOR
CABLE SCHEME FOR THREE PHASES MOTOR CONNECTED AT 380 V (QP)
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
en
10
1- PLUG 3Ph+Earth 2- CABLE TO SWITCH SECTION 2,5 mm2
3- CABLE TO SWITCH SECTION 2,5 mm2 4- CABLE TO SWITCH SECTION 2,5 mm2
5- EARTH CABLE (green-yellow) 6- EARTH CONNECTION POINT
7- SWITCH 8- CABLE FROM SWITCH TO MOTOR SECTION 2,5 mm2
9- CABLE DE INTER. A MOTOR SECCION 2,5 mm2 10- CABLE DE INTER. A MOTOR SECCION 2,5 mm2
11- TERMINAL BOX 12- MOTOR
13.- SWITCH BOX
6 LOCATING MALFUNCTIONS
PROBLEM CAUSES/SOLUTIONS
The motor doesn’t work Check the gas level
Check the gas admission key is open.
Check the de choke position (gas).
Check the power source (electric).
Check the cables, the switch and the plug electric.
The screed doesn’t vibrate
Check the oil level of the exciter
Check the exciter’s belt.
The electric motor is overheating
Check there is not dust inside the motor.
Check the power supply type.
7 INSTRUCTIONS TO ORDER SPARE PARTS
7.1 INSTRUCTIONS TO ORDER SPARE PARTS
1.- Every spare parts order must include PART CODE NUMBER AS STATED IN THE PARTS LIST.
We recommend including the MACHINE SERIAL NUMBER.
2.- The identification plate with serial and model number is located as shown in the point 2 of this
manual.
3.- Let us to know the right shipping instructions, including the wished route, the address and the
consignee complete name.
4.- Do not return the parts without authorisation, the return is done with freight prepaid.
7.2 INSTRUCTIONS TO REQUEST WARRANTIES
1.- The warranty is valid for 1 year after the purchasing of the machine, the warrantywill cover parts
with manufacturing defects. In any case the warranty will cover a malfunction due to improper usage
of the equipment.
2.- In all warranty requests THE MACHINE MUST BE SENT TO ENARCO, S.A. or to an
AUTHORIZED DEALER, always including the complete address and name of the consignee.
3.- The Technical Assistance Service will immediately notify to the customer if the warranty is
accepted and, if requested, it will send a technical report.
4.- The warranty will be void if any equipment has been previously handled by personnel outside of
ENARCO, S.A. or not authorized by it.
NB: ENARCO, S.A. reserves the right to modify any part of this manual without prior notice.
EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS
11
en
11
8 RECOMENDATIONS OF USE
The screeds are used to the vibration and the finishing of the floors. You can work directly on the
surface with guides. Before starting the guides must be adapted. Then the steel structure is posed
on the concrete mass. The screed is laid over the guides and the work can start. (two operators are
demanded). Thanks to its weight and to its mechanism producing a powerful vibration, the screed is
ideal to smooth rapidly and easilythe floors (more than 15 cm).
For the floors which measure more than 30 cm the concrete mass is also vibrated with vibrating
equipment before the finishing with the screed.
In order to get a good finishing of the concrete surface, we recommend you to follow these
instructions:
1.- Before pouring the concrete mass on the structure, it is necessary to properly level the concrete
mass. To an easier compaction of the concrete, you should use the vibrating pokers additionally. It's
important to take references or levels out of the mass to see the level objective clearly. The markings
of the feet and tools disappears after the last pass of the screed. The vibration wave produced
reaches a depth until 18 cm depending on the type of concrete mass.
2.- When the mass is prepared, the screed is laid over the concrete mass with the motor running at
the top speed and you must pull the handles slightly in order not to spring over the surface and not
create "waves" and "markings" with edges. Pull constantly the screed, it is important to get a smooth
surface. The screed must be always in contact with the concrete when working. The screed must not
show a big resistance to pulling, it must slip over the concrete. The speed to pull the screed depends
on the depth and the consistencyof the mass.
3.- To judge the quality of the vibration, the markings of the feet and of the beam must disappear. In
the case of the concrete is not really smooth repeat the previous instruction.
4.- Then, we see a mix that we call "milk" on the surface (3-4 mm water, concrete, small sand
particles).
5.- The water will evaporate quickly and the surface becomes dull. The fine layer called "milk" is
acting as a cinder paper for the under layers and avoids the sweating effect. The water stays in the
under layers and the surface moistens.
6.- Some hours later, the concrete is ready for additional finishing operations. You can use a trowel
(single or double ride-on-type) or re-vibration equipment (double roller unit with integrated vibrating
system). The machines provide a higher resistance to wearing but are not required for all the types
of floors.
This manual suits for next models
3
Table of contents
Other ENAR Construction Equipment manuals
