Field Xpert SMT70
Universal, high-performance tablet PC for device
configuration in Ex Zone 2 and non-Ex areas
BA01709S/04/EN/02.18
71405618
2018-07-27

Change history Field Xpert SMT70
2 Endress+Hauser
Change history
Product version Operating Instructions Changes Comments
1.00.xx BA01709S/04/EN/01.17 - -
1.02.xx BA01709S/04/EN/02.18 New chapter 8.5 HART via PROFINET via Fieldgate PAM SFG600

Field Xpert SMT70 Table of contents
Endress+Hauser 3
Table of contents
1 About this document ........... 4
1.1 Document function ................... 4
1.2 Symbols used ........................ 4
1.3 Acronyms used ...................... 6
1.4 Documentation ...................... 6
1.5 Registered trademarks ................ 6
2 Basic safety instructions ....... 7
2.1 Requirements for the personnel ........ 7
2.2 Designated use ...................... 7
2.3 Workplace safety .................... 7
2.4 Operational safety ................... 8
2.5 Product safety ....................... 8
2.6 IT security .......................... 8
3 Product description ............. 8
3.1 Product design ..................... 12
3.2 Application ........................ 12
3.3 Licence model ...................... 13
4 Incoming acceptance and
product identification ......... 14
4.1 Incoming acceptance ................ 14
4.2 Product identification ................ 15
4.3 Storage and transport ............... 16
5 Installation .................... 16
5.1 System requirements ................ 16
5.2 Installing the software ............... 16
5.3 Updating the software ............... 16
5.4 Removing the software .............. 17
6 Software operation ............ 17
6.1 Status indicators .................... 17
6.2 Shutting down the tablet PC .......... 17
6.3 Switching off the tablet PC ........... 18
6.4 Security screen ..................... 18
7 Commissioning ................ 18
7.1 Inserting the battery .................19
7.2 Charging the battery ................ 20
7.3 Switching on the tablet PC ............ 20
7.4 Connecting the AC adapter ........... 20
8 Operation ...................... 20
8.1 How to start ....................... 21
8.2 Establishing a connection to the
device ............................. 21
8.3 Information and software settings ..... 26
8.4 Additional information about the
software ........................... 30
8.5 Fieldgate PAM SFG600 HART via
PROFINET ......................... 31
9 Diagnostics and
troubleshooting ............... 32
9.1 General troubleshooting ............. 32
10 Maintenance .................. 33
10.1 Replacing the battery ................ 33
10.2 Cleaning ........................... 34
11 Repair .......................... 34
11.1 General notes ...................... 34
11.2 Spare parts ........................ 34
11.3 Return ............................ 35
11.4 Disposal ........................... 35
12 Accessories .................... 35
13 Technical data ................. 35
14 Appendix ...................... 36
14.1 Federal Communication Commission
(FCC) ............................. 36
14.2 Canada, Industry Canada (IC) Notices /
Canada, avis d'Industry Canada (IC) .... 36
14.3 Warning Explosion Hazard ........... 36
14.4 Class 1 laser product ................ 37

About this document Field Xpert SMT70
4 Endress+Hauser
1 About this document
1.1 Document function
These Operating Instructions contain all the information that is required in various phases of
the life cycle of the device: from product identification, incoming acceptance and storage, to
mounting, connection, operation and commissioning through to troubleshooting,
maintenance and disposal.
1.2 Symbols used
1.2.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in personal
injury.
1.2.2 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
A
Reference to page.
Reference to graphic.

Field Xpert SMT70 About this document
Endress+Hauser 5
Symbol Meaning
Notice or individual step to be observed.
1.
,
2.
,
3.
… Series of steps.
Result of a step.
Help in the event of a problem.
Visual inspection.
1.2.3 Field Xpert symbols
Symbol Meaning
Switch tablet on and off.
Windows button
Wireless communication (WLAN, WWAN, GPS, Bluetooth)
Battery
Open the home screen of the device configuration software.
Jump back to the last page opened.
Information and software settings.
Additional information about the software.
Minimize the program.
Enable full screen.
Disable full screen.
Close the program.
Scroll up
Scroll down

About this document Field Xpert SMT70
6 Endress+Hauser
Symbol Meaning
Update
Expand information.
Collapse information.
Connect automatically
Connect with wizard (manual connection)
Connect with Remote Wizard
1.3 Acronyms used
Acronyms Explanation
DFS Dynamic Frequency Selection
FCC Federal Communications Commission
HF High frequency
[RF = radio frequency]
SD Secure Digital
WWAN Wireless Wide Area Network
1.4 Documentation
Field Xpert SMT70
Technical Information TI01342S/04/EN
Field Xpert SMT77
• Technical Information TI01418S/04/EN
• Operating Instructions BA01923S/04/EN
Fieldgate PAM SFG600
• Technical Information TI01408S/04/EN
• Brief Operating Instructions KA01400S/04/EN
1.5 Registered trademarks
Windows 10 Pro® is a registered trademark of Microsoft Corporation, Redmond, Washington,
USA.
Intel® Core™ is a registered trademark of Intel Corporation, Santa Clara, USA.
Durabook is a registered trademark of Twinhead International Corp., Taiwan.
FOUNDATIONTM Fieldbus is the trademark of the FieldComm Group, Austin, TX 78759, USA.

Field Xpert SMT70 Basic safety instructions
Endress+Hauser 7
HART®, WirelessHART® is the registered trademark of the FieldComm Group, Austin, TX
78759, USA.
PROFIBUS® is a registered trademark of the PROFIBUS User Organization, Karlsruhe/
Germany.
Modbus is the registered trademark of Modicon, Incorporated.
All other brand and product names are trademarks or registered trademarks of the companies
and organizations in question.
2 Basic safety instructions
The Operating Instructions supplied with the device and containing the safety
instructions of the tablet PC manufacturer must be observed.
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill the
following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
The operating personnel must fulfill the following requirements:
‣Are instructed and authorized according to the requirements of the task by the facility's
owner-operator.
‣Follow the instructions in this manual.
2.2 Designated use
The tablet PC for device configuration enables mobile plant asset management in hazardous
and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage
field instruments with a digital communication interface and to record progress. This tablet
PC is designed as a complete solution and is an easy-to-use, touch-enabled tool which can be
used to manage field instruments during their entire life cycle. It provides extensive, pre-
installed driver libraries and offers access to the "Industrial Internet of Things" as well as to
information and documentation during the entire life cycle of the device. The tablet PC offers
a modern software user interface and the option of online updates based on a secure
Microsoft Windows 10 multi-functional environment.
2.3 Workplace safety
The tablet PC is used for device configuration. Incorrect configurations may lead to unwanted
or hazardous situations in a plant. The device configuration software is already installed on

Product description Field Xpert SMT70
8 Endress+Hauser
the tablet PC upon delivery. These Operating Instructions describe how to commission and
operate the tablet PC.
• Commissioning→  18
• Operation →  20
2.4 Operational safety
Risk of injury!
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Modifications to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers:
‣If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability:
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use only original spare parts and accessories from the manufacturer.
2.5 Product safety
The tablet PC is designed in accordance with good engineering practice to meet state-of-the-
art safety requirements, has been tested, and left the factory in a condition in which it is safe
to operate.
It fulfills general safety requirements and legal requirements. It also conforms to the EC
directives listed in the device-specific EC Declaration of Conformity. The manufacturer
confirms this by affixing the CE mark to the device.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.
3 Product description
With an ultra-compact form factor, the tablet PC meets the most demanding requirements,
such as ingress protection (IP65) and shock resistance (4-foot drop-test and MIL-STD 810G).
The additional screen protector offers complete protection in harsh working environments.

Field Xpert SMT70 Product description
Endress+Hauser 9
The tablet PC's good ergonomic features also protect workers' health, keeping physical strain
to a minimum.
With the increasing popularity of 4G/LTE connectivity in hazardous areas, the tablet PC
ensures swift and seamless access to data. However, in situations where not even WLAN is
available, the optional docking station with an Ethernet interface gives the tablet PC the
necessary flexibility to link into existing network infrastructures. In addition, the latest
Bluetooth standards are also supported.
After use in the field, the tablet PC can be used as an office PC with the optional office docking
station, allowing the tablet to be seamlessly integrated into the office and business networks.
12 3 4
5
678
9
10
11

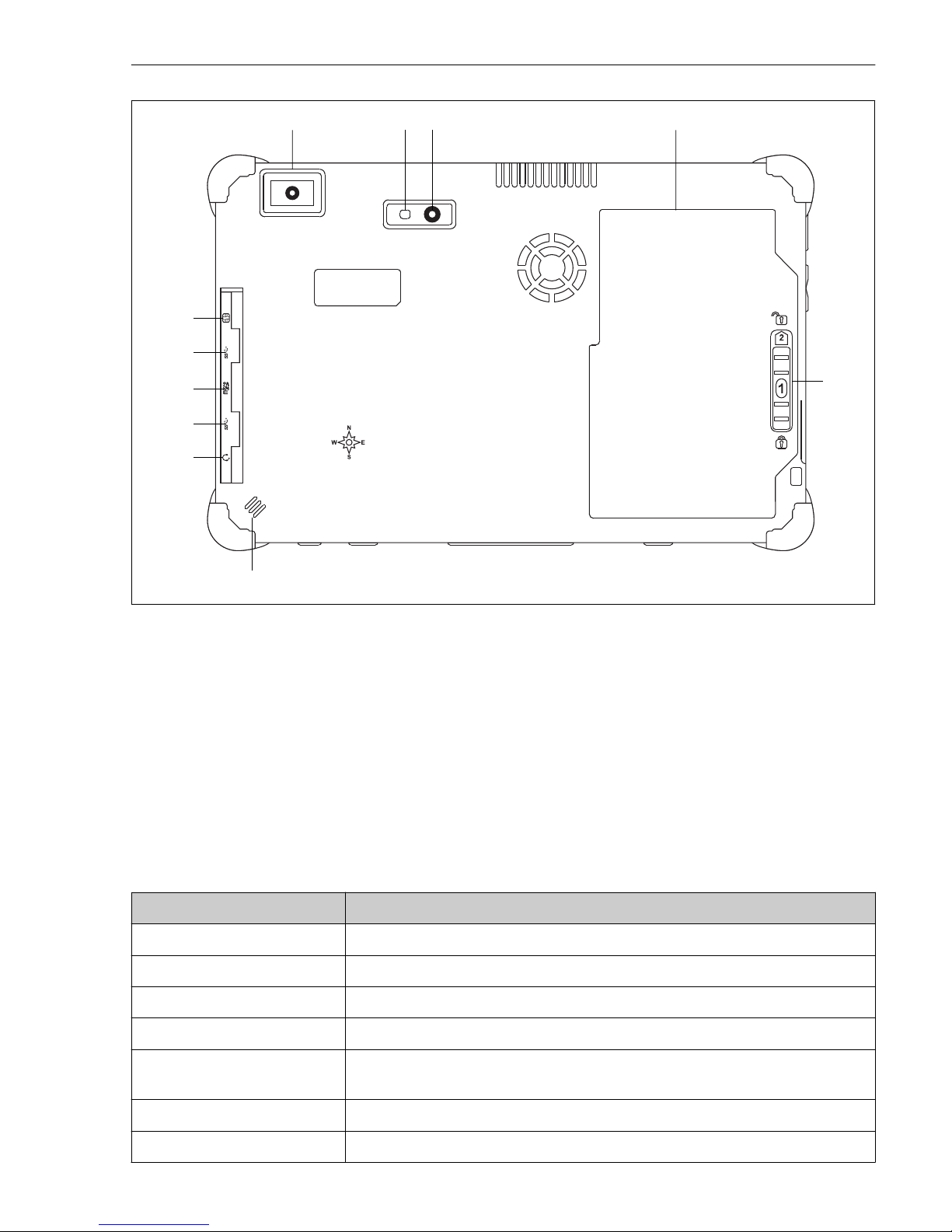

 1 Front view of tablet PC
1 Program button
2 Front camera
3 Ambient light sensor
4 Microphone
5 Function key
6 DC socket (underside)
7 Dock connector (underside)
8 Windows button
9 Slot for Kensington lock (left side)
10 Volume buttons (left side)
11 On/off button (left side)

Product description Field Xpert SMT70
10 Endress+Hauser
Component Description
Program button Go to user-defined program
Front camera For video recordings (e.g. at video conferences)
Ambient light sensor Measures the current ambient lighting conditions
Microphone To record ambient sounds
Function key The key function can be assigned via the "Quick Menu"
DC socket For connecting the power adapter
Dock connector For connecting the tablet PC to a docking station
Windows button Launch the Windows start screen
Slot for Kensington lock For connecting a Kensington-compatible security lock
Volume buttons For setting the volume
On/off button For switching the tablet PC on or off

Field Xpert SMT70 Product description
Endress+Hauser 11
1 2 34
5
6
7
8
9
8
10
 2 Rear view of tablet PC
1 Barcode scanner
2 Camera LED flash
3 Camera
4 Battery compartment
5 Button to unlock the battery compartment
6 Loudspeaker
7 Combined audio jack
8 2 x USB 3.0
9 Memory card slot for Micro SD memory cards
10 SIM card slot
Component Description
Barcode scanner For scanning barcodes.
Camera LED flash For additional lighting in poor light.
Camera For taking pictures.
Battery compartment Contains the battery.
Button to unlock the battery
compartment
Press down the button and hold to unlock the battery compartment.
Loudspeaker For sound
SIM card slot For inserting a SIM card for WWAN (LTE+GPS).

Product description Field Xpert SMT70
12 Endress+Hauser
Component Description
2 x USB 3.0 For connecting USB 3.0 peripheral devices.
LWARNING
The use of the USB ports in the hazardous area is not permitted
and can cause an explosion.
‣In the hazardous area, always use an Ex-tablet with the MACTek VIATOR
Bluetooth HART modem.
Memory card slot For inserting Micro SD memory cards, and SD, SDXC, SDHC memory cards using an
adapter.
Combined audio jack For connecting headphones, external loudspeakers or a microphone.
3.1 Product design
 3 Network architecture
3.2 Application
The tablet PC for device configuration enables mobile plant asset management in hazardous
and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage
field instruments with a digital communication interface and to record progress. This tablet
PC is designed as a complete solution and is an easy-to-use, finger-operated tool which can be
used to manage field instruments during their entire life cycle. It provides pre-installed driver
libraries and offers access to the "Industrial Internet of Things" as well as to information and
documentation during the entire life cycle of the device. The tablet PC offers a modern
software user interface and the option of online updates based on a secure Microsoft
Windows 10 multi-functional environment.

Field Xpert SMT70 Product description
Endress+Hauser 13
3.3 Licence model
The device configuration software is already installed on the tablet PC upon delivery.
To use the software as designated, the software must be activated. A user account is required
in the Endress+Hauser software portal for this purpose. This account might first need to be
created via the "Create account" function.
Activating the device configuration software package
1. Double-click Field Xpert SMT70 on the start screen.
 The software licensing page opens.
2. Click Activate.
 The dialog box where you can enter the software portal data opens.

Incoming acceptance and product identification Field Xpert SMT70
14 Endress+Hauser
3. Enter the e-mail address and password and click Activate.
 The dialog box opens containing the message "The application has been activated
successfully".
4. Click Show license.
 The dialog box with the licensing information opens.
5. Click Close.
The home screen of the device configuration software program opens.
4 Incoming acceptance and product identification
4.1 Incoming acceptance
Visual inspection
• Check the packaging for visible damage arising from transportation
• Open the packaging carefully
• Check the contents for visible damage
• Check that the delivery is complete and nothing is missing
• Retain all the accompanying documents
The device may not be put into operation if the contents are found to be damaged
beforehand. In this case, please contact your Endress+Hauser Sales Center:
www.addresses.endress.com
Return the device to Endress+Hauser in the original packaging where possible.
Scope of delivery
• Field Xpert SMT70 tablet PC with handle
• AC charger (100 to 240 VAC, 1.5 A, 50 to 60 Hz) with EU connecting cable and
international adapter set for 150 countries with country-specific connecting cable
• Software and interfaces/modem as per order
• Operating Instructions with safety instructions from Ecom

Field Xpert SMT70 Incoming acceptance and product identification
Endress+Hauser 15
4.2 Product identification
4.2.1 Nameplate
1 Endress+Hauser product name
2 Endress+Hauser serial number
3 Manufacturer nameplate
4 Manufacturer model number
5 Manufacturer technical information
6 Manufacturer serial number
4.2.2 Manufacturer address
Ecom Instruments GmbH, D-97959 Assamstadt, Germany is responsible for the tablet
hardware and produces it exclusively for Endress+Hauser.
Endress+Hauser Process Solutions AG
Christoph Merian-Ring 12
CH-4153 Reinach
Switzerland
www.endress.com

Installation Field Xpert SMT70
16 Endress+Hauser
4.3 Storage and transport
Always use the original packaging when transporting the product.
4.3.1 Storage temperature
–20 to 60 °C (–4 to 140 °F)
5 Installation
5.1 System requirements
The software is already installed on the tablet PC upon delivery.
5.2 Installing the software
The device configuration software is already installed on the tablet PC upon delivery. The
device configuration software must be activated.
Licensing model →  13
5.3 Updating the software
1. Click the icon on the home screen of the device configuration software.
 The dialog box with the licensing information opens.
2. Click Check for updates.
 The device configuration software searches for updates.

Field Xpert SMT70 Software operation
Endress+Hauser 17
5.4 Removing the software
The device configuration software may not be uninstalled.
6 Software operation
Avoid damage to the housing and components:
‣Always place the device on a stable surface.
‣Do not cover the ventilation opening, or block it by other objects.
‣Keep the device away from liquids.
‣Do not expose the device to direct sunshine or very dusty conditions.
‣Do not expose the device to excess heat or humidity.

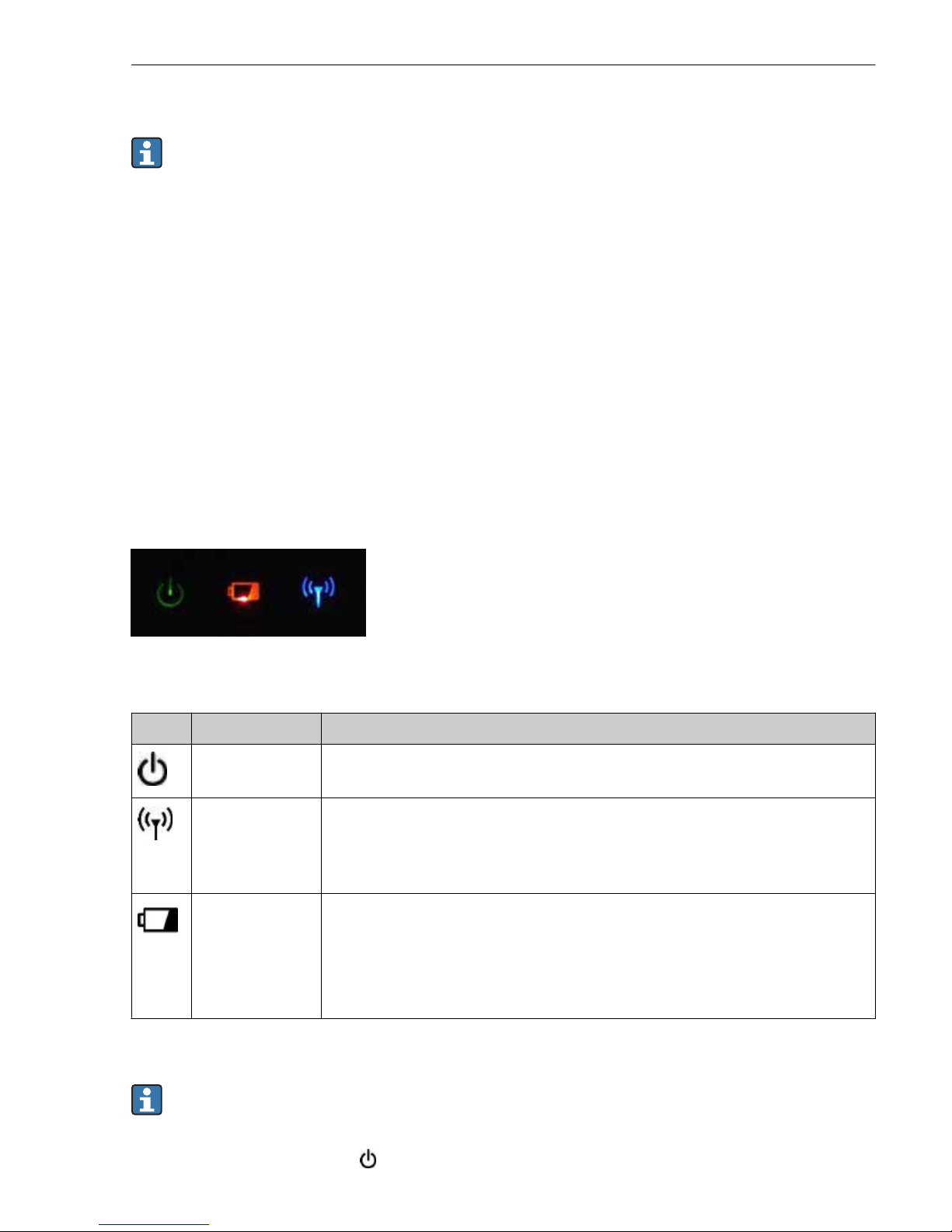

6.1 Status indicators
The status indicators on the interface of the tablet PC are lit as soon as the corresponding
functions are active.
 4 Status indicator
Symbol Meaning Description
Power The LED is lit green when the system is in operation. The LED flashes when the system
is in sleep mode.
Wireless
communication
Indicates the status of wireless communication (WLAN, WWAN or Bluetooth). The LED
is lit blue if at least one wireless communication option is active.
The "Quick Menu" application must be installed to be able to display the status for
wireless communication.
Battery Indicates the battery charge state:
• Green, battery is fully charged
• Amber, battery is charging
• Flashing amber, error while charging
• Red, battery less than 10 % charged
• Off, battery is empty
6.2 Shutting down the tablet PC
Make sure you shut down the tablet PC properly, as this is the only way to avoid losing
unsaved data.
‣Tap the Windows icon → → Shut down.

Commissioning Field Xpert SMT70
18 Endress+Hauser
The tablet PC shuts down.
Do not disconnect the power source until the tablet PC is switched off completely.
6.3 Switching off the tablet PC
‣Press and hold the button until the power LED flashes.
The tablet PC is in sleep mode.
6.4 Security screen
If the tablet PC is used without an external keyboard, the key combination Ctrl+Alt+Del
is replaced by the key combination of simultaneously pressing the and keys.
1. Press the and keys simultaneously.
 The tablet PC switches to the Windows security screen.
2. Select an action.
Possible actions:
• Lock the device
• Change to another user
• Log out
• Change the password
• Open Task Manager
• Shut down or restart the device
7 Commissioning
The tablet PC can be powered by the AC adapter or the lithium ion battery.

Field Xpert SMT70 Commissioning
Endress+Hauser 19
7.1 Inserting the battery
1.
Insert the battery in the battery compartment.
2. Press down until the battery clicks into place.
3.
Slide the battery lock into the "Locked" position.
The battery is inserted.

Operation Field Xpert SMT70
20 Endress+Hauser
7.2 Charging the battery
Due to transport safety regulations, the lithium ion battery is not fully charged when
purchased.
1. The battery must be inserted.
Connect the AC adapter to the DC socket of the tablet PC.
2. Connect the AC adapter to the power cable.
3. Connect the power cable to a power outlet.
7.3 Switching on the tablet PC
‣Press and hold the button until the power LED is lit.
The tablet PC starts.
7.4 Connecting the AC adapter
The AC adapter powers the tablet PC and charges the battery.
When using the AC adapter:
Place the device sufficiently close to a power outlet that the power cable can still reach
the outlet.
Only operate the device with the type of power source indicated on the device nameplate.
Disconnect the AC adapter from the power outlet if the device will not be used for an
extended period.
1. Connect the AC adapter to the DC socket of the tablet PC.
2. Connect the AC adapter to the power cable.
3. Connect the power cable to a power outlet.
The tablet PC may only be used with the corresponding AC adapter.
If the tablet PC is connected to a socket and the battery is inserted, the tablet PC is
powered via the socket.
8 Operation
NOTICE
The use of unsuitable objects to operate the device
can damage the screen.
‣Do not use pointed objects for the screen.
