Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 User manual

BA00385P/00/EN/19.14
71269382
Valid from software version:
01.00.zz
Operating Instructions
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement

Cerabar M Analog
2Endress+Hauser
A0023555
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number

Cerabar M Analog Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational and process safety . . . . . . . . . . . . . . . . . 4
1.4 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Product identification . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 CE mark, Declaration of Conformity . . . . . . . . . . . . 9
2.5 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9
3 Installation . . . . . . . . . . . . . . . . . . . . . 10
3.1 Incoming acceptance, transport, storage . . . . . . . . . 10
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Installation instructions . . . . . . . . . . . . . . . . . . . . . 11
3.4 Closing the housing cover . . . . . . . . . . . . . . . . . . . 20
3.5 Mounting of the profile seal for universal process
mounting adapter . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.6 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 20
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 23
4.3 Potential equalization . . . . . . . . . . . . . . . . . . . . . . 23
4.4 Overvoltage protection (optional) . . . . . . . . . . . . . . 24
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 25
5 Operation . . . . . . . . . . . . . . . . . . . . . . 26
5.1 Position of operating elements . . . . . . . . . . . . . . . . 26
5.2 Using the device display (optional) . . . . . . . . . . . . . 27
6 Commissioning. . . . . . . . . . . . . . . . . . 29
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7 Maintenance. . . . . . . . . . . . . . . . . . . . 30
7.1 Cleaning instructions . . . . . . . . . . . . . . . . . . . . . . . 30
7.2 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 Troubleshooting . . . . . . . . . . . . . . . . . 31
8.1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2 Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.3 Response of output to errors . . . . . . . . . . . . . . . . . 31
8.4 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.5 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.6 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8.7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8.8 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9 Technical data . . . . . . . . . . . . . . . . . . . 33
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Safety instructions Cerabar M Analog
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Cerabar M is a pressure transmitter for measuring pressure and level.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than that
designated.
1.2 Installation, commissioning and operation
The device is designed to meet state-of-the-art safety requirements and complies with applicable
standards and EU regulations. If used incorrectly or for applications for which it is not intended,
however, it can be a source of application-related danger, e.g. product overflow due to incorrect
installation or configuration. For this reason, installation, connection to the electricity supply,
commissioning, operation and maintenance of the measuring system must only be carried out by
trained, qualified specialists authorized to perform such work by the facility's owner-operator. The
specialist staff must have read and understood these Operating Instructions and must follow the
instructions they contain. Modifications and repairs to the devices are permissible only if they are
expressly approved in the Operating Instructions. Pay particular attention to the technical data and
information on the nameplate.
1.3 Operational and process safety
Alternative monitoring measures have to be taken while configuring, testing or servicing the device
to ensure the operational and process safety.
#Warning!
Dismantle device only when depressurized!

Cerabar M Analog Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to serious
personal injury, a safety hazard or the destruction of the device.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, can lead to personal
injury or the incorrect operation of the device.
!Note!
A note highlights actions or procedures which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.
%Direct current
A terminal to which DC voltage is applied or through which direct current flows.
&Alternating current
A terminal to which alternating voltage (sine-wave) is applied or through which alternating current
flows.
)Ground connection
A grounded terminal, which as far as the operator is concerned, is already grounded by means of a
grounding system.
*Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
+Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.
Connecting cable immunity to temperature change
Indicates that the connecting cables have to withstand a temperature of 85°C at least.
Safety instructions
Observe the safety instructions in the associated Operating Instructions.
>
=
t 85°C

Identification Cerabar M Analog
6Endress+Hauser
2 Identification

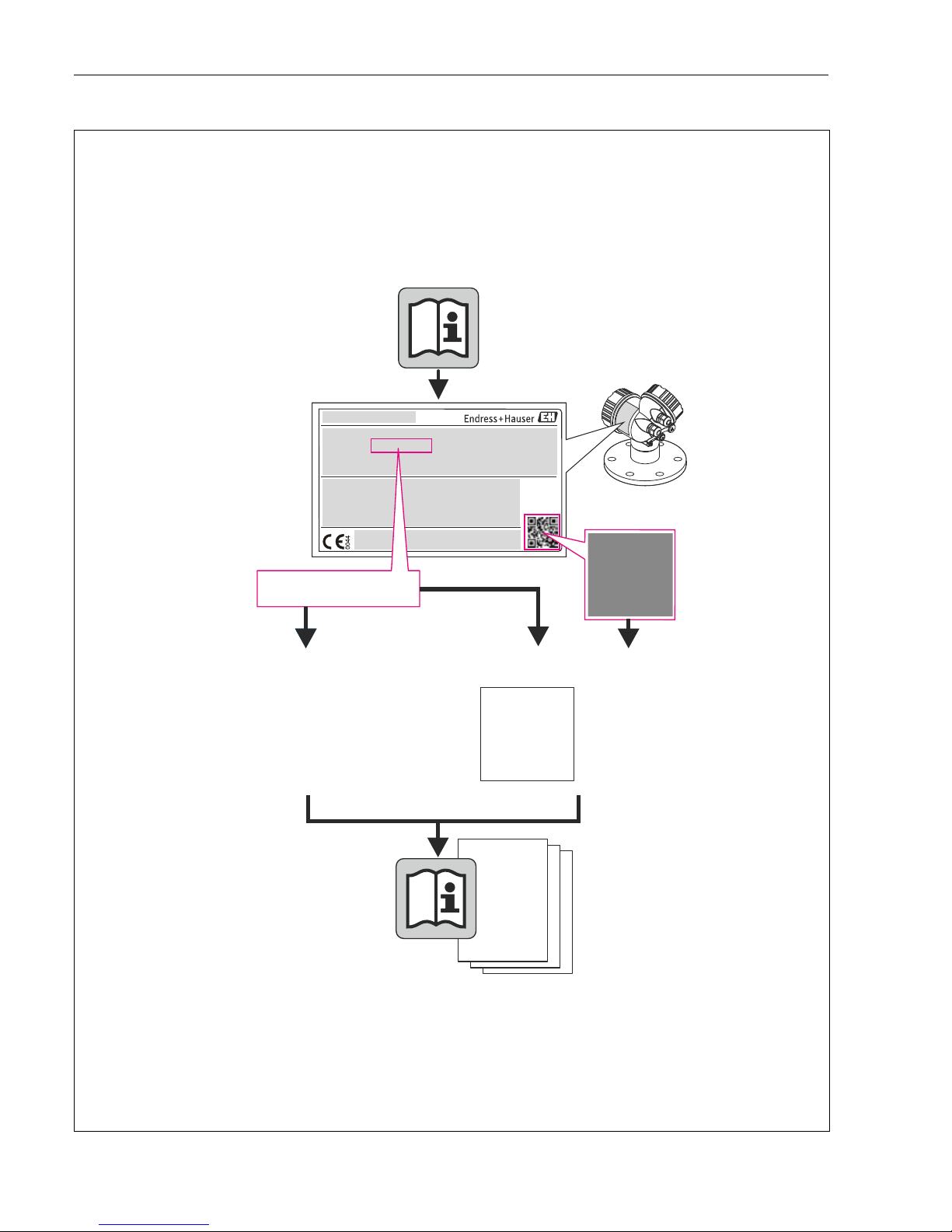

2.1 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
For an overview of the technical documentation provided, enter the serial number from the
nameplates in the W@M Device Viewer (www.endress.com/deviceviewer).
2.2 Device designation
2.2.1 Nameplate
!Note!
• The MWP (maximum working pressure) is specified on the nameplate. This value refers to a
reference temperature of 20°C (68°F) or 100°F (38 °C) for ANSI flanges.
• The pressure values permitted at higher temperatures can be found in the following standards:
– EN 1092-1: 2001 Tab. 18 1)
– ASME B 16.5a – 1998 Tab. 2-2.2 F316
– ASME B 16.5a – 1998 Tab. 2.3.8 N10276
– JIS B 2220
• The test pressure corresponds to the over pressure limit (OPL) of the device = MWP x 1.5 2).
• The Pressure Equipment Directive (EC Directive 97/23/EC) uses the abbreviation "PS". The
abbreviation "PS" corresponds to the MWP (maximum working pressure) of the measuring
device.
1) With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13EO
in EN 1092-1 Tab. 18. The chemical composition of the two materials can be identical.
2) The equation does not apply for PMP51 and PMP55 with a 40 bar (600 psi) or a 100 bar (1500 psi) measuring cell.

Cerabar M Analog Identification
Endress+Hauser 7
Aluminum housing
P01-xMx5xxxx-18-xx-xx-xx-000
Fig. 1: Nameplate
1 Device name
2 Order code (for re-orders)
3 Serial number (for identification)
4 Extended order code (complete)
5 MWP (maximum working pressure)
6 Electronic version (output signal)
7 Min./max. span
8 Nominal measuring range
9 Supply voltage
10 Unit of length
11 No entry
12 ID number of notified body with regard to Pressure Equipment Directive (optional)
13 Approvals
14 Device version
15 Software version
16 Degree of protection
17 Wetted materials
18 Approval-specific information
Devices suitable for oxygen applications are fitted with an additional nameplate.
P01-xxxxxxxx-18-xx-xx-xx-000
Fig. 2: Additional nameplate for devices suitable for oxygen applications
1 Maximum pressure for oxygen applications
2 Maximum temperature for oxygen applications
3 Layout identification of the nameplate
ex works FW:
Dev.Rev.:
250002755-C
Ext. order code: Ser. no.:
U= Span
P
MWP
Order code:
Made in Germany, D-79689 MaulburgMat.:
250002756-E
L=
15
123
4
67
8910
11
12 13 14
5
16
17
18
18
Pmax
Tmax
for oxygen service
Bei Sauerstoffeinsatz/
3
12

Identification Cerabar M Analog
8Endress+Hauser
Stainless steel housing, hygienic
P01-xMx5xxxx-18-xx-xx-xx-001
Fig. 3: Nameplate
1 Device name
2 Order code (for re-orders)
3 Serial number (for identification)
4 Extended order code (complete)
5 Nominal measuring range
6 MWP (maximum working pressure)
7 Length data
8 Electronic version (output signal)
9 Supply voltage
10 Min./max. span
11 Wetted materials
12 Approval-specific information
13 No entry
14 ID number of notified body with regard to Pressure Equipment Directive (optional)
15 No entry
16 Software version
17 Device version
18 Degree of protection

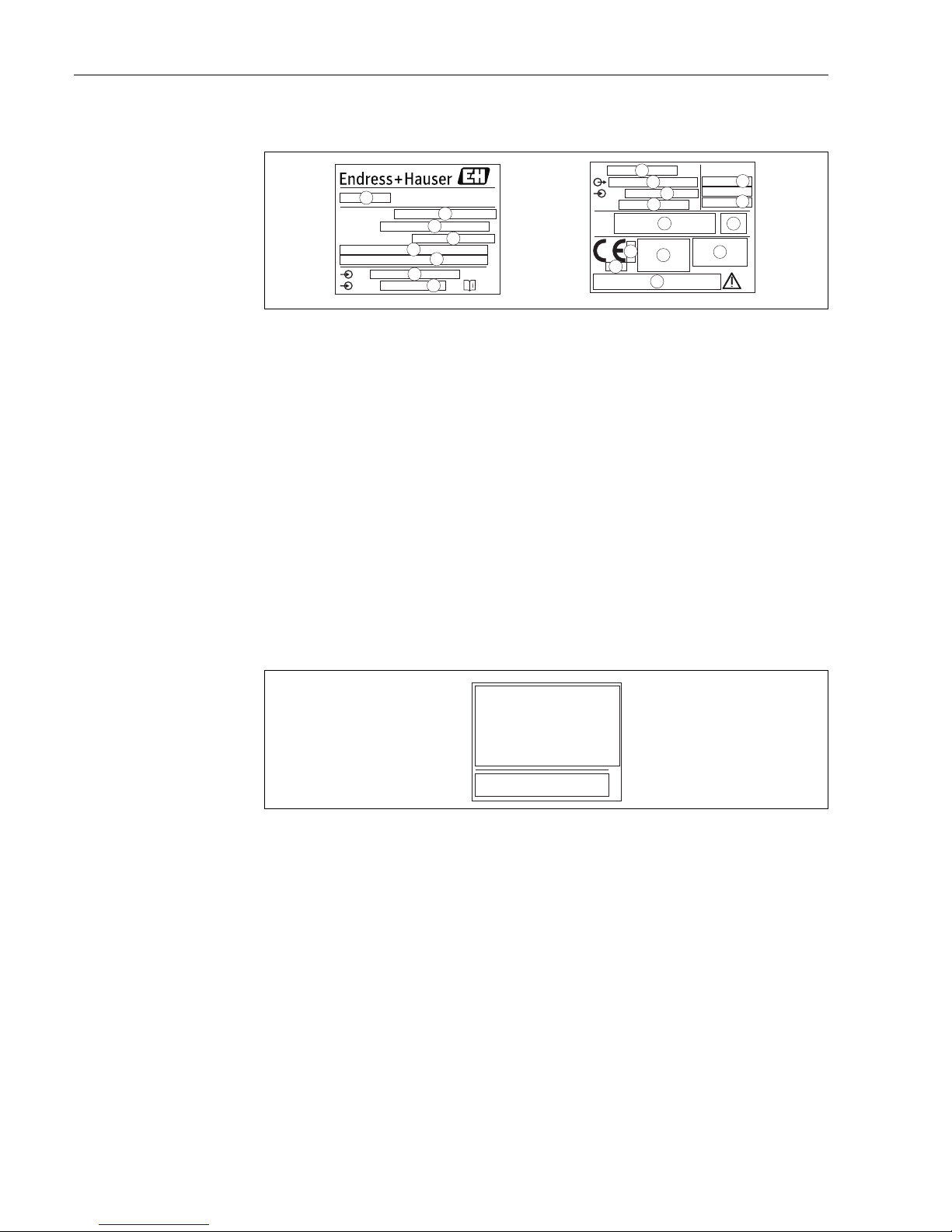

Devices with certificates are fitted with an additional plate.
P01-xMx5xxxx-18-xx-xx-xx-002
Fig. 4: Additional nameplate for devices with certificates
1 Approval-specific information
2.3 Scope of delivery
The scope of delivery comprises:
• Device
• Optional accessories
Documentation supplied:
• The Operating Instructions BA00385P is available on the Internet.
See: www.endress.com Download
• Brief Operating Instructions: KA01036P
• Final inspection report
• Optional: factory calibration form, test certificates
002757-A
p
Order code:
Ext. order code:
Ser. no.:
MWP
D-79689 Maulburg
Made in Germany,
ex works FW
U= Dev.Rev.:
L=
Span
Mat.:
002758-C
16
17
15
12
34
44
6
789
10
11
12
12
13
14
5
18
002759-B
1
1

Cerabar M Analog Identification
Endress+Hauser 9
2.4 CE mark, Declaration of Conformity
The devices are designed to meet state-of-the-art safety requirements, have been tested and left the
factory in a condition in which they are safe to operate. The devices comply with the applicable
standards and regulations as listed in the EC Declaration of Conformity and thus comply with the
statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device
by affixing to it the CE mark.
2.5 Registered trademarks
KALREZ, VITON, TEFLON
Registered trademark of E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP
Registered trademark of Ladish & Co., Inc., Kenosha, USA
GORE-TEX®
Registered trademark of W.L. Gore & Associates, Inc., USA

Installation Cerabar M Analog
10 Endress+Hauser
3 Installation
3.1 Incoming acceptance, transport, storage
3.1.1 Incoming acceptance
• Check the packaging and the contents for damage.
• Check the shipment, make sure nothing is missing and that the scope of supply matches your
order.
3.1.2 Transport
"Caution!
Follow the safety instructions and transport conditions for devices of more than 18 kg (39.69 lbs).
Transport the measuring device to the measuring point in its original packaging or at the process
connection.
3.1.3 Storage
The device must be stored in a dry, clean area and protected against damage from impact
(EN 837-2).
Storage temperature range:
See Technical Information for Cerabar M TI00436P.
3.2 Installation conditions
3.2.1 Dimensions
For dimensions, please refer to the Technical Information for Cerabar M TI00436P, "Mechanical
construction" section.

Cerabar M Analog Installation
Endress+Hauser 11
3.3 Installation instructions
!Note!
• Due to the orientation of the Cerabar M, there may be a shift in the zero point, i.e. when the
container is empty or partially full, the measured value does not display zero. You can correct this
zero point shift ä27, Section 5.1.2 "Function of the operating elements".
• For PMP55, please refer to Section 3.3.2 "Installation instructions for devices with diaphragm
seals – PMP55", ä14.
• Endress+Hauser offers a mounting bracket for installing on pipes or walls.
ä17, Section 3.3.5 "Wall and pipe mounting (optional)".
3.3.1 Installation instructions for devices without diaphragm seals –
PMP51, PMC51
!Note!
• If a heated Cerabar M is cooled during the cleaning process (e.g. by cold water), a vacuum
develops for a short time, whereby moisture can penetrate the sensor through the pressure
compensation (1). If this is the case, mount the Cerabar M with the pressure compensation (1)
pointing downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contamination.
• Cerabar M transmitters without diaphragm seals are mounted as per the norms for a manometer
(DIN EN 837-2). We recommend the use of shutoff devices and siphons. The orientation depends
on the measuring application.
• Do not clean or touch process isolating diaphragms with hard or pointed objects.
• The device must be installed as follows in order to comply with the cleanability requirements of
the ASME-BPE (Part SD Cleanibility).:
1
1
1

Installation Cerabar M Analog
12 Endress+Hauser
Pressure measurement in gases
P01-PMx5xxxx-11-xx-xx-xx-003

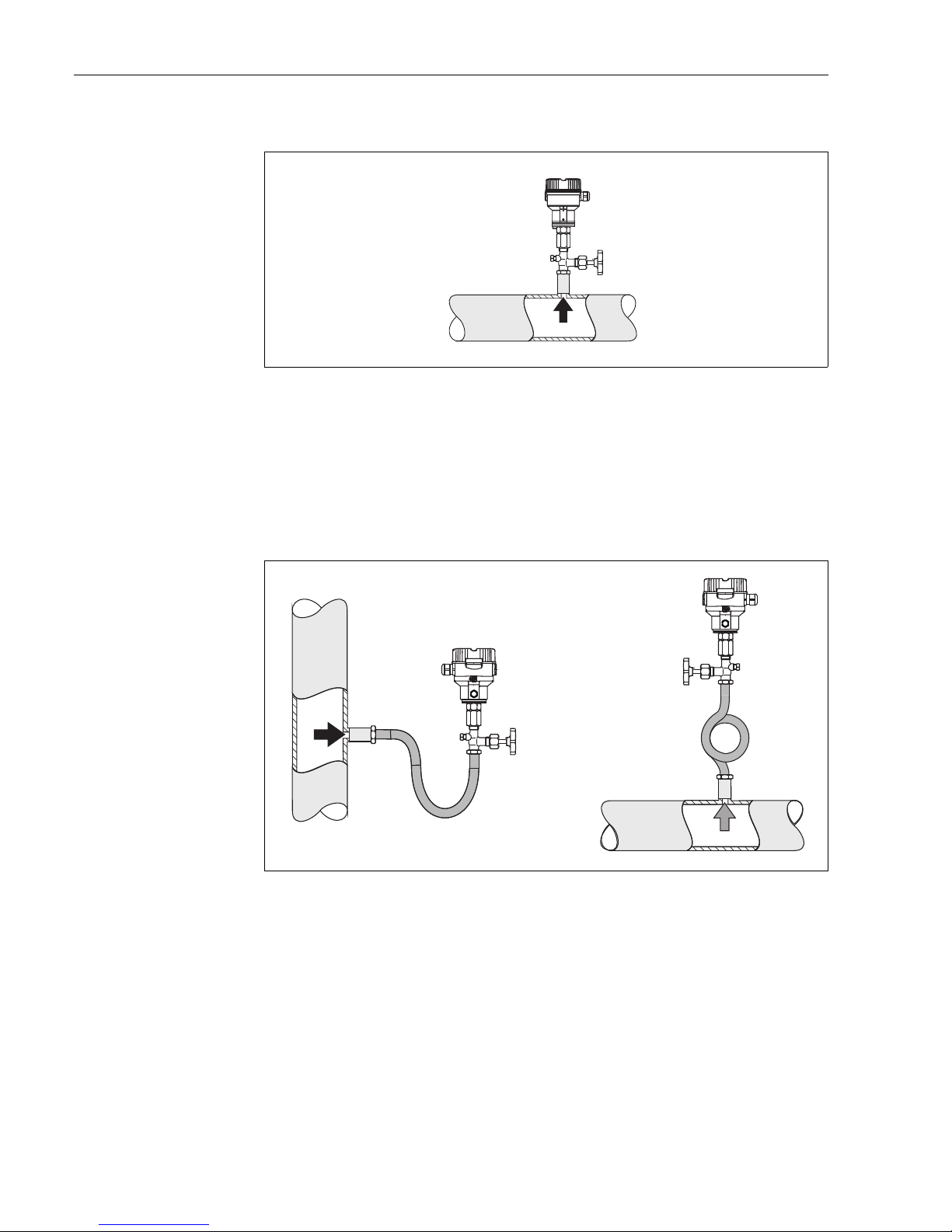

Fig. 5: Measuring arrangement for pressure measurement in gases
1 Cerabar M
2 Shutoff device
• Mount the Cerabar M with the shutoff device above the tapping point so that any condensate can
flow into the process.
Pressure measurement in steams
P01-PMx5xxxx-11-xx-xx-xx-004
Fig. 6: Measuring arrangement for pressure measurement in steams
1 Cerabar M
2 Shutoff device
3 U-shaped siphon
4 Circular siphon
• Mount Cerabar M with siphon above the tapping point.
• Fill the siphon with liquid before commissioning.
The siphon reduces the temperature to almost the ambient temperature.
➁
➀
➂
➀
➁
➃
➀
➁

Cerabar M Analog Installation
Endress+Hauser 13
Pressure measurement in liquids
P01-PMx5xxxx-11-xx-xx-xx-005

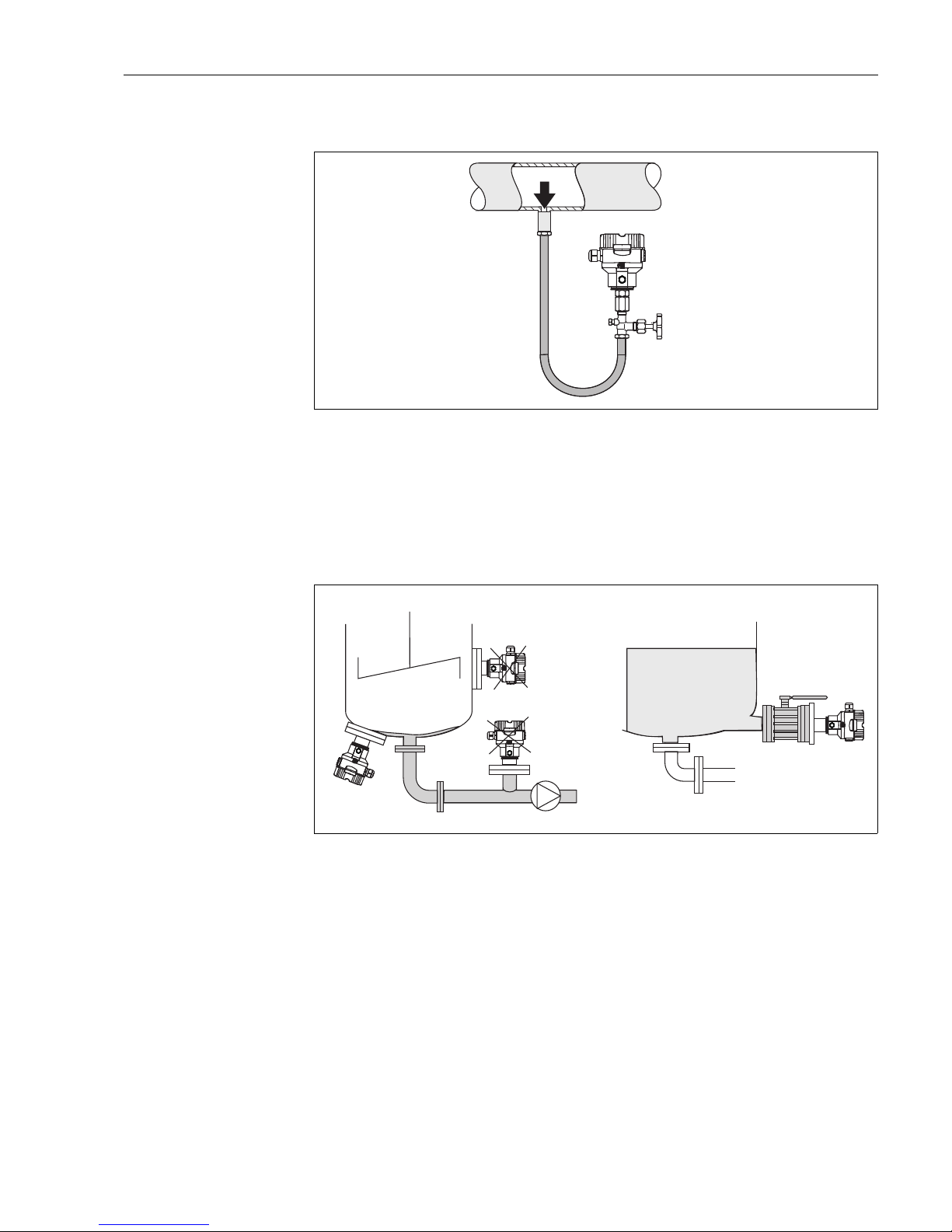

Fig. 7: Measuring arrangement for pressure measurement in liquids
1 Cerabar M
2 Shutoff device
• Mount Cerabar M with shutoff device below or at the same level as the tapping point.
Level measurement
P01-xMx5xxxx-11-xx-xx-xx-000
Fig. 8: Measuring arrangement for level
• Always install the Cerabar M below the lowest measuring point.
• Do not mount the device in the filling curtain or at a point in the tank which could be affected by
pressure pulses from an agitator.
• Do not mount the device in the suction area of a pump.
• The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
PVDF interchangeable threaded boss
!Note!
A maximum torque of 7 Nm (5.16 lbs ft) is permitted for devices with a PVDF interchangeable
threaded boss. The thread connection may become loose at high temperatures and pressures. This
means that the integrity of the thread must be checked regularly and may need to be tightened using
the torque given above. Teflon tape is recommended for sealing the 1/2 NPT thread.
➁
➀

Installation Cerabar M Analog
14 Endress+Hauser
3.3.2 Installation instructions for devices with diaphragm seals –
PMP55
!Note!
• Cerabar M devices with diaphragm seals are screwed in, flanged or clamped, depending on the
type of diaphragm seal.
• A diaphragm seal and the pressure transmitter together form a closed, oil-filled calibrated system.
The fill fluid hole is sealed and may not be opened.
• Do not clean or touch the process isolating diaphragm of the diaphragm seal with hard or pointed
objects.
• Do not remove process isolating diaphragm protection until shortly before installation.
• When using a mounting bracket, sufficient strain relief must be ensured for the capillaries in order
to prevent the capillary bending down (bending radius 100 mm (3.94 in)).
• Please note that the hydrostatic pressure of the liquid columns in the capillaries can cause zero
point shift. The zero point shift can be corrected.
• Please observe the application limits of the diaphragm seal filling oil as detailed in the Technical
Information for Cerabar M TI00436P, "Planning instructions for diaphragm seal systems" section.
In order to obtain more precise measurement results and to avoid a defect in the device, mount the
capillaries as follows:
• Vibration-free (in order to avoid additional pressure fluctuations)
• Not in the vicinity of heating or cooling lines
• Insulate if the ambient temperature is below or above the reference temperature
• With a bending radius of 100 mm (3.94 in).

Cerabar M Analog Installation
Endress+Hauser 15
Vacuum application
For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter
below the diaphragm seal. This prevents vacuum loading of the diaphragm seal caused by the
presence of filling oil in the capillaries.
When the pressure transmitter is mounted above the diaphragm seal, the maximum height
difference H1 in accordance with the illustration below left must not be exceeded. The maximum
height difference depends on the density of the filling oil and the smallest ever pressure that is
permitted to occur at the diaphragm seal (empty container), see illustration below right.
Mounting with temperature isolator
P01-PMx5xxxx-11-xx-xx-xx-008
Endress+Hauser recommends the use of temperature isolators in the event of constant extreme
medium temperatures which lead to the maximum permissible electronics temperature of +85°C
(+185°F) being exceeded. To minimize the influence of rising heat, Endress+Hauser recommends
the device be mounted horizontally or with the housing pointing downwards.
The additional installation height also brings about a zero point shift of approx. 21 mbar (0.315 psi)
due to the hydrostatic column in the temperature isolator. You can correct this zero point shift.
ä27 "Function of the operating elements".
P01-PMx5xxxx-11-xx-xx-xx-006
Fig. 9: Installation above the diaphragm
seal
P01-PMP75xxx-05-xx-xx-en-011
Fig. 10: Diagram of maximum installation height above the
diaphragm seal for vacuum applications, depending on
the pressure at the diaphragm seal
H1
0.0
2.0
4.0
6.0
8.0
10.0
12.0
50 100 300 400 500 600 700 800 900 1000
200
Inert oil
Hightemperature
oil
Vegetableoil
Silicone oil
Pressure at diaphragm seal[mbarabs]
Heightdifference H1[m]
Low temperature oil
max. 115

Installation Cerabar M Analog
16 Endress+Hauser
3.3.3 Seal for flange mounting
P01-FMD7xxxx-11-xx-xx-xx-002

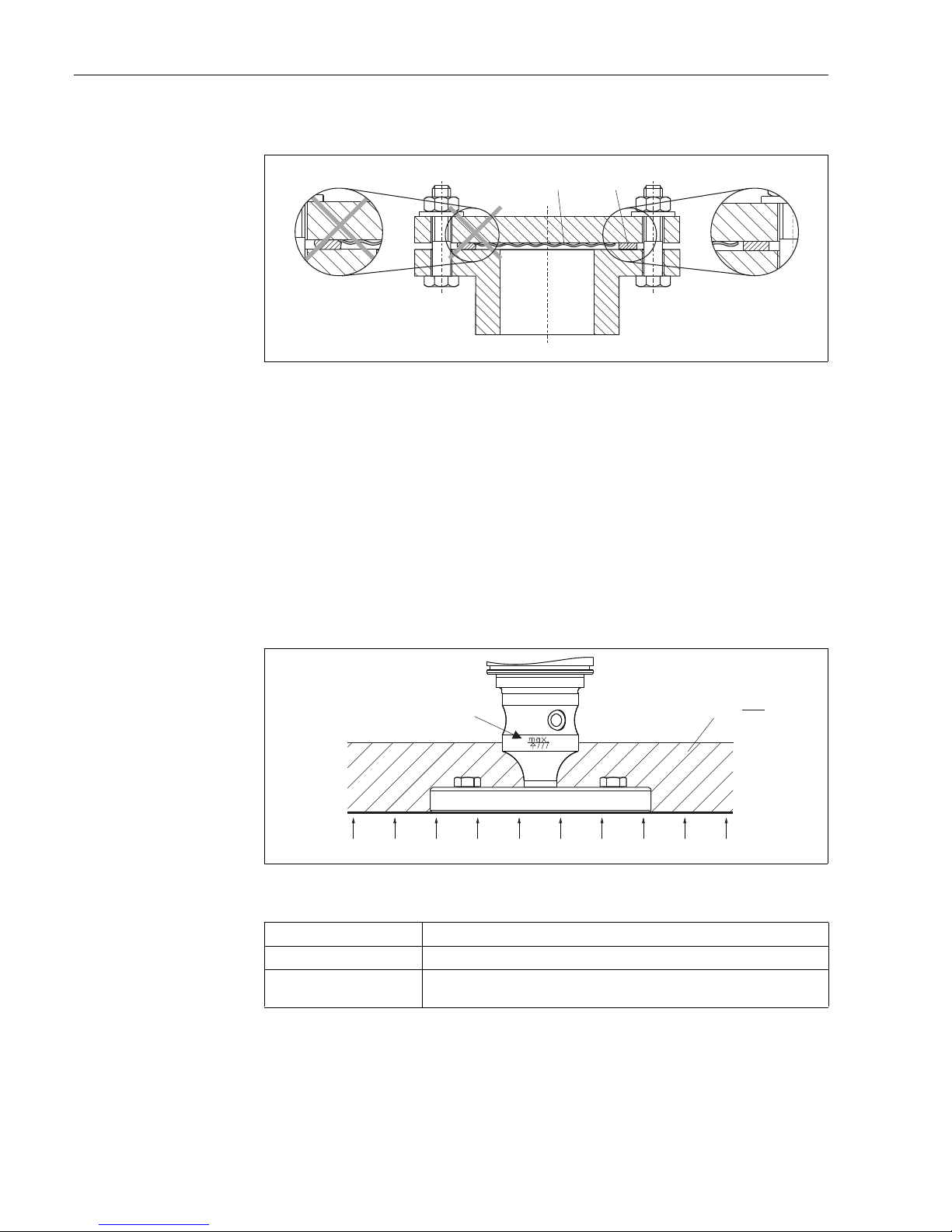

Fig. 11: Mounting the versions with a flange
1 Process isolating diaphragm
2Seal
#Warning!
The seal is not allowed to press against the process isolating diaphragm as this could affect the
measurement result.
3.3.4 Thermal insulation – PMP55
The PMP55 may only be insulated up to a certain height. The maximum permitted insulation height
is indicated on the devices and applies to an insulation material with a heat conductivity
0.04 W/(m x K) and to the maximum permitted ambient and process temperature (see table
below). The data were determined under the most critical application "quiescent air".
P01-PMx5xxxx-11-xx-xx-xx-010
Fig. 12: Maximum permitted insulation height, here indicated on a PMP55 with a flange
➁➀
l0.04£W
mK•
TP
TA
PMP55
Ambient temperature (TA)70°C (158°F)
Process temperature (TP) Max. 400°C (752°F), depending on the diaphragm seal filling oil used (see
TI00436PEN)

Cerabar M Analog Installation
Endress+Hauser 17
3.3.5 Wall and pipe mounting (optional)
Endress+Hauser offers a mounting bracket for installing on pipes or walls (for pipes from 1 1/4" up
to 2" diameter).
P01-xMx5xxxx-06-xx-xx-xx-001
Please note the following when mounting:
• Devices with capillary tubes: mount capillaries with a bending radius 100 mm (3.94 in).
• When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of
at least 5 Nm (3.69 lbs ft).
52 (2.05)
140(5.51)
122 (4.8)
70(2.76)
6 (0.24)
mm (in)

Installation Cerabar M Analog
18 Endress+Hauser
3.3.6 Assembling and mounting the "separate housing" version
P01-XMx5xxxx-11-xx-xx-xx-009

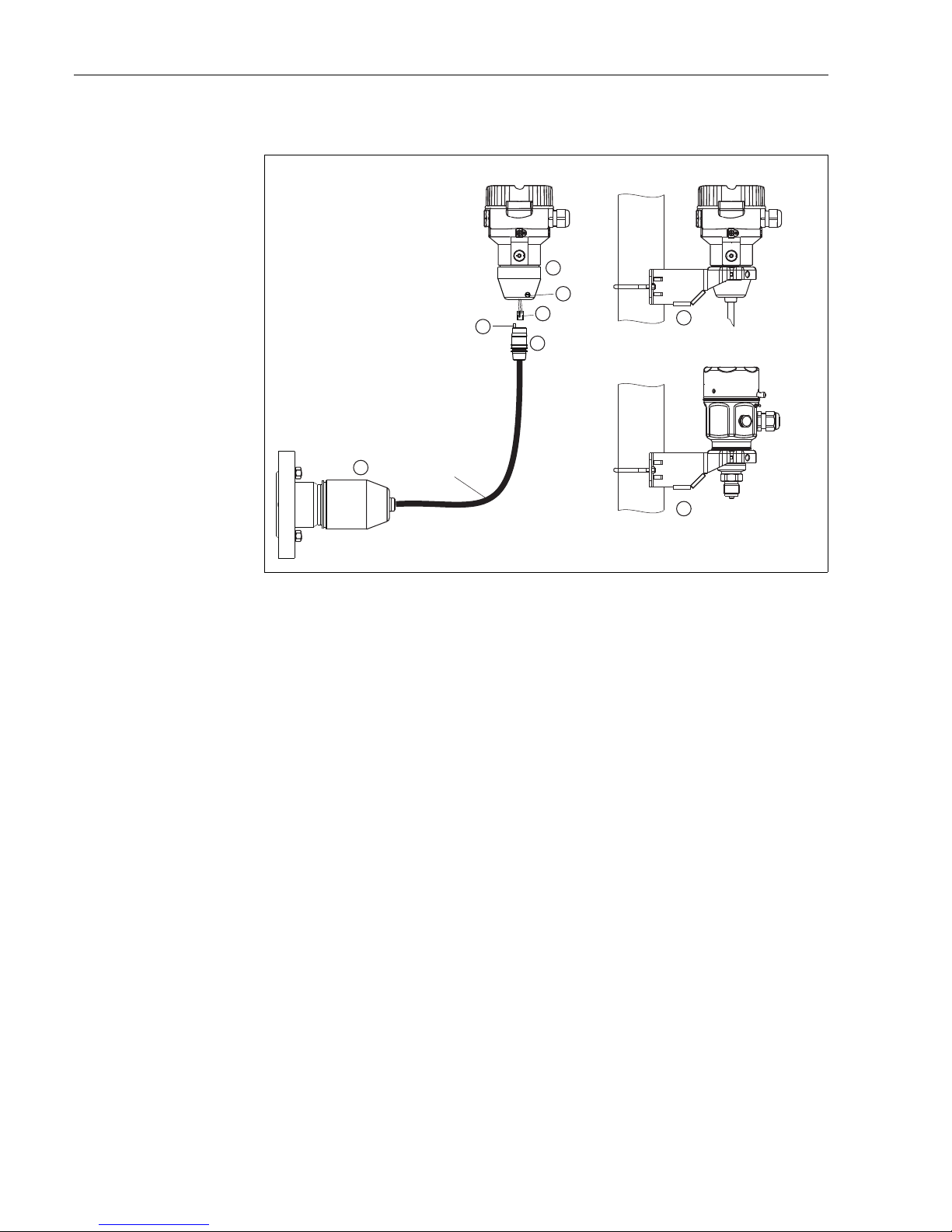

Fig. 13: "Separate housing" version
1 In the case of the "separate housing" version, the sensor is delivered with the process connection and cable ready
mounted.
2 Cable with connection jack
3 Pressure compensation
4 Connector
5Lockingscrew
6 Housing mounted with housing adapter, included
7 Mounting bracket provided, suitable for pipe and wall mounting (for pipes from 1 1/4" up to 2" diameter)
Assembly and mounting
1. Insert the connector (item 4) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 6).
3. Tighten the locking screw (item 5).
4. Mount the housing on a wall or pipe using the mounting bracket (item 7).
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least
5 Nm (3.69 lbs ft).
Mount the cable with a bending radius (r) 120 mm (4.72 in).
r³120mm
1
2
34
5
6
7
7

Cerabar M Analog Installation
Endress+Hauser 19
3.3.7 PMP51, version prepared for diaphragm seal mount –
welding recommendation
P01-PMP71xxx-11-xx-xx-xx-000
Fig. 14: Version U1: prepared for diaphragm seal mount
1 Hole for fill fluid
2Bearing
3Setscrew
A1 See the "Welding recommendation" table below
Endress+Hauser recommends welding on the diaphragm seal as follows for the "XSJ - Prepared for
diaphragm seal mount" version in feature 110 "Process connections" in the order code up to, and
including, 40 bar (600 psi) sensors: the total welding depth of the fillet weld is 1 mm (0.04 in) with
an outer diameter of 16 mm (0.63 in). Welding is performed according to the WIG method.
Information on filling
The diaphragm seal must be filled as soon as it has been welded on.
• After welding into the process connection, the sensor assembly must be properly filled with a
filling oil and sealed gas-tight with a sealing ball and lock screw.
Once the diaphragm seal has been filled, the device display should not exceed 10% of the full scale
value of the cell measuring range at the zero point. The internal pressure of the diaphragm seal
must be corrected accordingly.
• Adjustment / calibration:
– The device is operational once it has been fully assembled.
– Perform a reset. The device then has to be calibrated to the process measuring range as
explained in the Operating Instructions.
ø2.5 (0.1)
5 (0.2)
➀➂➁
ø7.95 (0.31)
A1
mm (in)
Consecutive
seam no.
Sketch/welding groove
shape, dimension as per
DIN 8551
Base material
matching
Welding
process
DIN EN
ISO 24063
Welding
position
Inert gas,
additives
A1
for sensors
40 bar (600
psi)
P01-PMP71xxx-11-xx-xx-xx-001
Adapter made of
AISI 316L (1.4435)
to be welded to
diaphragm seal made of
AISI 316L
(1.4435 or 1.4404)
141 PB Inert gas
Ar/H 95/5
Additive:
ER 316L Si
(1.4430)
s1 a0.8

Installation Cerabar M Analog
20 Endress+Hauser
3.4 Closing the housing cover
!Note!
When closing the housing cover, please ensure that the thread of the cover and housing are free
from dirt, e.g. sand.If you feel any resistance when closing the cover, check the thread on both again
to ensure that they are free from dirt.
3.4.1 Closing the cover on the stainless steel housing
P01-XMx5xxxx-17-xx-xx-xx-001
Fig. 15: Closing the cover
The cover for the electronics compartment is tightened by hand at the housing until the stop. The
screw serves as DustEx protection (only available for devices with DustEx approval).
3.5 Mounting of the profile seal for universal process
mounting adapter
For details on mounting, see KA00096F/00/A3.
3.6 Post-installation check
After installing the device, carry out the following checks:
• Are all screws firmly tightened?
• Is the housing cover screwed down tight?
