Brief Operating Instructions

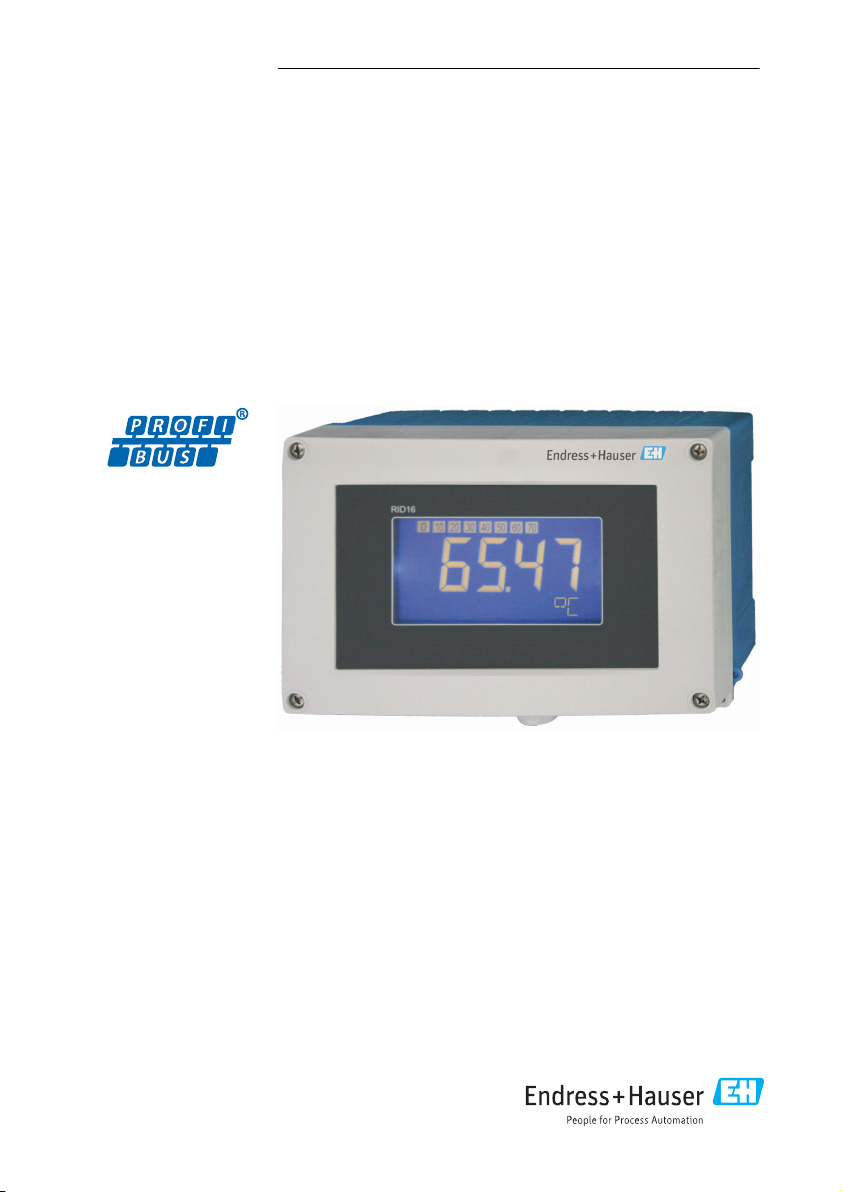

RID16
8-channel field indicator
with PROFIBUS® PA protocol
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
KA01157K/09/EN/02.23-00
71616053
2023-05-17

RID16
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

RID16 Table of contents
Endress+Hauser 3
Table of contents
1 About this document .............................................................. 4
1.1 Symbols ............................................................................. 4
2 Safety instructions ................................................................ 5
2.1 Requirements for the personnel ............................................................ 5
2.2 Intended use .......................................................................... 5
2.3 Workplace safety ...................................................................... 5
2.4 Operational safety ......................................................................6
2.5 Product safety ......................................................................... 6
3 Incoming acceptance and product identification ................................... 6
3.1 Incoming acceptance .................................................................... 6
3.2 Product identification ................................................................... 7
3.3 Storage and transport ................................................................... 7
3.4 Certificates and approvals ................................................................ 8
4 Mounting ......................................................................... 8
4.1 Mounting requirements ................................................................. 8
4.2 Mounting the measuring device ............................................................9
4.3 Post-mounting check .................................................................. 11
5 Electrical connection ............................................................ 11
5.1 Connecting requirements ............................................................... 11
5.2 Connecting the measuring device ......................................................... 12
5.3 Ensuring the degree of protection ......................................................... 17
5.4 Post-connection check ..................................................................17
6 Operation options ............................................................... 18
6.1 Overview of operation options ............................................................ 18
6.2 Access to the operating menu via the operating tool ............................................ 20
6.3 Hardware settings ..................................................................... 20
6.4 Device configuration ................................................................... 22

About this document RID16
4 Endress+Hauser
1 About this document
1.1 Symbols
1.1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.
Symbol Meaning
Potential equalization connection (PE: protective earth)
Ground terminals that must be connected to ground prior to establishing any other connections.
The ground terminals are located on the interior and exterior of the device:
• Interior ground terminal: potential equalization is connected to the supply network.
• Exterior ground terminal: device is connected to the plant grounding system.
1.1.3 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.

RID16 Safety instructions
Endress+Hauser 5
Symbol Meaning Symbol Meaning
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.4 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
2 Safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Intended use
• The device is a field indicator for connection to a fieldbus.
• It is designed for mounting in the field.
• The manufacturer accepts no liability for damages resulting from improper or non-intended
use.
• Safe operation is only guaranteed if the Operating Instructions are observed.
• Only operate the device in the permitted temperature range.
2.3 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment as per national regulations.

Incoming acceptance and product identification RID16
6 Endress+Hauser
2.4 Operational safety
Damage to the device!
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for the interference-free operation of the device.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. The manufacturer
confirms this by affixing the CE mark to the device.
3 Incoming acceptance and product identification
3.1 Incoming acceptance
Proceed as follows on receipt of the device:
1. Check whether the packaging is intact.
2. If damage is discovered:
Report all damage immediately to the manufacturer.
3. Do not install damaged components, as the manufacturer cannot otherwise guarantee
the material resistance or compliance with the original safety requirements, and can
also not be held responsible for the consequences that may result.
4. Compare the scope of delivery against the contents of your order.
5. Remove all the packaging material used for transportation.
6. Do the data on the nameplate match the ordering information on the delivery note?
7. Are the technical documentation and all other necessary documents provided, e.g.
certificates?
If one of the conditions is not satisfied, contact your Sales Center.

RID16 Incoming acceptance and product identification
Endress+Hauser 7
3.2 Product identification
The following options are available for identification of the device:
• Nameplate specifications
• Enter the serial number from the nameplate in the Device Viewer
(www.endress.com/deviceviewer): all the information about the device and an overview of
the Technical Documentation supplied with the device are displayed.
• Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan
the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App:
all the information about the device and the technical documentation pertaining to the
device is displayed.
3.2.1 Nameplate
The right device?
The nameplate provides you with the following information on the device:
• Manufacturer identification, device designation
• Order code
• Extended order code
• Serial number
• Tag name (TAG)
• Technical values: supply voltage, current consumption, ambient temperature,
communication-specific data (optional)
• Degree of protection
• Approvals with symbols
‣Compare the information on the nameplate with the order.
3.2.2 Name and address of manufacturer
Name of manufacturer: Endress+Hauser Wetzer GmbH + Co. KG
Address of manufacturer: Obere Wank 1, D-87484 Nesselwang or www.endress.com
3.3 Storage and transport
Storage temperature: –40 to +80 °C (–40 to +176 °F)
Maximum relative humidity: < 95 % as per IEC 60068-2-30
Pack the device for storage and transportation in such a way that it is reliably protected
against impact and external influences. The original packaging offers the best protection.
Avoid the following environmental influences during storage:
• Direct sunlight
• Proximity to hot objects
• Mechanical vibration
• Aggressive media

Mounting RID16
8 Endress+Hauser
3.4 Certificates and approvals
For certificates and approvals valid for the device: see the data on the nameplate
Approval-related data and documents: www.endress.com/deviceviewer → (enter the
serial number)
3.4.1 PROFIBUS
The field indicator has successfully passed the PROFIBUS PA physical layer test. As a "non-
active" bus user, it doesn't interfere with the Profibus data traffic.
4 Mounting
4.1 Mounting requirements
The indicator is designed for use in the field.
Its orientation is determined by the readability of the display. The cable entries are located on
the bottom of the device.
Operating temperature range: –40 to +80 °C (–40 to +176 °F)
NOTICE
Reduced operating life of the display at high temperatures
‣If possible, do not operate the device in the upper temperature limit range.
The display may react slowly at temperatures < –20 °C (–4 °F).
Readability of the display can no longer be guaranteed at temperatures < –30 °C (–22 °F).
Altitude Up to 2 000 m (6 561.7 ft) above sea level
Overvoltage category Overvoltage category II
Pollution degree Pollution degree 2

RID16 Mounting
Endress+Hauser 9
4.1.1 Dimensions
133 (5.24)
199 (7.83)
96 (3.78)
158 (6.22)
1
115 (4.53)
163 (6.42)
A
A
A-A
A0011162
 1 Dimensions of the field indicator; dimensions in mm (in)
1 Bore for direct wall mounting or on mounting plate with 4 screws ⌀ 5 mm (0.2 in)
4.1.2 Mounting location
Information about the conditions (such as the ambient temperature, degree of protection,
climate class etc.) that must be present at the installation location so that the device can be
mounted correctly is provided in the "Technical data" section of the Operating Instructions.
4.2 Mounting the measuring device
The device can be mounted directly on the wall →  9 or the optional mounting bracket
can be used for wall and pipe mounting →  9.
4.2.1 Direct wall mounting
Proceed as follows to mount the device directly on the wall:
1. Drill 4 holes
2. Fit the device on the wall with 4 screws (⌀ 5 mm (0.2 in)).
4.2.2 Pipe mounting
The mounting bracket is suitable for pipes with a diameter between 1" and 5". The mounting
kit comprises a mounting plate (item 1), 2 terminals (item 2) and 4 screws (item 3).
Proceed as follows to mount the device on a pipe:

Mounting RID16
10 Endress+Hauser
1
2
1. 2.
A0011269
 2 Mounting the field indicator on a pipe with a mounting kit, steps 1 to 2.
3mm
3. 4.
3
3
A0011270
 3 Mounting the field indicator on a pipe with a mounting kit, steps 3 to 4.
1 Mounting plate
2 Mounting bracket
3 4 screws

RID16 Electrical connection
Endress+Hauser 11
4.3 Post-mounting check
After installing the device, always perform the following checks:
Device condition and specifications Notes
Is the measuring device damaged? Visual inspection
Is the seal undamaged? Visual inspection
Is the device securely fastened to the wall or the mounting plate? -
Is the front of the housing fixed tightly? -
Does the device correspond to the measuring point specifications, e.g., ambient
temperature etc.?
See 'Technical data' section
5 Electrical connection
5.1 Connecting requirements
NOTICE
Destruction or malfunction of parts of the electronics
‣ ESD - Electrostatic discharge. Protect the terminals from electrostatic discharge.
LWARNING
Danger of explosion if the device is incorrectly connected in the hazardous area
‣When connecting Ex-certified devices, please take special note of the instructions and
connection schematics in the Ex-specific supplement to these Operating Instructions.
NOTICE
The electronics can be destroyed if unit is connected incorrectly
‣Switch off the power supply before installing or connecting the device. Failure to observe
this may result in the destruction of parts of the electronics.
‣The post connector is only used to connect the display. If other devices are connected, this
can result in the destruction of parts of the electronics.
Devices can be connected to the PROFIBUS® PA in two ways:
• Via a conventional cable gland
• Via a fieldbus connector (optional, available as an accessory)

Electrical connection RID16
12 Endress+Hauser
5.2 Connecting the measuring device
5.2.1 Connecting the cable to the field indicator
Preparing the connection
Mounting the cable gland or fieldbus connector for the plastic housing
1.
1
2
3
2.
3.
A0021557
 4 Mounting the cable gland or fieldbus connector
1 Mounting plate
2 Cable gland
3 Fieldbus connector
1. First of all, open one of the indentations provided on the bottom of the device with an
appropriate tool, e.g., screwdriver. Open the indentation at room temperature.
Otherwise the housing could be damaged at very low temperatures.
2. Install the mounting plate for the cable gland and fieldbus connector. The mounting
plate is included with the field indicator, see scope of delivery.
3. Install the cable gland or fieldbus connector in the mounting plate. A cable gland is
provided with the field indicator, see scope of delivery. The fieldbus connector is
available as an accessory.
Mounting the cable gland or fieldbus connector for the aluminum housing
The cable gland or fieldbus connector can be screwed into the housing directly for the
aluminum housing. A mounting plate is not required.

RID16 Electrical connection
Endress+Hauser 13
Procedure for wiring the field indicator
+
-
1
A0011636
 5 Opening the field indicator housing
1 Internal ground terminal (aluminum housing only)
1. Open the cable gland and open the housing cover
2. Guide the cable through the cable gland
3. Connect the cable →  7,  14
4. Mount the cable shield clamps (aluminum housing only) →  6,  13
5. Tighten the cable gland again and close the housing cover.
6. To avoid errors when connecting, see the "Post-connection check" section.
A0014935
 6 Mounting the cable shield clamps (aluminum housing only)

Electrical connection RID16
14 Endress+Hauser
Quick wiring guide
PROFIBUS® PA
+
-

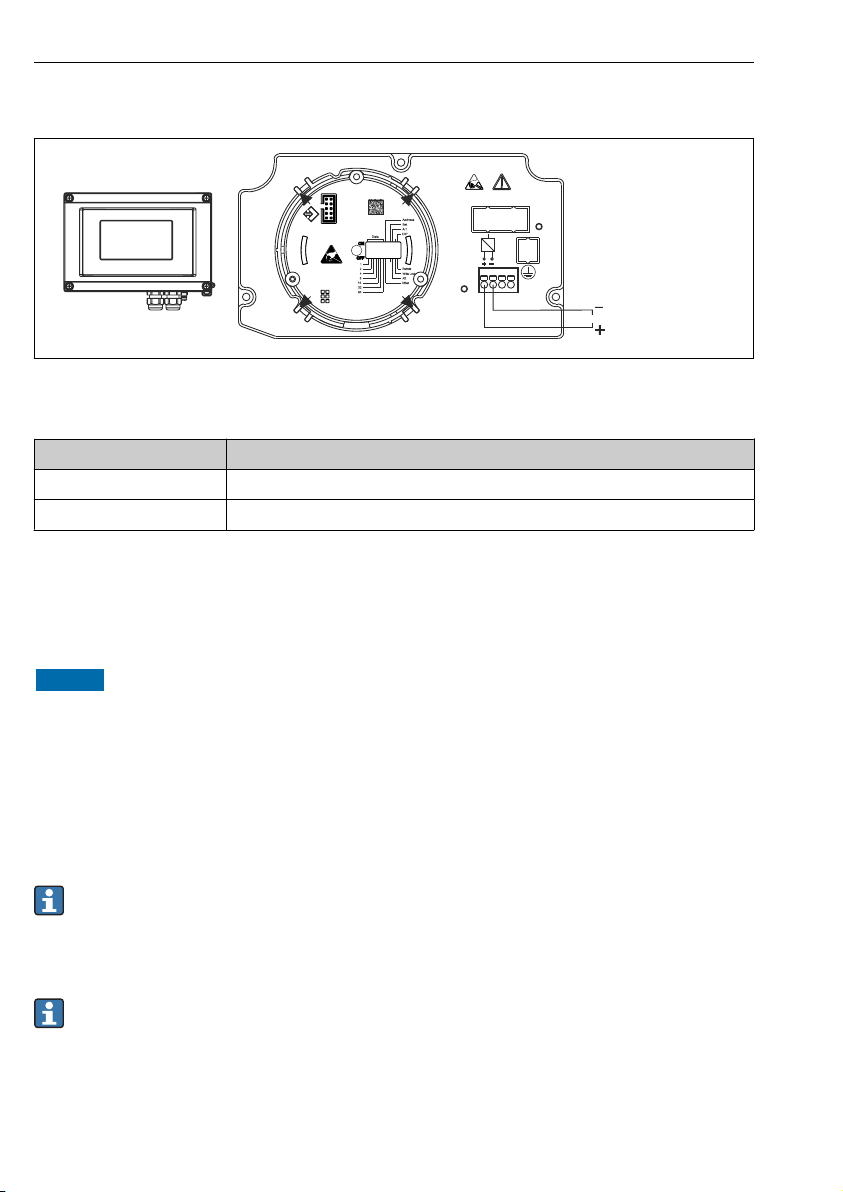

A0021544
 7 Terminal assignment
Terminal Terminal assignment
+ PROFIBUS® PA connection (+)
- PROFIBUS® PA connection (-)
5.2.2 Connection to PROFIBUS® PA
Devices can be connected to the PROFIBUS® PA in two ways:
• Via a conventional cable gland
• Via a fieldbus connector (optional, available as an accessory)
NOTICE
The device and fieldbus cable can be damaged by electrical voltage
‣Switch off the power supply before installing or connecting the device.
‣It is recommended to ground the unit via one of the grounding screws.
‣If the shielding of the fieldbus cable is grounded at more than one point in systems without
additional potential equalization, mains frequency equalizing currents can occur that
damage the cable or shield. In such cases, the shielding of the fieldbus cable is to be
grounded on one side only, i.e. it must not be connected to the ground terminal of the
housing. The shield that is not connected should be insulated!
We recommend that the fieldbus not be looped using conventional cable glands. If you
replace even just one measuring device at a later date, the bus communication will have
to be interrupted.
Cable gland or entry
Please also observe the general procedure →  12

RID16 Electrical connection
Endress+Hauser 15
1
3
4
2
A0012567
 8 Connection to the PROFIBUS® PA fieldbus cable
1 Terminals - Fieldbus communication and power supply
2 Internal ground terminal (aluminum housing only)
3 External ground terminal
4 Shielded fieldbus cable
• The terminals for the fieldbus connection (1+ and 2-) are independent of polarity.
• Conductor cross-section:
Max. 2.5 mm2 (14 AWG)
• Always use a shielded cable for the connection.
Fieldbus connector
As an option, a fieldbus connector can be screwed into the field housing instead of a cable
gland. Fieldbus connectors can be ordered from Endress+Hauser as an accessory (see
'Accessories' section in the Operating Instructions).
The connection technology for PROFIBUS® PA enables measuring devices to be connected to
the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
This connection technology using prefabricated distribution modules and plug-in connectors
offers substantial advantages over conventional wiring:
• Field devices can be removed, replaced or added at any time during normal operation.
Communication is not interrupted.
• Installation and maintenance are significantly easier.
• Existing cable infrastructures can be used and expanded instantly, e.g. when constructing
new star distributors using 4-channel or 8-channel distribution modules.

Electrical connection RID16
16 Endress+Hauser
Supply line/T-box shielding
Always use cable glands with good EMC properties, where possible with wrapround cable
shielding (Iris spring). This requires minimum differences in potential, and possibly potential
equalization.
• The shielding of the PA cable may not be interrupted.
• The shielding connection must always be kept as short as possible.
Ideally, cable glands with Iris springs should be used to connect the shielding. The Iris spring,
which is located inside the gland, connects the shield to the T-box housing. The shielding
braid is located under the Iris spring.
When the armored thread is tightened, the Iris spring is pressed against the shielding, thereby
creating a conductive connection between the shielding and the metal housing.
A junction box or a plug-in connection must be considered part of the shielding (Faraday
shield). This applies, in particular, to remote boxes if such boxes are connected to a
PROFIBUS® PA device via a plug-in cable. In such cases, you must use a metal connector
where the cable shielding is connected to the connector housing (e.g. preterminated cables).
1
2
1.4
1.1
1.2
1.3
1.5
M20x1.5 /
NPT 1/2”
SW/AF 26
D
A0021545
 9 Connectors for connection to the PROFIBUS® PA fieldbus
Pin assignment/color codes
1Fieldbus connector D 7/8" connector D M12 connector
2Field indicator 1.1 Brown wire: PA+ (terminal 1) 1.1 Gray wire: shield
1.2 Green-yellow wire: Grounding 1.2 Brown wire: PA+ (terminal 1)
1.3 Blue wire: PA- (terminal 2) 1.3 Blue wire: PA- (terminal 2)
1.4 Gray wire: shield 1.4 Green-yellow wire: Grounding
1.5 Positioning key 1.5 Positioning key

RID16 Electrical connection
Endress+Hauser 17
Connector technical data:
• Degree of protection IP 67 (NEMA 4x)
• Ambient temperature: –40 to +105 °C (–40 to +221 °F)
5.3 Ensuring the degree of protection
The devices fulfill the requirements for the IP 67 degree of protection. Compliance with the
following points is mandatory to ensure IP 67 protection is guaranteed after installation or
after service work:
• The housing seal must be clean and undamaged when inserted into the groove. The seal
should be cleaned, dried or replaced.
• The connecting cables must be of the specified outer diameter (e.g., M16 x 1.5, cable
diameter 5 to 10 mm (0.2 to 0.39 in)).
• Replace all unused cable entries with dummy plugs.
• The cable entry seal may not be removed from the cable entry.
• The housing cover and cable entry/entries must be closed securely.
• Install the device in such a way that the cable entries point downwards.
5.4 Post-connection check
After completing the device's electrical installation, carry out the following checks:
Device condition and specifications Notes
Are cables or the device damaged (visual inspection)? -
Electrical connection Notes
Does the supply voltage match the specifications on the nameplate? 9 to 32 VDC
Do the cables used meet the required specifications? Fieldbus cable, see
Operating Instructions
Do the cables have adequate strain relief? -
Are the power supply and signal cables correctly connected? →  14
Are all the screw terminals well tightened and have the connections of the spring
terminals been checked?
-
Are all the cable entries installed, tightened and sealed? Cable run with "water trap"? -
Are all housing covers installed and firmly tightened? -
Are all the connecting components (T-boxes, junction boxes, connectors, etc.) connected
with each other correctly?
-
Has each fieldbus segment been terminated at both ends with a bus terminator? -
Has the max. length of the fieldbus cable been observed in accordance with the fieldbus
specifications?
See cable specifications in
the Operating Instructions
Has the max. length of the spurs been observed in accordance with the fieldbus
specifications?
Is the fieldbus cable fully shielded (90%) and correctly grounded?

Operation options RID16
18 Endress+Hauser
6 Operation options
6.1 Overview of operation options
6.1.1 Display
1
2
3
1a
45
6
7
1b

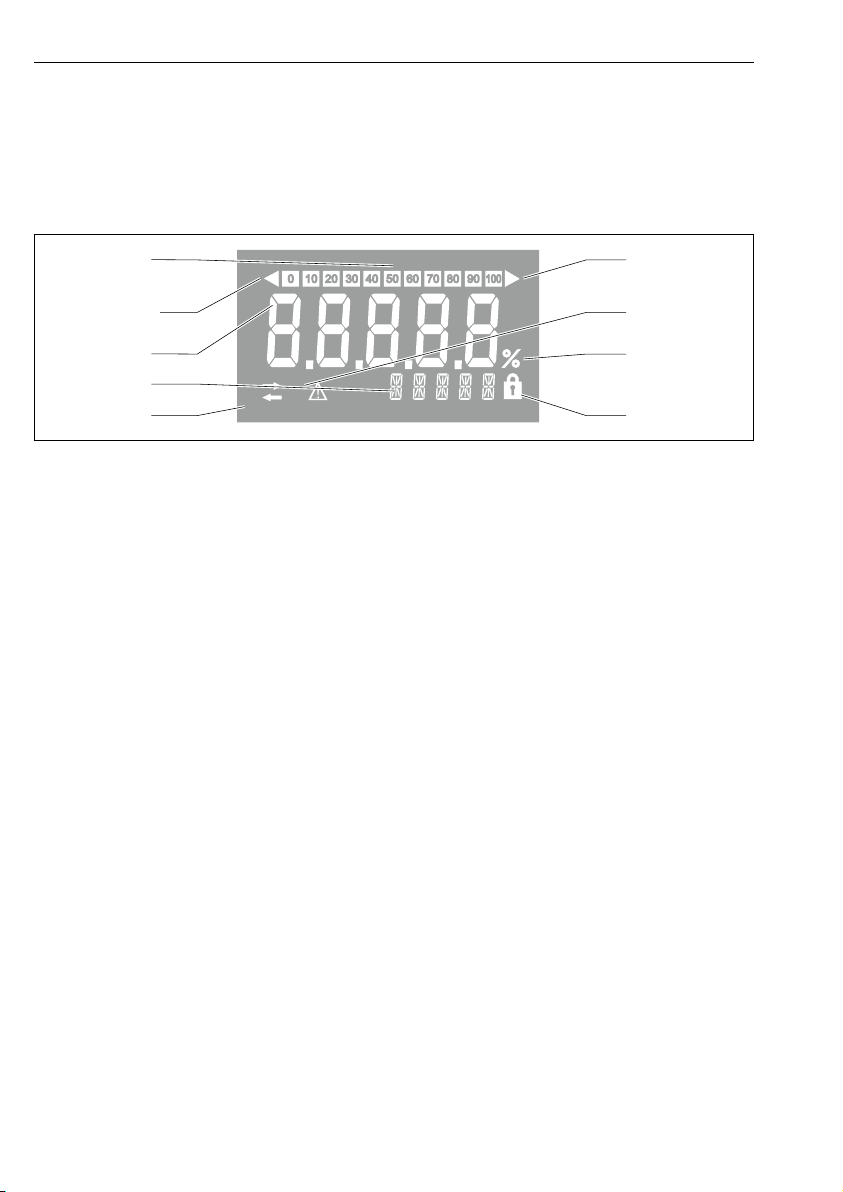

A0011309
 10 LC display of the field indicator
1 Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging
(item 1b)
2 Measured value display, status indication "Bad measured value status"
3 14-segment display for units and messages
4 "Communication" symbol
5 "Parameters cannot be modified" symbol
6 Unit "%"
7 "Uncertain measured value status" symbol
The backlit LCD display contains a bar graph (0-100) and arrows to indicate measured values
above or below the measuring range. Analog process values, digital status and failure codes
are displayed in the 7-segment area. Here up to 8 values can be displayed with an alternating
time of between 2 and 20 seconds. Plain text can be displayed in the 14-segment area (text is
limited to 16 characters and is scrolled if needed).
The indicator also displays the quality of the measured value. If the status of the displayed
value is 'good' (value equal to or above 0x80), no symbol is lit and the indicator remains in the
normal operational state. If the status of the displayed value is 'uncertain' (value between
0x40 and 0x7F), the 'Uncertain measured value status' symbol is lit. If the status is 'bad' (value
below 0x40), within the 7-segment area the display will show "BAD" and the channel number
where the bad value is published. The channel number is also displayed in the 14-segment
area.
6.1.2 Operation options
Two options are available to the operator for configuring and commissioning the device:
1. Configuration programs
Device-specific parameters are configured via the service interface (CDI). A special device
driver (DTM) for an FDT operating program (e.g., DeviceCare, FieldCare) is available for this
purpose →  20.

RID16 Operation options
Endress+Hauser 19
The DTM file is available for download: www.endress.com/download → Select device driver →
Type → Select product root.
2. Miniature switches (DIP switches) for various hardware settings
You can make the following hardware settings for the fieldbus interface using miniature
switches (DIP switches) on the electronics module →  20:
• Setting to specify whether operation is possible via DIP switches or remotely via the DTM
• Setting for the address of the bus users whose values are to be displayed
• Configuring an offset
1
2
3
A0021500
 11 Hardware configuration via DIP switches
1 ON switch position
2 OFF switch position
3 Write protection
Only 2 display values can be configured when operating via the DIP switches.
Listener mode
The field indicator acts solely as a listener, i.e. it does not appear in the bus as an active user
with its own address and it does not increase the traffic in the bus.
The field indicator analyzes the devices active on the bus. Via their addresses, these devices
can be assigned to up to 8 channels if DTM operation is used, or 2 channels in the case of
operation with DIP switches.
Operation via the PROFIBUS protocol is not possible given the sole listener function of
the indicator!

Operation options RID16
20 Endress+Hauser
6.2 Access to the operating menu via the operating tool
NOTICE
Loss of explosion protection when housing is open
‣The device must be configured outside the hazardous area.
To configure the device using the FieldCare Device Setup software, connect the device to your
PC. To do so, you require a special interface adapter, the Commubox FXA291 (see the
"Accessories" section in the Operating Instructions).
Insert the four-pin connector of the interface cable into the corresponding socket in the
device, insert the USB connector on the PC into a free USB slot.
You will find additional information on configuration via the PC configuration software in the
Operating Instructions.
No power should be supplied via the bus if configuring the PROFIBUS PA indicator with
the DTM via the CDI interface!
To ensure a connection to the device can be established, operation must be set to
"Remote" at the DIP switches. Furthermore, write protection, which can be enabled and
disabled via the DIP switches, must be disabled so that the parameters of the field
indicator can be modified via the DTM.
The DIP switches are described in the "Hardware settings" section →  20.
6.3 Hardware settings
Hardware write protection can be switched on and off via DIP switches inside the field
indicator. If write protection is enabled, no parameters can be changed.
The current write protection status is displayed in the "Locking status" parameter.
Proceed as follows to set the DIP switch:
1. Open the housing cover
2. Configure the DIP switch as required. Switch on ON = function switched on, switch on
OFF = function switched off.
3. Close the housing cover and secure it.
1
ON
OFF
A0021499
 12 Hardware configuration of the field indicator
