Endress+Hauser Cerabar T PMP 13 Manual

Technical Information
TI 372P/00/en Pressure Transducer
cerabar T PMP 135
Pressure transducer for hygienic processes
For absolute and gauge pressures up to 40 bar
Flush-mounted process connections with
metal diaphragm
Application
The Cerabar T PMP 135 is a pressure
transducer for hygienic applications, e.g.
in the food processing and pharmaceuti-
cal industries. It is designed for measu-
ring absolute and gauge pressures in
gases, vapours, liquids and dust.
•Finely graduated measuring ranges up
to 40 bar or 500 psi.
•Electronic versions:
– Analogue output 4...20 mA
– Switch output
– Approved for use in hazardous areas
Your benefits
This compact pressure transducer
impresses with its well-engineered
construction:
•Flush-mounted process connections
with metal diaphragm.
•Hygienic design as per 3A guidelines.
•Up to 4 times overload resistance and
extremely longterm stable.
•Optional with 3.1.B inspection certifi-
cate.
•Materials in contact with the process
only made of 316L stainless steel with a
surface quality Ra ≤0.8 µm.

Cerabar T PMP 135
2Endress+Hauser
Function and system design
Measuring principle PMP 135 with analogue output
The process pressure acting upon the metallic separating diaphragm of the sensor is transmitted
to a resistance bridge via a fluid. The change in the output voltage of the bridge is proportional to
the pressure and can be measured directly.
PMP 135 with switch output
The process pressure acting upon the metallic separating diaphragm of the sensor is transmitted
to a resistance bridge via a fluid. A differential amplifier creates a standard signal from the pres-
sure-proportional change in output voltage of the bridge. A comparator with an adjustable hyste-
resis compares this signal with the pre-set switch point and then activates the transistor output
and the LED display.
Measuring system Cerabar T PMP 135 pressure transducer with
•4…20 mA analogue output.
Power supply, e.g. with RN 221N transmitter power supply unit from Endress+Hauser
•Switch output.
Preferably in connection with programmable logic controllers (PLC). Positive signal at electro-
nics switch output (PNP).
P01-PMx13xxx-14-xx-xx-xx-001
A = analogue output with transmitter power supply unit ➀
B = switch output with load ➁, e.g. PLC, DCS, relay
Input
Measured variable The measured variable for the Cerabar T PMP 135 pressure transducer can be selected as either
gauge pressure or absolute pressure.
Measuring range Measuring ranges up to 40 bar or 500 psi, see "Ordering information" section.
Output
Analogue output
Output signal 4...20 mA
Load RB≤(US-12 V) / 0.02 A (US= power supply)

Cerabar T PMP 135
Endress+Hauser 3
Switch output
Output signal Positive voltage signal (rate depends on power supply voltage) at electronics switch output
(PNP).
Output current Switch status ON: Ia≤500 mA
Switch status OFF: Ia≤1 mA
Power max. 6 W
Switch frequency max. 10 Hz
Input PLC Input resistance Ri≤2 kΩ
Input current Ii≥10 mA
Inductive loads To prevent electrical interference, only operate an inductive load (relays, contactors, solenoid val-
ves) when directly connected to a protective circuit (free-wheeling diode or capacitor).
Power supply
Cable entry
P01-PMx13xxx-04-xx-xx-xx-001

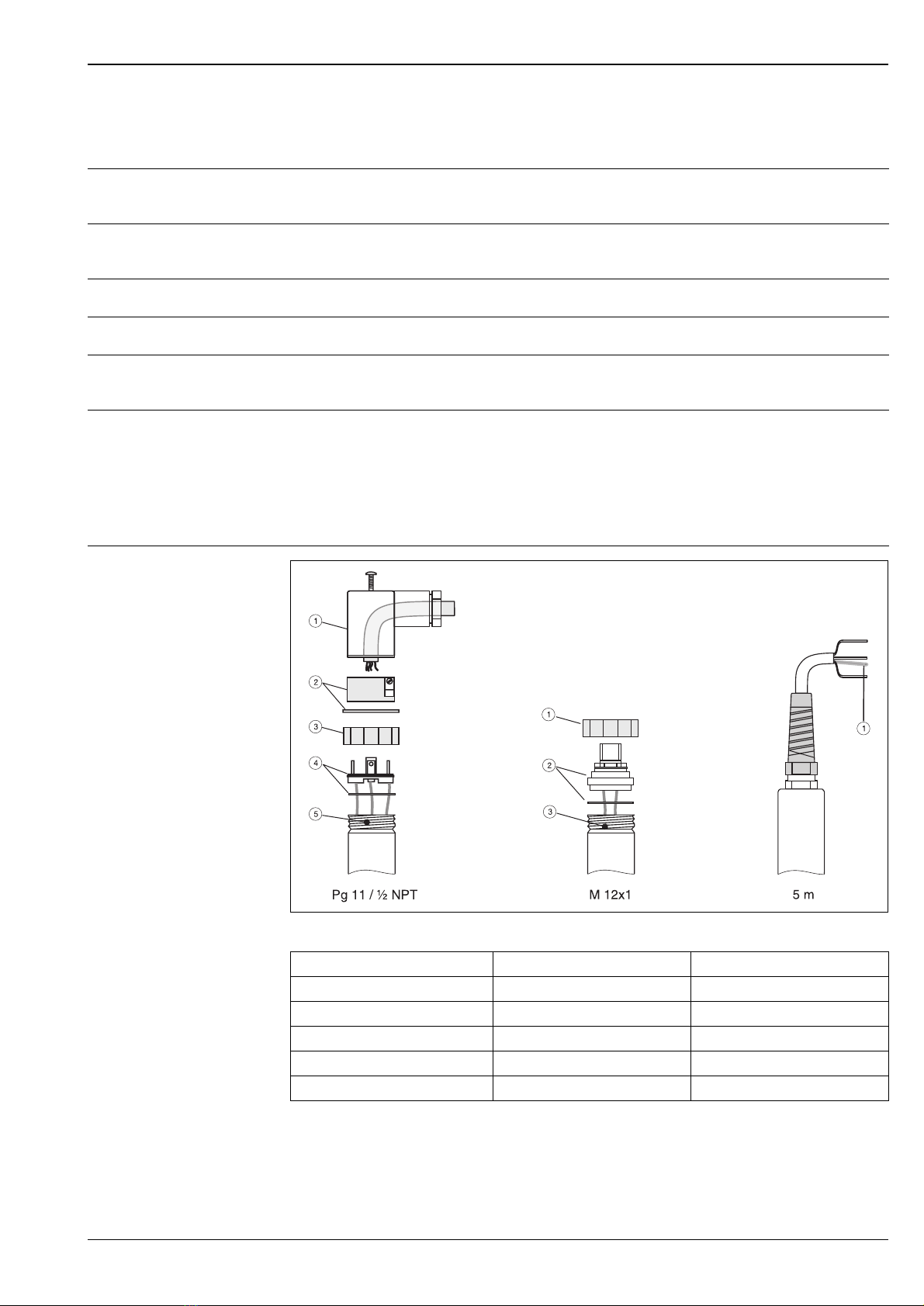

Plug with Pg 11 or ½ NPT gland M 12x1 plug 5 m cable, only analogue output
➀Plug-in housing ➀Coupling nut ➀Reference pressure line
➁Plug-in jack with gasket ➁Connector with gasket
➂Coupling nut ➂Operating potentiometer (inner)
➃Plug with O-ring
➄Operating potentiometer (inner)

Cerabar T PMP 135
4Endress+Hauser
Analogue output
Electrical connection
P01-PMx13xxx-04-xx-xx-xx-002
➀Plug with Pg 11 or ½ NPT gland
➁M 12x1 plug
➂Cable (rd = red, wh = white, gn = green)
Supply voltage 12...30 V DC
Ex i: no-load voltage ≤26 V DC, short-circuit current ≤100 mA, power consumption ≤0.8 W
Residual ripple max. 5 %
Cable entry Plug with Pg 11 or NPT ½gland, M 12x1 plug or cable
Switch output
Electrical connection
P01-PMx13xxx-04-xx-xx-xx-003
➀Plug with Pg 11 or ½NPT gland
➁M 12x1 plug
R: external load, e.g. relay, programmable logic controller, distributed control system

Cerabar T PMP 135
Endress+Hauser 5
Supply voltage 18...32 V DC
Current consumption without load < 20 mA, with reverse polarity protection
Residual ripple max. 10 %
Cable entry Plug with Pg 11 or ½NPT gland or M 12x1 plug
Performance characteristics
The percentages in the "Performance characteristic" section refer to the measuring range.
Reference operating
conditions
as per DIN IEC 60770, T = 25 °C
Analogue output
non-linearity
≤0.5 %
including hysteresis and non-reproducibility (limit point method as per DIN IEC 60770)
Switch point
deviation
≤1 %
Switch point
non-reproducibility
≤0.5 %
Settling time 2...5 ms
Long-term drift ≤0.15 % per year
Influence of temperature •Zero: typical 0.2 %/10K, max. 0.5 %/10K. Values are 0.1 %/10 K higher for measuring spans
≤6bar.
•Span: typical 0.2 %/10 K, max. 0.5 %/10 K
•Switch point: typical 0.2 %/10 K, max. 0.5 %/10K
Operating conditions: Installation instructions
Mounting location anywhere
Location dependence Location-dependent zero shift can be corrected using potentiometer adjustment.
Operating conditions: Environment
Ambient temperature
range
–25...+70 °C
Ex i: –25...+65 °C
Storage temperature –40...+85 °C
Climate class 4 Z
with Z = 70 °C as per VDI/VDE 3540

Cerabar T PMP 135
6Endress+Hauser
Degree of protection •with plug with Pg 11 or ½NPT gland: IP 65
•with M 12x1 plug when using gauge pressure sensors: IP 65
with M 12x1 plug when using absolute pressure sensors: IP 68 (1 m water column)
•with cable: IP 68 (1 m water column)
Vibration resistance 4M5 as per DIN EN 60721-3
Electromagnetic
compatibility
Interference emission as per EN 61326 electrical device B,
Interference immunity as per EN 61326 appendix A (industrial use) and NAMUR recommendation
NE 21.
Operating conditions: Process
Medium temperature –25...+100 °C (+135 °C for max. 1 hour)
Limiting medium pressure
range
–For overload resistance see "Ordering information" section
–Vacuum resistance up to 10 mbarabs
Mechanical construction
Design, dimensions
P01-PMP13xxx-06-xx-xx-xx-002
A = height dimension of process connections (see following section)
(all dimensions in mm / 25.4 mm = 1 in)
•Plug version with Pg 11 or ½NPT gland as per DIN 43650A/ISO 4400
•M 12x1 plug version
•Cable version, cable length of 5 m with cable outer diameter of 5.8 mm; wires 4 x 0.22 mm2;
reference pressure hose with outer diameter of 2 mm

Cerabar T PMP 135
Endress+Hauser 7
Process connections
P01-PMP135xx-06-xx-xx-xx-001
➀Clamp ½"...¾" (ISO 2852) or DN 10...DN 20 (DIN 32676)
➁Clamp 1"...1½" (ISO 2852) or DN 25...DN 40 (DIN 32676)
➂Clamp 2" (ISO 2852) or DN 50 (DIN 32676)
➃G 1A (ISO 228), with metallic sealing taper
➄G 1A (ISO 228), with sealing surface for flush-mounted installation
➅SMS 1½"
M = diaphragm diameter of 17.2 mm
* Height dimension A (see previous section)
(all dimensions in mm / 25.4 mm = 1 in)
Material •Process connection and diaphragm: AISI 316L
Surfaces in contact with the process with surface quality Ra ≤0.8 µm
•Transducer housing: AISI 304
•Plug: polyamide (PA)
•Cable outer covering: polyurethane (PUR)
•Fill fluid: Neobee M20 (FDA-no. 21CFR172.856)

Cerabar T PMP 135
8Endress+Hauser
Human interface
Operating elements Position of operating elements
Analogue output: Zero point adjustment
The zero point can be corrected for the Cerabar T with analogue output and plug version.
P01-PMx13xx-19-xx-xx-xx-002
➀Potentiometer for zero point correction by ±5 % of the measuring range
Switch output: Switch point and hysteresis adjustment
For the Cerabar T with switch output, both the switch point and hysteresis can be adjusted. This
can also be carried out at atmospheric pressure using the enclosed test cable and a voltmeter.
P01-PMx13xxx-19-xx-xx-xx-002
➀Hysteresis adjustment 1.5...20 %; Factory setting 10 %
➁Switch point adjustment 0...100 %; Factory setting 50 %
➂LED colour code for checking the switch status: green = off; red = on
➃Connect voltmeter to test pins: 0...1 V corresponds to 0...100 %
–The percentages refer to the measuring range.
The potentiometer for operating the
Cerabar T with analogue or switch output is
located below the base of the plug.
P01-PMx13xxx-19-xx-xx-xx-003

Cerabar T PMP 135
Endress+Hauser 9
P01-PMP13xxx-05-xx-xx-en-001

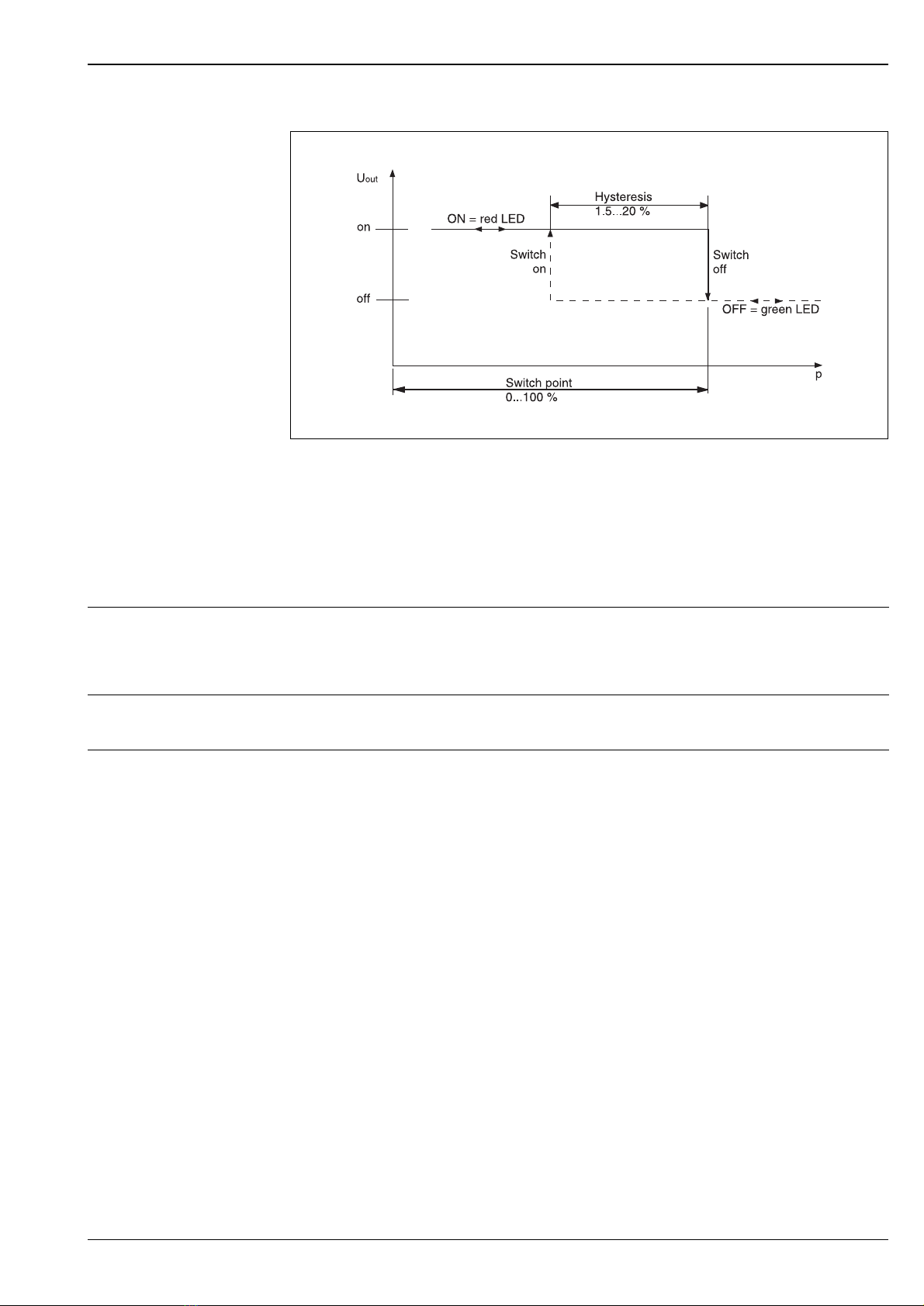

Instructions for switch point and hysteresis
Uout = output voltage
p = acting pressure
–The percentages refer to the measuring range.
Certificates and approvals
Ex approval •ATEX II 1/2 G EEx ib IIC T6
•ATEX II 2 G EEx ib IIC T6
•ATEX II 3 G EEx nA II T6
CE mark The device meets the legal requirements of the EC directives. Endress+Hauser confirms that the
device has been successfully tested by applying the CE mark.
Pressure equipment
directive
This device conforms to Article 3 (3) of EC Directive 97/23/EC (pressure equipment directive) and
is developed and produced in sound engineering practice.

Cerabar T PMP 135
10 Endress+Hauser
Ordering information
Cerabar T PMP 135 10 Electrical connection
A1 Plug with Pg 11 gland, IP 65
A2 Plug with ½NPT gland, IP 65
A3 M12x1 plug, IP 65/IP 68
A4 Cable, 5 m, IP 68
99 Special version
20 Process connection
F Clamp ½"...¾", DN 10...20, PN 40
G Clamp 1"...1½", DN 25...40, PN 40
H Clamp 2", DN 50, PN 40
M G 1A, with metallic sealing taper, PN 40
N G 1A, with sealing surface for flush-mounted installation, PN40
SSMS1½", PN 40
Y Special version
30 Output signal, certificate
0 Analogue 4...20 mA, 2-wire
D Analogue 4...20 mA, ATEX II 1/2 G EEx ib IIC T6
1 Analogue 4...20 mA, ATEX II 2 G EEx ib IIC T6
5 Analogue 4...20 mA, ATEX II 3 G EEx nA II T6
2 Switch output PNP, 3-wire
3 Switch output PNP, ATEX II 3 G EEx nA II T6
9 Special version
40 Additional equipment
1 Without additional equipment
C Inspection certificate 3.1.B as per EN 10204
2 Linearity protocol
Y Special equipment
50 Measuring range, unit, pressure type
Gauge pressure Permitted overload
A1G 0...1 bar / 0...100 kPa 4 bar
A1H 0...1.6 bar / 0...160 kPa 6.4 bar
A1N 0...2.5 bar / 0...25 kPa 10 bar
A1Q 0...4 bar / 0...400 kPa 16 bar
A1R 0...6 bar / 0...600 kPa 24 bar
A1S 0...10 bar / 0...1000 kPa 40 bar
A1T 0...16 bar / 0...1600 kPa 64 bar
A1W 0...25 bar / 0...2500 kPa 100 bar
A1X 0...40 bar * / 0...4000 kPa * 160 bar
Q4H 0...15 psi 60 psi
Q4K 0...30 psi 150 psi
Q4N 0...50 psi 240 psi
Q4R 0...150 psi 600 psi
Q4S 0...300 psi 1500 psi
Q4T 0...500 psi * (* absolute pressure sensor) 2400 psi
Absolute pressure Permitted overload
A2G 0...1 bar / 0...100 kPa 4 bar
A2H 0...1.6 bar / 0...160 kPa 6.4 bar
A2N 0...2.5 bar / 0...250 kPa 10 bar
A2Q 0...4 bar / 0...400 kPa 16 bar
A2R 0...6 bar / 0...600 kPa 24 bar
A2S 0...10 bar / 0...1000 kPa 40 bar
A2T 0...16 bar / 0...1600 kPa 64 bar
A2W 0...25 bar / 0...2500 kPa 100 bar
A2X 0...40 bar / 0...4000 kPa 160 bar
R4H 0...15 psi 60 psi
R4K 0...30 psi 150 psi
R4N 0...50 psi 240 psi
R4R 0...150 psi 600 psi
R4S 0...300 psi 1500 psi
R4T 0...500 psi 2400 psi
PMP 135 -

Cerabar T PMP 135
Endress+Hauser 11
Accessories

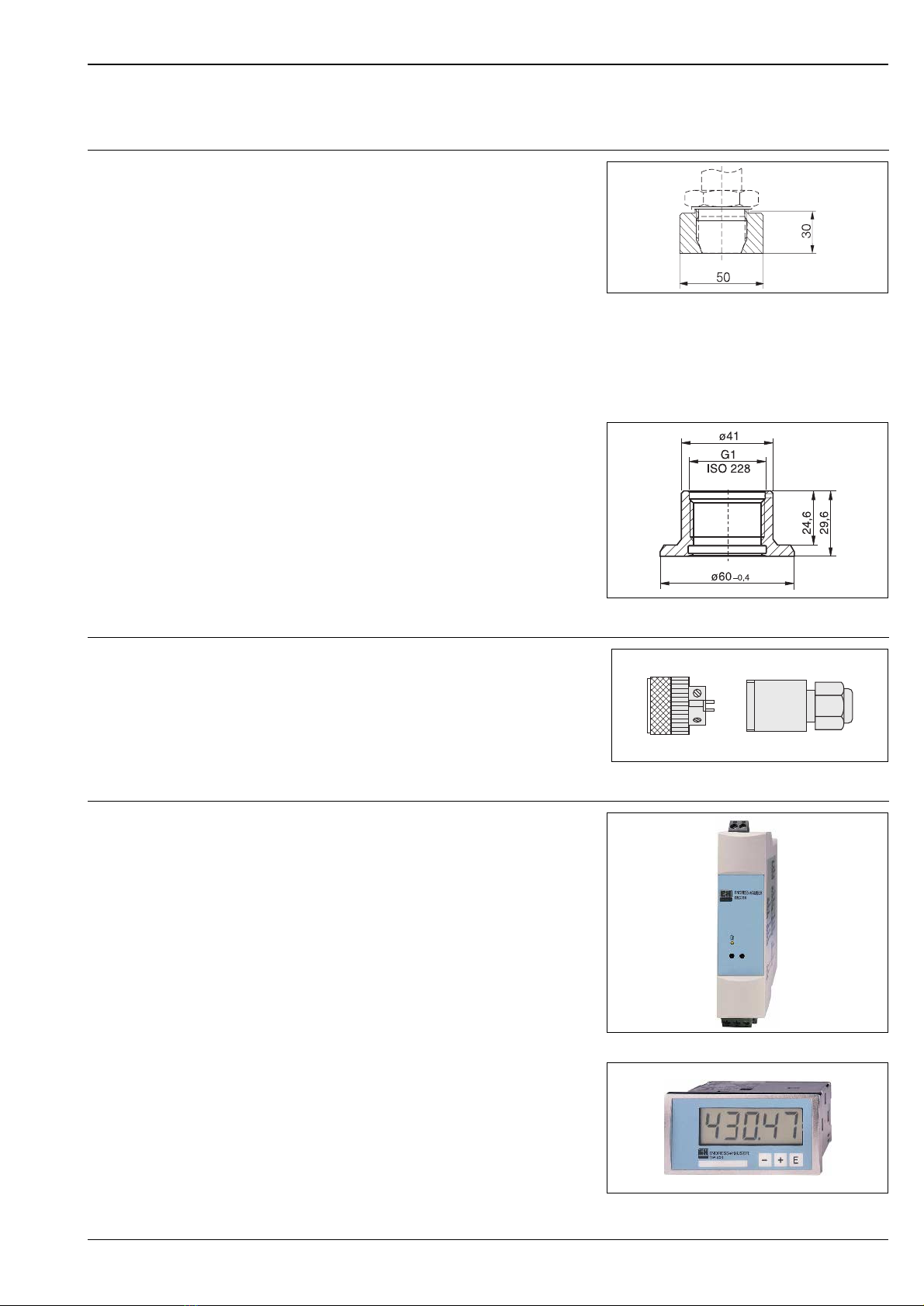

Welding bosses
Plug-in jack
Devices
•Welding boss for flush-mounted installation
of G1 A process connection with metallic
sealing taper (version M)
Material: AISI 316L
Order number: 52005087
•Optional with inspection certificate 3.1.B
Order number: 52010171
P01-PMP135xx-00-xx-00-xx-001
•Welding aid (dummy) for welding the welding
boss with order number 52005087 or
52010171 without any problems
Material: brass
Order number: 52005272
•Welding boss for flush-mounted installation
of G1 A process connection with sealing sur-
face (version N)
Material: AISI 316L
Gasket (enclosed): silicone O-ring
Order number: 52001051
•Optional with inspection certificate 3.1.B
Order number: 52011196
P01-PMP13xxx-00-xx-00-xx-002
•M 12x1 plug-in jack
Self-made connection to M 12x1 housing
plug
Order number: 52006263
P01-PMP13xxx-00-xx-00-xx-003
•RN 221N transmitter power supply unit
For safe galvanic isolation of the 4...20 mA
analogue signal and for supplying the Cera-
bar T with power.
P01-RN221xx-10-06-00-xx-001
•RIA 251 process display unit
Digital display unit for displaying the ana-
logue signal by looping into the 4...20 mA
current loop.
P01-RIA251xx-10-06-00-xx-001

Cerabar T PMP 135
Documentation
System information Cerabar T, the compact pressure transducer.
SI 035P/00/en
Technical Information Further technical information about the Cerabar T:
Cerabar T PMP 131, pressure transducer with polysilicon sensor
TI 291P/00/en
Cerabar T PMC 131, pressure transducer with capacitive ceramic sensor
TI 279P/00/en
Operating Instructions Cerabar T PMP 135, pressure transducer for hygienic processes
KA 198P/00/a6
Safety Instructions Safety Instructions for electrical devices for hazardous areas.
Cerabar T PMP 135, ATEX II1/2 G EEx ib II C T6 certificate and
Cerabar T PMP 135, ATEX II 2 G EEx ib II C T6 certificate
XA 142P/00/a3
Cerabar T PMP 135, ATEX II 3 G EEx nA II T6 certificate
XA 191P/00/a3
Endress+Hauser GmbH+Co.
Instruments International
P.O. Box 2222
D-79574 Weil am Rhein
Germany
Tel. [phone]
Tx 773926
Fax [phone]
e-mail: [e-mail]
Internet:
http://www.endress.com
11.01
TI 372P/00/en/08.02
SL/FM+SGML6.0 ProMoDo
