RCB1200 SERIES OVERVIEW
The RCB1200 is a modular configurable switching mode power supply offering an extreme flexibility, high efficiency, sophisticated control
functions and an industry leading power density exceeding 20 W/in3. In fact, the RCB1200 is capable of a total 1200 W of continuous output power
in a (6.05 x 6.09 x 1.61) in package.
This power supply is an effective power solutions for all system designers as they address the pressing demands for more power within less space,
higher efficiency, sophisticated control features and wider flexibility.
The basic system consists of two independent input sections each of them providing 600 W of continuous power to their respective output
sections. Each output section consist of four slots where can be plugged a 150 W fully isolated output module.
Each section offers, as a standard, a +5 V, 200 mA isolated bias supply, an AC mains signal (AC_OK), an individual and a global inhibit signal (INH or
GINH) through which each single or all output modules simultaneously can be enabled or disabled.
Output modules are currently available in single output voltage types with models voltage ranges covering from 1.5 V to 58 V and currents up to 25
A. All outputs can be connected in parallel or in a series resulting in a voltage range of up to 232 V and a maximum current of up to 100 A, from a
single section of the power supply.
All modules are supplied with advanced voltage and current control functions, sense signals and a regulated +5 V bias supply capable of 20 mA, as
a standard.
The RCB1200 cooling is provided by two built in fans, which speed is independently and automatically controlled by the corresponding input
section of the power unit. This system ensures the unit proper cooling in any operating condition maintaining at minimum fan’s RPM and, in turn,
acoustic noise.
The RCB1200 carries IEC/EN/UL 60950-1 andf 62368-1 safety approvals and comply with EN61000-3, EN61000-4 and EN55032 class B EMC
standards, making it suitable for all types of industrial and telecoms applications.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 2/30 UM_RCB1200 Series_Rev01, Aug 2020
CONTENTS
RCB1200 OVERVIEW 1
CONFIGURATIONS AND ORDERING INFORMATION 3
INSTALLATION NOTES 4
THEORY OF OPERATION 5
INPUT MODULE OPERATION 6
SIGNALS 9
OUTPUT MODULE OPERATION 11
ADVANCED OUTPUT MODULE FEATURES 14
OUTPUT MODULES IN SERIES 16
OUTPUT IN PARALLEL CONFIGURATION 17
MECHANICAL – DIMENSIONS AND MOUNTING 21
MECHANICAL – CONNECTORS AND PINS ASSIGNMENT 22
CONFIGURING YOUR POWER SUPPLY 23
SAFETY 28
EMC COMPLIANCE 29
RELIABILITY 30

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 3/30 UM_RCB1200 Series_Rev01, Aug 2020
CONFIGURATIONS AND ORDERING INFORMATION

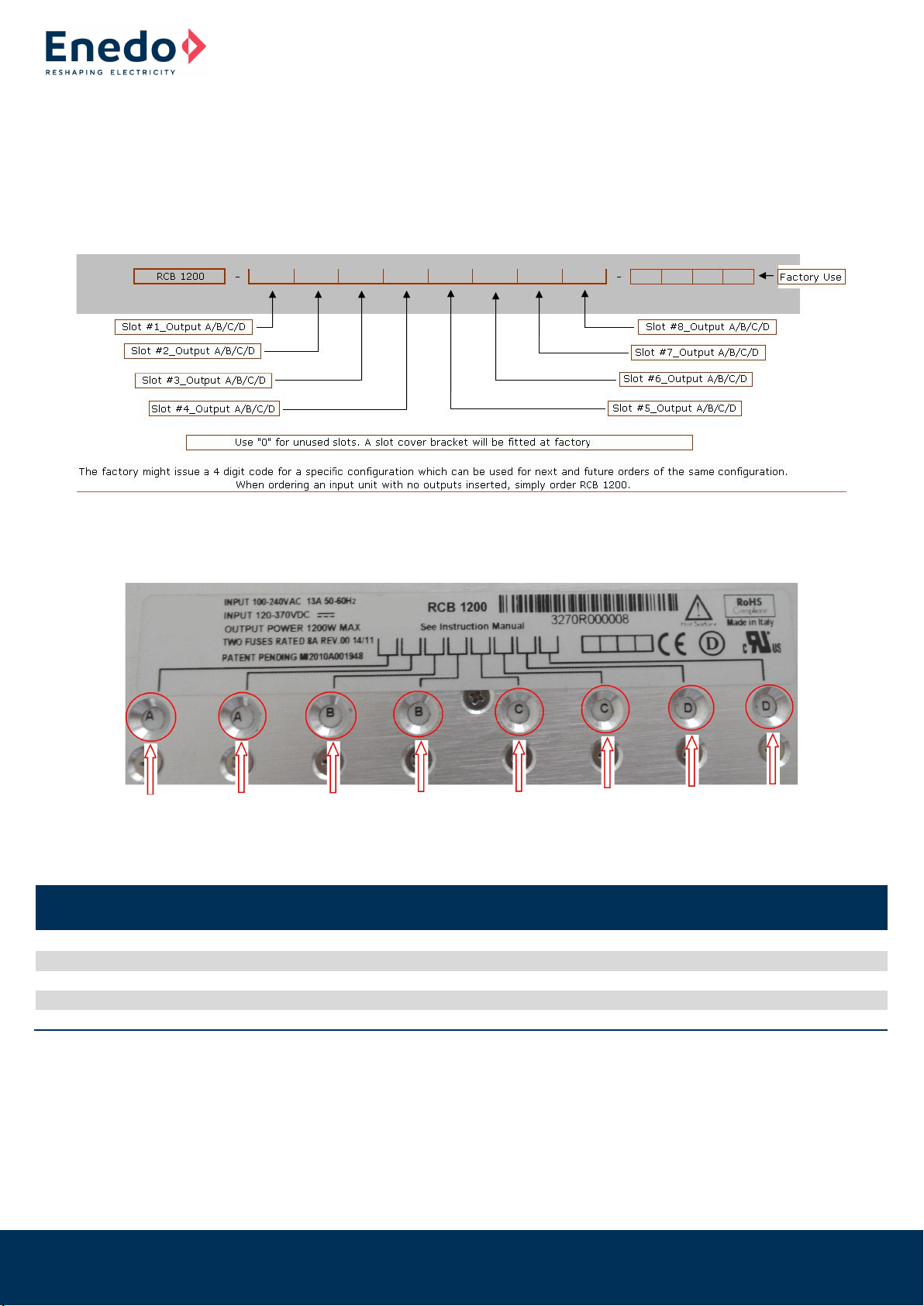

The RCB1200 part numbering system is easily comprehensible following the scheme here below.
A power unit part number can also be easily accessed through the descriptive label placed on its top surface (see picture below). Simply add to the unit part number
the letters visible through the lid holes following the order indicated by the lines. Each letter identifies the selected output module fitted in the correspondent slot.
The following table contains all the characteristic parameters of each Output Module, OP-x, and is a useful guide in identifying the optimal configuration for every
application.
Output
Module
Nominal
Voltage
Rated
current
Voltage
Adjustment
Load
Regulation
Line
Regulation OVP Output Power
A 5 V 25.0 A 1.5 to 7.5 V ±50 mV ±0.1 %VNOM 9.5 V 125 W
B 12 V 15 A 4.5 to 15 V ±100 mV ±0.1 %VNOM 18 V 150 W
C 24 V 7.5 A 9 to 30 V ±150 mV ±0.1 %VNOM 36 V 150 W
D 48 V 3.75 A 18 to 58 V ±300 mV ±0.1 %VNOM 66 V 150 W
0 (zero) Unused slots
Example: for an RCB1200 with 4.5 V at 50 A (2x OP-A in parallel, slots #1,2); 12 V at 25 A (2X OP-B in parallel, slots#3,4); 24 V at 12.5 A (2x OP-C in parallel, slots# 5,6);
100 V at 3 A (2x OP-D in series, slots# 7,8); use “RCB1200-AABBCCDD”.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 4/30 UM_RCB1200 Series_Rev01, Aug 2020
INSTALLATION NOTES
This power supply is intended for use within equipment or enclosures which restricts access to authorised personnel only. The instructions in this
manual and all warning labels on the product must be followed carefully.
Safety
All power supplies must be installed correctly in a controlled environment which restricts access to any unauthorised personnel. Equipment and
system manufacturers must protect service personnel against unintentional contact with the output terminals.
Hazards
If series and/or parallel combinations of outputs exceed safe voltage and/or energy levels, the final equipment manufacturer must provide
appropriate protection for both users and service personnel.
Health and safety
To comply with section 6 of the health and safety at work act, a label that is clearly visible to service personnel must be placed on the final
equipment, which warns that surfaces of the power supply may be hot and should not be touched when the product is operating.
Fusing
The power supply has two internal single pole fusing, one on each of the input section L (Line).
Servicing
The power supply contains no user serviceable parts. Repairs must be carried out by authorized personnel only. Contact ENEDO SpA for further
information.
Cooling
For proper cooling of the power supply, the air intake and outlet must not be impeded. Allow 50 mm clearance at both ends and position cabling
appropriately. Avoid excessive back pressure in the general system or when using ducting to navigate hot air out of the system.
Earth terminal marking
To comply with the requirements of UL/EN/IEC 60950-1, CSA22.2 no. 60950-1, UL/EN/IEC 62368-1 where the incoming wiring earth is intended for
connection as the main protective earthing conductor and where the terminals for such a connection is not supplied on a component or
subassembly such as a terminal block, the user shall add an appropriate label displaying a protective earth symbol in accordance with 60417-2-IEC-
5019 directly adjacent to the terminal. The label should be durable and legible and should withstand the 15s rub test as per UL60950-1 section
1.7.15.
Mounting
Mounting the unit can be done using the bottom or side mounting points. Each mounting point accepts an M4 screw where the maximum
penetration, inclusive of 1.75 mm chassis thickness, should never exceed 4.00 mm. The maximum torque for the M4 screws is 1.50 Nm.
Other
• To prolong the life of the unit, use in dust free environment.
• If units are damaged during transit, contact your sales agent or ENEDO and DO NOT apply power to the unit.
• Always use adequately sized cables and ensure good crimp connections.
• Use cable supports to minimise stress on connectors.
• Avoid excessive shock or vibration.
General installation parameters
• Equipment class I
• Installation category II
• Pollution degree 2
• Material group IIIb (Indoor use only)
• Flammability rating 94V-2
• IP rating IP10
• Altitude of operation 4600 m
• RoHS compliance 2015/863/EU

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 5/30 UM_RCB1200 Series_Rev01, Aug 2020
THEORY OF OPERATION
The diagram below outlines the topology and major internal components of a fully assembled system. The system consists of two independent
sections, each of them provides four output slots which can be populated by any combination of output modules (OP-A, OP-B, OP-C, OP-D). The
remaining components in the block diagram are housed in the input stage of each section.
Both the input stages are responsible for receiving the AC mains line voltage and converting it to an appropriate DC voltage whilst providing
protection from AC line disturbances and preventing excessive EMI emissions and current harmonics. The integrated EMI filters attenuate high
frequency current emissions to levels below EN55032 class B. They also provide single pole fusing in the live conductor (L) and protection from line
disturbances as outlined in EN61000.
The power unit inrush current is controlled by a resistive element present on each input section upon initial connection to the AC line. Once the
internal capacitances have been charged, the resistive elements are bypassed to reduce losses.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 6/30 UM_RCB1200 Series_Rev01, Aug 2020
Both the input stages are provided with an Active Power Factor Correction (PFC) to ensure an accurate power unit input current waveform with
extremely low harmonic content, exceeding the requirements of EN61000-3-2. These stages also provide active input current limiting which
prevents overloading of each input stage while maintaining high power factor.
The output of the two PFC stages charge their respective hold-up electrolytic capacitors which store enough energy to allow the system to
continue operating during minor line disturbances. These are the only electrolytic capacitors in the entire power supply and to further increase
system reliability, long life and high temperature capacitors are used.
Highly efficient zero voltage switching circuits (ZVS) are used to drive the medically isolated transformers from the hold-up capacitors. The output
modules of each section connect to their respective transformer secondary and provide safe isolated power to a high performance synchronous
rectifier power converter which is controlled using the latest analog control technology to produce superior output performance in an extremely
reduced size.
Two built in fans, which speed is automatically controlled, ensure the unit proper cooling in any operating condition maintaining at minimum its
RPM and, in turn, acoustic noise. The control function directly correlates each fan supply voltage to the control voltage derived from the respective
half bridge current sense resistor. The secondary control input is derived from non-linear temperature sensors located near the rectifiers on each
input section.
INPUT MODULE OPERATION
Start-up and shut-down
The following description refers to each of the RCB1200 power supply primary section and its relative output modules, unless it is explicitly stated
otherwise.
Each input module operates from a universal input voltage range and start automatically upon application of adequate AC mains voltage (>84
VRMS). After a short delay, the global “+5V bias” supply starts and the “ACOK” signal goes high to indicate that the mains voltage is present and
input stage is operating correctly. Once the “ACOK” signal is high, the output modules turn on and deliver power to the application loads. The
“Power Good” signals will indicate that the output voltages are within specification. The diagram below shows the normal start-up / shut-down
sequence and gives typical timings.
Typical timing values: t1 = 300 ms, t2 = 50 ms, t3 = 25 ms, t4 = 15 ms, t5 = 5 ms (minimum), t6 = 100 ms
When the AC mains voltage is removed, the internal hold-up capacitors will supply power to the load for typically 20 ms (t4+t5) at maximum power.
The “ACOK” signal will go low at least 5 ms before the output voltages fall below the power good threshold level (t5). This allows the application to
prepare for the impending loss of power. The “+5V bias” supply will remain on for typically 100 ms, after the output modules have turned off.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 7/30 UM_RCB1200 Series_Rev01, Aug 2020
Hold-up
For short line disturbances (<20 ms), the output voltages will not be affected*. However, the “ACOK” signal may still go low to warn that there is an
impending loss of output power. The “ACOK” signal will return to the high state once the unit has recovered from the disturbance.
*Outputs that are adjusted above the hold-up voltage as detailed in their respective datasheets, may experience a dip in voltage but never below the hold-up voltage
specified.
Idle power
The idle power of the RCB1200 PSU is determined by both the input stages of each section and the input stage of each assembled output modules.
In the worst case where all modules are connected and enabled, the unit typically requires 56 W with no output load.
To reduce the idle power, the output modules can be disabled using the global inhibit (GINH) pin in each connector of their correspondent section.
With all the outputs disabled, the unit typically requires less than 42 W.
Over temperature protection (OTP)
Each of the RCB1200 input stages is protected from excessive temperature by means of various internal sensors. In case the temperature limit is
exceeded in one section or both, the same section or both may latch off, with no “ACOK” warning. To re-enable the whole unit operations, the AC
mains must be disconnected for approximately 2 minutes.
Power De-rating
The RCB1200 power supply must always be operated within its stated operating limits. Equipment manufacturers and other users must take
appropriate de-ratings into account at all times when specifying a unit for the intended application. If in doubt, contact your sales representative
or ENEDO for assistance.
There are two main de-ratings for the RCB1200 power supplies, environment temperature and input line voltage. Temperature de-ratings apply to
both input and output stages, while line de-ratings apply only to the input stages.
For temperature, the de-rating for both input and output stages is 2.5% (of maximum rated power) per degree Celsius above 50 °C. While, for input
line voltage, the de-rating for the input stages only is 0.83% (of maximum rated power) per Volt below 120 VRMS. These de-ratings can be calculated
using the following conditional equations;

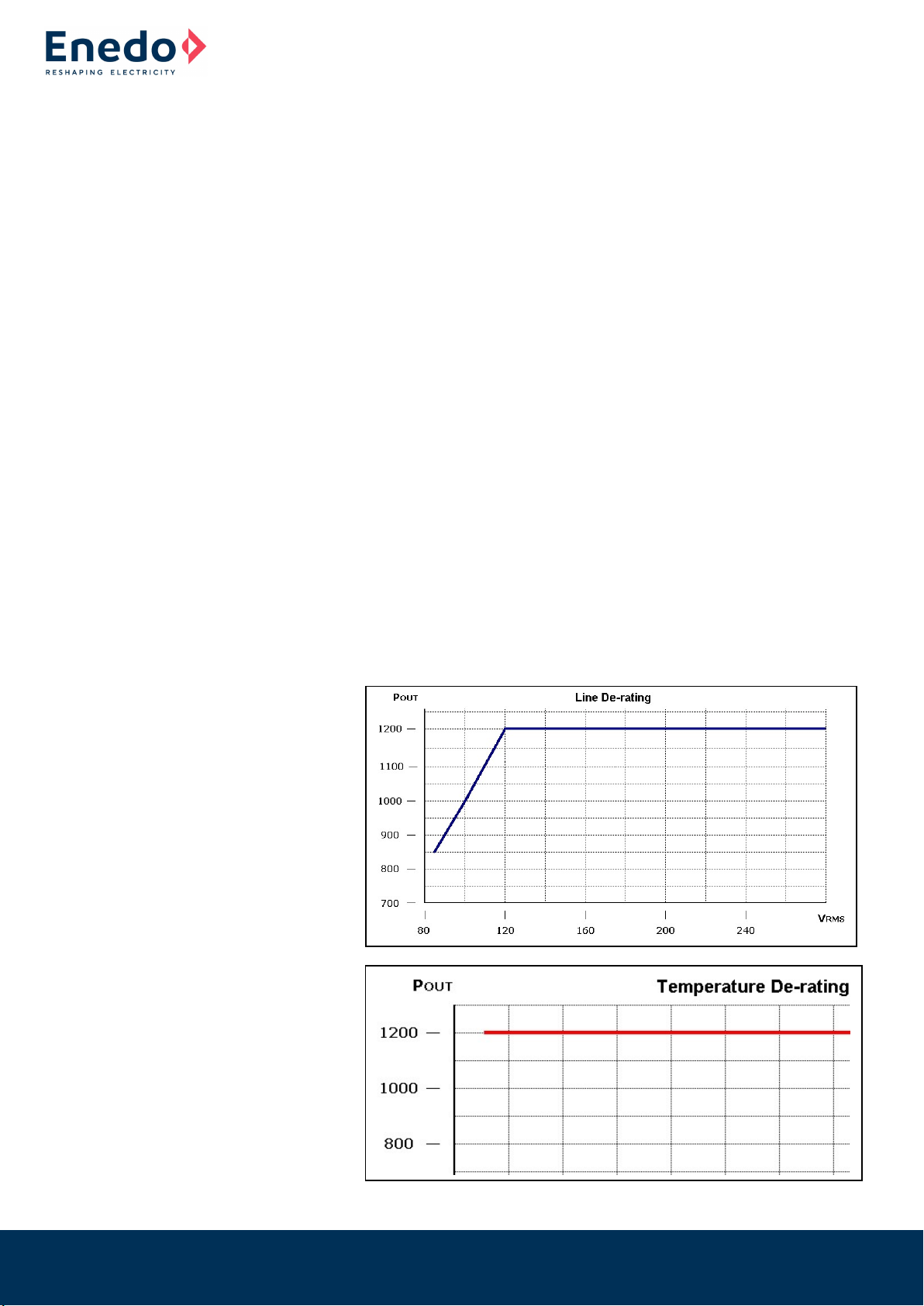

Equation for line de-rating:
If Vin < 120 VRMS,
Pout = Prated * Line de-rating factor
= Prated * (1- (0.0083 * (120 - Vin))
Otherwise,
Pout = Prated
Equation for temperature de-rating:
If temp > 50 °C,
Pout = Prated * Temp de-rating factor
= Prated * (1 - (Temp - 50) * 0.025)
Otherwise,
Pout = Prated

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 8/30 UM_RCB1200 Series_Rev01, Aug 2020
Depending on the application conditions, one or both of the de-ratings may apply. Where both apply, the de-rating factors given above can be
multiplied together to obtain the total derating factor.
Example: what are the RCB1200 input and output module de-ratings at 60 °C at 100 VRMS line?
Input power rating = Prated * Line de-rating factor * Temp de-rating factor
Output power rating = Prated * Temp de-rating factor
Line derating factor = (1-(0.0083*(120-Vin)) = (1-(0.0083*(120-100)) = 0.83
Temperature de-rating factor = (1-(Temp-50)*0.025) = (1-(60-50)*0.025) = 0.75
Input power rating = 1200*0.83*0.75 = 747 W = 373.5 W available in each section.
Output B/C/D power rating = 150*0.75 = 112.5 W
Output A power rating = 125*0.75 = 93.75 W
Efficiency
The efficiency of the whole RCB1200 power supply is determined by the efficiency of each of its sections which, in turn, is dependent on several
parameters such as input voltage, load level and on the combination of output modules. The plots below show typical efficiencies of one section of
the power unit over the full line voltage and load range and fitted with four of each type of output module, equally loaded.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 9/30 UM_RCB1200 Series_Rev01, Aug 2020
An estimate of the efficiency for any particular system may be obtained from these graphs using the procedure outlined in the example below.
Example: Estimate the efficiency of an RCB1200-AABCDDDD, at 160 VRMS input, 100 W load on each output of the first section and 140 W on each
output of the second section.
1. Define load efficiencies for each output module at specified load and 220 VRMS.
2. Define change in efficiency from 220 VRMS to 160 VRMS for each output module.
3. Sum the values from step one and two for each output module.
4. Calculate the average efficiency for the total system.
Step Details Slot 1
OP-A
Slot 2
OP-A
Slot 3
OP-B
Slot 4
OP-C
Slot 5
OP-D
Slot 6
OP-D
Slot 7
OP-D
Slot 8
OP-D
1 Є220 (Load chart) 0.85 0.85 0.88 0.88 0.89 0.89 0.89 0.89
2 ∆Є(220-160) (Line chart) -0.01 -0.01 -0.01 -0.01 -0.01 -0.01 -0.01 -0.01
3 Єx = Є220 + ∆Є(220-160) 0.84 0.84 0.87 0.87 0.88 0.88 0.88 0.88
4 ЄAVE = (Є1 + Є2 + Є3 + Є4 + … + Є8)/8 0.867
SIGNALS
To reduce cabling in the end system, all major input and output signals and the global +5V bias supply of each section of the power supply, are

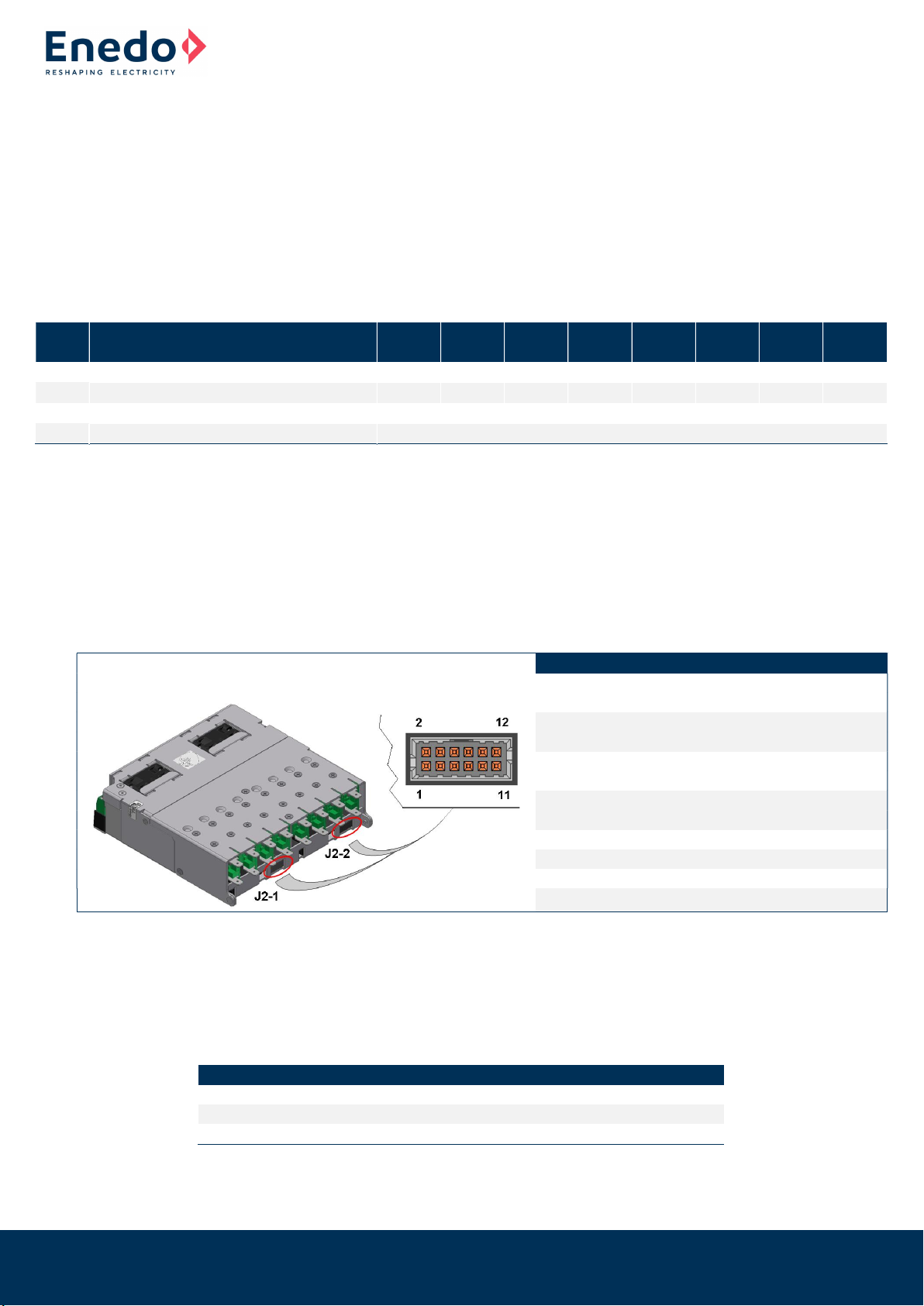

wired to two separated single signal circuit that are accessed through the connectors J2-1 and J2-2 located at the output side of the chassis as
shown in the diagram below.
All signals of each section are referenced to their own bias supply common rails (COM) and external control and/or monitoring circuits can easily
be powered and directly interfaced to the PSU through this connector. Each signals circuit is fully medically isolated and can be considered a SELV
output. The table below lists the isolation voltages.
Signals isolation voltages
Signals to Input 4000 VAC
Signals to Chassis 250 VDC
Signals to Output 250 VDC
Pin Name Description
1 PG1/5 Power Good Slot 1/5
2 INH1/5 Inhibit
3 PG2/6 Power Good Slot 2/6
4 INH2/6 Inhibit
5 PG3/7 Power Good Slot 3/7
6 INH3/7 Inhibit
7 PG4/8 Power Good Slot 4/8
8 INH4/8 Inhibit
9 GINH Global Inhibit
10 ACOK AC mains signal
11 +5V Global 5V Bias
12 COM Common

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 10/30 UM_RCB1200 Series_Rev01, Aug 2020
+5V bias supply (Power Unit)
Each of the sections of the entire unit, provides a +5 V bias supply that can deliver up to 200 mA. These two supplies are available whenever the AC
mains voltage is connected and their correspondent input stages are operating correctly.
To ensure safety, the following abnormal conditions may cause one or both power supply’s sections to latch off, which will disable their +5V bias
supply:
 Over temperature of any stage of the section
 Over voltage on the correspondent output
 Internal over current (device failure)
AC mains signal _ ACOK (Output)
An ACOK signal is provided by each section to indicate to the user that the AC mains voltage is applied and the correspondent input stage is
operating correctly. This output signal is driven from an internal operational amplifier as shown in the following diagram. Under normal operating
conditions this signal gives a warning of 5 ms before the correspondent section output voltage falls below the power good threshold. However, to
ensure safety, the following abnormal conditions may cause one or both power supply’s sections to latch off without an ACOK warning:
 Over temperature of any stage of the section
 Over voltage on the correspondent output
 Internal over current (device failure)
Power Good signals _ PG1-PG4 (Output)
Each output module provides a power good (PG) signal to indicate when the output voltage is above approximately 90% of the pre-set voltage for
that module. Each PG signal on an output module is internally connected through an opto-isolator to the correspondent signals circuit, which
buffers the signal through a PNP transistor with a 10 kΩ pull down resistor, as shown here below.
The LED on the front of each module gives a visual confirmation of the PG status.
Note that remote adjustments of the output voltage using the VCONTROL and ICONTROL pins do not change the PG signal threshold. The PG threshold is
always approximately 90% of the voltage set with the manual potentiometer.

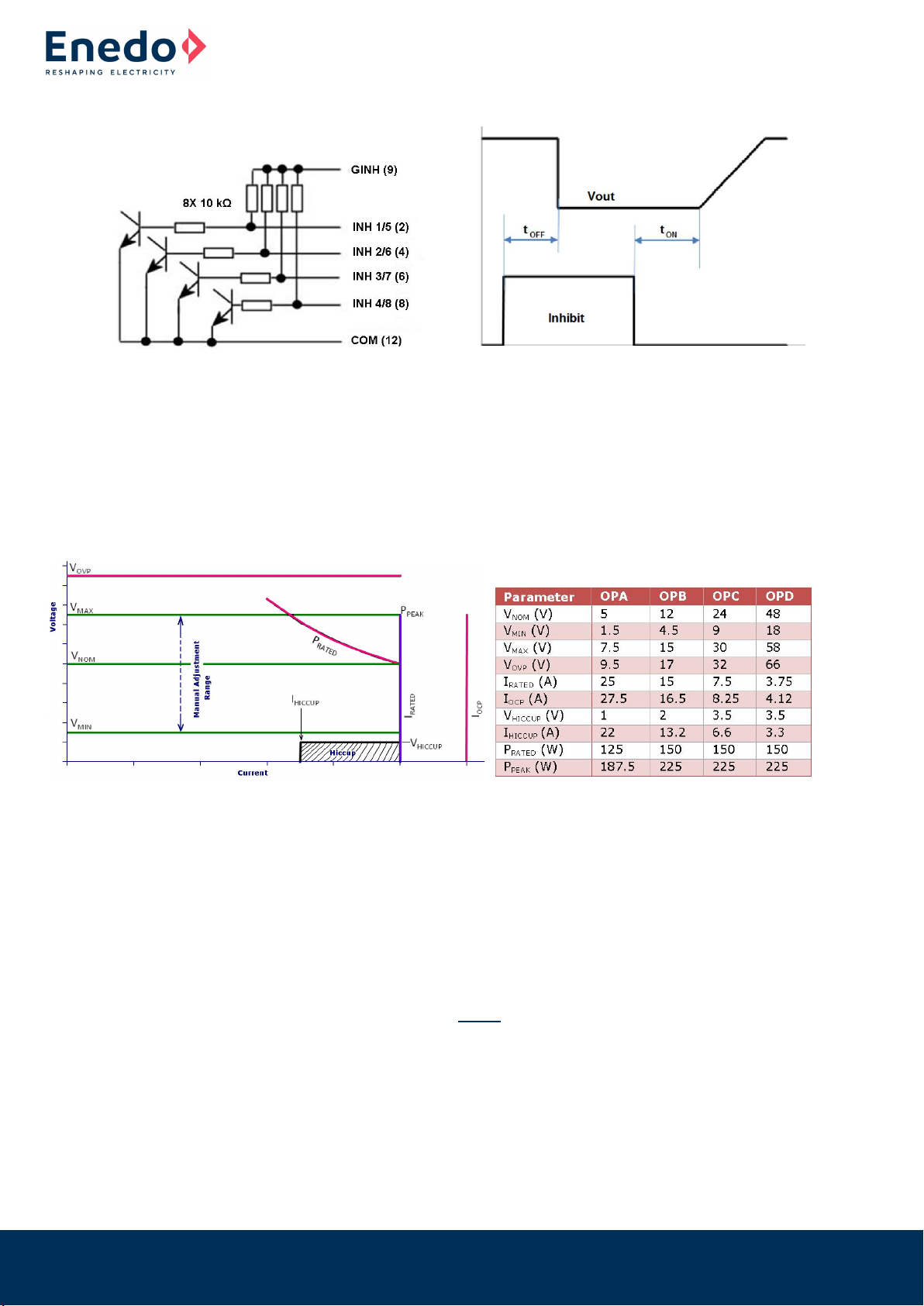

Output Inhibits _ INH1-INH4, GINH (Input)
The signals circuit of each section, provides four inhibit inputs to disable each of its output module individually and a fifth global inhibit input
(GINH) to inhibit all modules of the correspondent section simultaneously. Each inhibit input is internally connected through an opto-isolator to
the respective output modules. The basic internal electrical circuit and timing diagrams are shown below. Typically, tOFF = 100 μs and tON = 8 ms.
Relatively to each section of the RCB1200 power unit, to inhibit each output module individually, its GINH should be connected to the respective
COM, and +5 V applied to the appropriate input INH1/2/…/8. To start with all outputs in a section inhibited and then enable them individually, the
correspondent GINH should be connected to +5 V, then pull down the appropriate input INH1/2/…/8. If a GINH in a section is left unconnected,
then the correspondent inhibit signals will all behave as global inhibit inputs for that section. I.e. +5 V on any INH input will disable all outputs.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 11/30 UM_RCB1200 Series_Rev01, Aug 2020
OUTPUT MODULE OPERATION
Power profile
The power profile diagram below is a voltage / current plot that together with the associated table provides details of the main features of the
currently available output modules.
Output voltage adjustment
Each output can be adjusted within the range as described in the table above or in the datasheet. Voltage adjustment can be achieved by two
methods:
1. Manual potentiometer adjustment
Using the manual adjust potentiometer, the preset output voltage (VSET) of each output module is adjustable over the entire range of VMIN to VMAX
as specified in the power profile table above. A clockwise rotation of the potentiometer results in an increase of the output voltage while an anti-
clockwise rotation results in a decrease of the output voltage.
2. Remote voltage programming
Using remote voltage programming, the output voltage may be adjusted beyond the VMIN and VMAX range specified in the power profile table
above. However, certain precautions must be taken to ensure correct operation. Please see the “Advanced output module features” section for
more details.
Over Voltage Protection (OVP)
In the event of an output module fault, the modules are protected against excessive output voltages. This is implemented as a fixed voltage
threshold (VOVP, in the table above) and if the output voltage exceeds this threshold the correspondent section of the power unit will be latched
off. To resume operation of the power unit, disconnect the AC input voltage for 2 minutes, remove the faulty output module and reconnect the AC
input voltage.
Note that no warning is given on the correspondent AC_OK signal for faults of this type.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 12/30 UM_RCB1200 Series_Rev01, Aug 2020
Over Current and Short Circuit Protection (OCP and SCP)
For increased safety and reliability all output modules in the RCB1200 have over current and short circuit protection. The over current threshold is
typically set at 110% of the rated current and has a constant current, straight line characteristic that reduces the output voltage as the load
resistance decreases. If the output voltages falls below the hiccup voltage threshold (VHICCUP) the module enters short circuit protection mode. In
this mode the output module uses a hiccup scheme to reduce system losses and potential damage. When in this mode, the output will be enabled
for approximately 3% of the time, disabled for 97% and will attempt to restart at approximately 125 ms intervals. The module remains in this state
until the short circuit condition is removed, at which point the module returns to normal operation.
Reverse Current Protection (RCP)
The standard output modules use synchronous rectification in the output stages to achieve high efficiency and, as a result, the outputs can both
source and sink current. The sink current is internally limited to approximately -6% of the maximum rated current. However, in applications where
the output modules are connected to external power sources, such as batteries or other power supplies, certain precautions must be observed to
prevent damage to the unit.
The outputs should never be directly connected to to external power sources without some form of reverse current protection such as an external
diode or controlled MOSFET. If protection is not used, large reverse currents which will ultimately result in damage to the unit will occur, especially
when the AC mains is disconnected.
Output Module Average and Peak Power
All modules have an average and peak power rating. The average power of each unit must at all times remain below its specified limit. However,
each output can deliver up to 150% of its average power rating for a maximum of 5 seconds at 50% duty-cycle, subject to the current limit not
being exceeded and subject to the overall average power drawn from that section being less than the specified average power rating (including
any input de-rating due to temperature or line voltage). The available peak power is a function of the output voltage and maximum current for
each module. Full peak power is only possible when the output voltage is adjusted to VMAX and the maximum current is drawn from the module.
Note that both average and peak power ratings are subject to the same temperature de-rating as the input section (de-rate by 2.5% per °C above
50°C), but are not subject to any line de-rating.
Start up and Shut down
All outputs are designed to have a regulated monotonic start-up with a
rise time of approximately 3 ms as shown in the diagram right. The
power good signal stays low until the voltage exceeds the power good
threshold (≈90%).
Where multiple output modules are used, in each section, the default
start up scheme is ratio-metric with all outputs starting at the same time
as shown in the diagram right. External control circuits may be used to
implement tracking or sequenced start up if necessary.
The outputs are not designed to start into a pre-biased load and may
discharge any externally capacitance before beginning to ramp the
output voltage up in the normal way.
At shut-down the outputs enter a high impedance state. Where no
external load is present it may take some time for the voltage to decay.
When driving inductive loads, care must be taken to limit the voltage at
the output terminals so as to prevent damage to the unit.
Synchronisation
All output modules in the same section of the power unit are synchronised. The typical operating frequency is 260 kHz and paralleled/seriesed
modules will not produce beat frequencies.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 13/30 UM_RCB1200 Series_Rev01, Aug 2020
Ripple and Noise
The ripple and noise figures stated in the datasheet are defined based on a standard measuring method. To obtain the same results the same test
setup must be used and care must be taken to eliminate any parasitic noise pickup. The diagram below shows details of the setup and also sources
of noise pickup.
Over Temperature Protection (OTP)
Each output module is protected against excessive temperatures. In the event of the internal temperatures exceeding safe levels the entire
correspondent section may be latched off. To resume operation of the power unit, disconnect the AC input voltage for 2 minutes, ensure external
ambient temperatures are within specifications and then reconnect the AC input voltage. Note that no warning is given on both the AC_OK signal
for faults of this type.
Transient Response
The RCB1200 output modules have been especially designed to have high reliability, and to achieve this all electrolytic capacitors have been
eliminated from the design. Due to this, high dynamic load transients can cause relatively high voltage deviations at the output and although the
outputs have a very high loop bandwidth with typical recovery times of less than 100 μs, the voltage deviations may still be excessive for some
applications.

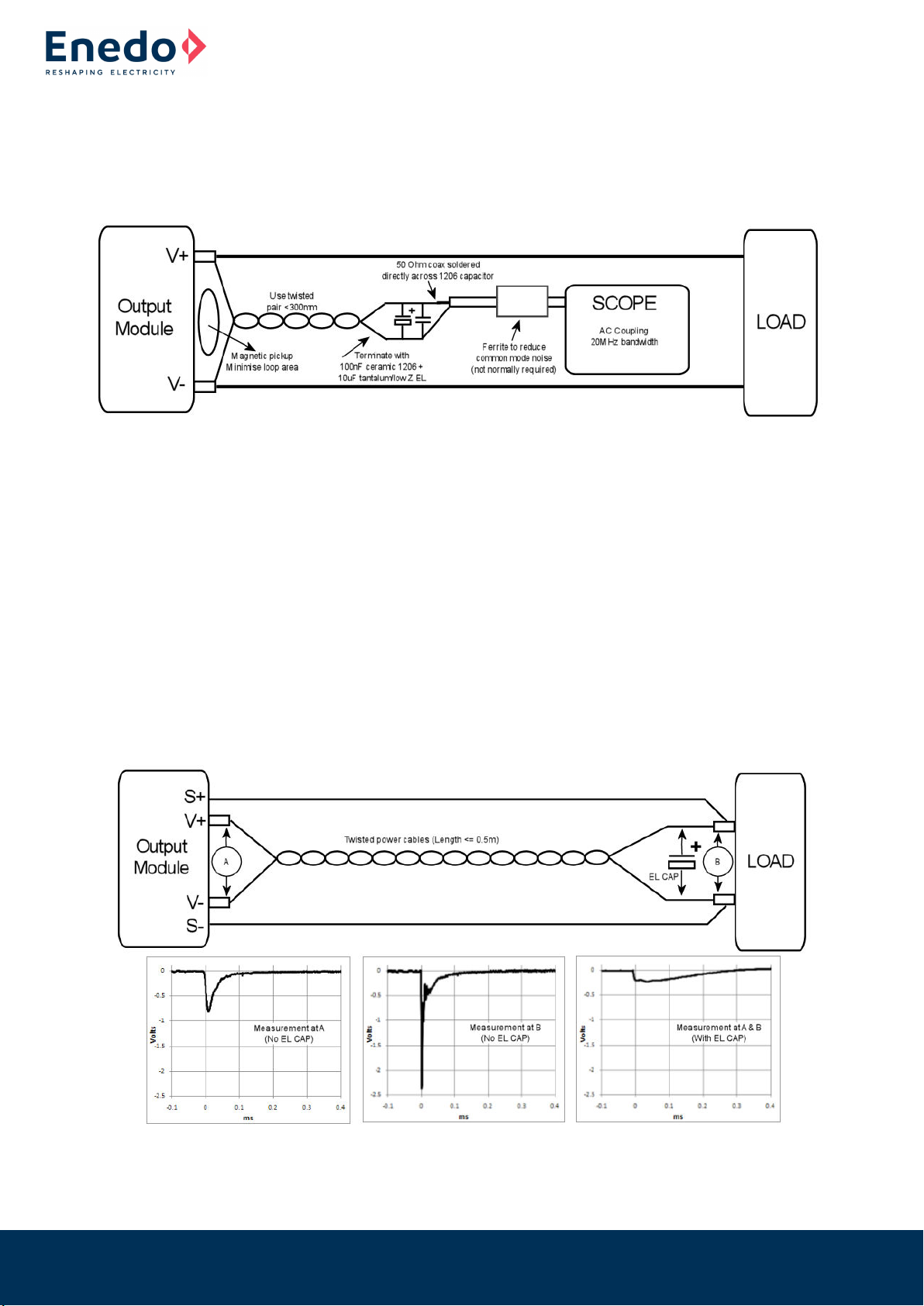

An example application is detailed in the diagram below and shows typical responses at the terminals of the output module and at the load. Notice
that the voltage deviation due to cable inductance exceeds the module response and hence a capacitor located at the module terminals will have
little effect at the load. The optimum solution is to locate a low impedance electrolytic capacitor at the load which will eliminate the inductive
cable drop and also reduce the typical voltage deviation at the module.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 14/30 UM_RCB1200 Series_Rev01, Aug 2020
ADVANCED OUTPUT MODULE FEATURES

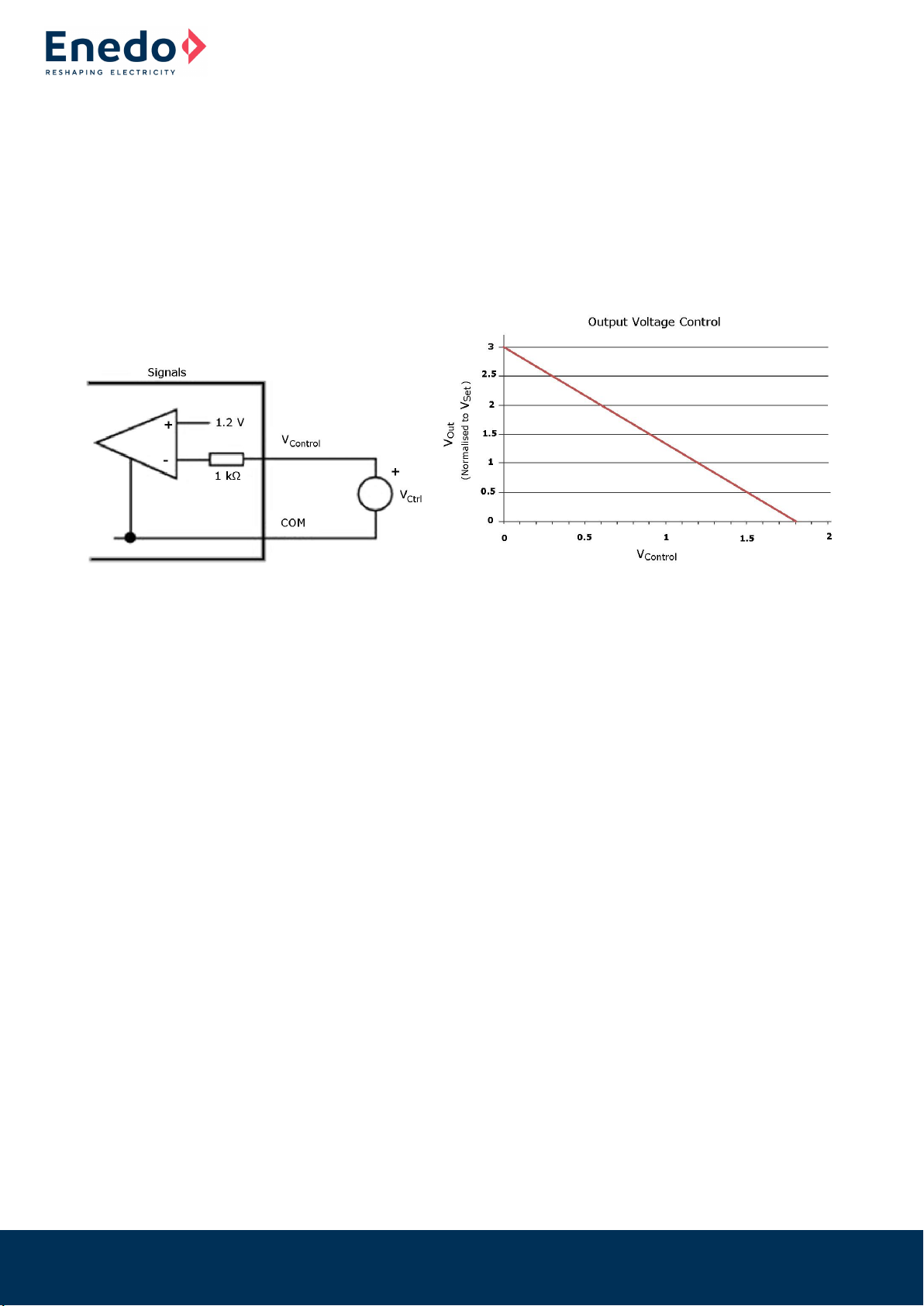

Remote Voltage Programming (External voltage control)
The output voltage of the module can be adjusted using an external voltage source connected between the COM and VCONTROL pins on the signals
connector (J5) as shown below.
In this configuration the output voltage will follow the equation below,
Vo = Vset ((1.8 - Vctrl) / 0.6), where Vset is the manual preset voltage of the module.
The output voltage can be controlled from 0% to 300% of the preset voltage using this control method. However, care must be taken to ensure the
output voltage does not exceeed the OVP level, as this is considered a safety hazzard and will latch the correspondent section off.
To determine the level of control voltage that will trigger OVP, insert VOVP into the equation above.
Example: VOVP = 9.5 V, Vset = 5 V; Vctrl = 1.8-(VOVP*0.6/Vset) = 0.66 V
Hence, Vctrl should never fall below 0.66 V, otherwise OVP may latch the entire unit off.
Alternatively, by manually adjusting the output voltage to less than 1/3rd of the OVP voltage ensures that OVP can never be tripped by remote
voltage control.
Care must be also taken to ensure that the output voltage would not be forced below the VMIN limit, which is stated for each of the output modules
(OP-A, OP-B, OP-C and OP-D) in the data-sheet. Exceeding in the output voltage adjustment below the minimum limit, means to force the module
output stage to operate in electric overstress, leading to a possible damage more likely the higher the output current required by the load.
Similarly to the above, the control voltage which correspond to the VMIN level of the output voltage is:
VMIN = Vset ((1.8 – Vctrl) / 0.6; Vctrl = 1.8 – (VMIN*0.6) / Vset
Example: VMIN = 1.5, Vset = 5 V; Vctrl should not be higher then 1.62 V
Also, remote adjustment of the output voltage using the Vcontrol pin does not affect the preset power good threshold. Hence, remotely adjusting
the output voltage below 0.9*Vset will cause the power good signal to go low.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 15/30 UM_RCB1200 Series_Rev01, Aug 2020

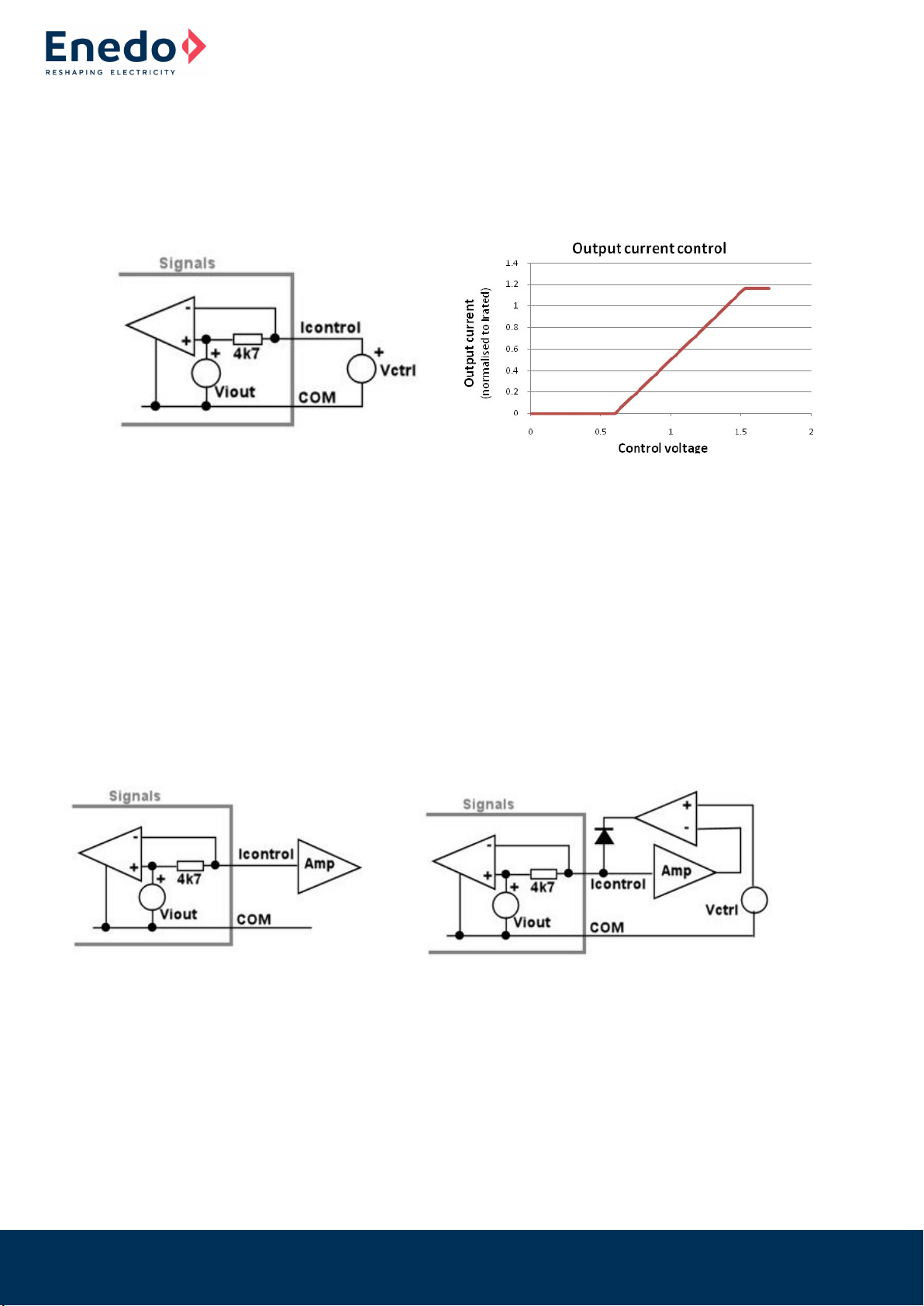

Remote current programming (External voltage control)
The output current limit of the module can be reduced using an external voltage source connected between the COM and Icontrol pins on the signals
connector (J5) as shown below. In practice, this also means that the output can be used as a modulated or constant current source.
In the diagram above, Vi_out is an internal voltage source that is proportional to the internal inductor current and approximates the equation,
Vi_out = 0.6 + (Iout/(Irated*1.25)), where Irated is the maximum rated current for the module.
In this configuration the output current limit will approximate the following equation,
Ilimit = (Vctrl-0.6)*Irated*1.25, where Irated is the maximum rated current for the module.
It is not possible to increase the maximum current limit of the module, and control voltages (Vctrl) exceeding 1.53 V will have no effect on the
current limit.
When using an output module as a modulated current source, the output voltage should be manually adjusted to the maximum that will be
required by the application and this will be the upper voltage limit. Once the load is connected, the output current can then be modulated by
applying a control voltage as described above.
Note that the power-good threshold level is fixed and defined by the manually preset voltage. Hence, while the output module is limiting or
modulating the output current this signal may go low.
Output current measurement
The output current of the module can be measured using the Icontrol signal. If this pin is unloaded its output voltage will follow the equation, Vi_out =
0.6 + (Iout/(Irated*1.25)), where Irated is the maximum rated current for the module.
Note that the Icontrol output voltage is representative of the internal inductor current not the actual load current. However, this will only have an
influence during dynamic events. It is recommended to add an external amplifier (as shown above left) when using the Icontrol signal to measure the
output current as loading the Icontrol signal, even with microamps can cause the current limit to be reduced. If it is required to measure the output
current and adjust the output current limit simultaneously, this can be achieved by using a clamp circuit instead of a voltage source to adjust the
current limit, while continuing to use an amplifier to measure the output current. An example circuit is shown above right. In this case Vctrl will
control the current limit while the amplified Icontrol signal will provide a measurement of the output current.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 16/30 UM_RCB1200 Series_Rev01, Aug 2020
Remote sensing
Remote sensing is available on all output modules and can be used to compensate for any voltage drop in the main power leads between the
power supply and the load. To implement remote sensing connect the positive sense pin (S+, connector J5.2) to the positive side of the remote
load and the negative sense pin (S-, connector J5.1) to the negative side of the remote load. The voltage will be regulated at the points where the
sense cables are connected.
Active protection against worn out power cables or accidental power cable removal is provided and prevents damage to the unit in each case. An
internal circuit measures the voltage between S+ to V+ and S- to V-, when this voltage exceeds the thresholds specified in the datasheet, the
output voltage is reduced to benign levels. During system design, care must be taken to ensure power cables have a sufficiently low voltage drop at
maximum load current to ensure this protection does not activate unintentionally.
In systems where remote sensing is not used, the output voltage at the power terminals will be slightly higher than that at the sense terminals.
This voltage difference is termed, open sense off-set and occurs due to internal bias currents in the sensing circuit. Factory set units are set with
the sense cables connected unless otherwise specified.
Local Bias supply
A local non-isolated +5 V bias supply is provided on each output module (+5 V on J5.6, referenced to COM on J5.5). This supply is intended to
power interface circuits for monitoring and controlling the output modules, such as amplifying the current output signal as described earlier. The
output can supply up to 10 mA maximum, and exceeding this can damage the unit.
Also, as COM is connected to an internal voltage that is NOT equivalent to S- or V-, particular attention must be given to grounding issues when
interfacing COM to any control circuit in the application. Connecting COM to S- or V- may result in damage to the unit.
OUTPUT MODULES IN SERIES
RCB1200 output modules of the same type can be seriesed in any number to achieve higher output voltages, even across multiple chassis. The
following instructions must be followed for output modules configured in this manner.
Isolation to ground
Care must be taken not to exceed the output module isolation to chassis ground when seriesing outputs. Each output is rated for 250 V maximum
between each output terminal and chassis ground. Exceeding this voltage may damage the unit.
Remote sensing
For seriesed modules, remote sensing is achieved by connecting the upper most positive sense terminal (S+) and the lower most negative sense
terminal (S-) from the series of modules to their respective load regulation points. All inner sense terminals in the series must be daisy chained, S+
to S- from the first module in the series to the last module in the series. An example of two seriesed modules is shown below.
WARNING!
Energy and voltage hazards may arise when individual modules are seriesed.
See the Safety section for more details.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 17/30 UM_RCB1200 Series_Rev01, Aug 2020
Series remote voltage/current control
Remote voltage and/or current control is possible with any number of outputs in series using the advanced V-control and I-control functions as
described earlier. However, individual control of each module can be complex as the various control terminals are referenced to the positive
output of the preceding module and require the use of multiple isolated control voltages to attain control over the full voltage range. In practice,
individual control of each module is rarely required and a more straightforward method is to control all outputs simultaneously with a single
control voltage. With RCB1200 output modules this is effortlessly achieved with the use of an external tracking circuit, details of which can be
provided upon request. Using the external tracking circuits allows all modules in a series to be controlled by a single control voltage that can be
referenced to the COM (J5.5) pin on any module.
SELV precautions
Where series combinations of output modules exceed 60 V, the output can no longer be considered SELV (Safety Extra Low Voltage) and hence the
final equipment manufacturer must provide suitable protection for both users and service personnel.
OUTPUTS IN PARALLEL CONFIGURATION
RCB1200 output modules of the same type can be paralleled in any number within the same section to achieve higher output currents. Paralleling
across the two sections in the same chassis is not possible without external protection (such as external diodes or controlled MOSFETs) to prevent
circulating currents between them. Failure to provide such protection may result in damage to the units.
WARNING!
Energy hazards may arise when individual modules are paralleled. See the Safety section for more details.
For best performance, the output voltages of each paralleled module should be adjusted as close as possible.
Follow the procedure below to achieve the most accurate results:
1. Connect all the negative power cables together.
2. Adjust the first module (1) to the desired voltage.
3. Connect a voltmeter between the positive terminal of the first module (1) and the positive terminal of the
second module (2) and adjust the second module (2) until the voltmeter reads 0.000 volts.
4. Repeat step 3 for the remaining modules, always using the positive terminal of the first module (1) as the reference.
When paralleled, the outputs can operate in two distinct modes, Normal parallel mode or Share parallel mode.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 18/30 UM_RCB1200 Series_Rev01, Aug 2020

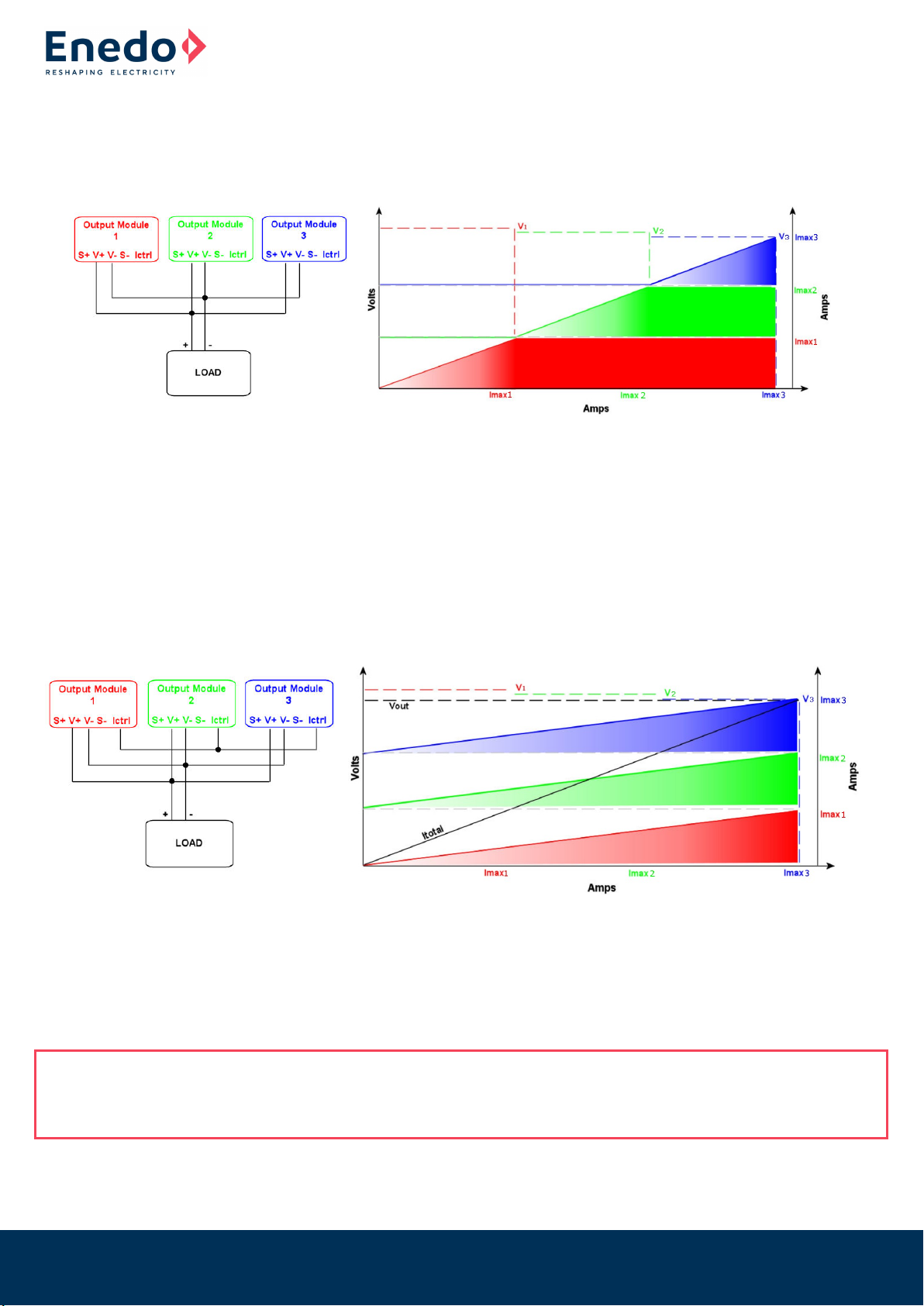

Normal parallel mode
For normal parallel mode, the positive power cables should be connected together and the negative power cables should be connected together.
No other connections are required as shown in the diagram below.
In this mode the highest adjusted output module will supply all of the load current until its current limit is reached. If the load demand exceeds this
level the output voltage will drop to the level of the next highest adjusted module and that module will begin to supply the load current while the
first module continues delivering full current. This process repeats for the total number of paralleled modules. The diagram above shows the V-I
curve for such a system.
Output modules that are not delivering current will typically sink a small amount of current from the other outputs, but this will not exceed -6% of
each modules maximum rated current.
Typically, system reliability is reduced as the higher adjusted modules will do most of the work with the lower adjusted modules only delivering
current during peak load demand.
Share parallel mode
In Share parallel mode, the outputs are paralleled as before and the Ictrl pin for each module is connected together as shown in the diagram below.
Connecting the Ictrl pins together forces all the outputs to deliver the same current, ensuring that the system reliability is maximised and the work
load is distributed evenly across all paralleled modules.
In this mode, the lowest adjusted output module will determine the actual output voltage and all higher adjusted outputs will reduce their voltage.
There may be a small amount of circulating current between the modules, approximately 6% of the maximum rated current for each module.
The current output signal (Ictrl) can still be used to measure the output current but it must be scaled by N, where N is the number of paralleled
modules.
WARNING!
Care must be taken to avoid differential voltages between the negative power output terminals of the paralleled modules as this can cause errors
at the control pins. To avoid this, it is recommended that a low impedance connection be made between the negative power terminals close to the
PSU output and cables then connected from this common point to the load.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 19/30 UM_RCB1200 Series_Rev01, Aug 2020

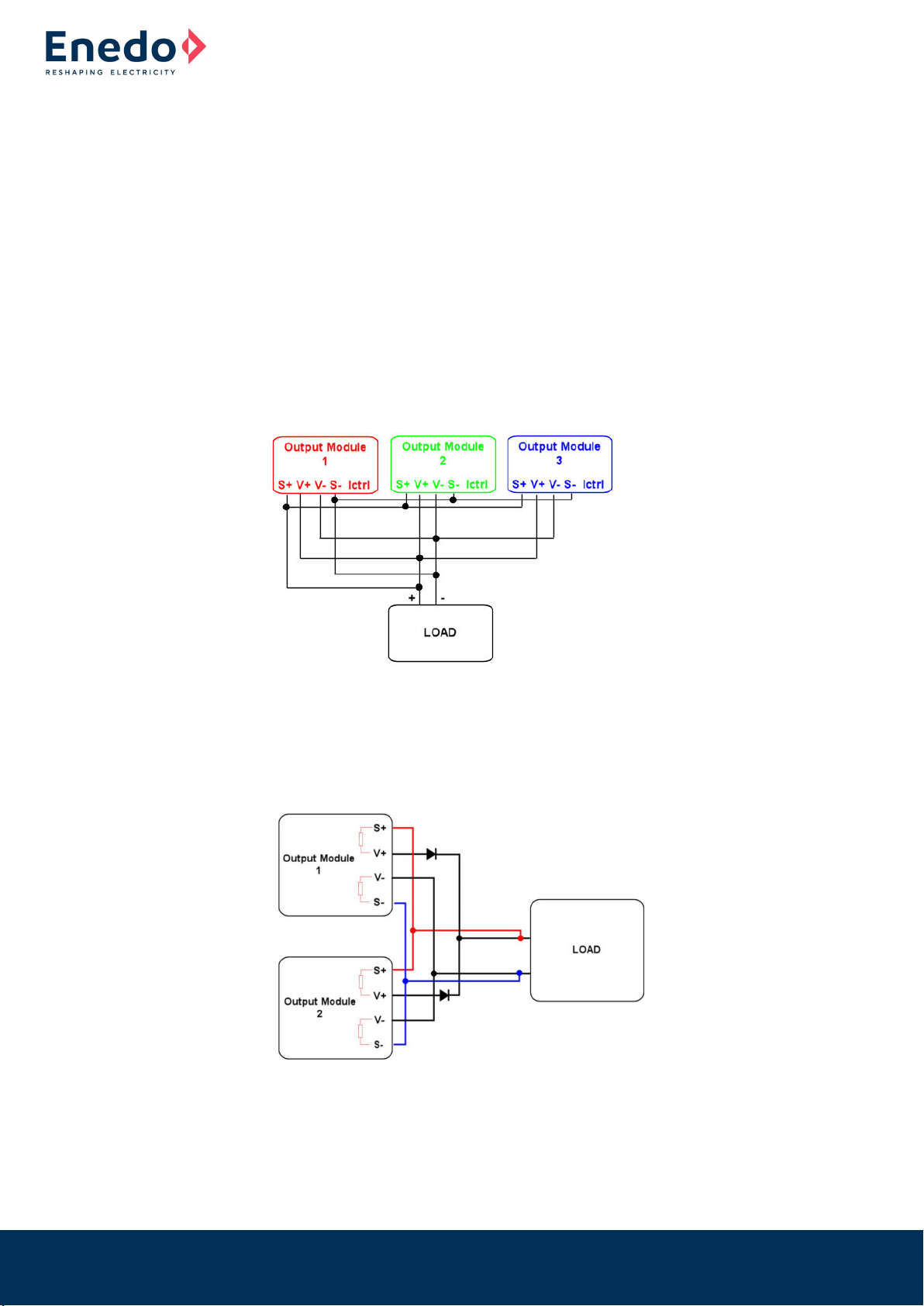

Paralleling across multiple chassis
Paralleling across multiple chassis is not possible without external protection (such as external diodes or controlled MOSFETs) to prevent
circulating currents between each chassis. Failure to provide such protection may result in damage to the units. Consult Roal Electronics for details
on how best to implement such applications.
Where units are paralleled across multiple chassis, the outputs in each chassis will not be synchronised and the peak-to-peak output ripple may
contain beat frequencies in the audio spectrum.
Parallel remote sensing
Remote sensing can be used as normal with paralleled modules even across the two sections of the RCB1200. The sense lines (S+ and S-) from each
of the output modules should be connected together, S+ to S+, and S- to S- as shown below. This should be done close to the power supply output
and a single pair of cables brought from these sense lines to the load. Keeping cable lengths to a minimum and using twisted pairs where necessary
will help reduce noise pickup in the sense lines.
N+1 configurations
When using N+1 redundant configurations, a suitably rated diode (or controlled MOSFET) must be used on each output to prevent a device failure
from causing a system failure. However, the diode introduces voltage drops between the supply and the load that significantly degrade the load
regulation. To counteract this, the remote sense lines should be used to regulate the voltage at the load as shown below.
Typically this configuration can damage the internal sense resistors used within a power supply. However, the RCB1200 outputs have integrated
protection to prevent this type of damage and are completely N+1 compatible without any additional external protection circuitry. Note that only
the positive sense terminal is protected and diodes should be used in the positive connection only.

USER MANUAL
RCB/MCB600 SERIES
www.enedopower.com 20/30 UM_RCB1200 Series_Rev01, Aug 2020

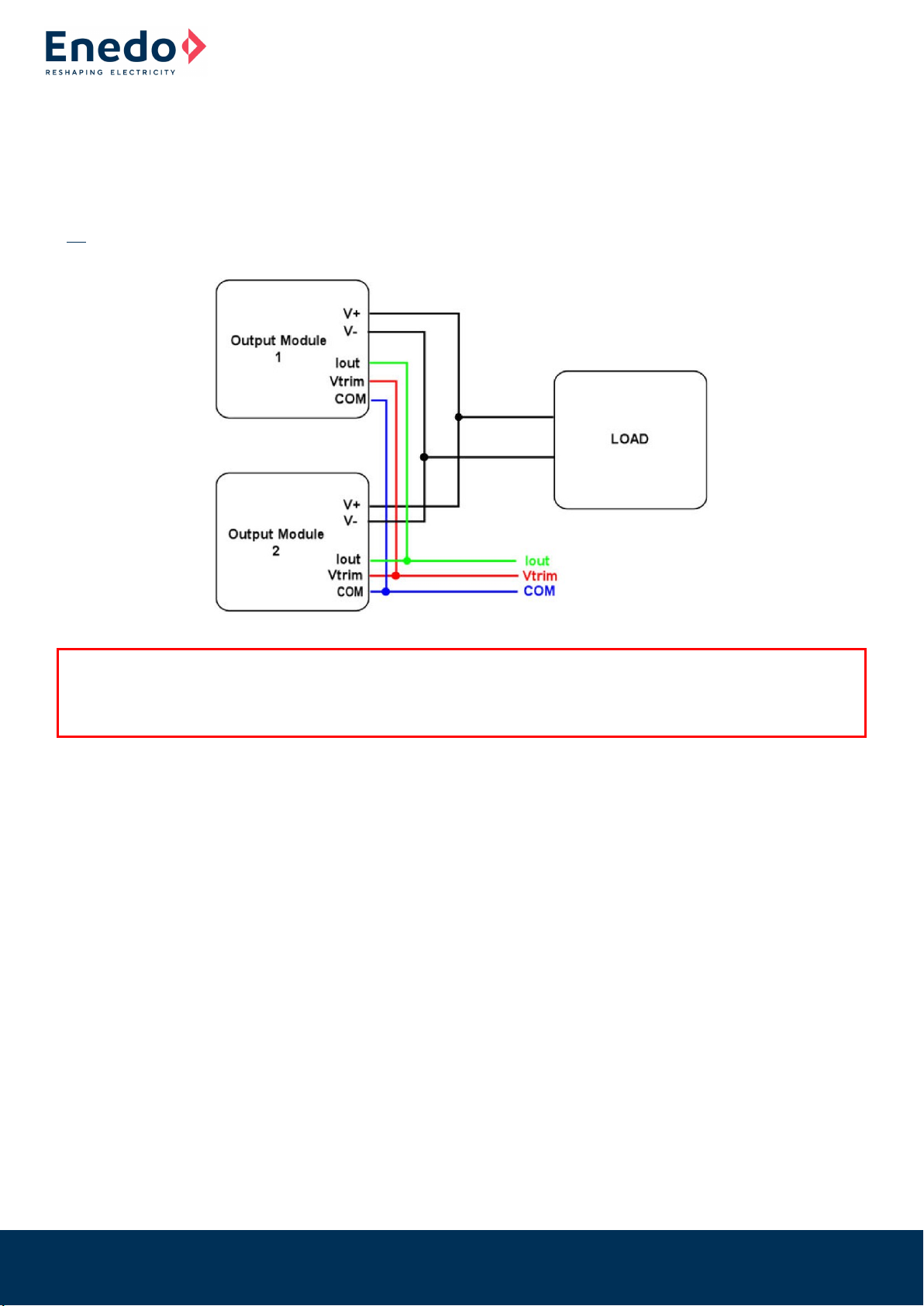

Paralleled remote voltage/current adjust
The simplest way to achieve remote voltage/current programming with paralleled outputs is to operate the modules in share parallel mode. Follow
the procedure outlined earlier to configure the outputs in share parallel mode and once configured in this mode, all the Vcontrol and COM pins can
be connected together. Remote voltage/current programming can then be performed exactly as with a stand-alone module.
The same scheme applies when the output modules are paralleled across the two RCB1200 sections.
It is not recommended to use remote voltage/current programming in normal parallel mode.
WARNING!
Care must be taken to avoid differential voltages between the negative power output terminals of the paralleled modules as this can cause
errors at the control pins. To avoid this, it is recommended that a low impedance connection be made between the negative power
terminals close to the PSU output and cables then connected from this common point to the load.
