Eneo VKC-1416C User manual

Operating Instructions
1/4” Day&Night Autofocus Camera
VKC-1416C

2
WARNING AND CAUTIONS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated ''dangerous
voltage'' within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
PRECAUTIONS
WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Safety
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by
qualified personnel before operating it any further.
Unplug the unit from the wall outlet if it is not going to
be used for several days or more.
To disconnect the cord, pull it out by the plug. Never
pull the cord itself.
Allow adequate air circulation to prevent internal heat
build
-
up. Do not place the unit on soft surfaces (rugs,
carpets, sofas, etc.) or near materials (curtains,
draperies) that may block the ventilation holes.
Height and vertical linearity controls located on the
rear panel are for special adjustments by qualified
personnel only.
Installation
Do not install the unit in an extremely hot or humid place
or in a place subject to excessive dust, mechanical
vibration.
The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.
Cleaning
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzine as they might
damage the finish of the unit.
Retain the original carton and packing materials for safe
transport of this unit in the future.

3
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED
AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED
TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE
RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO
CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE
REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED
BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME
NMB-003 DU CANADA.
WARNING: This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required to take
adequate measures.

4
IMPORTANT SAFEGUARDS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been moisture, does not operate normally, or has been
dropped.
15. CAUTION THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN
THE OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use Certified/Listed Class 2 power source only.

5
TABLE OF CONTENTS
1. INTRODUCTION ----------------------------------------------------------------------6
1.1 THE CAMERA FEATURES----------------------------------------------------6
2. SYSTEM INSTALLATION-----------------------------------------------------------7
2.1 PACKAGE CONTENTS---------------------------------------------------------7
2.2 OPERATION REQUIREMENTS----------------------------------------------7
3. Parts Name & Function --------------------------------------------------------------8
4. Connection------------------------------------------------------------------------------9
4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL -------------------9
4.2 EXTERNAL INPUT---------------------------------------------------------------10
4.3 EXTERNAL OUTPUT -----------------------------------------------------------10
4.4 RS-485 CONNECTION--------------------------------------------------------10
4.5 EXTERNAL LENS CONTROL ------------------------------------------------11
4.6 EXTERNAL A/D KEY CONTROL---------------------------------------------11
5. CAMERA ADJUSTMENT------------------------------------------------------------12
5.1 OSD MAIN SCREEN ------------------------------------------------------------12
5.2 MAIN MENU -----------------------------------------------------------------------12
6. TROUBLESHOOTING AND MAINTENANCE----------------------------------18
6.1 TROUBLESHOOTING ----------------------------------------------------------18
6.2 MAINTENANCE ------------------------------------------------------------------18
7. DIMENSIONS --------------------------------------------------------------------------19
8. SPECIFICATIONS -------------------------------------------------------------------20

6
1. INTRODUCTION
The 22x Auto Focus Zoom WDR Day & Night Camera provides especially for closed
circuit television (CCTV) and security surveillance application.
1.1 THE CAMERA FEATURES
•SONY 1/4" 960H Super HAD CCD II (700 TV Lines)
•352x zooming capability (Optical : 22x / Digital : 16x)
•0.1 lux (Color), 0.01 lux (B/W), 0.00001 lux(slow shutter)
•Excellent picture quality
•Various picture effects
•Support camera control available RS-485
•power operation DC 12V
CAUTION : Use Certified/Listed Class 2 power source only.
Use at the 12VDC Adapter must provide the power consumption of above
500MA.
•Function :
- D/N (Day / Night)
- DSS (Digital Slow Shutter)
- DIS(Digital Image stabilizer)
- WDR (Wide Dynamic Range)
- DNR (Digital Noise Reduction)
- M/D (Motion Detection)
- AWB (Auto White Balance)
- AE (Auto Exposure)
- AGC (Auto Gain Control)
- BLC (Back Light Compensation)
- OSD (On Screen Display)
- ZOOM PRESET & TOUR
- P/M(Privacy Mask)
- ALARM(Alarm out)
IMPORTANT : The user of this camera is responsible for checking
and complying with local, state, and federal laws and statutes
concerning the recording and monitoring of audio signals.

7
2. SYSTEM INSTALLATION
Installation of the camera must be performed by qualified service personnel in
accordance with all local national electrical and mechanical codes must perform
installation of the camera.
Perform the following steps to install the camera.
2.1 PACKAGE CONTENTS
•Camera - 1EA
•Instruction Manual (This document) - 1EA
•12 pin Interface Cable – 1EA
•Camera Mounting Bracket (option)
•A/D Remote Controller (option)
2.2 OPERATION REQUIREMENTS

8

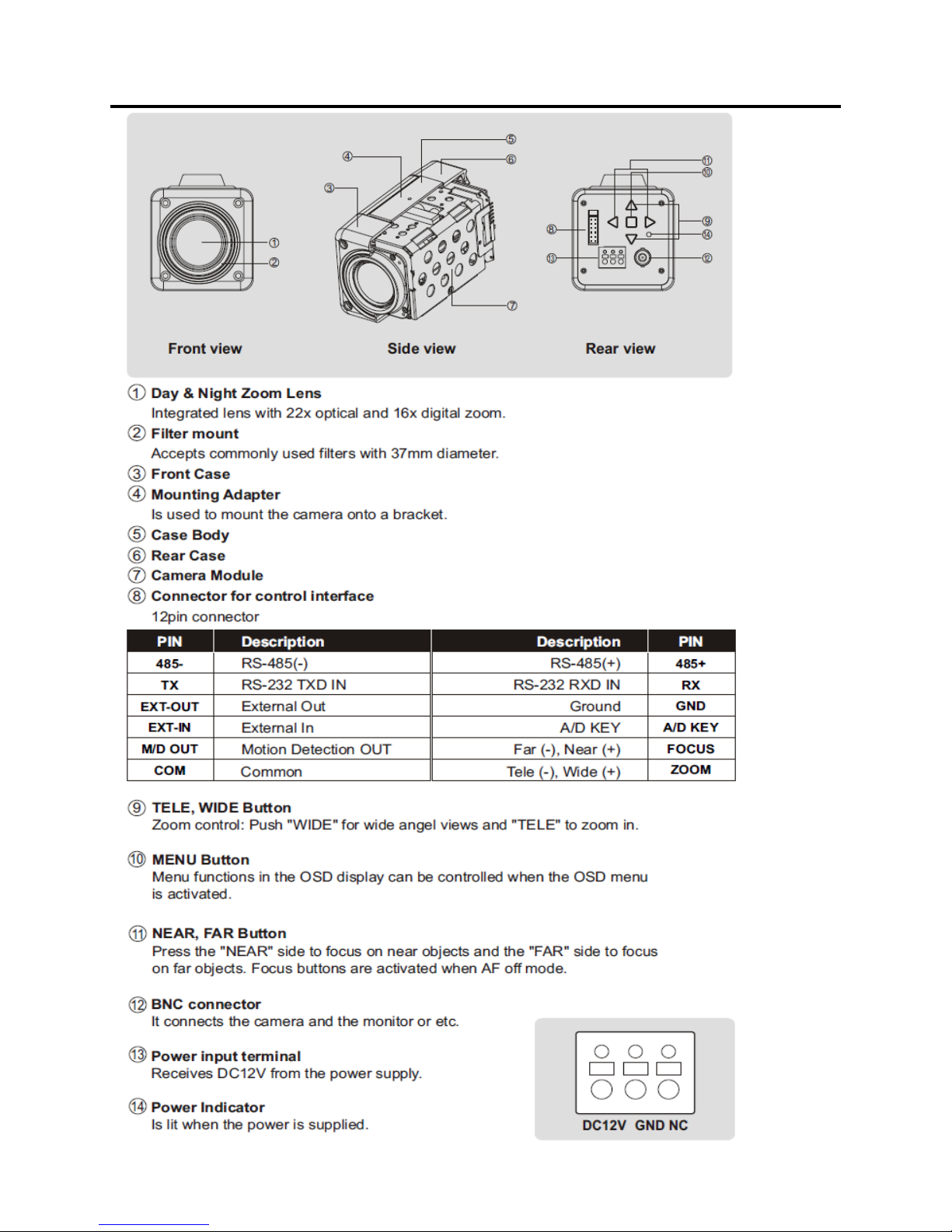

3. Parts Name & Function

9
4. CONNECTION
CAUTION : Do not connect the power cable until all other connections have been
completed. If you complete the whole connection of cameras, then you have
to cut the extra cable.
4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL

10
4.2 EXTERNAL INPUT
It connect to an external sensor to receive day/night detection signals.
ALARM/MD -> EXT
•EXT-IN - OPEN : COLOR / ALARM OFF
- CLOSED : B/W / ALARM ON
*Note: The above two settings can be selected at the same time.
4.3 EXTERNAL OUTPUT
The EXT-OUT lead and MD-OUT lead output voltage is different according to D/N and
MD settings. Please refer to below in detail.
1. EXT-OUT output voltage
The EXT-OUT lead output voltage for
COLOR and B/W is as following.
•EXT-OUT - COLOR : 0V
-B/W : 5V
2. MD-OUT output voltage
The MD-OUT lead output voltage is as
following in case MD event occurs
when 'ALARM/MD MENU' -> 'MODE' is set
to MD, MD+EXT
•MD-OUT - MD OFF : 0V
- MD ON : 3.3V
4.4 RS-485 CONNECTION Connecting to the RS-485 : The Camera can be
controlled remotely by an external device or
control system, such as a control keyboard,
using RS-485 half-duplex. Connect Market Rx+,
Rx- to Tx+ and Tx- of the RS-485 control system.

11
4.5 EXTERNAL LENS CONTROL
4.6 EXTERNAL A/D KEY CONTROL
External Controller Circuit Schematic

12
5. CAMERA ADJUSTMENT

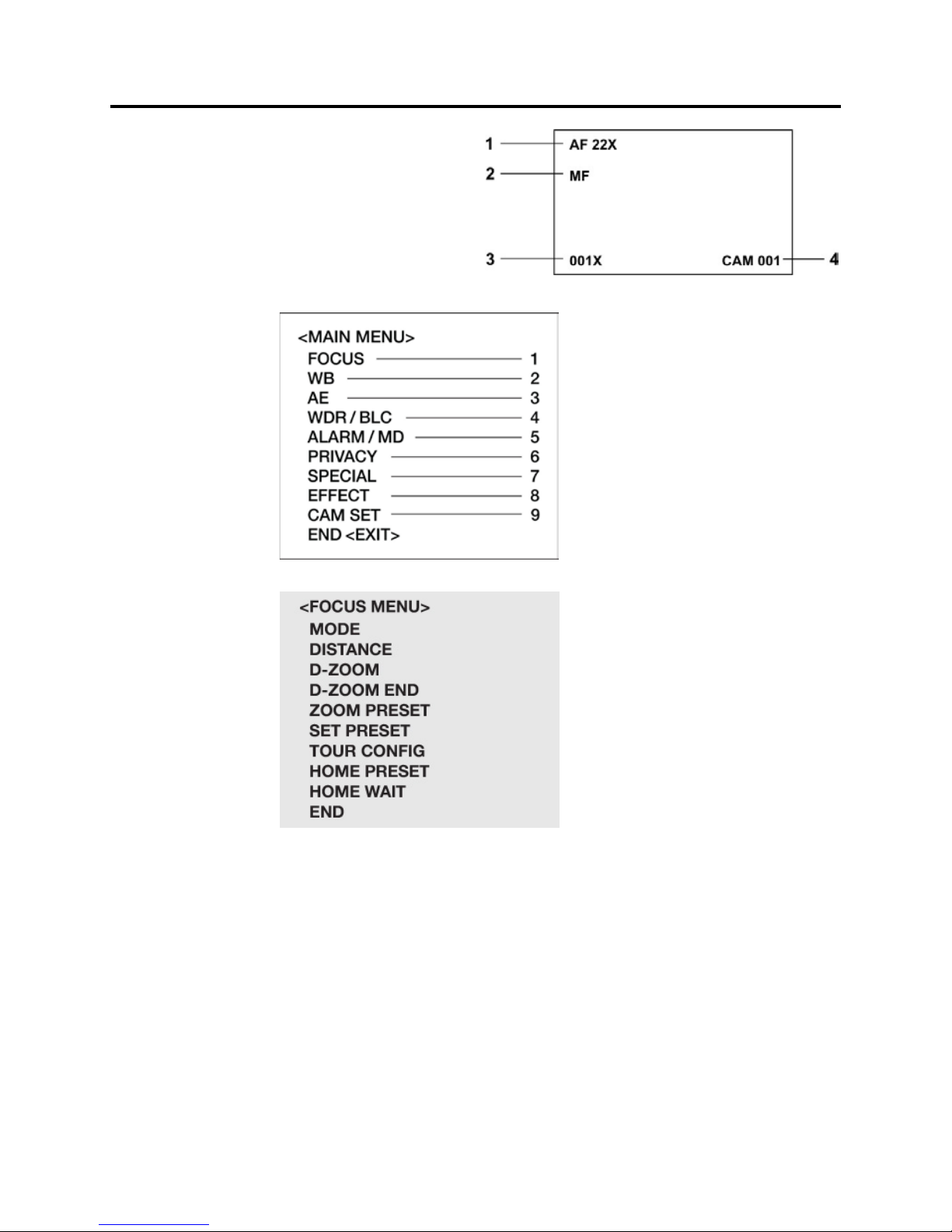

5.1 OSD MAIN SCREEN
1. Camera title
2. Status of the focus mode
3. Status of the zoom position
4. Camera ID
5.2 MAIN MENU
5.2.1 FOCUS
MODE Select auto, manual, push auto mode.
DISTANCE Select minimum distance in focus between camera and object.
(0.1/1.0/1.5/2.5/6m)
D-ZOOM Digital Zoom on/off.
D-ZOOM END Select maximum Digital Zoom magnification.
(x2, x3, x4, x6, x8, x12, x16)
ZOOM PRESET Select zoom preset number, Default is x1. (1~10)
SET PRESET Set the zoom position of zoom preset.
TOUR CONFIG Select zoom tour mode. (10 zoom preset to 1 tour mode)
HOME PRESET To move the zoom position to the selected preset number when
idle state(Decisions by HOME WAIT time).
HOME WAIT Select the duration time to activate the HOME PRESET.

13
NOTE 1 : When "ZOOM PRESET" is selected, you can adjust the preset zoom location
using the "tele" and "wide" buttons.
NOTE 2 : When after the zoom location has been selected press the "menu" button to
store the location.

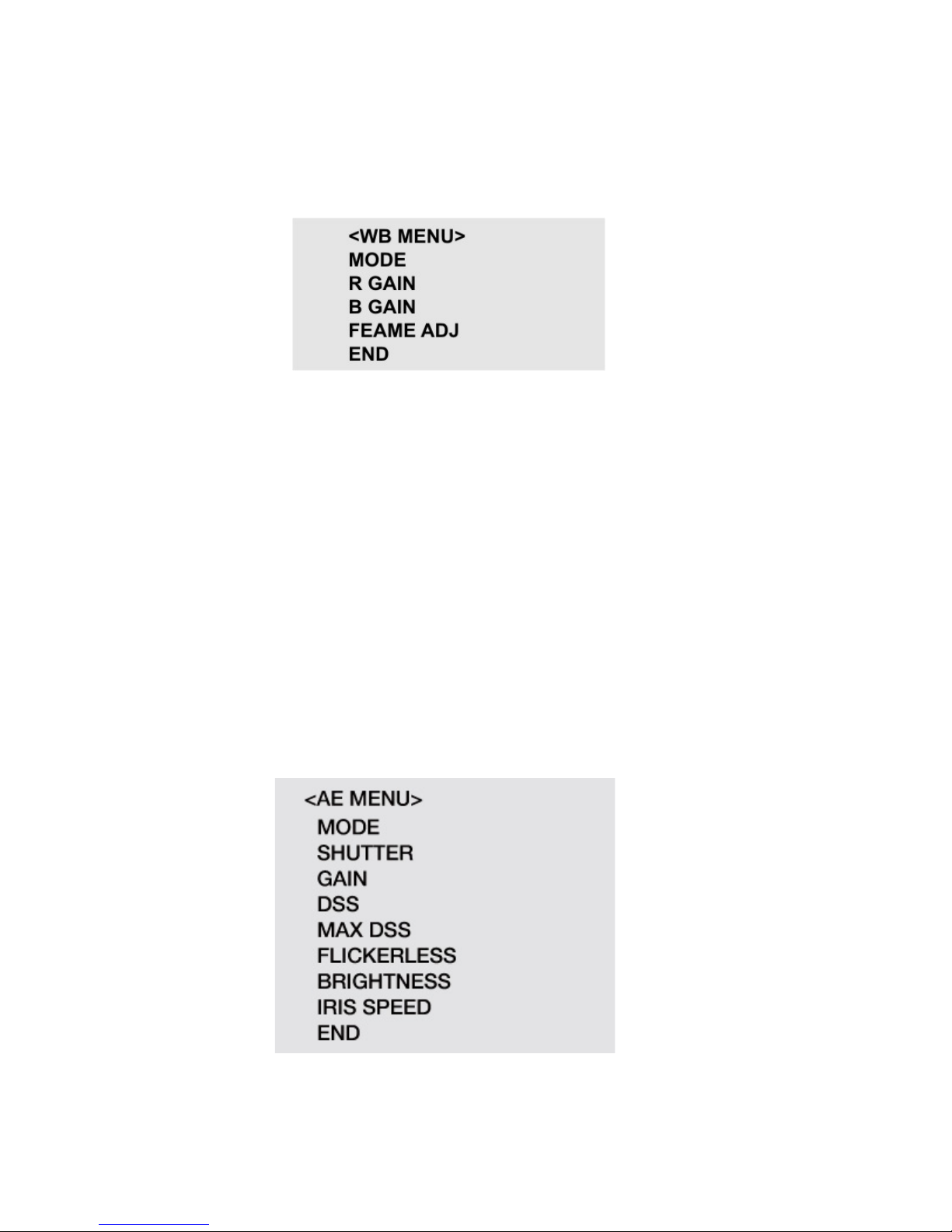

5.2.2 WB (White Balance)
MODE Select white balance mode.
(AWB/WAWB/INDOOR/OUTDOOR/MANUAL/CRS)
-AWB Auto white balance mode. (2500~9500'K)
-WAWB Wide range auto white balance mode. (1800~10500'K)
-INDOOR Indoor white balance mode.
-OUTDOOR Outdoor white balance mode.
-MANUAL Manual mode. You can change R and B Gain manually.
-CRS Color rolling suppression mode.
R GAIN Adjust R gain value. (0~255)
B GAIN Adjust B gain value. (0~255)
FRAME ADJ Since the color rolling path differs depending on the fluorescent
lamp used, adjust the color rolling frame for each fluorescent lamp.
So press Menu key to adjust frame and after about 10 seconds,
the adjust mode will be finished automatically and 'ENT' turns to
'END'.
5.2.3 AE (Auto Exposure)
MODE Select Exposure mode. (AUTO1/AUTO2/SHUT PRI/MANUAL)
-AUTO1 Auto exposure mode 1. (Use to normal surroundings : indoor)

14
-AUTO2 Auto exposure mode 2. (Use to high brightness surroundings :
outdoor)
-SHUT PRI Shutter priority exposure mode.
-MANUAL Manual exposure mode.
SHUTTER Select shutter speed. (1/60(50)~1/100K)
Can be changed while in SHUT PRI and Manual mode.
GAIN Gain control. (0~30DB)
DSS Digital slow shutter on/off
MAX DSS Select maximum slow shutter value. (x2~x512)
FLICKERLESS Flickerless on/off
BRIGHTNESS Adjust brightness level. (0~50)
IRIS SPEED Sets the convergence speed of the mechanical iris (0~20)
5.2.4 BLC/WDR
WDR MODE Wide dynamic range on/off.
LEVEL Adjust WDR level. (LOW/MIDLOW/MID/MIDHIGH/HIGH)
BLC MODE Select backlight compensation mode.
(OFF/HLC/BLC/BLC-M)
AREA Select BLC area position. (1~9)
LEVEL Select BLC level. (LOW/MID/HIGH)
5.2.5 ALARM/MD

15
MODE Select alarm and MD/EXT mode.
(OFF/MD/EXT/ MD+EXT)
AREA SEL Select MD area number. (1~4)
Select MD enable/disable.
DEFAULT Set MD area as default.
ADJ TOP/LEFT Adjust the location of the MD area with boundary top and left.
ADJ BOT/RIGHT Adjust the location of the MD area with boundary bottom and right.
SENSITIVITY Adjust sensitivity of MD area. (MD:1~10)
DWELL TIME Dwell time setup of zoom preset. (10,20,...,180sec)
ALARM MODE One of two options can be selected for EXT mode. BW/PRESET.
PRESET SEL Select zoom preset number. (0FF,1~10)
(When the MD and/or Alarm is/are occurred.)
5.2.6 PRIVACY
MASK SEL Select mask area number. (1~16)
Select mask enable/disable.
DEFAULT Set mask area as default.
ADJ TOP/LEFT Adjust the location of the mask area with boundary top and left.
ADJ BOT/RIGHT Adjust the location of the mask area with boundary bottom and
right.
COLOR Select mask color. (1~8)
MOSAIC Mosaic display on/off.
MOSAIC TYPE Mosaic roughness setting. (1 ~ 4)
NOTE1 : The mosaic when the color is transparent, is possible

16
5.2.7 SPECIAL
D/N MODE Select D/N, Color, BW.
D/N DELAY Adjust the working time of the filter when D/N operated.
(5,10,20 sec)
HI-RES Select high resolution mode. (LOW/MID/HIGH)
2DNR Select 2D noise reduction level. (OFF/01~07)
3DNR Select 3D noise reduction level. (AUTO/01~28)
AUTO : If the motion is detected, DNR level becomes lower
automatically so "ghost" is decreased, on the other
hand, noise will be increased. On the opposit, if there
is no motion, DNR level is raised and noise will be
decreased.
WHITE DET Press the Menu key to execute the White Pixel Detection function
and then the Iris will be closed automatically. When detection is
completed, the operation automatically returns to the normal state.
LEVEL Adjust the threshold level from 1 to 15. (Default is 4)
5.2.8 EFFECT
SHARPNESS Adjust sharpness of outline. (0~15)
NEGATIVE Select the negative or positive mode.
D-FLIP Select rotate or flip mode. (OFF/V FLIP/H FLIP/ROTATE)
FREEZE Select the real or still mode.
DIS Select On or Off the DIS mode. (Digital Image Stabilizer)

17
5.2.9 CAM SET
CAM ID Select the camera ID. (1~255)
BAUD RATE Select serial communication speed. (2400/4800/9600/19200bps)
PROTOCOL Select operating protocol.
(FASTRAX/PELCO-P/PELCO-D/COMMAND)
DISP MODE Select display mode. (ON//PUSH ON/OFF)
DISP ITEM Select display item. (1~2)
1 Camera Title and ID display.
2 Camera Title and ID, Zoom lens position display.
TITLE Select camera title menu. (A~Z, 0~9)
ALARM TEXT If the alarm is occurred, the ALARM TEXT established at this
menu will be displayed.
SAVE Save preset parameters of CAM SET MENU.
NOTE 1 : You can choose BPS menu appropriate for keyboard protocol.
NOTE 2 : Although you change BAUD RATE or PROTOCOL menu,
the terms of change is not applied unless you select SAVE menu.
NOTE 3 : Do not power source down while saving

18
6. TROUBLESHOOTING AND MAINTENANCE
6.1 TROUBLESHOOTING
If problems occur, verify the installation of the camera with the instruction in this
manual and with other operating equipment.
Isolate the problem to the specific piece of equipment in the system and refer to
the equipment manual for further information.
PROBLEM
POSSIBLE SOLUTION
Nothing appears on the screen Are the power cord and line connection between
the camera and monitor made properly?
The image on the screen is dim.
Is the lens dirty?
If so, clean the lens with a soft, clean cloth.
The camera is not working
properly and the surface of the
camera case is hot.
Is the camera connected to the proper power?
The contrast on the screen is
too weak.
Adjust the contrast feature of the monitor.
Is the camera exposed to strong light?
If so, change the camera position.
6.2 MAINTENANCE
Preventive maintenance allows detection and correction of minor faults before they
become serious and cause equipment failure.
Every three-month, perform the following maintenance.
A. Inspect all connection cables for deterioration or other damage.
B. Clean components with a clean damp cloth.
C. Verify that all the mounting hardware is secure.

19
7. DIMENSIONS

20
8. SPECIFICATIONS
MODEL
NTSC
PAL
POWER
Power Source
DC 12V ±10%
Power Consumption
0.3A(4W)
Image Sensor
1/4" 960H Super HAD CCD II
Total Pixels 1028(H) * 508(V) 1028(H) * 596(V)
Scanning System
2:1 interlace
Scanning Frequency
15.734KHz(H), 59.94Hz(V)
15.625KHz(H), 50Hz(V)
Sync. System
Internal
Resolution
700 TV lines
Min. illumination
0. lux (Color), 0.01 lux (B/W), 0.00001 lux (Low-shutter)
Video Output 1.0 Vp-p (75 ohm, composite)
S/N Ratio
50dB (AGC OFF)
WDR (Wide Dynamic Range)
Off / On
BLC (Back Light Compensation)
Off / HLC / BLC / BLC-M(BLC Manual)
Day & Night
Auto / Color / BW
ALARM / MD (Motion Detection)
Off / MD / EXT / MD+EXT
DIS(Digital Image stabilizer) On/Off
DSS (Digital Slow Shutter)
x2 ~ x512
DNR (Digital Noise Reduction)
2D / 3D
PM (Privacy Masking)
1 ~ 16 zone
AWB (Auto White Balance)
AWB / WAWB / Indoor / Outdoor / Manual / CRS
AE (Auto Exposure)
Auto1 / Auto2 / Shutter PRI / Manual
Iris Control Auto
AGC (Auto Gain Control)
MIN / LOW / MID / HIGH (30dB max.)
Shutter Speed
Normal ~ 1/100,000
Title
A ~ Z / 0 ~ 9
Display
On / PushOn / Off
Brightness
10 ~ 50 steps
Sharpness 0 ~ 15 steps
Zoom Preset
Preset 1 ~ 10
Zoom Tour
Tour 1
Camera Control RS-232 / RS-485(FASTRAX / Pelco P, D / COMMAND) /
ADKey
BPS
2400 / 4800 / 9600 / 19200
Camera ID
001 ~ 255
D-FLIP Off / V- FLIP / H- FLIP / ROTATE
Effect Sharpness, Nega/Posi, D-FLIP, Freeze, DIS
HI-RES, 2-3DNR
Home Preset Off / Home Preset Select / Dwell Time
G
E
N
E
R
A
L
F
U
N
C
T
I
O
N
